USER MANUAL CS 1810DD HiKOKI

Technical line drawing of a chain-linking device (no text or symbols)

en Handling instructions
de Bedienungsanleitung
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
es Instrucciones de manejo
pt Instruções de uso
sv Bruksanvisning
da Brugsanvisning
no Bruksanvisning
fi Käyttöohjeet

el Οδηγίες χειρισμού
pl Instrukcja obsługi
hu Kezelési utasítás
cs Návod k obsluze
tr Kullanım talimatları
ro Instructiuni de utilizare
sl Navodila za rokovanje
sk Pokyny na manipuláciu
bg Инструкция за експлоатация
sr Uputstvo za rukovanje
hr Upute za rukovanje

1

Technical diagram of a chain-link robotic device with labeled parts and exploded view

2

Line drawing of a hand using a manual power tool to cut a pipe (no text or symbols present)

3

Diagram showing a hand using a crimping tool to adjust a mechanical component, with labeled parts and warning symbol.

4

Technical diagram of a mechanical component with numbered parts labeled 3 through 7

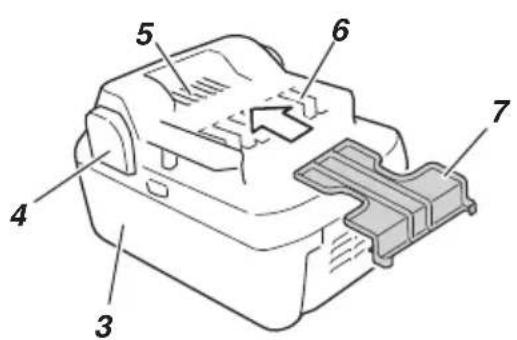

5

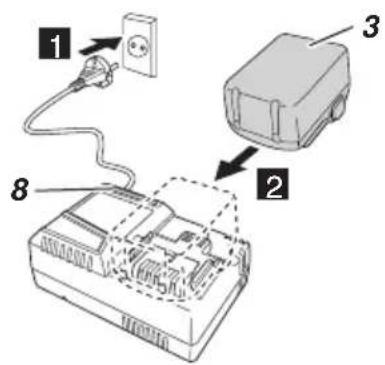

Diagram showing electrical connection to a device with labeled parts 1, 2, and 3, and component 8.

6

Technical diagram showing mechanical component assembly with numbered parts and directional arrows indicating movement or force.

7

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of motion or assembly.

8
[NO TEXT]

1 2 11

a

[Figure]

3 b

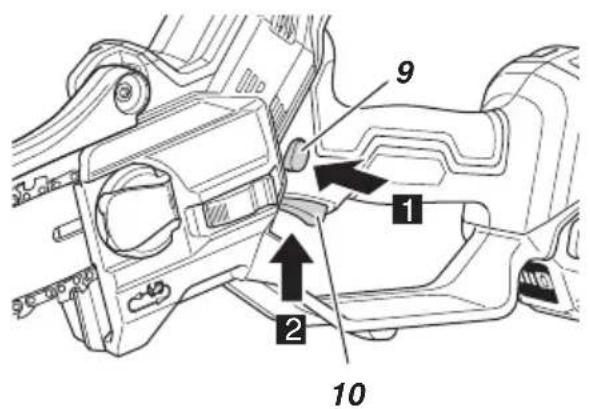

9

1 2 12 13 1 O

10

1 2 14 15 16

11

12

1 2 12 13 11 0

13

1 12 2 11 3

abC

14

15 0.5-1.5 mm 21

15

22 23

16

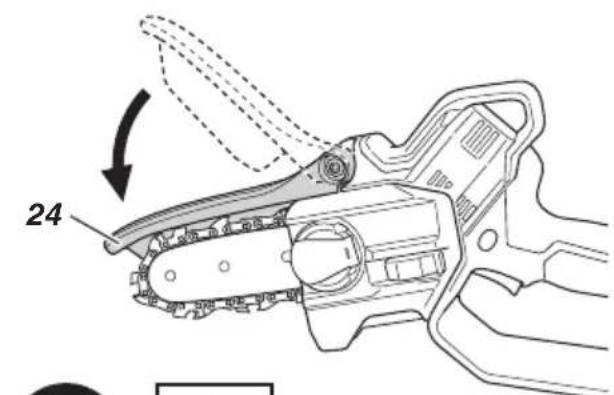

24

17

Line drawing of a hand using a power tool to adjust or install a mechanical component, with no visible text or symbols.

2

18

25

a

Diagram showing a hand operating a mechanical device with warning symbol and labeled component '1'

b

19

27 26 28

20 30 29

21

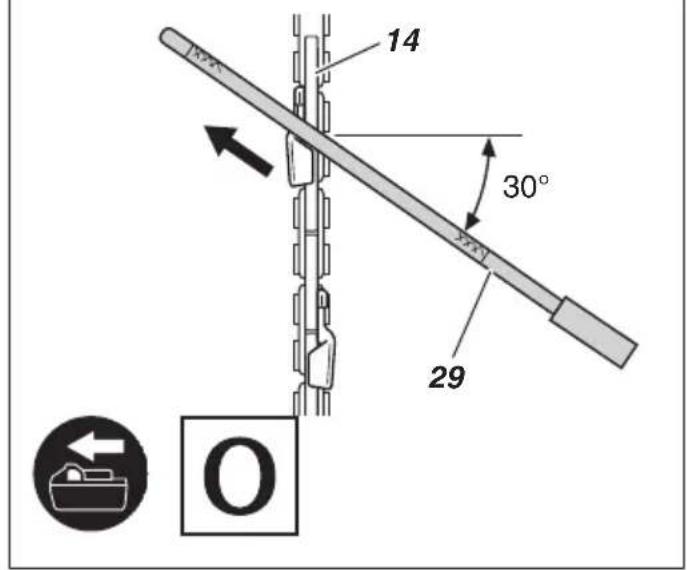

14 30° 29 O

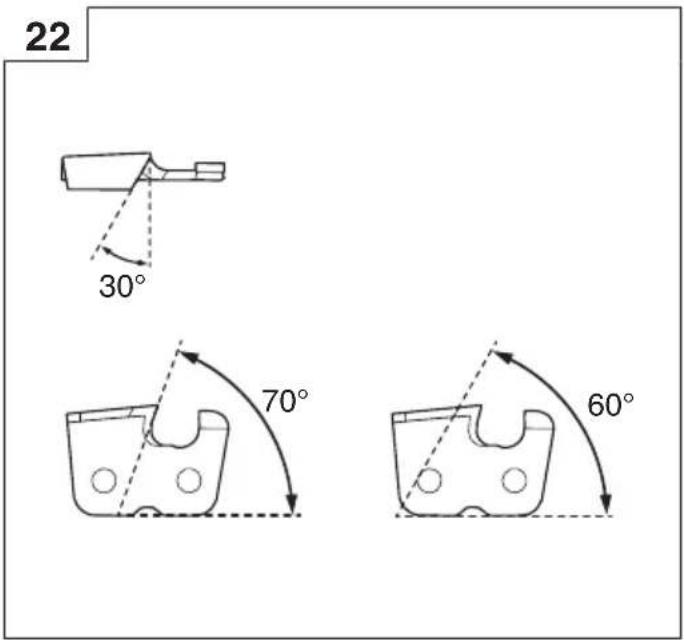

22 30° 70° 60°

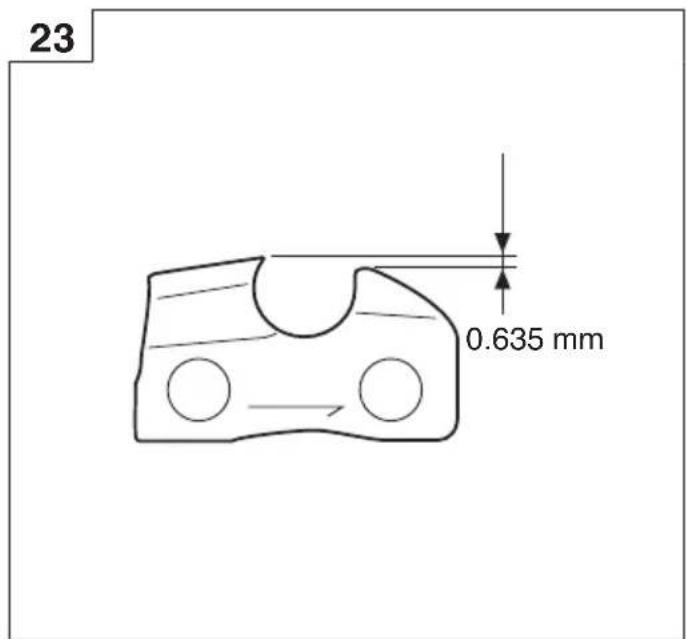

23 0.635 mm

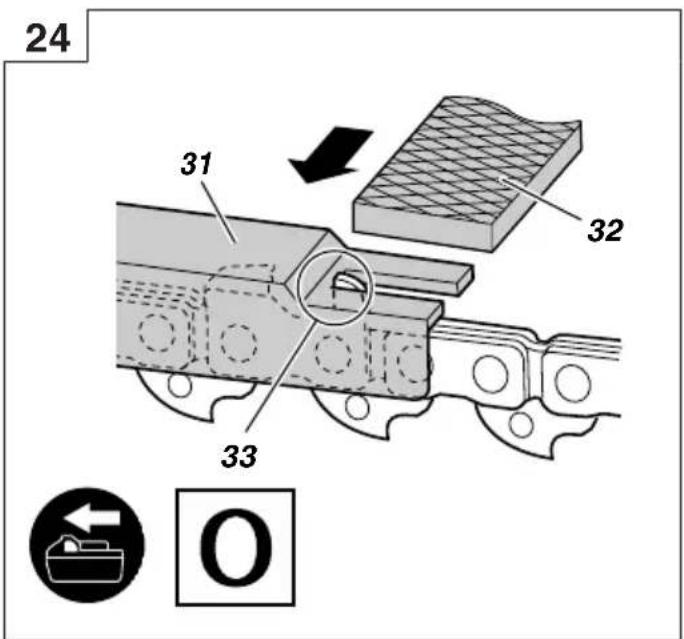

24 31 32 33 O

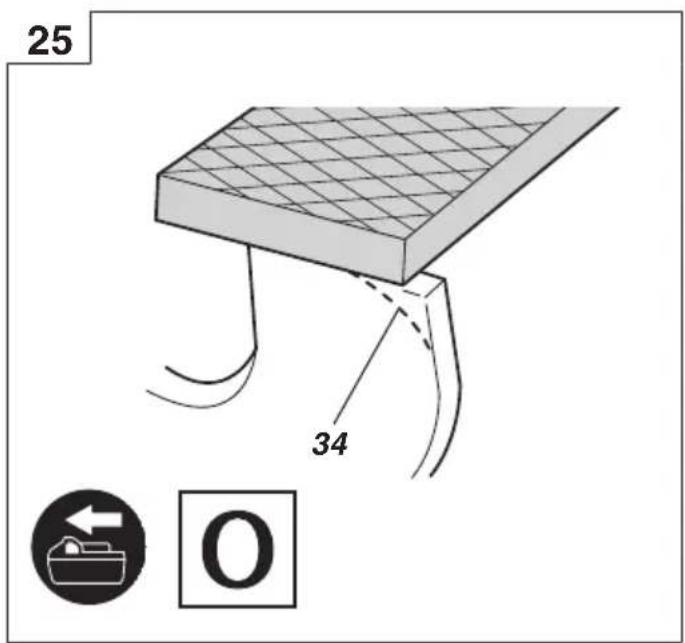

25 34 O

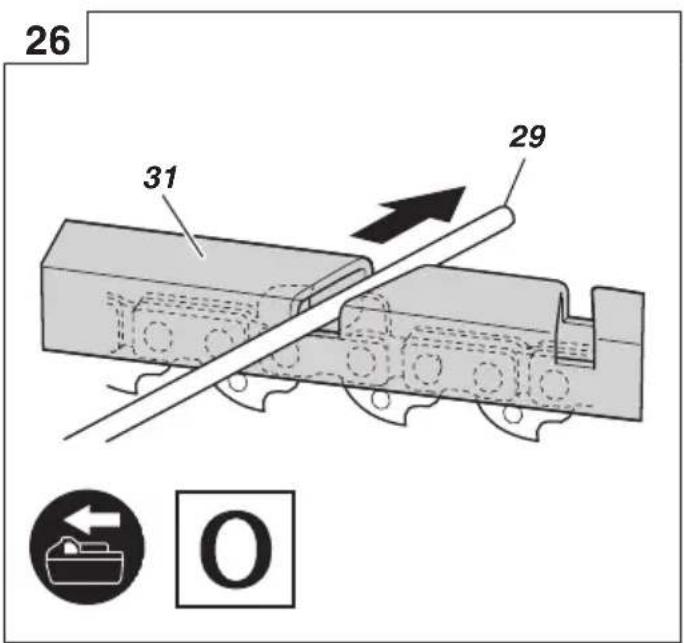

26 31 29 O

27 35 40 36 37 38 39 9 41 42 10 43

28 10 m a b 15 m

29

43 44 40

30

2 38 1 39 3

31

1 36 2 37 a 3 36 4 2 1 b

32

43

33

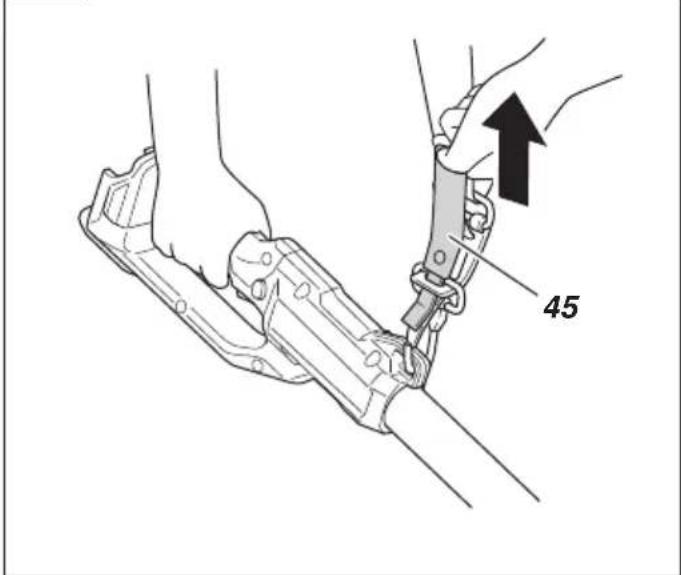

45

34

46 44 47

35

42 3 a 4 2 1 b

36

Diagram showing two hand-painted cable carabiners with arrows indicating movement, separated by a diagonal line and a prohibition symbol (no text or labels)

Safety warning illustration showing a hand using a tool to prevent a non-smoking symbol, with a no-smoking symbol above.

38

24 13

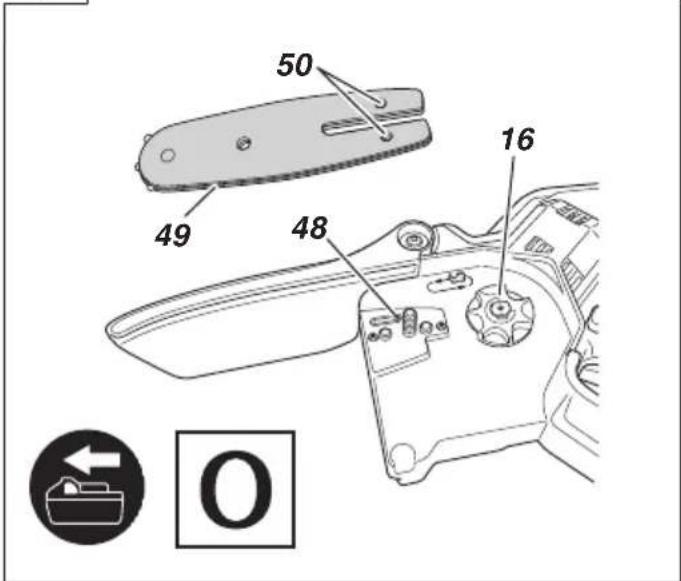

39

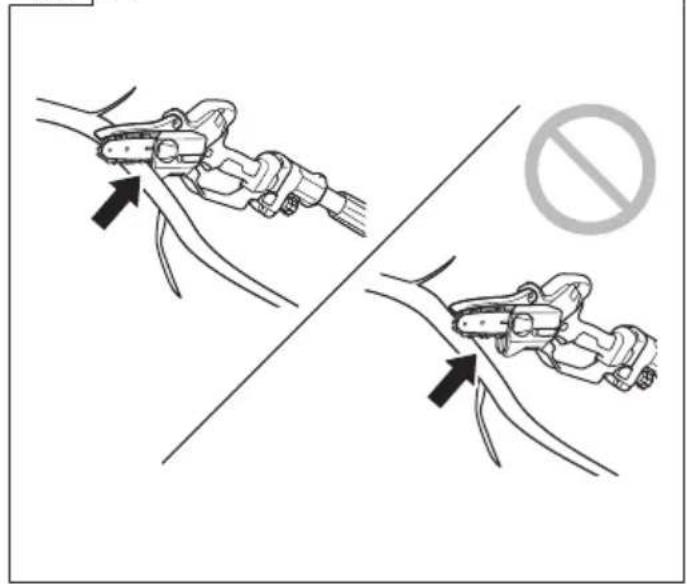

50 49 48 16 O

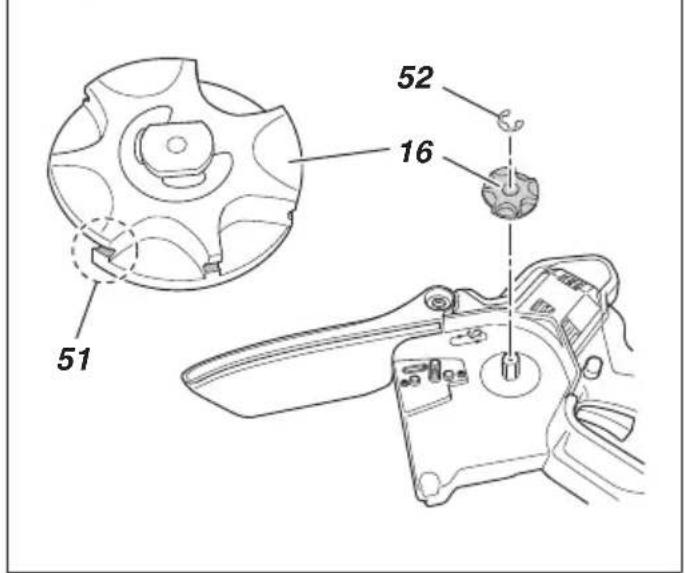

40

51 52 16

41

13 53

42

56 55 54 56 57 58 4

43

a b 3

44

Diagram showing two connected cable configurations labeled 1 and 2, with arrows indicating connection points.

SYMBOLS

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

	CS1810DD: Cordless Pruning saw
	To reduce the risk of injury, user must read instruction manual.
	Do not use a power tool in the rain and moisture or leave it outdoors when it is raining.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
	Read, understand and follow all warnings and instructions in this manual and on the unit.
	Always wear eye, head and ear protectors when using this unit.
	It is important that you wear the protective clothing for feet, legs, hands and fore-arms.
	Beware of pruning saw kickback and avoid contact with bar tip.
	One-handed usage not permitted.
	Always use pruning saw two-handed.

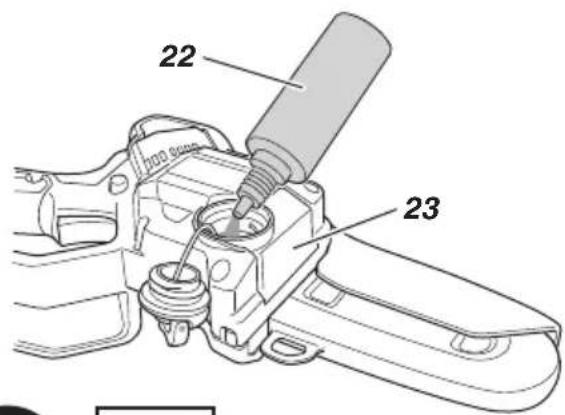

	Chain oil fill

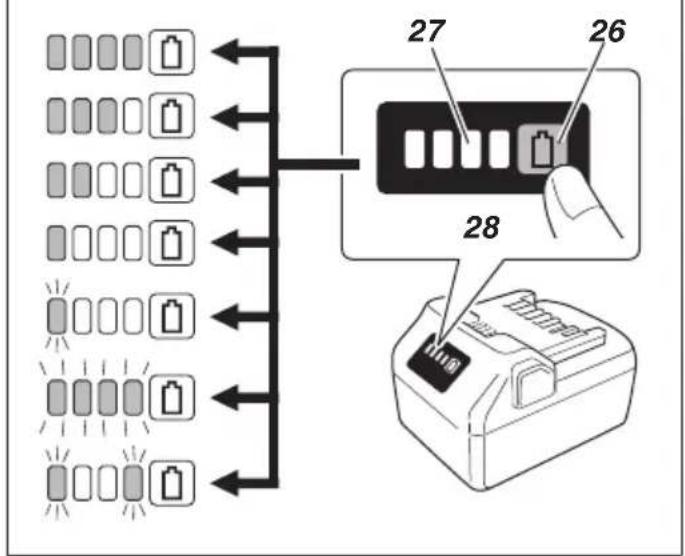

	Battery level indicator switch
	Disconnect the battery

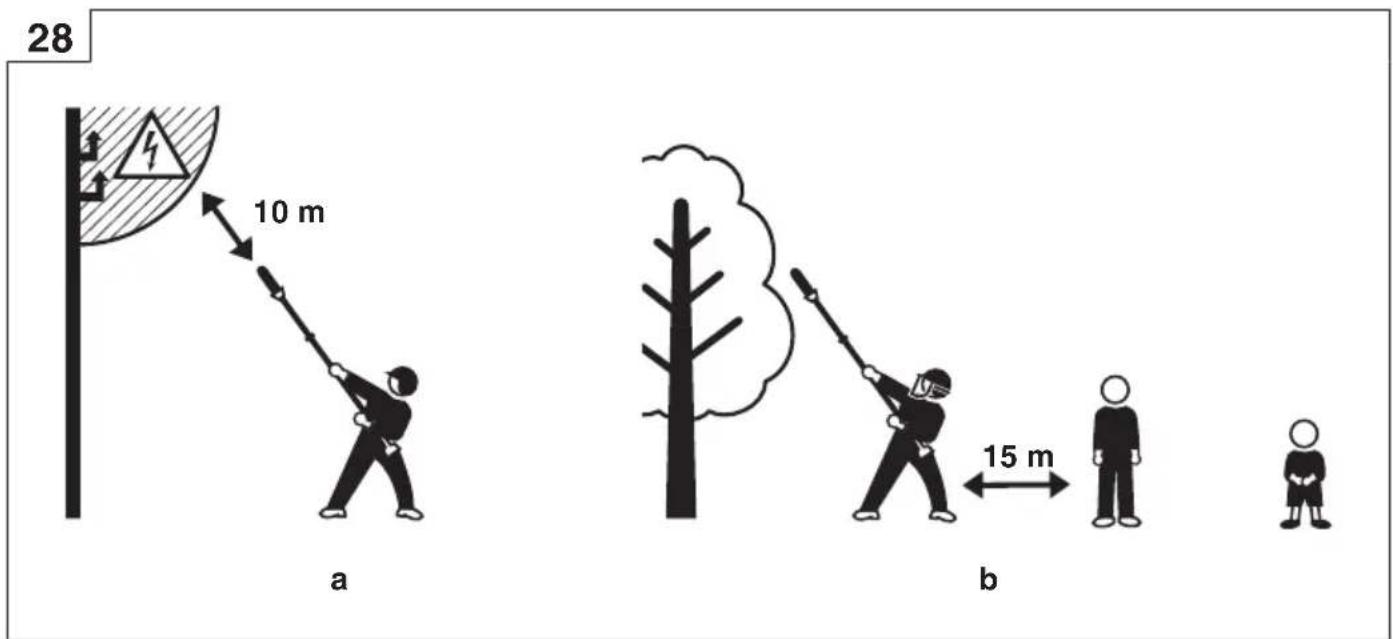

Keep all children, bystanders and helpers 15 m away from the unit. If anyone approaches you, stop operation. Do not operate unit if any wires (power, telephone, cable, etc.) are closer than 10 m to any part of the operator or unit.

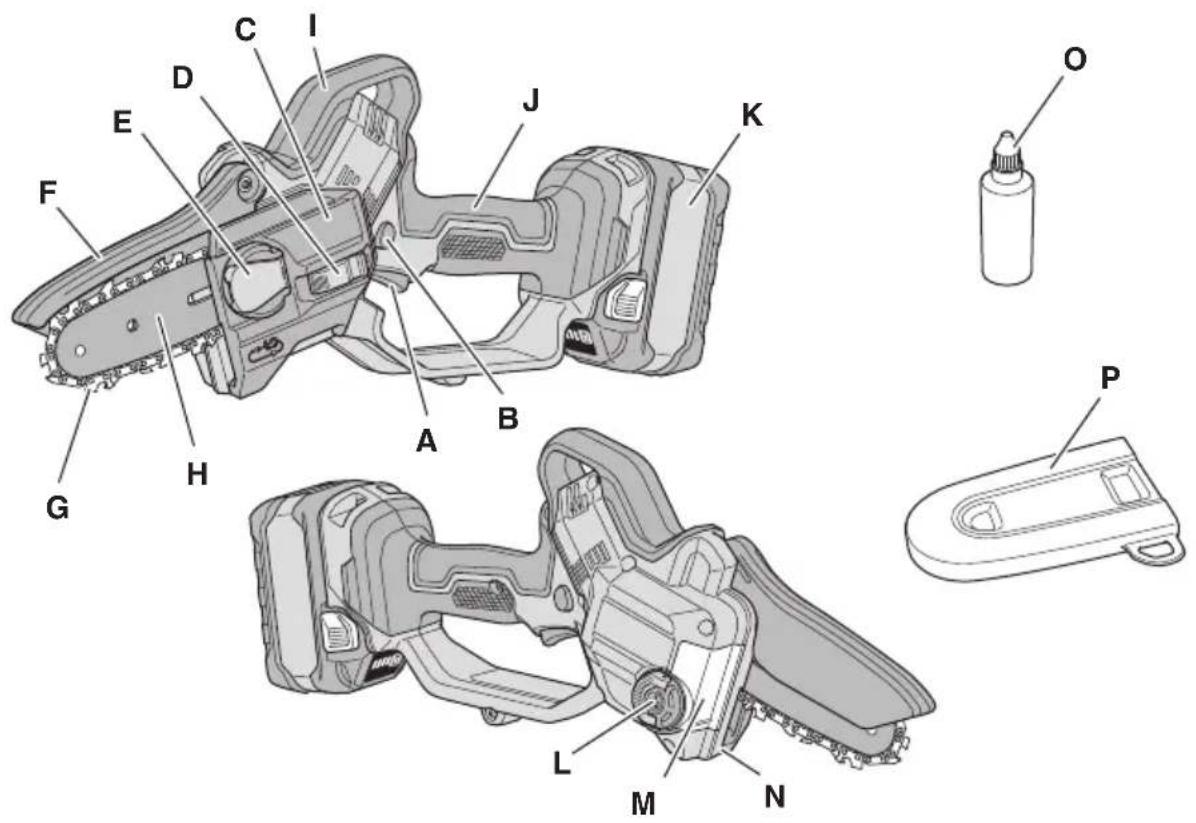

WHAT IS WHAT?

The names of parts in the list below correspond to Fig. 1.

A: Switch: Device activated by the finger.

B: Lock-off button: Button that prevents the accidental operation of the trigger.

C: Side cover: Protective cover to the guide bar, saw chain and sprocket when the pruning saw is in use.

D: Tension lever: Device for adjusting tension of saw chain.

E: Knob: Knob for securing side cover.

F: Chain guard: Prevents contact with the saw chain.

G: Saw chain: Chain, serving as a cutting tool.

H: Guide bar: The part that supports and guides the saw chain.

I: Auxiliary handle: Top portion of the housing. By firmly gripping here from above, you can suppress the lifting of the tool body caused by kickback.

J: Control handle: Handle on the back of the tool body. Hold here tightly to move and control the tool body.

K: Battery (sold separately): Power source to drive the unit.

L: Oil tank cap: Cap for closing the oil tank.

M: Oil sight glass: Window to check chain oil amount.

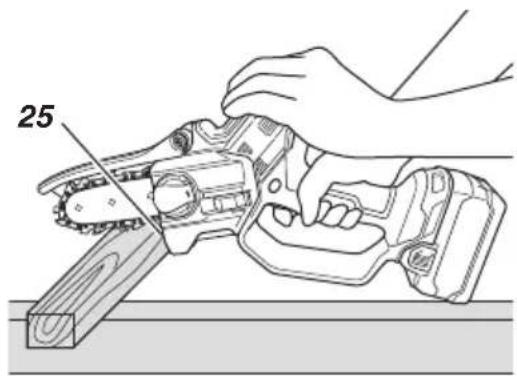

N: Cutting guide: Place this part against the material you are cutting.

O: Oil feeder: Container for oil.

P: Chain case: Case for covering the guide bar and saw chain when the unit is not being used.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

English

c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

GENERAL PRUNER SAW SAFETY WARNINGS

1. Keep all parts of the body away from the saw chain when the pruner saw is operating. Before you start the pruner saw, make sure the saw chain is not contacting anything. A moment of inattention while operating pruner saw may cause entanglement of your clothing or body with the saw chain.

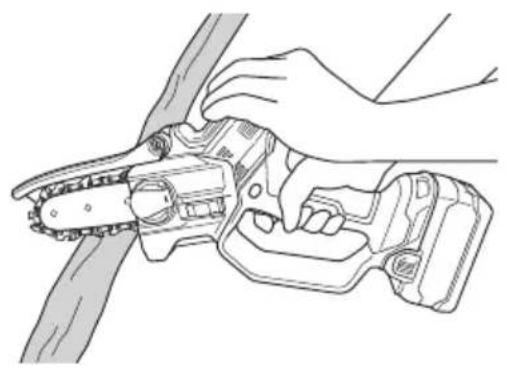

2. Always hold the pruner saw with one hand on the control handle and the other hand on the auxiliary handle (Fig. 2)
3. Hold the pruner saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the pruner saw "live" and could give the operator an electric shock.
4. Wear eye protection. Further protective equipment for hearing, head, hands, legs and feet is recommended. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain.
5. Do not operate a pruner saw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a pruner saw in this manner could result in serious personal injury.
6. Always keep proper footing and operate the pruner saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the pruner saw.

7. When cutting a branch that is under tension, be alert for spring back. When the tension in the wood fibres is released, the spring loaded branch may strike the operator and/or throw the pruner saw out of control.

8. Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.

9. Carry the pruner saw with the pruner saw switched off and away from your body. When transporting or storing the pruner saw, always fit the guide bar cover. Proper handling of the pruner saw will reduce the likelihood of accidental contact with the moving saw chain.
10. Follow instructions for lubricating, chain tensioning and changing the bar and chain. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
11. Cut wood only. Do not use pruner saw for purposes not intended. For example: do not use pruner saw for cutting metal, plastic, masonry or non-wood building materials. Use of the pruner saw for operations different than intended could result in a hazardous situation.
12. This pruner saw is not intended for tree felling. Use of the pruner saw for operations different than intended could result in serious injury to the operator or bystanders.
13. Follow all instructions when clearing jammed material, strong or servicing the pruner saw. Make sure the switch is off and the battery pack is removed.

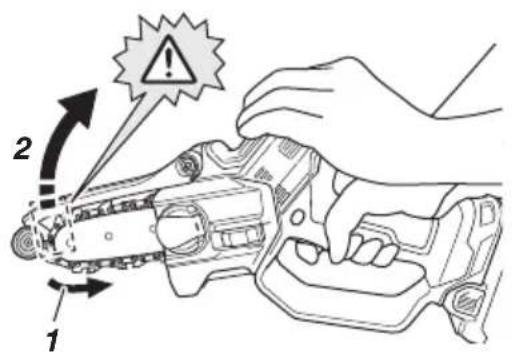

Causes and operator prevention of kickback: (Fig. 3) Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

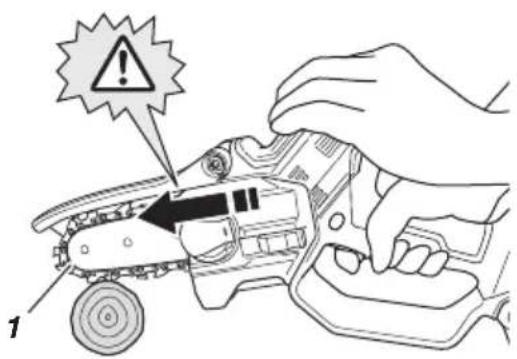

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury.

Do not rely exclusively upon the safety devices built into your saw. As a pruner saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of pruner saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

○ Maintain a firm grip, with thumbs and fingers encircling the pruner saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the pruner saw (Fig. 2).
○ Do not overreach and do not cut above shoulder height unless the extension pole is mounted. This helps prevent unintended tip contact and enables better control of the pruner saw in unexpected situations.
○ Only use replacement guide bars and saw chains specified by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.
Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

ADDITIONAL SAFETY WARNINGS

1. Work without pressure. In addition, always keep your body warm.
2. Before commencing work, reflect fully on the work procedures involved and work to avoid accidents, otherwise injury may occur.

English

1. Do not use in the event of bad weather, such as strong wind, rain, snow, fog, or in areas prone to rockfall or avalanches. In bad weather, judgment may be impaired and the vibration may result in disaster.

2. When visibility is poor, such as during bad weather or night, do not use the unit. In addition, do not use it in rain or in a location exposed to rain. Unstable foothold or loss of balance may result in an accident.

3. Check the guide bar, saw chain and chain guard before starting the unit.

○ If the guide bar, saw chain or chain guard is cracked, or the product is scratched or bent, do not use the unit.

☐ Check if the guide bar and saw chain are securely installed. If the guide bar or saw chain is broken or dislodged, this may result in an accident.

1. Before starting work, check to ensure the switch does not engage unless the lock-off button is pressed. If the unit does not working properly, immediately stop using and request repair from your HiKOKI Authorized Service Center.

2. Install the saw chain properly, in accordance with the instruction manual. If installed incorrectly, the saw chain will come off the guide bar and injury may occur.

3. Never remove any of the safety devices equipped on the pruning saw (chain guard, lock-off button, etc.). In addition, do not alter or immobilize them. Injury may occur.

4. Pay adequate attention to safety in places where power lines, gas pipes, etc. are installed.

5. Be careful with bent branches, hung-up trees, and cracked wood as they may bounce back when cutting is finished.

6. In the following cases, switch the unit off and ensure the saw chain is no longer moving:

○ When not in use, or when performing maintenance or inspections

○ When shifting to a new work location.

○ When inspecting, adjusting or replacing the saw chain, guide bar, chain case and any other part.

○ When refilling the chain oil.

○ When removing dust etc. from the body.

○ When removing obstacles, trash or sawdust generated from work from the work area.

○ When you take off the unit, or when you get away from the unit.

- Otherwise, if you sense danger or anticipate risk. If the saw chain is still moving, an accident may occur.

1. Work should generally be performed individually. When multiple individuals are involved, ensure sufficient spacing between them. In particular, when working on a slope, if you anticipate trees falling, rolling or sliding, ensure there is no danger to other workers.

2. Remain more than 15 m away from other people. In addition, when working with multiple persons, remain 15 m or more apart.

- There is a risk of impact with scatters and other accidents.

○ Prepare a whistle alert etc. and determine appropriate contact method for other workers beforehand.

1. If you notice that the unit is generating unusually high temperatures, operating poorly, or making abnormal noises, immediately stop using and shut off the power switch. Request an inspection and repair from the dealer where you purchased the unit or a HIKOKI Authorized Service Center. Continuing to use while operating abnormally might cause injuries.

2. If the unit is mistakenly dropped or strikes another object, make a thorough check of the unit for cracks, breakage or deformation, etc. Injuries might occur if the unit has cracks, breakage or deformation.

3. If the unit is accidentally dropped or exposed to impact, inspect carefully for damage or cracks and ensure there is no deformation. If the unit is damaged, cracked or deformed, injury may occur.

4. When transporting the unit by vehicle, secure the unit to prevent it moving. There is a risk of accident.

5. Do not switch the unit on while the chain case is attached. Injury may occur.

6. Ensure there are no nails and other foreign objects in the material. If the saw chain impact on the nail etc., injury may occur.

7. To avoid the guide bar becoming entangled with the material when chopping on a verge or when subject to the weight of material while cutting, install a supporting platform close to the cutting position. If the guide bar becomes entangled, injury may occur.

8. If the unit is to be transported or stored after use, either remove the saw chain, or attach the chain case. If the saw chain comes into contact with your body, injury may occur.

9. Adequately care for the unit.

To ensure work can be performed safely and efficiently, care for the saw chain to ensure it provides optimal cutting performance.

When replacing the saw chain, guide bar or sprocket, maintaining the body, filling oil etc., follow the instruction manual.

1. Ask the shop to repair the unit.

○ Do not modify this product, since it already complies with the applicable safety standards.

○ Always refer to your HiKÖKI Authorized Service Center for all repairs. Attempting to repair the unit yourself may result in an accident or injury.

1. When not using the unit, ensure it is properly stored. Drain off the chain oil, and keep in a dry place out of reach of children or a locked location.

2. If the warning label is no longer visible, peels off or is otherwise unclear, apply a new warning label. For the warning label, refer to your HiKOKI Authorized Service Center.

3. When working, if local rules or regulations apply, comply with the same.

4. Do not use the product if the tool or the battery terminals (battery mount) are deformed. Installing the battery could cause a short circuit that could result in smoke emission or ignition.

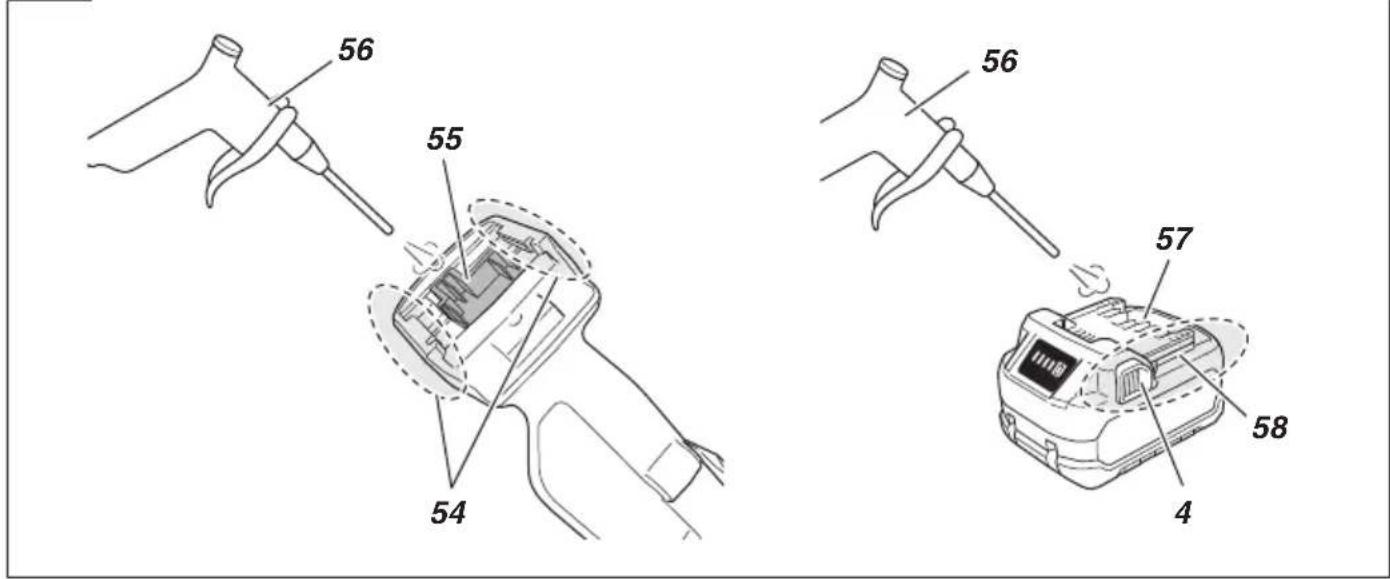

5. Keep the tool's terminals (battery mount) free of swarf and dust.

- Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

○ During use, try to avoid swarf or dust on the tool from falling on the battery.

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust. Doing so could cause a short circuit that could result in smoke emission or ignition.

1. Make sure that the battery is installed firmly. If it is at all loose it could come off and cause an accident.

2. Always use the tool and battery at temperatures between -5^ and 40^ .

PRECAUTIONS FOR BATTERY AND CHARGER

1. Always charge the battery at a temperature of 0^ C– 40^ C. A temperature of less than 0^ C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40^ C. The most suitable temperature for charging is that of 20^ C– 25^ C.
2. Do not use the charger continuously. When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.
3. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
4. Never disassemble the rechargeable battery and charger.
5. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fire. If the battery is burnt, it may explode.
7. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
8. Do not insert objects into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or a damaged charger.
9. When using this unit continuously, the unit may overheat, leading to damage in the motor and switch. Therefore, whenever the housing becomes hot, give the tool a break for a while.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops. In such a case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   ○ During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   ○ Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery for a purpose other than those specified.
5. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
6. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
7. Keep away from fire immediately when leakage or foul odor are detected.
8. Do not use in a location where strong static electricity generates.
9. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
10. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.
11. Do not give a strong shock to the display panel or break it. It may lead to a trouble.
12. If alkaline lubricant or cutting fluid adheres to the battery, quickly wipe it off with a dry cloth. Failure to do so may result in damage or degradation of the case.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately. There is a possibility that this can cause skin irritation
3. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fire. When storing the lithium ion battery, obey surely the rules of following contents.

○ Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case.
To prevent shorting from occurring, load the battery in the tool or insert securely the battery cover for storing until the ventilator is not seen. (Fig. 4).

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

English

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

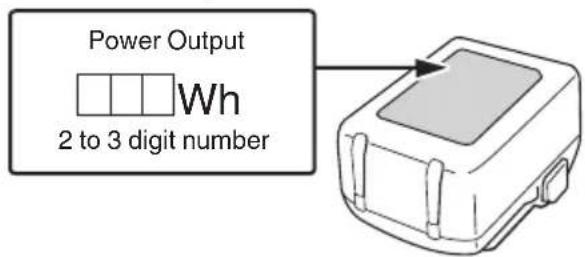

○ Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.

☐ For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Power Output Wh 2 to 3 digit number

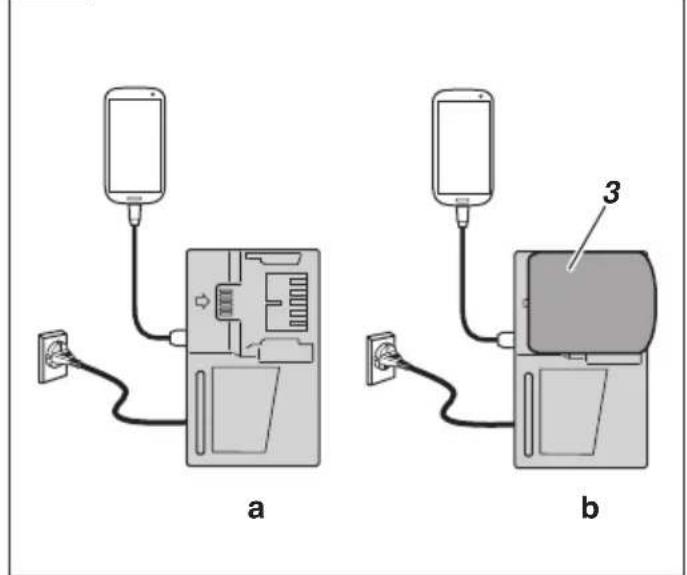

USB DEVICE CONNECTION PRECAUTIONS (UC18YSL3)

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product.

Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

WARNING

○ Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition.

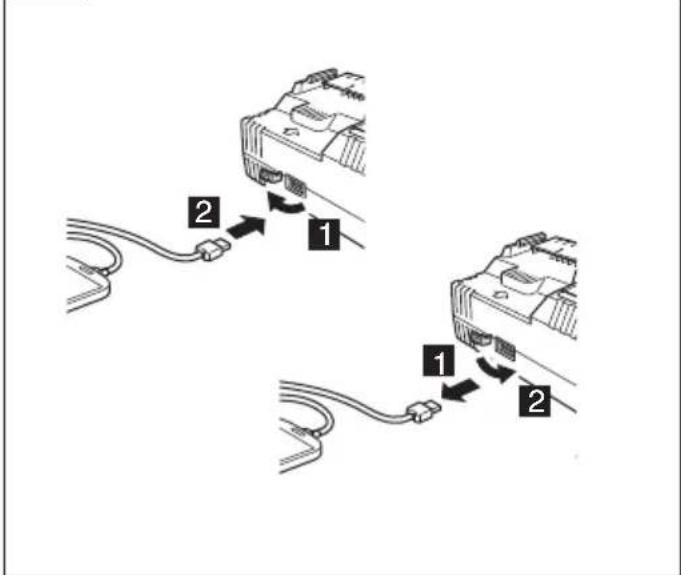

When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc. in the USB port can cause smoke emission or ignition.

NOTE

○ There may be an occasional pause during USB recharging.

When a USB device is not being charged, remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents.

○ It may not be possible to charge some USB devices, depending on the type of device.

NAMES OF PARTS

The numbers in the list below correspond to Fig. 2–Fig. 44.

1	Running direction of saw chain
2	Kick back direction
3	Battery (sold separately)
4	Latch
5	Ventilation holes
6	Terminals
7	Battery cover

8	Charge indicator lamp
9	Lock-off button
10	Switch

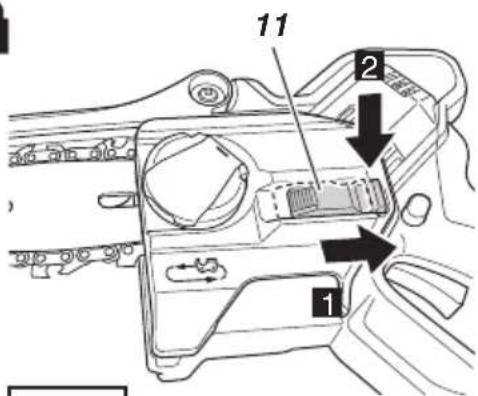

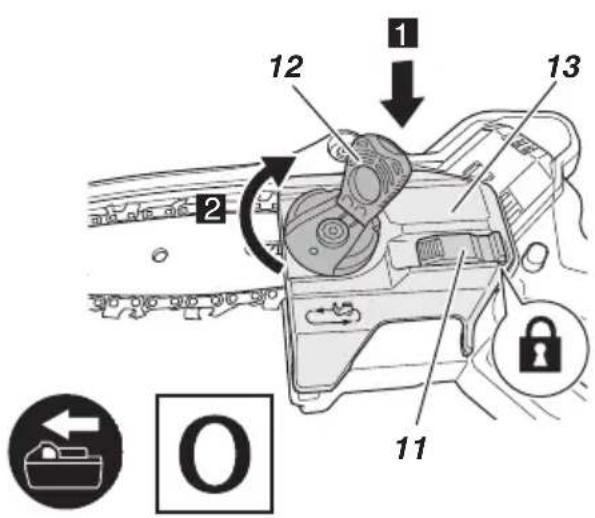

11	Tension lever

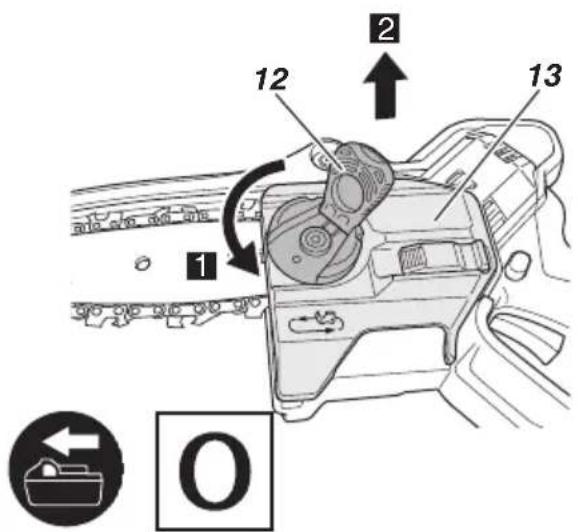

12	Knob
13	Side cover

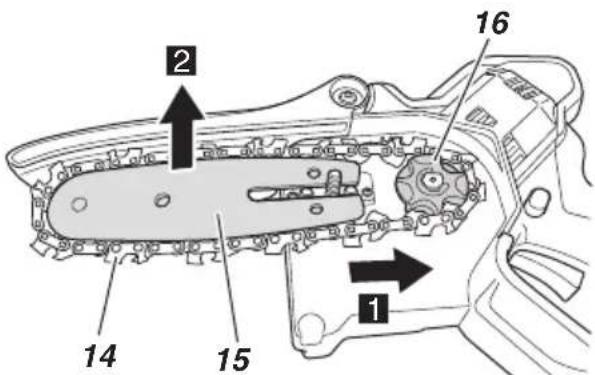

14	Saw chain
15	Guide bar
16	Sprocket
17	Blade direction
18	Illustration showing blade direction
19	Bolt
20	Slit of guide bar
21	Tie strap
22	Chain oil
23	Oil sight glass

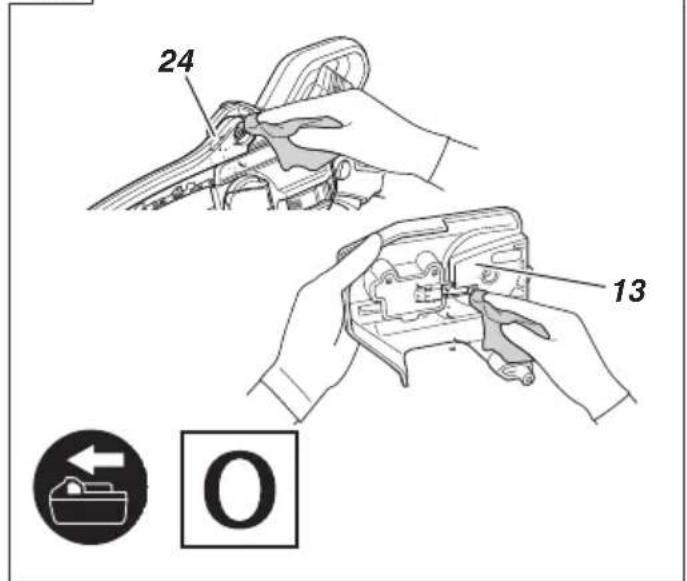

24	Chain guard
25	Cutting guide
26	Remaining battery indicator switch
27	Remaining battery indicator lamp
28	Display panel
29	Round file
30	1/5 of diameter of file
31	Depth gauge jointer
32	Flat file
33	Protruding depth gauge head
34	Round off

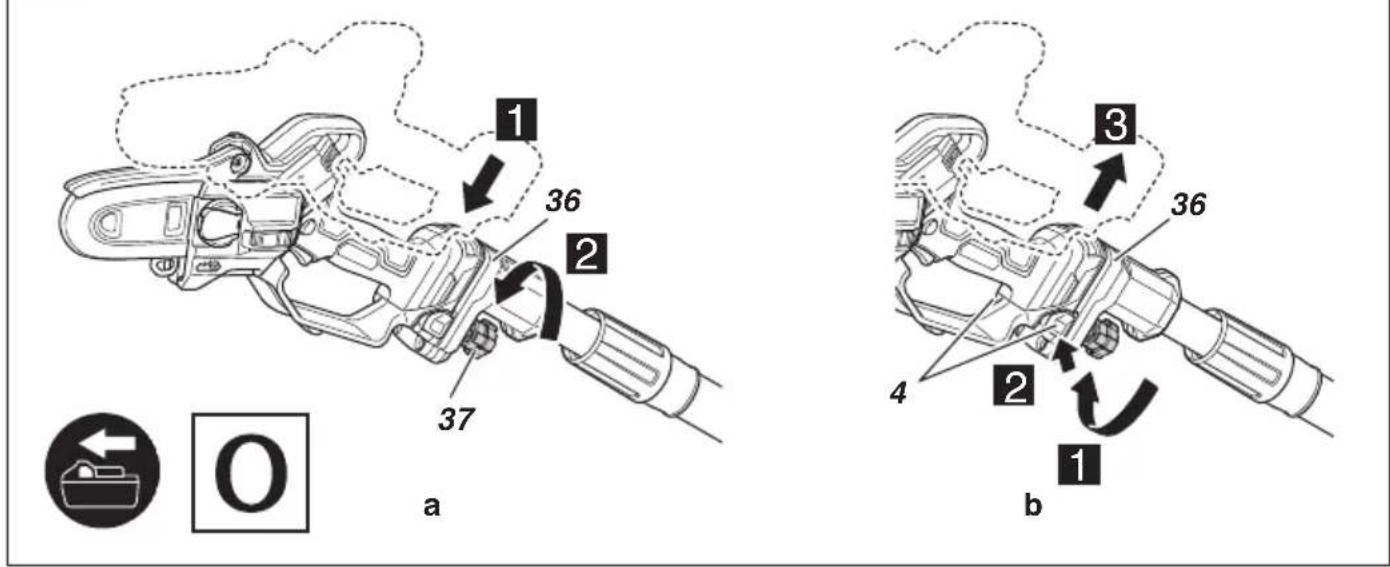

35	Pole attachment
36	Tool attachment socket
37	Knob bolt
38	Screw ring
39	Pole
40	Hanger
41	Handle
42	Battery attachment socket

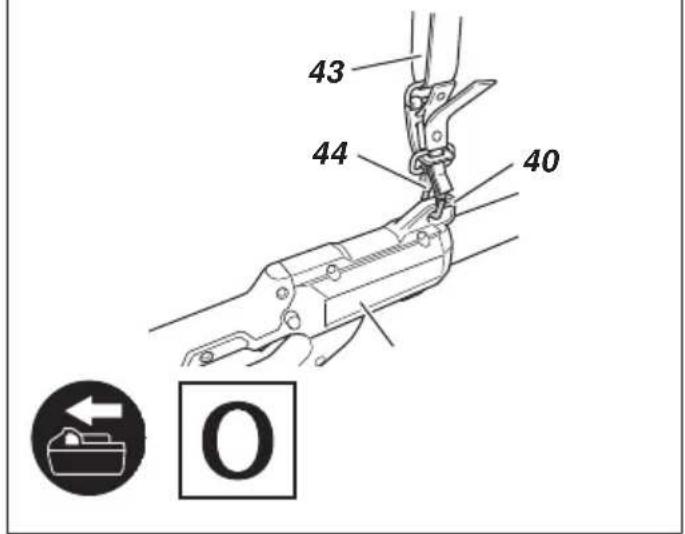

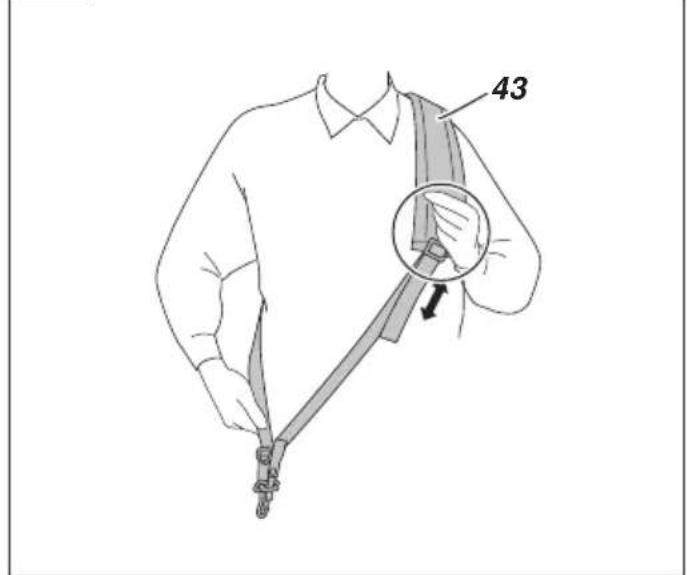

43	Shoulder belt

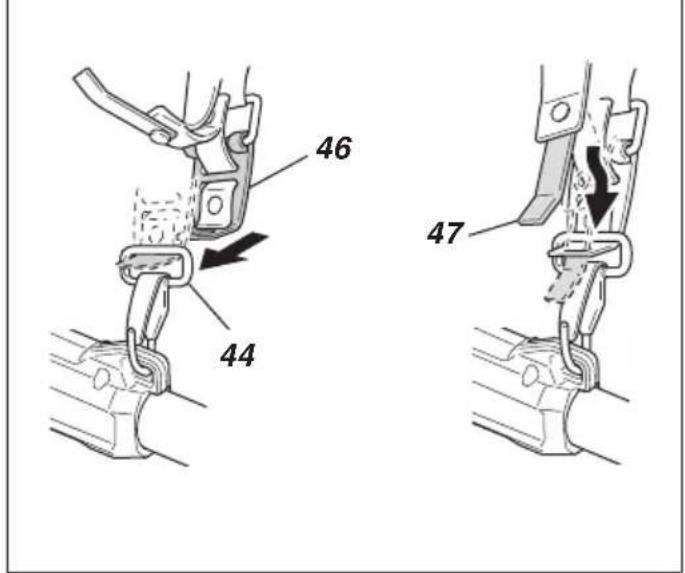

44	Hook
45	Quick-release belt
46	Bracket
47	Quick-release bracket
48	Chain oil spout
49	Groove
50	Oil hole
51	Worn part of sprocket

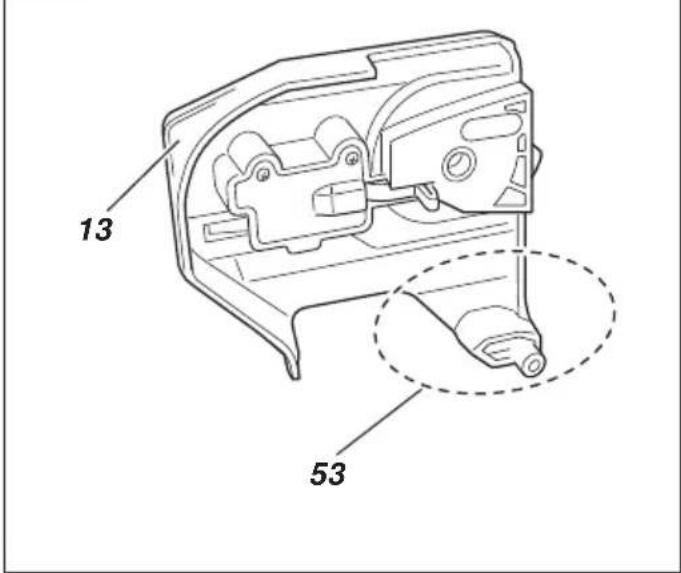

52	Retaining ring (e-type)
53	Chain catcher
54	Battery sliding grooves
55	Terminal (Product)
56	Air gun
57	Terminal (Battery)
58	Sliding grooves

SPECIFICATIONS

1. Power tool

Model CS1810DD
Voltage 18 V
Saw chain	Type: 80TXL-26EPitch: 8.255 mm (0.325") / Gauge: 1.1 mm (0.043")
Guide bar	Type: 044MLJZ001Size: 100 mm(Max. cutting legth)
Sprocket	Number of teeth: 7 / 8.255 mm (0.325")
No-load chain speed 8.0 m/s (480 m/min)
Chain oil tank capacity 55 ml
Battery available for this tool*1(sold separately)	Lithium-ion batteryMulti Volt type battery or 18 V(BSL18 series)
Weight*2	1.1 kg

*1 The Back Pack Power Supply (BL36200) and AC/DC Adapter (ET36A) cannot be used with this tool.
*2 Weight: Saw chain, guide bar, chain case, oil, battery not included

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

1. Battery (sold separately)

Model Voltage Battery capacity
BSL36B18 36 /	18 V *3	4.0 / 8.0 Ah *3

*3 The tool itself will automatically switch over.

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed on page 336.

Standard accessories are subject to change without notice.

APPLICATIONS

○ Cutting of timber/logs

○ Pruning of garden trees

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect the charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the charge indicator lamp will blink in red. (See Table 1)

1. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 5 (on page 2).

1. Charging

When inserting a battery in the charger, charging will commence and the charge indicator lamp will blink in blue.

When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 1)

(1) Charge indicator lamp indication

The indications of the charge indicator lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1: Indications of the charge indicator lamp

ON/OFF at 0.5 sec. intervals (RED) |	Before charging *1
Lights for 0.5 sec. at intervals of 1 sec. (BLUE) |	Charged at less than 50%
Lights for 1 sec. at intervals of 0.5 sec. (BLUE) |	Charged at less than 80%
Lights continuously (BLUE)	Charged at more than 80%
Lights continuously (Continuous buzzer sound: about 6 sec.) (GREEN)	Charging complete
ON/OFF at 0.3 sec. intervals (RED)	Overheat standby *2
ON/OFF at 0.1 sec. intervals (Intermittent buzzer sound: about 2 sec.) (PURPLE)	Charging impossible *3

NOTE

*1 If the red lamp continues to blink even after the charger has been attached, check to confirm that the battery has been fully inserted.
*2 Battery overheated. Unable to charge.
Although charging will start once the battery has cooled down even when left in situ, the best practice is to remove the battery and allow it to cool down in a shaded, well-ventilated location before charging.
*3 Malfunction in the battery or the charger
– Fully insert the battery.

English

- Check to confirm that no foreign matter is stuck to the battery mount or terminals. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 5 minutes rest until the next charging.

(2) Regarding the temperatures and charging time of the battery (See Table 2)

Table 2

Model UC18YSL3
Type of battery Li-ion
Charging voltage 14.4–18 V
Temperatures at which the battery can be recharged		0°C–50°C
Charging time for battery capacity, approx. (At 20°C)	1.5 Ah 15	min
	2.0 Ah 20	min
	2.5 Ah 25	min
	3.0 Ah	20 min(BSL1430C, BSL1830C: 30 min)
	4.0 Ah	26 min(BSL1840M: 40 min)
	5.0 Ah 32	min
	6.0 Ah 38	min
Charging time for multi volt battery capacity, approx. (At 20°C)	1.5 Ah(× 2 unit)	20 min
	2.5 Ah(× 2 unit)	32 min
	4.0 Ah(× 2 unit)	52 min
Number of battery cells 4–10
Charging voltage for USB 5 V
Charging current for USB 2 A
Weight 0.6 kg

NOTE

○ The recharging time may vary according to the ambient temperature and power source voltage.

○ If charging takes a long time

• Charging will take longer at extremely low ambient temperatures. Charge the battery in a warm location (such as indoors).
• Do not block the air vent. Otherwise the interior will overheat, reducing the charger's performance.

• If the cooling fan is not operating, contact a HiKOKI Authorized Service Center for repairs.

• Disconnect the charger's power cord from the receptacle.

• Hold the charger firmly and pull out the battery. NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.
(2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

MOUNTING AND OPERATION

Action Figure Page

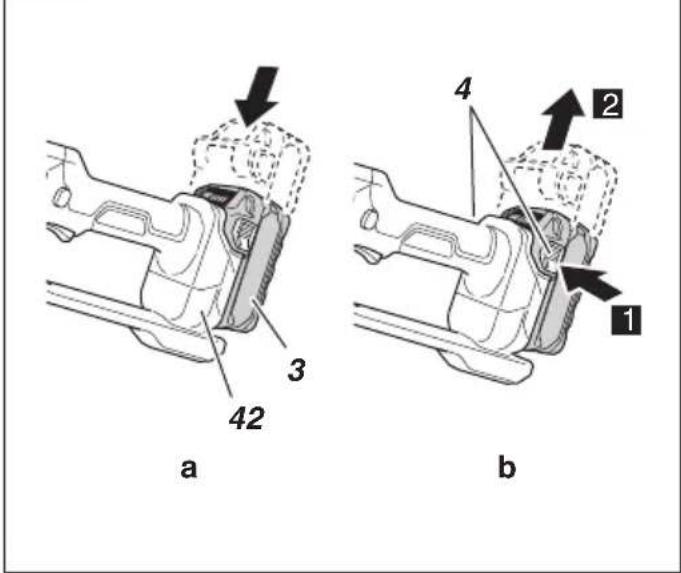

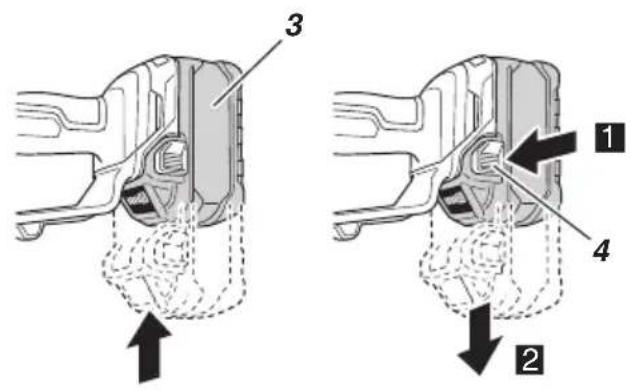

Removing and inserting the battery 6 3
Switch operation *1	7	3
Remaining battery indicator 19 6
Charging a USB device from an electrical outlet	43-a	10
Charging a USB device and battery from an electrical outlet	43-b	10
How to recharge USB device	44	10
Selecting accessories	—	337

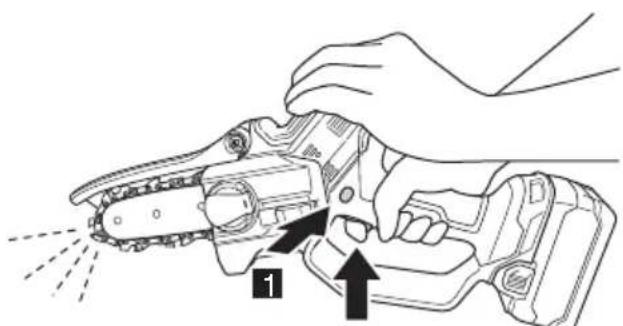

*1 Switch operation

When the switch is engaged while pressing the lock-off button, the saw chain rotates. (Fig. 7)
Unless the lock-off button is pressed, the switch cannot be engaged.
After the switch is engaged, the saw chain continues rotating as long as it is pressed down.
When the switch is released, the saw chain stops rotation.

WARNING

Do not secure the lock-off button while it is pressed. If the switch is accidentally engaged, the unit may unexpectedly start and injury may occur.

INSTALLING (REPLACING) SAW CHAIN

WARNING

• To prevent accidents, always switch the unit off, and remove the storage battery.
• Don't use the saw chain or the guide bar other than those specified in "SPECIFICATIONS".

CAUTION

Wear thick gloves and be careful to avoid injury with the saw chain.

NOTE

○ When removing the saw chain, remove sawdust from the oil spout, oil hole, and guide bar groove. If sawdust accumulates, this may cause the unit to fail.

○ Use the correct type of saw chain in accordance with the specifications. If you install the wrong type of guide bar, the saw chain may come off and injury may occur.

1. Lock the tension lever.

○ Slide the tension lever toward the direction of .When press it in toward the direction of 2 o lock it. (Fig. 8-a)

○ To release the lock of the tension lever, press the tension lever toward the direction of 3(Fig. 8-b)

2. Remove the side cover.

While the tension lever is still locked, turn the knob counterclockwise to loosen it, and remove the side cover. (Fig. 9)

3. Removing the saw chain and guide bar

Move the guide bar slightly to the right to loosen the saw chain and remove it from the sprocket, then remove the guide bar and saw chain together. (Fig. 10)

4. Engaging the new saw chain in the sprocket

(1) Attach the saw chain to the guide bar groove from the guide bar tip. Make sure the saw chain is oriented so that the blade faces in the direction shown in the illustration below the sprocket (Fig. 11-a).

(2) While holding the saw chain and guide bar at the tip, engage the other end of the saw chain to the sprocket and mount the guide bar to the saw body.

5. Installing the side cover NOTE

Clean off any dirt around the side cover before attaching it. (Refer to “2. Cleaning each of the parts” in “MAINTENANCE AND INSPECTION”)

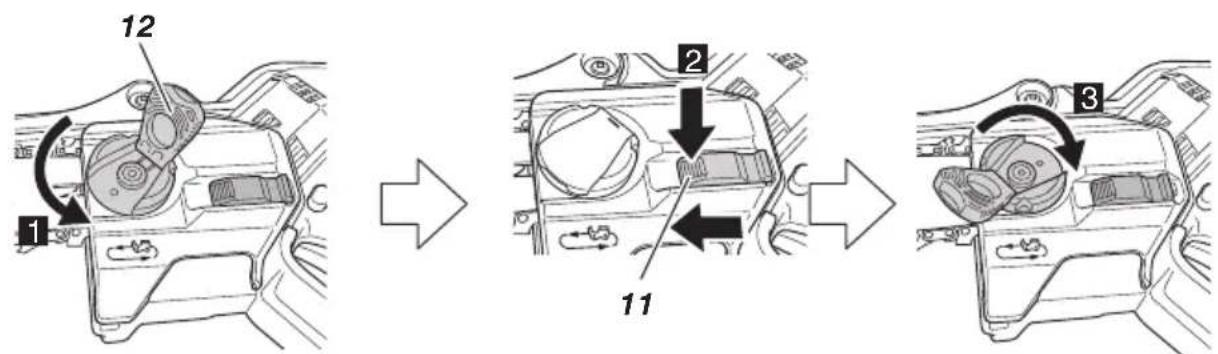

(1) Lock the tension lever. (Fig. 8-a)

(2) Attach the side cover to the main body of the tool while ensuring that the saw chain does not come off of the guide bar, and turn the knob clockwise to tighten it securely. (Fig. 12)

(3) After fully tightening the knob, turn it back counterclockwise one rotation to slightly loosen it. (Fig. 13-a)

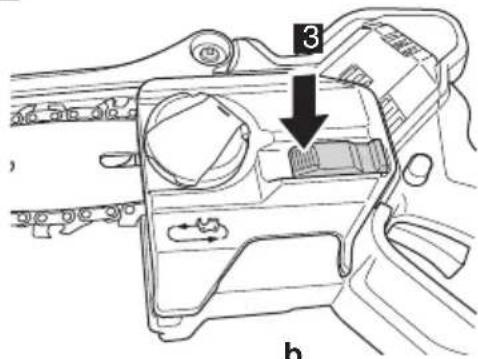

(4) Release the lock of the tension lever (Fig. 13-b) When the lock of the tension lever is released, the guide bar is pushed out forward, and tension is applied to the saw chain.

(5) Turn the knob clockwise to tighten it securely. (Fig. 13-c)

WARNING

○ Ensure the knob is fully tightened. If it is loose, injury may occur.

○ Ensure the saw chain is attaching to the guide bar groove.

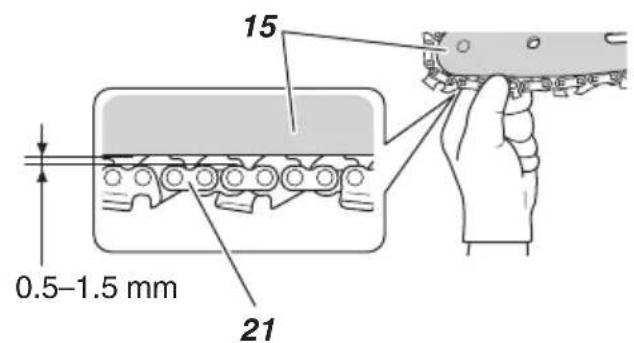

6. Checking the saw chain tension

Check the saw chain tension so that the gap between the saw chain tie strap and the guide bar is 0.5 to 1.5 mm when you lift the saw chain slightly near the center of the guide bar (Fig. 14).

NOTE

When replacing the saw chain, check how worn the sprocket is. (Refer to "3. Inspecting the sprocket" in "MAINTENANCE AND INSPECTION")

INSPECTION AND PREPARATION PRIOR TO USE

Prior to use, make the following inspection and preparation.

WARNING

○ To prevent accidents, always perform steps 1 to 3 ensuring the storage battery is removed from the body.

○ Do not secure the lock-off button while it is pressed. If the switch is accidentally engaged, the unit may unexpectedly start and injury may occur.

1. Ensuring the switch is off

If you insert the storage battery without knowing whether the switch is engaged, the unit may unexpectedly start, which may result in an accident.

2. Checking the saw chain tension WARNING

If the saw chain tension is incorrect, there is a risk of damage to the saw chain or guide bar and malfunction.

O Referring to step 6 "INSTALLING (REPLACING) SAW CHAIN," ensure an appropriate tension is set.

○ While the saw chain is still new, it is particularly stretchy, so periodically check the tension and adjust as required. If it is loose, refer to “5. Installing the side cover (3)” and re-tension the saw chain.

○ Also check the knob is securely tightened.

3. Checking the chain oil

○ This unit is delivered without chain oil inside. Ensure the oil tank is filled with the chain oil provided before use. (Fig. 15)

○ Periodically check the oil sight glass during work and replenish oil as required.

○ If the chain oil supplied runs out, use HiKOKI chain oil sold separately or equivalent chain oil on the market.

O The chain oil lubricates automatically.

○ The discharge amount cannot be adjusted.

NOTE

○ The oil tank capacity is about 55 ml. Make sure no oil leaks or overflows from the oil tank when replenishing the chain oil.

○ We recommend that you stock up with chain oil. If you continue working without chain oil, the saw chain may burn through, or the motor may fail.

- Be careful to avoid dust or other foreign matter from entering the oil tank. If dust and other foreign matter enter the oil tank, the unit may fail.

○ Chain oil left in the tank may leak due to the structure of this unit. Although this does not indicate a malfunction, it may soil the storage location, so be careful. When storing, empty the oil from the oil tank, and place an item under the main body which can absorb any leaks.

○ Replenish oil about every 15 minutes of operation. (Varies depending on the conditions of cutting usage.)

4. Installing the storage battery

Push firmly until it clicks into place.

CAUTION

Securely attach the storage battery. If the storage battery is not securely attached, it may come off and injury may occur.

5. Check that the chain guard is working (Fig. 16)

The chain guard is a piece of safety equipment to protect the worker from the saw chain. Before working, confirm that the chain guard moves smoothly, and that it returns to its original position when you release your hand.

NOTE

If the chain guard does not return to its original position, immediately stop use, and request repairs from the dealer where you purchased the product.

6. Checking chain oil discharge (Fig. 17)

○ When switching the unit on, chain oil automatically lubricates the saw chain and guide bar.

○ If oil does not seem to emerge 2 to 3 minutes after the unit starts, check if any sawdust has accumulated around the oil spout. (Refer to “2. Cleaning each of the parts” in “MAINTENANCE AND INSPECTION”)

CUTTING PROCEDURES

WARNING

○ During use, grip both handles securely.
During work breaks or after work, always switch the unit off, and remove the storage battery from the main body.

Always monitor the workplace and surrounding area, ensure there are no objects which could cause injuries, accidents or failure, and if any are present, remove them in advance.

In particular, when establishing a foothold for working, ensure there is no instability or any object which could be tripped over.

1. Ensuring the unit is switched off

If the storage battery is inserted while the switch is unknowingly engaged, the unit may unexpectedly start, which may result in an accident.

2. Installing the storage battery

As shown in Fig. 4, push firmly until it clicks into place.

3. Engaging the switch

Ensuring the saw chain is not in contact with the timber, engage the switch, and start cutting when the saw chain speed has increased.

Place the cutting guide against the wood when cutting.

(Fig. 18-a) If you try to cut without placing the cutting guide against the wood, the tool body will be pulled forward away from your body and destabilize your posture. (Fig. 18-b)

CAUTION

○ When switching the unit on, ensure the saw chain does not contact with material or anything else.
During use, be careful to ensure the saw chain does not contact with other material or object. In particular, when you have finished cutting, be careful to ensure it does not touch the ground.
○ Always be careful to avoid falling branches.
O Always be alert for pruning saw recoil.

NOTE

○ Refill the oil tank early to prevent the unit running out of oil.
○ While cutting, occasionally check the tension of the saw chain.
As well as carefully studying the handling instructions, ensure practical instruction in the operation of the pruning saw prior to use, or at least practice working with the pruning saw by cutting lengths of round timber on a sawing trestle.

Precaution for cutting work

For large-scale operation or non-stop work

This tool comes with an over-heat protection circuit that protects the electronic parts that control the rechargeable battery. During sustained use or during operations under high loads generated by pressure against the tool, tool temperature will rise and eventually trigger the over-heat protection circuit, which will shut down the tool.

If this happens, let the tool cool for a length of time.

When the temperature drops, it will again become possible to use the tool. When the rechargeable battery has to be exchanged during continuous operation, let the tool rest for about 15 minutes.

Gripping/pushing force of pruning saw

Always grip the pruning saw securely. In addition, do not force the pruning saw more than necessary. When cutting, additional force exerted on the pruning saw will not accelerate the cutting speed.

This will strain the motor, impair the performance, and damage or cause malfunction of the motor or guide bar.

Use the unit in the range where the saw chain is at a reasonable speed.

In particular, when the saw chain stops (becomes jammed) due to the excessive force, it may cause an injury or failure of the unit.

SHARPENING OF THE CHAIN BLADE

WARNING

To prevent accidents, always turn off the switch and remove the storage battery from the main body.

CAUTION

Always wear thick gloves when handling the saw chain.

NOTE

Sharpen the saw chain and adjust the depth gauge at the central position on the guide bar, with the saw chain attached to the main body.

When the sharpness of saw chains deteriorates, the motor and each part of the body are burdened and the efficiency declines.

For optimal performance of the unit, frequent maintenance is necessary to keep the saw chain sharp.

1. Blade sharpening

Use a 4 mm diameter round file.

The round file should be held against the chain blade so that one-fifth of its diameter extends above the top of the blade, as shown in Fig. 20.

Sharpen the blades by keeping the round file at a 30^ angle in relation to the guide bar, as shown in Fig. 21.

File the blades by gently pushing the round file in the direction of the grip.

Make sure the round file does not touch the saw chain when drawing back the file.

Ensure that all saw blades are filed at the same angle, or the cutting efficiency of the tool will be impaired.

Appropriate angles for sharpening the blades correctly are shown in Fig. 22. (Round file is sold separately.)

2. Adjustment of depth gauge

WARNING

○ Do not sand the top part of the bumper tie strap and bumper drive link, nor cause the shape of said parts to deform.
○ Adjustment of depth gauges must be in line with the predetermined dimensions and shapes, otherwise the risk of kickback may increase, causing an injury.

Bumper tie strap

Bumper drive link

Depth gauges shall be all lined up in the same manner because they are used to adjust depth at the position where the cutter inlays into the wood.

When sharpening the saw chain, be sure to check the depth gauge every two or three times. (Fig. 23)

Place a depth gauge jointer on the saw chain, leave the gauge visible at the groove, and use a flat file to bevel the portion out of the depth gauge jointer. (Fig. 24) (Depth gauge jointer and flat file are sold separately.)

After filing away the depth gauge, round off the front side of the depth gauge as it was. (Fig. 25)

After sharpening the saw chain, place it into chain oil to wash off the filings.

If filings are not cleaned off, the saw chain and guide bar will quickly wear while in use.

The depth gauge jointer can also be used when dressing with a round file. (Fig. 26)

USE THE POLE ATTACHMENT (sold separately)

1. Pole attachment safety warnings

○ Always wear head protection with full face shield to help protect against falling branches and debris (Fig. 28-b).

○ Always wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.

○ Wear hearing protection. Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem. After turning OFF the switch, immediately remove safety equipment.

○ When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.

○ The operator must obey the local regulations of cutting area.

○ Use anti-slip and sturdy footwear.

☐ For respiratory protection, wear an aerosol protection mask when cutting the wood after insecticide has been applied.

○ Keep firm footing and balance. Do not over-reach.

- Keep all parts of your body away from the cutting attachment when power tool is running.

Before pruning branches, the operator must be accustomed to the pruning techniques of the machine.

○ While cutting, hold the machine firmly with both hands with thumb firmly locked around handle, and stand with feet well balanced and your body balanced.

○ Be alert against kickback (when saw kicks up and back at operator).

○ Always wear gloves during operation or maintenance.

○ Review the area to be trimmed. Look for hazards that could contribute to unsafe conditions. DO NOT operate unit if any wires (power, telephone, cable, etc.) are closer than 10 m to any part of the operator or unit (Fig. 28-a).

Keep others including children, animals, bystanders and helpers outside the 15 m hazard zone. Stop the operation immediately if you are approached (Fig. 28-b).

○ Avoid all power lines. This unit is not insulated against electrical current.

WARNINGDANGER

All overhead electrical conductors and communications wires can have electricity flow with high voltages. Never touch wires directly or indirectly when pruning, otherwise serious injury or death may result

2. Attach the pole attachment

WARNING

○ Be sure to turn off the switch and remove the battery.

○ When using the pole attachment, be sure to wear the included shoulder belt.

○ If you get the feeling the tool is not operating normally, turn off the motor immediately, remove the quick-release bracket of the shoulder belt and move the tool away from your body.

CAUTION

○ Make sure the quick-release function operates normally before you start working.

○ Before attaching, check to confirm that the belt is not cut, frayed, or damaged.

○ Check to confirm that the hook and hanger are neither deformed nor damaged.

Once attached, press down on the main unit to confirm that the hook does not detach easily and that the shoulder belt is not loose.

(1) Remove the battery from the power tool and place it on the floor. (Fig. 6)

(2) Attach the shoulder belt to the pole attachment. (Fig. 29)

(3) Adjust the length of the pole. Loosen the screw ring and extend the pole to adjust its length. If you release your hand from the extended pole at this time, it will return back in the original direction. While holding the pole in the extended position, securely tighten the screw ring to fix the pole in place. (Fig. 30)

(4) Attach the tool to the pole attachment.

O Place the chain case on the saw chain.

○ Firmly insert the pole attachment so that it enters all the way to the designated position and the tool makes a click sound. Then, turn the knob bolt to fasten it in place, (Fig. 31-a).

○ To remove the tool, loosen the knob bolt, and while pressing the 2 latches on the tool attachment socket, slide and remove the tool. (Fig. 31-b)

(5) Install the shoulder belt. Adjust the shoulder belt to a length that makes it easy to work. (Fig. 32)

(6) Check to confirm that the quick release function operates as it should.

To remove the tool from the shoulder belt, support the tool by holding the pole with one hand and use the other hand to pull the quick-release belt as shown in Fig. 33 to free it from the bracket.

To strap on the tool, insert the bracket in the hook and insert the quick-release bracket over the hook and into the wide opening of the bracket. (Fig. 34) Gently pull the shoulder belt to make sure that it is properly attached.

(7) Inserting the battery

○ Insert the battery firmly into the battery attachment socket of the pole attachment so that it enters all the way to the designated position and makes a click sound. (Fig. 35-a)

To remove the battery from the pole attachment, while pressing down the 2 latches of the battery, slide the battery and pull it out. (Fig. 35-b)

3. Pruning techniques

This attachment is designed for pruning small limbs and branches up to 100 mm (4") in diameter.

WARNING

○ Plan cut carefully. Check direction branch will fall.

○ Long branches should be removed in several pieces.

○ Do not stand directly beneath branch being cut. There is a possibility of injury from falling branches or being hit by branches that fall and bounce off the ground.

When ready to cut, hold the "cutting guide" against the branch. This will prevent whipping of the branch. DO NOT use back and forth sawing action. (Fig. 36)

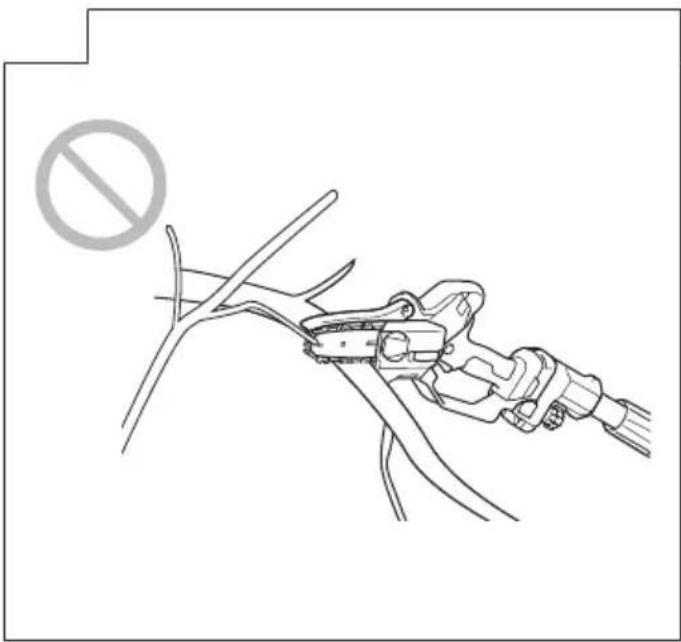

○ Look out for branch immediately behind the branch being cut, If blade hits rear branch damage to blade may occur. (Fig. 37)

O DO NOT use for felling or bucking.

MAINTENANCE AND INSPECTION

After operation, perform inspection and maintenance of each part when storing the unit.

WARNING

During maintenance and inspection, always switch off the unit and remove the storage battery from the main body.

English

CAUTION

Always wear thick gloves when handling the saw chain.

1. Inspection of saw chains

○ Occasionally inspect the saw chain. In the event of any abnormality, replace it with a new one referring to "INSTALLING (REPLACING) SAW CHAIN"

○ Inspect the chain tension and check If it is correctly tightened.

- Stop using the unit when the saw chain becomes blunt and sharpen it referring to "SHARPENING OF THE CHAIN BLADE".

○ After use, carefully lubricate the saw chain and guide bars with oil for rust-proofing.

2. Cleaning each of the parts NOTE

When cleaning each of the parts shown below, see the procedure "INSTALLING (REPLACING) SAW CHAIN" and remove the saw chain and guide bar from the main body.
○ Cleaning the side cover and chain guard (Fig. 38) Clean and remove any swarf or dust left inside the parts.
○ Cleaning the guide bar, sprocket and chain oil spout (Fig. 39)

When sawdust and similar become clogged in the groove of the guide bar or oil spout, the oil may not flow, which may result in the unit failing.

Remove the guide bar and clean any sawdust clogged in the groove after use and when replacing the saw chain. (Refer to "INSTALLING (REPLACING) SAW CHAIN.")

If sawdust has entered deep into the chain oil spout, attach the battery and move the tool body around to wash the sawdust out with the oil that comes out.

3. Inspecting the sprocket (Fig. 40)

When replacing the saw chain, check the condition of wearing on the sprocket. If the sprocket is worn out as shown in Fig. 40, replace it with a new one. Also use a new E-ring (or locking ring) when you install it at this time. When replacing the parts, consult with your local HiKOKI dealer.

4. Inspecting the chain catcher (Fig. 41)

The chain catcher is designed to protect the operator from being struck by the saw chain if the chain comes loose or is severed.

The chain catcher is integrated into the side cover.

Check to confirm that the chain catcher is not damaged.

5. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

6. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

7. Cleaning the battery installation compartment and the battery (Fig. 42)

Use a brush or air blow gun to remove any swarf or dust and keep the saw clean.

NOTE

○ Allowing swarf and dust to build up during use may cause the storage battery to fall off or other accidents. Allowing swarf and dust to build up can also result in malfunctions, including faulty contact between the battery and the terminals.

○ After cleaning, check to confirm that the storage battery can be easily detached and reattached to the tool body.

8. Cleaning of the outside

When the pruning saw is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

9. Storage

○ Clean all parts thoroughly. Coat metal parts with a thin layer of corrosion inhibitor.
○ Be sure to repair any damaged areas before storing.
○ When storing the unit, perform cleaning and maintenance of each part and mount the chain case to the guide bar.
○ Store the power tool and battery in a place in which the temperature is less than 40^ C and out of reach of children.

NOTE

Storing lithium-ion batteries.

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the HiKOKI cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

Information concerning airborne noise and vibration for Cordless Pruning saw

The measured values were determined according to EN62841-4-1 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 89 dB (A) Measured A-weighted sound pressure level: 81 dB (A) Uncertainty K: 3 dB (A)

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN62841-4-1.

$$ \mathbf {a h} = 2. 4 \mathrm{m} / \mathrm{s} ^ {2} $$

Uncertainty K = 1.5 m/s ^4

Information concerning airborne noise and vibration for Cordless Pruning saw with Pole attachment

The measured values were determined and declared according to ISO 22868.

Measured A-weighted sound power level: 92 dB (A) Measured A-weighted sound pressure level: 76 dB (A) Uncertainty K: 3 dB (A)

Wear hearing protection.

Vibration total values (triax vector sum) determined according to ISO 22867.

$$ \mathbf {a h} = 0. 8 \mathrm{m} / \mathrm{s} ^ {2} $$

Uncertainty K = 1.5 m/s ^4

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

They may also be used in a preliminary assessment of exposure.

WARNING

○ The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used especially what kind of workpiece is processed; and
○ Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

TROUBLESHOOTING

Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the HiKOKI Authorized Service Center.

Symptom Possible cause	Remedy
The motor sounds but the saw chain...○ does not move○ does not move freely	The saw chain tension is excessive. Check the saw chain tension, and if it is too tight, set the tension again. Check that the saw chain is correctly installed in the sprocket and guide bar, and clean it when it becomes clogged with sawdust.
	Saw chain comes out of the sprocket. Check the saw chain is properly engaged on the sprocket and the guide bar groove.
	Inside the side cover...→ sawdust is jammed→ foreign matter is trapped	Clean the side cover.
	In the guide bar groove...→ sawdust is jammed→ oil does not flow	Clean the guide bar groove and the oil hole.Make sure there is oil in the oil tank, and replenish as required.
Poor sharpness The saw chain...	→ is worn out or the blade is broken→ is rusted	Sharpen the saw chain.If the wear or breakage is very severe, replace with a new saw chain.
	The direction of the saw chain is reversed,	Re-attach ensuring the correct direction.

English

Symptom Possible cause	Remedy
Poor sharpness Saw chain tension is loose. Check the saw chain tension, and if it is loose, re-tension the saw chain.
Chain oil○ is slow-flowing○ does not come out (seizes up)	Lack of chain oil in the tank. Replenish with chain oil.
	Chain oil spout is clogged. Clean the chain oil spout.

SYMBOLE

WARNUNG

Simple line drawing of a rectangular electronic device with a central screen and side connectors (no text or symbols)

Diagram of a rectangular device with a central screen and side connectors (no text or symbols)

PRÉCAUTIONS LORS DE LA CONNEXION DU DISPOSITIF USB (UC18YSL3)

SLIBNING AF KÆDEKNIVENE

ADVARSEL

1. Sikkerhedsadvarsler for stangmontering

VEDLIKEHOLD OG INSPEKSJON

Diagram of a rectangular device with a central screen and side connectors (no text or symbols)

Model Voltaj		Batarya kapasitesi
BSL36B18 36 /	18 V * 3	4,0 / 8,0 Ah * 3

Model Tensiune		Capacitate accumulator
BSL36B18 36 /	18 V *3	4,0 / 8,0 Ah *3

Simple line drawing of a rectangular electronic component with a central screen and side connectors (no text or symbols)

BEZPEČNOSTNÉ OPATRENIA PRE PRIPOJENIE USB ZARIADENIA (UC18YSL3)

The round file should be held against the chain blade so that one-fifth of its diameter extends above the top of the blade, as shown in Фиг. 20.

Technical line drawing of a mechanical shaft assembly (no text or symbols)

381498

Line drawing of a mechanical device with lever and base (no text or symbols)

381934

330787 957681

Technical line drawing of a mechanical component with flanges and a central slot (no text or symbols)

Simple line drawing of a rod or tube with no text or symbols

6698688 6697724

Line drawing of a battery pack with a digital display (no text or symbols)

BSL36..18 BSL..18

Line drawing of a portable electronic device with control panel and display (no text or symbols)

329897 UC18YSL3

Line drawing of a mechanical component with internal slots and housing (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

English		Dansk		Română
GUARANTEE CERTIFICATE1 Model No.2 Serial No.3 Date of Purchase4 Customer Name and Address5 Dealer Name and Address(Please stamp dealer name and address)		GARANTIBEVIS1 Modelnummer2 Serienummer3 Købsdato4 Kundes navn og adresse5 Forhandlers navn og adresse(Indsæt stempel med forhandlers navn og adresse)		CERTIFICAT DE GARANTIE1 Model nr.2 Nr. de serie3 Data cumpărării4 Numele și adresa clientului5 Numele și adresa distribuitorului(Vă rugăm aplicați ștampila cu numele și adresa distribuitorului)
Deutsch		Norsk		Slovenščina
GARANTIESCHEIN1 Modell-Nr.2 Serien-Nr.3 Kaufdatum4 Name und Anschrift des Kunden5 Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		GARANTISERTIFIKAT1 Modellnr.2 Serienr.3 Kjøpsdato4 Kundens navn og adresse5 Forhandlerens navn og adresse(Vennligst stemple forhandlerens navn og adresse)		GARANCIJSKO POTRDILO1 Št. modela2 Serijska št.3 Datum nakupa4 Ime in naslov kupca5 Ime in naslov prodajalca(Prosimo vitisnite žig z imenom in naslovom prodajalca)
Français		Suomi		Slovenčina
CERTIFICAT DE GARANTIE1 No. de modèle2 No de série3 Date d'achat4 Nom et adresse du client5 Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		TAKUUTODISTUS1 Malli nro2 Sarja nro3 Ostopăivămâäră4 Asiakkaan nimi ja osoite5 Myyjăn nimi ja osoite(Leimaa myyjăn nimi ja osoite)		ZÁRUČNÝ LISTA1 Č. modelu2 Sériové č.3 Dátum zakúpenia4 Meno a adresa zákazníka5 Názov a adresa predajcu(Pečiatka s názvom a adresou predajcu)
Italiano		Ελληνικά		Български
CERTIFICATO DI GARANZIA1 Modello2 N° di serie3 Data di acquisto4 Nome e indirizzo dell'acquirente5 Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)		ПІЗТОПОІНТИКО ЕГГУНЄНЕ1 Ap. Movtėlou2 Aŭξων Ap.3 Нμερομηνία αγοράς4 ́Оvoμα και διεύθυνση πελάτη5 ́Оvoμα και διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα)		ГАРАНЦИОНЕН СЕРТИФИКАТ1 Модел No2 Сериен No3 Дата за закупуване4 Име и адрес на клиента5 Име и адрес на търговеца(Моля, отпечатайте името и адрес на дильра)
Nederlands		Polski		Srpski
GARANTIEBEWIJS1 Modelnummer2 Serienummer3 Datum van aankoop4 Naam en adres van de gebruiker5 Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handolaar)		GWARANCJA1 Model2 Numer seryjny3 Data zakupu4 Nazwa klienta i adres5 Nazwa dealera i adres(Pieczęć punktu sprzedaży)		GARANTNI SERTIFIKAT1 Br. modela.2 Serijski br.3 Datum kupovine4 Ime i adresa kupca5 Ime i adresa prodavca(Molimo da stavite pečat na ime i adresu trgovca)
Español		Magyar		Hrvatski
CERTIFICADO DE GARANTÍA1 Número de modelo2 Número de serie3 Fecha de adquisición4 Nombre y dirección del cliente5 Nombre y dirección del distribuidor(Se ruega poner el sello del distribuidor con su nombre y dirección)		GARANCIA BIZONYLAT1 Tipusszám2 Sorozatszám3 A vásárlás dátuma4 A Vásárló neve és címe5 A Kereskedő neve és címe(Kérjük ide elhelyezni a Kereskedő nevének és címének pecsétjét)		JAMSTVENI CERTIFIKAT1 Br modela.2 Serijski br.3 Datum kupnje4 Ime i adresa kupca5 Ime i adresa trgovca(Molimo stavite pečat na ime i adresu trgovca)
Português		Čeština
CERTIFICADO DE GARANTIA1 Número do modelo2 Número do série3 Data de compra4 Nome e morada do cliente5 Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)		ZÁRUČNÍ LIST1 Model č.2 Série č.3 Datum nákupu4 Jméno a adresa zákazníka5 Jméno a adresa prodejce(Prosíme o razítko se jménem a adresou prodejce)
Svenska		Türkçe
GARANTICERTIFIKAT1 Modellnr2 Serienr3 Inköpsdatum4 Kundens namn och adress5 Försäljarens namn och adress(Stämpla försäljarens namn och adress)		GARANTI SERTÍFİKASI1 Model No.2 Seri No.3 Satin Alma Tarihi4 Müşteri Adı ve Adresi5 Bayi Adı ve Adresi(Lütfen bayi adını ve adresini kaşe olarak basın)

HiKOKI

1
2
3
4
5

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Two icons: a rectangular block and a circular trash bin with an 'Recycle' symbol (no text or numbers present)
