USER MANUAL RB50DG6320B1 SAMSUNG

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com/support
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.
3. You can check the model code and version on the barcode label at the bottom left of the product.
4. For replacement parts, make sure the part name matches that of the illustration in this manual.
5. User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.
• Be sure to wear safety gloves while making repairs.

English

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

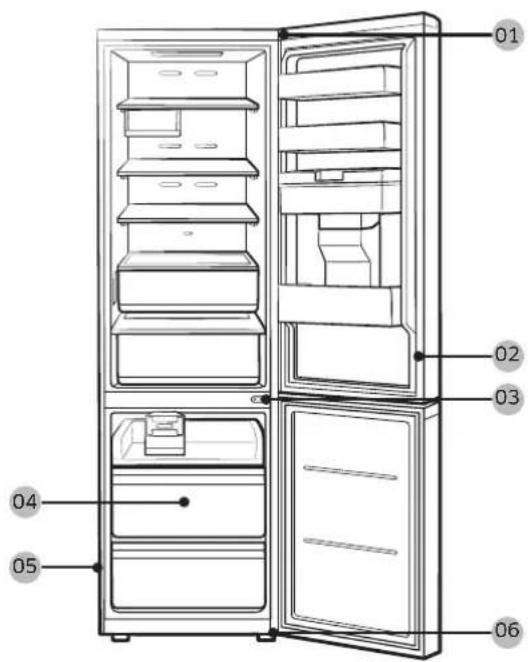

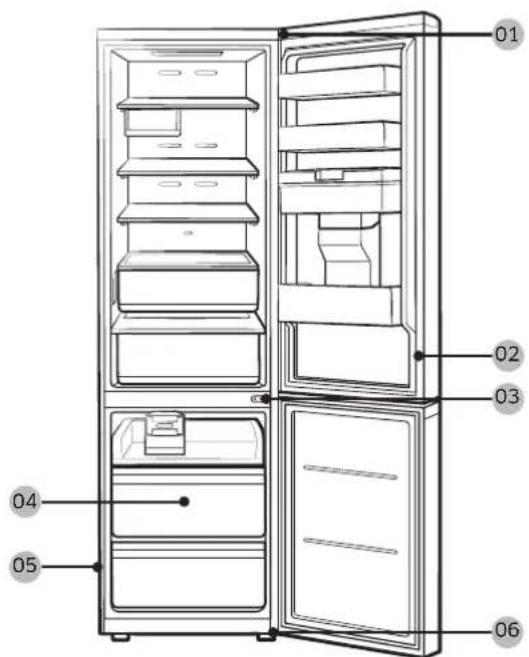

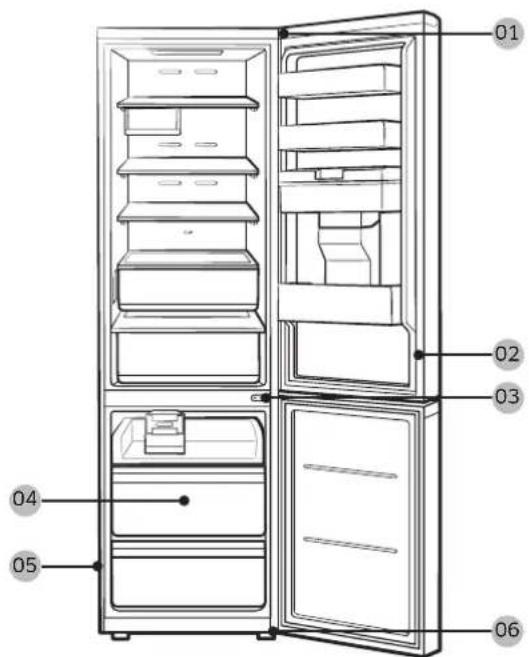

01 02 03 04 05 06

01 02 03 04 05 06

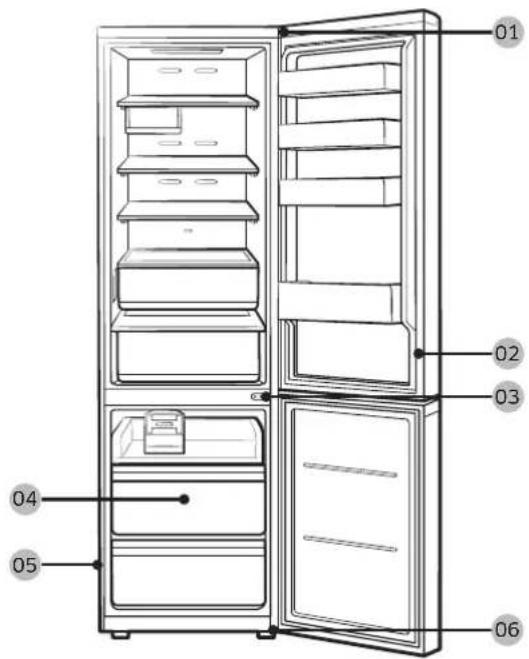

01 Top hinge 02 Gasket
03 Hinge Mid 04 Drawer
05 Barcode label 06 Bottom hinge

English

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

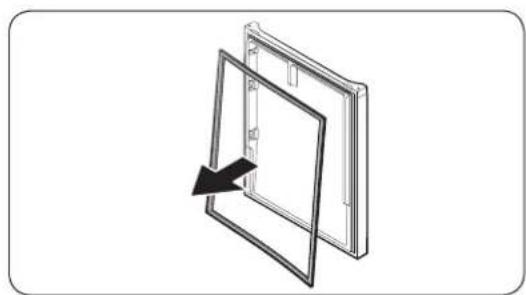

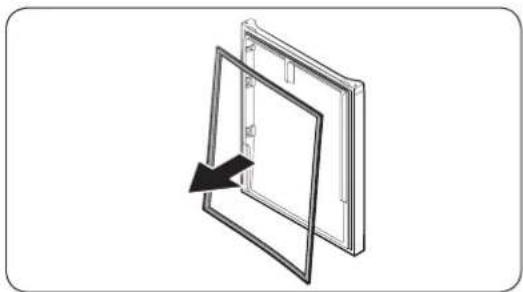

To remove the gasket

Diagram of a door frame with an arrow indicating direction (no text or symbols)

Open the door and remove the gasket from the door.

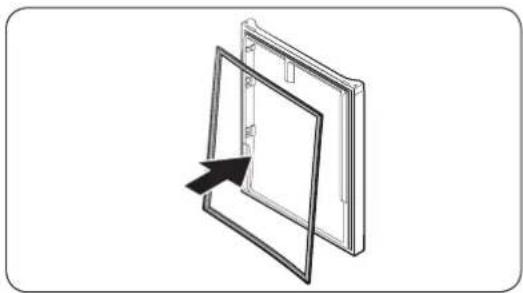

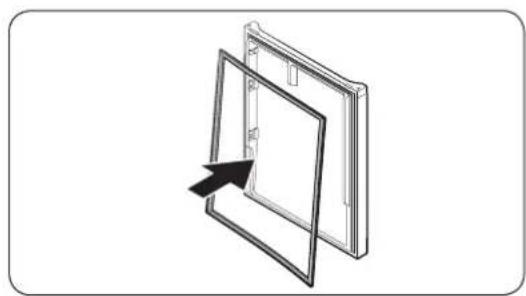

To replace the gasket

Diagram of a door frame with an arrow pointing to the front panel (no text or symbols)

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door.

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawers

NOTE

Remove the bottom door bin in prior.

Illustration of two hands holding a rectangular device with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands holding a rectangular object with an arrow indicating compression or shift (no text or symbols)

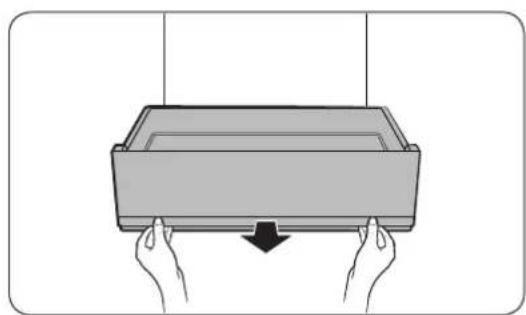

1. Pull the vegetable drawer slightly forward.

2. Slightly lift the vegetable drawer, and then pull it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps

English

Hinge replacement

To replace the hinges, you must remove the doors first.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the floor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
• If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is firmly tightened on the hinge.
• Check that the hinge is firmly attached to the cabinet.
  • Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

(for hinge shaft)

8 mm socket wrench (for bolts)

10 mm socket wrench (for bolts)

5 mm Allen wrench (for middle hinge)

English

To replace the hinges

Disconnect the water line

CAUTION

• Make sure the water hoses are connected with matching colours. (only for Dispenser model)
• To prevent water leaks, each water hose must be inserted fully to the centre of the transparent coupler. (only for Dispenser model)
• Ensure that the water hose surface is not damaged. (only for Dispenser model)

Remove the doors

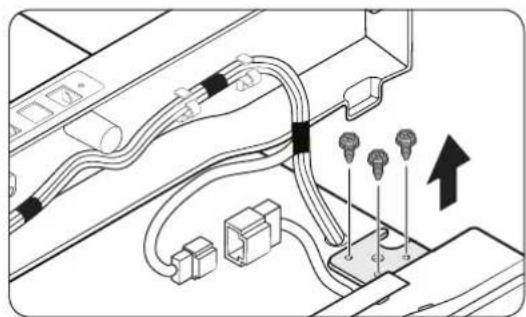

Diagram of a battery pack with three screws and an upward arrow indicating direction (no text or symbols)

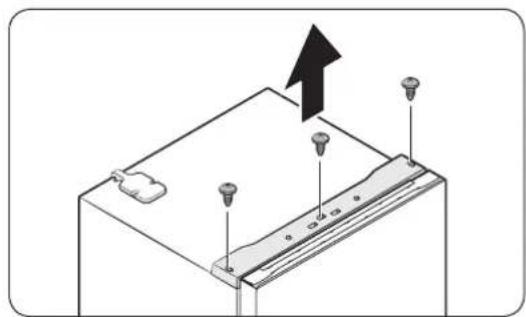

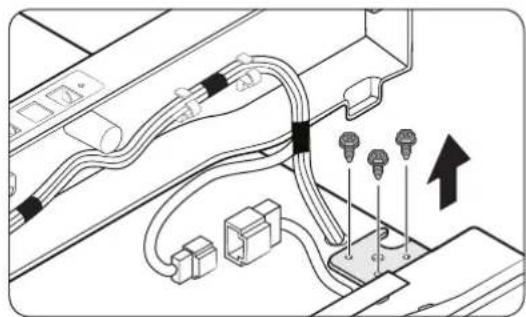

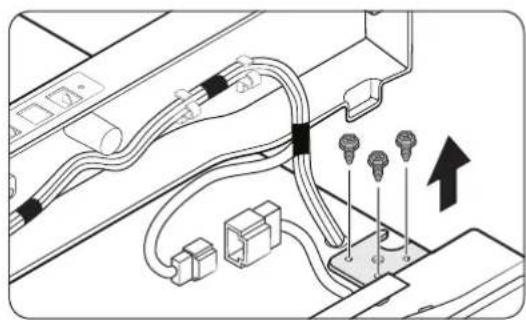

1. Use a Phillips screwdriver to loosen the screws (x3) in three holes on the top table. Then, gently pull out the top table.

Technical diagram of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

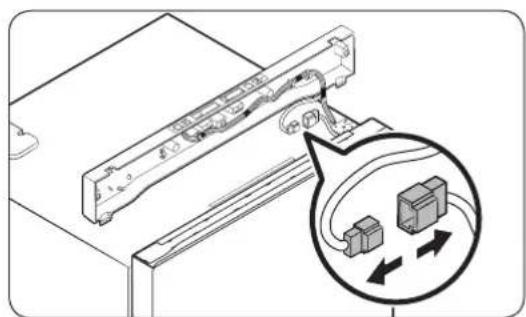

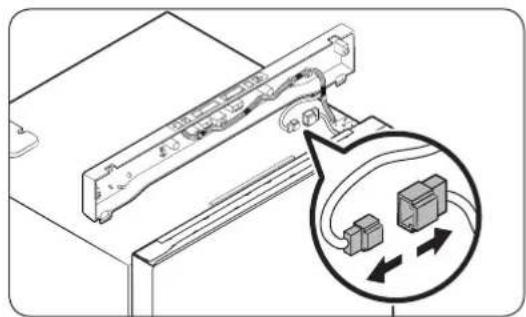

1. Decouple the wire connectors.

Diagram of cable connections and lighting fixtures in a device (no text or symbols)

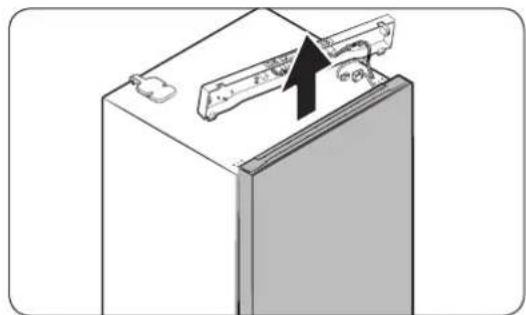

1. Loosen the bolts on the top hinge.

English

Diagram of a refrigerator with a door handle and an arrow pointing to the lid (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Diagram of a door with a black arrow pointing to the side panel (no text or symbols)

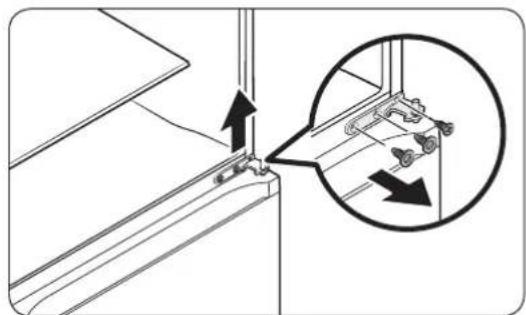

Remove the hinge and the door shaft

Diagram showing a mechanical assembly with a magnified inset highlighting a component detail (no text or symbols present)

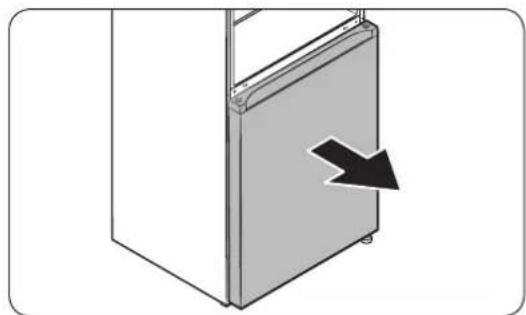

1. Gently lift up the freezer door to remove it.

2. Use the screwdriver and the wrench to loosen the bolts and remove the middle hinge.

3. Gently slide the fridge door out of the hinge shaft, and then pull up to remove.

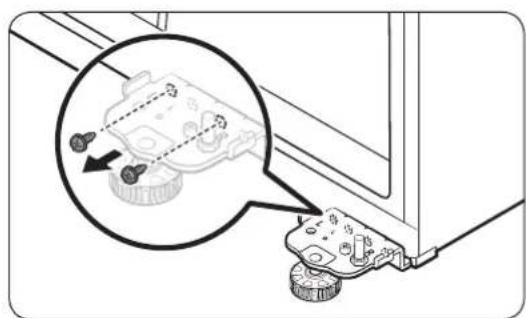

Use the screwdriver to remove the screw on the bottom hinge.
