D-CWP 300 - Water pump TALLAS - Free user manual and instructions

Product type	Submersible water pump for clear water
Brand	TALLAS
Model	D-CWP 300
Supply voltage	220-240 V AC, 50 Hz
Rated input power (P1)	300 W
Rated current	1.3 A
Capacitor	8 μF / 450 V
Max flow rate	125 l/min
Max head	6.5 m (0.65 bar)
Max immersion depth	7 m
Min start level (automatic)	115 mm
Stop level	45 mm
Residual water level (manual mode)	2-3 mm
Power cable length	10 m
Cable type	H05 RNF
Motor protection rating	IP X8
Insulation class	F
Liquid temperature	0 °C to +35 °C
Max ambient temperature	+40 °C
Max particle size	∅ 5 mm
Discharge connection	DNM GAZ 1" 1/4 M
Net weight	4.8 kg
Gross weight	5.5 kg
Applications	Drying basements, garages, sumps, rainwater, gardening
Maintenance	Regular cleaning of the strainer, impeller and float
Safety	Do not run dry; disconnect before any intervention
Warranty	24 months legal warranty (EU), wear parts excluded, spare parts availability 5 years

Frequently Asked Questions - D-CWP 300 TALLAS

What types of liquids can I pump with the D-CWP 300 pump?

This pump is designed to pump clear water: fresh water, rainwater, clear wastewater, fountain, river or lake water. It can contain particles up to 5 mm. It is not suitable for hydrocarbons or water with long fibers.

How to install the pump correctly?

Mount the supplied connector on the pump and secure the hose with a hose clamp. Place the pump vertically in the sump, leaving at least 5 cm around the float. Ensure the suction strainer does not touch the bottom to avoid clogging.

How do the automatic and manual modes work?

In automatic mode (A), the built-in float starts the pump when the water level reaches the ON level and stops at the OFF level. In manual mode (M), the pump runs continuously until you set it to OFF (O). Manual mode allows pumping down to 2-3 mm of residual water.

Can I use the pump continuously?

No, this pump is designed for emergency or intermittent use, not for continuous use. It is not recommended to exceed 20 starts per hour.

What to do if the pump does not start?

First check that the plug is properly connected and the fuses are not blown. Ensure the float can move freely. If the problem persists, the cable or an electrical component may be damaged; contact customer service.

How to clean the suction strainer?

Disconnect the pump, drain it, then loosen the filter screws and remove the strainer. Clean it with clean water and reassemble in reverse order. Perform this operation regularly to avoid blockages.

How to clean the pump impeller?

After disconnecting and draining the pump, remove the suction strainer. Wash the inside with clean water to remove impurities between the motor and the casing. Clean the impeller and check that it turns freely before reassembling.

How to check and clean the built-in float?

Turn off the pump and drain it. Press the lever vertically to position O, then pull it towards you to remove the float. Clean it and ensure no particles obstruct its movement. Reassemble in reverse order.

What is the maximum immersion depth?

The pump can be immersed up to 7 meters maximum depth, thanks to its 10-meter H05 RNF power cable. Respect this limit to ensure watertightness.

What to do in case of frost?

If the pump remains inactive at a temperature below 0°C, drain it completely to prevent residual water from freezing and cracking plastic parts. Rinse it after use if you have pumped substances that could deposit.

USER MANUAL D-CWP 300 TALLAS

INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE (GB) ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE (IT) INSTALLATIONS- UND WARTUNGSANLEITUNGEN (DE) INSTRUCTIONS POUR L'INSTALLATION ET LA MAINTENANCE (FR) INSTRUCCIONES DE INSTALACIÓN Y MANTENIMIENTO (ES) ИНСТРУКЦИЯ ЗА ИНСТАЛИРАНЕ И ОБСЛУЖВАНЕ (BG) NÁVOD K INSTALACI A ÚDRŽBĚ (CZ) BRUGSANVISNING (DK) ОДНГІЕЗ ГІА ТНН ЕГКАТАΣТАŞН КАІ ТН ΣΥΝΤΗΡΗΣΗ (GR) KASUTUS- JA HOOLDUSJUHEND (EE) ASENNUS- JA HUOLTO-OHJEET (FI) PRIRUČNIK S UPUTAMA (HR) INSTALLÁCIÓS ÉS KARBANTARTÁSI KÉZIKÖNYV (HU) MONTAVIMO IR TECHNINÈS PRIEŽIÜROS INSTRUKCIJOS (LT) UZSTÄDĪŠANAS UN TEHNISKĀS APKOPES ROKASGRĀMATA (LV) INSTRUCTIES VOOR INSTALLATIE EN ONDERHOUD (NL) ANVISNINGER FOR INSTALLASJON OG VEDLIKEHOLD (NO) INSTRUKCJA MONTAŽU I KONSERWACJI (PL) INSTRUÇÕES PARA A INSTALAÇAO (PT) INSTRUCTIUNI PENTRU INSTALARE ŞI ÎNTRETINERE (RO) ИНСТРУКЦИИ ПО МОНТАЖУ И ТЕХОБСЛУЖИВАНИЮ (RU) РОКУNY K İNSTALÁCII A ÚDRŽBE (SK) NAVODILA ZA İNSTALACIJO IN VZDRŽEVANJE (SI) UDHĚZIME PËR INSTALIMIN E MIRE MBAJTJEN (AL) UPUTSTVO ZA INSTALACIJU I ODRŽAVANJE (RS) INSTALLATIONS- OCH UNDERHÅLLSANVISNINGV(SE) KURMA VE BAKIM BİLGİLERİ (TR) ИНСТРУКЦІЇ ЗІ ВСТАНОВЛЕННЯ ТА ТЕХНІЧНОГО ОБСЛУГОВУВАННЯ (UA)

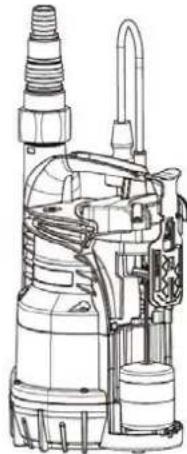

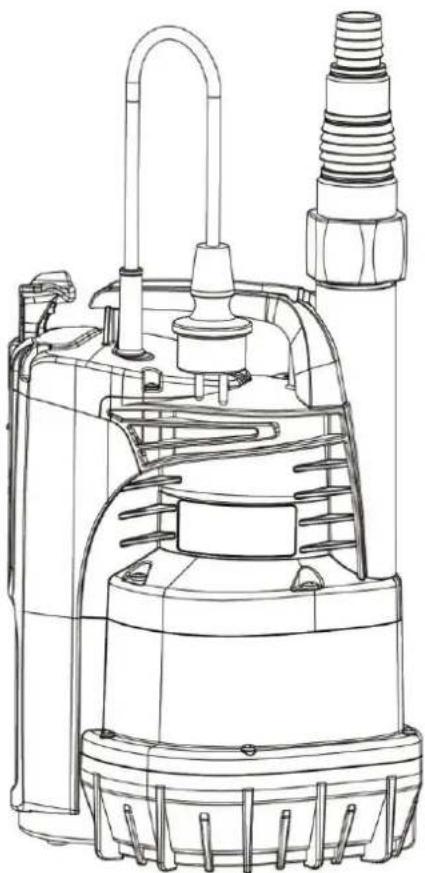

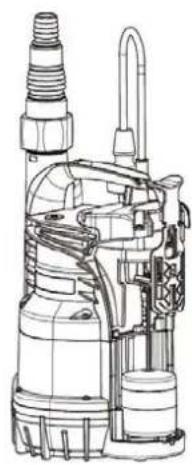

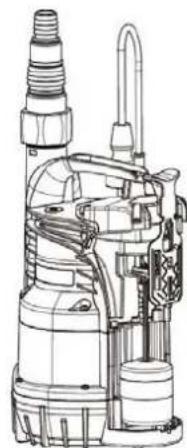

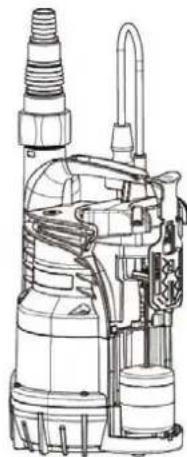

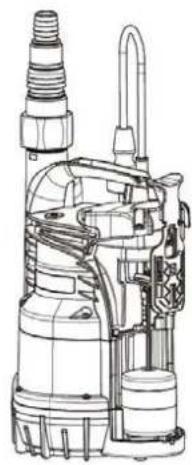

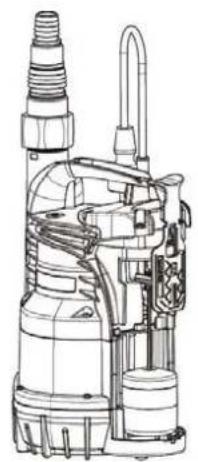

Technical line drawing of a mechanical device with no visible text or symbols

CE

ENGLISH	Pag.	1
ITALIANO	Pag.	5
DEUTSCH	Seite	9
FRANÇAIS	Page	14
ESPAÑOL	Pág.	19
БЪЛГАРСКИ	Стр.	24
ČESKY	Strana	29
DANSK	Side	33
ЕЛАННИКА	Σελ.	37
EESTI	Lk.	42
SUOMI	Sivu	46
HRVATSKI	Stranica	50
MAGYAR	Oldal	55
LIETUVIŲ	Psl.	60
LATVIEŠŲ	Lpp.	65
NEDERLANDS	Pag.	69
NORSK	Pag.	73
POLSKI	Strona	77
PORTUGUÊS	Pag.	81
ROMÂNĂ	Pag.	86
PYCCKИЙ	Стр.	91
SLOVENSKY	Str.	96
SLOVENŠČINA	Str.	101
SHQIP	Pag.	105
SRPSKI	Str.	109
SVENSKA	Sid.	113
TÜRKÇE	Sf.	117
УКРАЇНСЬКА	Стор.	121

Fig - Fig. - Abb.- Fig.- Fig.- Фиг.- Obr.- Fig.- Еик. - Joonis - Kuva - Sl. - .ábra - Fig. -.att. - Afbeelding - Fig. - Rys.- Fig.- Fig. - Схема - Obrázok - Sl.- Fig. - Sl. - Fig. - Resim - Man.

INDEX

1. APPLICATIONS .... 1
2. PUMPABLE LIQUIDS....1
3. TECHNICAL DATA AND LIMITATIONS OF USE .... 1
4. MANAGEMENT....2

4.1 Storage 2
4.2 Transport 2
4.3 Weight and dimensions....2

1. WARNINGS....2
2. INSTALLATION ...... 2
3. ELECTRICAL CONNECTION.... 3
4. START-UP 3
5. PRECAUTIONS......3
6. MAINTENANCE AND CLEANING 3

10.1 Cleaning the suction grid 3
10.2 Cleaning the impeller 3
10.3 Cleaning and testing of integrated float 4

1. TROUBLESHOOTING 4
2. GUARANTEE 4

WARNINGS

Read all this

documentation carefully before installation.

Take out the plug before any intervention. Absolutely avoid dry operation: the pump must be activated exclusively when it is immersed in water. If the water is finished, the pump must be deactivated immediately taking the plug out of the socket.

1. APPLICATIONS

The pumps are of the submersible type, designed and made for pumping clear, for domestic uses, with manual or automatic operation, for drying basements and garages subject to flooding, for pumping drainage wells, pumping rainwater collecting traps or infiltrations from roof gutters, etc.

Thanks to their compact and handy shape, they are also used for particular applications as portable pumps for emergency situations such as for drawing water from tanks or rivers, draining swimming pools and fountains, excavations or underpasses. Also suitable for gardening and general hobby activity.

These pumps cannot be used in swimming pools, ponds or basins where people are present, or for pumping hydrocarbons (petrol, diesel fuel, combustible oils, solvents, etc.) in accordance with the accident-prevention regulations in force. They are not designed for continuous use, but for emergency use over a limited period. They should be cleaned before putting them away. See the chapter “Maintenance and Cleaning”.

2. PUMPABLE LIQUIDS

Fresh water	●
Rainwater	●
Clear waste water	●
Dirty water	○
Foul waste water containing solid bodies with long fibres	○
Fountain water	●
River or lake water	●
Max. particle dimension [mm]	∅ 5

Suitable
- Not suitable

The pump is watertight and must be immersed in liquid to a maximum depth of 7m. See Table 3.

3. TECHNICAL DATA AND LIMITATIONS OF USE

• Supply voltage: 220-240V, see electrical data plate
• Delayed line fuses (220-240V version): indicative values (Ampere)
• Storage temperature: -10^ + 40^

Line fuses 220-240V 50Hz

2 Table 2

ENGLISH

		Draining clear water
	Model	P1=300	P1=600
Electrical data	P1 Rated absorbed power [W]	300	600
	Mains voltage [V]	220-240 AC	220-240 AC
	Mains frequency [Hz]	50	50
	Current [A]	1.3	2.5
	Capacitor [μF]	8	12.5
	Capacitor [Vc]	450	450
Hydraulic data	Max. flow rate [l/min]	125	195
	Max. head [m]	6.5	9
	Max. head [bar]	0.65	0.9
	Max. immersion depth [m]	7	7
	Min. AUT starting height [mm]	115	115
	Stopping height [mm]	45	45
	AUT residual water height [mm]	2-3	2-3
Range of use	Length of power cable [m]	10	10
	Type of cable	H05 RNF	H05 RNF
	Grade of motor protection	IP X8	IP X8
	Insulation class	F	F
	Liquid temperature range [°C] according to EN 60335-2-41 for domestic use	0 °C / +35 °C	0 °C / +35 °C
	Max. particle dimension [mm]	∅ 5	∅ 5
	Max. ambient temperature [°C]	+40 °C	+40 °C
Weight	DNM GAS	1" 1/4 M	1" 1/4 M
	Net/Gross weight approx. [kg]	4.8 / 5.5	5.3 / 6

Table 3

The pump which does not stand on a base cannot support the weight of the pipes, which must be supported in some other way.

4. MANAGEMENT

4.1 Storage

All the pumps must be stored in a dry covered place, with possible constant air humidity, free from vibrations and dust. They are supplied in their original pack in which they must remain until the time of installation.

4.2 Transport

Avoid subjecting the products to needless impacts and collisions.

4.3 Weight and dimensions

The adhesive plate on the packaging indicates the total weight of the pump and its dimensions.

5. WARNINGS

The pumps must never be carried, lifted or allowed to operate suspended from the power cable; use the handle provided.

• The pump must never be allowed to run when dry.
• The sealing device contains lubricant which is non-toxic but which may alter the characteristics of the water, in the case of pure water, if the pump were to have any leaks.

6. INSTALLATION

Screw on the elbow with hosetail fitting provided in the packaging. Use a pipe tightening clamp to secure the pipe to the fitting.

• If the bottom of the trap where the pump is to be placed is particularly dirty, a raised support should be provided so as to avoid blocking of the suction grid (Fig.1)
  • Totally immerse the pump in the water.
• Ensure that the minimum dimensions of the trap in which it is housed are as follows: Min. base dimensions (mm) 200x200 / Min. height (mm) 400
• The dimensions of the trap must always be in relation to the quantity of water arriving and to the flow of the pump, so as not to subject the motor to excessive starts/hour; it is strongly recommended not to exceed 20 starts/hour.

The pump must be installed in vertical position!

ENGLISH

7. ELECTRICAL CONNECTION

The length of the power cable on the pump limits the maximum depth of immersion in use of the pump. Follow the indications on the technical data plate and in this manual, table 3.

8. START-UP

1) Insert the plug of the power cable in a 220-240V power socket.
2) When the float reaches the ON level the pump will start and will continue operating until it reaches the OFF level.
3) The integrated float switch starts and stops the pump automatically when the indicator (2) is positioned on "A".

Automatic operation (A):

Manual operation (M):

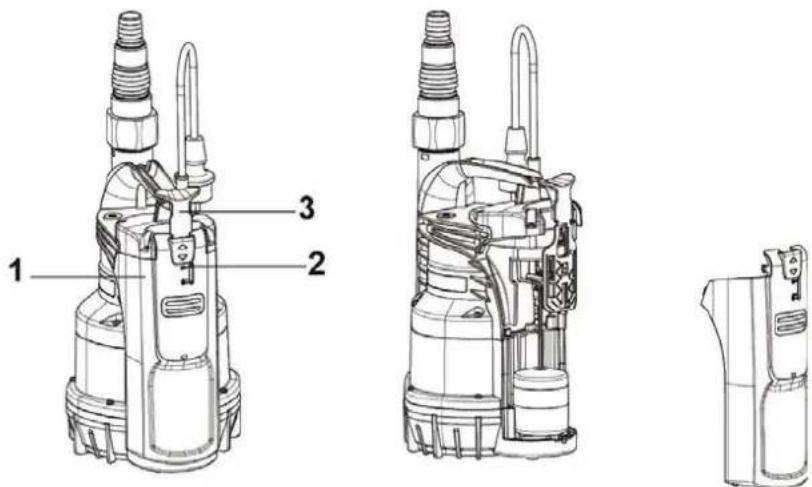

4) To start the pump, lift the knob (3) positioning the indicator (2) on "M". In these conditions the suction level of the pump will be down to 2-3 mm

5) In order to check the correct working and clean the float switch open the cover (1) positioning the knob (3) on "O"

9. PRECAUTIONS

RISK OF FROST: when the pump remains inactive at a temperature lower than 0^ C, it is necessary to ensure that there is no water residue which could freeze, causing cracks in the plastic parts.

If the pump has been used with substances that tend to form a deposit, or with water containing chlorine, rinse it after use with a powerful jet of water in order to avoid the formation of deposits or encrustations which would reduce the characteristics of the pump.

10. MAINTENANCE AND CLEANING

In normal operation the pump does not require any type of maintenance. In any case, all repair and maintenance work must be carried out only after having disconnected the pump from the supply mains. When restarting the pump, ensure that the suction filter is always fitted so as not to create the risk or possibility of accidental contact with moving parts.

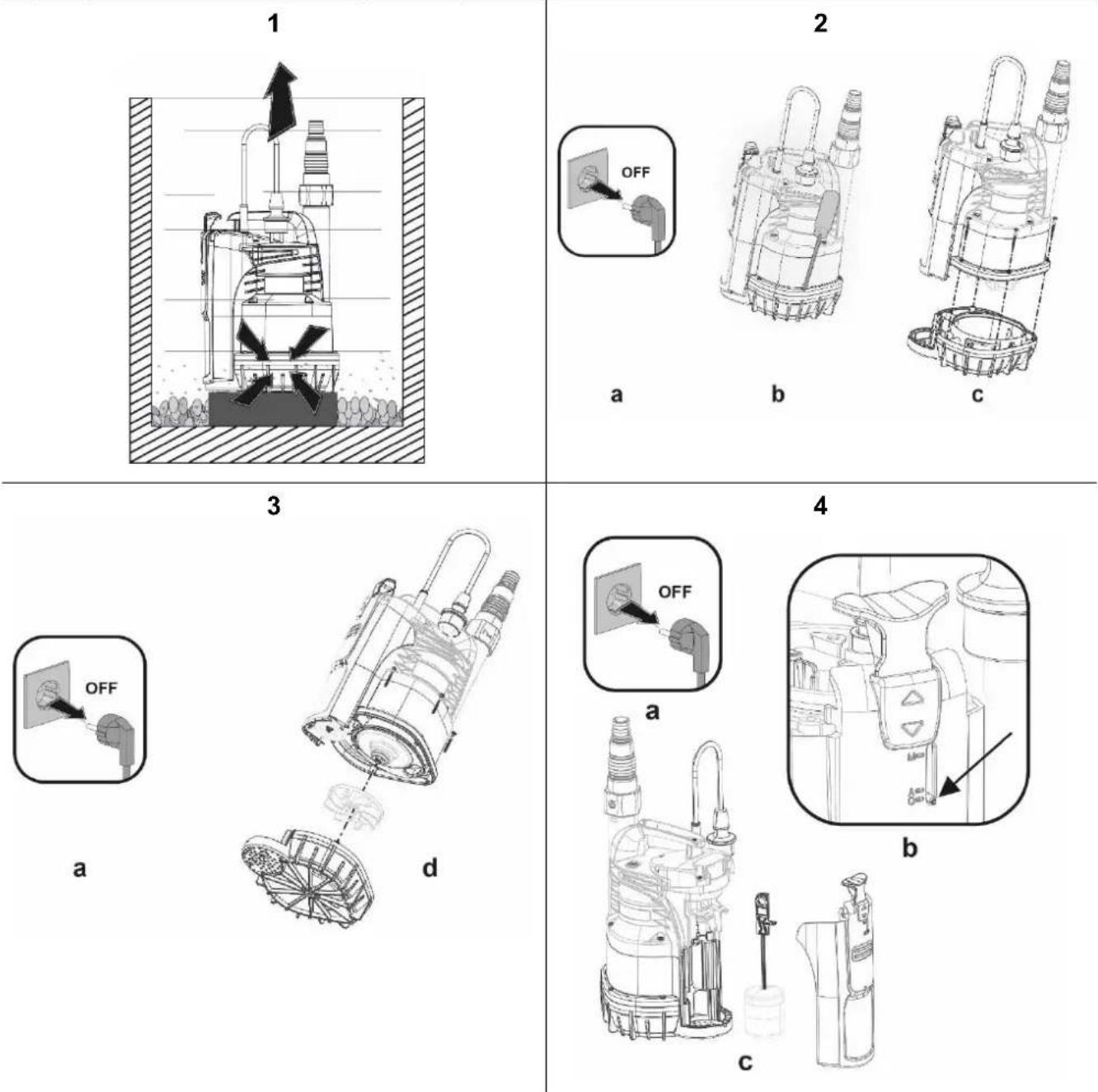

10.1 Cleaning the suction grid

(Fig.2)

• Switch off the electric power supply to the pump.
• Drain the pump.
  • Unscrew the retaining screws on the filter (b).
• Remove the suction grid (c).
• Clean and reassemble the suction grid.

10.2 Cleaning the impeller

(Fig.3)

• Switch off the electric power supply to the pump.
• Drain the pump.
  • Unscrew the retaining screws on the filter (b).
• Remove the suction grid (c).
• Wash the pump with clean water to remove possible impurities between the motor and the pump jacket. (d).
  • Clean the impeller (d).
• Check that the impeller can turn freely.
• Assemble the parts, proceeding in inverse order to disassembly.

ENGLISH

10.3 Cleaning and testing of integrated float

(Fig.4)

• Switch off the electric power supply to the pump.
• Drain the pump.
• Push the switch lever and disassemble the cover of the float.
• Remove the float, check if the material prevents the free flow and just in case proceed to cleaning.
  • Assemble the parts, proceeding in inverse order to disassembly.

11. TROUBLESHOOTING

Before taking any troubleshooting action, disconnect the pump from the power supply (i.e. remove the plug from the socket). If there is any damage to the power cable or pump, any necessary repairs or replacements must be performed by the manufacturer or his authorized customer support service, or by an equally-qualified party, in order to prevent all risks.

FAULTS		CHECKS (possible causes)	REMEDIES
1	The motor does not start and does not make any noise.	A. Check that voltage is reaching the motor.B. Check the protection fuses.C. The switch is not activated by the float.	A. Check that the plug is inserted correctly.B. If burnt out, change them.C. - If burnt out, change them.- Increase the depth of the trap.
2	The pump does not deliver flow.	A. The suction grid or the pipes are blocked.B. The impeller is worn or blocked.C. The head required is higher than the pump's characteristics.D. Presence of air.E. Water level under the suction minimum.	A. Remove the obstructions or straighten the hose if it is twisted.B. Replace the impeller or remove the obstruction.C. Replace it with one with a higher head.D. Wait at least 1 minute until it is eliminated.
3	The pump does not stop.	A. The switch is not deactivated by the float.	A. Check that the float can move freely.
4	The flow rate is insufficient.	A. Check that the suction grid is not partially blocked.B. Check that the impeller or the delivery pipe are not partly blocked or encrusted.C. Ensure that the check valve (if contemplated) is not partially blocked.	A. Remove any obstructions.B. Remove any obstructions.C. Accurately clean the check valve.
5	The pump stops after having run for a short time.	A. The thermal overload protection device stops the pump.	A. Check that the fluid to be pumped is not too dense as it would cause overheating of the motor.B. Check that the water temperature is not too high.C. Make sure there is no solid body obstructing the impeller.D. Power supply doesn't comply with the nameplate's data.

12. GUARANTEE

Any modification made without prior authorisation relieves the manufacturer of all responsibility. All the spare parts used in repairs must be authentic and all accessories must be authorised by the manufacturer in order to ensure maximum safety of the machines and of the systems in which they may be installed.

This product is covered by a legal guarantee (in the European Community for 24 months from date of purchase) against all defects that can be assigned to manufacturing faults or to the material used.

The product under guarantee may, at discretion, either be replaced with one in perfect working order or replaced free of charge if the following conditions are observed:

• the product has been used correctly in compliance with the instructions and not attempt has been made to repair it by the buyer or by third parties.
• the product has been consigned to the outlet where it was purchased, attaching a document as proof of purchase (invoice or cash register receipt) and a brief description of the problem found.

The impeller and parts subject to wear are not covered by the guarantee. Intervention under guarantee does not extend the initial guarantee period in any way.
