USER MANUAL WMN4277SK SAMSUNG

Angle Adjustment and Rotation Type Wall-Mount Bracket Installation Guide WMN4277SK

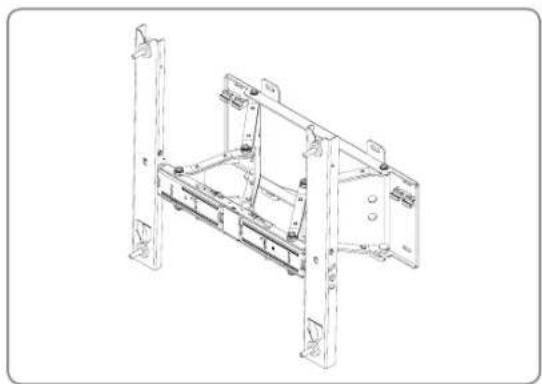

Product Image

Technical line drawing of a mechanical frame assembly (no text or symbols)

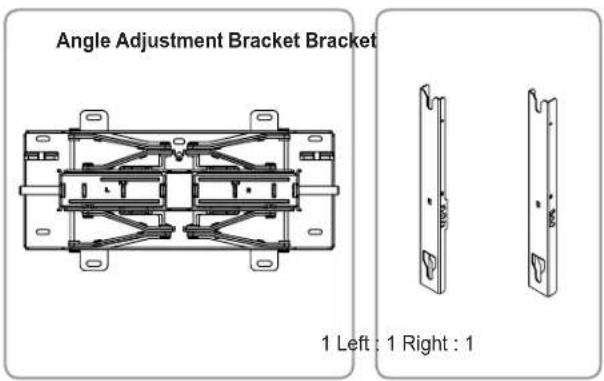

Components

* Only use the supplied components for the bracket installation.

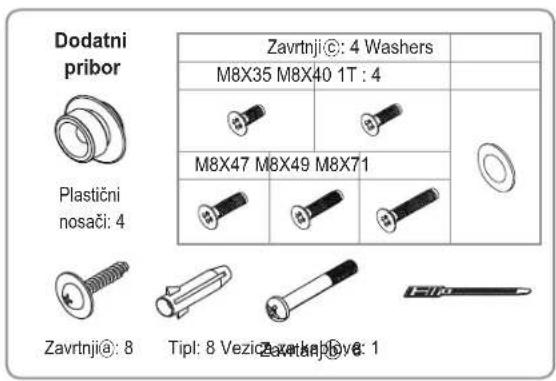

Angle Adjustment Bracket Bracket 1 Left : 1 Right : 1

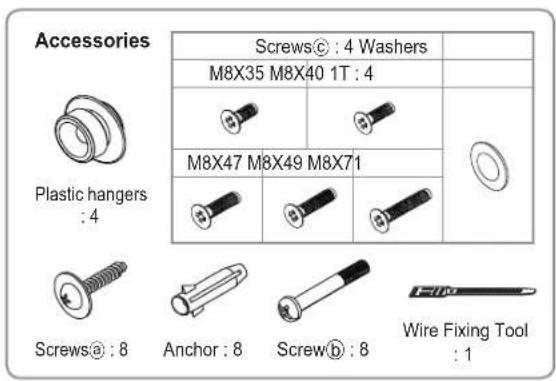

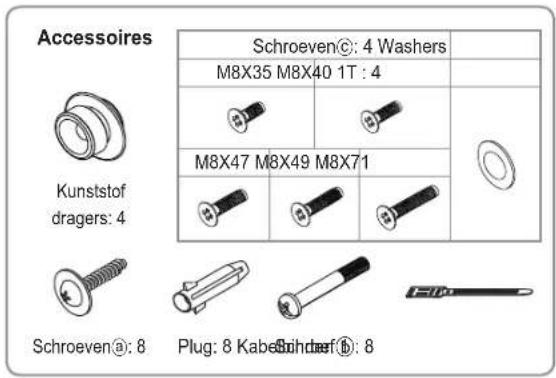

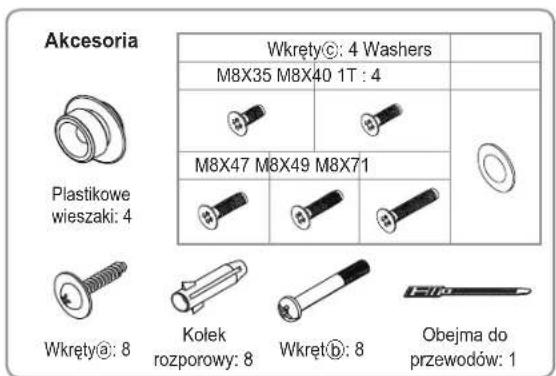

Accessories Screws© : 4 Washers M8X35 M8X40 1T : 4 Plastic hangers : 4 M8X47 M8X49 M8X71 Screws® : 8 Anchor : 8 Screw® : 8 Wire Fixing Tool : 1

Safety Instructions

Be sure to contact an authorized service center when installing your set.

Contact a qualified technician at your dealer for moving or replacing the product after the installation.

Do not hang on or give sudden impacts to the product.

1. Be sure to keep the product away from children. There can be serious damage on the head when hit by the edge of the product.
2. Be careful when you adjust the angle or rotate the set. The product can be damaged if it is too close to touch the wall.
   (Attach some sponges to 4 corners of the product to avoid the product or wall damage.)
3. Do not install the product in a place with high temperature and high humidity. Avoid to install the product on the wall which cannot bear the weight.
4. Since there is a danger of electric shock, do not insert your fingers into the TV stand installation hole while installing the TV.
5. Make sure to cover the TV stand installation hole with the hole cover supplied with the TV before completing the wall installation.

Wall Bracket Assembly

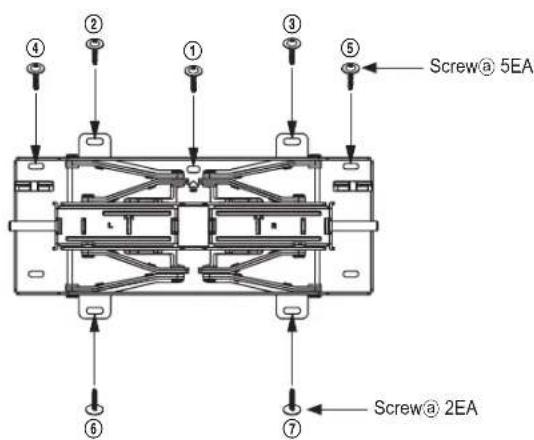

1 Install the angle adjustment bracket on the wall as shown in the figure.

④ ② ① ③ ⑤ Screw@ 5EA ⑥ ⑦ Screw@ 2EA

Tighten the angle adjustment bracket by using anchors and screws ^③ orderly from ① to ⑦.

If it cannot be installed on the assigned area, install at the nearest place.

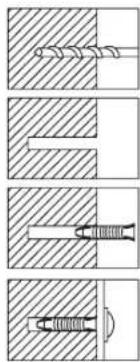

How to Tighten Anchors or Screws®

Pure mechanical assembly diagrams showing four different states of a screw or drill bit (no text or symbols)

Make a hole in the wall with the drill of 6X50.

Clean up the hole.

Insert the supplied anchor to the hole.

Match the angle adjustment bracket to the holes on the wall and tighten the screws@.

* Use the drill with the required size when making a hole in the wall. Be sure to follow the directions for the installation to avoid safety problems.

Check the solidity of the wall before the installation. Strengthen the wall and install the bracket if the wall is not firm enough.
The supplied screws and anchors are for installing on concrete walls.
For the wall of plaster, marble, or steel, use the appropriate screws.

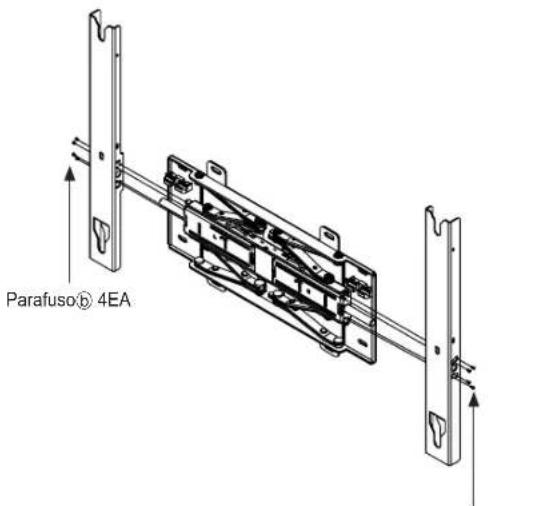

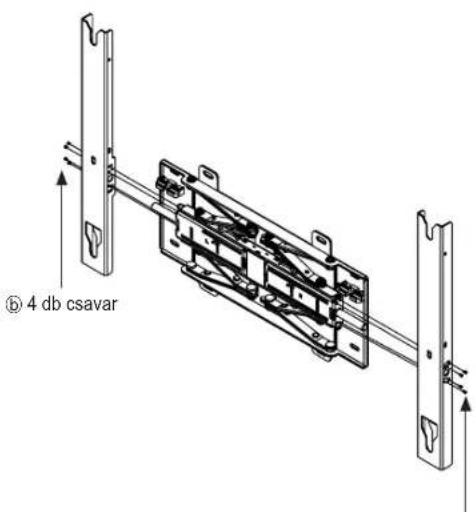

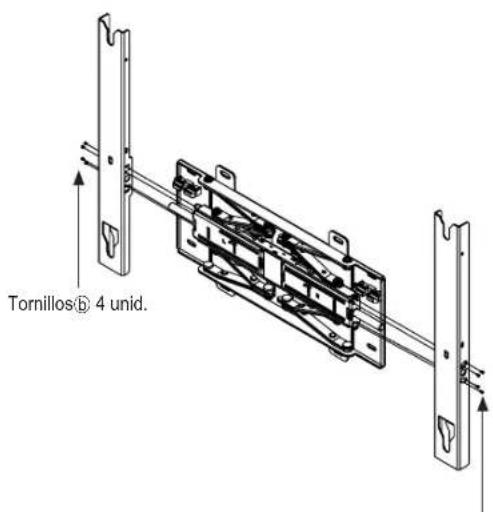

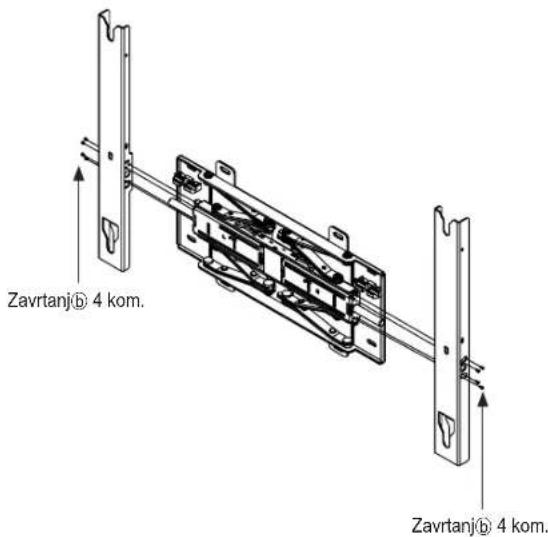

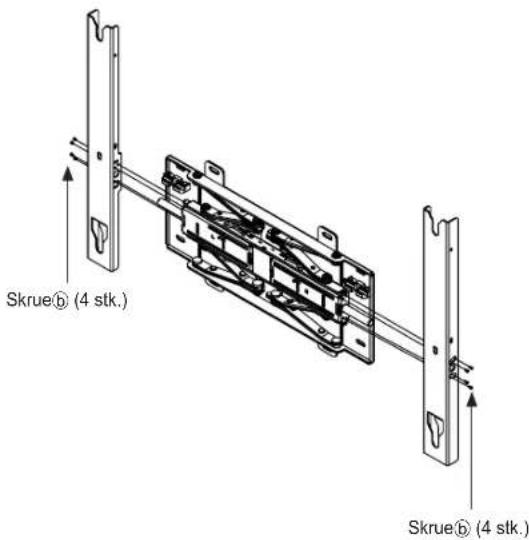

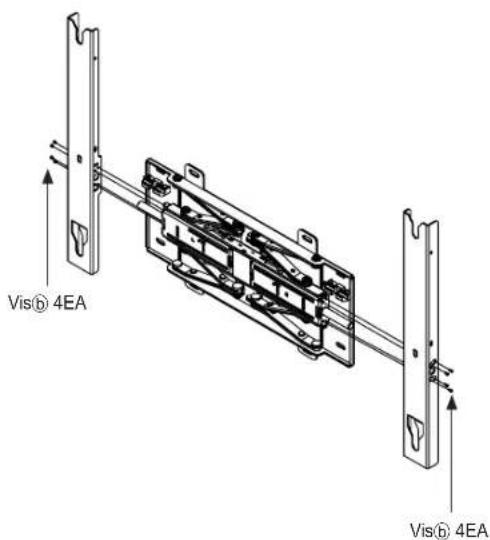

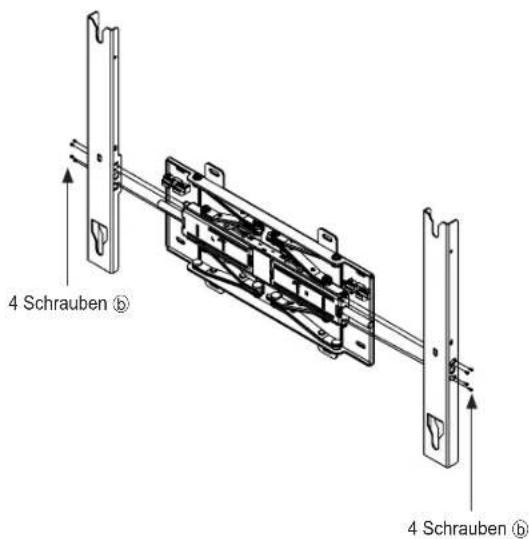

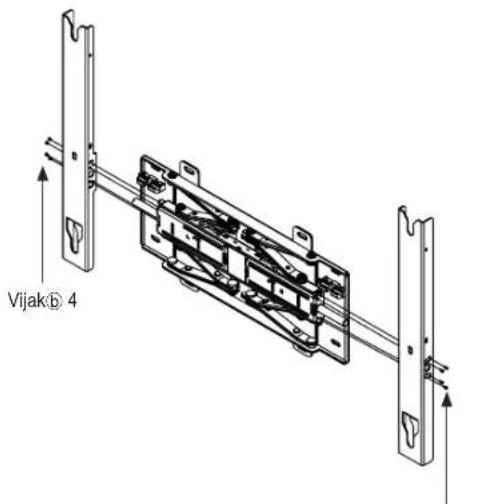

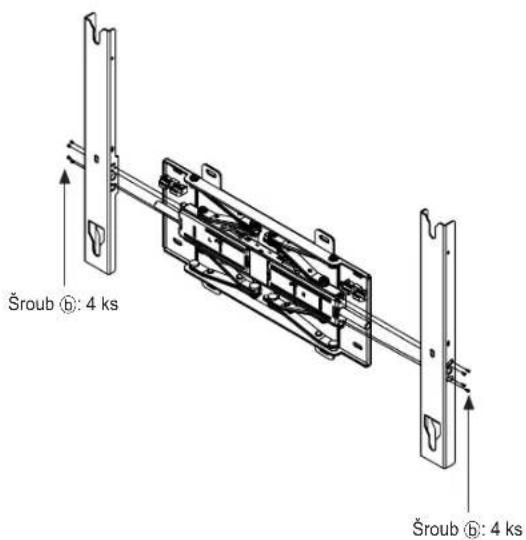

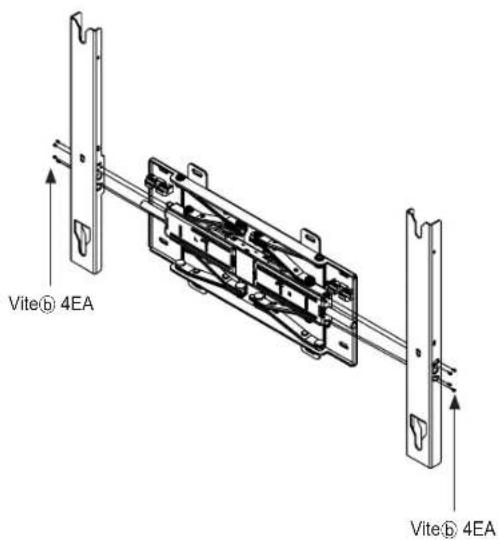

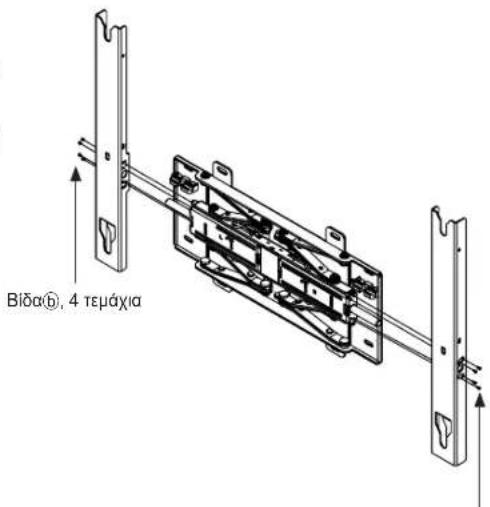

2 Securely fix the set to the wall. Pull the bracket forward and unfold it. Insert the bracket to the assigned area of the angle adjustment bracket and tighten the supplied 8 screws ^6 .

(Same for both left and right side)

Technical line drawing of an electrical enclosure or enclosure with multiple components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Screw® 4EA Screw® 4EA

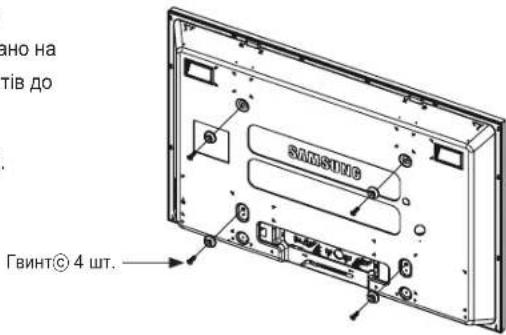

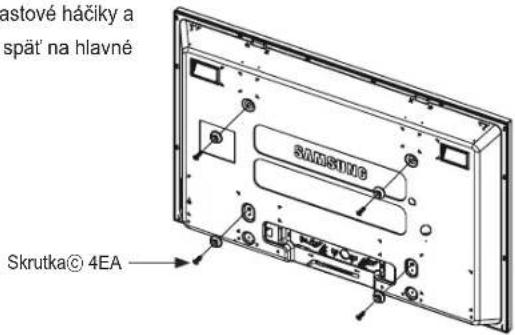

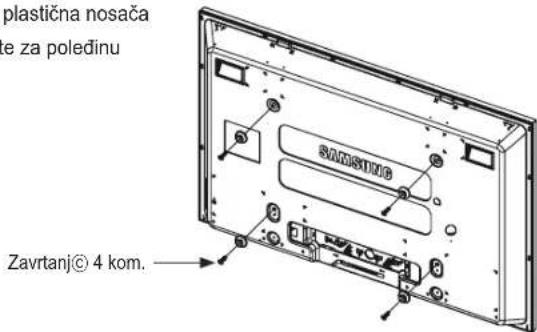

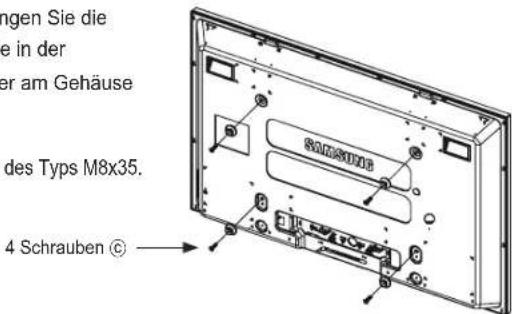

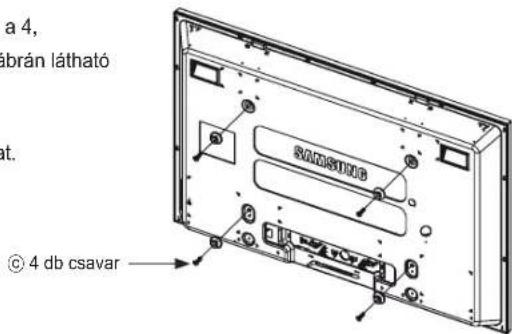

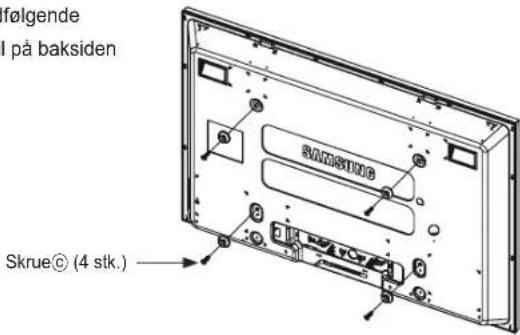

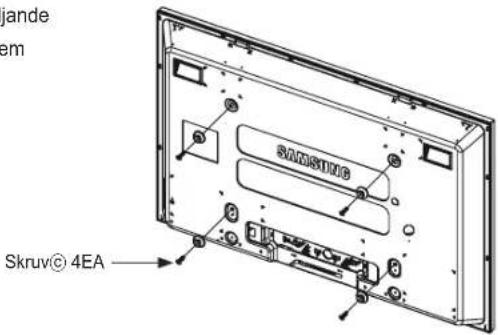

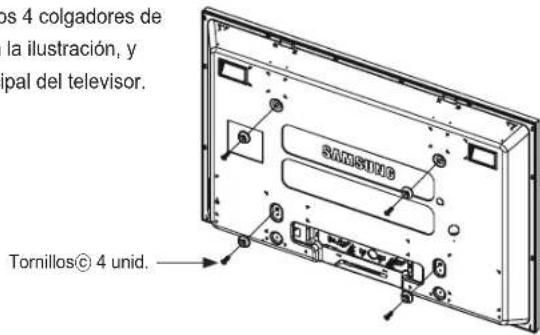

3 Remove the screws from the main body of the TV, assemble the 4 enclosed plastic hangers and screws© as shown by the figure and firmly fasten them to the back of the main body of the TV.

[Slim, Normal TV] Use M8X35 screws.

4 enclosed asten them to SAMSUNG Screw© 4EA

Mount the product on the wall bracket. Be sure to check on the left and right side to see if it is properly fixed.
Be careful when installing the product or adjusting the angle as fingers can be caught in the holes.
Be sure the wall bracket is securely fixed to the wall. Falling down the product may cause physical damage.

4 Pull the wall bracket fixing part forward. Two people are required to install the product on the assigned area of the wall bracket.

Simple line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow and the other with a straight line (no text or symbols)

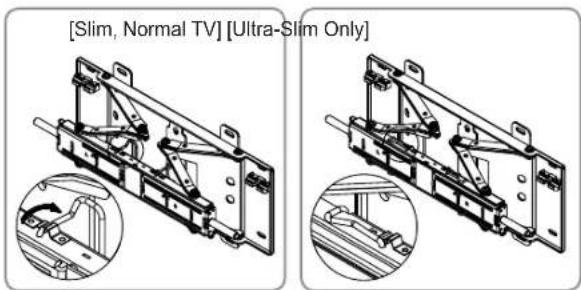

⚠️ Install the TV set to the wall bracket and rotate the 2 safety pins on the upper part to fix.

▲ You can keep the TV level using the height leveler.

[Slim, Normal TV] [Ultra-Slim Only]

5 For managing the power cord and other cables for peripheral equipments, bundle the wires by using the supplied wire fixing tool. Be sure the wires are not unbundled or came off when rotating or operating.

* Insert the cables and pull the angle adjustment bracket forward. Arrange the wires by using the hole to avoid the interference with wires when rotating the set. Check the operation 2 \~ 3 times and fix the wall molding if it works properly.

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

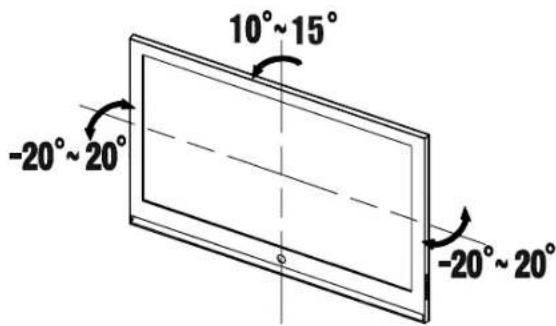

Wall Bracket Angle Adjustment

* The smooth moving mechanism is applied to this product to move the product smoothly for convenience.
* Adjust the installation angle and then stick the TV close to the wall.

10°~15° -20°~20° -20°~20°

Do not adjust the angle with force. The product can be damaged if it is too close to touch the wall.

Hold the left and right side of the product when you want to adjust the left and right angle.

Hold the top center to adjust the down angle.

* You can adjust the angle to left, and right side between -20^ 20^ , to down side to 10^ 15^ .

The adjustable angle range may be vary depending on the model.

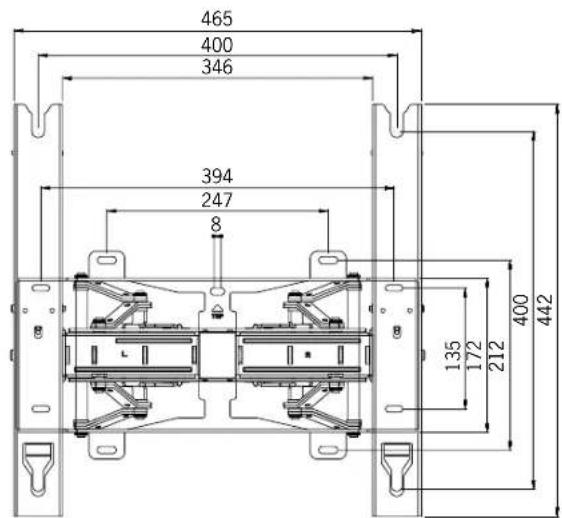

Product Specifications

465 400 346 394 247 8 135 172 212 400 442

240.524.550

Pure technical line drawing of a vertical cylindrical component with three circular holes, no text or symbols present

Product Standards

Width (mm) 465
Height (mm) 442
Dept (mm) 24.5
Weight (Kg) 5.5
Bracket VESA Standard 400	X 400

Information in this document is subject to change without notice.

Vodič za podešavanje kuta i montažu zakretnog zidnog nosača WMN4277SK

Slika proizvoda

Technical line drawing of a mechanical frame assembly (no text or symbols)

Komponente

* Za montažu nosača koristite samo isporučene komponente.

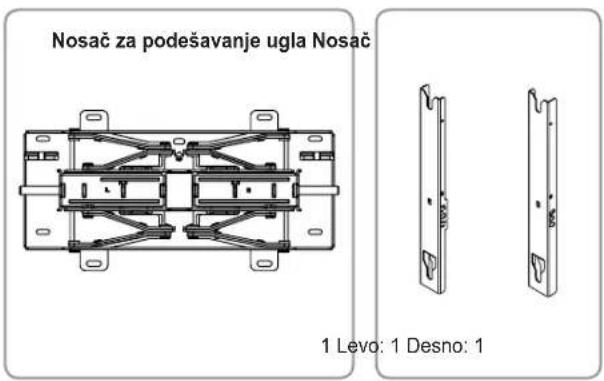

Nosač za podešavanje kuta Nosač 1 Lijevo: 1 Desno: 1

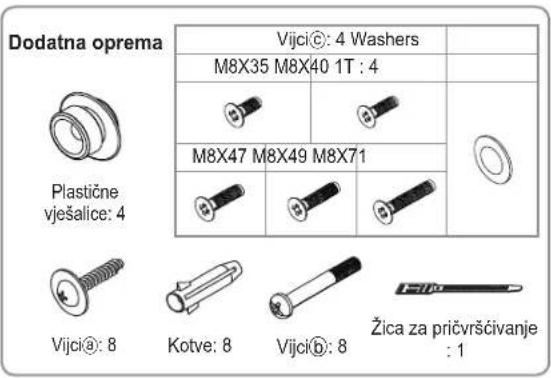

Dodatna oprema Vijci®: 4 Washers M8X35 M8X40 1T : 4 M8X47 M8X49 M8X71 Plastične vješalice: 4 Vijci®: 8 Kotve: 8 Vijci®: 8 Žica za pričvršćivanje : 1

Sigurnosne upute

Prilikom montaže obavezno se obratite ovlaštenom servisnom centru.

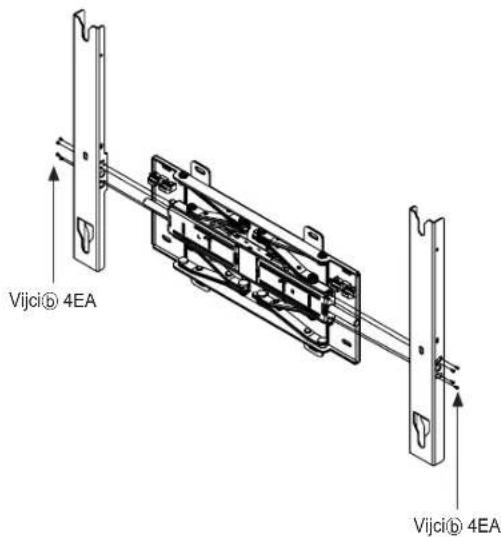

Vijci@ 5EA Vijci@ 2EA

Diagram showing four different types of screw and nut configurations with cross-sectional views (no text or labels)

Pomoću bušilice napravite rupu u zidu dimenzija 6X50.

Očistite rupu.

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Vijci® 4EA Vijci® 4EA

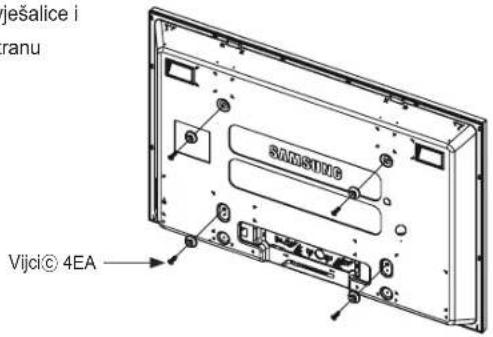

3 Izvadite vijke iz kućišta televizora, postavite 4 priložene plastične vješalice i vijke© kako je prikazano na slici i čvrsto ih pritegnite na stražnju stranu kućišta televizora.

[Tanak, običan televizor] Koristite vijke M8X35.

ješalice i ranu Vijci© 4EA

Proizvod postavite na zidni nosač. Obavezno s lijeve i desne strane provjerite je li pravilno pričvršćen.
Prilikom montaže proizvoda ili podešavanja kuta budite oprezni jer se prsti mogu zaglaviti u rupama.
Provjerite je li zidni nosač čvrsto pričvršćen na zid. Padanje proizvoda može uzrokovati ozljede.

Pure mechanical diagram showing a lever system with pivot and pivot points (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a circular arrow and the other with a curved arrow (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure diagram of a vertical cylindrical object with three circular holes, no text or symbols present

Standardi proizvoda

Širina (mm) 465
Visina (mm) 442
Dubina (mm) 24.5
Težina (kg) 5.5
VESA standard za nosače 400 X 400

Informacije u ovom dokumentu podložne su promjenama bez prethodne najave.

Technical line drawing of a mechanical frame assembly (no text or symbols)

Součásti

Five technical diagrams showing different screw and thread assembly states (no text or labels)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Šroub ⑥: 4 ks Šroub ⑥: 4 ks

Simple line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, no text or symbols present

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with three circular holes, no text or symbols present

Standardy výrobku

Technical line drawing of a mechanical frame assembly (no text or symbols)

Komponenter

Four-panel diagram showing different types of screw and nut components, no text or symbols present

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Skrue® 4 stk. Skrue® 4 stk.

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram showing a mechanical assembly with labeled parts and directional arrow, likely illustrating a process or transformation.

[Tyndt, normalt TV] [Kun ultratyndt]

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550 ØØØ Ø Ø Ø

Pure technical line drawing of a vertical cylindrical component with four circular holes, no text or symbols present

Produktstandarder

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Onderdelen

Hoekaanpassingsbeugel Beugel 1 Links: 1 Rechts: 1

Accessoires Schroeven®: 4 Washers M8X35 M8X40 1T : 4 M8X47 M8X49 M8X71 Schroeven®: 8 Plug: 8 Kabed Buhder®: 8

Illustration of two people: one holding a book and the other talking on a phone with a Samsung logo (no text or symbols in the image)

Pure mechanical diagram showing four sequential steps of screw installation (no text or symbols)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Schroef® 4 stuks Schroef® 4 stuks

Pure mechanical diagram showing a lever and pivot mechanism without any text, numbers, or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, no text or symbols present

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure vertical line diagram with no text, numbers, or symbols

Productstandaarden

Breedte (mm) 465
Hoogte (mm) 442
Diepte (mm) 24,5
Gewicht (kg) 5,5
VESA-standaard beugel 400	X 400

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Osat

Illustration of two people: one holding a book and the other talking on a phone with a Samsung T-shirt (no text or symbols)

Illustration of a baby pointing at a cartoon face on a TV (no text or symbols)

Five technical diagrams showing different screw and thread assembly states (no text or labels)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text, numbers, or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with three circular holes, no text or symbols present

Standardit

Technical line drawing of a mechanical frame assembly (no text or symbols)

Composants

Illustration of two people: one reading a book and the other holding a phone to a Samsung (no text or symbols present)

Installation du support mural

④ ② ① ③ ⑤ Vis@ 5EA ⑥ ⑦ Vis@ 2EA

Five technical diagrams showing different screw and thread assembly states (no text or labels)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Vis® 4EA Vis® 4EA

Diagram showing a mechanical or optical setup with labeled components and directional arrows indicating motion or force.

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

240.524.550

Pure vertical line diagram with no text, numbers, or symbols

Normes du produit

Technical line drawing of a mechanical frame assembly (no text or symbols)

Komponenten

Illustration of two people: one reading a book and the other holding a phone to a Samsung brand cap (no text or symbols present)

Pure technical diagram showing four different screw and nut assembly states without any text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

4 Schrauben Ⓞ 4 Schrauben Ⓞ

Pure diagram of a mechanical or architectural component with arrows indicating direction, no text or symbols present

Simple line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical illustration of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure vertical line diagram with circular markers, no text or symbols present

Produktnormen

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Illustration of two people: one reading a book and the other holding a phone to a Samsung (no text or symbols present)

Pure mechanical diagram showing four sequential steps of screw installation (no text or symbols)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

Bibα®, 4 τεμάχια

Βίδα®, 4 τεμάχια

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Simple line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with two components, shown in two views (no text or symbols)

Technical line drawing of a mechanical assembly or device with no visible text or symbols

240.524.550

Πρότυπα προϊόντος

Technical line drawing of a mechanical frame assembly (no text or symbols)

Alkatrészek

Diagram showing four different types of screw and drill bit configurations (no text or labels)

Technical line drawing of a mechanical or electrical component assembly (no visible text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text, numbers, or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

240.524.550

Pure diagram of a vertical cylindrical object with four circular holes, no text or symbols present

Termékszabványok

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Componenti

Illustration showing two scenes: a woman reading and talking, and a man wearing a cap with 'AS' and 'SAMSUNG' text.

Vite@ 5EA Vite@ 2EA

Five technical diagrams showing different screw and thread assembly states (no text or labels)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Vite® 4EA Vite® 4EA

Pure mechanical diagram showing a lever and pivot mechanism without any text, numbers, or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly or bracket (no visible text or symbols)

240.524.550

Pure technical line drawing of a vertical cylindrical component with four circular holes, no text or symbols present

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Komponenter

Illustration showing two scenes: a woman reading and talking, and a man holding a phone to the other with an 'AS' T-shirt.

Four-panel diagram showing different types of screw and nut components, no text or symbols present

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Skrue® (4 stk.) Skrue® (4 stk.)

Simple line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing a lever mechanism with arrows indicating direction (no text or symbols)

Diagram showing a mechanical assembly with two views of a vertical component, no text or symbols present

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with three circular holes, no text or symbols present

Produktstandarder

Technical line drawing of a mechanical frame assembly (no text or symbols)

Elementy

Two identical mechanical component diagrams labeled 'Wspornik' and 'Prawy: 1', with no text or symbols on the diagrams themselves.

Illustration of two people: one holding a book and the other talking on a phone with a Samsung logo (no text or symbols in the image)

Diagram showing four different types of screw and nut configurations with cross-hatching (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Diagram showing two views of a mechanical component with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure vertical line diagram with circular markers, no text or symbols present

Parametry produktu

Technical line drawing of a mechanical frame assembly (no text or symbols)

Componentes

④ ② ① ③ ⑤ Parafuso® 5EA ⑥ ⑦ Parafuso® 2EA

Five technical diagrams showing different screw and thread assembly states (no text or labels)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Parafuso® 4EA

Parafuso® 4EA

Pure mechanical diagram showing a lever and pivot mechanism without any text, numbers, or symbols

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or assembly (no visible text or symbols)

240.524.550 Ø Ø Ø Ø Ø Ø Ø

Pure technical line drawing of a vertical cylindrical component with three circular holes, no text or symbols present

Normas do produto

Technical line drawing of a mechanical frame assembly (no text or symbols)

Компоненты

Illustration of two people: one reading a book and the other talking on a phone with an 'AS' cap (no text or symbols in the image)

Pure mechanical diagram showing four sequential steps of screw installation (no text or symbols)

Technical line drawing of an electrical enclosure or enclosure with internal components (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

Diagram showing a mechanical or optical setup with labeled components and directional arrows indicating motion or force.

Pure mechanical diagram showing a lever mechanism with arrows indicating direction (no text or symbols)

Diagram showing a mechanical assembly with two views of a vertical structure, one rotated to form a circular arrow (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly or bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with mounting holes (no text or symbols)

Габариты изделия

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Komponente

* Prilikom montaže nosača koristite samo isporučene komponente.

Nosač za podešavanje ugla Nosač 1 Levo: 1 Desno: 1

Dodatni pribor Plastični nosači: 4 Zavrtnji@: 4 Washers M8X35 M8X40 1T : 4 M8X47 M8X49 M8X71 Zavrtnji@: 8 Tipl: 8 Vezic Zavrtnji@: 6ye: 1

Illustration of two people: one reading a book and the other talking on a phone with a Samsung logo (no text or symbols in the image)

Ne kačite se za proizvod i pazite da ga ne udarite.

1. Držite proizvod izvan domašaja dece. Udarac o ivicu nosača može da izazove ozbiljne povrede glave.
2. Budite pažljivi prilikom podešavanja ugla ili rotiranja proizvoda. Proizvod može da se ošeteti ako je preblizu zidu. (Na sva 4 ugla pričvrstite sundere da se ne bi ošetili ni proizvod ni zid.)
3. Proizvod nemojte montirati na mesto koje je izloženo visokim temperaturama i velikoj vlažnosti vazduha. Proizvod nemojte montirati na zid koji ne može da podnese njegovu težinu.
4. Pošto postoji opasnost od strujnog udara, u toku montaže televizora ne stavljajte prste u otvor za montažu postolja.
5. Pre montaže na zid, zatvorite otvor za montažu postolja pomoću poklopca koji ste dobili uz televizor.

Pure mechanical diagram showing four sequential steps of screw installation (no text or symbols)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Zavrtanj® 4 kom. Zavrtanj® 4 kom.

3 Skinite zavrtnje sa kućišta televizora, sastavite 4 isporučena plastična nosača i zavrtnje© kao što je prikazano na slici, pa ih dobro pričvrstite za poleđinu kućišta televizora.

[tanki, standardni televizor] Koristite zavrtnje M8x35.

plastična nosača e za poledinu Zavrtanj© 4 kom.

Proizvod postavite na zidni nosač. Proverite da li su i leva i desna strana dobro pričvršćene.
Prilikom montaže proizvoda i podešavanja ugla pripazite da ne priklještite prste u rupama.
Proverite da li je zidni nosač dobro pričvršćen za zid. Pad proizvoda može da prouzrokuje telesne povrede.

1. Deo za montažu na zidni nosač povucite prema napred. Za montažu proizvoda na odgovarajući deo zidnog nosača potrebno je dvoje ljudi.

Pure diagram of a mechanical or architectural component with arrows indicating direction, no text or symbols present

Pure mechanical diagram showing a lever mechanism with arrows indicating direction (no text or symbols)

Diagram showing a mechanical assembly with two views of a vertical structure, one rotated and the other tilted (no text or symbols)

Televizor montirajte na zidni nosač i rotirajte 2 osigurača na gornjem delu da biste ga učvrstili.

Horizontalni položaj televizora možete da podesite pomoću regulatora visine.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a magnified inset showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure vertical line diagram with no text, numbers, or symbols

Standardi za proizvod

Širina (mm) 465
Visina (mm) 442
Dubina (mm) 24.5
Težina (kg) 5.5
VESA standard za nosač 400 X 400

Informacije u ovom dokumentu podložne su promeni bez prethodne najave.

Technical line drawing of a mechanical frame assembly (no text or symbols)

Komponenty

Illustration of two people: one reading a book and the other holding a phone to a Samsung (no text or symbols present)

Pure mechanical diagram showing four sequential steps of screw installation (no text or symbols)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Skrutka® 4EA Skrutka® 4EA

Pure diagram of a mechanical or architectural component with arrows indicating direction, no text or symbols present

Pure mechanical diagram showing a lever mechanism with no text or symbols

Diagram showing a mechanical assembly with labeled components and directional arrow, likely illustrating a motion or assembly process.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical illustration of a mechanical assembly with mounting brackets and a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with four circular holes, no text or symbols present

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Komponente

Four-panel diagram showing different types of screw and nut components, no text or symbols present

V steno izvrtajte luknjo s svedrom 6X50.

Očistite luknjo.

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

Vijak® 4

Vijak ^b 4

Pure mechanical diagram showing a lever and pivot mechanism without any text, numbers, or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, no text or symbols present

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with four circular holes, no text or symbols present

Standardi izdelka

Širina (mm) 465
Višina (mm) 442
Globina (mm) 24.5
Teža (kg) 5.5
Nosilec po standardu VESA 400 x 400

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Componentes

Illustration showing two scenes: a woman holding a book and another person wearing a cap with 'AS' and 'SAMSUNG' text.

Pure mechanical diagram showing five sequential steps of screw fastening (no text or symbols)

Technical line drawing of a mechanical or electrical component assembly (no text or symbols visible)

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

Tornillos® 4 unid.

Tornillos® 4 unid.

Simple line drawing of a mechanical assembly with arrows indicating direction (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical structure, one with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly or bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with four circular holes, no text or symbols present

Technical line drawing of a mechanical assembly frame with mounting brackets and mounting holes (no text or symbols)

Komponenter

④ ② ① ③ ⑤ Skruv@ 5EA ⑥ ⑦ Skruv@ 2EA

Five technical diagrams showing different screw and thread assembly states (no text or labels)

Technical line drawing of an electrical enclosure or enclosure with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Skruv® 4EA Skruv® 4EA

jande em SAMSUNG Skruv© 4EA

Simple line drawing of a mechanical assembly with no text or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly with two views of a vertical component, no text or symbols present

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly or bracket (no text or symbols visible)

240.524.550

Pure vertical line diagram with no text, numbers, or symbols

Produktstandarder

Technical line drawing of a mechanical frame assembly (no text or symbols)

Складові частини

Pure mechanical diagram showing five sequential steps of screw fastening (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with brackets and mounting holes (no text or symbols)

ГВИНТ⑥: 4 ШТ.

Гвинт ⓑ 4 шт.

ANO HA TIB DO Gвинт© 4 ШТ.

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Diagram showing a mechanical assembly or lifting process with labeled components and directional arrow

Technical line drawing of a mechanical assembly or bracket (no text or symbols visible)

240.524.550

Pure technical line drawing of a vertical cylindrical component with four circular holes, no text or symbols present

Стандарти виробу
