USER MANUAL AdvancedLeafBlower 36V-750 BOSCH

WARNING: Beware of thrown objects.

WARNING: Keep bystanders away.

Keep hands, feet or loose clothes out of the the openings while the product is running. Rotating fan. Keep hands, feet, long hair or loose clothes out of the openings while the product is running. Wear eye and ear protection.

WARNING: Disconnect battery before mainten-

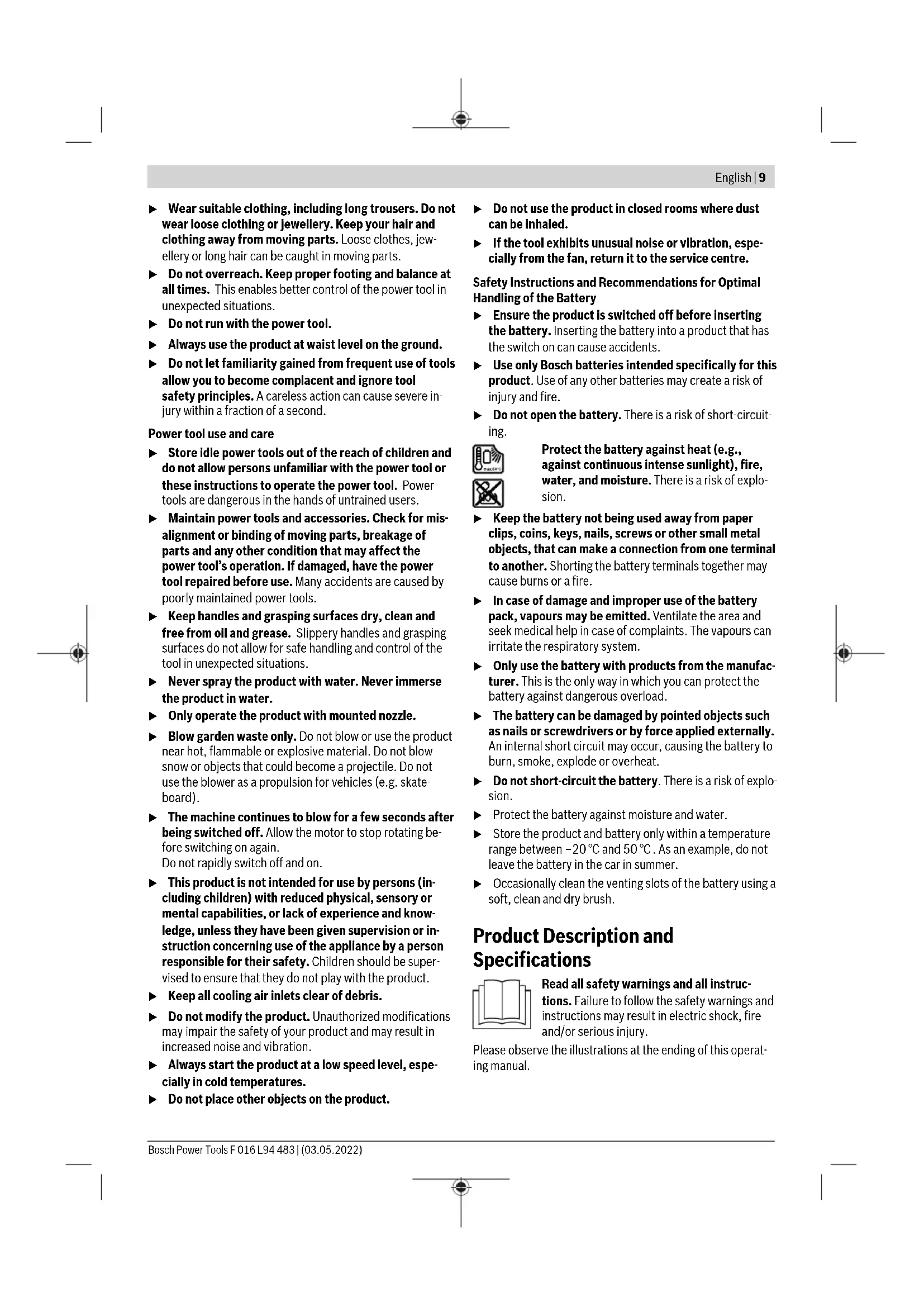

ance. General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. u Other persons and animals should remain at a dis- tance of 3metres or more when the machine is being used. Dirt should never be blown in the direction of bystanders. u Stay alert for hazards that cannot be heard when oper- ating the leaf blower. u Be careful not to trip over the machine when placing it on the ground. u The user is responsible for accidents or hazards occur- ring to other people or their property. Electrical safety u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose the power tool to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock. u Avoid all bad weather conditions, especially when there is a risk of lightening. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. F 016 L94 483 | (03.05.2022) Bosch Power ToolsEnglish | 9 u Wear suitable clothing, including long trousers. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jew- ellery or long hair can be caught in moving parts. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Do not run with the power tool. u Always use the product at waist level on the ground. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. u Never spray the product with water. Never immerse the product in water. u Only operate the product with mounted nozzle. u Blow garden waste only. Do not blow or use the product near hot, flammable or explosive material. Do not blow snow or objects that could become a projectile. Do not use the blower as a propulsion for vehicles (e.g. skate- board). u The machine continues to blow for a few seconds after being switched off. Allow the motor to stop rotating be- fore switching on again. Do not rapidly switch off and on. u This product is not intended for use by persons (in- cluding children) with reduced physical, sensory or mental capabilities, or lack of experience and know- ledge, unless they have been given supervision or in- struction concerning use of the appliance by a person responsible for their safety. Children should be super- vised to ensure that they do not play with the product. u Keep all cooling air inlets clear of debris. u Do not modify the product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration. u Always start the product at a low speed level, espe- cially in cold temperatures. u Do not place other objects on the product. u Do not use the product in closed rooms where dust can be inhaled. u If the tool exhibits unusual noise or vibration, espe- cially from the fan, return it to the service centre. Safety Instructions and Recommendations for Optimal Handling of the Battery u Ensure the product is switched off before inserting the battery. Inserting the battery into a product that has the switch on can cause accidents. u Use only Bosch batteries intended specifically for this product. Use of any other batteries may create a risk of injury and fire. u Do not open the battery. There is a risk of short-circuit- ing. Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explo- sion. u Keep the battery not being used away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Do not short-circuit the battery. There is a risk of explo- sion. u Protect the battery against moisture and water. u Store the product and battery only within a temperature range between –20°C and 50°C . As an example, do not leave the battery in the car in summer. u Occasionally clean the venting slots of the battery using a soft, clean and dry brush. Product Description and Specifications Read all safety warnings and all instruc- tions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the ending of this operat- ing manual. Bosch Power Tools F 016 L94 483 | (03.05.2022)10 | English Intended Use The product is intended for blowing leaves, garden waste such as grass, twigs and pine needles. Product Features (see figureA) The numbering of the product features refers to the illustra- tion of the product on the graphics pages. (1) Controller for airflow speed (2) On/Off switch (3) Battery unlocking button (4) Battery (5) Nozzle attachment point (6) Nozzle (7) Charger

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless leaf blower AdvancedLeafBlower 36V-750 Article number 3 600 HC6 0.. Rated voltage

V 36 Airflow speed, max.

/h 780 Weight according to EPTA-Procedure 01:2014

– without battery kg 2.8 – with battery kg 3.5 (2.0 Ah) − 4.0 (4.0 Ah) − 4.1 (6.0 Ah) Serial number see type plate on product Recommended ambient temperature during storage °C -20 … +60 Permitted ambient temperature during operation

Depends on battery in use

Limited performance at temperatures <0°C Noise/Vibration Information 3 600 HC6 0.. Noise emission values determined according to EN50636-2-100 Typically the A-weighted noise levels of the product are: – Sound pressure level dB(A)

(triax vector sum) and uncertainty K determined according to EN50636-2-100 – Vibration emission value a

= 1.5 Mounting and Operation u Caution: Switch garden tool off and remove battery from machine before adjusting or cleaning. u The battery has a double latch system for extra safety. Press the release button once to disengage the battery from powering the tool, but allow it to sit on the second latch for transport around the garden, without activating the tool. u For best results, start the tool with full battery charge. Charge status can be checked by pressing the button on the battery and reading the LED indicator. The numbering of the product features refers to the illustra- tion of the product on the graphics pages. Action Figure Page Delivery scope

Inserting/charging the battery

Adjusting the airflow speed

Symbols The following symbols are important for reading and under- standing the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner. Symbol Meaning Movement direction Switching on Switching off CLICK! Audible noise Accessories Troubleshooting The following chart lists problem symptoms, possible causes and corrective action, if your machine does not operate properly. If these do not identify and correct the problem, contact your service agent.

Warning: Switch off before investigating fault.

Warning: In the event of an accident or tool breakage, stop the machine immediately and remove the battery.

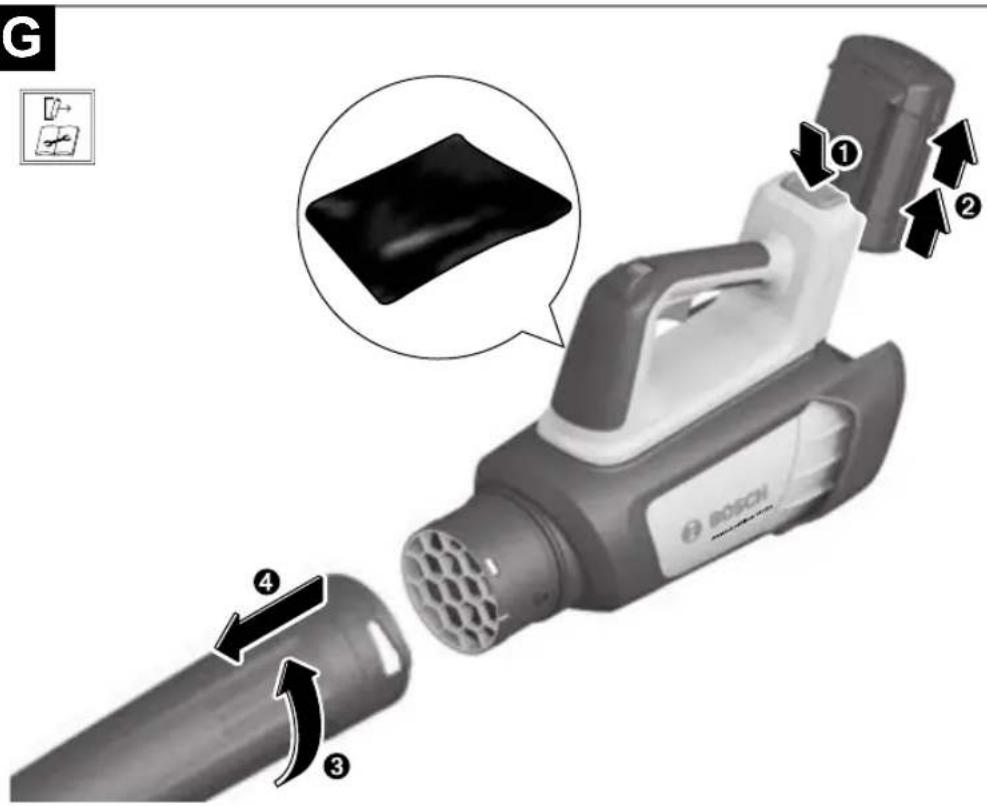

Problem Possible Cause Corrective Measure Machine fails to oper- ate Battery discharged Recharge battery Battery not fully connected Insert the battery correctly (see figureC) Battery too hot/cold Allow to cool/warm. Always start the product at a low speed Machine defective Contact Service Agent. Garden tool functions intermittently On/Off switch defective Contact Service Agent. Controller for airflow speed damaged Contact Service Agent. Excessive vibrations/ noise Machine defective Contact Service Agent. Run time per battery charge too low Battery has not been used for long period or only for short terms Charge battery completely Defective battery Replace battery Machine blow Tube obstructed Clear tube Reduced airflow Air inlet obstructed Clear air inlet Battery too cold Always start the product at a low speed Tube cannot be moun- ted on the machine Incorrect assembly Mount the tube correctly (see figureB) Maintenance and Service Maintenance, Cleaning and Storage u Have your product serviced only by a qualified spe- cialist using only original replacement parts. This will ensure that the safety of the product is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. After-Sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com The Bosch product use advice team will be happy to help you with any questions about our products and their accessor- ies. In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product. Bosch Power Tools F 016 L94 483 | (03.05.2022)12 | Français Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: [phone] E-Mail: [e-mail] You can find further service addresses at: www.bosch-pt.com/serviceaddresses Transport The recommended lithium-ion batteries are subject to legis- lation on the transport of dangerous goods. The user can transport the batteries by road without further require- ments. When shipping by third parties (e.g.: by air transport or for- warding agency), special requirements on packaging and la- belling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations. Disposal The product, batteries, accessories and pack- aging should be sorted for environmental- friendly recycling. Do not dispose of the product and batteries/re- chargeable batteries into household waste! Only for EU countries: According to the European Guideline 2012/19/EU, products that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/ batteries, must be collected separately and disposed of in an environmentally correct manner. If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances. Battery packs/batteries: Li-ion: Please observe the notes in the section on transport (see "Transport", page12). Only for United Kingdom: According to Waste Electrical and Electronic Equipment Reg- ulations 2013 (2013/3113) and the Waste Batteries and Accumulators Regulations 2009 (2009/890), power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. Français Consignes de sécurité Explication des symboles se trouvant sur l’outil de jardin Indications générales sur d’éventuels dangers. Lire soigneusement ces instructions d’utilisa- tion. Ne pas utiliser par temps de pluie.
