USER MANUAL AMW LB BOSCH

Robert Bosch GmbH

Power Tools Division

70764 Leinfelden-Echterdingen

GERMANY

www.bosch-garden.com

F016 L81 119 (2014.08) 0/151 EURO

AMW

LB

BOSCH

Executive Vice President Engineering

Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

Assembly and Operation

www.bosch-garden.com

Explanation of symbols

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

8|English

Warning: Keep a safe distance from the machine when operating.

Switch off and remove plug from mains before adjusting, cleaning, maintenance or if the cable is entangled and before leaving the garden product unattended for any period.

Wear eye and ear protection.

Do not work in the rain or leave the leaf blower outdoors whilst raining.

Beware of thrown or flying objects to bystanders.

Warning: Keep a safe distance from the machine when operating.

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Before use, check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately.

DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the garden product if the cord is damaged or worn.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. When in use, perform a daily visual inspection to identify any significant damage or defects. This inspection must also be completed if the tool is dropped or subjected to any significant impacts. It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it. ▶ Always ensure tool ventilation openings are kept free of debris. Before using the machine and after impact, check for signs of wear or damage and repair if necessary. ▶ Observe also the safety notes and instructions in the user manual of the power unit.

Additional safety warnings

▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use, store the machine out of reach of children.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine. The operator or user is responsible for accidents or hazards occurring to other people or their property. ▶ Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area. ▶ Never operate the machine while people, especially children or pets, are nearby. ▶ Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. ▶ Avoid operating the machine in bad weather conditions especially when there is a risk of lightning. ▶ Always wear long heavy trousers, boots and gloves. Do not wear loose clothing, jewellery, short trousers, sandals or go barefoot. Secure hair so that it is above shoulder level to avoid entanglement with moving parts. ▶ Failure to keep loose clothing from being drawn into air intake could result in personal injury. ▶ Failure to keep long hair away from the air inlet could result in personal injury.

▶ Use the machine only in daylight or good artificial light. ▶ Always be sure of your footing on slopes. ▶ Walk. Never run with the product. ▶ Do not overreach and keep your balance at all times. ▶ Keep all cooling air inlets clear of debris. ▶ Never blow debris in the direction of bystanders. ▶ Switch off when transporting the blower to and from the area to be worked on. ▶ Wear safety eye protection and ear defenders when operating the machine. ▶ Wear eye protection which is marked to comply with EN 166 as well as hearing protection when using this machine. ▶ Wear a face filter mask in dusty conditions to reduce the risk of injury associated with the inhalation of dust. ▶ Do not touch moving hazardous parts before the machine is disconnected from the mains and moving hazardous parts have come to a complete stop. ▶ Switch off and remove the plug from the socket:

— whenever you leave the machine unattended for any period - if the cable is tangled — before cleaning or working on the blower — before removing the blower attachment

– before changing the multi-tool attachment

The extension pole may not be fitted to the blower attachment. ▶ Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration. ▶ After use, disconnect the machine from the mains and check for damage. ▶ Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition. ▶ Examine the machine and replace worn or damaged parts for safety. ▶ Replace worn or damaged parts for safety. ▶ Ensure replacement parts fitted are Bosch approved. ▶ Store the machine in a secure, dry place out of the reach of children. Do not place other objects on top of the machine.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Symbol Meaning

Wear protective gloves

Movement direction

CLICK!

Audible noise

Intended Use

This multi-tool attachment can only be operated by the power unit AMW 10.

The product is intended for blowing leaves, garden waste such as grass, twigs and pine needles.

Technical Data

Pole Leaf Blower Attachment AMW LB
Article number		3 600 HA3 F00
No-load speed	min-1	8000
Air speed, max.	km/h 220
Volume flow rate, max.	m3/h 320
Weight according to EPTA-Procedure 01/2003	kg 1.3
Serial number	see type plate on the garden product

Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

Noise/Vibration Information

The following information is applicable for the attachment operated by the power unit:

Sound emission values determined according to EN 50636-2-100.

Typically the A-weighted noise levels of the product are: Sound pressure level 92 dB(A); sound power level 100 dB(A). Uncertainty K = 2 dB.

Wear hearing protection!

Vibration total values (triax vector sum): Vibration emission value a_h = 3.5 m/s² , Uncertainty K = 0.6 m/s² .

Declaration of Conformity C€

We declare under our sole responsibility that the product described under "Technical data" in combination with power unit AMW 10 (3 600 HA3 0..) is in conformity with all relevant provisions of the directives 2011/65/EU, 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60335-1, EN 50636-2-100. 2000/14/EC: Guaranteed sound power level 104 dB(A). Conformity assessment procedure according to Annex V. Equipment category: 34

Technical file (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h.w.

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

English | 11

Mounting and Operation

Action Figure

Delivery Scope 1

Fitting the multi-tool attachment 2

Attaching the Shoulder Strap 3

Action Figure

Working Advice 4

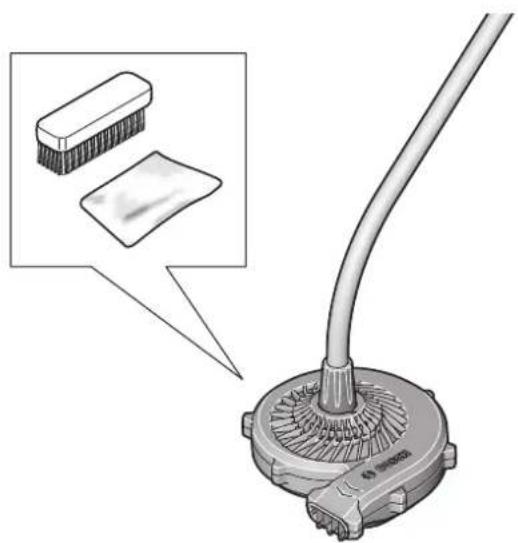

Maintenance and Cleaning 5

Storage 6

Troubleshooting

Problem Possible Cause Corrective Action

Motor runs but leaf blower remain stationary

Multitool-attachment not properly connected to power unit

Check for correct assembly

Machine fails to operate Machine defective Contact Service Agent

	Internal wiring of machine damaged Contact Service Agent
Machine functions intermittently	On/Off switch defective	Contact Service Agent
Excessive vibrations/noise	Machine defective	Contact Service Agent
Machine does not blow	Fan housing obstructed	Clear fan

After-sales Service and Application Service

www.bosch-garden.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

The garden product, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of garden products into household waste!

Only for EC countries:

According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

French

Stowmarket, Suffolk IP14 1EY, England

16 | French

Henk Becker

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h:m

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

Assembly and use

www.bosch-garden.com

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

Assembly and use

www.bosch-garden.com

Technical dossier (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

Mounting and operation

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

At www.bosch-pt.dk you can order spare parts online or create a repair order.

Service Center phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Disposal

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

PPa

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Denmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Waste disposal

Technical data (2006/42/EC, 2000/14/EC) at: Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

Assembly and operation

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

52 | Greek

Installation and use

Task Figure

Standard equipment 1

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Jaw Bao i.v. H.W.

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h.w.

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

Assembly and operation

www.bosch-garden.com

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Expert Team [phone]

Işıklar LTD.ŞTİ.

Kızılay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

62 | Polish

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

Assembly and operation

www.bosch-garden.com

Robert Bosch Sp. z o.o.

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

Assembly and operation

www.bosch-garden.com

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

www.bosch-garden.com

Technical documentation (2006/42/EC, 2000/14/EC): Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=mc

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

www.bosch-garden.com

Technical documentation (2006/42/EC, 2000/14/EC) at: Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

www.bosch-garden.com

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President Engineering

Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

Mounting and operation

www.bosch-garden.com

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

Mounting and use

www.bosch-garden.com

Technical documentation (2006/42/EC, 2000/14/EC) at: Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

Assembly and Operation

Cllj rukovanja Slika

Obim isporuke 1

Montaža Mutitool-ispusta 2

Montiranje kaiša za rame 3

Uputstva za rad 4

Održavanje i čišćenje 5

Čuvanje 6

Troubleshooting

Simptoml	Mogući uzroci	Pomoć
Motor radi, usisivač za lište ne duva	Multitool-adapter nije dobro priključen na pogonsku jedinicu	Ispitati montažu
Baštenski uredjaj ne radi	Baštenski uredjaj je u kvaru	Potražiti ovlašćeni servis
	Interni kablovi baštenskog uredjaja su u kvaru	Potražiti ovlašćeni servis
Baštenski uredjaj radi sa prekidima	Prekidač za uključivanje/isključivanje je u kvaru	Potražiti ovlašćeni servis
Jake vibracije/šumovi	Baštenski uredjaj je u kvaru	Potražiti ovlašćeni servis
Baštenski uredjaj ne duva	Kušićte duvaljke blokira	Oslobodite duvaljku

116 | Slovenian

www.bosch-garden.com

Please state the 10-digit item number from the type plate of the garden appliance for all inquiries and when ordering spare parts.

Serbian

Bosch-Service

Dimitrija Tucovića 59

11000 Belgrade

Tel.: [phone]

Fax: [phone]

Henk Becker Executive Vice President Engineering

Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker	Helmut Heinzelmann
Executive Vice President	Head of Product Certification
Engineering	PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

Assembly and operation

Operation figure

www.bosch-garden.com

For all inquiries and orders for spare parts, please always specify the 10-digit catalog number from the type plate of the garden tool.

Croatian

Robert Bosch d.o.o

Kneza Branimira 22

10040 Zagreb

Tel.: [phone]

Fax: [phone]

Disposal

Technical file (2006/42/EC, 2000/14/EC) available at: Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 11.06.2014

www.bosch-garden.com

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President Engineering

Helmut Heinzelmann

Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS23,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

i.v. h=w

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

www.bosch-garden.com

(2006/42/EC, 2000/14/EC) Technical documentation at Bosch Lawn and Garden Ltd., PT-LG/ENS23, Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY

11.06.2014

2

F 016 L81 119 | (19.8.14) Bosch Power Tools

3

4

Bosch Power Tools F 016 L81 119 | (19.8.14)

150

5

6

F 016 L81 119 | (19.8.14) Bosch Power Tools
