Product type	Electric grill plate
Brand	AENO
Model	EG5
Worktop dimensions	320 x 220 mm
Opening angle	Up to 180°
Weight	5.08 kg
Power supply	220–240 V (AC), 50–60 Hz
Power	2000 W
Temperature range	80–230 °C
Cooking modes	9 modes: Defrost, Lower Grill, Manual, Beef, Fish, Chicken, Sausage, Hamburger, Bacon
Removable panels	Yes, reversible (ribbed side and flat side)
Grease drip tray	Plastic, removable
Cable length	1 m
Display	Digital screen with LED indicators (blue, green, yellow, red)
Panel and tray maintenance	Dishwasher safe, neutral detergent, no abrasives
Body cleaning	Damp cloth with mild detergent
Safety	Do not immerse, hot surface, use under supervision, unplug after use
Warranty	2 years from date of purchase
Package contents	Grill, removable panels (6 and 7), drip tray, quick start guide, warranty card

Frequently Asked Questions - EG5 AENO

How to preheat the AENO EG5 grill?

Select a mode (e.g. 'Lower Grill' or 'DIY') using the buttons, then press 'Start/Cancel'. Preheating lasts until the target temperature is reached. An audio signal (5 beeps) and a green indicator indicate the end of preheating.

What cooking modes are available?

The appliance offers 9 modes: Defrost, Lower Grill, DIY, Beef, Fish, Chicken, Sausage, Hamburger and Bacon. Each mode has a default temperature and time that can be adjusted.

How to clean the removable panels?

Wait for the appliance to cool down, remove the panels by pressing the release buttons. Wash them with a neutral detergent or in the dishwasher. Do not use metal brushes or abrasive cleaners to preserve the non-stick coating.

What to do if the grill does not heat up?

Check that the appliance is plugged in and the outlet works. Make sure you have selected a mode and pressed 'Start/Cancel'. If the problem persists, check the error codes (E1 to E4) or contact an authorized service center.

Are the panels reversible?

Yes, the removable panels are reversible: one side is ribbed (ideal for grilling) and the other is flat (for pancakes, fish, etc.). They are interchangeable between the top and bottom positions.

What do the LED indicators mean?

Blue: preheating in progress. Green: preheating complete. Yellow: cooking in progress. Red: cooking complete. The screen shows 'OFF' in standby and 'DONE' at the end of cooking.

Can I use the grill open?

Yes, you can cook with the grill open (up to 180°) for delicate foods like fish or pizza. For steaks and sausages, close the lid for even cooking.

How to defrost food with the grill?

Select the 'Defrost' mode, press 'Start/Cancel'. After preheating, place the food on the lower panel and restart cooking. An audio signal indicates the end of defrosting, then you can switch to another cooking mode.

What are the error codes and what do they mean?

E1: upper thermostat open circuit. E2: upper thermostat short circuit. E3: lower thermostat open circuit. E4: lower thermostat short circuit. If these codes appear, unplug the appliance and contact a service center.

Can the grill be used by children?

Children under 8 years old should not use the appliance. Persons with reduced capabilities may use it only under constant supervision. The appliance becomes very hot: keep it out of reach of young children during and after use.

USER MANUAL EG5 AENO

Line drawing of a toaster oven with cooling fins and grilles (no text or symbols)

User Manual

Electric Grill

EG5

(Model: AEG0005)

29.11.2022 | v 1.4.4

EN Recipes here
RU Рецепты здесь
AR وصفات هذا
BG Рецепти тук
CS Recepty zde
DE Rezepte hier
ET Retseptid siin
FR Recettes ici
HR Recepti ovdje
HU Receptek itt HY
Fwnwnpnwnndutn wjuuntin
IT Ricette qui
KA སྱུབྱིན་པོད་སྟོད་པརྒྱེད
КК Мүнда
рецепттер
LT Receptai čia
LV Receptes šeit
PL Przepisy tutaj
RO Retete aici
SK Recepty tu
SR Рецепти овде
UK Рецепти тут
UZ Bu erda retseptlar
ZH 这里的食谱

Black and white QR code image, scannable for digital content retrieval

EN....7
RU.... 13
AR.... 20
BG 25
CS.... 32
DE 38
ES.... 45
ET 52
FR....58
HR.... 65
HU....71
HY....78
IT 84
KA....91
KK....98
LT 105
LV....111
PL 117
RO....124
SK....131
SR....138
UK 145
UZ 152
ZH....159

Technical diagram of a portable electric heater with numbered components for identification

a)
4 aeno.com/documents

A E N O 10 9 8

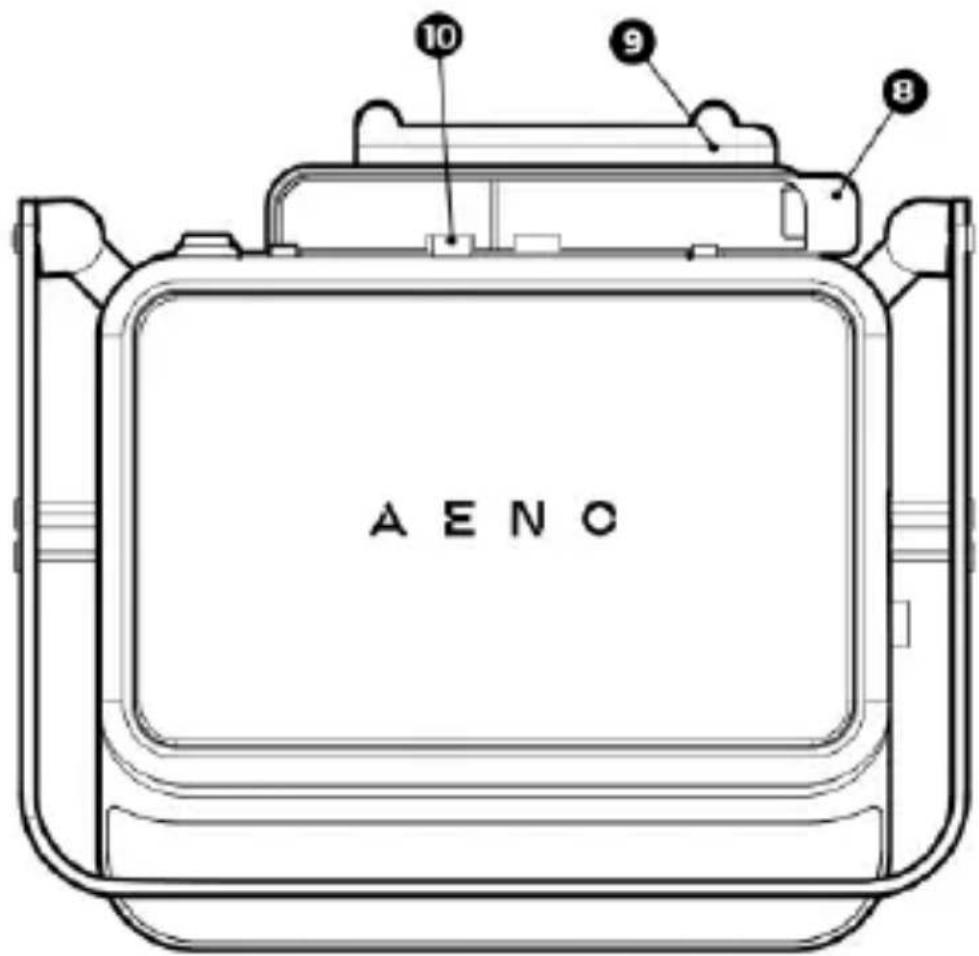

b)

aeno.com/documents 5

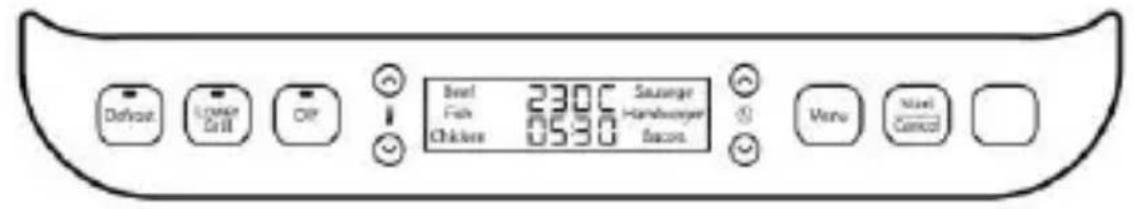

Dishout Lunch Grill Off Beef Fish Chicken 230°C Sausage Handboyer Bacon. Menu Cancel

Technical line drawing of a multi-layer electric vehicle battery pack (no text or symbols)

d)

6 aeno.com/documents

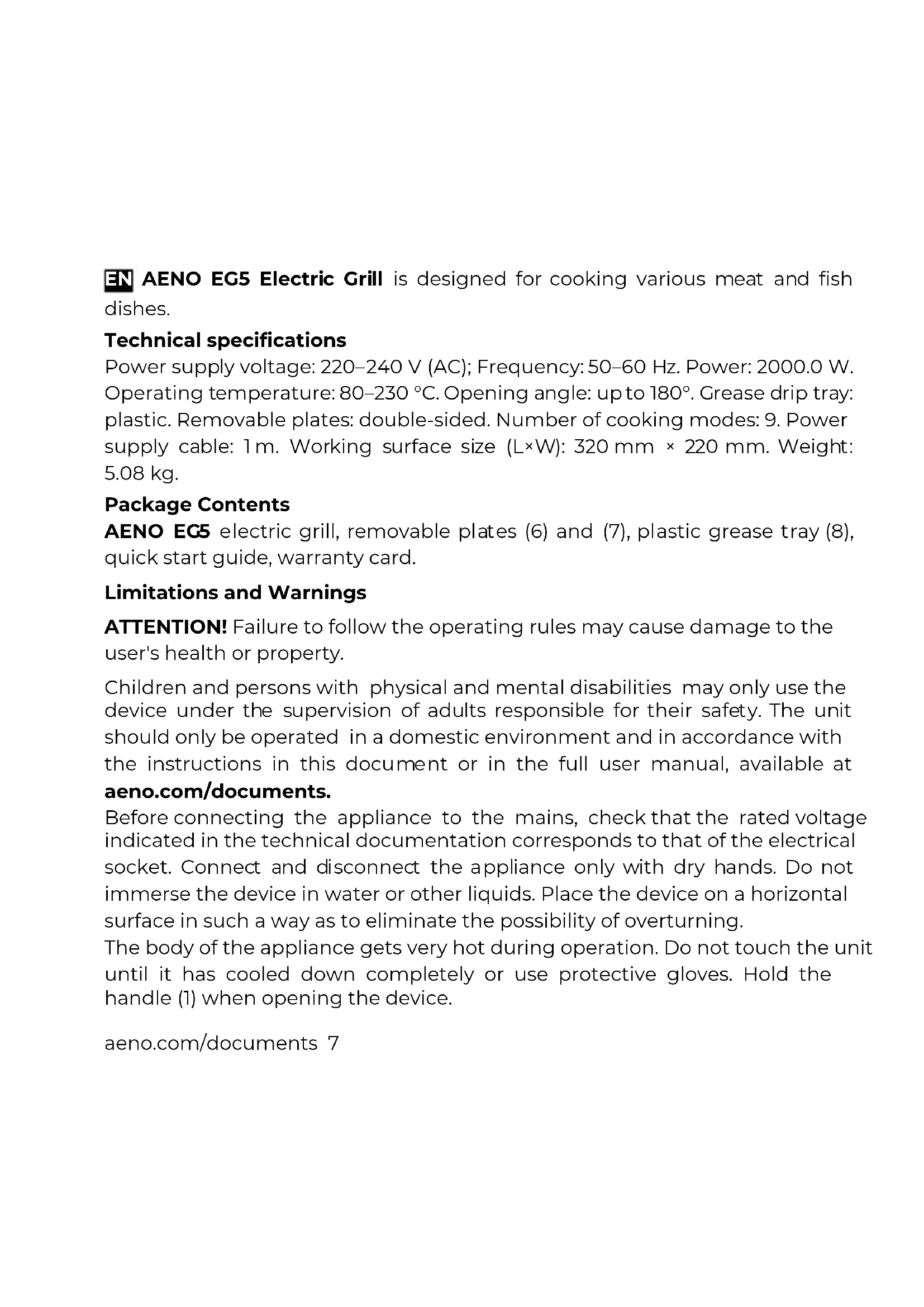

EN AENO EG5 Electric Grill is designed for cooking various meat and fish dishes.

Technical specifications

Power supply voltage: 220–240 V (AC); Frequency: 50–60 Hz. Power: 2000.0 W. Operating temperature: 80–230 °C. Opening angle: up to 180°. Grease drip tray: plastic. Removable plates: double-sided. Number of cooking modes: 9. Power supply cable: 1 m. Working surface size (L×W): 320 mm × 220 mm. Weight: 5.08 kg.

Package Contents

AENO EG5 electric grill, removable plates (6) and (7), plastic grease tray (8), quick start guide, warranty card.

Limitations and Warnings

ATTENTION! Failure to follow the operating rules may cause damage to the user's health or property.

Children and persons with physical and mental disabilities may only use the device under the supervision of adults responsible for their safety. The unit should only be operated in a domestic environment and in accordance with the instructions in this document or in the full user manual, available at aeno.com/documents.

Before connecting the appliance to the mains, check that the rated voltage indicated in the technical documentation corresponds to that of the electrical socket. Connect and disconnect the appliance only with dry hands. Do not immerse the device in water or other liquids. Place the device on a horizontal surface in such a way as to eliminate the possibility of overturning.

The body of the appliance gets very hot during operation. Do not touch the unit until it has cooled down completely or use protective gloves. Hold the handle (1) when opening the device.

aeno.com/documents 7

Carry the unit by holding it by the base only. Large quantities of food placed in the device make it difficult to close the lid. Do not press the lid too hard as this could damage the device. Only remove cooked food from the plates with a heat-resistant spatula. Do not use forks, knives, or other sharp kitchen appliances to avoid damaging the non-stick coating of the removable plates.

Do not leave the appliance in operation unattended. Always unplug the appliance after use or before cleaning it. To prevent burns, do not remove the drip tray (8) with the contents until the appliance has cooled down completely. Do not repair the appliance yourself, contact an authorized service center. Do not make any modifications to the appliance or its components.

Initial setup

Unpack the appliance, remove the grease drip tray (8). Remove the plates (6) and (7) by pressing the respective (upper or lower) release buttons (4).

Wash the plates and the drip tray with neutral detergent, wipe them dry and refit them. Install the plates so that the grease chute (10) faces backwards: the grease should flow into the drip tray. Place the appliance on a heat-resistant base and in a well-ventilated area at least 30 cm away from other objects.

NOTE. The removable plates are interchangeable and reversible: one side has a ribbed surface and the other is flat. Cooking can be done on either side. When using them for the first time, grease the outer cooking surface of the removable plates with a thin layer of cooking oil. If you subsequently cook on the other side of the plates, apply a layer of cooking oil to the other side as well when using it for the first time. This will ensure that the non-stick coating works best.

Exploitation

Close the grill and plug it in. Immediately afterwards, an acoustic signal sound. All the indicators on the control panel (3) light up and go out (see figure c). You

8 aeno.com/documents

will see «OFF» on the panel's numeric display. This means that the appliance is in sleep mode and is not heating up.

NOTE. The first time the appliance is switched on, it must be heated without food for 10 minutes. The presence of a small amount of light smoke or odour is considered normal and harmless.

Preheating the device. Do not put food into the grill during the preheating stage. Use the keys to select one of the three modes: «Defrost», «Lower Grill», «DIY». Alternatively, press the «Menu» button to select the automatic modes «Beef», «Fish», «Chicken», «Sausage», «Hamburger», «Bacon». The button indicator or the name of the selected mode flashes on the control panel display.

Press the «Start/Cancel» button. The LED illuminates blue, the selected mode is illuminated. The temperature and heating time are displayed.

NOTE. While the appliance is in any of the modes, the time and temperature can be changed by pressing the relevant buttons ⚙ (Up) and ⚡ (Down) (see figure c).

NOTE. If the «Start/Cancel» button is not pressed after selecting a cooking mode, the appliance switches to sleep mode after 15 seconds. «OFF» appears on the display. To continue the cooking process, select the mode again and press the «Start/Cancel» button.

Preheating lasts until the grill plates have reached the temperature of the previously selected mode (see table). At the end of preheating an acoustic signal sounds 5 times. The LED indicator light will change color to green. The cooking time will flash on the display. The appliance will go into standby mode, maintaining the reached temperature of the plates. Then proceed to cooking.

Table – Cooking modes

Mode

Temperature(5 °C/ step)

Heating time(30 sec/ step)

Defaultparameters

aeno.com/documents 9

«Defrost»	80–120 °C	1 min. – 60 min.	80 °C, 15 min.
«Lower Grill»	80–220 °C	30 sec. – 60 min.	200 °C, 10 min.
«DIY»	80–230 °C	30 sec. – 60 min.	230 °C, 5 min.
«Beef»	200–230°C	3 min. – 8 min.	230 °C, 5 min.
«Fish»	200–230 °C	3 min. – 8 min.	210 °C, 5 min.
«Chicken»	160–200 °C	3 min. – 12 min.	180 °C, 5 min.
«Sausage»	160–200 °C	3 min. – 10 min.	160 °C, 5 min.
«Hamburger»	150–200 °C	5 min. – 15 min.	150 °C, 8 min.
«Bacon»	160–200 °C	3 min. – 10 min.	180 °C, 5 min.

Product preparation. When the preheating is complete for 30 minutes it is necessary to start cooking the product, otherwise the device stops maintaining the reached temperature of the plates and goes into sleep mode. Open the grill and place the food on the lower plate. You can cook in the open grill (see figure d) if it is a pizza or fish so as not to spoil its shape, or in the closed grill if it is a steak or sausage. Press the «Start/Cancel» button. A countdown starts on the display.

At the end of the countdown an acoustic signal sounds 5 times. «DONE» appears on the display. The LED indicator light changes to red. Cooking are finished and the appliance stops heating.

Defrost the product. Press the «Defrost» and «Start/Cancel» buttons one after the other. When preheating is complete, open the grill and place the food on the lower plate. Press the «Start/Cancel» button again. An acoustic signal sounds 5 times as soon as the countdown is complete. «DONE» appears on the display. Continue cooking by selecting the required mode (see table).

Manual mode of operation. Press the «DIY» and «Start/Cancel» buttons in sequence. After preheating is complete, open the grill and place the food on the lower plate. Press the «Start/Cancel» button again. If necessary, adjust the 10 aeno.com/documents

cooking time and temperature. At the end of the countdown, an acoustic signal sounds 5 times. The display will show: «DONE».

If you do not intend to use the appliance again, switch it off with the «Start/Cancel» button and unplug it from the power socket.

Color indication of the grill modes

• blue – device is running in «Preheat» mode;
• green – the appliance is operating in the «Preheat» mode;
• yellow – device is working in «Food preparation» mode;
• red – operation in «Food preparation» mode has been completed.

Care and cleaning

Wait for the appliance to cool down, then carefully remove the grease drip tray (8) and remove its contents. Remove the removable plates. Wash the drip tray and the removable plates with a neutral detergent and dry them thoroughly before putting them back in. Repeat the procedure after each cooking operation. The tray and removable plates can be washed in a dishwasher. Do not use metal brushes or abrasive cleaning products. Clean the body of the appliance with a damp cloth and a little detergent. Then wipe the surface with a dry cloth.

Troubleshooting possible problems

1. The grill does not switch on. Possible causes: The power socket is defective, or the plug is not fully inserted into the socket. Remedy: Make sure there is power in the socket (e.g., by plugging in another functioning appliance) and that the grill plug is fully inserted into the socket.

2. The grill is switched on, but the removable plates are not heated. Possible reason: The appliance has not been set in the operating mode. Remedy: Make sure that the operating time and temperature are set on the display and that the «Start/Cancel» button is pressed.

aeno.com/documents 11

Device error codes displayed on the display

• E1 – contact breakage of the upper thermostat;
• E2 – short circuit of the upper thermostat;
• E3 – contact breakage of the lower thermostat;
• E4 – short circuit of the lower thermostat.

ATTENTION! If none of the possible solutions solves the problem, contact your supplier or service center. Please do not disassemble or attempt to repair the unit yourself.

Recycling information

These symbols indicate that you must follow the Waste Electrical and Electronic Equipment (WEEE) and Waste Battery and Battery Regulations when disposing of the device, its batteries and accumulators, and its electrical and electronic accessories. According to the rules, this equipment must be disposed of

separately at the end of its service life.

Do not dispose of the device, its batteries and accumulators, or its electrical and electronic accessories together with unsorted municipal waste, as this will harm the environment.

To dispose of this equipment, it must be returned to the point of sale or turned in to a local recycling facility.

You should contact your local household waste disposal service for details.

ASBISc reserves the right to modify the device and to make edits and changes to this document without prior notice to users.

The warranty period and service life shall be 2 years as from the date of purchase of the device.

Manufacturer: ASBISc Enterprises PLC, lapetou, 1, Agios Athanasios, 4101 Limassol, Cyprus. Made in China. For current information and details on the device description and specification, as well as connection process, certificates, warranty, and quality issues, see relevant Installation and Operation Manuals available for downloading at aeno.com/documents. All trademarks and names herein are the property of their respective owners.
