Solution T iFix - Car seat CYBEX - Free user manual and instructions

Brand	Cybex
Model	Solution T iFix
Product Type	Child car seat
Category	Booster seat with backrest (3-point belt)
Age Group	From about 3 to 12 years
Child Height	100 to 150 cm
Certification Standard	R129/03 (i-Size)
Installation Method	ISOFIX + vehicle's 3-point safety belt
Main Features	Adjustable headrest (3 positions), height adjustment (12 positions), L.S.P. side protection
Safety	ISOFIX visual locking indicators, linear side impact protection, mandatory belt routing through green guides
Care and Cleaning	Machine washable cover at 30°C delicate cycle; plastics cleaned with warm water and mild detergent
Spare Parts	Original CYBEX covers only
Manufacturer Warranty	3 years
Included Accessories	ISOFIX locking arms, belt guides
Recommended Use	Rear seats of the vehicle (or front if recommendations are followed)
Maximum Lifespan	9 years after purchase date
Power Supply	None (mechanical)

Frequently Asked Questions - Solution T iFix CYBEX

How to install the seat with the ISOFIX system?

Pull the ISOFIX locking arms outward, rotate them 180° and push them into the vehicle's ISOFIX anchor points until you hear a 'CLICK'. Push the seat against the backrest using the ISOFIX adjustment handle. The green safety indicators must be visible on both sides.

How to adjust the headrest height?

Use the height adjustment device (c) located at the back of the headrest. 12 positions are available. Adjust so that there is at most 2 cm (two-finger width) between the child's shoulders and the headrest.

What to do if the vehicle's seat belt is too long?

If the belt slack is excessive, the child seat is not suitable for that position in the vehicle. If in doubt, contact the manufacturer of the child restraint system.

How to remove and wash the cover?

The cover consists of 5 parts held by snap buttons, velcro, and elastics. Release all fastenings then remove the parts. Wash at 30°C delicate cycle, separately, without tumble drying and without direct exposure to the sun.

Can I use this seat on the front passenger seat?

Yes, in exceptional cases. Always follow the vehicle manufacturer's recommendations. Move the front seat as far back as possible and fold the L.S.P. side protection on the inner side if necessary.

What is the lifespan of the car seat?

The seat must not be used for more than 9 years after purchase, as materials degrade over time.

How to use the L.S.P. side protection?

Open the linear side impact protection (L.S.P.) facing the door by pressing on the area marked 'PRESS'. Fold it if it is on the inner side or if the seat is on the front passenger side. Do not fold if the seat is in the center.

What to do after an accident?

An accident can damage the seat even without visible signs. Replace the seat after an accident. If in doubt, consult your dealer or the manufacturer.

Is the seat compatible with all vehicles?

No. Consult the list of compatible vehicles at go.cybex-online.com/solution-t-ifix-car-compatibility. For children over 135 cm, compatibility may be reduced.

How to adjust the reclining headrest?

Push the reclining headrest (b) forward to the desired position (3 positions). To return it to its initial position, lift it and pull it backward. The child's head should always be in contact with the headrest.

USER MANUAL Solution T iFix CYBEX

cybex PLATINUM

Line drawing of a car backseat with seat covers and straps (no text or symbols)

SOLUTION T i-FIX

R129/03, 100 - 150cm

User guide

1 2 a b c f g PRESSPF d e h i j k l

3

Line drawing of a car seatbelt with orange belt and black play buttons, no text or symbols present

7

4 ✓ ×

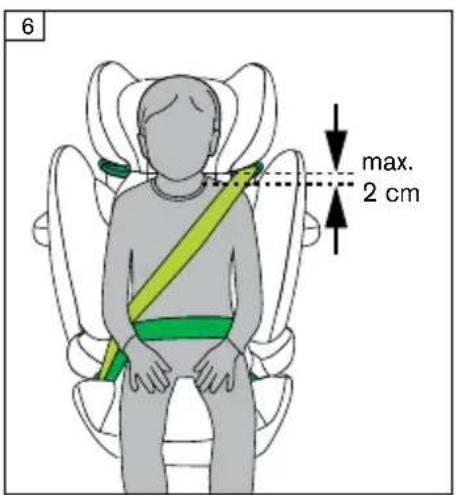

6 max. 2 cm

8 ✓ ×

QR code image containing encoded data, no visible human-readable text

DE....2
EN....5
IT 8
FR 11
NL 14
PL 17
HU 20
CZ 23
SK....26
ES 29
PT 32
SE 35
NO 38
FI 41
DK....44
SL 47
HR 50
RU 53
UK 56
EE 59
LT 62
LV 65
TR 68
AR....71
HE....74
BG....77
SR....80
EL 83
RO 86
SQ 89
BS 92
MK 95
CNR 98
HI....101
TH....104
VI....107
MS 110
HY....113
CMN 117
YUE 120
JA....123
KO 126

approx. 3 years to 12 years

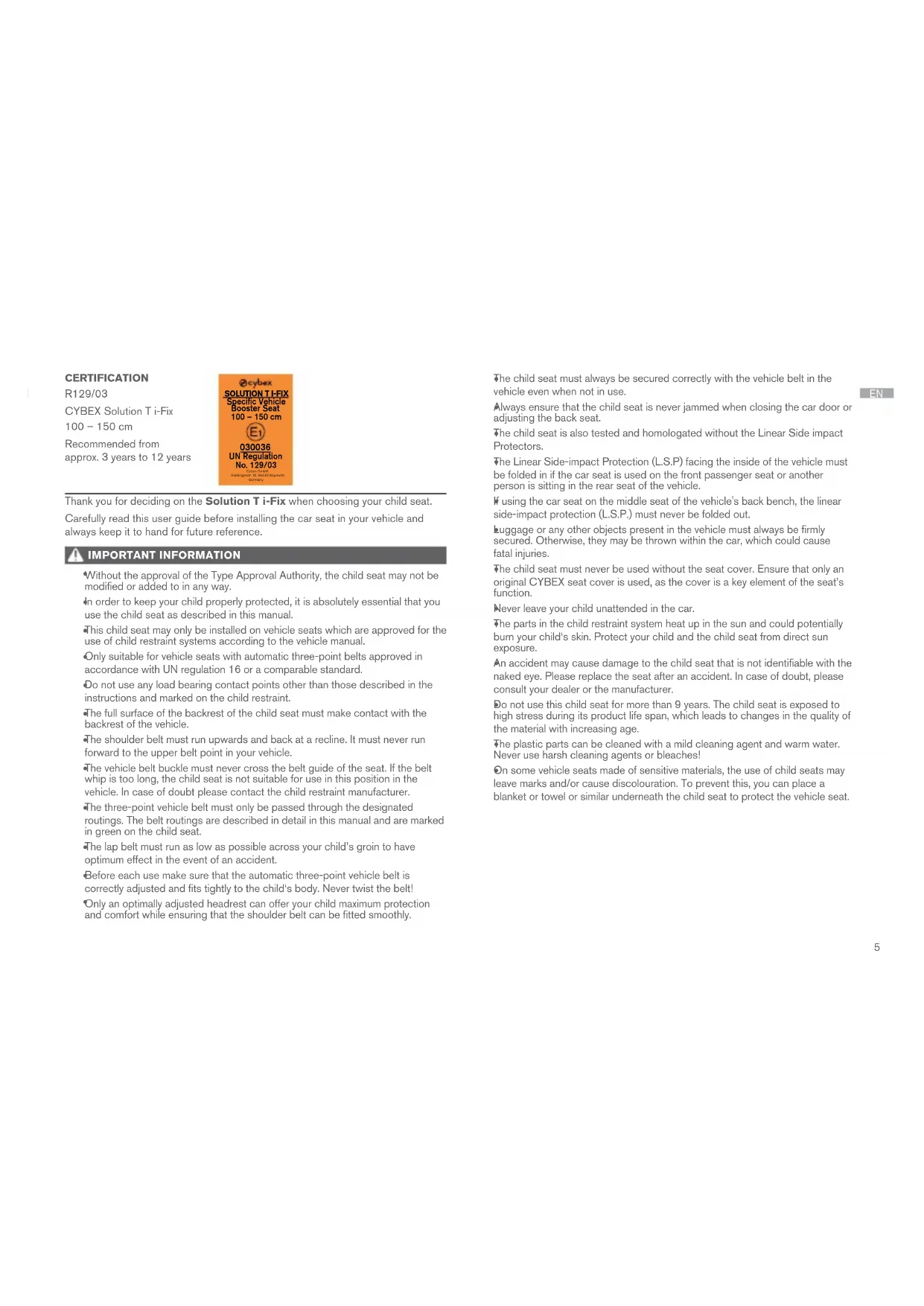

Thank you for deciding on the Solution T i-Fix when choosing your child seat.

Carefully read this user guide before installing the car seat in your vehicle and always keep it to hand for future reference.

IMPORTANT INFORMATION

Without the approval of the Type Approval Authority, the child seat may not be modified or added to in any way.
In order to keep your child properly protected, it is absolutely essential that you use the child seat as described in this manual.
- This child seat may only be installed on vehicle seats which are approved for the use of child restraint systems according to the vehicle manual.
Only suitable for vehicle seats with automatic three-point belts approved in accordance with UN regulation 16 or a comparable standard.
Do not use any load bearing contact points other than those described in the instructions and marked on the child restraint.
The full surface of the backrest of the child seat must make contact with the backrest of the vehicle.
The shoulder belt must run upwards and back at a recline. It must never run forward to the upper belt point in your vehicle.
The vehicle belt buckle must never cross the belt guide of the seat. If the belt whip is too long, the child seat is not suitable for use in this position in the vehicle. In case of doubt please contact the child restraint manufacturer.
The three-point vehicle belt must only be passed through the designated routings. The belt routings are described in detail in this manual and are marked in green on the child seat.
The lap belt must run as low as possible across your child's groin to have optimum effect in the event of an accident.
Before each use make sure that the automatic three-point vehicle belt is correctly adjusted and fits tightly to the child's body. Never twist the belt!
Only an optimally adjusted headrest can offer your child maximum protection and comfort while ensuring that the shoulder belt can be fitted smoothly.

The child seat must always be secured correctly with the vehicle belt in the vehicle even when not in use.
Always ensure that the child seat is never jammed when closing the car door or adjusting the back seat.
The child seat is also tested and homologated without the Linear Side impact Protectors.
The Linear Side-impact Protection (L.S.P) facing the inside of the vehicle must be folded in if the car seat is used on the front passenger seat or another person is sitting in the rear seat of the vehicle.
If using the car seat on the middle seat of the vehicle's back bench, the linear side-impact protection (L.S.P.) must never be folded out.
Luggage or any other objects present in the vehicle must always be firmly secured. Otherwise, they may be thrown within the car, which could cause fatal injuries.
The child seat must never be used without the seat cover. Ensure that only an original CYBEX seat cover is used, as the cover is a key element of the seat's function.
Never leave your child unattended in the car.
The parts in the child restraint system heat up in the sun and could potentially burn your child's skin. Protect your child and the child seat from direct sun exposure.
An accident may cause damage to the child seat that is not identifiable with the naked eye. Please replace the seat after an accident. In case of doubt, please consult your dealer or the manufacturer.
Do not use this child seat for more than 9 years. The child seat is exposed to high stress during its product life span, which leads to changes in the quality of the material with increasing age.
The plastic parts can be cleaned with a mild cleaning agent and warm water. Never use harsh cleaning agents or bleaches!
On some vehicle seats made of sensitive materials, the use of child seats may leave marks and/or cause discolouration. To prevent this, you can place a blanket or towel or similar underneath the child seat to protect the vehicle seat.

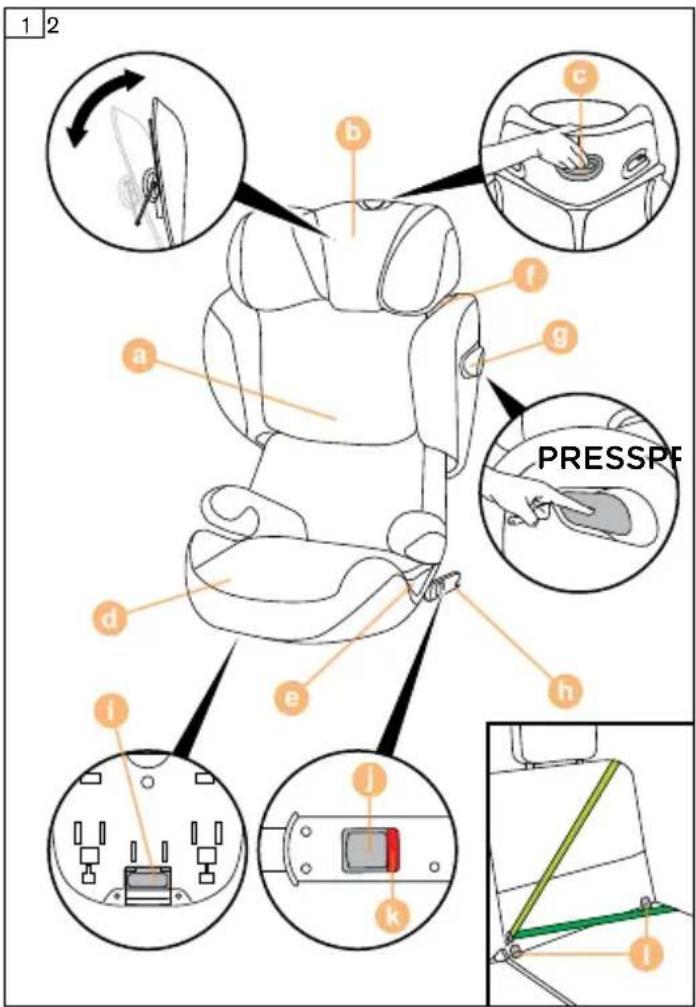

PRODUCT PARTS

EN

(a) Backrest	(g) Linear side impact protection (L.S.P.)
(b) Reclining Headrest	(h) ISOFIX-Locking Arms
(c) Headrest Height Adjuster	(i) ISOFIX-Adjustment Handle
(d) Booster	(j) ISOFIX-Release Button
(e) Lap Belt Guide	(k) ISOFIX-Safety Indicator
(f) Shoulder Belt Guide	(l) ISOFIX-Anchorage Points

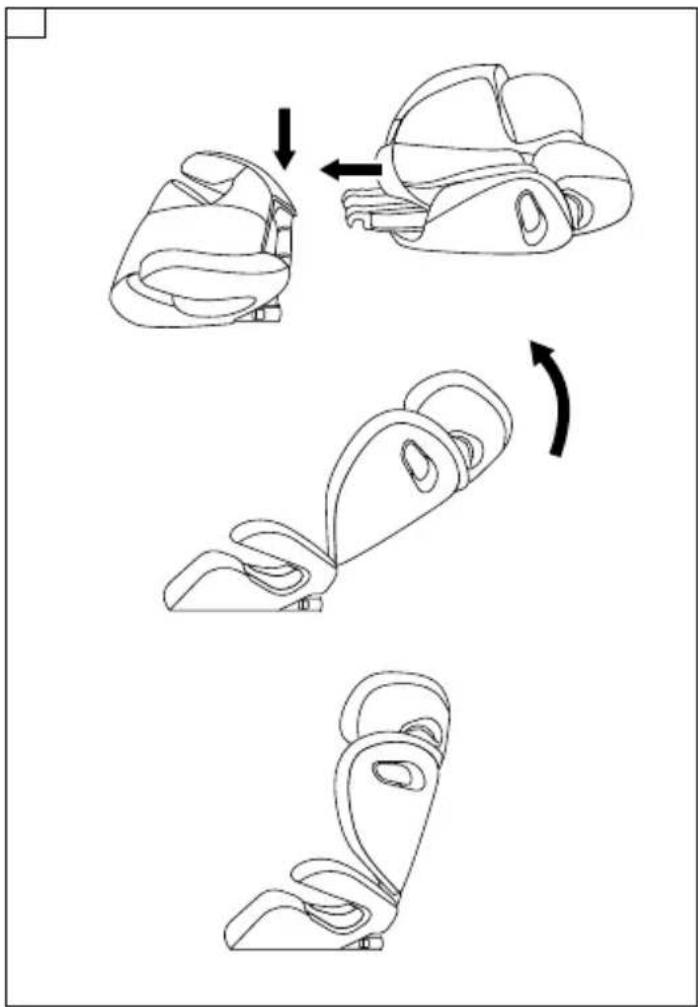

INITIAL ASSEMBLY

Connect the backrest (a) to the booster (d) by hooking the guide lug on the axis of the booster. The backrest (a) is then folded forward.

THE CORRECT POSITION IN THE VEHICLE

With retracted ISOFIX-locking arms (h) the car seat can be used on vehicle seats which are equipped with an automatic three point belt.

For using ISOFIX please refer to the list of compatible vehicles on go.cybex-online.com/solution-t-ifix-car-compatibility.

Above a child's stature of 135cm, the compatibility between the Solution T i-Fix and your vehicle might be reduced. Please review the list of compatible vehicles to check whether the child seat can be used in all headrest positions without restrictions.

In exceptional cases, the child car seat may also be used on the front passenger seat. Always comply with the recommendations of the vehicle manufacturer.

INSTALLING THE CHILD SEAT IN THE VEHICLE

1. Always ensure that...

- the backrests in the vehicle are locked in their upright position.

• when installing the child seat on the front passenger seat, adjust the vehicle seat as far back as possible without affecting the belt routing.

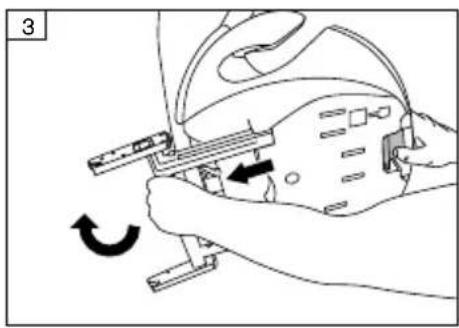

• Use the ISOFIX-adjustment handle (i) under the booster (d) and pull the two ISOFIX-locking arms (h) to their furthest extent.
• Now twist the ISOFIX-locking arms (h) 180° so that they are facing the direction of the ISOFIX-anchorage points (l).
• Place the child seat on the appropriate seat in the car.
• Push the two ISOFIX-locking arms (h) into the ISOFIX-anchorage points (l) until these lock into place with an audible "CLICK".

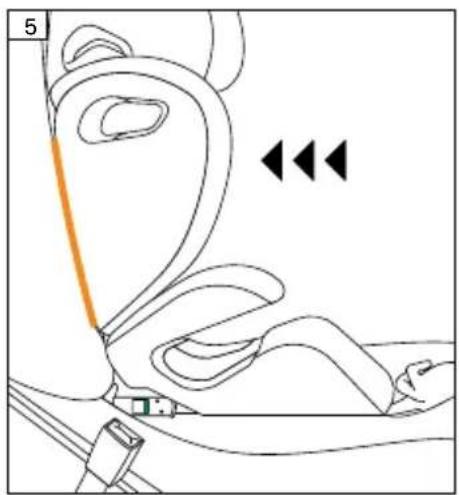

• Use the ISOFIX-adjustment handle (i) and push the car seat against the vehicle seat.

• Ensure that the entire surface of the backrest (a) of the child seat is placed against the backrest of the vehicle seat.

If the headrest of the vehicle is in the way, pull it upwards to its furthest extent or remove it completely (except in rear-facing vehicle seats).

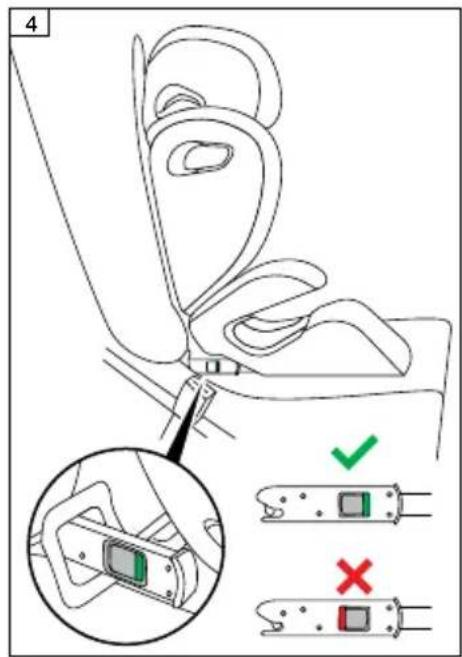

1. Ensure the seat is secure by trying to pull it out of the ISOFIX-anchorage points (I). The green safety indicators (k) must be clearly visible on both sides of the seat.
2. In case the seat is used without ISOFIX, it can be stored away on the bottom of the seat.

By using ISOFIX, a connection to the vehicle is created which increases your child's safety. Your child still needs to be secured with the three-point belt of the vehicle.

1. Open the Linear Side-impact Protection (L.S.P.) (g) facing the vehicle door by pressing firmly on the area on the L.S.P. marked with "PRESS".
2. To close the Linear Side-impact Protection (L.S.P) (g) not facing the vehicle door slide it backwards and then push it inwards until it locks into place. To fold out the Linear Side-impact Protection (L.S.P.) (g) again, press firmly on the area on the L.S.P. marked with "PRESS".

The car seat can also be used without the L.S.P. in use, if there is not enough space in the vehicle.

REMOVING THE CHILD SEAT FROM THE VEHICLE

Perform the installation steps in the reverse order.

1. Unlock the ISOFIX-locking arms (h) on both sides by pushing the ISOFIX-release buttons (j) and pulling them back simultaneously.
2. Pull the seat away from the ISOFIX-anchorage points (I).
3. Remove the child seat and store the ISOFIX-in reverse order to installation.

RECLINING HEADREST

The Reclining Headrest (b) helps to prevent the child's head from dangerously tipping forward during sleep. It can be set to one of 3 positions. Push the Reclining Headrest (b) forward until the desired position is reached. To return it to the original position, the reclining headrest (b) must be lifted and pulled back.

The child's head should always be in contact with the Reclining Headrest.

ADJUSTING THE HEADREST

The headrest (b) can be adjusted by using the headrest height adjuster (c) at the back of the headrest (b). There are 12 height positions that can be set. Adjust the headrest (b) so that max. 2 cm (approx. 2 finger's width) remain between the child's shoulder and the headrest (b).

The height of the headrest can still be adjusted while the seat is installed in the car.

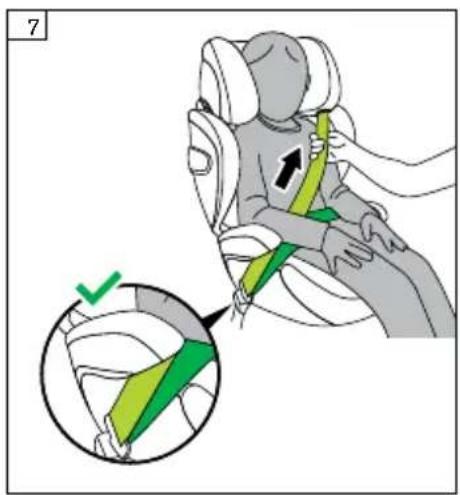

SECURING THE CHILD

1. Route the vehicle seat belt around your child and insert the belt tongue into the belt buckle. It must lock into place with an audible "CLICK".
2. Place the lap belt in the green coloured lap belt guides (e) of the child seat.
3. Pull the shoulder belt to tighten the lap belt.

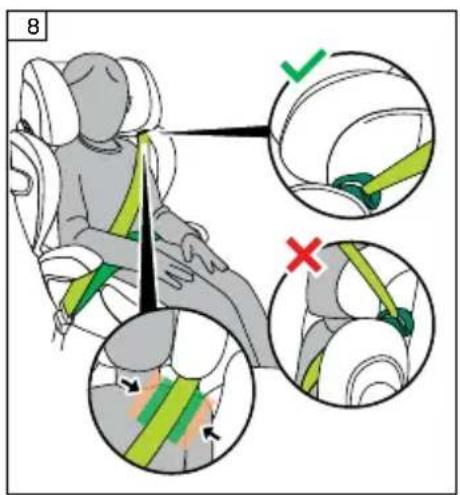

4. On the side of the car seat next to the belt buckle, the shoulder belt and the lap belt must be inserted together in the lap belt guide (e).
5. Feed the shoulder belt through the shoulder belt guide (f) until it is inside the belt guide.
6. Ensure that the shoulder belt runs across your child's clavicle and does not touch your child's neck. If necessary, adjust the height of the headrest (b) to change the position of the belt.

REMOVING AND REATTACHING THE SEAT COVER

The cover of the child seat consists of 5 parts (2x headrest, 2x backrest and booster). These are held in position at several places by press-studs, velcro and elastic tapes. Once all have been released, the single parts of the cover can be removed.

In order to put the covers back on the seat, follow the removal instructions in the reverse order.

The cover may only be washed at 30 °C with a delicate wash program otherwise it may result in discolouration of the cover fabric. Please wash the cover separately from other laundry and do not dry in the dryer or in direct sunlight!

MANUFACTURER'S WARRANTY AND DISPOSAL REGULATIONS

CYBEX GmbH (Riedingerstr. 18, 95448 Bayreuth, Germany) gives you 3 years warranty on this product. The warranty is valid in the country, where this product was initially sold by a retailer to a customer. The contents of the warranty and all essential information required for the assertion of the warranty can be found on our homepage go.cybex-online.com/manufacturer-warranty-car-seats. If a warranty is shown in the article description, your legal rights against us for defects remain unaffected.

Please observe the waste disposal regulations in your country.
