USER MANUAL STNP1000SS STANLEY

Please read these instructions carefully before use. Please retain these instructions for future reference. In case of problems or difficulties, please contact the consumer helpline: www.2helpu.com Page: 5-12

(Translation of the original instructions) © 2017 English

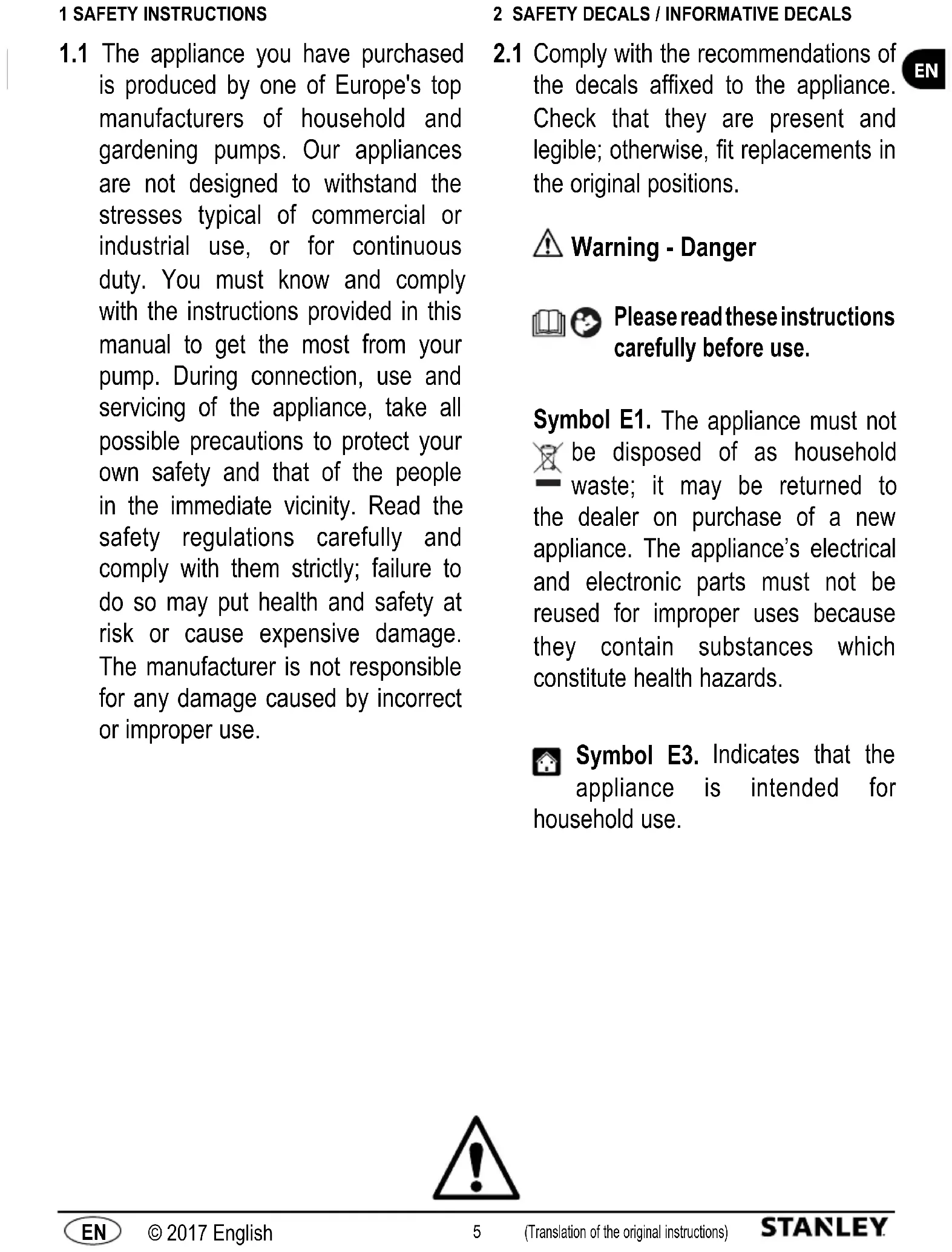

1.1 The appliance you have purchased

is produced by one of Europe's top manufacturers of household and gardening pumps. Our appliances are not designed to withstand the stresses typical of commercial or industrial use, or for continuous duty. You must know and comply with the instructions provided in this manual to get the most from your pump. During connection, use and servicing of the appliance, take all possible precautions to protect your own safety and that of the people in the immediate vicinity. Read the safety regulations carefully and comply with them strictly; failure to do so may put health and safety at risk or cause expensive damage. The manufacturer is not responsible for any damage caused by incorrect or improper use.

Comply with the recommendations of the decals affixed to the appliance. Check that they are present and legible; otherwise, fit replacements in the original positions. Warning - Danger Please read these instructions carefully before use. Symbol E1. The appliance must not be disposed of as household waste; it may be returned to the dealer on purchase of a new appliance. The appliance’s electrical and electronic parts must not be reused for improper uses because they contain substances which constitute health hazards. Symbol E3. Indicates that the appliance is intended for household use.6 (Translation of the original instructions) © 2017 English

CE Symbol. Indicates that the appliance complies with the relevant EU directives. This produce is rated in insulation class I. This means that it is equipped with a protective earthing conductor (only if the symbol appears on the appliance).7 (Translation of the original instructions) © 2017 English

3.1.1 Injury hazard! DO NOT allow the appliance to be used by children or persons with impaired

physical, sensory or mental capabilities, or who do not have the necessary experience and knowledge. Children must not use the appliance as a toy. Cleaning and user maintenance must not be carried out by children.

3.1.2 Explosion or poisoning hazard! Never use the appliance with ammable, toxic or aggressive

liquids, or liquids with characteristics incompatible with its proper operation.

3.1.3 Injury hazard! Do not point the water jet at people or animals.

3.1.4 Electrocution hazard! Do not point the water jet at the appliance, electrical parts or other electrical

3.1.5 Short-circuit hazard! Do not use the appliance outdoors in the rain. This does not apply to

submersible pumps, which may also be used in the rain; however, it is essential to ensure that the connections of the plug (A12) and any extension leads used are protected from water splashes and flooding.

Injury hazard! Do not allow the appliance to be used by children, persons with impaired physical, sensory or mental capabilities, or any unauthorised persons.

3.1.7 Electrocution hazard! Do not touch the plug (A12) and/or socket with wet hands.

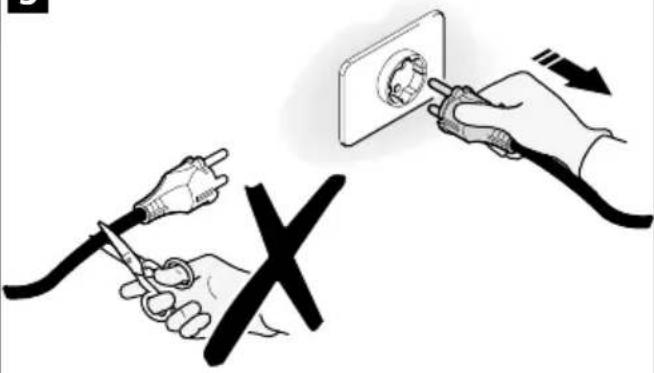

3.1.8 Electrocution and short-circuit hazard! If the power cable (A8) is damaged, it must be replaced

by the manufacturer, one of its authorised Service Centres or similarly qualied persons in order to prevent all risks.

3.1.9 Explosion hazard! Do not use the appliance if the suction or delivery hose is damaged.

3.1.10 Injury hazard! Place the appliance in a stable position; when using the appliance in the vicinity of

swimming-pools, garden ponds or other outdoor bodies of water, keep it at least 2 m from the water's edge and protect it from falling into the water or flooding. This does not apply to submersible pumps, since they can be used immersed in water.

3.1.11 Injury hazard! Check that the appliance is fitted with the data plate which carries its specifications;

contact your dealer at once if it is missing. Appliances without data plate must not be used, since they cannot be identified and are potentially hazardous.

3.1.12 Explosion hazard! No adjustment of control valves, safety valves or other safety devices, or

tampering with their settings, is permitted.8 (Translation of the original instructions) © 2017 English

3.1.13 Scalding hazard! In the event of a pressure switch malfunction or water supply failure, the water left

inside the pump body (A4) may overheat and cause scalding when discharged.

3.1.14 Injury hazard! Do not use the appliance unattended if there is the risk of fouling.

Short-circuit hazard! Do not move the appliance around by pulling the plug (A12), the power cable (A8) or other connection fixtures; use the handle (A4 b).

Explosion hazard! Do not allow vehicles to drive over the suction or delivery hose. Do not drag or transport the appliance by the suction or delivery hose.

Injury hazard! Do not use the appliance when people or pets are in the pumped liquid, or may come into contact with it.

3.2 SAFETY PRECAUTIONS: MUSTS

3.2.1 Short-circuit hazard! All electrical conductors must be protected from splashes of water.

3.2.2 Electrocution hazard! Only connect the appliance to an electrical power source compliant with the

relevant standards (IEC 603641-1); during start-up, the appliance may generate interference on the electrical system. Only connect the appliance to a socket fitted with a residual current device rated at 30 mA or less. Use only electrical extension leads compliant with the relevant regulations, approved for outdoor use and with gauge at least equal to that of the appliance's power cable. Power cables wound onto reels must be completely unwound.

3.2.3 Danger! The appliance must never operate dry; always fill the pump body (A4) with water before

starting it. Even a short period of operation without water may cause damage.

3.2.4 Accidental switch-on hazard! Always disconnect the plug (A12) from the power socket before

carrying out any work on the appliance.

3.2.5 Danger! To guarantee the appliance's safety, the maximum temperature of the pumped liquid must

not exceed 35°C. The ambient temperature must not drop below +5°C.

3.2.6 Danger! The appliance is not designed to pump drinking water or water for human consumption.

The pumped water may be contaminated by lubricant leaks.

3.2.7 Injury hazard! Maintenance and/or repair of the appliance or electrical components must only be

carried out by specialist staff.

3.2.8 Injury hazard! Discharge residual pressure before disconnecting the hose from the appliance; to do

this, disconnect the appliance from the electricity supply and open a user outlet.

3.2.9 Injury hazard! Before use, and at regular intervals, inspect the accessories and check the

appliance's components for signs of failure and/or wear.9 (Translation of the original instructions) © 2017 English

This manual forms an integral part of the appliance and should be kept for future reference. Please read the manual carefully before installing/using the appliance. If the appliance is sold, the seller must pass on this manual to the new owner along with the appliance. Ensure that every user has access to the manual before the appliance is started up, and is able to find out about the safety and operating instructions.

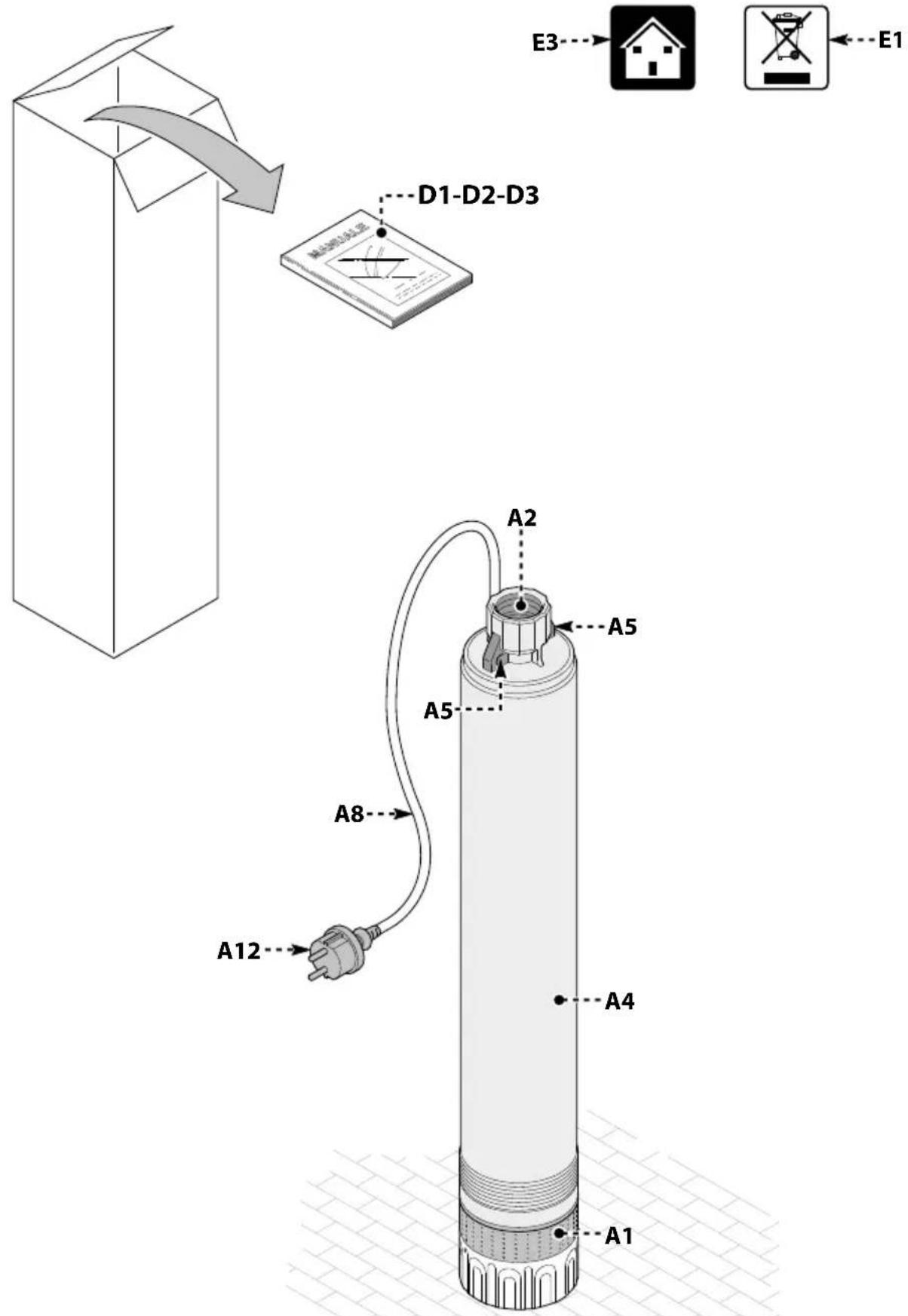

The appliance is delivered in a cardboard box. The supply package is illustrated in fig.1.

4.2.1 Informative material supplied with the appliance

D1 Use and maintenance manual D2 Safety instructions D3 Warranty regulations

4.3 Disposing of packaging

The packaging materials are not environmental pollutants but must still be recycled or disposed of in compliance with the relevant legislation in the country of use. 5 TECHNICAL INFORMATION

The appliance is designed to pump clean water from wells or rainwater cisterns for gardening or for use in household water supply systems. Chemically aggressive or mechanically abrasive substances in the pumped liquid damage the pump. In view of this appliance's compact structure, it can be used in wells with diameter starting from 110 mm, provided it is guaranteed that sufficient water flows into the well to cool the appliance and prevent it from running dry. The minimum permitted hourly flow rate is 80 l/h (1.3 l/ min). These appliances are not suitable for drip irrigation systems, since the water flow rate is too low, meaning that the pumped liquid is unable to cool the appliance as required. The appliance conforms to the EN 60335-2-41 European standard.

Use by unskilled persons or those who have not read and understood the instructions in the manual is forbidden. Supplying the appliance with flammable, explosive, toxic or chemically aggressive liquids is forbidden. Use of the appliance in a potentially flammable or explosive atmosphere is forbidden. All modifications to the appliance are prohibited. Any modifications made to the appliance render the warranty null and void and relieve the manufacturer of all liability under civil and criminal law. Grinding and polishing substances, or other substances which attack materials, damage the appliance. These appliances are not suitable for pumped liquids containing abrasive sand, mud or clay. These appliances are suitable for pumping water for sanitary purposes, but not for pumping drinking water! Faecal substances may not be pumped with these appliances. Appliances are not suitable for use as fountain pumps, as filter pumps for garden ponds or for continuous operation (e.g. the continuous recycling of water in swimming-pool filter systems, or industrial use). Do not run the appliance when dry, or pump liquids with a valve closed!10 (Translation of the original instructions) © 2017 English

5.3 Main components (fig. 1)

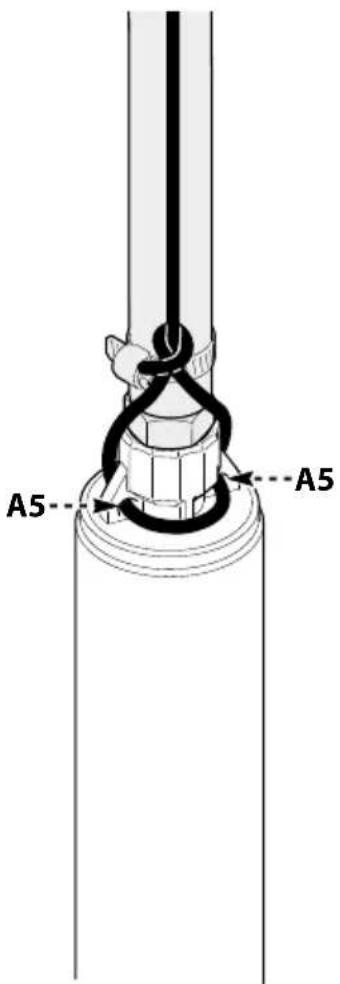

A1 Suction strainer A2 Threaded delivery fitting A4 Pump body A5 Rope eye-ring A8 Power cable A12 Plug 6 INSTALLATION Warning - danger! All installation and assembly operations must be performed with the appliance disconnected from the mains power supply (fig. 3). Warning - danger! Before use, always perform a visual check on the appliance, and especially the plug (A12) and power cable (A8), for damage. A damaged appliance must not be used; in the event of damage, have the appliance inspected by the Service Centre or an authorised electrician. Warning - danger! If the power cable (A8) is cut, the warranty becomes null and void and a replacement genuine power cable (A8) must be installed during the repair, at the customer's expense (even in case of repair under warranty). If it is necessary to extend the power cable (A8), only use an extension with gauge at least equal to that of the original power cable (A8). Never lift the appliance or remove the plug (A12) from the socket by means of the power cable (A8).

6.1 Fitting the delivery hose

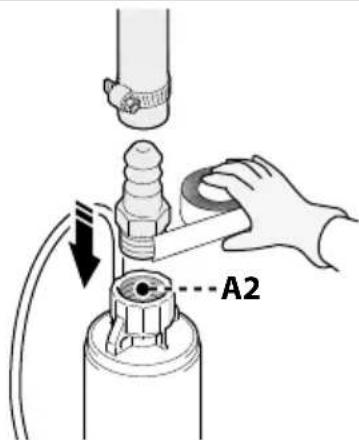

Connect a hose having inside diameter of at least 25 mm (1“), with threaded fitting, to the delivery fitting (A2). A hose having diameter 32 mm (1-1/4‘‘) is preferable. Smaller hose diameters drastically reduce the appliance's flow rate. To ensure an airtight connection, use Teflon tape (12 - 15 layers) (fig. 4). The use of a delivery hose with foot check valve is highly recommended, in order to prevent the flowback of water when the appliance is switched off. Installing a quick shut-off valve to disconnect the hose in a suitable point simplifies cleaning and maintenance.

6.2 Bleeding the appliance

The appliance is bled automatically provided it is immersed in the liquid to sufficient depth. Once the appliance has been started, make sure that the delivery hose is open (not shut by a tap, for example) to allow the residual air to escape.

6.3 Notes on the place of installation

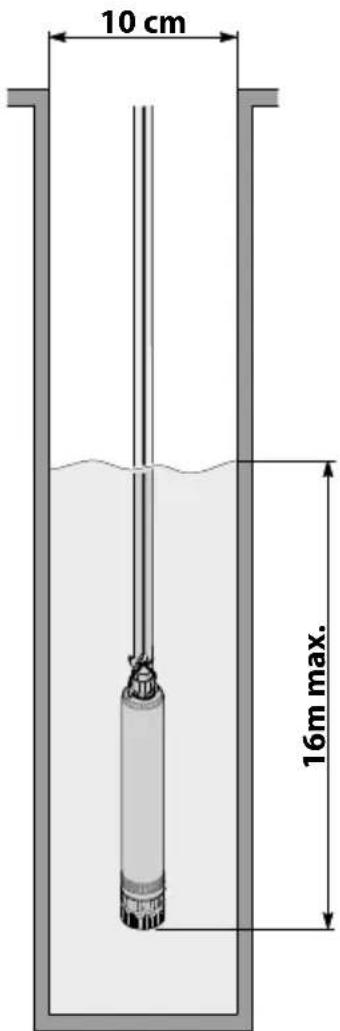

The appliance is designed to be installed in a well at least 10 cm in diameter, with an immersion depth of up to 16 m (fig. 5). Before installing the appliance, a recovery rope must be fitted to the eye-ring (A5) to allow it to be lowered into place/recovered easily (fig.6). If possible, the appliance should be suspended in the pumped liquid, far enough off the bottom to prevent it from sucking in solids of inappropriate size which may foul the suction strainer (A1) or jam the impeller (fig. 6). The appliance is cooled by the water it transports and the water in which it is immersed. Make sure that the appliance is completely immersed in the pumped liquid to ensure that it is cooled.

Since the appliance does not have an ON/OFF switch, it should be connected to a socket controlled by a supplementary ON/OFF switch. Throughout all installation and use procedures, please bear in mind that water leaks may cause damage. Warning - danger! Dry operation If the appliance runs for more than 5 minutes with the water suction point closed, it may be damaged due to overheating. Switch off the appliance when the normal water flow is obstructed. Dry operation will damage the appliance beyond repair, so never allow it to run dry for more than 10 seconds. 7 ADJUSTMENTS

7.1 Preliminary adjustments

Once the delivery hose has been connected, the appliance is ready for use. Bear in mind that if a socket with ON/OFF switch is not used, the appliance starts as soon as the plug (A12) is connected. 8 START-UP Warning - danger! All installation and assembly operations must be performed with the appliance disconnected from the mains power supply (g. 3).

After connecting the appliance as described in point 6 and after implementing all safety instructions, the plug (A12) can be connected.

8.2 Priming the appliance

The appliance sucks in water through the suction strainer (A1) in its base and conveys it along the hose connected to the delivery tting (A2). Make sure that the appliance is continuously immersed in water when in operation, to ensure that it does not run dry. When the user outlets are shut, switch off the appliance using the ON/OFF switch or by disconnecting the plug (A12).

8.3 Technical information

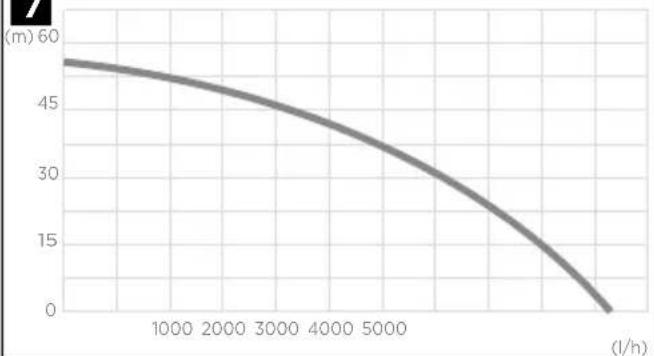

The appliance's stated ow rate values are maximum values, which are reduced if the recommended head is exceeded and external components (e.g. delivery hose, elbows, restrictors, etc.) are used. This should be borne in mind when choosing the pump. The actual ow rate for specic installation conditions is stated in the ow rate graph (g. 7).11 (Translation of the original instructions) © 2017 English

9 MAINTENANCE Warning - danger! Before any maintenance procedure and/or during troubleshooting, disconnect the power cable (A8) from the socket. All maintenance and cleaning work can then be carried out.

After each use, sluice the appliance and all external components with clean water. Remove hard deposits with a jet of water. Dirt and clay inside the pump body (A4) cause jamming of the impeller, leading to malfunctions when the pump is restarted. In the event that this procedure is overlooked, the appliance can be immersed in water at up to 35°C for several days to dissolve the dirt. 10 STORAGE It is essential to protect appliances from frost, and in case of temperatures of +5°C or below they must be uninstalled and stored in a dry place, protected from frost. 11 TROUBLESHOOTING Problems Possible causes Remedies The appliance does not pump water because the motor is not running

1. Mains voltage too low.

1. Check that mains power is present and that the plug (A12) is

2. Plug (A12) not properly connected. 2. Firmly connect the plug (A12).

3. Residual current device tripped.

3. Reset the residual current device.

If the device trips again, consult an electrician.

4. Impeller jammed. 4. Free the impeller from possible obstructions.

5. Motor or capacitor damaged. 5. Notify the dealer.

The appliance does not pump water even though the motor is running

1. Suction strainer (A1) fouled. 1. Clean the suction strainer (A1).

3. Tilt the appliance under water to allow the air to escape from the

pump body (A4). The appliance only delivers a small amount of water

1. Suction strainer (A1) partially fouled. 1. Clean the suction strainer (A1).

2. Hose obstructed. 2. Remove the obstruction.

3. Delivery hose too small. 3. Use hoses of at least ø 25 mm (1”).

4. Water discharge point too high in relation to appliance. 4. Remember that excessive head will reduce the flow rate.

1. Solids are obstructing free rotation of the impeller. 1. Remove the dirt!

2. The maximum temperature of the pumped liquid must not

3. Electrical voltage outside tolerance range.

3. Connect the appliance to an electrical system which meets the

requirements stated on the nameplate.

4. Motor faulty. 4. Notify the dealer.

5. The water level in the well is too low and/or water is not flowing

5. Check the water level in the well.

The thermostat is cutting out the appliance

1. Motor overloaded due to friction between dirt particles and

1. Clean the inside of the pump body (A4) by directing a jet of water

in through the delivery fitting (A2), leave the thermostat to cool for about 1 h, and if necessary have the appliance checked by the Service Centre.

2. Not enough water in the well to cool the appliance.

2. Check the water level in the well. Reduce the appliance flow rate

by adjusting the connected users. Warning: a reduction of more than 50% in the flow rate will damage the appliance. The appliance is pumping water containing sand

1. Well water not clean. 1. Inspect the well, install a sand trap filter in the well.

2. Appliance too close to the bottom of the well. 2. Raise the appliance off the bottom of the well.12

(Translation of the original instructions) © 2017 English

WARRANTY The warranties relating to the appliances described in this manual are conditional on compliance with all the recommendations it contains, especially those relating to use, installation and operation. We grant a warranty of 24 months (12 months for professional sales) from the date of purchase for the product described, covering defects in material or workmanship in accordance with current legislation. Requests for service under warranty must be accompanied by the original proof of purchase. The warranty does not cover the costs of dismantling and installing the appliance concerned in the place of use, travel costs to and from the place of use for repair staff, or transport costs. Claims arising from incorrect installation or operation, unsuitable conditions of use, negligence, commercial use or inappropriate repair attempts are not covered by the warranty and no responsibility is accepted for them; normal wear and tear is also excluded. The resulting costs, and especially inspection and transport costs, will be charged to the sender and/or the appliance's operator. This also applies, in particular, when a warranty request is submitted but the appliance is found to be operating perfectly with no defects, or the problem is not due to defects in materials or workmanship. Before return to the user, every product undergoes strict technical inspection. Repairs under warranty must only be performed by one of our Service Centres or an authorised repair workshop. Attempted repairs by the customer or unauthorised third parties during the warranty period will result in the loss of all warranty entitlement. Cutting off the power plug and/or shortening the power cable result in loss of warranty entitlement. Work done by us under warranty does not extend the duration of the warranty, or give rise to a new warranty period for the parts replaced or repaired. All further entitlement, including the right to discounts, changes or compensation, or consequent damage of any kind, is excluded. In the event of malfunction, contact the point of sale where the product was purchased, showing proof of purchase. Technical Data Unit SXUP1000XWE Voltage V/Hz 230 V ~ 50 Hz Power W

Max. head (H max ) m

Max. water temperature (T max ) °C

Residual water level mm
