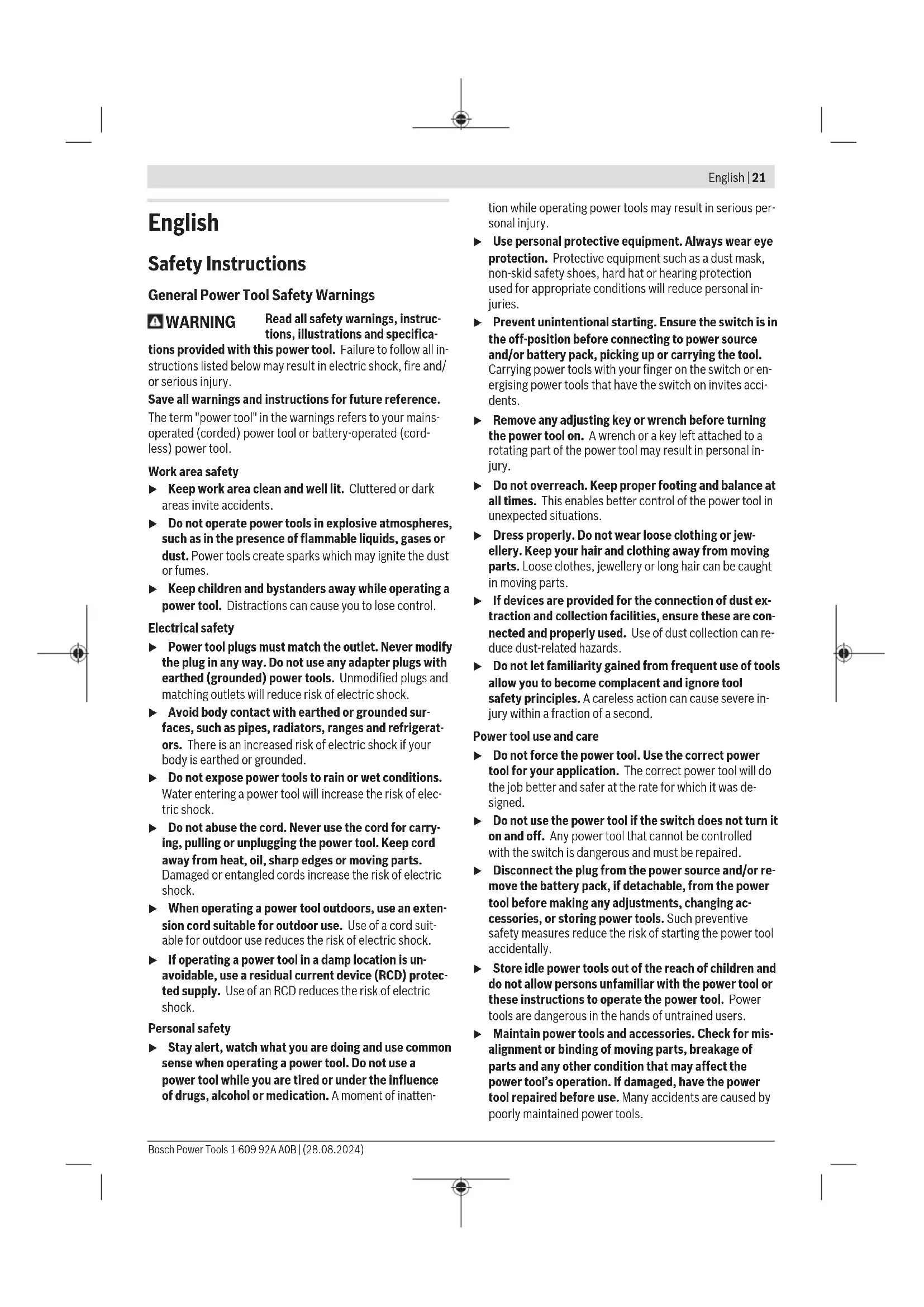

Starting current limitation ● ● Weight

kg 14.1 14.1 Protection class /II /II Dimensions of suitable saw blades Saw blade diameter mm 216 216 Base blade thickness mm 1.3−1.8 1.3−1.8 Max. cutting width mm 3.3 3.3 1 609 92A A0B | (28.08.2024) Bosch Power ToolsEnglish | 25 Sliding Mitre Saw GCM80SJ GCM800SJ GCM8000SJ GCM80SJ GCM800SJ GCM8000SJ Hole diameter mm 30 30 A) Weight without mains connection cable and without mains plug The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models. Permissible workpiece dimensions (see "Permissible workpiece dimensions", page28) Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac. Noise Information Noise emission values determined according toEN62841-3-9. 3601M190..: Typically, the A-weighted noise level of the power tool is: Sound pressure level91dB(A); sound power level104dB(A). UncertaintyK=3dB. Wear hearing protection! 3601M1906.: Typically, the A-weighted noise level of the power tool is: Sound pressure level90dB(A); sound power level103dB(A). UncertaintyK=3dB. Wear hearing protection! The noise emission value given in these instructions has been measured in accordance with a standardised measur- ing procedure and may be used to compare power tools. It may also be used for a preliminary estimation of noise emis- sions. The noise emission value given represents the main applica- tions of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the noise emission value may differ. This may significantly increase noise emissions over the total working period. To estimate noise emissions accurately, the times when the tool is switched off, or when it is running but not actually be- ing used, should also be taken into account. This may signi- ficantly reduce noise emissions over the total working period. Assembly u Avoid starting the power tool unintentionally. The mains plug must not be connected to the power supply during assembly or when carrying out any kind of work on the power tool. Items included See the list of items included at the start of the operating manual. Check to ensure that all the parts listed below have been supplied before using the power tool for the first time: – Sliding mitre saw with mounted saw blade – Screw clamp(7) – Saw table extension(3) with fastening set (2xclamping screws(2), 2xcross-head screws to prevent the saw table extensions from being pulled out of the saw table) – Hex key/cross-headed screwdriver(35) Note: Check the power tool for possible damage. Before continuing to use the power tool, carefully check that all protective devices or slightly damaged parts are working perfectly and according to specifications. Check that the moving parts are working perfectly and without jamming; check whether any parts are damaged. All parts must be fit- ted correctly and all the conditions necessary to ensure smooth operation must be met. If the protective devices or any parts become damaged, you must have them properly repaired or replaced by an author- ised service centre. Fitting the Saw Table Extensions (seefigureA) The saw table can be extended left and right using the saw table extensions (3). – Slide the saw table extensions(3) in as far as they will go through the holes provided in the saw table. – Turn the power tool upside down so that you can screw in the two cross-head screws provided to prevent the saw table extensions from being pulled out of the saw table. Screw the cross-head screws into the threaded holes provided in the saw table extensions(3) and use a cross- headed screwdriver(35) to tighten them. – Turn the power tool the right way round again and screw the clamping screws (2) for fastening the saw table ex- tensions (3) in place into the threaded holes provided in the saw table (22). Stationary or flexible mounting u To ensure safe handling, the power tool must be mounted on a flat, stable work surface (e.g. work bench) before use. Mounting on a work surface (see figure B1) – Use suitable screw fasteners to secure the power tool to the work surface. Use the holes (1) to do this. Mounting on a Bosch saw stand With the height-adjustable legs, Bosch GTA saw stands provide firm support for the power tool on any surface. The workpiece supports of the saw stand are used for underlay- ing long workpieces. u Read all the warnings and instructions included with the saw stand. Failure to observe the warnings and fol- Bosch Power Tools 1 609 92A A0B | (28.08.2024)26 | English low instructions may result in electric shock, fire and/or serious injury. u Assemble the saw stand properly before mounting the power tool. Correct assembly is important to prevent the risk of collapsing. – Mount the power tool on the saw stand in the transport position. Flexible installation (not recommended) (see figure B2) If, in exceptional circumstances, it is not possible to mount the power tool on a flat and stable work surface, you can im- provise by setting it up with the tilt protector. u Without the tilt protector, the power tool will not be stable and can tip over especially when sawing max- imum mitre and/or bevel angles. – Rotate the tilt protector (27) inwards or outwards until the power tool is positioned straight on the work surface. Dust/Chip Extraction The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reac- tions and/or cause respiratory illnesses in the user or in people in the near vicinity. Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials contain- ing asbestos may only be machined by specialists. – Use a dust extraction system that is suitable for the ma- terial wherever possible. – Provide good ventilation at the workplace. – It is advisable to wear a P2 filter class breathing mask. The regulations on the material being machined that apply in the country of use must be observed. u Avoid dust accumulation at the workplace. Dust can easily ignite. The dust/chip extraction system can be blocked by dust, chips or fragments of the workpiece. – Switch the power tool off and pull the mains plug out of the socket. – Wait until the saw blade has come to a complete stop. – Determine the cause of the blockage and eliminate it. External Dust Extraction You can also attach a dust extraction hose (35 mm dia- meter) to the chip ejector (13) for extraction. – Connect the dust extraction hose to the chip ejector (13). The dust extractor must be suitable for the material being worked. When extracting dry dust that is especially detrimental to health or carcinogenic, use a special dust extractor. Changing the saw blade (see figures C1−C4) u Pull the plug out of the socket before carrying out any work on the power tool. u Wear protective gloves when fitting the saw blade. There is a risk of injury when touching the saw blade. Only use saw blades that have a maximum permitted speed higher than the no-load speed of the power tool. Only use saw blades that match the specifications given in this operating manual and that have been tested and marked in accordance with EN847-1. Only use saw blades that are recommended by the power tool manufacturer and are suitable for use on the material you want to saw. This will prevent the saw teeth overheating when sawing. Removing the saw blade – Bring the power tool into the work position. – Turn the hex socket screw(36) using the hex key(35) while pressing the spindle lock(29) until it engages. – Press and hold the spindle lock (29) and loosen the screw (36) by turning it clockwise (left-hand thread). – Remove the clamping flange (37). – Push the locking switch(17) and swivel the retracting blade guard(19) back as far as it will go. – Hold the retracting blade guard in this position and re- move the saw blade (39). – Slowly push the retracting blade guard back down. Fitting the saw blade u When fitting the saw blade, make sure that the cutting direction of the teeth (arrow direction on the saw blade) matches the direction of the arrow on the pro- tective guard. If required, clean all the parts you want to fit before installing them. – Push the locking switch(17), swivel the retracting blade guard(19) back as far as it will go and hold it in this posi- tion. – Place the new saw blade on the inner clamping flange(38). – Slowly push the retracting blade guard back down. – Place on the clamping flange(37) and the screw(36). Press the spindle lock(29) until it engages and tighten the screw by turning it anticlockwise. Operation u Pull the plug out of the socket before carrying out any work on the power tool. u Products that are only sold in AUS and NZ: Use a resid- ual current device (RCD) with a nominal residual current of 30 mA or less. Transport Safety Lock (see figureD) The transport safety lock(30) makes it easier to handle the power tool when transporting it to various working locations. Unlocking the power tool (work position) – Press the tool arm down slightly by the handle (16) to re- lease the transport safety lock (30). 1 609 92A A0B | (28.08.2024) Bosch Power ToolsEnglish | 27 – Pull the transport safety lock (30) all the way out. – Slowly guide the tool arm upwards. Locking the power tool (transport position) – Loosen the locking screw (11) if it is clamping the slide device (12) in place. Pull the tool arm fully forward and tighten the locking screw again to lock the slide device. – To lock the saw table (22) in place, tighten the locking knob (25). – Push the locking switch(17) and slowly guide the tool arm downwards using the handle(16). – Guide the tool arm downwards until you can press the transport safety lock (30) all the way in. The tool arm is now securely locked and ready for transport- ation. Preparing for operation To ensure precise cuts, the basic settings of the power tool must be checked and adjusted as necessary after intensive use. Experience and suitable special tools are required for this. A Bosch after-sales service point will handle this work quickly and reliably. Moving the fence (see figure E) You have to move the adjustable fence (6) to saw bevel angles. – Loosen the locking screw(40) using the hex key(35) provided. Both external fastening screws must not be loosened. – Pull the adjustable fence (6) all the way out. – Re-tighten the locking screw (40). After sawing the bevel angles, slide the adjustable fence (6) back again (loosen the locking screw (40); slide the fence (6) completely inward; retighten the locking screw). Extending the saw table (see figure F) The free end of long workpieces must have something placed underneath it or be supported. The saw table can be extended left and right using the saw table extensions (3). – Loosen the clamping screw (2). – Pull out the saw table extension (3) to the required length. – Retighten the clamping screw (2) to fix the saw table ex- tension. Clamping the Workpiece (see figureG) To ensure maximum safety while working, the workpiece must always be firmly clamped. Do not saw workpieces that are too small to clamp firmly. – Press the workpiece firmly against the fences(6) and(21). – Insert the supplied screw clamp(7) into one of the cor- responding holes(41). – Adjust the threaded rod(42) of the screw clamp to the workpiece height. – Tighten the threaded rod(42) to fix the workpiece in place. Adjusting mitre angles Setting Standard Mitre Angles (see figure H) For quick and precise setting of commonly used mitre angles, detents (28) are provided on the saw table: Left Right

45°; 22.5°; 15° 15°; 22.5°; 45° – Loosen the locking knob(25) if it is tightened. – Push the lever(26) and turn the saw table(22) left or right to the required detent. – Release the lever again. The lever must be felt to engage in the detent. – Retighten the locking knob(25). Setting any Mitre Angle The mitre angle can be set between 47° (left-hand side) and 47° (right-hand side). – Loosen the locking knob(25) if it is tightened. – Pull the lever(26), turn the saw table(22) left or right by the locking knob and set the required mitre angle using the angle indicator(24). – Retighten the locking knob(25). Adjusting bevel angles The bevel angle can be set between0° (left-hand side) and45° (right-hand side). For quick and precise setting of frequently used bevel angles, fixed positions have been provided for the angles 0° and 45°. Setting Any Bevel Angle (see figure I) – Pull the adjustable fence (6) all the way out. – Loosen the clamping handle(10). – Use the handle(16) to swivel the tool arm until the angle indicator(32) shows the required bevel angle. – Hold the tool arm in this position and retighten the clamp- ing handle(10). Start-up u Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool. Switching on (see figure J) – To start the tool, press the on/off switch (15) and keep it pressed. Note: For safety reasons, the on/off switch (15) cannot be locked; it must remain pressed during the entire operation. The tool arm can only be guided downwards by pushing the locking switch(17). – For sawing, the locking switch(17) must therefore be pushed while the on/off switch(15) is pressed. Bosch Power Tools 1 609 92A A0B | (28.08.2024)28 | English Switching off – To switch off, release the on/off switch (15). Starting current limitation The electronic starting current limitation feature restricts the power of the power tool when it is switched on and enables operation using a 16 A fuse. Note: If the power tool runs at full speed immediately after being switched on, this means that the starting current limit- ation has failed. The power tool must be sent to the after- sales service without delay. Sawing General sawing instructions u Always tighten the locking knob (25) and the clamp- ing handle (10) firmly before sawing. Otherwise the saw blade can become wedged in the workpiece. u For all cuts, it must first be ensured that the saw blade at no time can come in contact with the fence, screw clamps or other machine parts. Remove any mounted auxiliary stops or adjust them accordingly. Protect the saw blade against impact and shock. Do not sub- ject the saw blade to lateral pressure. Only saw materials which are permitted within the scope of the intended use. Do not saw warped/bent workpieces. The workpiece must always have a straight edge to face against the fence. The free end of long and heavy workpieces must have some- thing placed underneath it or be supported. Make sure that the retracting blade guard operates properly and that it can move freely. The retracting blade guard must open when the tool arm is guided downwards. When the tool arm is guided upwards, the retracting blade guard must close again over the saw blade and lock in the uppermost po- sition of the tool arm. Position of the operator (see figure K) u Do not stand in line with the saw blade in front of the power tool. Always stand to the side of the saw blade. This protects your body against possible kickback. – Keep hands, fingers and arms away from the rotating saw blade. – Do not reach one hand across the other when in front of the tool arm. Sawing with slide movement – For cuts made using the slide device (12) (wide work- pieces), loosen the locking screw (11) if it is tightened. – Set the required mitre and/or bevel angle as necessary. – Press the workpiece firmly against the(6)and(21) fences. – Firmly clamp the workpiece as appropriate for its dimen- sions. – Pull the tool arm away from the(6)and(21) fences until the saw blade is in front of the workpiece. – Switch on the power tool. – Push the locking switch(17) and slowly guide the tool arm downwards using the handle(16). – Now push the tool arm towards the(6)and(21) fences, and saw through the workpiece applying uniform feed. – Switch off the power tool and wait until the saw blade has come to a complete stop. – Slowly guide the tool arm upwards. Sawing without slide movement (cutting off) (see figure

GCM80SJ GCM800SJ GCM8000SJ GCM80SJ GCM800SJ GCM8000SJ

GCM80SJ GCM800SJ GCM8000SJ GCM80SJ GCM800SJ GCM8000SJ

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Sliding mitre saw Article number

3 601 M19 071 We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 62841-1:2015+A11:2022

EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Business Operations and Aftersales Director Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 31/07/2024 Bosch Power Tools 1 609 92A A0B | (28.08.2024)
