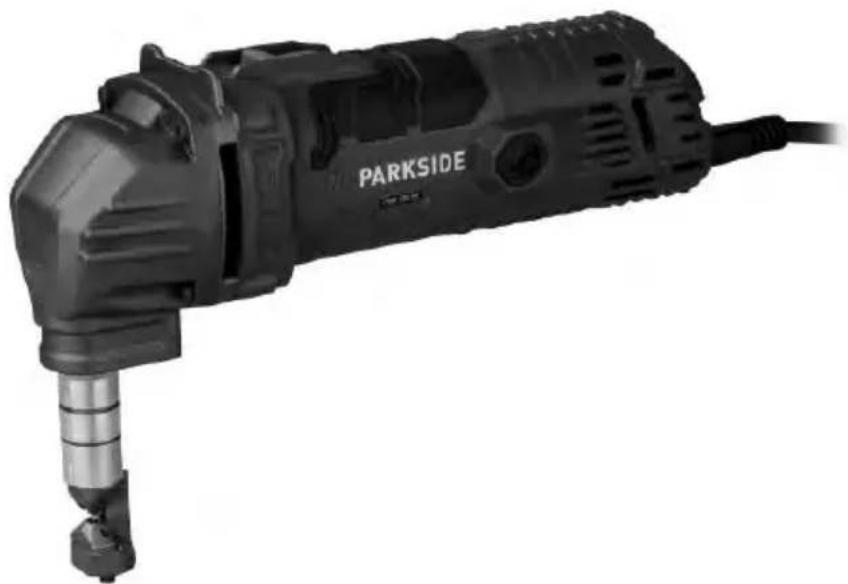

Brand	PARKSIDE
Model	PMK 550 B1
Product type	Nibbler (power tool)
Power supply	230 V ~ 50 Hz (alternating current)
Rated power input	550 W
No-load speed	2200 min⁻¹
Cutting capacity - Steel (400 N/mm²)	1.6 mm
Cutting capacity - Steel (600 N/mm²)	1.2 mm
Cutting capacity - Steel (800 N/mm²)	0.8 mm
Cutting capacity - Aluminum (200 N/mm²)	2.5 mm
Minimum internal cutting radius	45 mm
Minimum external cutting radius	50 mm
Cutting line width	5 mm
Protection class	II (double insulation)
Sound pressure level	93 dB(A) (K=3 dB)
Sound power level	104 dB(A) (K=3 dB)
Vibration values (cutting sheet metal)	8.7 m/s² (K=1.5 m/s²)
Adjustable die holder	Yes (360°, 4 positions)
Grooved pin	Included (2 pieces, 1 pre-assembled)
Carbon brushes	Replaceable
Warranty	3 years
After-sales service France	0800904879
After-sales service Belgium	080071011
Included accessories	2 grooved pins, 2 hex keys, user manual
Maintenance	Clean with dry cloth, lubrication recommended on cutting line

Frequently Asked Questions - PMK 550 B1 PARKSIDE

How to change the die?

To change the die, loosen the hexagon socket screw 2 using the hex key 7. Remove the die holder 5 from the tool, then loosen the hexagon socket screw 8 with the hex key 10 to remove the grooved pin 9. Insert the new grooved pin and reassemble the die holder in reverse order. Tighten the hexagon socket screw 2 to secure.

How to adjust the die holder position?

The die holder can be adjusted 360° with 4 working positions. To do this, loosen the hexagon socket screw 2 using the hex key 7, turn the die holder 5 to the desired position so that the corresponding hole points to the screw, then retighten the hexagon socket screw 2.

What is the maximum sheet thickness that can be cut?

Cutting capacity depends on the material. For steel (400 N/mm²): 1.6 mm; steel (600 N/mm²): 1.2 mm; steel (800 N/mm²): 0.8 mm; aluminum (200 N/mm²): 2.5 mm. Never cut material thicker than specified in the technical data.

How to lubricate the tool?

Apply standard machine oil to the cutting line to extend the life of the grooved pin and die. This is especially important when cutting aluminum.

How to replace the carbon brushes?

Remove the brush caps 12 using a screwdriver. Take out the worn carbon brushes, insert new ones (identical), then screw the caps back on. Both brushes must be replaced at the same time.

What to do if the nibbler stops during use?

Switch off the tool immediately and unplug it. Check if the grooved pin or die is worn or damaged. Also check the carbon brushes. If the problem persists, contact the after-sales service.

Can I cut electrical cables?

No, avoid cutting electrical cables. This could lead to serious electric shock accidents. The tool is designed for cutting steel and aluminum sheets only.

How to clean the tool?

Clean the product with a dry cloth after each use. Use a soft brush for hard-to-reach areas. Do not use aggressive cleaning agents. Ensure no liquid penetrates the interior.

What accessories are included?

The nibbler comes with: 1 nibbler, 2 grooved pins (1 pre-assembled), 2 hex keys, and 1 user manual.

Where to find the serial number?

The article number (IAN 409144_2207) can be found on the rating plate, an engraving on the product, the first page of the user manual (bottom left), or as a label on the rear or bottom of the product.

USER MANUAL PMK 550 B1 PARKSIDE

PDF ONLINE www.lidl-service.com

Black Parkside electric drill power tool with visible screw and handle (no text or symbols on body)

KNABBER / NIBBLER / GRIGNOTEUSE PMK 550 B1

DE AT CH

KNABBER

Bedienungsanleitung

Translation of the original instructions

FR BE

GRIGNOTEUSE

Benjamin Steeb Managing Director

ppa. Fudha ppa. Jens Buchheim

Authorised Signatory

List of pictograms used ...... Page 20

Introduction Page 21

Intended use.... Page 21

Scope of delivery.... Page 21

Parts list Page 21

Technical data Page 22

General safety instructions.... Page 23

General power tool safety warnings Page 23

Safety instructions for nibblers Page 25

Original accessories/auxiliary equipment. Page 25

Vibration and noise reduction Page 26

Behaviour in emergency situations.... Page 26

Residual risks Page 26

First use Page 27

Changing die holder position. Page 27

Permissible material thickness. Page 27

Fitting and removing grooved pin and die holder Page 27

Operation Page 28

Switching on/off Page 28

Lubrication Page 28

Cutting process Page 28

Cut-outs Page 28

Cleaning and maintenance Page 28

Cleaning. Page 28

Maintenance Page 29

Repair. Page 29

Storage Page 29

Transportation Page 29

Disposal Page 30

Warranty Page 30

Warranty claim procedure.... Page 31

Service Page 31

EC declaration of conformity Page 32

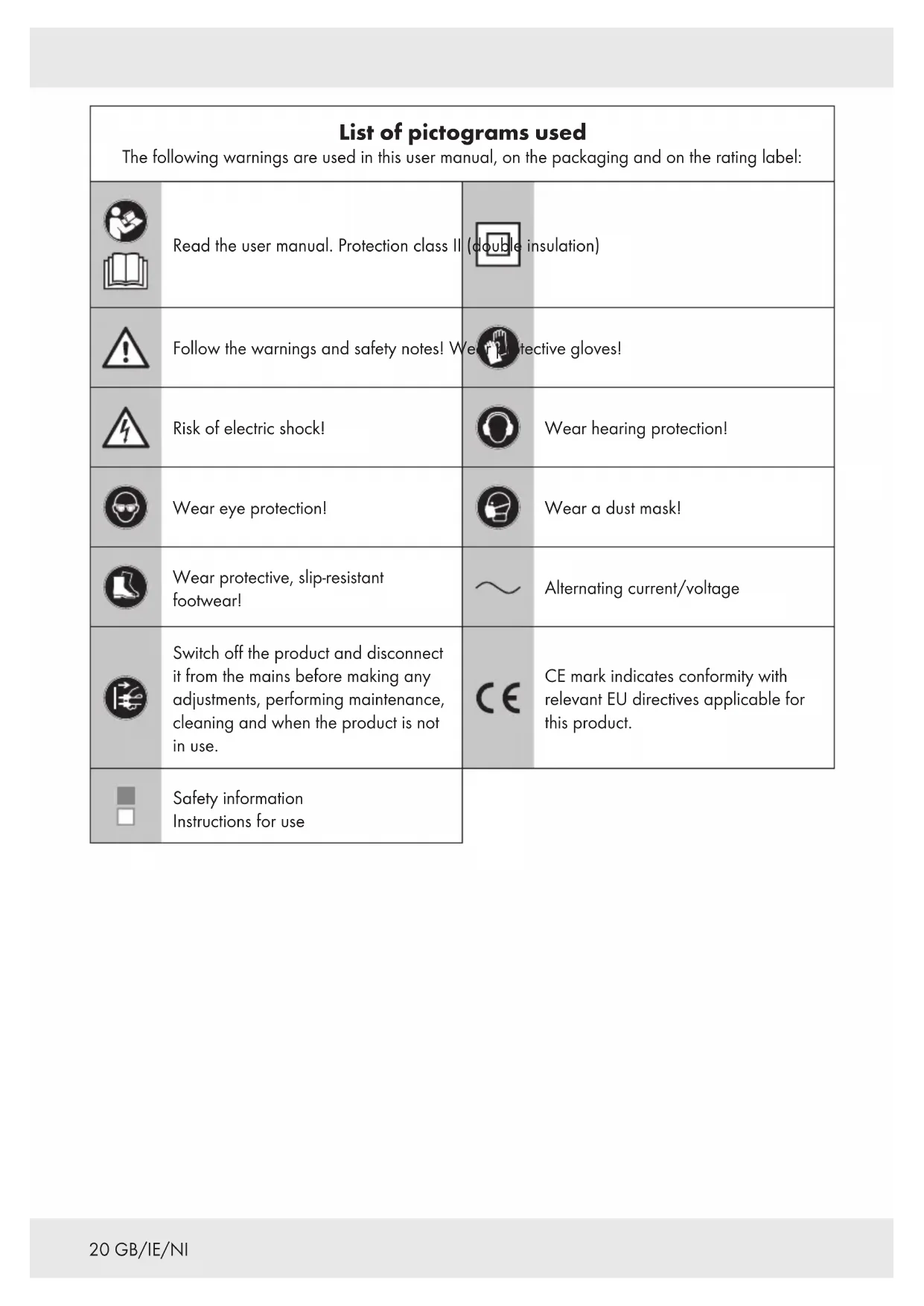

List of pictograms usedThe following warnings are used in this user manual, on the packaging and on the rating label:
	Read the user manual. Protection class II (double insulation)
	Follow the warnings and safety notes! We protective gloves!
	Risk of electric shock!	Wear hearing protection!
	Wear eye protection!	Wear a dust mask!
	Wear protective, slip-resistant footwear!	~ Alternating current/voltage
	Switch off the product and disconnect it from the mains before making any adjustments, performing maintenance, cleaning and when the product is not in use.	CE CE mark indicates conformity with relevant EU directives applicable for this product.
	Safety informationInstructions for use

NIBBLER

Introduction

Congratulations on the purchase of your new product, hereafter referred to only as "the product".

You have chosen a high-quality product. The user manual forms an integral part of this product. It contains important information on operation, safety, use and disposal. Prior to use of the product, familiarise yourself with the product and all operation and safety notes. For this purpose, carefully read the following operation instructions and safety notes.

Only use the product as described and for the applications stated. Keep this manual in a safe place. If you hand the product on to third parties, all documentation must be passed on as well.

Intended use

This product is suitable for cutting steel sheet and aluminium sheet. This product is exclusively intended for use in dry indoor spaces.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is exclusively intended for domestic use. The product is not intended for commercial use, industrial operations or similar purposes.

Observe all applicable local safety regulations, standards and ordinances. The use of noise emitting power tools may be restricted to certain times by national or local regulations.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Nibbler
2 Grooved pins (1 pre-assembled)
2 Hex keys
1 User manual

Parts list

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

1 On/off switch
2 Hex screw
3 Measuring groove 1.6 mm
4 Measuring groove 1.2 mm
5 Die holder
6 Die
7 Hex key
8 Hex screw
9 Grooved pin
10 Hex key
11 Tool holder
12 Brush holder caps

- Technical data

Nibbler PMK 550 B1

Model number HG09160

(with VDE plug)

HG09160-BS

(with BS plug)

Rated voltage 230 V\~ 50 Hz

(Alternating current)

Rated power

consumption 550 W

Idling stroke rate 2200 min ^-1

Max. cutting capacity/material thickness

Aluminium 2.5 mm (200 N/mm ^4 )

Steel 1.6 mm (400 N/mm ^2 )

1.2 mm (600 N/mm ^4 )

0.8 mm (800 N/mm ^2 )

Min. cutting radius inside = 45 mm

outside = 50 mm

Cutting track width 5 mm

Protection class II / double insulation)

Noise emission value

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically

Sound pressure level L _pA = 93 dB

Uncertainty K_pA = 3 dB

Sound power level L _WA = 104 dB

Uncertainty K_WA = 3 dB

Total vibration values

(vector total of three directions) determined in accordance with EN 62841:

Cutting of sheet metal a_h = 8.7 m/s^2

Uncertainty K = 1.5 m/s ^4

WARNING!

Wear ear protection!

NOTE

The declared vibration total values and the declared noise emission values have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared total vibration values and the declared noise emission values may also be used for a preliminary assessment of exposure.

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed. Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

General safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.
  Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
  ■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
  ■ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  ■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that can not be controlled with the switch is dangerous and must be repaired.
■ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
■ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

● Safety instructions for nibblers

• Hold the tool with a firm grip.
• Secure the workpiece properly.
• Keep hands away from rotating parts.
  The edges and chips from the workpiece are sharp. Wear gloves. To prevent injuries, it is also advisable to wear shoes with thick soles.
• Do not place the tool onto the chips from the workpiece. Otherwise the tool may be damaged and malfunction.
  Do not leave the tool running unattended. Use the tool only when held in your hands.
  ■ Always ensure that you have a firm footing. When you are working in an elevated position, ensure that no-one is standing beneath you.
• Avoid touching the grooved pin, the die or the workpiece immediately after machining, because the parts will still be very hot and can cause skin burns.
• Avoid cutting electrical cables. This can lead to serious accidents due to electric shock.

● Original accessories/auxiliary equipment

- Only use the accessories and additional equipment that are specified in the operating instructions and compatible with the appliance.

- Vibration and noise reduction - Residual risks

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
- Ensure that the product is in good condition and well maintained.
- Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles / grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

- First use

WARNING!

Always switch the product off, disconnect it from the mains and let the product cool down before making any adjustments!

● Changing die holder position

Fig. A

The die position can be adjusted by 360^ .

4 working positions offset by 90^ are specified.

The working positions can be set as follows:

1. Loosen the hex screw 2 using the supplied hex key 7.
2. Turn the die holder 5 into the desired working position so that the respective hole in the die holder 5 is facing towards the hex screw 2.
3. Retighten the hex screw 2 using the supplied hex key 7.
4. Rotate the die holder 5 slightly to check whether it is fixed in the correct position.

● Permissible material thickness

The maximum cutting capacity depends on the material quality and strength.
The measuring grooves 3 and 4 on the die holder 5 can be used as a thickness gauge for the permissible cutting thickness. Never cut material thicknesses greater than those specified in the technical data.

● Fitting and removing grooved pin and die holder

Fig. B+C

Removing grooved pin and die holder

1. Undo the hex screw 2 using the hex key 7.
2. Pull the die holder 5 from the product.
3. Loosen the hex screw 8 using the hex key 10 so you can remove the grooved pin 9 from the tool holder 11.

Fitting grooved pin and die holder

1. Insert the new grooved pin 9 into the tool holder 11 so that the hole in the grooved pin 9 is facing towards the hex screw 8.
2. Tighten the hex screw 8 firmly to secure the grooved pin 9 in place.
3. Guide and insert the die holder 5 via the tool holder 11 back into the product.
4. Turn the die holder 5 into the desired working position so that the respective hole in the die holder 5 is facing towards the hex screw 2.
5. Retighten the hex screw 2 using the hex key 7.
6. Rotate the die holder 5 slightly to check whether it is fixed in the correct position.

Operation

- Switching on/off

Switching the product on

■ Move the on/off switch 1 to the I position.

Switching the product off

■ Move the on/off switch 1 to the 0 position.

Lubrication

■ Apply standard machine oil to the cutting line to extend the service life of the grooved pin 9 and the die 6.

This is particularly important when cutting aluminium.

Cutting process

1. Hold the unit at a right angle (90°) to the work piece during the machining process.
2. Move the product in the cutting direction with gentle pressure.

Cut-outs

For internal cut-outs, a hole larger than 22.5 mm is needed to insert the die holder 5.

● Cleaning and maintenance

WARNING!

Always switch the product off and let the product cool down before performing inspection, maintenance and cleaning work!

Cleaning

■ Never allow fluids to get into the product.
The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
■ Regular and proper cleaning will help ensure safe use and prolong the life of the product.
- Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

Maintenance

Before and after each use, check the product and accessories for wear and damage. If required, exchange them for new ones as described in this instruction manual.

Observe the technical requirements (see "Technical data").

The carbon brushes must be removed and checked regularly. If they are worn down to the limit of wear, they must be replaced. Always keep the carbon brushes clean so that they can slide freely in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

- Unscrew the brush holder caps 12 with a screwdriver. Remove the worn carbon brushes, insert the new ones, and then screw the brush holder caps back on.

WARNING!

If the power cord needs to be replaced, this must be done by the manufacturer or his representative to avoid safety hazards.

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

■ Clean the product (see "Cleaning").
■ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
■ Always store the product in a place that is inaccessible to children.

Transportation

• Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
• Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your wornout product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 409144_2207) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the user manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

NI Service Northern Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE

EC declaration of conformity

EC DECLARATION OF CONFORMITY

IAN:	409144_2207
Product identification:	PARKSIDE Nibbler
Model Number:	HG09160

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-8:2016

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

Directive 2011/65/EU

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Original declaration of conformity

Neckarsulm

Place

05.10.2022

Date

Managing Director

ppa. Fudha ppa.Jens Buchheim

Authorised Signatory

Lubrification Page 42

DÉCLARATION DE CONFORMITÉ CE

IAN : 409144_2207

DEKLARACJA ZGODNOŚCI WE

tlaku L _pA = 93 dB

Nejistota K_pA = 3 dB

Hladina akustického

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-8:2016

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2021

Authorised Signatory

Benjamin Steeb Managing Director ppa.Jens Buchheim Authorised Signatory

SK

Benjamin Steeb Managing Director

ppa. Budon ppa.Jeris Buchheim

Authorised Signatory

DK

Benjamin Steeb Managing Director

Authorised Signatory

计

Benjamin Steeb Managing Director

ppa.Judnai ppa.Jens/Buchheim

Authorised Signatory

HU

Negotovost K _pA = 3 dB

Nivo zvočne moči L _WA = 104 dB

Negotovost K _WA = 3 dB

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Authorised Signatory

Popis korištenih piktograma.... Stranica 176

Uvod. Stranica 177

Predvidena upotreba.... Stranica 177

Authorised Signatory

Lista pictogramelor utilizate ...... Pagina 190

Introducere....Pagina 191

Authorised Signatory

Directive 2006/42/FC

Directive 2014/30/EU

Directive 2011/65/EU

Benjamin Steeb Managing Director

ppa.Judhai Ipa.Jens Buchheim Authorised Signatory

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model No.: HG09160

Version: 02/2023

IAN 409144_2207

8=
