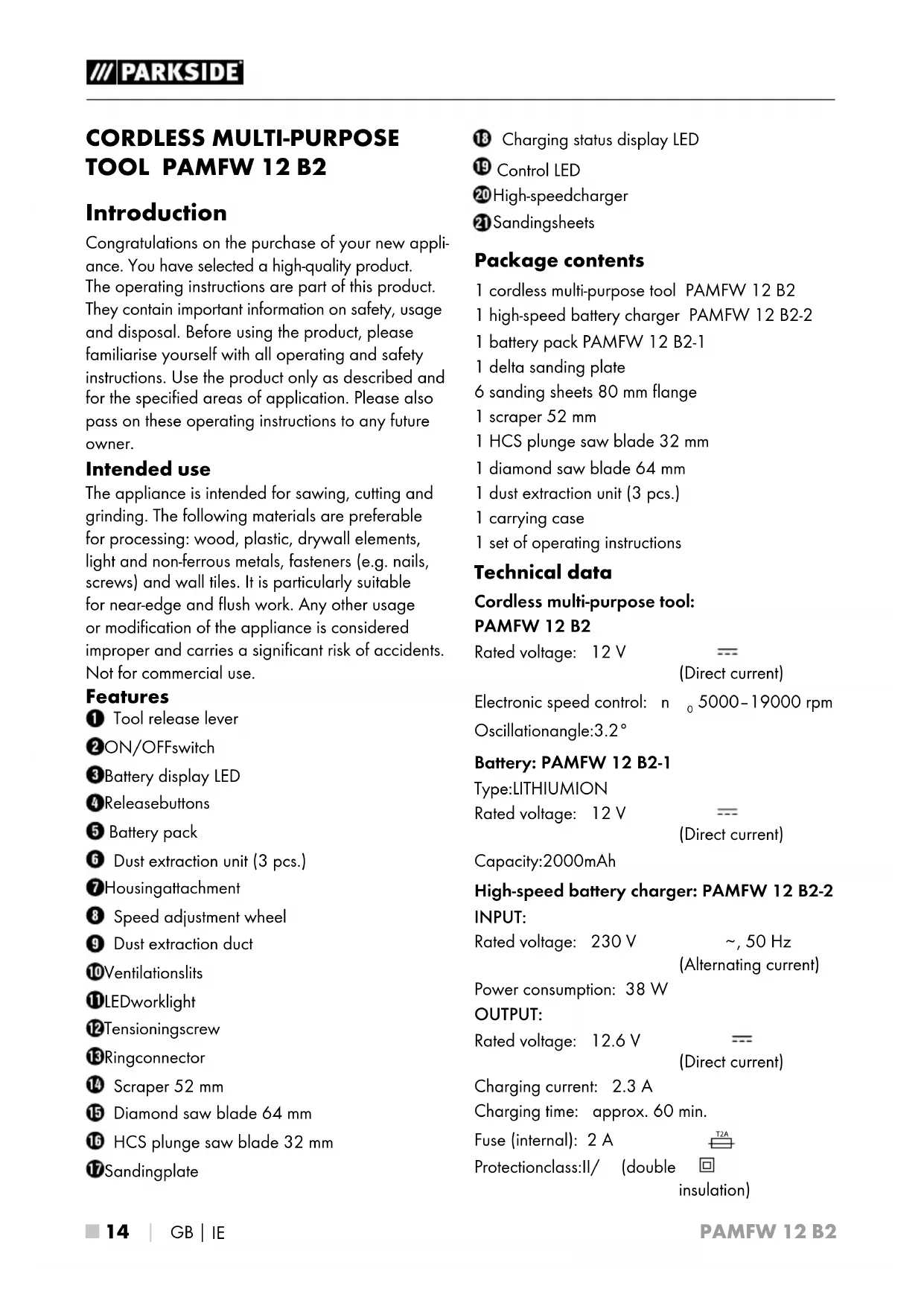

CORDLESS MULTI-PURPOSE TOOL PAMFW 12 B2

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.

Intended use

The appliance is intended for sawing, cutting and grinding. The following materials are preferable for processing: wood, plastic, drywall elements, light and non-ferrous metals, fasteners (e.g. nails, screws) and wall tiles. It is particularly suitable for near-edge and flush work. Any other usage or modification of the appliance is considered improper and carries a significant risk of accidents. Not for commercial use.

Features

① Tool release lever

②ON/OFFswitch

③Battery display LED

4 Releasebuttons

5 Battery pack

6 Dust extraction unit (3 pcs.)

⑦Housingattachment

8 Speed adjustment wheel

9 Dust extraction duct

10 Ventilationslits

11LEDworklight

12 Tensioningscrew

13Ringconnector

14 Scraper 52 mm

15 Diamond saw blade 64 mm

16 HCS plunge saw blade 32 mm

17 Sandingplate

18 Charging status display LED

19 Control LED

20 High-speedcharger

21 Sandingsheets

Package contents

1 cordless multi-purpose tool PAMFW 12 B2

1 high-speed battery charger PAMFW 12 B2-2

1 battery pack PAMFW 12 B2-1

1 delta sanding plate

6 sanding sheets 80 mm flange

1 scraper 52 mm

1 HCS plunge saw blade 32 mm

1 diamond saw blade 64 mm

1 dust extraction unit (3 pcs.)

1 carrying case

1 set of operating instructions

Technical data

Cordless multi-purpose tool:

PAMFW 12 B2

Rated voltage: 12 V

三

(Direct current)

Electronic speed control: n 0 5000-19000 rpm

Oscillationangle:3.2°

Battery: PAMFW 12 B2-1

Type:LITHIUMION

Rated voltage: 12 V

三

(Direct current)

Capacity:2000mAh

High-speed battery charger: PAMFW 12 B2-2 INPUT:

Rated voltage: 230 V

\~, 50 Hz

(Alternating current)

Power consumption: 38 W

OUTPUT:

Rated voltage: 12.6 V

三

(Direct current)

Charging current: 2.3 A

Charging time: approx. 60 min.

Fuse (internal): 2 A

T2A

Protectionclass:II/ (double

回

insulation)

Noise and vibration data:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Noise emission value:

Sound pressure level L_pA :73dB(A)

Uncertainty K_pA :3dB

Sound power level L_WA :83dB(A)

Uncertainty K_WA :3dB

Wear hearing protection!

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Sanding:

Vibration emission value a_h = 15.8 m/s^2

Uncertainty K = 1.5 m/s ^4

NOTE

The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the electric tool in such a way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

eral Power Tool Safety Warnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable batteries if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!

at the rechargeable battery from heat (including continuous exposure to sunlight), fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for grinders

WARNING!

■ Dusts from materials such as leaded paint, some types of wood and metal can be harmful to your health.
■ Contact with or inhalation of these dusts can represent a health hazard for the person operating the appliance and other people in the vicinity.
■ Wear safety goggles and a protective dust mask!

Safety guidelines for battery chargers

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.

only.

This charger is suitable for indoor use

WARNING!

- Do not operate the appliance with a damaged cable, power cable or power plug. A damaged power cableposes a threat of fatal electric shock.

Working procedures

Working principle:

The oscillating drive causes the application tool to move back and forth at a speed of 5000-19000 times per minute. This allows for precision work even in confined spaces.

Sawing/cutting:

■ Use only undamaged saw blades that are in perfect working order. Bent, blunt or otherwise damaged saw blades may break.
■ When sawing lightweight construction materials, follow the statutory regulations and all recommendations from the material manufacturers.
■ Only soft materials such as wood, plasterboard or similar should be processed using the plunge saw process.

Sanding:

■ To prolong the service life of the sanding sheets 21, ensure that you apply even pressure.

Before use

Removing/charging/inserting the battery pack

CAUTION!

▶ Always unplug the appliance before you remove the battery pack 5 from or connect the battery pack to the charger.

NOTE

The battery is supplied partially charged. Before first use, charge the battery in the charger for at least 1 hour. This guarantees full battery power. You can charge the lithium-ion battery at any time without shortening its service life. Interrupting the charging process does not damage the battery.

■ Never charge the battery pack ^⑤ when the ambient temperature is below 10°C or above 40°C.

1. To remove the battery pack press the release button and pull the battery pack out of the appliance.
2. Insert the battery pack ⑤ into the high-speed charger ⑳
3. Insert the mains plug into the socket. The control LED 19 lights up red.
4. The green charge status indicator LED ^18 indicates that the charging process is complete and the battery pack ^5 ready.
5. Insert the battery pack⑤ into the appliance.

Checking the battery charge level

• Press the ON/OFF switch ^2 to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED ^3 as follows:
• RED/ORANGE/GREEN = maximum charge
• RED/ORANGE = medium charge
• RED = low charge - charge the battery

Dust/chip extraction

Materials containing asbestos may not be processed. Asbestos is a known carcinogen.

WARNING! RISK OF FIRE!

When working with electrical appliances that can be connected to a vacuum cleaner via a vacuum cleaner adapter, there is a risk of fire! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the bag of the vacuum cleaner can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, avoid overheating of the material being sanded as well as the appliance. Always empty the vacuum cleaner's dust bag before taking work breaks.

■ Always use dust extraction.
■ Ensure that your workplace is adequately ventilated.
■ Observe the regulations applicable in your country regarding the materials to be worked.

Connecting a dust extraction appliance

♦ Push the dust extraction until onto the appliance. Fix it in place by fitting the housing attachment 7.
◆ Push the hose from a suitable dust extraction appliance (e.g. a workshop vacuum cleaner) onto the adapter for external vacuum extraction.

Select a tool

NOTE

The universal fitting without-tool-change is suitable for standard accessories.

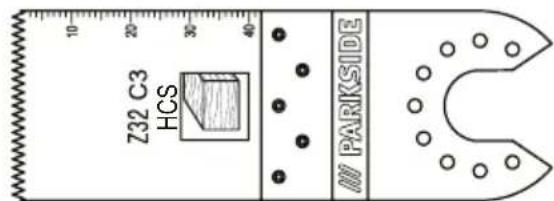

Z32 C3 HCS PARKSIDE

HCS plunge saw blade 32 mm

Materials:

Wood, plastic, gypsum (plaster) and other soft materials

Application:

-separation and plunge saw cuts
-sawing close to edges, even in hard to reach areas

Example: sawing of recesses in lightweight walls.

PAROSIDE5 Z64 B2

Diamond saw blade

Materials:

Tile adhesives, tile joints

Application:

-removal of material residues, such as tile adhesive, when replacing damaged tiles

-milling of grout on wall and floor tiles.

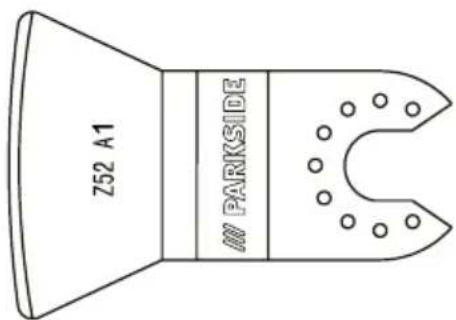

Z52 A1 PARKSIDE

Scraper

Materials:

Mortar/concrete residues, tile/carpet glue, paint/silicone residues

Application:

-removal of material residues, such as carpet glue residue on the floor.

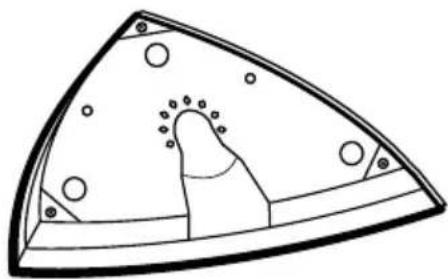

Simple line drawing of a triangular object with internal patterns and dots, no text or symbols present.

Sanding plate

Materials:

Wood and metal (sanding sheets 21 supplied), wood*, metal*

*depending on the sanding sheet

Application:

-sanding up to edges and hard to reach areas.

Fitting the sanding sheet onto the sanding plate

Place the sanding sheet ^31 centrally on the sanding plate ^17

Changing tools

NOTE

▶ If you wish to use the dust collection, it must be connected before fitting the tool (see section "Connecting a dust extraction device").

WARNING! RISK OF INJURY!

■ Always remove the battery before working on the power tool.

If necessary, remove an already fitted tool. To do this, raise the tool release lever 1.

◆ Fit the tool (e.g. the plunge saw blade) onto the tool fitting.

NOTE

▶ You can fit the tools in any snap position on the tool fitting.

♦ Fix the tool in place by pushing the tool release lever ① back down again.

- Check that the tool is fitted firmly. Incorrectly or insecurely fitted tools can come loose during use and cause you an injury.

Operation

Switching on and off

Switching on:

♦ Push the ON/OFF switch ^2 forwards to switch the appliance on.

The LED work light lights up when the appliance is switched on to light up the working area in low light conditions.

NOTE

The LED work light may only be used without dust extraction unit 6

Switching off:

♦ Push the ON/OFF switch ^2 backwards to switch the appliance off.

Select oscillation speed

◆ Use the speed adjustment whee8 to set the required oscillation speed.

Stage 1: low oscillation speed

Stage 6: high oscillation speed

NOTE

The required speed depends on the material being worked and on the working conditions and can be determined through practical tests.

Maintenance and cleaning

WARNING! RISK OF INJURY! Al switch the appliance off and remove the battery before carrying out any work on the appliance.

• Do not use any sharp objects to clean the appliance. Never permit liquids to enter inside the appliance. This can damage the appliance.
  ■ Clean the appliance regularly, preferably immediately after completion of the work.
  ■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
  A vacuum cleaner is required for thorough cleaning of the appliance.
  ■ Ventilation openings must never be obstructed.

■ Remove any adhering swarf with a brush.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage climate is cool and dry.

NOTE

▶ Replacement parts not listed (such as carbon brushes, switches and replacement batteries) can be ordered via our service hotline.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is depend-ways on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
- You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

INDICACIÓN

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

▶ Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
▶ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 290733

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

ckaging is made from environmen- tally friendly material and can be disposed off at your local recycling plant.

· dispose of power tools in your normal household waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

· dispose of batteries in your normal domestic waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility.

Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EC Low Voltage Directive

(2014/35/EU)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009+A11

EN 60745-2-4:2009+A11

EN 55014-1:2006+A1+A2

EN 55014-2:2015

EN 61000-3-3:2013

EN 61000-3-2:2014

EN 60335-2-29:2004+A2

EN 60335-1:2012+A11

EN 62233:2008

Type/appliance designation:

Cordless multi-purpose tool PAMFW 12 B2

Year of manufacture: 12 - 2017

Serial number: IAN 290733

Bochum, 04/12/2017

Jeddy Fiyad

CE

Semi Uguzlu

- Quality Manager -

The right to effect technical changes in the context of further development is reserved.

Table des matières

Introduction....26

Simple line drawing of a triangular object with internal features and dots, no text or symbols present.

Plateau de ponçage

Matériaux :

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Mise au rebut

Sofy Fruick

CE

Semi Uguzlu

Zekering (intern): 2 A

WAARSCHUWING! BRANDGEVAAR!

Simple line drawing of a triangular object with internal patterns and dots, no text or symbols present.

Schuurzool

Materialen:

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

Sofia Gruick

CE

Semi Uguzlu

Diagram of a triangular fan or blade with internal geometric patterns and dot markings (no text or symbols)

brusná deska

Materialy:

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

Safery Gyond

CE

Semi Uguzlu

- manažer kvality -

Simple line drawing of a triangular object with internal patterns and dots, no text or symbols present.

Placa lijadora

Materiales:

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

Incerteza K_pA :3dB

Nível de potência

acústica L _WA :83dB(A)

Incerteza K_WA :3dB

Simple line drawing of a triangular object with internal features and dots, no text or symbols present.

Placa de lixar

Materiais:

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

Eliminação

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones
