USER MANUAL PMGS 12 C3 PARKSIDE

Operation and Safety Notes

Translation of the original instructions

SE

MODELLBYGGE- OCH GRAVERINGSSET

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

H

GB/IEOperation and Safety NotesPage 5

Proper use.. 6
Features and equipment.. 6
Included items . Page 6
Technical information.. 6

General safety advice for electrical power tools

1.Workplace safety.. Page 7
2. Electrical safety.. 7
3. Personal safety.. 8
4. Careful handling and use of electrical power tools.. Page 8
5.Use and handling of the cordless electrical power tool Page 9
6. Service.. 9
Safety instructions for all operations.. 9
Further safety instructions for all operations.. Page 10
Additional safety instructions for grinding and cutting-off operations . Page 11
Additional safety instructions for wire brushing operations.. Page 12
Safety notices for power drills.. Page 12
Safety instructions for LED lights.. Page 12
Device-specific safety instructions for small drill PMGS 12 C3 and mains
adapter-PMGS 12 C3-1. Page 12

Operation

Changing the battery. Page 13
Inserting or replacing a tool / collet. Page 13
Switching on and off/ Setting the speed range.. Page 14
Using the grip collar with LED light. Page 14
Advice on working with materials/Tools/Speed ranges Page 14
Tips and tricks.. Page 15

Maintenance and cleaning.. Page 15

Service

Warranty

Disposal

Translation of the original declaration of conformity / Manufacturer

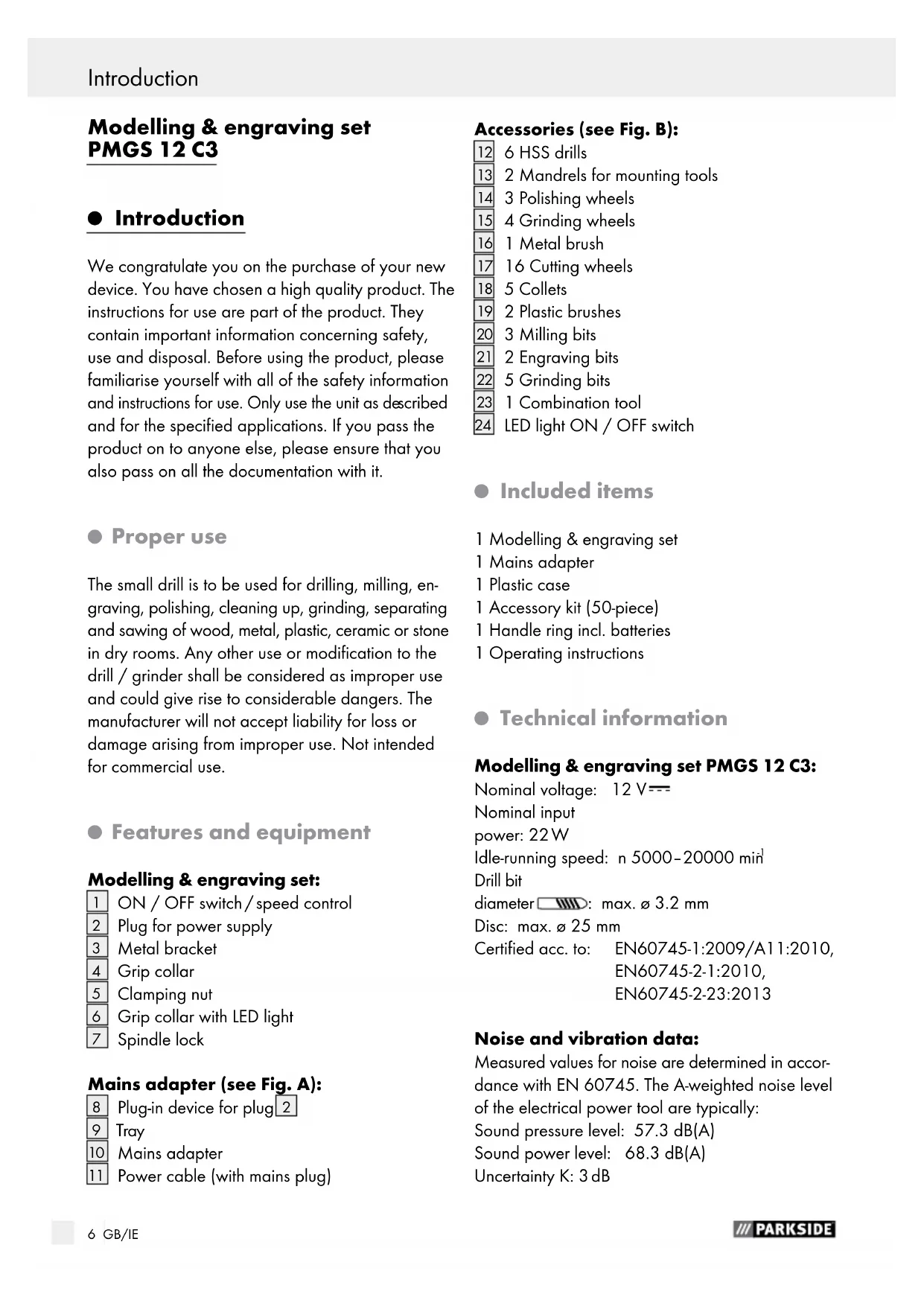

Modelling & engraving set PMGS 12 C3

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The small drill is to be used for drilling, milling, engraving, polishing, cleaning up, grinding, separating and sawing of wood, metal, plastic, ceramic or stone in dry rooms. Any other use or modification to the drill / grinder shall be considered as improper use and could give rise to considerable dangers. The manufacturer will not accept liability for loss or damage arising from improper use. Not intended for commercial use.

- Features and equipment

Modelling & engraving set:

1 ON/OFF switch/speed control
2 Plug for power supply
3 Metal bracket
4 Grip collar
5 Clamping nut
Grip collar with LED light
Spindle lock

Mains adapter (see Fig. A):

Plug-in device for plug 2
9 Tray
10 Mains adapter
11 Power cable (with mains plug)

Accessories (see Fig. B):

12 6HSSdrills
13 2 Mandrels for mounting tools
14 3 Polishing wheels
15 4 Grinding wheels
16 1 Metal brush
17 16 Cutting wheels
18 5 Collets
19 2 Plastic brushes
20 3 Milling bits
21 2 Engraving bits
22 5 Grinding bits
23 1 Combination tool
24 LED light ON / OFF switch

- Included items

1 Modelling & engraving set
1 Mains adapter
1 Plastic case
1 Accessory kit (50-piece)
1 Handle ring incl. batteries
1 Operating instructions

- Technical information

Modelling & engraving set PMGS 12 C3:

Nominal voltage: 12V =

Nominal input

power: 22W

Idle-running speed: n 5000-20000 min

Drill bit

diameter max. 3.2mm

Disc: max. 25mm

Certified acc. to: EN60745-1:2009/A11:2010,

EN60745-2-1:2010,

EN60745-2-23:2013

Noise and vibration data:

Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level: 57.3 dB(A)

Sound power level: 68.3 dB(A)

Uncertainty K: 3 dB

Evaluated acceleration, typical:

Hand/arm vibration: 0.817m / s^2

Uncertainty K = 1.5m / s^2

Note: The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.

The vibration level will change according to the application of the electrical tool and in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration.

AWARNING! Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

Mains adapter PMGS 12 C3-1: INPUT:

Rated voltage: 230V 50Hz

OUTPUT:

Nominal voltage: 12V

Nominal current: 1 A

Protection class: II /

Protection type: IP20

Certified acc. to: EN 61558-1:2006/A1:2009,

EN 61558-2-6:2009

- General safety advice for electrical power tools

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury.

Keep all the safety advice and instructions in a safe place for future reference!

The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Dep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the power tool (or on the power supply) must fit the mains socket. Never modify the plug in any way. Never use adapter plugs with earthed power tools. Unmodified plugs and the correct sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.

e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid accidental starting. Verify the power tool is switched off before connecting it to the mains and / or connecting the battery, picking it up, or carrying it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of mov

ing parts. Loose clothing, jewellery or long hair can become trapped in moving parts.

g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug out of the socket and / or remove the rechargeable battery before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent the device from unintentionally starting.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e] Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp

cutting edges are less likely to jam and are easier to control.

g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
CAUTION! DANGER OF EXPLOSION! The batteries must never be recharged!

6. Service

a) Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

- Safety instructions for all operations

Safety warnings common for grinding, sanding, wire brushing, polishing, carving or abrasive cutting-off operations:

a) This power tool is intended to function as a grinder, sander, wire brush, polishers, carving or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
c) The rated speed of the grinding accessories must be at least equal to the maximum speed marked on the power tool. Grinding accessories running faster than their rated speed can break and fly apart.
d) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately controlled.
e] The arbour size of wheels, sanding drums or any other accessory must properly fit the spindle or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
f) Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet

or chuck. If the mandrel is insufficiently held and / or the overhang of the wheel is too long, the mounted wheel may become loose and be ejected at high velocity.

g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, sanding drum for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
i) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a «live» wire may make exposed metal parts of the power tool «live» and could give the operator an electric shock.
k] Always hold the tool firmly in your hand(s) during the start-up. The reaction torque of the motor, as it accelerates to full speed, can cause the tool to twist.

I) clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use. Clamping a small workpiece allows you to use your hand(s) to control the tool. Round material such as dowel rods, pipes or tubing have a tendency to roll while being cut, and may cause the bit to bind or jump toward you.
m) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
n) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
o) After changing the bits or making any adjustments, make sure the collet nut, chuck or any other adjustment devices are securely tightened. Loose adjustment devices can unexpectedly shift, causing loss of control, loose rotating components will be violently thrown.
p) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
q) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
r) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
s) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
Further safety instructions for all operations

Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the

uncontrolled power tool to be forced in the direction opposite of the accessory's rotation.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and / or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. The operator can control kickback forces, if proper precautions are taken.
b) be special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
c) Do not attach a toothed saw blade. Such blades create frequent kickback and loss of control.
d) Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Feeding the tool in the wrong direction causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed.
e) When using rotary files, cut-off wheels, high-speed cutters or tungsten carbide cutters, always have the work securely clamped. These wheels will grab if they become slightly canted in the groove, and can kickback. When a cut-off wheel grabs, the wheel itself usually breaks. When a rotary file,

high-speed cutter or tungsten carbide cutter grabs, it may jump from the groove and you could lose control of the tool.

Additional safety instructions for grinding and cutting-off operations

Safety warnings specific for grinding and abrasive cutting-off operations:

a) Use only wheel types that are recommended for your power tool and only for recommended applications. For example: do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
b) For threaded abrasive cones and plugs use only undamaged wheel mandrels with an unrelieved shoulder flange that are of correct size and length. Proper mandrels will reduce the possibility of breakage.
c) Do not "jam" a cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Over-stressing the wheel increases the loading and susceptibility to twisting or snagging of the wheel in the cut and the possibility of kickback or wheel breakage.
d) Do not position your hand in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your hand, the possible kickback may propel the spinning wheel and the power tool directly at you.
e) When wheel is pinched, snagged or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging.

f) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
g) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
h) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Additional safety instructions for wire brushing operations

Safety warnings specific for wire brushing operations:

a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
b) Allow brushes to run at operating speed for at least one minute before using them. During this time no one is to stand in front or in line with the brush. Loose bristles or wires will be discharged during the run-in time.
c) Dec the discharge of the spinning wire brush away from you. Small particles and tiny wire fragments may be discharged at high velocity during the use of these brushes and may become imbedded in your skin.

• Safety notices for power drills

Losing control can result in injury.
Hold the tool by the insulated handles when performing work where there is a potential risk

of the tool striking electric lines or its own power cable. Contact with a live wire can also charge metal parts of the device, resulting in electric shock.

• Safety instructions for LED lights

ATTENTION! RISK OF EYE INJURY! Never aim the light beam directly at people or animals, and never look directly into the light beam of LED lights.
Dvice-specific safety instructions for small drill PMGS 12 C3 and mains adapter-PMGS 12 C3-1
When you use the drill / grinder wear the following protective equipment: safety glasses and protective gloves.
For indoor use only!

CAUTION! The tool continues to rotate after it has been switched off! Avoid contact with rapidly rotating drill / grinder components.

WARNING! Securely support the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand.
WARNING! Never support yourself by placing your hands near or in front of the device or the workpiece surface. A slip can result in injury.

Avoid contact with moving sanding or grinding tools.
DANGER OF FIRE FROM FLYING SPARKS! Abrading metal creates flying sparks. For this reason, always make sure that nobody is placed in any danger and that there are no inflammable materials near the working area.
WARNING! DUST HAZARD! Any harmful / noxious dusts generated from machining represent a risk to the health of the person operating the device and to anyone near the work area.

Wear a dust mask!

ADXolusRtES!

Ensure that there is adequate ventilation when machining surfaces containing plastic or covered with paint, varnish etc.

• Do not soak the materials or the surface you are about to work on with liquids containing solvents.
  Avoid abrading paints containing lead or other substances hazardous to health.
  Do not machine materials containing asbestos. Asbestos is a known carcinogen.
• Do not machine moist materials or damp surfaces.

NOTE! Do not allow the tool to come to a standstill by overloading it!

A v t h b e cce off and allow it to come to a standstill before you put it down.
Vice clean, dry and free of oil or grease.
This device is not intended to be used by persons (including children) with impaired physical, sensory or mental capacity or lacking the experience and / or knowledge. Always supervise children to ensure they do not play with the tool.
If the external connection wire/cable(s) for this transformer is/are damaged, it/they must be replaced by the manufacturer or its customer service, or a similarly qualified person to avoid hazards.

Safety isolating transformer fail-safe

Fusible cut-out

Operation

• Never use the device for a purpose for which it was not intended or with non-original parts/accessories. The use of tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.

- Changing the battery

ATTENTION!

• Do not leave drained battery in the device, as even leak-proof batteries can corrode, releasing chemicals which could be harmful to your health or ruin the device.
• Do not leave batteries lying about carelessly. Children or pets could swallow them. If accidentally swallowed seek immediate medical attention.
  Remove the batteries from the device when it will not be used for extended periods to prevent leaks.
• Touching leaked or damaged batteries may cause chemical burns. Therefore wear suitable protective gloves in this event.
  Ensure batteries are not short-circuited. Never throw batteries into fire.
  Do not recharge batteries. Explosion hazard!
  Ensure the LED light is switched off. Remove the three battery cover screws at the back of the grip collar with LED 6.
  Remove the drained battery and replace with a new battery (button cell LR41). Please note the correct polarity when inserting the batteries.
• Close the battery compartment by fastening the three screws.

- Inserting or replacing a tool/collet

Press the spindle lock 7 and keep it pressed.
Rotate the clamping nut 5 until the lock engages.
Loosen the clamping nut 5 with the combination key 23.
If a tool is already inserted, remove it.
First insert the tool you wish to use through the clamping nut 5 before you insert it into the collet 18 suitable for the tool shaft.
Press the spindle lock 7 and keep it pressed.
Insert the collet 18 into the threaded insert and tighten the clamping nut 5 on the thread using the combination key 23.

Using the Insertion tool with mandrel 13

NOTE: Use the screwdriver end of the combination key 23 to release or tighten the screw of the mandrels 13.

Insert the mandrel 13 into the electrical tool as described.
With the aid of the combination wrench 23 unscrew the screw from the mandrel 13.
Place the insertion tool you wish to have onto the screw between the two washers.
With the aid of the combination wrench 23, tighten the screw on the mandrel 13.

- Switching on and off / Setting the speed range

Switching on / Setting the speed range:

• Connect the plug 2 to the power supply unit 10 by inserting it into the plug-in device 8 provided for such purposes (see Fig. A).
  Connect the device to the power supply by inserting the mains plug into the socket.
  Slide the ON/OFF switch to a position between "5000" and "20000".

Switching off:

Using the grip collar with LED light

Slide the ON/OFF switch to the "OFF" position.
Hold the spindle lock and unscrew the clamping nut 5 from the thread, turning counterclockwise.
Release the spindle lock.
Then unscrew the grip colat from the thread, turning counter-clockwise.
Screw the grip collar with LED light onto the thread, turning clockwise.
Hold the spindle lock and screw the clamping nut 5 onto the thread, turning clockwise.
Release the spindle lock.

Set the ON/OFF switch of the LED to position "1" to switch it on.
Set the ON/OFF switch of the LED to position "0" to switch it off again.
Repeat the steps in reverse order to reattach the grip collar 4.

- Advice on working with materials/Tools/Speed ranges

Use the highest speed when working on steel or iron with the milling bits [20].
Use a short trial on a test piece to determine the optimum rotational speed range for working on zinc, zinc alloy, aluminium, copper and lead.
Use the low speed range for working on plastics and low-melting point materials.
Use high speeds on wood.
Use the medium speed range for cleaning, polishing and buffing.

The following information shall be considered as recommendatory only. Learn by practical experience which tools and settings are the best for the materials you work with.

Setting the appropriate speed:

Numeral on the rotational speed control1	Material to be worked on
5000	Plastics and low melting point materials
9000	Stone, Ceramics
13000	Softwood, metal
17000	Hardwood
20000	Steel

Examples of appropriate tool selection Function:

Function Accessory Application Projection			(min-max) mm
Drilling	HSS drill 12	Drilling wood 18-25 when us-ing the smallest drill the projection is 10 mm
Milling	Milling bits 20	Various tasks, e.g. hollowing out, gouging, shaping, grooving or slotting	18-25
Engraving Engraving	bits 21	Making marks, craft projects (see Fig. D)	18-25
Polishing, derusting	Metal brush 16	Derusting	9-15
CAUTION! Use only the lightest contact pressure of the tool on the workpiece.	Polishing wheel 14	Working on various metals and plastics, in particular noble metals like gold or silver (see Fig. E)	12-18
Cleaning	Plastic brush 19	E.g. cleaning complex plastic housings or the area around a door lock	9-15
Grinding Grinding	wheels 15	Grinding work on stone, wood; fine work on hard materials such as ceramic or alloyed steel (see Figs. F, G)	12-18
	Grinding bits 22		10
Cutting and sawing	Cutting discs 17	Cutting metal, plastic or wood	12-18

• Be sure not to exceed the maximum diameter of composite abrasive wheels and grinding cones and cylinders with 55mm thread insert, and the 80mm maximum diameter of sandpaper grinding accessories.

Note: The max. permissible mandrel length is 33mm

Store accessories inside the original box or otherwise protect the accessories from damage.
Store accessories dry and away from aggressive media.

- Tips and tricks

Applying excessive pressure can cause the installed tool to break and / or damage the work piece. Optimal results can be achieved by ap

plying the tool to the work piece at a steady speed range and little pressure.

Hold the device with both hands whilst cutting.
Please note the data and information in the chart to prevent the spindle end touching the perforated plate of the grinding tool.

- Maintenance and cleaning

The device is maintenance-free.

Clean all the dirt off the drill / grinder. Use a dry cloth for cleaning.

Service

AteMnHice

repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

A

needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain

Tel.: [phone] (0.10 GBP/Min.)

e-mail: [e-mail]

IAN 113362

IE Service Ireland

Tel: [phone]

(0.08 EUR/Min. (peak)

0.06 EUR / Min. (off peak))

e-mail: [e-mail]

IAN 113362

- Disposal

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electric tools in the household waste!

In accordance with European Directive 2012/19/EU about waste electrical and electronic equipment and its transposition into national legislation, worn out electric tools must be collected separately and taken for environmentally compatible recycling.

Please contact your municipal or city council to ask about how to dispose of old electrical tools.

Batteries may not be disposed of in household waste!

Every consumer is legally obligated to return batteries to a municipal collection site or a retail store. This duty is to ensure batteries are disposed of in an environmentally friendly manner. Only return drained batteries.

Translation of the original declaration of conformity / Manufacturer (C)

We reserve the right to make technical modifications in the course of further development.

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURG-STRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

EU Low Voltage Directive (2006/95/EC)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011/65/EU)

Applicable harmonized standards

EN 60745-1:2009/A11:2010

EN 60745-2-1:2010

EN 60745-2-23:2013

EN 55014-1:2006/A2:2011

EN 55014-2:1997/A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 61558-1:2006/A1:2009

EN 61558-2-6:2009

Type/Device description:

Modelling & engraving set PMGS 12 C3

Date of manufacture (DOM): 07-2015
Serial number: IAN 113362

Bochum, 31.07.2015

Semi Uguzlu

• Quality Manager -

Yleistä

Directive CE Basse tension

(2006/95/EC)

Date of manufacture (DOM): 07-2015

• Responsible qualite -

WAARSCHUWING! GEVAAR

WAARSCHUWING! GIFTIGE

KOMPERNASS HANDELS GMBH

BURGSTRASSE21

44867BOCHUM

GERMANY

Last Information Update · Tietojen tila

Informationsstatus · Version des informations

Stand van de informatie · Stand der Informationen:

07/2015 · Ident.No.:PMGS12C3072015-FL/SE/BE
