| Product Type | Cordless Nibbler |
| Brand | Parkside |
| Model | PMKA 20 Li A1 |
| Rated Voltage | 20 V (DC) |
| No-Load Speed | 1400 min⁻¹ |
| Max. Cutting Capacity (Aluminum) | 2.5 mm (200 N/mm²) |
| Max. Cutting Capacity (Steel) | 1.6 mm (400 N/mm²), 1.2 mm (600 N/mm²), 0.8 mm (800 N/mm²) |
| Min. Cutting Radius | Inner: 40 mm, Outer: 50 mm |
| Kerf Width | 5 mm |
| Battery Type | Lithium-Ion (model PAP 20 A3, not included) |
| Compatible Charger | PLG 20 A3 (not included) |
| Sound Pressure Level | 71.2 dB(A) (uncertainty 3 dB) |
| Sound Power Level | 82.2 dB(A) (uncertainty 3 dB) |
| Vibrations (cutting sheet metal) | 3.8 m/s² (uncertainty 1.5 m/s²) |
| Warranty | 3 years |
| Scope of Delivery | 1 nibbler, 2 grooved pins, 2 Allen keys, 1 instruction manual |
| Intended Use | Cutting steel and aluminum sheets, private use in dry rooms |
| Maintenance and Cleaning | Clean with a dry cloth, do not use solvents |
| Safety | On/off switch, protection against unintentional start-ups |
Frequently Asked Questions - PMKA 20Li A1 PARKSIDE
User questions about PMKA 20Li A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power Tools in PDF format for free! Find your manual PMKA 20Li A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PMKA 20Li A1 by PARKSIDE.
USER MANUAL PMKA 20Li A1 PARKSIDE
GB IE
Translation of the original instructions
FR BE
GRIGNOTEUSE SANS FIL 20 V
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE
GB / IE Translation of the original instructions Page 1
All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/PAPS 208 A1 battery pack.
Technical specifications 2
General power tool safety warnings....3
-
Work area safety 3
-
Electrical safety ....
-
Personal safety 4
-
Power tool use and care 4
-
Use and handling of the cordless electrical power tool....5
-
Service 6
Safety instructions for nibblers 6
Original accessories/attachments 6
Safety guidelines for battery chargers 7
Before use....7
Charging the battery pack (see fig. D) 7
Inserting/removing the battery pack 8
Checking the battery charge level 8
Changing the die holder position (see fig. A) 8
Permissible material thickness 8
Fitting and removing the grooved pin and the die holder (see figs. B + C) 8
Using the appliance 9
Switching on/off 9
Lubrication 9
Cutting process 9
Cut-outs....9
Maintenance and cleaning 9
Kompernass Handels GmbH warranty 9
Service....11
Importer 11
Disposal 11
Original declaration of conformity 12

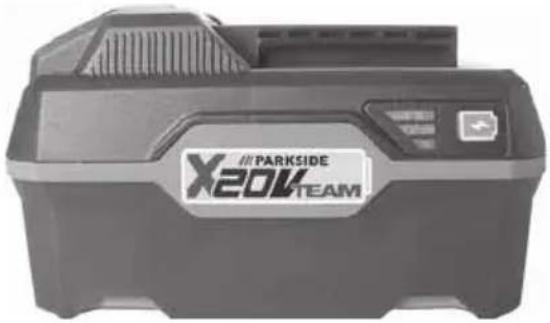

Ordering replacement batteries 13
Telephone ordering 13

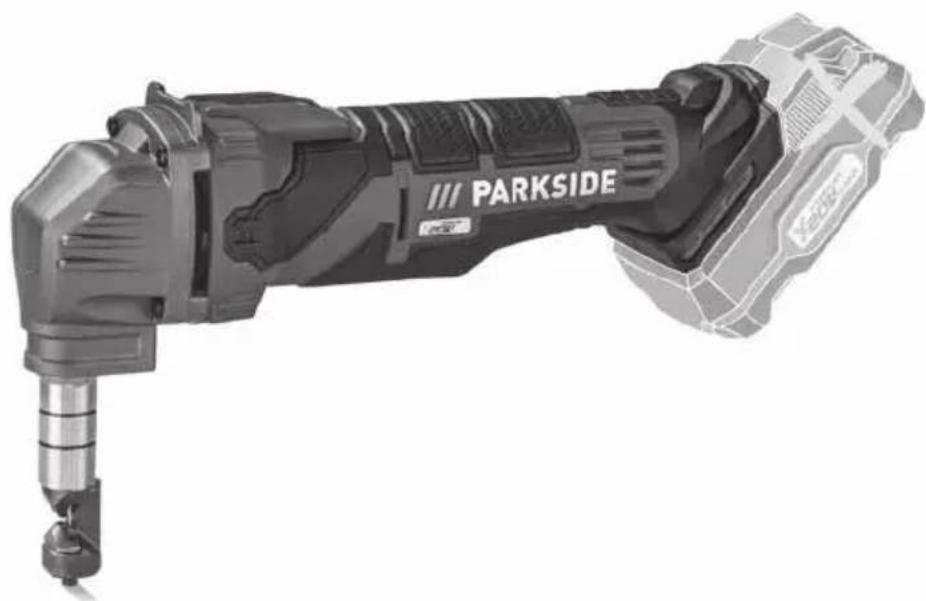

CORDLESS NIBBLER 20V PMKA 20-Li A1
Introduction
Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.
Intended use
This appliance is suitable for cutting steel sheet and aluminium sheet. This appliance is exclusively intended for private use in dry indoor spaces. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.
Features
① ON/OFF switch
② Release button for the battery pack
3 Battery pack*
4 Battery charge level button
⑤ Battery display LED
6 Hex screw
⑦ Measuring groove 1.6 mm
8 Measuring groove 1.2 mm
9 Die holder
10 Die
11 Hex key
12 Hex screw
13 Grooved pin
14 Hex key
15 Tool holder
16 High-speed charger (see fig. D)*
⑰ Red charge control LED (see fig. D)
18 Green charge control LED (see fig. D)
Package contents
1 cordless nibbler 20V
2 grooved pins (1 pre-fitted)
2 hex keys
1 set of operating instructions
Technical specifications
Rated voltage 20 V (DC) ---
Idling stroke rate 1400 strokes/min
Cutting performance/material thickness max. in
Aluminiu
2.5 mm (200 N/mm ^4 ) Steel
1.6 mm (400 N/mm²),
1.2 mm (600 N/mm ^4 ),
0.8 mm (800 N/mm²)
Min. cutting radius inside = 40 mm outside = 50 mm
Cutting track width 5 mm
Battery PAP 20 A3\*
Type
LITHIUM
Rated voltage 20 V = (DC)
Capacity 4
Cells 10
High-speed charger PLG 20 A3\* INPUT
Rated voltage 230-240 V \~ 50 Hz (AC)
Rated power
consumption 120 W
Fuse (internal) 3.15 A T3.15A
OUTPUT
Rated voltage 21.5 V (DC) ---
Rated current 4.5 A
Charging time approx. 60 min
Protection class II / ☐ (double insulation)
* BATTERY AND CHARGER ARE NOT SUPPLIED
Noise emission value
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the tool is typically
Sound pressure level L _pA = 71.2 dB (A)
Uncertainty _pA = 3 dB
Sound power level L _WA = 82.2 dB (A)
Uncertainty K_WA = 3 dB
Wear ear muffs!
Total vibration value
(vector total of three directions) determined in accordance with EN 62841:
Cutting of sheet metal a_h = 3.8 m/s^2
Uncertainty K = 1.5 m/s ^4
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
▶ Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
WARNING!
It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General power tool safety warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and accessory tools, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Use and handling of the cordless electrical power tool
a) Charge a rechargeable battery using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is a risk of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
e) Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ C ( 265^ F) can cause an explosion.
g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.
CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.
Protect the rechargeable battery from heat (for example, from continuous exposure to sunlight), fire, water and moisture. There is a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never try to repair damaged batteries. Batteries should only be maintained by the manufacturer or an approved customer service centre.
Safety instructions for nibblers
■ Hold the tool with a firm grip.
■ Secure the workpiece properly.
- Keep hands away from rotating parts.
■ The edges and chips from the workpiece are sharp. Wear gloves. To prevent injuries, it is also advisable to wear shoes with thick soles.
■ Do not place the tool onto the chips from the workpiece. Otherwise the tool may be damaged and malfunction.
■ Do not leave the tool running unattended. Use the tool only when held in your hands.
■ Always ensure that you have a firm footing. When you are working in an elevated position, ensure that no-one is standing beneath you.
■ Avoid touching the grooved pin, the die or the workpiece immediately after machining, because the parts will still be very hot and can cause skin burns.
■ Avoid cutting electrical cables. This can lead to serious accidents due to electric shock.
Original accessories/attachments
■ Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.
WARNING!
■ Do not use any accessories that are not recommended by PARKSIDE. This can lead to electric shock and fire.
Safety guidelines for battery chargers
■This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.
The charger is suitable for indoor use only.
WARNING!
■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.
CAUTION!
This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3/PAP 20 B1/PAP 20 B3/PAPS 204 A1/PAPS 208 A1.
◆ A current list of battery compatibility can be found at www.Lidl.de/Akku.
Before use
Charging the battery pack (see fig. D)
CAUTION!
▶ Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.
NOTE
The recommended ambient temperature range for using tools and batteries is between -5°C and 50°C.
▶ Never charge the battery pack at an ambient temperature of below 10^ C or above 40^ C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0^ C and 50^ C.
Connect the battery pack 3 to the high-speed charger (see fig. D).
◆ Insert the mains plug into the mains socket. The control LED ⑰ lights up red.
The green control LED indicates that the charging process is complete and the battery pack ready for use.
CAUTION!
If the red control LED ^7 flashes, this means that the battery pack has overheated and cannot be charged.
If the red and green control LED ^37 16 both flash, this means that the battery pack 3 is defective.
◆ Push the battery pack③ into the appliance.
Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.
Inserting/removing the battery pack
Inserting the battery pack
◆ Push the battery pack③ into the handle until it clicks into place.
Removing the battery pack
◆ Press the release button ② and remove the battery pack ③.
Checking the battery charge level
- Press the battery charge level button to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED 5 is follows: RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge - charge the battery
WARNING! RISK OF INJURY!
▶ Before doing any work on the device, switch it off and remove the battery.
Changing the die holder position (see fig. A)
The die position can be adjusted by 360^ . Four working positions offset by 90^ are specified. The working positions can be set as follows:
- Undo the hex screw using the hex key supplied.
♦ Turn the die holde ⑨ into the desired working position so that the respective hole in the die holder ⑨aces towards the hex screw . ⑥
◆ Retighten the hex screw using the supplied hex key 11
♦ Rotate the die holde 9 slightly to check whether it is fixed in the correct position.
Permissible material thickness
The maximum cutting capacity depends on the material quality and strength. The measuring grooves ⑦ and ⑧ on the die holder ⑨ serve as a thickness gauge for the permissible cutting thickness. Never cut material thicknesses greater than those specified in the technical data.
Fitting and removing the grooved pin and the die holder (see figs. B + C)
To remove the grooved pin ^13 and the die holder 9undo the hex screw using the supplied hex key 11
◆ Pull the die holde from the appliance.
- Undo the hex screw using the supplied hex key 160 so you can remove the grooved pin 13 from the tool holder 15
♦ Insert the new supplied grooved pin ^13 into the tool holder ^15 so that the hole in the grooved pin ^18 facing towards the hex screw . ^12
♦ Tighten the hex screw ^12 , to fasten the grooved pin ⑬ place.
◆ Guide and replace the die holder 9 above the tool holder 15 in the appliance.
Turn the die holder into the desired working position so that the respective hole in the die holder places towards the hex screw.
◆ Retighten the hex screw using the supplied hex key ⑪
♦ Rotate the die holder 9 slightly to check whether it is fixed in the correct position.
Using the appliance
Switching on/off
Switching on the appliance
◆ Move the ON/OFF switch① to position "0".
Switching off the appliance
◆ Move the ON/OFF switch① to position "I".
Lubrication
Apply standard machine oil to the cutting line to extend the service life of the grooved pin 13 and the die 10 This is particularly important when cutting aluminium.
Cutting process
Hold the appliance at a right angle (90°) to the workpiece during the machining process.
◆ Move the appliance in the cutting direction with gentle pressure.
Cut-outs
For internal cut-outs, a hole larger than 22 mm is needed to insert the die holder ⑨
Maintenance and cleaning
WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance.
■ The appliance must always be kept clean, dry and free from oil or grease.
■ Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (IAN) 359201_2110 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 359201_2110.
WARNING!
■ Have your appliances repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
■ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.
Service
GB Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk
IE ServiceIreland Tel.: 1800 101010 E-Mail: kompernass@lidl.ie IAN 359201_2110
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
Do not dispose of power tools in the normal domestic waste!
According to European Directive 2012/19/EU, used power tools must be collected separately and recycled in an environmentally sound manner.
Do not dispose of batteries in your normal household waste!
Remove the batteries from the appli- ance before disposal. Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or the appliance to a nearby collection facility.
Please contact your local authority or town council for information about disposal options for used power tools/battery packs.
Dispose of the packaging in an environmentally friendly manner. Observe the labels on the different packaging materials and separate them as needed. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, is subject to extended producer responsibility and is collected separately.
Original declaration of conformity
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
* The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Applied harmonised standards
EN 62841-1:2015
EN 62841-2-8:2016
EN 55014-1:2017/A11:2020
EN IEC 55014-1:2021
EN 55014-2:1997/A2:2008
EN IEC 55014-2:2021
EN IEC 63000:2018
Type designation of the machine: Cordless Nibbler 20V PMKA 20-Li A1
Year of manufacture: 02-2022
Serial number: IAN 359201_2110
Bochum, 12/01/2022
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Ordering replacement batteries
If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.
▶ Online ordering of replacement parts is not possible in all countries. If this is the case, please contact the Service Hotline.
Telephone ordering
GB Service Great Britain Tel.: 0800 404 7657
IE ServiceIrelandTel.: 1800 101010
To ensure fast processing of your order, have the article number of your appliance (IAN 359201_2110) to hand in case of questions. The article number can be found on the type plate or the title page of these instructions.
Inhaltsverzeichnis
Einleitung 16
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Entsorgung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Recyclage
Directive relative aux machines
(2006/42/CE)
⚠ WAARSCHUWING! LETSELGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Afvoeren
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
Likvidace
- manažer kvality -
Min. promień cięcia wewn. = 40 mm zewn. = 50 mm
Akumulator PAP 20 A3\*
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Utylizacja
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Likvidácia
- Manažér kvality -
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Desecho
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
Bortskaff else
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANIA
www.kompernass.com
Smaltimento
Akumulator PAP 20 A3\*
Tip LITIJ-IONSKI Nazivna napetost 20 V === (enosmerni tok) Kapaciteta 4 Ah Celic 10
Negotovost _pA = 3 dB
Raven zvočne moči L _WA = 82,2 dB (A)
Negotovost K_WA = 3 dB
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMČIJA
www.kompernass.com
Pooblaščeni serviser
SI
ServisSlovenija
Tel.: 080 080 917
E-Mail: kompernass@lidl.si
IAN 359201_2110
Garancijski list
- vodja kakovosti -
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji Stav informacií · Estado de las informaciones · Tilstand af information · Versione delle informazioni · Információk állása · Stanje informacij: 01 / 2022 · Ident.-No.: PMKA20-LiA1-012022-1
