| Product type | Parquet tapping block |
| Brand | Parkside |
| Model | PHZ 3 A1 |
| Intended use | Joining laminates and parquet planks without visible joints |
| Compatible material thickness | 7 to 13 mm |
| Delivery contents | Tapping block, instruction manual |
| Main material | Metal and plastic |
| Care and cleaning | Clean with a dry cloth; do not use harsh cleaning products |
| Safety instructions | Wear protective equipment (hearing, respiratory, goggles, gloves); risk of crushing; do not use by children without supervision |
| Recycling | Recycle via an approved company or municipal service |
| After-sales service | France: 0800 919270, Belgium: 0800 12089 |
| Warranty | Void in case of non-compliant or commercial use |
Frequently Asked Questions - PHZ 3 A1 PARKSIDE
User questions about PHZ 3 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power Tools in PDF format for free! Find your manual PHZ 3 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PHZ 3 A1 by PARKSIDE.
USER MANUAL PHZ 3 A1 PARKSIDE
GB IE
HAMMER PULL BAR
Operating instructions
FR BE
TIRE-LAME MARTEAU
Mode d'emploi
CZ
UTAHOVÁK S BERANIDLEM
Návod k obsluze
SK
KLADIVOVÉ ŢAHADLO
Návod na obsluhu
DK
HAMMERTRÄKNINGSJERN
GB/IE Operating instructions Page 1
Information about these operating instructions ..... 2
Proper use 2
Safety 3
Package contents 4
Use 4
Cleaning and storage ....6
Disposal 6
Service 7
Importer 8

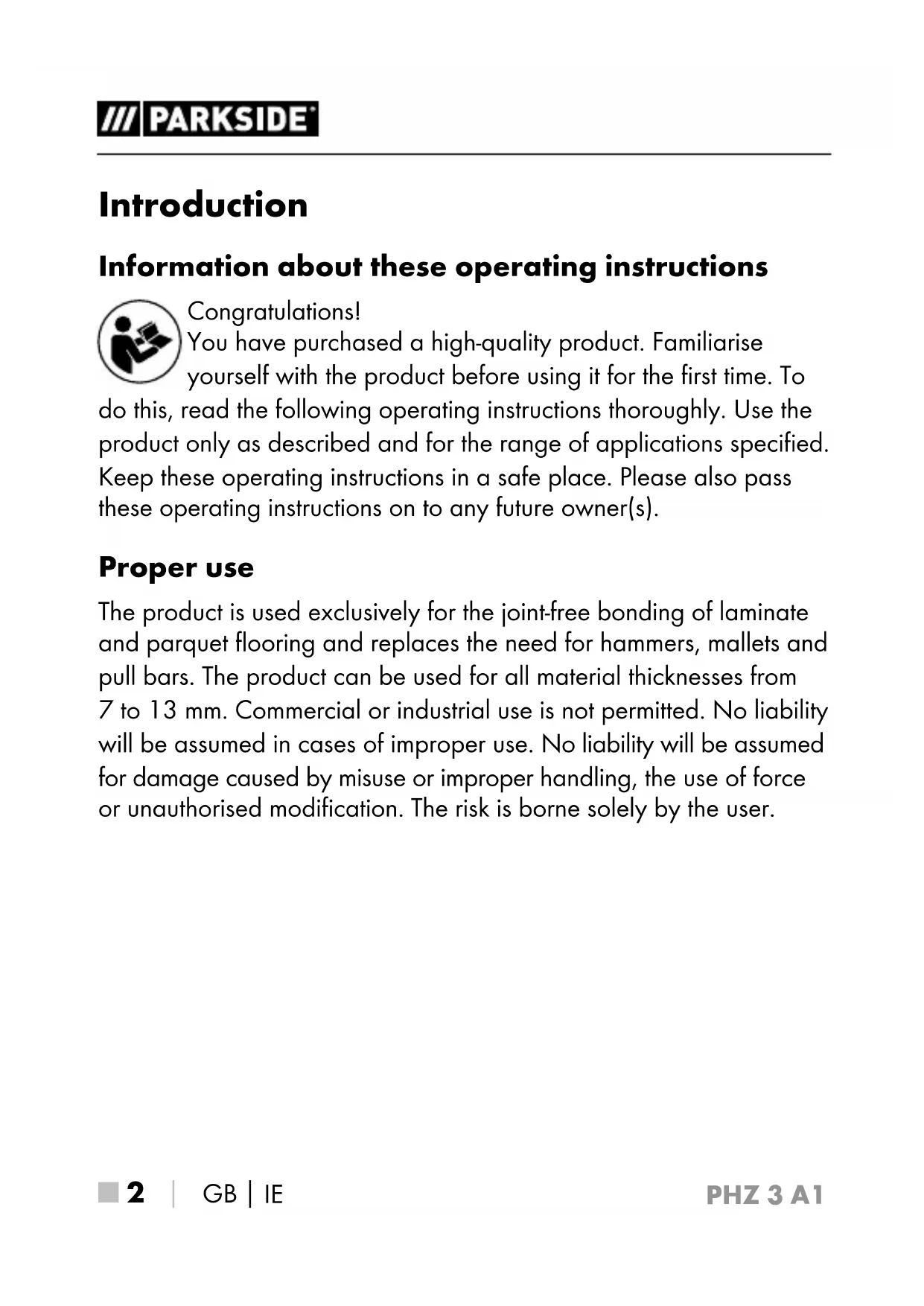

Introduction
Information about these operating instructions
Congratulations!
You have purchased a high-quality product. Familiarise yourself with the product before using it for the first time. To do this, read the following operating instructions thoroughly. Use the product only as described and for the range of applications specified. Keep these operating instructions in a safe place. Please also pass these operating instructions on to any future owner(s).
Proper use
The product is used exclusively for the joint-free bonding of laminate and parquet flooring and replaces the need for hammers, mallets and pull bars. The product can be used for all material thicknesses from 7 to 13 mm. Commercial or industrial use is not permitted. No liability will be assumed in cases of improper use. No liability will be assumed for damage caused by misuse or improper handling, the use of force or unauthorised modification. The risk is borne solely by the user.
Safety
- Check the product before every use to make sure it is in perfect condition. Do not use the product if it is damaged in any way.
■ Do not allow children to use the product unless they are being supervised. Children are not always able to correctly recognise potential dangers. This product is not a toy.
This product is not intended for use by individuals (including children) with reduced physical, sensory, or mental capabilities. It may also not be used by individuals who lack experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product from such a person.
Use protective equipment. For your own safety, always wear ear muffs, a breathing goggles and safety gloves.
■ Warning! Risk of crushing! A jerking movement is necessary when using the product. Make sure that you do not injure yourself.
■ Rusty discolorations or other signs of chemical or mechanical change to the parts can cause premature failure of the parts.
Package contents
- Hammer Pull Bar
• These operating instructions
NOTE
▶ Check the package for completeness and signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the customer service hotline (see section Service).
Use
NOTE
The product can be used for all material thicknesses from 7 to 13 ~mm .
With the help of the product, you can join laminate and parquet boards without joints and without the need for hammers, tapping wood and pull bars. The integrated pull bar transfers the force to the edge of the board when pulling the carriage towards the rear stop. The product is particularly suitable for the last row of boards by the wall.

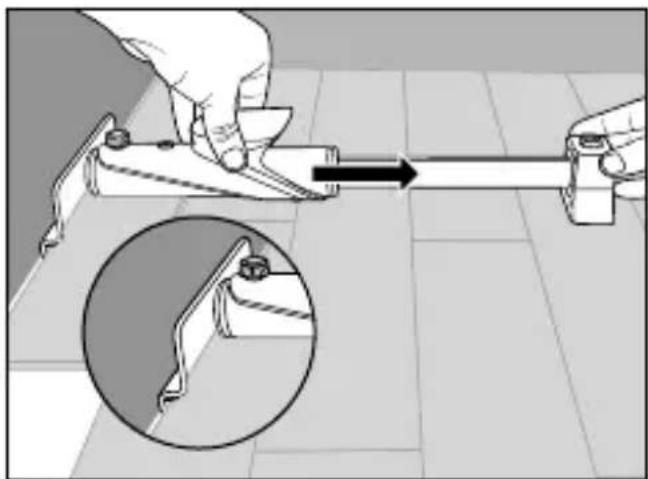

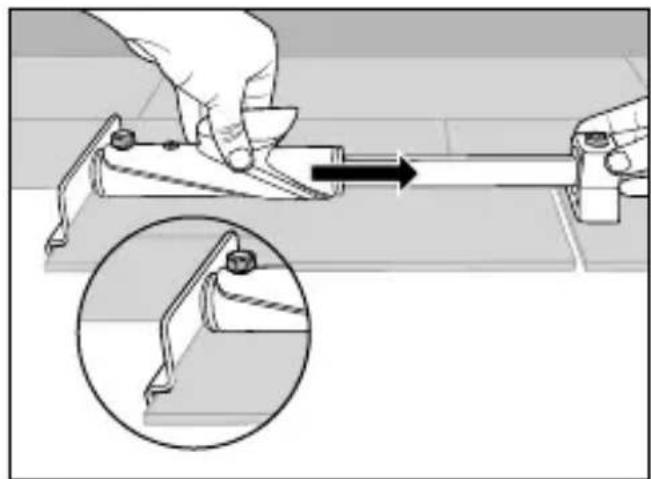

◆ Place the pull bar on a board.
- Loosen the black locking screw on the carriage so you can move the carriage.
Hold the back stop with one hand to stabilise the product.
▶ Be careful not to hurt your fingers when moving the carriage forwards or backwards.
- Hold the red handle firmly with your other hand and push the carriage towards the pull bar as a starting position.
◆ Pull the red handle towards the rear stop. The board is joined seamlessly.
If the board is not joined seamlessly, repeat the process with more force.
After use, tighten the black locking screw on the carriage to prevent unintentional movement of the carriage.
▶ Do not use aggressive or abrasive cleaning agents, as these can damage the surfaces of the product.
◆ Clean the product using a dry cloth.
◆ Store the product in a clean, dry location away from direct sunlight.
Disposal
Dispose of the product via an approved waste disposal company or your municipal waste disposal facility.
Comply with all applicable regulations. Please contact your waste disposal facility if you are in any doubt.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.
Service
Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
Servicelreland
Tel.: 1800 101010
E-Mail: kompernass@lidl.ie
IAN 380558_2110
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
