Product type	Electric lawn mower
Brand	AL-KO
Model	Classic 3.25 E
Power source	Mains electric 230 V / 50 Hz
Motor power	1300 W
Cutting width	32 cm
Grass catcher capacity	25 L
Cutting height adjustment	Central, 3-5 cm
Working modes	Mowing with catcher, mulching possible (depending on version)
Safety device	Safety handle (motor + blade stop), protection flap
Cable fixing clip	Integrated to prevent disconnection
Weight (approx.)	12 kg
Dimensions (L×W×H) (approx.)	80 × 40 × 30 cm (folded handle)
Appliance cable length	Not specified (use suitable extension cord)
Recommended extension cord cross-section	≥ 1.5 mm²
Blade type	Flat steel (sharpenable or replaceable)
Blade screw tightening torque	15 Nm +5
Regular maintenance	Cleaning housing and catcher, blade check, no water on motor
Repairs	AL-KO after-sales service or authorized workshop
Storage	In a dry place, out of reach of children, plug disconnected

Frequently Asked Questions - Classic 3.25 E AL-KO

How to start the mower?

Press the Start button on the switch box, then pull the safety handle against the handlebar and hold it. Release the Start button. The mower starts.

How to stop the mower?

Simply release the safety handle. The motor and blade stop automatically. Wait for the blade to come to a complete stop before any intervention.

My grass catcher is not filling properly. What to do?

Check that the grass is dry, that the catcher grid is not obstructed, and that the discharge chute is clean. Adjust the cutting height and sharpen the blade if necessary.

Can I mow in rainy weather?

No, it is strictly forbidden to use the mower on wet grass or in the rain. This presents a risk of electric shock and damages the machine.

How to clean the mower?

Use a broom or dry cloth. Do not spray water on the device: water could damage the switch box and the electric motor.

When should I sharpen or replace the blade?

As soon as the cutting quality deteriorates or the blade is dull, damaged, or unbalanced. Have it sharpened or replaced by an authorized AL-KO service.

The mower vibrates abnormally. What to do?

Stop working immediately. Check that the blade is not damaged or unbalanced. Vibrations can also come from a blocked obstacle. Disconnect the plug before any inspection.

Which extension cord should I use?

Use an outdoor extension cord with a cross-section of at least 1.5 mm². Attach it to the cable fixing clip to prevent it from disconnecting.

Can I mow on slopes?

Yes, but only parallel to the slope (sideways). Do not exceed an incline of 20° and never mow directly up or down.

How to store the mower after use?

Disconnect the plug, fold the handle to reduce space, and store it in a dry place, out of reach of children and unauthorized persons.

USER MANUAL Classic 3.25 E AL-KO

Line drawing of two lawn mower machines with adjustable arms and wheels (no text or symbols)

D CZ
GB SK
NL H
F SLO
E HR
P RO
I FIN
DK EST
S LV
N LT
RUS UA
PL

INFORMATION | MANUALS | SERVICE

ELEKTRORASENMÄHER

Betriebsanleitung

440286_b I 09/2014

GB: Operating Instructions .....10

Line drawing of a cable harness with a plug and rope (no text or symbols)

Line drawing of a mechanical device with a cable and connector (no text or symbols)

Two-step diagram showing a rope knot being twisted, with arrows indicating direction (no text or symbols)

Diagram of a bicycle climbing gear with a black arrow indicating motion direction (no text or symbols)

Diagram of a cable clamp or connector with a black arrow pointing to a terminal component (no text or symbols present)

Diagram of a mechanical device with a curved handle and rope, showing a directional arrow (no text or symbols)

Diagram of a cable or cable connector with a black arrow indicating upward motion (no text or symbols present)

Two technical diagrams showing a device with a magnified inset, no text or symbols present

Line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Zu diesem Handbuch

Diagram of two lawn lawn mower machines with numbered parts labeled for identification.

Symbole am Gerät

• Read through these operating instructions before starting up the machine. This is a prerequisite for safe and trouble-free working.
  ■ You should save these instructions, and also pass them on to any subsequent users.
• Observe the safety and warning signs on the machine.

Pictogram description

Caution!

Strict following of these warning alerts can prevent injury to persons and/or materials.

Special information for better understanding and handling.

Contents

About this handbook....10

Product description....10

Safety instructions....12

Assembly....13

Work instructions....13

Storage....14

Repairs 14

Maintenance and care....14

Troubleshooting....15

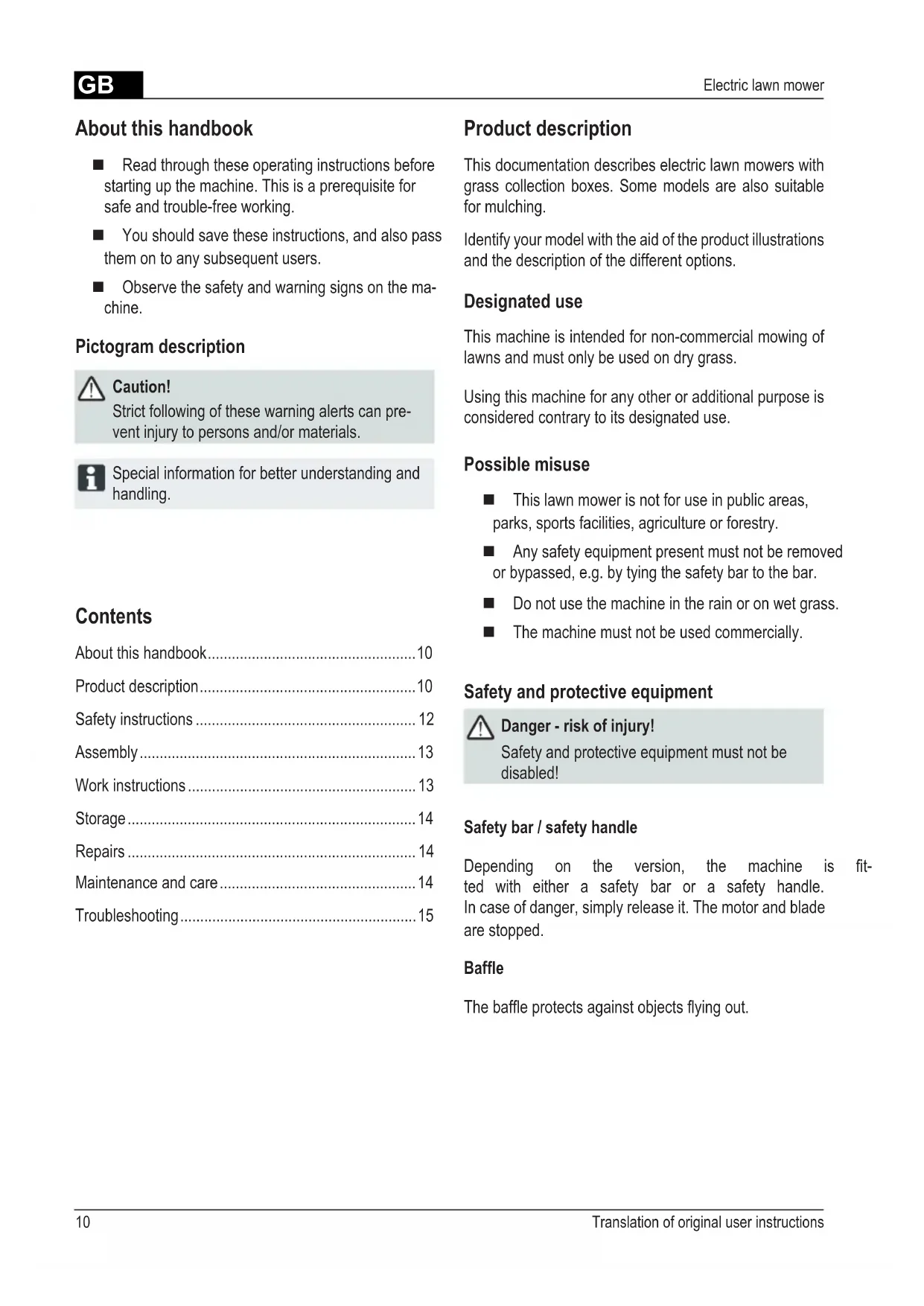

Product description

This documentation describes electric lawn mowers with grass collection boxes. Some models are also suitable for mulching.

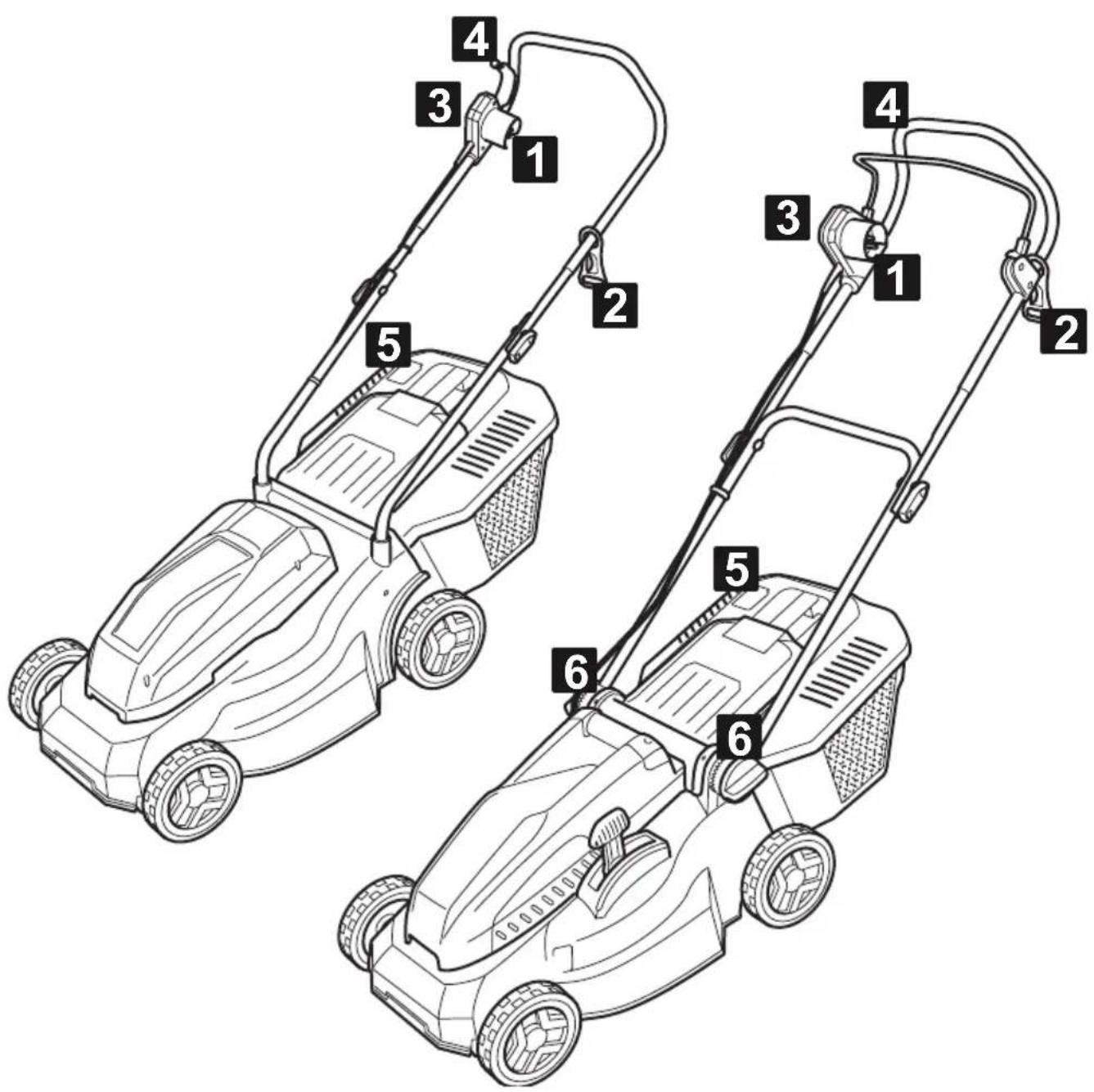

Identify your model with the aid of the product illustrations and the description of the different options.

Designated use

This machine is intended for non-commercial mowing of lawns and must only be used on dry grass.

Using this machine for any other or additional purpose is considered contrary to its designated use.

Possible misuse

This lawn mower is not for use in public areas, parks, sports facilities, agriculture or forestry.
■ Any safety equipment present must not be removed or bypassed, e.g. by tying the safety bar to the bar.
■ Do not use the machine in the rain or on wet grass.
■ The machine must not be used commercially.

Safety and protective equipment

Danger - risk of injury!

Safety and protective equipment must not be disabled!

Safety bar / safety handle

Depending on the version, the machine is fitted with either a safety bar or a safety handle. In case of danger, simply release it. The motor and blade are stopped.

Baffle

The baffle protects against objects flying out.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Symbols on the machine

	Caution! Handle carefully.		Always disconnect the machine from the mains before commencing maintenance work or if the cable is damaged.
	Read instruction manual before starting up the machine!		Risk of electrical shock.
	Danger! Keep hands and feet away from cutting parts!		Keep away from the danger area.
	Keep the connecting cable away from blades. Keep		parties away from the danger area!

Safety instructions

The machine operator or user is responsible for accidents involving other persons and their property.

Caution!

Use the machine and extension lead only if they are in faultless technical condition!

Safety and protective equipment must not be disabled!

Danger - risk of injury!

Safety and protective equipment must not be disabled!

Electrical safety

Danger from electric current!

Danger from contact with live parts!

Immediately disconnect the plug from the mains if the extension lead is damaged or severed!

■ The domestic mains voltage must match the mains voltage specifications in the technical data; do not use any other supply voltage.
■ Use only extension leads designed for use outdoors - minimum cross-section 1.5 mm ^4 .
■ Damaged or brittle extension leads must not be used.
■ Always check the condition of your extension lead before operating the machine.
■ Always use the special cable strain relief for the extension lead.
■ Always keep cables out of the cutting area and routed away from the machine.
■ Never run over the extension lead with the lawn mower.
■ Protect the machine against moisture.

Safety instructions for operation

■ Children and other persons who are unfamiliar with these operating instructions must not operate the machine.
- Observe local regulations regarding minimum age requirements for operating the machine.
■ The machine must not be operated if the operator is under the influence of alcohol, drugs or medication.

■ Always check the machine for damage before using it and have any damaged parts replaced.
- Carefully check the entire area to be mown and remove all foreign bodies.
■ Wear appropriate working clothes:

Long trousers
Sturdy, non-slip shoes

■ Always ensure stability when working.
- Keep third parties away from the danger area.
- Keep body, limbs and clothing away from cutting parts.
■ Only work if there is sufficient daylight or artificial lighting.
■ Always unplug from the mains and wait until the machine has stopped:

in the event of faults or unusual vibration of the machine.
■ before releasing blockages.
■ before unclogging the machine.
■ after contact with foreign bodies.

After contact with foreign bodies, check the lawn mower for damage. Carry out the necessary repairs before restarting and working with the lawn mower.

■ The operator must take particular care when turning the lawn mower or pulling it towards himself.
■ Do not mow over obstacles (e.g. twigs, tree roots).
■ Only remove cut grass when the motor is stopped.
■ Switch of the motor if it is necessary to cross an area other than the area to be cut.
■ Never lift or carry the machine with the motor running.
■ Do not leave the operational machine unattended.

Assembly

Follow the enclosed assembly instructions.

Caution!

The machine must not be operated before assembly work has been completed!

Attaching the grass collection box

Danger - risk of injury!

Only remove or attach the grass collection box with the motor switched off and the blade stationary.

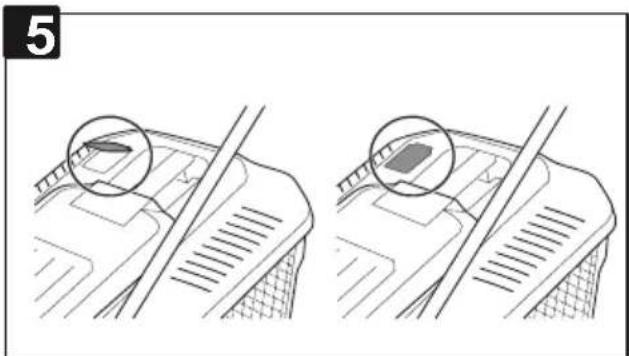

1. Lift the baffle and insert the grass collection box into the holder.

Emptying the grass collection box 5

1. Lift the baffle.
2. Lift the grass collection box out of the holder and backwards to remove it.
3. Empty the grass collection box.
4. Lift the baffle and insert the grass collection box back into the holder.

Plug into mains

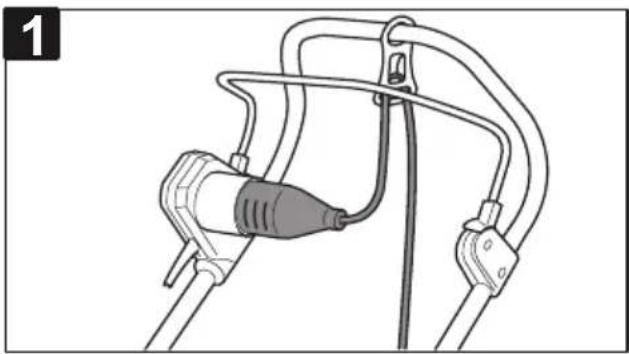

1. Plug mains connector of the machine connecting cable into the switch/connector combination 1.

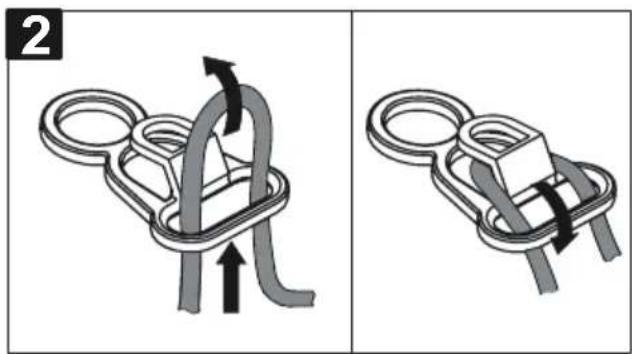

2. Secure machine connecting cable with cable strain relief 2.

The loop of the mains cable must be long enough for the cable strain relief to slide from one side to the other.

Switching on the motor

Only start the lawn mower on even ground and not in long grass. The ground must be free of foreign bodies, such as stones. Do not lift the lawn mower to start it.

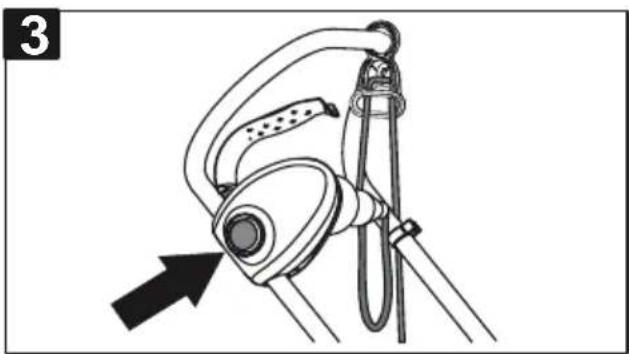

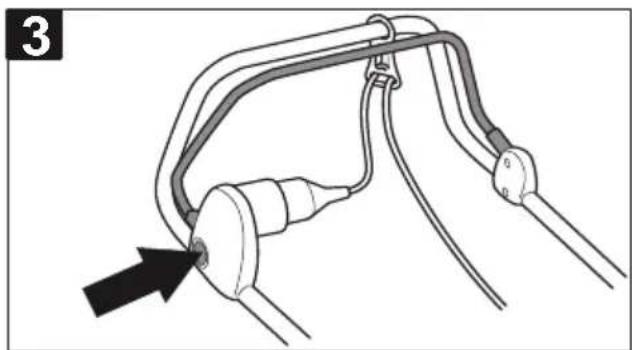

1. Press the start button on the switch/connector combination and hold it down 3.

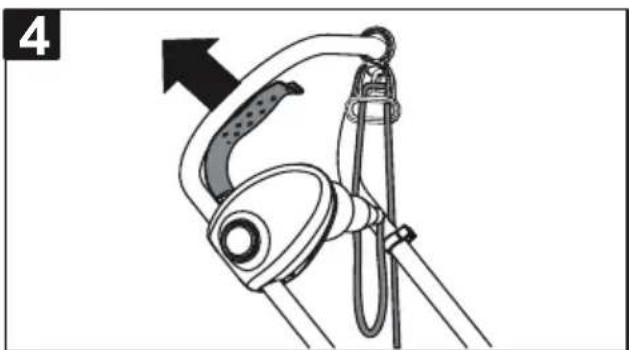

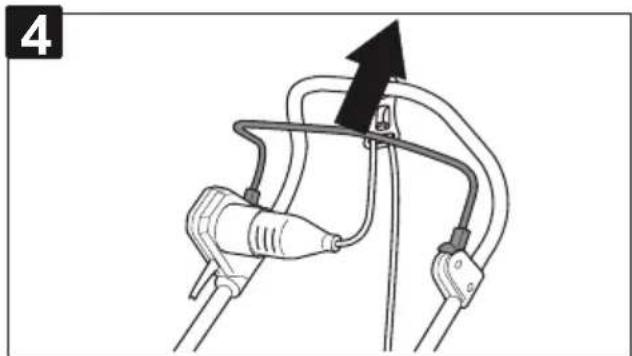

2. Pull the safety bar / handle against the bar and hold it there 4.

3. Release the start button.

Switching off the motor

1. Release the safety bar / handle.
2. Wait until the blade has stopped moving.

Work instructions

Comply with local regulations regarding operation of lawn mowers.

■ Carefully check the entire area to be mown and remove all foreign bodies.
■ Only operate the lawn mower if there are no third parties in the danger area.
■ Only mow if visibility is good.
■ Only operate the machine at walking pace.
■ Only operate the mower if the blade is sharp.
■ Do not mow over obstacles (e.g. twigs, tree roots).
- On sloping terrain, always mow across the slope. Do not mow uphill or downhill or on slopes where the inclination exceeds 20°.
■ Exercise particular care when changing direction on sloping terrain.

Tips for mowing

■ Start mowing as close as possible to the power socket. 6
■ Always keep the extension lead on the section of lawn than has already been mown.

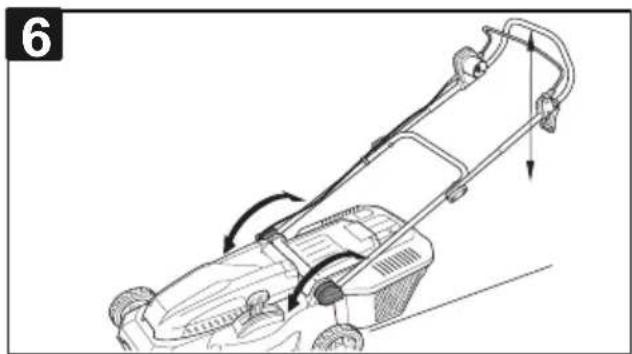

- Maintain a constant cutting height of 3–5 cm; do not shorten the grass to less than half its original height.
- Do not overload the lawnmower! If the motor speed drops perceptibly due to long, heavy grass, increase the cutting height and mow several times.
■ Mow in the morning or late afternoon to prevent the freshly cut grass from drying out.
■ During phases of strong growth, mow twice weekly; in periods of low rainfall, increase intervals between mowing accordingly.

Storage

■ Always unplug the machine from the mains for storage.
■ To save space during storage, fold down the upper bar.
■ Store the machine in a dry condition and out of reach of children and unauthorized persons

Repairs

■ Repair work may only be carried out by AL-KO Service Centres and authorized specialist workshops.
■ To prevent loss of balance, cutting tools and fastening bolts must be exchanged together.

Maintenance and care

Danger - risk of injury!

Always unplug from the mains before commencing any maintenance or preventive maintenance work!

Always wear protective gloves when carrying out maintenance or preventive maintenance work on the blade!

Unbalanced blades cause strong vibrations and damage the mower.

■ Regularly check the grass collection system for correct operation and wear.
■ After mowing, clean the machine thoroughly with a brush or cloth. Dirt not removed from the underside of the machine may have a detrimental effect on its performance.
- Do not spray the machine with water! The switch/connector combination and the electric motor may be destroyed if water gets into them.
■ Regularly check the blade for damage. Only have blunt or damaged blades sharpened or replaced at an AL-KO Service Centre or authorized specialist workshop. Resharpened blades must be balanced. Tightening torque of the blade screw 15 Nm +5

Caution!

The blade and the motor shaft must not be aligned!

After maintenance work on insulated parts (e.g. exchanging a blade), an insulation protection check must be carried out in accordance with VDE Guideline 701.

■ Professional inspection required:

■ after collision with an obstacle
■ after sudden stoppage of the motor
if the blade is bent
■ if the motor shaft is bent

Troubleshooting

Fault Possible cause Solution
Motor does not start No power supply		Check fuse / extension lead.
		Machine cable defective
		Blade jammed
Loss of motor performance	Too much grass in the ejection channel or housing	Clean ejection channel / housing.Correct the cutting height
	Blade blunt Contact AL-KO	Service Centre or authorized specialist workshop and have the blade sharpened/replaced.
Grass collection box does not fill up sufficiently	Lawn wet Allow the lawn to dry.
	Grass collection box clogged	Clean the grid of the grass collection box.
	Too much grass inejection channel or housing	Clean ejection channel / housing. Correct the cutting height
	Blade blunt Contact AL-KO	Service Centre or authorized specialist workshop and have the blade sharpened/replaced.

For faults not listed in this table, or which you cannot resolve by yourself, please contact our customer service.

Over dit handboek

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Symboler på maskinen

Diagram of two lawn mower machines with numbered parts labeled for identification.

Symboler på maskinen

Diagram of two lawn mower machines with numbered parts labeled for identification.

Symboler på maskinen

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Symboly na zařízení

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn lawn mower units with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Simboli na napravi

Diagram of two lawn mower machines with numbered parts labeled for identification.

Oznake na uređaju

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Laitteen symbolit

Diagram of two lawn mower machines with numbered parts labeled for identification.

Diagram of two lawn mower machines with numbered parts labeled for identification.

Uz ierīces redzamie simboli

Diagram of two lawn mower machines with numbered parts labeled for identification.

Simboliai ant jrenginio

Diagram of two lawn mower machines with numbered parts labeled for identification.

Country Company Telephone Fax

A AL-KO KOBER Ges.m.b.H. (+43)3578/2515-100 (+43)3578/2515-31

AUS AL-KO INTERNATIONAL Pty. Ltd. (+61)3/9767-3700 (+61)3/9767-3799

B / L Eurogarden NV (+32)16/805427 (+32)16/805425

BG Valerii S&M Group SJ ([phone] ([phone]

CH AL-KO KOBER AG (+41)56/418-31 53 (+41)56/4183160

CZ AL-KO KOBER Spol. S.R.O. (+420)382/210381 (+420)382/212782

D AL-KO GERÄTE GmbH (+49)8221/203-0 (+49)8221/97-8199

DK AL-KO GINGE A/S ([phone] ([phone]

EST/LT/LV SIA AL-KO KOBER (+371)67/627-326 (+371)67/807-018

F AL-KO S.A.S. (+33)3/8576-3500 (+33)3/8576-3581

GB Rochford Garden Machinery Ltd. (+44)1963/828050 (+44)1963/828052

H AL-KO KFT (+36)29/5370-50 (+36)29/5370-51

HR Brun.ko.-prom d.o.o. ([phone] ([phone]

I AL-KO KOBER GmbH / SRL (+39)039/9329-311 (+39)039/9329-390

IN AGRO-COMMERCIAL ([phone] ([phone]

IQ Avro Gulistan Com ([phone]

IRL Cyril Johnston & Co. Ltd. ([phone] ([phone]

LY ASHOFAN FOR AGRICULT. ACC. ([phone] ([phone]

MA BADRA Sarl ([phone] ([phone]

MK Techno Geneks ([phone] ([phone]

N AL-KO GINGE A/S (+47)64/86-2550 (+47)64/86-2554

NL O.DE LEEUW GROENTECHNIEK (+31)38/444 6160 (+31)38/444 6358

PL AL-KO KOBER Sp. z.o.o. (+48)61/816-1925 (+48)61/816-1980

RO SC PECEF TEHNICA SRL ([phone] ([phone]

RUS 000 AL-KO KOBER (+7)499/16887-16 (+7)499/96600-00

RUS ZAO AL-KO St. Petersburg GmbH (+7)812/446-1075 (+7)812/446-1075

S GINGE Svenska AB (+46)31/57-3580 (+46)31/57-5620

SK AL-KO KOBER Slovakia Spol. S.R.O. (+421)2/4564-8267 (+421)2/4564-8117

SLO Darko Opara s.p. ([phone] ([phone]

SRB Agromarket d.o.o. ([phone] ([phone]

TR ZIMAS A.S. ([phone] ([phone]

UA TOV AL-KO KOBER (+380)44/492 33-96 (+380)44/496 66-93
