PAS 600 - Aquarium EDEN - Free user manual and instructions

Product type	Submersible aquarium pump
Brand and model	Eden PAS 600
Use	Water circulation in an aquarium, recirculation and emptying by pumping of reservoirs or ponds, private indoor use
Power supply	230 V / 50 Hz
Max. power consumption	11 W
Max. delivery capacity	600 L/h
Max. delivery head	1.3 m
Protection rating	IPx8 (continuous immersion up to 1 m)
Max. immersion depth	1 m
Water temperature range	+4 °C to +35 °C
Dimensions (L x W x H)	45.5 mm x 65 mm x 78 mm
Weight	0.4 kg
Power cable length	1.5 m
Outlet connection diameter	13 mm
Supplied parts	Pump, suction cups, flow regulator, filter basket
Maintenance and cleaning	Clean with clear water and a soft brush at least twice a year; descale with detergent without vinegar or chlorine; rinse thoroughly
Safety	Disconnect before any intervention; do not use if cable is damaged; powerful magnet (min. distance 0.2 m from medical implants)
Wear parts	Suction cups, operating unit (rotor block)
Repairability	Cleaning and replacement of the operating unit possible by the user; original spare parts required

Frequently Asked Questions - PAS 600 EDEN

What is the maximum delivery head of the Eden PAS 600?

The maximum delivery head is 1.3 meters.

Can I leave the pump out of water?

No, the pump must never run dry. It must always be immersed to avoid any damage.

How to adjust the flow rate of the pump?

Turn the flow regulator located on top of the pump. Turn in the + direction to increase the flow rate.

How often should I clean the pump?

It is recommended to clean the pump at least twice a year, or more often if necessary.

How to clean the pump?

Unplug the pump, then clean it with clear water and a soft brush. For stubborn deposits, use a detergent without vinegar or chlorine, then rinse thoroughly.

What to do if the pump does not start?

First check the mains voltage. If it is correct, the rotor block may be stuck; clean the device.

How to replace the operating unit?

Unplug the pump, remove the filter basket by applying strong pressure, take out the operating unit, clean or replace it, then reassemble in reverse order.

Can I use this pump in an outdoor pond?

No, the device is intended for indoor use only and should not be used in natural swimming pools.

What is the length of the power cable?

The power cable is 1.5 meters.

Does the pump contain magnets?

Yes, the operating unit contains a powerful magnet. Keep a distance of at least 0.2 m from implanted pacemakers or defibrillators.

USER MANUAL PAS 600 EDEN

Three black industrial water purifiers with ports and mounting brackets, displayed side by side (no text or symbols visible)

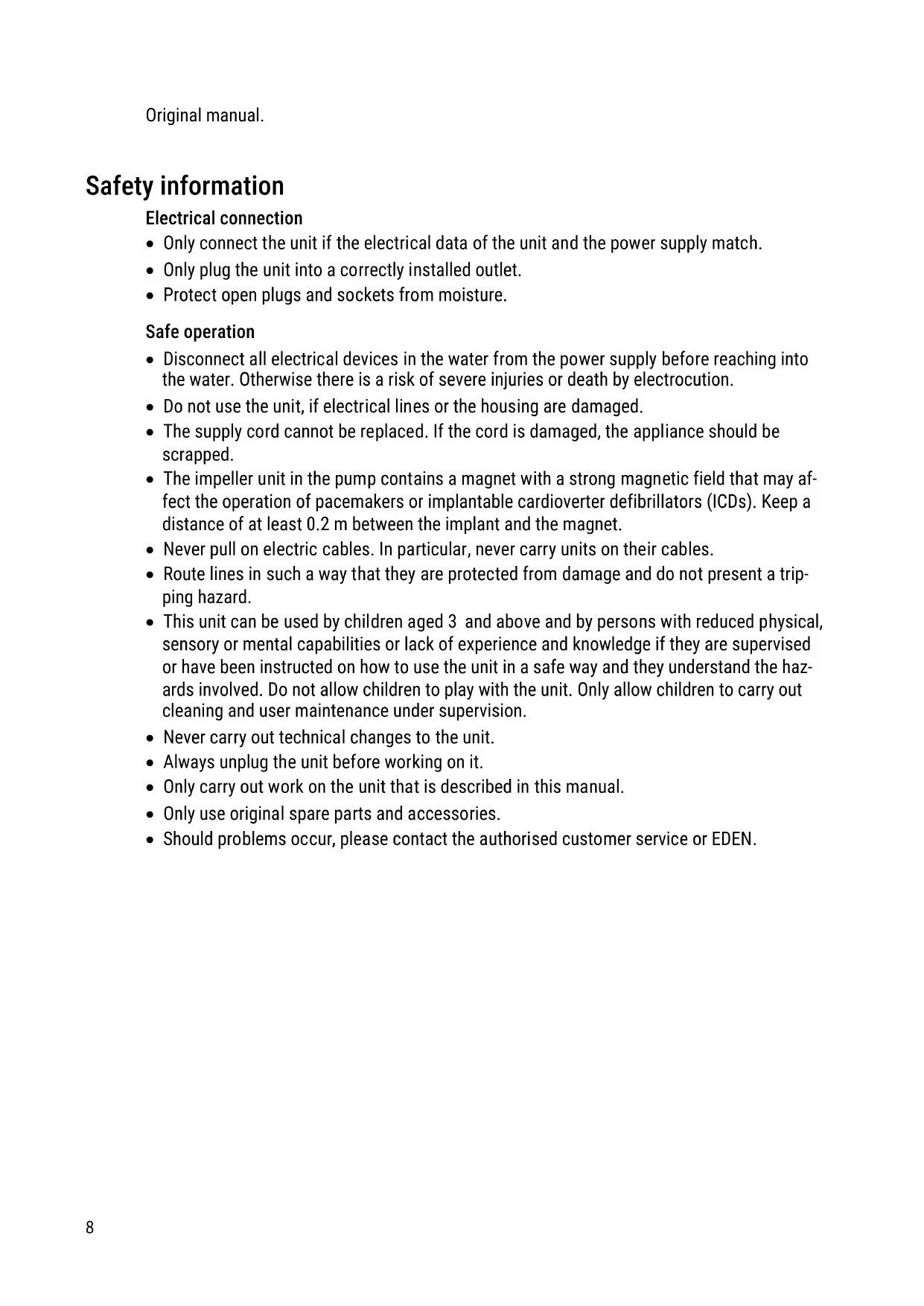

Sicherheitshinweise

Technical diagram showing two mechanical device configurations with 2x and 4x magnified views and labeled components.

PAS0006

Diagram of a mechanical device with fluid flow and motion indicators (no text or symbols)

PAS0001

HINWEIS

Diagram of a cable being inserted into a socket, showing wire routing and a downward arrow indicating direction (no text or symbols)

Diagram showing a device with directional arrows and a close-up of its component, likely illustrating a mechanical or electrical process.

BSE0003
PAS0004

Diagram showing mechanical assembly steps with numbered instructions for component identification

EDEN PAS 600, 800, 1200

Diagram illustrating a mechanical device assembly with labeled parts and directional arrows indicating motion or assembly.

PAS0003

Störungsbeseitigung

Electrical connection

• Only connect the unit if the electrical data of the unit and the power supply match.
• Only plug the unit into a correctly installed outlet.
• Protect open plugs and sockets from moisture.

Safe operation

• Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe injuries or death by electrocution.
• Do not use the unit, if electrical lines or the housing are damaged.
• The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.
• The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Keep a distance of at least 0.2 m between the implant and the magnet.
• Never pull on electric cables. In particular, never carry units on their cables.
• Route lines in such a way that they are protected from damage and do not present a tripping hazard.
• This unit can be used by children aged 3 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.
• Never carry out technical changes to the unit.
  • Always unplug the unit before working on it.
• Only carry out work on the unit that is described in this manual.
• Only use original spare parts and accessories.
• Should problems occur, please contact the authorised customer service or EDEN.

Intended use

Only use the product described in this manual as follows:

• For maintaining the water circulation in an aquarium.
• For transferring water from and draining basins or ponds/pools.
• Indoors and for private aquarium-keeping purposes.
• While adhering to the technical specifications. (→ Technical data)

The following restrictions apply to the unit:

• Do not use in swimming ponds.
• Never run the unit without water.
• Do not connect to the domestic water supply.
• Do not use for commercial or industrial purposes.

- Do not use the unit together with chemicals, food, flammable, explosive substances or other liquids aside from water.

Product Description

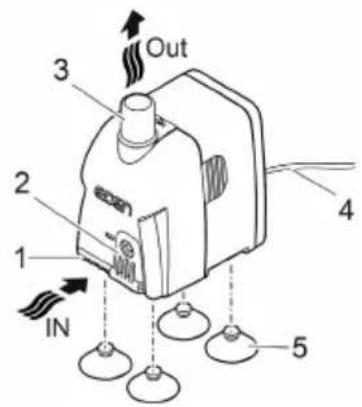

Overview

EDEN PAS 300, 500

1 2 3 4 5 IN Out

EDEN PAS 600, 800, 1200

1 2 3 Out 4 IN 5

PAS0002

1	Inlet
2	Flow rate controller
3	Outlet (pressure side)
4	Power cable
5	Suction cups

Symbols on the unit

IPX8 1.0 m		The unit is protected against the results of permanent immersion in water to a depth of 1 m.
		Only use the unit in indoor spaces.
		Protect the unit from direct sunlight.
		Do not dispose of the unit with normal household waste.
		Read the operating instructions.

Installation and connection

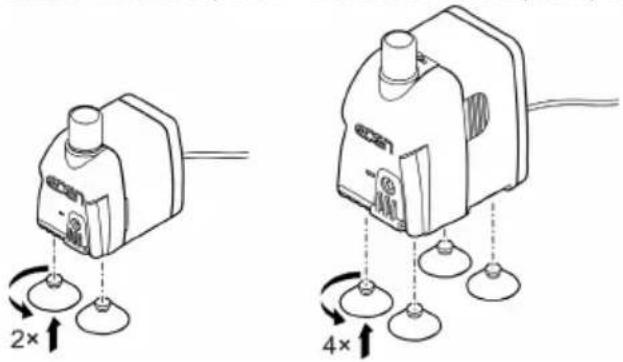

• Install the suction cups.

EDEN PAS 300, 500 EDEN PAS 600, 800, 1200

Diagram showing two types of electrical switchgear with 2x and 4x speed indicators and labeled components

PAS0006

• If required, attach a hose at the outlet (pressure side) of the pump. ( Technical data)

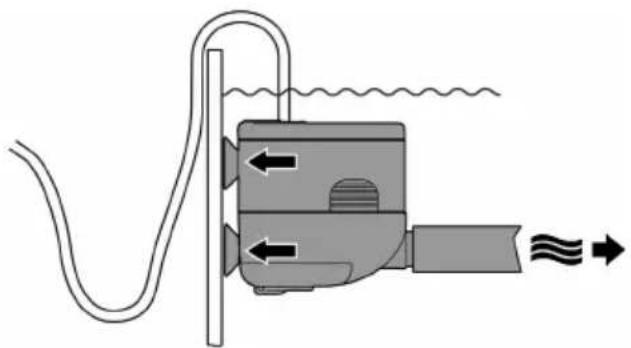

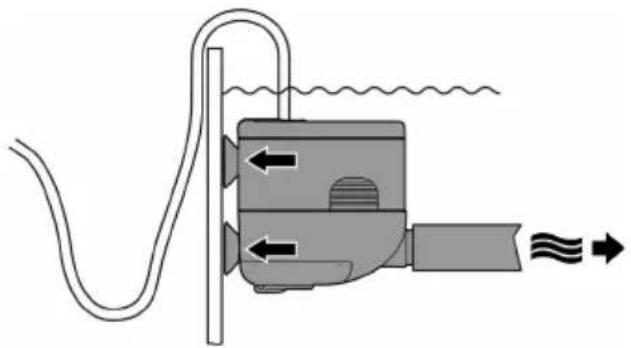

• Fasten the pump on the aquarium wall using the suction cups.

Diagram of a mechanical device with fluid flow and motion indicators (no text or symbols)

PAS0001

Commissioning/start-up

NOTE

Never allow the pump to run dry. Otherwise the pump may be destroyed.

▶ Only operate the pump when it is submerged or flooded.

EN

Switching ON/OFF

- Switching on: Plug the power plug into the outlet.

• The unit switches on immediately.
• Lay the mains cable so that a drip loop is formed and the lowest point is below the socket. This prevents dripping water from entering the socket.
• Switching off: Pull the power plug from the outlet.

Form a drip loop

Diagram of a cable being inserted into a socket, showing wire routing and a downward arrow indicating direction (no text or symbols)

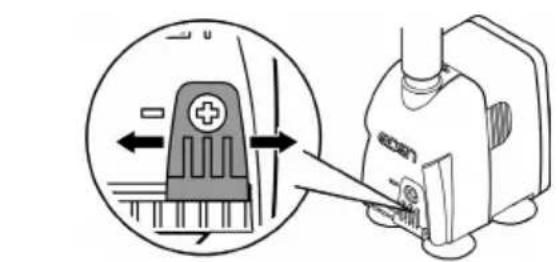

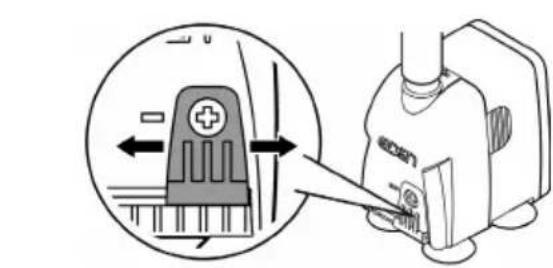

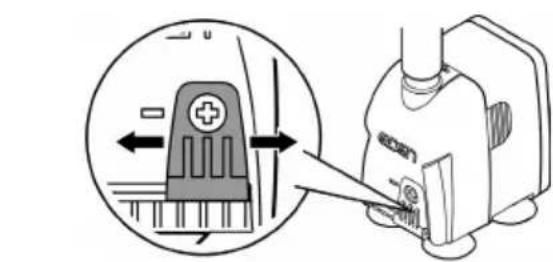

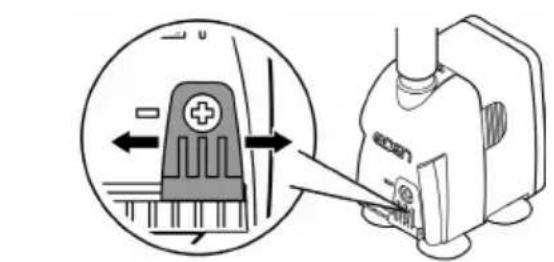

Set the flow rate

Diagram showing a device with directional arrows and a close-up of its component, likely illustrating a mechanical or electrical process.

BSE0003
PAS0004

Maintenance and cleaning

CAUTION

Risk of injury due to unexpected start-up. Internal monitoring functions may switch off the unit and automatically reactivate it.

▶ Disconnect the power plug before carrying out any work on the unit.

NOTE

Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

▶ If possible, clean the unit with clear water and a soft brush or a sponge; remove stubborn dirt with the aid of the recommended cleaning agents.

Cleaning the device

① Clean the unit as required but at least twice per year.

• Recommended cleaning agent for removing stubborn limescale deposits: – Vinegar- and chlorine-free household cleaning agent.
  • After cleaning, thoroughly rinse all parts in clean water.

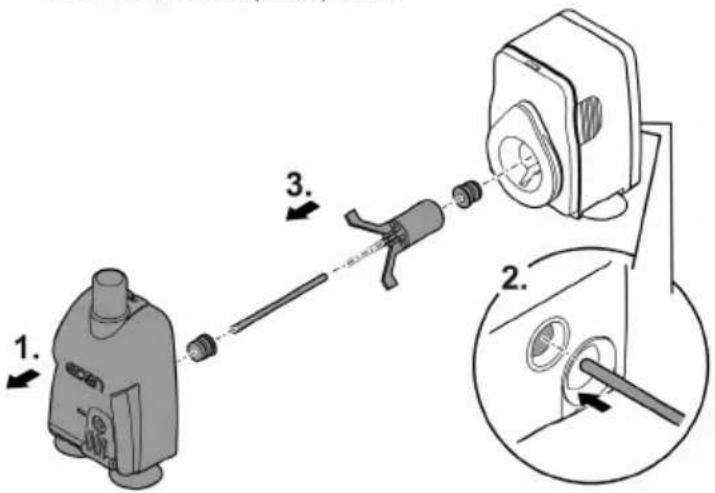

Cleaning/replacing the impeller unit

How to proceed:

• Pull the filter cage off the motor block by applying strong pressure.
• Remove the impeller unit, clean or replace.
• Reassemble the unit in the reverse order.

EDEN PAS 300, 500

Diagram showing mechanical assembly steps with numbered labels indicating component identification

EDEN PAS 600, 800, 1200

Diagram illustrating a mechanical device assembly with labeled parts and directional arrows indicating motion or assembly.

PAS0003

Malfunction remedy

Malfunction	Cause	Remedy
The unit does not start up	No mains voltage	Check the mains voltage.
	Impeller unit blocked	Clean the unit
Water flow insufficient	Pump housing or impeller unit soiled	Clean the unit
	Flow controller set to insufficient flow rate	Move the flow controller in the + direction
	Impeller unit worn	Replace the impeller unit.
	Pump housing clogged	Clean the unit

Wear parts

- Suction cups, impeller unit

Technical data

PAS			300	500	600	800	1200
Connection voltage		V AC	230	230	230	230	230
Mains frequency		Hz	50	50	50	50	50
Max. power consumption		W	5	5	11	20	25
Max. pump capacity		l/h	300	500	600	800	1150
Max. pump head		m	0.5	0.8	1.3	1.5	2
Protection type			IPx8	IPx8	IPx8	IPx8	IPx8
Max. immersion depth		m	1	1	1	1	1
Connection diameter, pressure side		mm	13	13	13	17	17
Permissible range, water temperature		°C	+4 ... 35	+4 ... 35	+4 ... 35	+4 ... 35	+4 ... 35
Dimensions	Length	mm	35	35	45.5	54	54
	Width	mm	51	51	65	78	78
	Height	mm	54	54	78	89	89
Length of power cable		m	1.5	1.5	1.5	1.5	1.5
Weight		kg	0.2	0.2	0.4	0.6	0.6

EN

Disposal

NOTE

Do not dispose of this unit with household waste.

▶ Dispose of the unit by using the return system provided for this purpose.
▶ Should you have questions, please contact your local disposal company. They will give you information on how to correctly dispose of the unit.
▶ Render the unit unusable by cutting the cables.

Diagram showing a device with a 2x speed indicator and circular components, likely illustrating a mechanical or electrical setup.

EDEN PAS 600, 800, 1200

Line drawing of a small electronic device with four base components and a 4x rotational arrow indicator (no text or symbols)

PAS0006

Diagram of a mechanical device with fluid flow and motion arrows, no text or symbols present

PAS0001
