USER MANUAL HD 9204 M Plus Kärcher

Line drawing of a compact water heater with visible blades and control panel (no text or symbols)

Line drawing of a compact vacuum cleaner with wheels and handle (no text or symbols)

Deutsch 7

English 18

Français 29

Italiano 41

Nederlands 53

Español 65

Português 77

Dansk 89

Norsk 100

Svenska 111

Suomi 122

Ελληνικά 133

Türkçe 145

Русский 156

Magyar 169

Čeština 180

Slovenščina 191

Polski 202

Românește 214

Slovenčina 226

Hrvatski 238

Srpski 249

Български 260

Eesti 272

Latviešu 283

Lietuviškai 295

Українська 306

Indonesia 319

Register and win! www.kaercher.com/register-and-win

59668530 04/19

Technical diagram of a power supply unit with numbered parts and close-up detail view

Technical diagram of a water purifier with numbered parts and an inset close-up view of the component.

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technische Daten

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Contents

Device elements ..... EN 1

Safety instructions..... EN 1

Proper use ...... EN 2

Safety Devices ..... EN 2

Environmental protection .... EN 3

Before Startup..... EN 3

Start up.... EN 3

Operation ...... EN 4

Transport..... EN 6

Storage ..... EN 6

Care and maintenance ..... EN 6

Troubleshooting ..... EN 7

Accessories and Spare Parts. EN 8

Warranty ...... EN 8

EU Declaration of Conformity. EN 8

Technical specifications ..... EN 9

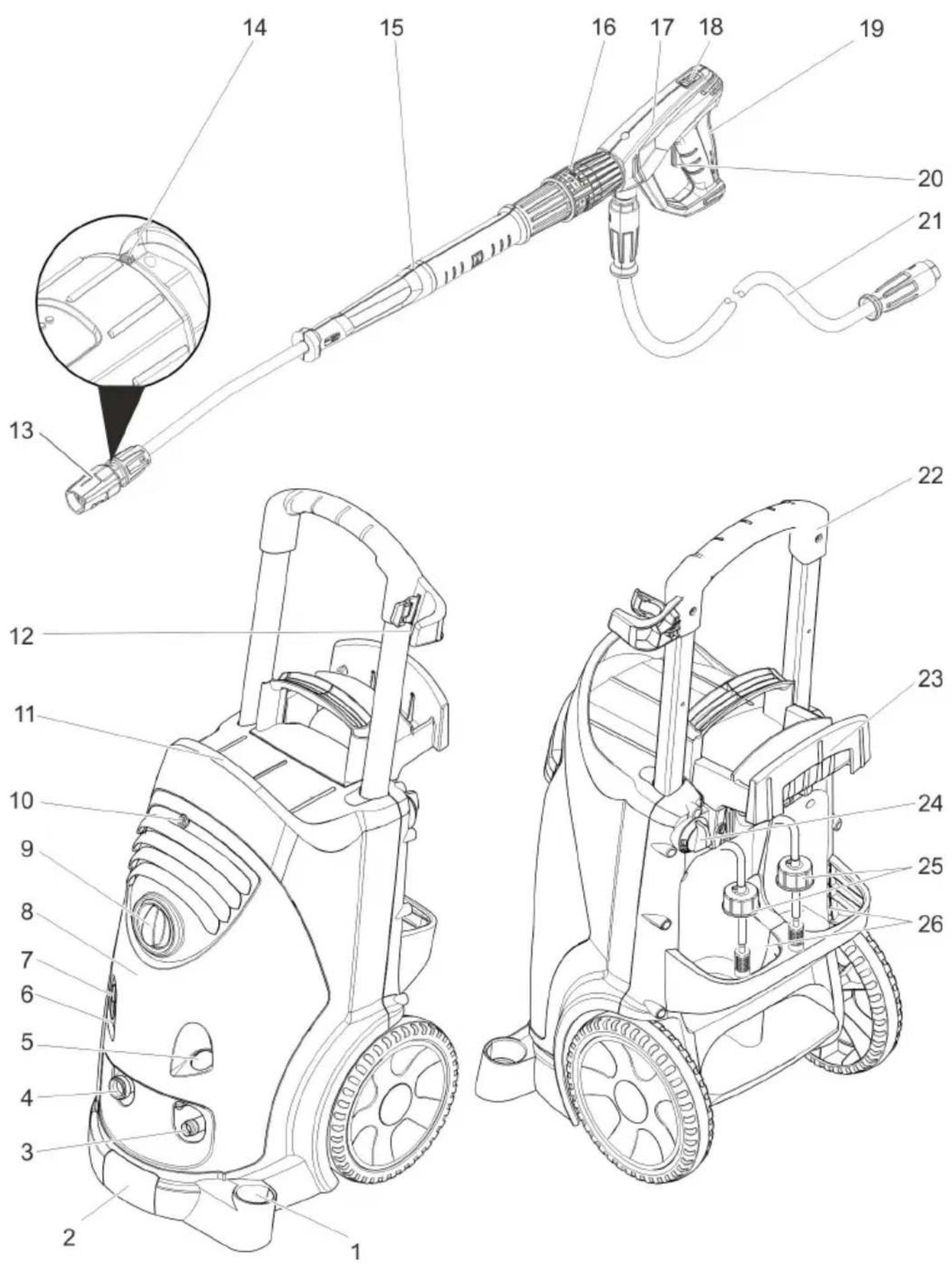

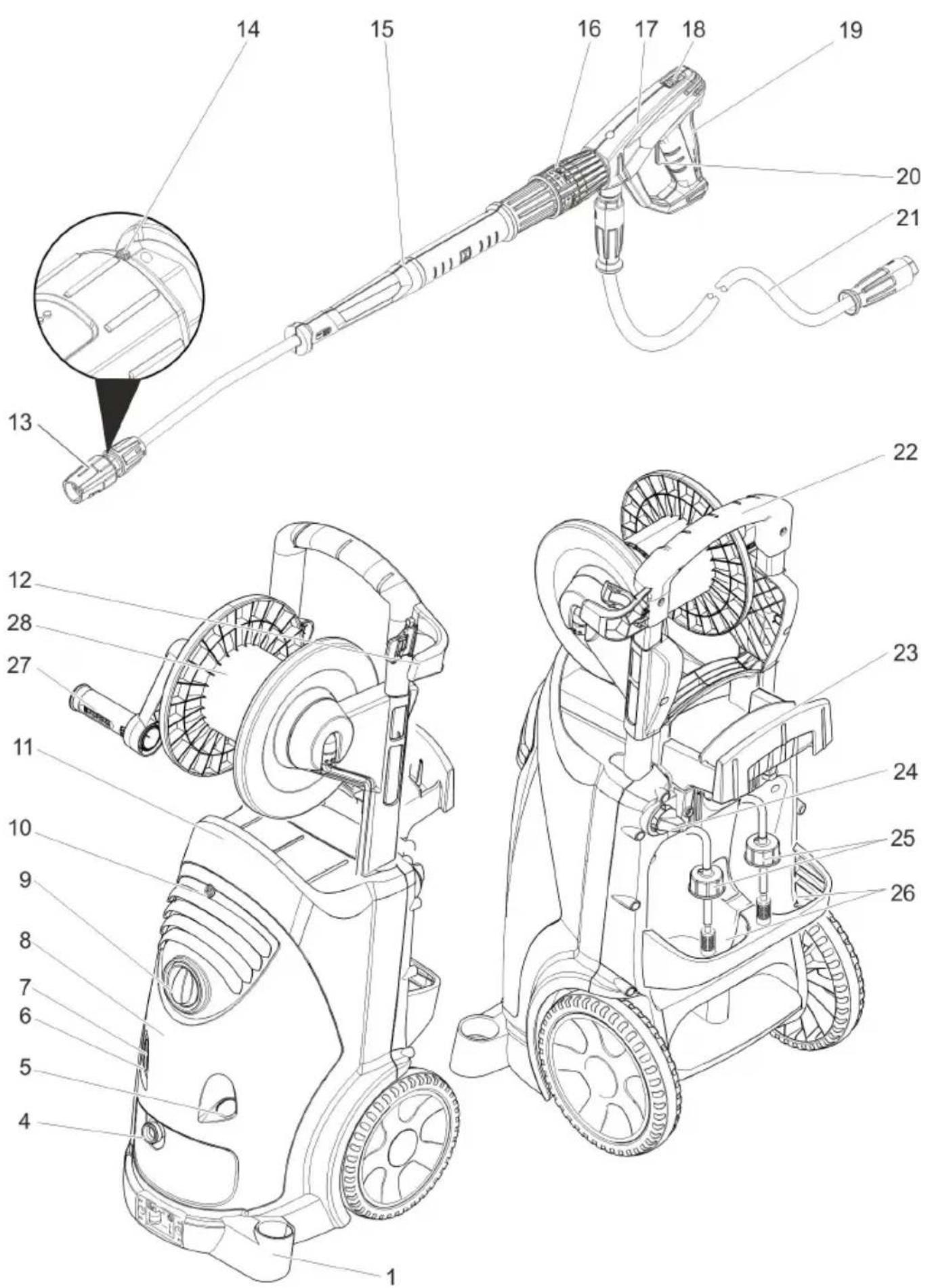

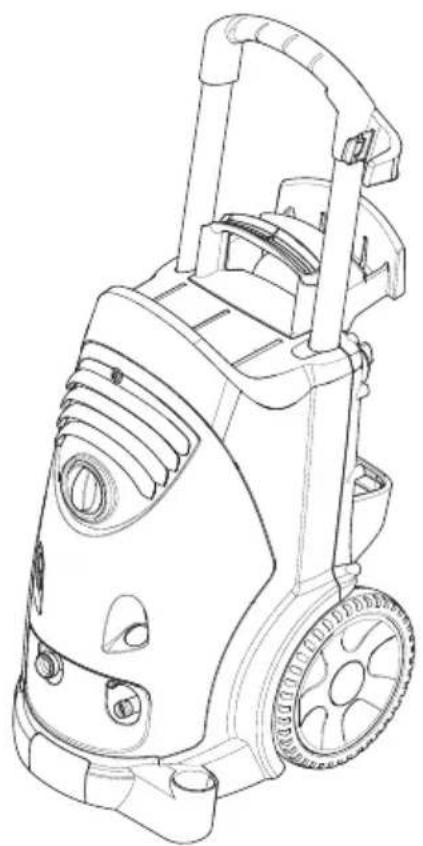

Device elements

Please unfold the front picture side

1 Storage compartment for nozzles

2 Handle

3 High-pressure connection EASY!Lock

4 Water connection

5 Manometer

6 Oil level indicator

7 Oil tank

8 Cover

9 Power switch

10 Fastening screw for device hood

11 Storage compartment for hoses

12 Trigger gun storage clip

13 Nozzle

14 Marking of the nozzle

15 Spray lance EASY!Lock

16 Pressure/ quantity regulation (not with HD 9/18 M)

17 Trigger gun EASY!Force

18 Safety catch

19 Trigger

20 Safety lever

21 High pressure hose EASY!Lock

22 Push handle

23 Cable clamp

24 Dosage valve for detergent

25 Detergent suction hose with filter and screw-on lid

26 Bottle holder for detergent

27 Crank

28 Hose drum

Colour coding

- The operating elements for the cleaning process are yellow.

– The controls for the maintenance and service are light gray.

Safety instructions

- Before first start-up it is definitely necessary to read the operating instructions and safety indications Nr. 5.951-949.0!

- Please follow the national rules and regulations for fluid spray jets of the respective country.

- Please follow the national rules and regulations for accident prevention of the respective country. Fluid spray jets must be tested regularly and the results of these tests must be documented in writing.

- The appliance/accessories must not be modified.

Hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

High-pressure jets can be dangerous if improperly used. The

jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCHER or alternatively a system separator according to EN 12729 type BA must be used.

Water that was flowing through a system separator is considered non-drinkable.

△CAUTION

Always connect the system separator to the water supply, never directly to the appliance!

Proper use

Use this high pressure cleaner exclusively for

- Cleaning using low pressure jet and detergent (for e.g. for cleaning machines, cars, buildings, tools),

- For cleaning using high pressure jet without detergent (for e.g. for cleaning facades, terraces, garden appliances).

For stubborn dirt, we recommend the use of the dirt blaster as a special accessory.

HD...Plus includes a dirt remover as part of standard delivery.

Quality requirements for water: ATTENTION

Only clean water may be used as high pressure medium. Impurities will lead to increased wear and tear or formation of deposits in the appliance.

If recycled water is used, the following limit values must not be exceeded.

pH value 6,5...9,5
electrical conductivity * Conductivity fresh water +1200 μS/cm
settleable solids ** < 0,5 mg/l

total suspended solids *** <	50 mg/l
Hydrocarbons < 20 mg/l
Chloride < 300 mg/l
Sulphate < 240 mg/l
Calcium < 200 mg/l
Total hardness < 28 °dH	< 50 °TH< 500 ppm(mg CaCO3/l)
Iron < 0,5 mg/l
Manganese < 0,05 mg/l
Copper < 2 mg/l
Active chloride	< 0,3 mg/l
free of bad odours
* Maximum total 2000 μS/cm** Test volume 1 l, settling time 30 min*** no abrasive substances

Safety Devices

Safety devices serve for the protection of the user and must not be put out of operation or bypassed with respect to their function.

Overflow valve with pressure switch

While reducing the water supply/quantity regulation at the pump head, the overflow valve opens and part of the water flows back to the pump suck side.

If the pulling lever on the trigger gun is released the pressure switch turns off the pump, the high-pressure jet is stopped. If the pulling lever is pulled the pump is turned on again.

Safety valve

The safety valve opens when the permissible operating pressure is exceeded; water flows back to the suction side of the pump. The overflow valve, pressure switch and safety valve are set and sealed at the factory.

Setting only by customer service.

Environmental protection

The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.

Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems.

Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Before Startup

Unpacking

- Check the contents of the pack before unpacking.

– In case of transport damage inform vendor immediately.

Check oil level

→ Read the oil level display when the device is not running. The oil level must be above the two pointers.

Activate deaeration of oil container

→ Unscrew the fastening screws of the device hood; remove the device hood.

→ Cut off tip of oil container cover

→ Fasten the device hood.

Attaching the Accessories

Note: The EASY!Lock system joins components with a quick-fasten thread solidly and securely with just one turn.

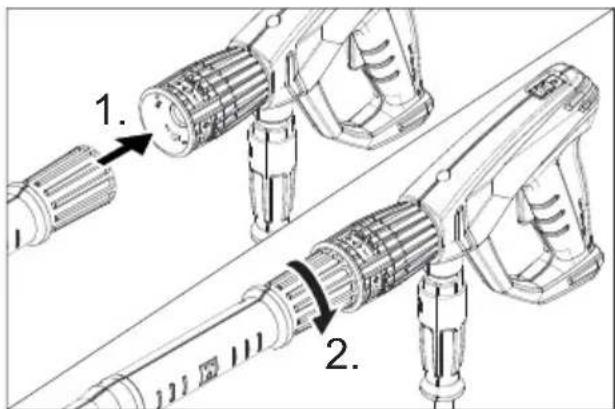

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

→ Mount the nozzle on the spray lance (marking on the adjustment ring at the top) and hand-tighten it (EASY!Lock).
→ Join the spray lance with the trigger gun and tighten until hand-tight (EASY!Lock).

In devices without hose drum:

→ Join the high-pressure hose with trigger gun and high-pressure connection of the appliance and tighten until hand-tight (EASY!Lock).

In devices with hose drum:

→ Insert the crank in the hose drum shaft and lock it in.
→ Before rolling up, stretch out the high pressure hose.
→ Wind the high pressure hose in uniform layers on the hose drum by rotating the crank. Select the rotation direction in such a way that the high pressure hose does not get bent.
→ Join the high pressure hose with trigger gun and tighten until hand-tight (EASY!Lock).

Start up

⚠ WARNING

Risk of injury! Appliance, accessories, supply lines and connections must be in fault-free condition. If they are not in a perfect state then the appliance must not be used.

Electrical connection

△DANGER

Danger of injury by electric shock.

• It is imperative to connect the appliance to the electric mains by means of a plug. It is forbidden to permanently connect the appliance to the power supply. The plug serves for the disconnection from the mains.
• The appliance may only be connected to alternating current.
• The highest allowed net impedance at the electrical connection point (refer to technical data) is not to be exceeded. In case of confusion regarding the power impedance present on your connection, please contact your utilities provider.
• The plug and coupling of the extension cable used must be watertight.
• Use the extension cord that has an adequate cross-section (see "Technical Data") and unwind it fully from the cable drum.

For connection values, see type plate/technical data.

→ Unwind the mains cable and place it on the floor.
→ Insert the mains plug into a socket.

Water connection

Connection to the water supply

⚠ WARNING

Observe regulations of water supplier.

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCHER or alternatively a system separator according to EN 12729 type BA must be used.

Water that was flowing through a system separator is considered non-drinkable.

△CAUTION

Always connect the system separator to the water supply, never directly to the appliance!

For connection values refer to technical specifications.

→ Connect the supply hose (minimum length 7.5 m, minimum diameter 1") to the water connection point of the appliance (such as the tap).

Note:

The supply hose is not included.

→ Open the water supply.

Drawing in water from open reservoirs

→ Screw the suction hose (order no. 4.440-270.0) onto the water connection.
→ Connect filter (order-no. 4.730-012.0) to suction hose.
→ Deaerate the appliance: Unscrew the nozzle.

Switch on the appliance and let it run until the water exiting is bubble-free.

At the end let the appliance run for approx. 10 seconds - then switch off. Repeat the procedure for a couple of times.

→ Switch off the appliance and fit the nozzle again.

Operation

⚠️DANGER

Risk of explosion!

Do not spray flammable liquids.

If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety regulations must be observed.

Risk of injury! Hold the hand spray gun and the spray pipe firmly with both hands.

Risk of injury! The trigger and safety lever may not be locked during the operation.

Risk of injury! Contact Customer Service if the safety lever is damaged.

Risk of injury from high-pressure water jet. Slide the safety catch on the trigger gun forward before performing any work with the appliance.

△CAUTION

Clean engines only at places with corresponding oil separators (environmental safety).

ATTENTION

Risk of blocking. Place the nozzles in the accessory compartment with their joint pointing upward.

Opening/closing the trigger gun

→ To open the trigger gun: Actuate the safety lever and trigger.
→ To close the hand spray gun: Release the safety lever and trigger.

High pressure operation

Note:

The appliance is equipped with a pressure switch. The motor starts up only when the trigger gun is open.

→ Roll off the high pressure hose totally from the hose drum.
→ Set the appliance switch to "I".
→ Release the trigger gun. To do so, push the safety catch towards the back.
→ Open the hand spray gun.
→ Set working pressure and flow rate through turning (runless) at the pressure- and amount regulation (B) (+/-).

Only on HD 9/20-4...:

For transporting small quantities, the engine heat ensures that water is heated up to approx. 15 °C.

Select spray type

→ Close the hand spray gun.
→ Turn the casing of the nozzle till the desired symbol matches the marking.

	High pressure circular spray (0°) for specially stubborn dirt
	Flat low pressure spray (CHEM) for operating using detergents or cleaning at low pressure.
	High pressure flat spray (25°) for large dirt areas

Operation with detergent

⚠ WARNING

Unsuitable detergents can cause damage to the appliance and to the object to be cleaned. Use only those detergents that have been approved by Kärcher. Observe the dosage and other instructions provided

with these detergents. For considerate treatment of the environment use detergent economically.

Follow the safety instructions for using detergents.

Kärcher detergents ensure smooth functioning. Please consult us or ask for our catalogue or our detergent information sheets.

→ Place the detergent bottle into the bottle holder on the appliance or place a detergent container next to the appliance.. Two different detergents can be simultaneously placed into the appliance.
→ Pull the detergent suction hose out and immerse it into the detergent bottle or container.
→ Screw the lid onto the bottle or the container.
→ Set nozzle to "CHEM".
→ Set the detergent dosing valve to the desired detergent and concentration.

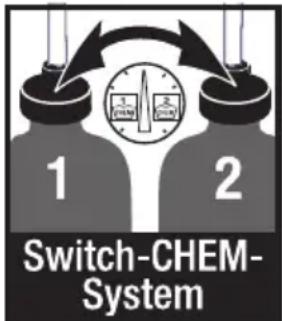

1 2 Switch-CHEM- System

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high-pressure ray.
→ After operations, dip the filter in clear water. Turn the dosing valve to the highest detergent concentration. Start the appliance and rinse for one minute.

Interrupting operation

→ Close the hand spray gun. The appliance switches off.
→ Open the hand spray gun. The appliance will switch on again.

Turn off the appliance

→ Shut off water supply.
→ Open the hand spray gun.

→ Switch on the pump with the power switch and allow to run for about 5-10 seconds.
→ Close the hand spray gun.
→ Set the appliance switch to "0/OFF".
→ Pull main plug out of socket with dry hands only.
→ Remove water connection.
→ Activate hand spray gun until device is pressure less.
→ Secure the trigger gun. To do so, push the safety catch towards the front.

Only on HD 9/20-4...:

⚠️DANGER

Danger of scalding on account of hot water. The water remaining in the switched off device can get heated up. When you remove the hose from the water inlet, the heated water can spray out and cause scalding. Do not remove the hose before the device has cooled down.

Storing the Appliance

→ Insert the hand-spray gun in the holder.
→ Wind up the high-pressure hose and hang it over the hose storage. or

Wind up the high-pressure hose on the hose drum. Push in the handle of the crank to block the hose drum.

→ Wind the connection cable around the cable holder.
→ Fasten the plug with the mounted clip.

Frost protection

ATTENTION

Frost will destroy the not completely water drained device.

Store the appliance in a frost free area.

If you cannot store it in a frost-free place:

→ Drain water.
→ Pump in conventional frost protection agents through the appliance.

Note:

Use normal glycol-based anti-freezing agents for automobiles.

Observe handling instructions of the anti-freeze agent manufacturer.

→ Operate device for max. 1 minute until the pump and conduits are empty.

Transport

△CAUTION

Risk of personal injury or damage! Mind the weight of the appliance during transport.

ATTENTION

Protect the trigger from damage during transport.

→ Pull the device behind you at the handle for transporting it over longer distances.
→ For devices without hose drum, push the handle downward to carry the appliance. To carry, hold the appliance at the handles and not at the pushing handle.
→ Prior to transporting the appliance in horizontal position, remove the detergent bottles from the bottle holder and close them.
→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Storage

△CAUTION

Risk of personal injury or damage! Consider the weight of the appliance when storing it. This appliance must only be stored in interior rooms.

Care and maintenance

⚠️DANGER

Risk of injury by inadvertent startup of appliance and electrical shock.

Prior to all work on the appliance, switch off the appliance and pull the power plug.

Note:

Used oil must only be disposed of by the designated collection points. Please turn in used oil there. Polluting the environment with used oil is prosecutable.

Safety inspection/ maintenance contract

You can sign with your dealer a contract for regular safety inspection or even sign a maintenance contract. Please take advice on this matter.

Before each use

→ Check connection cable for damages (risk of electrical shock); get the damaged connection cable replaced immediately by an authorised customer service person/ electrician.
→ Check the high pressure hose for damages (risk of bursting).

Please arrange for the immediate exchange of a damaged high-pressure hose.

→ Check appliance (pump) for leaks. 3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage.

Weekly

→ Check oil level Please contact Customer Service immediately if the oil is milky (water in oil).
→ Clean the sieve in the water connection.
→ Clean filter at the detergent suck hose.

HD 9/20-4 only:

Clean the fine filter.

→ Unpressurize the appliance.
→ Unscrew the fastening screws of the device hood; remove the device hood.

→ Unscrew lid with filter.

→ Clean the filter with clean water or compressed air.

→ Reinstall in reverse sequence.

Every 500 operating hours, at least annually

→ Have the maintenance of the device performed by the customer service.
→ Oil change.

Oil change

Note:

See "Specifications" for oil volume and type.

→ Unscrew the fastening screws of the device hood; remove the device hood.
→ Remove the lid of the oil container.
→ Tilt the appliance forward.
→ Drain the oil in a collection basin.

→ Fill in new oil slowly; air bubbles should go out.
→ Attach the lid of the oil container.
→ Fasten the device hood.

Troubleshooting

⚠️DANGER

Risk of injury by inadvertent startup of appliance and electrical shock.

• Prior to all work on the appliance, switch off the appliance and pull the power plug.
• Get the electrical components checked and repaired only by authorised customer service persons.
• Contact an authorised customer service person in case of problems not mentioned in this chapter or if you are in doubt or when you have been explicitly asked to do so.

Appliance is not running

→ Check connection cable for damages.
→ Check the supply voltage.
→ Turn device switch on "0" and let engine cool off for min. 5 minutes. If malfunction still occurs, have device checked by customer service.
→ Call Customer Service in case of electrical defects.

Pressure does not build up in the appliance

→ Set nozzle to "High pressure".
→ Clean the nozzle.
→ Replace the nozzle.
→ Deaerate the appliance (see "Start-up")
→ Check water supply level (refer to technical data).
→ Clean the sieve in the water connection.
→ Check all inlet pipes to the pump.
→ Contact Customer Service if needed.

Pump leaky

3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage.

→ With stronger leak, have device checked by customer service.

Pump is vibrating

→ Check suction pipes for water and detergent and ensure that they are leak-proof.
→ Close dosing valve for detergent to operate the machine without detergent.
→ Deaerate the appliance (see "Start-up")
→ Contact Customer Service if needed.

Detergent is not getting sucked in

→ Set nozzle to "CHEM".
→ Check/ clean detergent suction hose with filter.
→ Open or check/clean detergent dosing valve.
→ Contact Customer Service if needed.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device.

For information about accessories and spare parts, please visit www.kaercher.com.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.524-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

Applied harmonized standards

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997 + A2: 2008

EN 61000-3-2: 2014

EN 62233: 2008

HD 6/11, HD 6/15, HD 7/12, HD 7/18, HD 9/19

EN 61000-3-3: 2006

HD 6/16, HD 9/20:

EN 61000-3-11: 2000

Applied conformity evaluation method 2000/14/EC: Appendix V

Sound power level dB(A)

	Measured: Guaranteed:
HD 6/11 83 84
HD 6/15 83 84
HD 6/16 83 84
HD 9/19 89 91
HD 9/20 87 88

The signatories act on behalf of and with the authority of the company management.

H. Jenner Chairman of the Board of Management

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technical specifications

Type HD 6/11-4 M		1.524-901.0	HD 6/15-4 M 1.524-907.0	HD 6/16-4 M 1.524-900.0 1.524-903.0 1.524-909.0
				HD 6/16-4 MX 1.524-904.0
GB AU EU
Main Supply
Voltage V 100 240 230
Current type Hz 1~ 50
Motor rpm 1/min 1400
Connected load kW 2,9 3,3 3,4
Protection (slow, char. C) A 30 16
Type of protection		IPX5
Maximum allowed net impedance	Ohm	-		0,294+j0,184
Extension cord 30 m	mm2	2,5
Water connection
Max. feed temperature	℃	60
Min. feed volume	l/h (l/min)	600 (10)
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa	1
Performance data
Operating pressure of water (using standard nozzle)	MPa	3...11	3...15	3...16
Size of standard nozzle 045 040 038
Max. operating over-pressure	MPa	14	18	19
Flow rate	l/h (l/min)	250...600 (4,2...10)	300...600 (5...10)
Detergent suck in	l/h (l/min)	0...40 (0...0,7)
Max. recoil force of trigger gun	N	30
Values determined as per EN 60335-2-79
Hand-arm vibration value
Hand spray gun	m/s2	<2,5
Spray lance	m/s2	<2,5
Uncertainty K	m/s2	1
Sound pressure level LpA	dB(A)	69
Uncertainty KpA	dB(A)	1
Sound power level LWA + Uncertainty KWA	dB(A)	84
Fuel
Amount of oil l	0,5
Oil grade		SAE 15W40
Dimensions and weights
Length	mm 554
Width	mm 509
Height	mm	1000
Weight without accessories (MX)	kg	44,5	54	48 (50)
Type HD 7/12-4 M		1.524-902.0	HD 7/16-4 M1.524-911.0	HD 7/18-4 M1.524-910.01.524-913.01.524-912.0
				HD 7/18-4 MX1.524-914.0
KAP KAP			EU
Main Supply
Voltage V 220 400
Current type Hz 1~60 3~60 3~50
Motor rpm 1/min 1400 1680 1400
Connected load kW 3,5 4,1	4,7
Protection (slow, char. C)	A	20	16
Type of protection		IPX5
Maximum allowed net impedance	Ohm	-	-	-
Extension cord 30 m	mm2	4,0	2,5	2,5
Water connection
Max. feed temperature	°C	60
Min. feed volume	l/h (l/min)	700 (11,7)
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa	1
Performance data
Operating pressure of water (using standard nozzle)	MPa 3...12	3...16 3...18
Size of standard nozzle 054 045 042
Max. operating over-pressure	MPa	14	19	21
Flow rate	l/h (l/min)	300...700 (5...11,67)
Detergent suck in	l/h (l/min)	0...40 (0...0,7)
Max. recoil force of trigger gun	N	30	35	37
Values determined as per EN 60335-2-79
Hand-arm vibration value
Hand spray gun	m/s2	<2,5
Spray lance	m/s2	<2,5
Uncertainty K	m/s2	1
Sound pressure level LpA	dB(A)	69	75
Uncertainty KpA	dB(A)	1
Sound power level LWA + Uncertainty KWA	dB(A)	84	90
Fuel
Amount of oil	l	0,5
Oil grade		SAE 15W40	SAE 90 Hypoid
Dimensions and weights
Length	mm	554
Width	mm	509
Height	mm	1000
Weight without accessories (MX)	kg	47,5	44,5	49 (52)
Type HD 9/18 M		1.524-916.0	HD9/19 M1.524-915.01.524-919.0	HD 9/20-4 M1.524-924.0
				HD 9/20-4 MX1.524-927.0
KAP EU EU
Main Supply
Voltage V 220 400
Current type Hz 3~ 60 3~ 50
Motor rpm 1/min 3370 2800 1400
Connected load kW 6,7 6,8 6,9
Protection (slow, char. C)	A	20	16
Type of protection		IPX5
Maximum allowed net impedance	Ohm	-	-	0,222+j0,139
Extension cord 30 m	mm2	4,0	2,5
Water connection
Max. feed temperature	°C	60
Min. feed volume	l/h (l/min)	900 (15)
Suck height from open container (20 °C)	m	0,5
Max. feed pressure	MPa	1
Performance data
Operating pressure of water (using standard nozzle)	MPa	18 4...18,5	4...20
Size of standard nozzle		053 050
Max. operating over-pressure	MPa	23	22,5	22
Flow rate	l/h (l/min)	900 (15)	450...890(7,5...14,8)	460...900(7,7...15)
Detergent suck in	l/h (l/min)	0...40 (0...0,7)
Max. recoil force of trigger gun	N	49
Values determined as per EN 60335-2-79
Hand-arm vibration value
Hand spray gun	m/s2	<2,5
Spray lance	m/s2	3,0		1,5
Uncertainty K	m/s2	1
Sound pressure level LpA	dB(A)	76		75
Uncertainty KpA	dB(A)	2		1
Sound power level LWA + Uncertainty KWA	dB(A)	91		88
Fuel
Amount of oil	l	0,5 0,75
Oil grade		SAE 90 Hypoid
Dimensions and weights
Length	mm	554
Width	mm	509
Height	mm	1000
Weight without accessories (MX)	kg	48,6	42,1 (49)47 (55)	48 (50)

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

H. Jenner Chairman of the Board of Management

Responsable de la documentation : S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Dati tecnici

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technische gegevens

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered labels indicating component placement.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Datos técnicos

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Dados técnicos

www.kaercher.com/REACH

Inden ibrugtagning

Udpakning

– Kontroller emballagens indhold.
- Ved transportskader skal forhandleren informeres omgående.

Kontroller oliestanden

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniske data

Simple line drawing of a trash bin with a crossed-out circular symbol (no text or labels)

www.kaercher.com/REACH

Før den tas i bruk

Utpakking

• Kontroller ved utpakking at ingen ting mangler.
• Informer straks forhandleren ved transportskader.

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component identification.

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

	Målt: Garantert:
HD 6/11 83 84
HD 6/15 83 84
HD 6/16 83 84
HD 9/19 89 91
HD 9/20 87 88

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniske data

www.kaercher.com/REACH

Före ibruktagande

Uppackning

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniska data

www.kaercher.com/REACH

Ennen käyttöönottoa

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tekniset tiedot

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Simple line drawing of a trash bin with a crossed-out X symbol (no text or numbers)

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Teknik Bilgiler

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Технические данные

www.kaercher.com/REACH

Üzembevétel előtt

Kicsomagolás

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Műszaki adatok

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technické údaje

www.kaercher.com/REACH

Pred zagonom

Razpakiranje

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnični podatki

Tip HD 6/11-4 M		1.524-901.0	HD 6/15-4 M1.524-907.0	HD 6/16-4 M1.524-900.01.524-903.01.524-909.0
				HD 6/16-4 MX1.524-904.0
GB AU EU
Omrežni priključek
Napetost V 100 240 230
Vrsta toka Hz 1~50
Število vrtljajev motorja 1/min 1400
Priključna moč kW 2,9 3,3 3,4
Zaščita (inertna, kar. C) A 30 16
Vrsta zaščite IPX5
Maksimalno dopustna omrežna impedanca	Ohm	-		0,294+j0,184
Podaljševalni kabel 30 m	mm2	2,5
Vodni priključek
Temperatura dotoka (maks.)	°C	60
Količina dotoka (min.)	l/h (l/min)	600 (10)
Sesalna višina iz odprte posode (20 °C)	m	0,5
Pritisk dotoka (maks.)	MPa	1
Podatki o zmogljivosti
Delovni tlak vode (s standardno šobo)	MPa	3...11	3...15	3...16
Velikost standardne šobe		045 040 038
Max. obratovalni nadtlak	MPa	14	18	19
Pretok	l/h (l/min)	250...600(4,2...10)	300...600 (5...10)
Sesanje čistila	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ročne brizgalne pištole (maks.)	N	30
Ugotovljene vrednosti v skladu z EN 60335-2-79
Vrednost vibracij dlan-roka
Ročna brizgalna pištola	m/s2	<2,5
Brizgalna cev m/s	2	<2,5
Negotovost K m/s	2	1
Nivo hrupa LpA	dB(A)	69
Negotovost KpA	dB(A)	1
Nivo hrupa ob obremenitviLWA+ negoto-vost KWA	dB(A)	84
Goriva
Količina olja	I	0,5
Vrsta olja		SAE 15W40
Mere in teža
Dolžina	mm 554
Širina	mm 509
Višina	mm	1000
Teža brez pribora (MX)	kg	44,5	54	48 (50)
Tip HD 7/12-4 M		1.524-902.0	HD 7/16-4 M1.524-911.0	HD 7/18-4 M1.524-910.01.524-913.01.524-912.0
				HD 7/18-4 MX1.524-914.0
KAP KAP			EU
Omrežni priključek
Napetost V 220 400
Vrsta toka Hz 1~ 60 3~ 60 3~ 50
Število vrtljajev motorja 1/min 1400 1680	1400
Priključna moč kW 3,5 4,1 4,7
Zaščita (inertna, kar. C) A	20	16
Vrsta zaščite		IPX5
Maksimalno dopustna omrežna impedanca	Ohm	-	-	-
Podaljševalni kabel 30 m	mm2	4,0 2,5 2	5
Vodni priključek
Temperatura dotoka (maks.)	°C	60
Količina dotoka (min.)	l/h (l/min)	700 (11,7)
Sesalna višina iz odprte posode (20 °C)	m	0,5
Pritisk dotoka (maks.)	MPa	1
Podatki o zmogljivosti
Delovni tlak vode (s standardno šobo)	MPa	3...12	3...16	3...18
Velikost standardne šobe		054 045	042
Max. obratovalni nadtlak	MPa	14 19	21
Pretok	l/h (l/min)	300...700 (5...11,67)
Sesanje čistila	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ročne brizgalne pištole (maks.)	N	30	35	37
Ugotovljene vrednosti v skladu z EN 60335-2-79
Vrednost vibracij dlan-roka
Ročna brizgalna pištola	m/s2	<2,5
Brizgalna cev	m/s2	<2,5
Negotovost K	m/s2	1
Nivo hrupa LpA	dB(A)	69	75
Negotovost KpA	dB(A)	1
Nivo hrupa ob obremenitviLWA+ negoto-vost KWA	dB(A)	84	90
Goriva
Količina olja	I	0,5
Vrsta olja		SAE 15W40	SAE 90 Hypoid
Mere in teža
Dolžina	mm	554
Širina	mm	509
Višina	mm	1000
Teža brez pribora (MX) kg	47,5	44,5 49 (52)
Tip HD 9/18 M		1.524-916.0	HD9/19 M1.524-915.01.524-919.0	HD 9/20-4 M1.524-924.0
				HD 9/20-4 MX1.524-927.0
KAP EU EU
Omrežni priključek
Napetost V 220 400
Vrsta toka Hz 3~ 60 3~ 50
Število vrtljajev motorja 1/min 3370 2800	1400
Priključna moč kW 6,7 6,8 6,9
Zaščita (inertna, kar. C) A 20	16
Vrsta zaščite		IPX5
Maksimalno dopustna omrežna impedanca	Ohm	-	-	0,222+j0,139
Podaljševalni kabel 30 m	mm2	4,0	2,5
Vodni priključek
Temperatura dotoka (maks.)	°C	60
Količina dotoka (min.)	l/h (l/min)	900 (15)
Sesalna višina iz odprte posode (20 °C)	m	0,5
Pritisk dotoka (maks.)	MPa	1
Podatki o zmogljivosti
Delovni tlak vode (s standardno šobo)	MPa	18	4...18,5	4...20
Velikost standardne šobe		053 050
Max. obratovalni nadtlak	MPa	23	22,5	22
Pretok	l/h (l/min)	900 (15)	450...890(7,5...14,8)	460...900(7,7...15)
Sesanje čistila	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ročne brizgalne pištole (maks.)	N	49
Ugotovljene vrednosti v skladu z EN 60335-2-79
Vrednost vibracij dlan-roka
Ročna brizgalna pištola	m/s2	<2,5
Brizgalna cev	m/s2	3,0		1,5
Negotovost K	m/s2	1
Nivo hrupa LpA	dB(A)	76		75
Negotovost KpA	dB(A)	2		1
Nivo hrupa ob obremenitviLWA+ negoto-vost KWA	dB(A)	91		88
Goriva
Količina olja	I	0,5 0,75
Vrsta olja		SAE 90 Hypoid
Mere in teža
Dolžina	mm	554
Širina	mm	509
Višina	mm	1000
Teža brez pribora (MX) kg	48,6	42,1 (49)	47 (55)	48 (50)

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

2006/42/WE (+2009/127/WE)

2014/30/UE

2000/14/WE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Dane techniczne

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

Directive UE respectate:

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

Norme armonizate utilize:

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997 + A2: 2008

EN 61000-3-2: 2014

EN 62233: 2008

HD 6/11, HD 6/15, HD 7/12, HD 7/18,

HD 9/19

EN 61000-3-3: 2006

HD 6/16, HD 9/20:

EN 61000-3-11:2000

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Date tehnice

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

→ Na pracovný nadstavec namontujte dýzu (značka na nastavovacom krúžku hore) a pevne utiahnite rukou (EASY!Lock).
→ Pracovný nadstavec spojte s ručnou striekacou pištoľou a pevne utiahnite rukou (EASY!Lock).

2006/42/ES (+2009/127/ES)

2014/30/EÚ

2000/14/ES

Uplatňované harmonizované normy:

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997 + A2: 2008

EN 61000-3-2: 2014

EN 62233: 2008

HD 6/11, HD 6/15, HD 7/12, HD 7/18, HD 9/19

EN 61000-3-3: 2006

HD 6/16, HD 9/20:

EN 61000-3-11:2000

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Technické údaje

www.kaercher.com/REACH

Prije prve uporabe

Raspakiravanje

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

→ Montirajte mlaznicu na cijev za prskanje (oznaka na prstenu mora biti gore) i zategnite je rukom (EASY!Lock).
→ Spojite cijev za prskanje s ručnom prskalicom i ručno ih pritegnite (EASY!Lock).

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

Primijenjene uskladene norme:

EN 60335-1
EN 60335-2-79
EN 55014-1: 2006+A1: 2009+A2: 2011
EN 55014-2: 1997 + A2: 2008
EN 61000-3-2: 2014
EN 62233: 2008

HD 6/11, HD 6/15, HD 7/12, HD 7/18, HD 9/19

EN 61000-3-3: 2006

HD 6/16, HD 9/20:

EN 61000-3-11: 2000

H. Jenner Chairman of the Board of Management

Opunomoćeni za izradu dokumentacije: S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnički podaci

Tip HD 6/11-4 M		1.524-901.0	HD 6/15-4 M1.524-907.0	HD 6/16-4 M1.524-900.01.524-903.01.524-909.0
				HD 6/16-4 MX1.524-904.0
GB AU EU
Priključak na električnu mrežu
Napon V 100 240 230
Vrsta struje Hz 1~ 50
Broj okretaja motora 1/min 1400
Priključna snaga kW 2,9 3,3 3,4
Osigurač (inertni, karakt. C) A 30 16
Zaštita IPX5
Maksimalno dozvoljena impedancija	Ohm	-		0,294+j0,184
Produžni kabel 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.)	°C	60
Dovodni protok (min.)	l/h (l/min)	600 (10)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa	1
Podaci o snazi
Radni tlak vod (sa standardnom mlazni-com)	MPa	3...11	3...15	3...16
Veličina mlaznice za standardnu mlazni-cu		045 040	038
Maks. radni pretlak	MPa	14	18	19
Protočna količina	l/h (l/min)	250...600(4,2...10)	300...600 (5...10)
Usisavanje sredstva za pranje	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ručne prskalice(maks.)	N	30
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci
Ručna prskalica	m/s2	<2,5
Cijev za prskanje	m/s2	<2,5
Nepouzdanost K	m/s2	1
Razina zvučnog tlaka LpA	dB(A)	69
Nepouzdanost KpA	dB(A)	1
Razina zvučne snage LWA + nepouzda-nost KWA	dB(A)	84
Radni mediji
Količina ulja	I	0,5
Vrsta ulja		SAE 15W40
Dimenzije i težine
Duljina	mm 554
Širina	mm 509
Visina	mm	1000
Težina bez pribora (MX)	kg	44,5	54	48 (50)
Tip HD 7/12-4 M		1.524-902.0	HD 7/16-4 M1.524-911.0	HD 7/18-4 M1.524-910.01.524-913.01.524-912.0
				HD 7/18-4 MX1.524-914.0
KAP KAP EU
Priključak na električnu mrežu
Napon V 220 400
Vrsta struje Hz 1~ 60 3~ 60 3~ 50
Broj okretaja motora 1/min 1400 1680 1400
Priključna snaga kW 3,5 4,1 4,7
Osigurač (inertni, karakt. C) A	20		16
Zaštita		IPX5
Maksimalno dozvoljena impedancija	Ohm	-	-	-
Produžni kabel 30 m	mm2	4,0 2,5 2	5
Priključak za vodu
Dovodna temperatura (maks.) °C		60
Dovodni protok (min.)	l/h (l/min)	700 (11,7)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa	1
Podaci o snazi
Radni tlak vod (sa standardnom mlazni-com)	MPa	3...12	3...16	3...18
Veličina mlaznice za standardnu mlazni-cu		054 045	042
Maks. radni pretlak	MPa	14 19	21
Protočna količina	l/h (l/min)	300...700 (5...11,67)
Usisavanje sredstva za pranje	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ručne prskalice (maks.)	N	30	35	37
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci
Ručna prskalica	m/s2	<2,5
Cijev za prskanje	m/s2	<2,5
Nepouzdanost K	m/s2	1
Razina zvučnog tlaka LpA	dB(A)	69	75
Nepouzdanost KpA	dB(A)	1
Razina zvučne snage LWA + nepouzda-nost KWA	dB(A)	84	90
Radni mediji
Količina ulja	I	0,5
Vrsta ulja		SAE 15W40	SAE 90 hipoidno
Dimenzije i težine
Duljina	mm	554
Širina	mm	509
Visina	mm	1000
Težina bez pribora (MX)	kg	47,5	44,5	49 (52)
Tip HD 9/18 M		1.524-916.0	HD9/19 M1.524-915.01.524-919.0	HD 9/20-4 M1.524-924.0
				HD 9/20-4 MX1.524-927.0
KAP EU EU
Priključak na električnu mrežu
Napon V 220 400
Vrsta struje Hz 3~ 60 3~ 50
Broj okretaja motora 1/min 3370 2800 1400
Priključna snaga kW 6,7 6,8 6,9
Osigurač (inertni, karakt. C) A 20		16
Zaštita		IPX5
Maksimalno dozvoljena impedancija	Ohm	-	-	0,222+j0,139
Produžni kabel 30 m	mm2	4,0	2,5
Priključak za vodu
Dovodna temperatura (maks.) °C		60
Dovodni protok (min.)	l/h (l/min)	900 (15)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni tlak (maks.)	MPa	1
Podaci o snazi
Radni tlak vod (sa standardnom mlazni-com)	MPa	18 4...18,5	4...20
Veličina mlaznice za standardnu mlaznicu		053		050
Maks. radni pretlak	MPa	23	22,5	22
Protočna količina	l/h (l/min)	900 (15)	450...890(7,5...14,8)	460...900(7,7...15)
Usisavanje sredstva za pranje	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ručne prskalice (maks.)	N	49
Utvrdene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci
Ručna prskalica	m/s2	<2,5
Cijev za prskanje	m/s2	3,0		1,5
Nepouzdanost K	m/s2	1
Razina zvučnog tlaka LpA	dB(A)	76		75
Nepouzdanost KpA	dB(A)	2		1
Razina zvučne snage LWA + nepouzda-nost KWA	dB(A)	91		88
Radni mediji
Količina ulja	I	0,5 0,75
Vrsta ulja		SAE 90 hipoidno
Dimenzije i težine
Duljina	mm	554
Širina	mm	509
Visina	mm	1000
Težina bez pribora (MX) kg 48,6	42,1 (49)		47 (55)	48 (50)

Pre prve upotrebe Vašeg uređaja pročitajte ove originalno

www.kaercher.com/REACH

Pre upotrebe

Raspakovavanje

– Prilikom raspakovavanja proverite sadržaj pakovanja.
– U slučaju oštećenja pri transportu odmah obavestite prodavca.

Provera nivoa ulja

→ Nivo ulja očitajte dok uređaj stoji. Nivo ulja mora da se nalazi iznad oba pokazivača.

Aktiviranje ispuštanja vazduha rezervoara za ulje

→ Odvijte pričvrsni zavrtanj poklopca uređaja i skinite poklopac.
→ Odsecite vrh poklopca rezervoara za ulje.
→ Pričvrstite poklopac motora.

Montaža pribora

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

→ Montirati mlaznicu na cev za prskanje (oznaka na prstenu gore) i pritegnuti rukom (EASY!Lock).
→ Povezati cev za prskanje sa ručnom prskalicom i pritegnuti rukom (EASY!Lock).

Kod uređaja bez doboša za namotavanje creva:

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

Primenjene uskladene norme:

EN 60335-1

EN 60335-2-79

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997 + A2: 2008

EN 61000-3-2: 2014

EN 62233: 2008

HD 6/11, HD 6/15, HD 7/12, HD 7/18, HD 9/19

EN 61000-3-3: 2006

HD 6/16, HD 9/20:

EN 61000-3-11: 2000

H. Jenner Chairman of the Board of Management

Opunomoćeni za izradu dokumentacije: S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnički podaci

Tip HD 6/11-4 M		1.524-901.0	HD 6/15-4 M1.524-907.0	HD 6/16-4 M1.524-900.01.524-903.01.524-909.0
				HD 6/16-4 MX1.524-904.0
GB AU EU
Priključak na električnu mrežu
Napon V 100 240 230
Vrsta struje Hz 1~ 50
Broj obrtaja motora 1/min 1400
Priključna snaga kW 2,9 3,3 3,4
Osigurač (inertni, karakt. C) A 30 16
Stepen zaštite		IPX5
Maksimalno dozvoljena impedancija	Ohm	-		0,294+j0,184
Produžni kabl 30 m	mm2	2,5
Priključak za vodu
Dovodna temperatura (maks.) °C		60
Dovodni protok (min.) l/h (l/min) 600 (10)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.)	MPa	1
Podaci o snazi
Radni pritisak vode (sa standardnom mlaznicom)	MPa	3...11	3...15	3...16
Veličina mlaznice kod standardne mlaznice		045 040 038
Maks. radni nadpritisak	MPa	14	18	19
Protočna količina	l/h (l/min)	250...600(4,2...10)	300...600 (5...10)
Usisavanje deterdženta	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ručne prskalice (maks.)	N	30
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci
Ručna prskalica m/s	2	<2,5
Čev za prskanje	m/s2	<2,5
Nepouzdanost K	m/s2	1
Nivo zvučnog pritiska LpA	dB(A)	69
Nepouzdanost KpA	dB(A)	1
Nivo zvučne snage LWA + nepouzdanost KWA	dB(A)	84
Radni mediji
Količina ulja	I	0,5
Vrsta ulja		SAE 15W40
Dimenzije i težine
Dužina	mm 554
Širina	mm 509
Visina	mm	1000
Težina bez pribora (MX)	kg	44,5	54	48 (50)
Tip HD 7/12-4 M		1.524-902.0	HD 7/16-4 M1.524-911.0	HD 7/18-4 M1.524-910.01.524-913.01.524-912.0
				HD 7/18-4 MX1.524-914.0
KAP KAP			EU
Priključak na električnu mrežu
Napon V 220 400
Vrsta struje Hz 1~ 60 3~ 60 3~ 50
Broj obrtaja motora 1/min 1400 1680 1400
Priključna snaga kW 3,5 4,1 4,7
Osigurač (inertni, karakt. C) A	20		16
Stepen zaštite		IPX5
Maksimalno dozvoljena impedancija	Ohm	---
Produžni kabl 30 m mm	2	4,0 2,5 2,5
Priključak za vodu
Dovodna temperatura (maks.) °C		60
Dovodni protok (min.)	l/h (l/min)	700 (11,7)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.)	MPa	1
Podaci o snazi
Radni pritisak vode (sa standardnom mlaznicom)	MPa	3...12 3...16	3...18
Veličina mlaznice kod standardne mlaznice		054	045 042
Maks. radni nadpritisak	MPa	14 19 21
Protočna količina	l/h (l/min) 3	00...700 (5...11,67)
Usisavanje deterdženta	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ručne prskalice (maks.)	N	30	35	37
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci
Ručna prskalica	m/s2	<2,5
Cev za prskanje	m/s2	<2,5
Nepouzdanost K	m/s2	1
Nivo zvučnog pritiska LpA	dB(A) 69		75
Nepouzdanost KpA	dB(A)	1
Nivo zvučne snage LWA + nepouzdanost KWA	dB(A) 84		90
Radni mediji
Količina ulja	I	0,5
Vrsta ulja		SAE 15W40	SAE 90 hipoidno
Dimenzije i težine
Dužina	mm	554
Širina	mm	509
Visina	mm	1000
Težina bez pribora (MX)	kg	47,5	44,5	49 (52)
Tip HD 9/18 M		1.524-916.0	HD9/19 M1.524-915.01.524-919.0	HD 9/20-4 M1.524-924.0
				HD 9/20-4 MX1.524-927.0
KAP EU EU
Priključak na električnu mrežu
Napon V 220 400
Vrsta struje Hz 3~ 60 3~ 50
Broj obrtaja motora 1/min 3370 2800 1400
Priključna snaga kW 6,7 6,8 6,9
Osigurač (inertni, karakt. C) A 20		16
Stepen zaštite		IPX5
Maksimalno dozvoljena impedancija	Ohm	-	-	0,222+j0,139
Produžni kabl 30 m	mm2	4,0	2,5
Priključak za vodu
Dovodna temperatura (maks.) °C		60
Dovodni protok (min.)	l/h (l/min)	900 (15)
Visina usisavanja iz otvorenih posuda (20°C)	m	0,5
Dovodni pritisak (maks.)	MPa	1
Podaci o snazi
Radni pritisak vode (sa standardnom mlaznicom)	MPa	18 4...18	5 4...20
Veličina mlaznice kod standardne mlaznice		053 050
Maks. radni nadpritisak	MPa	23	22,5	22
Protočna količina	l/h (l/min)	900 (15)	450...890(7,5...14,8)	460...900(7,7...15)
Usisavanje deterdženta	l/h (l/min)	0...40 (0...0,7)
Povratna udarna sila ručne prskalice (maks.)	N	49
Izračunate vrednosti prema EN 60335-2-79
Vrednost vibracije na ruci
Ručna prskalica	m/s2	<2,5
Cev za prskanje	m/s2	3,0		1,5
Nepouzdanost K	m/s2	1
Nivo zvučnog pritiska LpA	dB(A)	76		75
Nepouzdanost KpA	dB(A)	2		1
Nivo zvučne snage LWA + nepouzdanost KWA	dB(A)	91		88
Radni mediji
Količina ulja	I	0,5 0,75
Vrsta ulja		SAE 90 hipoidno
Dimenzije i težine
Dužina	mm	554
Širina	mm	509
Visina	mm	1000
Težina bez pribora (MX)	kg	48,6	42,1 (49)47 (55)	48 (50)

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

H. Jenner Chairman of the Board of Management

Winnenden, 2019/04/01

Технически данни

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered annotations indicating component placement.

Toode: Körgsurvepesur

Tüüp: 1.524-xxx

H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehnilised andmed

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Tehniskie dati

www.kaercher.com/REACH

Prieš pradedant naudoti

Išpakavimas

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating process flow.

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Techniniai duomenys

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

www.kaercher.com/REACH

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating assembly direction.

H. Jenner Chairman of the Board of Management

Penyusun dokumen yang berwenang:

S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2019/04/01

Data Teknis

Jenis HD 6/11-4 M		1.524-901.0	HD 6/15-4 M1.524-907.0	HD 6/16-4 M1.524-900.01.524-903.01.524-909.0
				HD 6/16-4 MX1.524-904.0
GB AU EU
Catu daya
Tegangan V 100 240 230
Tipe arus listrik Hz 1~50
Putaran mesin rpm 1400
Daya sambungan kW 2,9 3,3 3,4
Perlindungan (inersia, Char. C) A 30 16
Jenis pelindung IPX5
Daya maksimal yang diizinkan	Ohm	-		0,294+j0,184
Kabel ekstensi 30 m	mm^2	2,5
Sambungan air
Temperatur masuk (maks.)	°C	60
Jumlah masuk (min.)	l/h (l/min)	600 (10)
Ketinggian penyedotan air dari tangki air yang terbuka (20 °C)	m	0,5
Tekanan masuk (maks.)	MPa	1
Data kinerja
Tekanan kerja air (dengan nosel standar)	MPa	3...11	3...15	3...16
Ukuran nozzle standar		045 040 038
Tekanan lebih pengoperasian maks.	MPa	14	18	19
Volume pengiriman	l/h (l/min)	250...600(4,2...10)	300...600 (5...10)
Penyedotan bahan pembersih	l/h (l/min)	0...40 (0...0,7)
Kekuatan pantulan balik pistol penyemprot (maks.)	N	30
Penentuan nilai menurut EN 60335-2-79
Nilai getaran tangan-lengan
Pistol penyemprot	m/s^2	<2,5
Pipa penyemprot	m/s^2	<2,5
Ketidakstabilan K	m/s^2	1
Tingkat tekanan suara L_pA	dB(A)	69
Ketidakstabilan K_pA	dB(A) 1
Tingkat kekuatan suara L_WA + Ketidakstabilan K_WA	dB(A)	84
Cairan pengoperasian
Jumlah oli l	0,5
Tipe oli		SAE 15W40
Berat dan Ukuran
Panjang	mm 554
Lebar	mm 509
Tinggi	mm	1000
Bobot tanpa aksesori (MX)	kg	44,5	54	48 (50)
Jenis HD 7/12-4 M		1.524-902.0	HD 7/16-4 M 1.524-911.0	HD 7/18-4 M 1.524-910.0 1.524-913.0 1.524-912.0
				HD 7/18-4 MX 1.524-914.0
KAP KAP			EU
Catu daya
Tegangan V 220 400
Tipe arus listrik Hz 1~ 60 3~ 60 3~ 50
Putaran mesin rpm 1400 1680 1400
Daya sambungan kW 3,5 4,1 4,7
Perlindungan (inersia, Char. C) A 20		16
Jenis pelindung		IPX5
Daya maksimal yang diizinkan	Ohm	-	-	-
Kabel ekstensi 30 m	mm2	4,0 2,5 2	5
Sambungan air
Temperatur masuk (maks.)	°C	60
Jumlah masuk (min.)	l/h (l/min)	700 (11,7)
Ketinggian penyedotan air dari tangki air yang terbuka (20 °C)	m	0,5
Tekanan masuk (maks.)	MPa	1
Data kinerja
Tekanan kerja air (dengan nosel standar)	MPa	3...12	3...16	3...18
Ukuran nozzle standar		054 045	042
Tekanan lebih pengoperasian maks.	MPa	14	19	21
Volume pengiriman	l/h (l/min)	300...700 (5...11,67)
Penyedotan bahan pembersih	l/h (l/min)	0...40 (0...0,7)
Kekuatan pantulan balik pistol penyemprot (maks.)	N	30	35	37
Penentuan nilai menurut EN 60335-2-79
Nilai getaran tangan-lengan
Pistol penyemprot	m/s2	<2,5
Pipa penyemprot	m/s2	<2,5
Ketidakstabilan K	m/s2	1
Tingkat tekanan suara LpA	dB(A)	69	75
Ketidakstabilan KpA	dB(A)	1
Tingkat kekuatan suara LWA + Ketidakstabilan KWA	dB(A)	84	90
Cairan pengoperasian
Jumlah oli l	0,5
Tipe oli		SAE 15W40	SAE 90 Hypoid
Berat dan Ukuran
Panjang	mm	554
Lebar	mm	509
Tinggi	mm	1000
Bobot tanpa aksesori (MX)	kg	47,5	44,5	49 (52)
Jenis HD 9/18 M		1.524-916.0	HD9/19 M1.524-915.01.524-919.0	HD 9/20-4 M1.524-924.0
				HD 9/20-4 MX1.524-927.0
KAP EU EU
Catu daya
Tegangan V 220 400
Tipe arus listrik Hz 3~ 60 3~ 50
Putaran mesin rpm 3370 2800 1400
Daya sambungan kW 6,7 6,8 6,9
Perlindungan (inersia, Char. C) A 20 16
Jenis pelindung		IPX5
Daya maksimal yang diizinkan	Ohm	-	-	0,222+j0,139
Kabel ekstensi 30 m	mm2	4,0	2,5
Sambungan air
Temperatur masuk (maks.)	°C	60
Jumlah masuk (min.)	l/h (l/min)	900 (15)
Ketinggian penyedotan air dari tangki air yang terbuka (20 °C)	m	0,5
Tekanan masuk (maks.) MPa		1
Data kinerja
Tekanan kerja air (dengan nosel standar)	MPa	18	4...18,5	4...20
Ukuran nozzle standar		053 050
Tekanan lebih pengoperasian maks.	MPa	23	22,5	22
Volume pengiriman	l/h (l/min)	900 (15)	450...890(7,5...14,8)	460...900(7,7...15)
Penyedotan bahan pembersih	l/h (l/min)	0...40 (0...0,7)
Kekuatan pantulan balik pistol penyemprot (maks.)	N	49
Penentuan nilai menurut EN 60335-2-79
Nilai getaran tangan-lengan
Pistol penyemprot	m/s2	<2,5
Pipa penyemprot	m/s2	3,0		1,5
Ketidakstabilan K	m/s2	1
Tingkat tekanan suara LpA	dB(A)	76 75
Ketidakstabilan KpA	dB(A)	2		1
Tingkat kekuatan suara LWA+ Ketidakstabilan KWA	dB(A)	91 88
Cairan pengoperasian
Jumlah oli l 0,5 0,75
Tipe oli		SAE 90 Hypoid
Berat dan Ukuran
Panjang	mm	554
Lebar	mm	509
Tinggi	mm	1000
Bobot tanpa aksesori (MX)	kg	48,6	42,1 (49)47 (55)	48 (50)

Icon showing a gear and wrench inside a square frame (no text or symbols)

http://www.kaercher.com/dealersearch

QR code image with a central logo, likely linking to a digital resource or website.
