| Product Type | Indoor luminaire with HF motion detector |
| Brand | Steinel |
| Model | RS PRO 5100 SC |
| Dimensions (H × W × D) | 58 × 1370 × 87 mm |
| Power supply | 220-240 V / 50/60 Hz |
| Power consumption | 31 W |
| Luminous flux | 4250 lm |
| Color temperature | 4000 K (neutral white) |
| Color rendering index (Ra) | 82 |
| Power factor | 0.93 |
| Nominal lifetime (L70B50 at 25°C) | 60,000 hours |
| Protection rating | IP65 |
| Protection class | II |
| Housing material | PC IK07 |
| Detection technology | High-frequency 5.8 GHz |
| Detection angle | 360° with 160° beam angle |
| Detection range | 1 to 10 m (adjustable) |
| Max. installation height | 3.5 m |
| Max. covered area | Approximately 50 m² |
| Adjustable trigger threshold range | 2 to 2000 lux |
| Adjustable time delay | 5 s to 60 min |
| Adjustable orientation light | 10 to 50% |
| Adjustable main light | 50 to 100% |
| Allowable ambient temperature | -20 °C to +40 °C |
| Standby power consumption (Psb) | 0.40 W |
| Connectivity | Bluetooth 2.4-2.48 GHz (via Steinel Connect app) |
| Maintenance | Cleaning with a damp cloth (no detergent); the light source cannot be replaced |
| Installation | To be carried out by a specialist, cut off power supply before intervention |
Frequently Asked Questions - RS PRO 5100 SC STEINEL
User questions about RS PRO 5100 SC STEINEL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lamp in PDF format for free! Find your manual RS PRO 5100 SC - STEINEL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RS PRO 5100 SC by STEINEL.

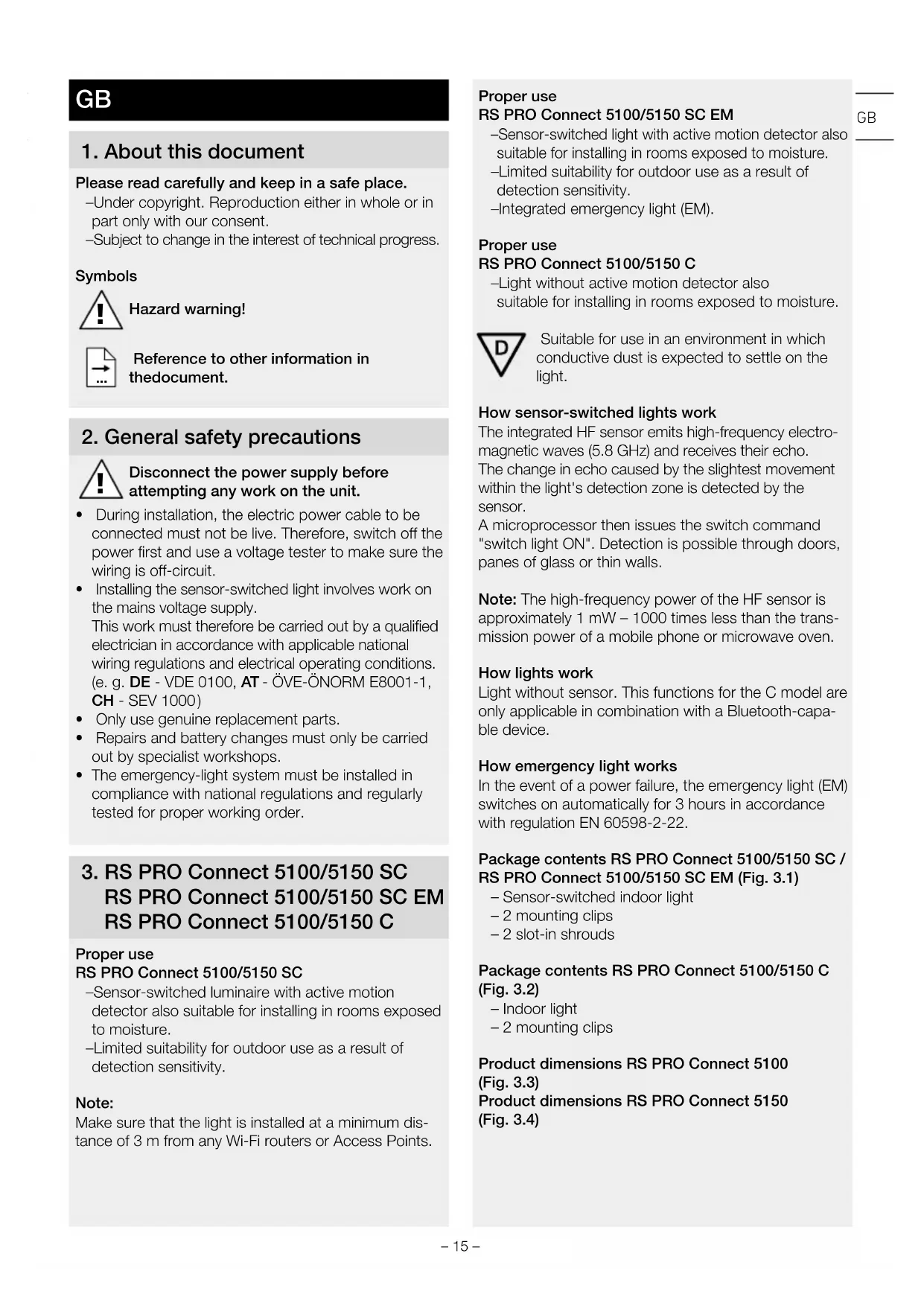

USER MANUAL RS PRO 5100 SC STEINEL
GB 12 Follow written instructions!
Start-Up/Spanningsunterbrechung
Please read carefully and keep in a safe place.
-Under copyright. Reproduction either in whole or in part only with our consent.
-Subject to change in the interest of technical progress.
Symbols
Hazard warning!
Reference to other information in thedocument.
2. General safety precautions
Disconnect the power supply before attempting any work on the unit.
- During installation, the electric power cable to be connected must not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit.
-
Installing the sensor-switched light involves work on the mains voltage supply. This work must therefore be carried out by a qualified electrician in accordance with applicable national wiring regulations and electrical operating conditions. (e.g. DE - VDE 0100, AT - ÖVE-ÖNORM E8001-1, CH - SEV 1000)
-
Only use genuine replacement parts.
- Repairs and battery changes must only be carried out by specialist workshops.
- The emergency-light system must be installed in compliance with national regulations and regularly tested for proper working order.
3. RS PRO Connect 5100/5150 SC RS PRO Connect 5100/5150 SC EM RS PRO Connect 5100/5150 C
Proper use
RS PRO Connect 5100/5150 SC
-Sensor-switched luminaire with active motion detector also suitable for installing in rooms exposed to moisture.
-Limited suitability for outdoor use as a result of detection sensitivity.
Note:
Make sure that the light is installed at a minimum distance of 3m from any Wi-Fi routers or Access Points.
Proper use
RS PRO Connect 5100/5150 SC EM
-Sensor-switched light with active motion detector also suitable for installing in rooms exposed to moisture.
-Limited suitability for outdoor use as a result of detection sensitivity.
-Integrated emergency light (EM).
Proper use
RS PRO Connect 5100/5150 C
Light without active motion detector also suitable for installing in rooms exposed to moisture.
Suitable for use in an environment in which conductive dust is expected to settle on the light.
How sensor-switched lights work
The integrated HF sensor emits high-frequency electromagnetic waves (5.8 GHz) and receives their echo. The change in echo caused by the slightest movement within the light's detection zone is detected by the sensor.
A microprocessor then issues the switch command "switch light ON". Detection is possible through doors, panes of glass or thin walls.
Note: The high-frequency power of the HF sensor is approximately 1 mW - 1000 times less than the transmission power of a mobile phone or microwave oven.
How lights work
Light without sensor. This functions for the C model are only applicable in combination with a Bluetooth-capable device.
How emergency light works
In the event of a power failure, the emergency light (EM) switches on automatically for 3 hours in accordance with regulation EN 60598-2-22.
Package contents RS PRO Connect 5100/5150 SC / RS PRO Connect 5100/5150 SC EM (Fig. 3.1)
- Sensor-switched indoor light
-2 mounting clips - 2 slot-in shrouds
Package contents RS PRO Connect 5100/5150 C (Fig.3.2)
- Indoor light
-2 mounting clips
Product dimensions RS PRO Connect 5100 (Fig.3.3)
Product dimensions RS PRO Connect 5150 (Fig.3.4)
Product components
RS PRO Connect 5100/5150 SC /
RS PRO Connect 5100/5150 SC EM (Fig. 3.5)
A Screwed cable gland
B Twist lock
C Connecting terminal
D Mounting clamp
E End caps
F Light enclosure
G HF sensor
H Slot-in shroud
Product components
RS PRO Connect 5100/5150 C (Fig. 3.6)
A Screwed cable gland
B Twist lock
C Connecting terminal
D Mounting clip
E End caps
F Light enclosure
Detection zones for ceiling mounting 1 - 10m
(Fig. 3.7)
Detection zones for wall mounting 1 - 10m (Fig.3.8)
Luminous intensity distribution: (Fig. 3.9 - 3.14)
4. Electrical connection
Wiring diagram (Fig. 4.1)
The supply lead consist of three wires:
L = phase conductor (usually black, brown or grey)
N = neutral conductor (usually blue)
E = protective-earth conductor (green/yellow)
If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again. Connect phase (L), neutral conductor (N) and protective-earth conductor (E) to the plug-in terminal.
Important:
Incorrectly wired connections will produce a short circuit later on in the product or your fuse box. In this case, you must identify the individual conductors once again and reconnect them.
A mains power switch for turning the unit ON and OFF may of course be installed in the mains supply lead.
Note: The light source of this light cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete light must be replaced.
5. Mounting
- Check all components for damage.
- Do not use the product if it is damaged.
- When installing the sensor-switched light, make sure the installation site is not exposed to vibration.
- Select an appropriate mounting location, taking the reach and motion detection into consideration.
Note: for wall mounting, the light must be installed horizontally.
Mounting procedure
- Switch OFF power supply (Fig. 4.1)
Mark drill holes (Fig. 5.1) - Drill holes and insert wall plugs (Fig. 5.2)
- Screw on mounting clips (Fig. 5.3)
- Fit light enclosure (Fig. 5.4)
- A click confirms proper engagement
- Open screwed cable gland and twist lock (Fig. 5.5)
- Guide connecting cable through screwed cable gland and twist lock and connect to plug-in terminal (Fig. 5.6)
- Close screwed cable gland and twist lock (Fig. 5.7)
- Switch ON power supply (Fig. 5.7)
6. Function
Factory settings (as delivered)
-Reach setting: max.
-Main light time setting: 10 sec.
-Basic light time setting: 1 min
-Twilight setting: 2000 lux
-Basic light dimming level: 50%
Please refer to the technical documentation at: www.steinel.de to put the product into reference mode.
To configure the light, you must download the STEINEL Connect app from your app store. You will need a Bluetooth-capable smartphone or tablet.
Android
iOS
If the light is not configured with the app, it will work as an independent sensor-switched light with the given factory settings.
DC operation
During DC operation, the light output is set to 100% .
Start-up/interruption to power
If the connection to the mains voltage is interrupted, the settings and current operating status of the light will be saved and restored once the power supply is re-established.
Reach adjustment
The reach setting can be infinitely varied between 1 and 10m . Reach can be reduced in four directions by fitting the slot-in shrouds included.
- Open twist lock (Fig. 6.1)
- Pull end cap out by approx. 7 cm. Screwed cable gland need not be undone. (Fig. 6.2)
- Fit slot-in shrouds (Fig. 6.3)
- Push end cap back and close twist lock (Fig. 6.4)
Reach setting examples (Fig. 6.5)
This function for the C models is only applicable in combination with a Bluetooth-capable device.
Time setting
The light's ON time can be set to any period from 5 seconds to 60 minutes. Any movement detected before this time elapses will restart the timer.
This function for the C models is only applicable in combination with a Bluetooth-capable device.
Basic light level
The brightness of the basic light level setting can be varied between 10% and 50% .
The period for which the basic light level remain ON can be infinitely varied between 10 minutes and 30 minutes, or set to remain ON all night.
Main light level
The brightness of the main light level setting can be varied between 50% and 100% .
Twilight setting
The chosen response threshold can be infinitely varied from 2 to 2000 lux.
This function for the C models is only applicable in combination with a Bluetooth-capable device.
Grouping
The RS PRO 5100/5150 SC / RS PRO 5100/5150 SC EM / RS PRO 5100/5150 C can be operated as a separate luminaire or several luminaires can be interconnected in groups via wireless communication.
In each group, a group master must be defined in the Steinel Connect App. All luminaires in a group operate in the same way as the group master is configured. Reach can be set individually for all luminaires in the lighting group.
Cyclical battery checks limit the suitability of the RS PRO 5100/5150 SC EM as group master. The sensor is deactivated during the self-testing phases. This means that the luminaire is unable to detect movement during this period.
This function for the C models is only applicable in combination with a Bluetooth-capable device.
Fade Time
Fade Time can be used to set the rate of dimming when switching the light ON and OFF (1 s - 3 s).
Neighbouring-light function
The neighbouring-light function can be activated and deactivated via the Steinel Connect App. This function assigns the neighbouring groups to the active lighting group. The active group responds to activation signals from the neighbouring group assigned to it and switches to main light or basic light as defined in the settings.
Emergency light (EM)
The "Emergency light (EM) status indicator" is provided in the form of a two-colour status LED at the sensor-switched luminaire.
-Status LED intermittent green:
Rechargeable battery regeneration
-Status LED permanently green:
No malfunction / normal state
-Status LED permanently flashing red:
Rechargeable battery faulty / battery charge too low
-Status LED intermittently flashing red:
Light not connected or faulty
-Status LED dark:
Mains power or emergency light control gear faulty
7. Maintenance and care
Maintenance
For maintenance and inspection, follow the regulations and standards applicable to the emergency light at the place of installation. Emergency lights and emergency-light control gear must be checked at regular intervals.
Startup
Started up by:
Startup date:
Self-tests "EM"
- The self-tests for the sensor-switched luminaire, status LEDs and rechargeable batteries are performed automatically about every 8 days.
-Self-testing battery capacity by simulating a mains power failure is done four times a year.
The sensor-switched luminaire continues to provide main light illumination and sensor detection during the test.
The self-test is no substitute for the function check prescribed in national regulations for emergency-light illumination.
Checks by the user "(EM)"
- The LED status indicator as well as sensor-switched luminaire must be visually checked for proper working order once a month.
Changing rechargeable batteries "EM")
The rechargeable batteries must be replaced if the emergency-light module's status LED permanently flashes red.
- Rechargeable batteries must be changed by the manufacturer. Customer service: STEINEL (UK) Limited 25 Manasty Road, Axis Park Orton Southgate Peterborough, PE2 6UP Service Hotline: 01733 366700
- Contact the manufacturer beforehand to make sure that the relevant replacement luminaire is available. Two options:
-Replacement with a sensor-switched luminaire overhauled by STEINEL with new rechargeable batteries (flat-rate service charge).
-Replacement with a new sensor-switched luminaire (concessionary purchase price).
- Then send back removed sensor-switched luminaire.
Battery regeneration "EM")
After starting up for the first time (also after changing rechargeable battery or rectifying a fault) the emergency-light control gear regenerates the rechargeable batteries automatically.
Three cycles are carried out. A cycle consists of a 24-hour battery charge and full discharge via the sensor-switched luminaire in emergency mode. Battery capacity is not measured while cycles are in progress. The battery regeneration process is neither carried out after the rechargeable battery discharges in the normal way nor after self-testing battery capacity.
Cleaning
The sensor-switched luminaire can be cleaned with a damp cloth (without detergents) if dirty.
Important: The control gear cannot be replaced.
8. Disposal
Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.
Do not dispose of electrical and electronic equipment as domestic waste.
EU countries only:
Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.
9. Declaration of Conformity
Hereby, STEINEL Vertrieb GmbH declares that the radio equipment type RS PRO 5100/5150 SC / RS PRO 5100/5150 SC EM is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de
10. Product liability
The requirements defined in standard EN60598-1 regarding safety must be met after installing the emergency lighting luminaire. The user of the emergency-light control gear is responsible for meeting this standard.
The manufacturer shall not accept any liability in the event of failure to observe this standard.
STEINEL shall accept no liability for direct, indirect or incidental damage resulting from improper use or use not expressly permitted by STEINEL. STEINEL not accept any liability either for damage claims made by third parties on the basis of improper use or use not expressly permitted by STEINEL. The emergency-light control gear must not be opened or in any way modified. Components of the emergency luminaires must only be replaced with genuine replacement parts and by STEINEL itself.
If the emergency-light control gear shows damage suggesting that any safety operation cannot be ensured, the sensor-switched luminaires must not be put into operation. STEINEL reserves the right to change depictions, weights, dimension tables or other such details in the catalogue or operating instructions without notice if this is shown to be appropriate or is the result of technical progress.
11. Manufacturer's Warranty
As purchaser, you are entitled to your statutory rights against the vendor. If these rights exist in your country, they are neither curtailed nor restricted by our Warranty Declaration. We guarantee that your STEINEL Professional sensor product will remain in perfect condition and proper working order for a period of 5 years.
We guarantee that this product is free from material, manufacturing- and design flaws. In addition, we guarantee that all electronic components and cables function in the proper manner and that all materials used and their surfaces are without defects.
Making Claims
If you wish to make a claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or contact us at STEINEL (UK) Limited, 25 Manasty Road, Axis Park, Orton Southgate, Peterborough, PE2 6UP, for a returns number. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires. STEINEL shall assume no liability for the costs or risks involved in returning a product.
For information on making claims under the terms of the warranty, please go to www.steinel-professional.de/garantie
If you have a warranty claim or would like to ask any question regarding your product, you are welcome to call us at any time on our Service Hotline 01733 366700.
12. Technical specifications
| RS PRO 5100/5150 SC RS PRO 5100/5150 SC EM RS PRO 5100/5150 C | |||
| Dimensions(H × L × W) | RS PRO 5100: 58 × 1370 × 87 mmRS PRO 5150: 58 × 1500 × 87 mm | ||
| Power supply 220-240 V / 50/60 Hz | |||
| Power consumption(Pon) | RS PRO 5100: 31 W / 4250 lm / 137 lm/WRS PRO 5150: 42 W / 5900 lm / 140 lm/W | ||
| Colour temperature 4,000 K (neutral white) | |||
| Colour rendering index R | a = 82 | ||
| Colour consistencySDCM | Initial value: 3 | ||
| Power factor 0.93 | |||
| Mains current RS PRO 5100: 142mA | RS PRO 5150: 194mA | ||
| Average rated life expectancy | L70B50 at 25°C: 60,000 hrs | ||
| Luminous intensity distribution | RS PRO 5100 SCRS PRO 5150 SC | RS PRO 5100 SC EMRS PRO 5150 SC EM | RS PRO 5100 CRS PRO 5150 C |
| HF technology 5.8 GHz (responds to the slightest movement regardless of temperature) | - | ||
| Angle of coverage | 360°, with 160° angle of aperture(if applicable, through glass, wood or stud walls) | - | |
| Mounting height | max. 3.5 m | - | |
| Reach | Ø 1-10 m | - | |
| Max. area covered | approx. 50 m² | ||
| Basic light level | 10-50% | - | |
| Main light level | 50-100 % | - | |
| Time setting | 5 sec - 60 min + install mode | - | |
| Twilight setting | 2-2000 lux + teach-in mode | - | |
| Ambient temperature | -20°C to +40°C | ||
| IP rating | IP 66 | ||
| Protection class | II | ||
| Material | PC IK07 | ||
| Standby, network (Pnet) 0.40 W | |||
| Standby, sensor (Pst) | 0.40 W | ||
| Through-wiring max. 16 | A | ||
| Bluetooth frequency 2.4 | 2.48 GHz | - | |
| Bluetooth transmitter power | 5 dBm / 3 mW | - | |
| Emergency-light battery type | - | Lithium iron phosphate (LFP) | - |
| Operating voltage | - | 3.2 V | - |
| Emergency-light output | - | 4 W / 687 lm | - |
| Emergency lighting duration | - | 3 h1 | - |
| Energy efficiency class | This product contains a light source of energy efficiency class “C” | ||
1 Maximum capacity only ensured by using rechargeable batteries provided.
13. Troubleshooting
| Malfunction Cause Remedy | ||
| Sensor-switched light without power | ■ Fuse has tripped, not switched ON, break in wiring | ■Activate, change fuse, turn ON mains switch, check wiring with voltage tester |
| ■Short circuit in mains power supply lead | ■Check connections | |
| ■Any mains switch off | ■Switch on mains power switch | |
| Sensor-switched light will not switch ON | ■Incorrect twilight setting selected | ■Adjust setting |
| ■Mains switch OFF | ■Switch on | |
| ■Fuse has tripped | ■Activate, change fuse, check connection if necessary | |
| Sensor-switched light will not switch OFF | ■Continuous movement in the detection zone | ■Check zone |
| Sensor-switched light switches ON without any identifiable movement | ■Sensor-switched light installed on a surface exposed to vibration | ■Securely mount enclosure |
| ■Movement occurred, but not identified by the observer (movement behind wall, movement of a small object in immediate lamp vicinity etc.) | ■Check zone | |
| Sensor-switched light does not switch ON despite movement | ■Rapid movements are being suppressed to minimise malfunctioning or the detection zone you have set is too small | ■Check zone |
| ■Mains power supply lead connected the wrong way round (L and N) | ■Check connections L and N or test phase | |
| Status LED permanently flashes red | ■Rechargeable battery faulty (insufficient capacity or break in battery supply cable) | ■Wait for battery to recharge (alarm is reset as soon as the fault is rectified). |
| Status LED intermittently flashes red (only shows after next self-test) | ■Sensor-switched luminaire not connected | ■Connect sensor-switched luminaire |
| ■Sensor-switched luminaire faulty | ■Replace sensor-switched luminaire | |
| Status LED dark despite connection with mains power supply (longer than 5 min.) | ■Supply voltage faulty | ■Check mains power and make sure it is switched ON |
| ■Emergency light control gear faulty | ■Replace emergency light control gear | |
| Emergency light LED OFF | ■No mains power | ■Check mains power and make sure it is switched ON |
| ■Mains power has been interrupted for at least 4 h | ||
| ■Emergency light faulty | ■Replace sensor-switched luminaire | |
FR
Netspanning of moodlicht-driver defect
Akun elvytys " (EM)"
8, Aristofanous Street, GR-10554 Athens
Telefon: +30 210 321 2021
lygonis@otenet.gr
Hatotavolsagbeallitas
Vymena akumulatoru ,(EM)"
Regenerate accumulator ,(EM)"
VP ELEKTRO-PROJEKT D.O.O.
SREDNJE BITNJE 70
4209 ZABNICA
Tel.: 040 856-555 / 059 365-750 (-751 / -752)
www.veleprodaja-ep.si
Tehaseseaded (tarneseisund)
-Ulatuskauguse seadistus: max
-Peavalguse ajaseadistus: 10 sek
-Pohivalguse ajaseadistus: 1 min
-Hämaruseseadistus: 2000 lx
-Pohivalguse hammadustase: 50%
Toote seadmiseks referentsmoodusesse tuleb tehniline dokumentatsion aadressil: www.steinel.de ette kutsuda.
Valgusti konfigurerimiseks tuleb Steinel Connect App
oma AppStore'ist alla laadida. Vajalik on Bluetooth
voimeline nutitelefon voi tahvelarvuti.
Android
iOS
