USER MANUAL PRF0171196 ELICA

Ø 4,5x36mm Ø 2,9x9,5mm

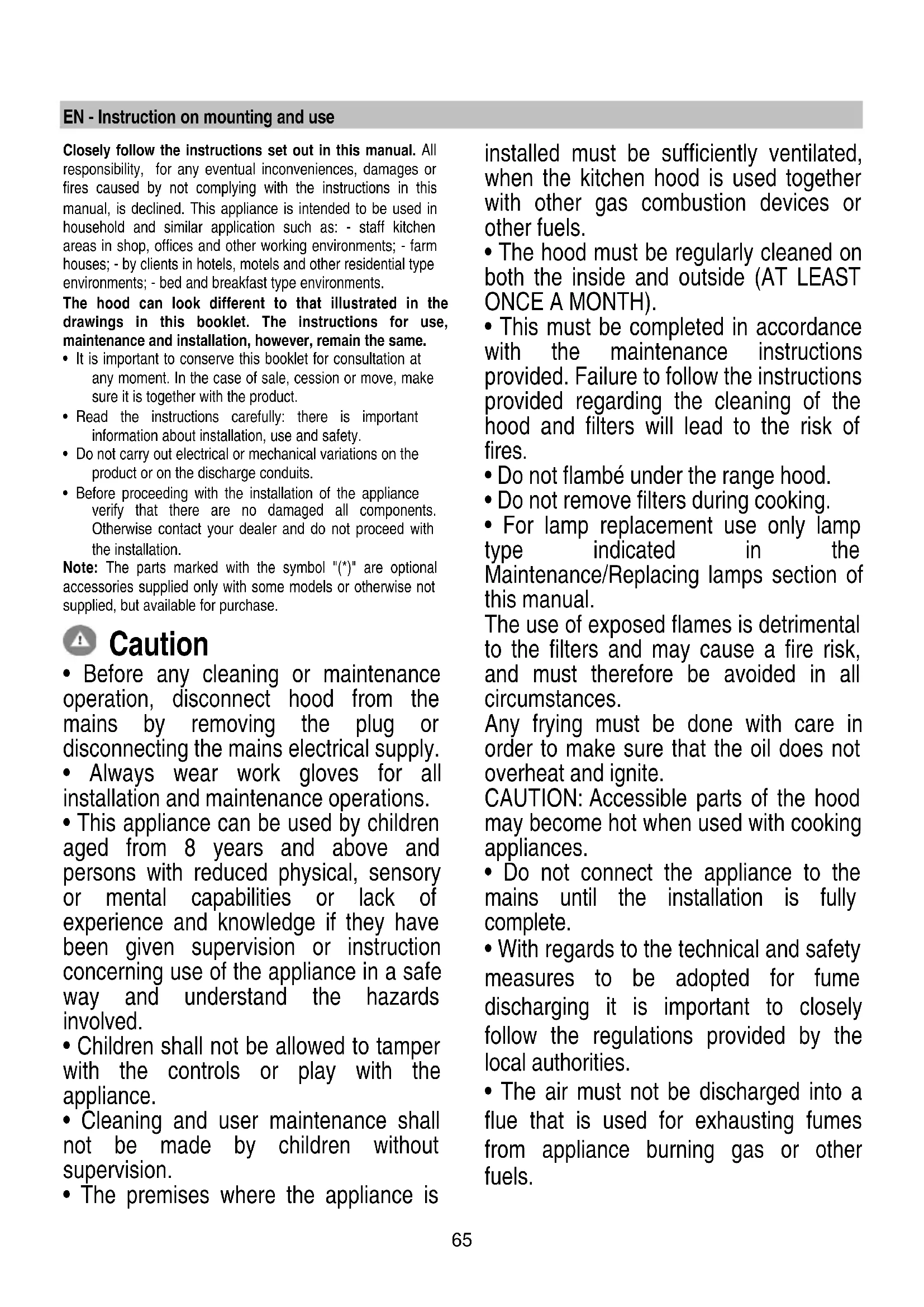

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

• Read the instructions carefully: there is important information about installation, use and safety.

• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation. Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase. Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

• Always wear work gloves for all installation and maintenance operations.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed to tamper with the controls or play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

• Do not flambé under the range hood.

• Do not remove filters during cooking.

• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.

• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.66 WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

• Never use the hood without effectively mounted grids.

• The hood must NEVER be used as a support surface unless specifically indicated.

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.

• In case of doubt, consult an authorized service assistance center or similar qualified person. WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically. Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions. WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled. Warining! Changing the interconnection cable must be carried out by the authorised technical assistance service.

• The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

• This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).

• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.67 Appliance designed, tested and manufactured according to:

• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise. Use The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use. The hood is designed to be used either for exhausting or filter version. Extraction version In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood. CAUTION! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION! If the hood is supplied with active charcoal filter, then it must be removed. Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange). Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise. Any responsibility in the matter is therefore declined. ! Use a duct of the minimum indispensable length. ! Use a duct with as few elbows as possible (maximum elbow angle: 90°). ! Avoid drastic changes in the duct cross-section. Filtration version The aspirated air will be degreased and deodorised before being fed back into the room. In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal. Purifier This product is also supplied with an Air Purifier (B) with HEPA filters: this purifier is separate to the fumes extractor (A). The air extracted by the purifier is cleaned of all macro impurities as it passes through a HEPA (High Efficiency Particulate Air) filter, which by way of its very high filter class (F8), captures all impurities less than 0.1 micron in size, whether dust, pollen, bacteria, etc. The purified air is then re- introduced into the room. Mounting This type of cooker hood must be fixed to the ceiling. Very heavy product; hood handling and installation must be carried out by at least two persons. Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.

• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.

• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them. Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation The hood has two operating modes: Fumes Extractor (A) and Air Purifier with HEPA filters (B). The two operating modes use two different motors and the hood is programmed in such a way that both operating modes cannot be simultaneously activated, see also the chapter “Fumes Extractor motor (A) and Purifier motor (B) Priority Management” T1: FUMES EXTRACTOR (A) - speed 1 selection key Press to activate the low speed (extraction power); Press again to turn the extractor off. T2: FUMES EXTRACTOR (A) - speed 2 selection key Press to activate the medium speed (extraction power); Press again to turn the extractor off.68 T3: FUMES EXTRACTOR (A) - speed 3 and “BOOST” selection key Press once to activate the high speed (extraction power); Press again to switch to “BOOST” speed. The LED T3 will start flashing. When the booster is on, it is possible to switch to the first or second speed by pressing the desired speed button T1 or T2. When the booster is on, press T3 again to turn the hood off. After 5’ the booster automatically turns off and the third speed is automatically activated. T4: Light ON/OFF key Press to activate / deactivate lighting on the TOP. T6 PURIFIER (B) low speed selection key A short press activates the Air Purifier at low speed, A long second press (2 sec.) activates the motor in timed mode. The LED T6 will start flashing, the motor will automatically turn off after 6 hours. To stop the timed mode at any time, press T6 again If T6 is pressed a second time with the timer deactivated, the Purifier motor will turn off. T5 PURIFIER (B) intensive speed selection key Press to activate the Air Purifier at intensive speed. Press T5 again to turn the Purifier motor off. Note: this speed is always timed at the end of the 40 min, after which the speed switches to the first purifier speed (the one normally activated with key T6), and 6h timing will start automatically. Motor “DELAY OFF” Mode: A long press of key T1 / T2 / T3 activates automatic motor power-off. The motor will turn off after the following time period: T1 = after 20 minutes; T2 = after 15 minutes; T3 = after 10 minutes. Notes: This function cannot be programmed for the “BOOST” speed. When Delay OFF is active, pushing the key of any speed will disable the function. Fumes Extractor motor (A) and Purifier motor (B) Priority Management: The Fumes Extractor motor (A) has priority over the Air Purifier with HEPA filters motor (B). With motor (A) and (B) in OFF: either of the two motors can be activated at any time. With Fumes Extractor (A) active: - If the Fumes Extractor (A) is running, pressing keys T6-T5 will activate the "DELAY OFF" mode of the Fumes Extractor motor (A), and the Purifier will automatically turn on following the operation of the “DELAY OFF” mode. In this case, the LED of the active speed T1 / T2 / T3 will start flashing and the LED of the selected T5 or T6 key will light up steady If the Fumes Extractor (A) is running and activation of the purifier has already been programmed, a second long press of key T6 in low speed will cause the Purifier to automatically turn on in timed mode, following the operation of the Delay OFF mode. In this case the LED of the active speed T1 / T2 / T3 will start flashing together with the LED of key T6. Purifier (B) active: - If the Purifier (B) is running, pressing keys T1-T2-T3 will cause the Purifier (B) to immediately turn off, and the Fumes Extractor motor (A) will be activated Filters saturation INDICATOR: The hood warns the user at regular intervals that the filters have to be cleaned/replaced. With the T1 key lit and the +T2 key flashing, it is necessary to replace the Grease Filter With the T1 key lit and the +T3 key flashing, it is necessary to replace the Carbon Filter With the T5 and +T6 keys flashing, it is necessary to replace the HEPA Filter Note: the indication of filters saturation is visible only within the first 10 seconds of turning on the hood. RESET Filters saturation Alarm: Only if the Filters saturation alarm is displayed: pressing keys T1+T2 simultaneously for about 3 seconds will reset the Grease Filter saturation alarm. pressing keys T1+T3 simultaneously for about 3 seconds will reset the Carbon Filter saturation alarm. At any time, even if the filters saturation alarm is not displayed, pressing keys T5+T6 simultaneously for about 3 seconds will reset the HEPA Filter saturation alarm. ACTIVATE / DISABLE the Filters counter. With motor (A) and (B) in OFF, pressing keys T2+T3 simultaneously will open the Filters saturation indicator management menu. From this menu: Pressing the T2 key activates / disables the Grease Filter indicator. Note: The Grease Filter is ACTIVATED as the default setting. Pressing the T3 key activates / disables the Carbon Filter indicator. Note: The Carbon Filter is DISABLED as the default setting. Pressing keys T2+T3 again will close the menu and save the changes made.69 Maintenance Cleaning Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL! Grease filter Fig. F02 The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity. Charcoal filter (filter version only) Fig. F01 Circular charcoal filter Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise. For the disassembly, turn counter-clockwise. The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated. HEPA Filter The HEPA filter cannot be washed or cleaned. A signal will indicate the moment when the filter will have to be replaced. ATTENTION!!! The HEPA filter must be replaced every time it is signalled and anyway at least every 12 Months. The HEPA filter lifetime depends on the characteristics of the operation environment of the appliance. Under normal conditions (domestic environments) the filter lifetime is about 8-10 months, and an electronic device indicates the moment when it must be serviced according to the volume of air effectively purified Frequent use anticipates saturation and reduces lifetime. Highly damp and/or dusty environments anticipate the filter saturation and efficiency. The Hepa filter lifetime depends on the conditions of use. Fig. F03 Replacing lamps The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy. The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.70 DE - Montage- und Gebrauchsanweisung Die Anweisungen, die in diesem Handbuch gegeben werden, müssen strikt eingehalten werden. Es wird keinerlei Haftung übernommen für mögliche Mängel, Schäden oder Brände der Dunstabzugshaube, die auf die Nichtbeachtung der Vorschriften in diesem Handbuch zurückzuführen sind. Die Dunstabzugshaube wurde für die Absaugung der beim Kochen entstehenden Dünste und Dämpfe entwickelt. Sie ist nur für den Hausgebrauch geeignet. Die Dunstabzugshaube kann anders aussehen als auf den Abbildungen in der vorliegenden Bedienungsanleitung. Die Bedienungsanleitungen, die Wartung und die Installation sind aber gleich.
