Brand	Eden
Model	PAS 800
Product type	Aquarium pump
Max. flow rate	800 l/h
Max. head height	1.5 m
Connection voltage	230 V AC
Mains frequency	50 Hz
Max. power consumption	20 W
Protection rating	IPX8 (immersion up to 1 m)
Max. immersion depth	1 m
Discharge connection diameter	17 mm
Water temperature range	+4 to 35 °C
Dimensions (L x W x H)	54 x 65 x 78 mm
Mains cable length	1.5 m
Weight	0.4 kg
Intended use	Water circulation in private indoor aquarium
Materials	Plastic, magnet
Wear parts	Suction cups, functional unit (rotor)
Maintenance	Clean with clear water and soft brush at least 2 times per year
Included accessories	Suction cups, flow regulator, outlet hose (depending on model)

Frequently Asked Questions - PAS 800 EDEN

What is the flow rate of the PAS 800 pump?

The Eden PAS 800 pump has a maximum flow rate of 800 l/h.

At what maximum depth can I submerge the pump?

The IPX8 protection rating allows continuous immersion up to 1 meter depth.

How to clean the PAS 800 pump?

Disconnect the pump, clean it with clear water and a soft brush or sponge. For stubborn dirt, use a household detergent without vinegar or chlorine, then rinse thoroughly with clear water.

Can the pump run dry?

No, the pump must never run dry. It must always be submerged to avoid damage. Only start it when it is underwater.

How to adjust the pump flow rate?

Use the flow regulator on the pump. Turn it in the + direction to increase flow, or in the - direction to decrease it.

What to do if the pump does not start?

First check the mains voltage. If it is correct, the rotor assembly may be blocked. Clean the pump (see manual). If the problem persists, contact customer service.

Can I use the pump in a natural swimming pool?

No, the pump is designed only for indoor aquarium use. Do not use it in natural pools or for liquids other than water.

What are the wear parts of the pump?

The wear parts are the suction cups and the functional unit (rotor). Replace them if necessary.

How to switch off the pump?

Simply disconnect the mains plug from the socket. To avoid water drops, form a drip loop with the cable ensuring the lowest point is below the socket.

Where can I get spare parts?

Only use original Eden spare parts. Contact authorized customer service or your dealer to obtain suitable parts.

USER MANUAL PAS 800 EDEN

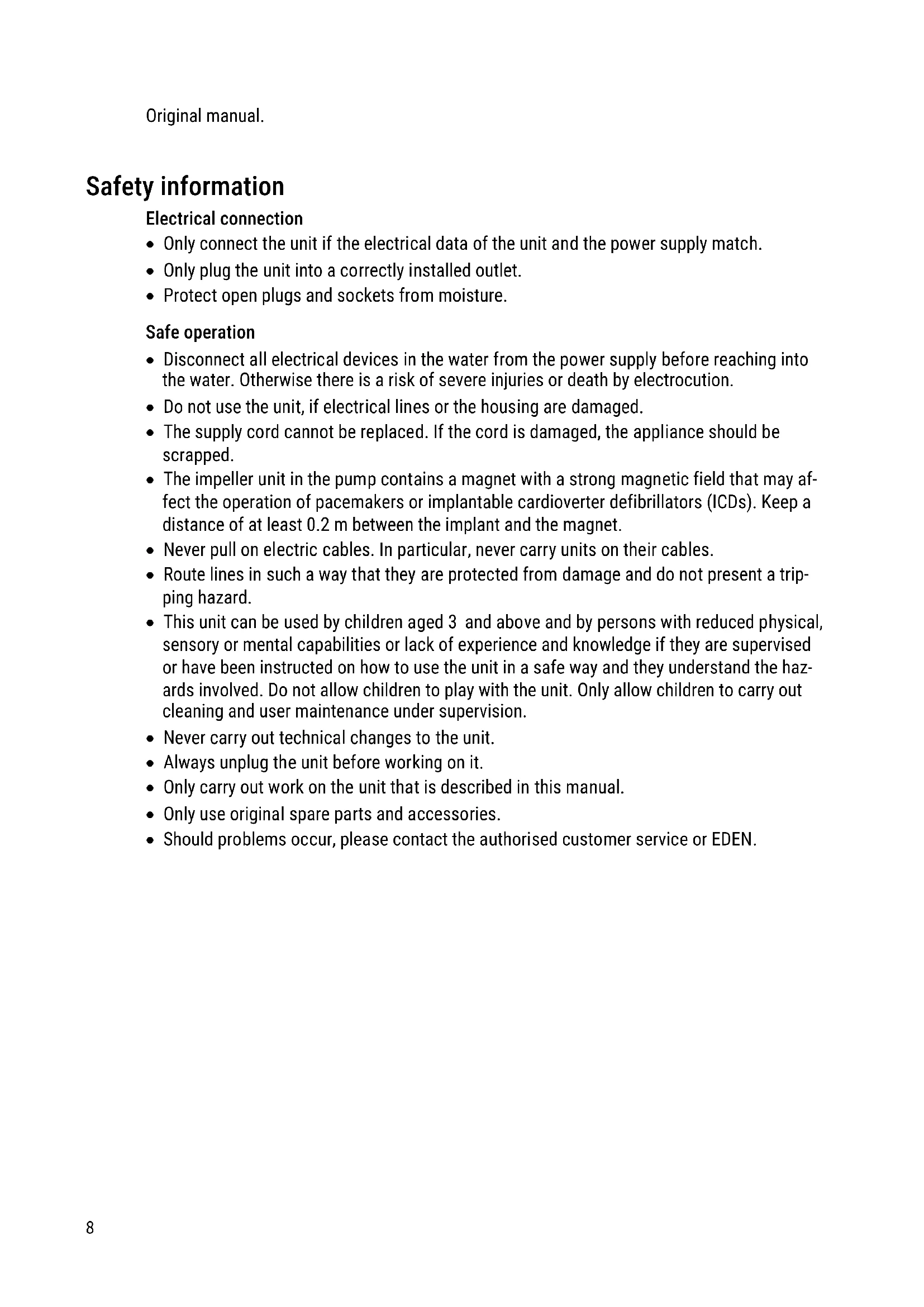

Electrical connection

• Only connect the unit if the electrical data of the unit and the power supply match.
• Only plug the unit into a correctly installed outlet.
• Protect open plugs and sockets from moisture.

Safe operation

• Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe injuries or death by electrocution.
• Do not use the unit, if electrical lines or the housing are damaged.
• The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.
• The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pacemakers or implantable cardioverter defibrillators (ICDs). Keep a distance of at least 0.2m between the implant and the magnet.
• Never pull on electric cables. In particular, never carry units on their cables.
• Route lines in such a way that they are protected from damage and do not present a tripping hazard.
• This unit can be used by children aged 3 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.
• Never carry out technical changes to the unit.
• Always unplug the unit before working on it.
• Only carry out work on the unit that is described in this manual.
• Only use original spare parts and accessories.
• Should problems occur, please contact the authorised customer service or EDEN.

Intended use

Only use the product described in this manual as follows:

• For maintaining the water circulation in an aquarium.
• For transferring water from and draining basins or ponds/pools.
• Indoors and for private aquarium-keeping purposes.
• While adhering to the technical specifications. ( Technical data)

The following restrictions apply to the unit:

• Do not use in swimming ponds.
• Never run the unit without water.
• Do not use the unit together with chemicals, food, flammable, explosive substances or other liquids aside from water.
• Do not connect to the domestic water supply.
• Do not use for commercial or industrial purposes.

Product Description

Overview

EDEN PAS 300,500

EDEN PAS 600,800,1200

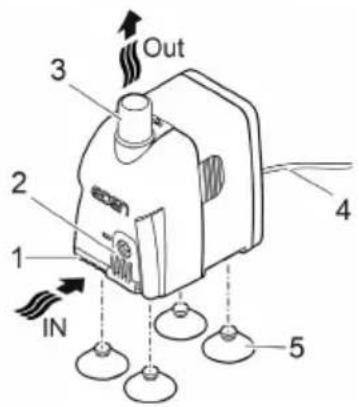

1 Inlet
2 Flow rate controller
3 Outlet (pressure side)
4 Power cable
5 Suction cups

PAS0002

Symbols on the unit

IPX8 1.0 m	The unit is protected against the results of permanent immersion in water to a depth of 1 m.
	Only use the unit in indoor spaces.
	Protect the unit from direct sunlight.
	Do not dispose of the unit with normal household waste.
	Read the operating instructions.

Installation and connection

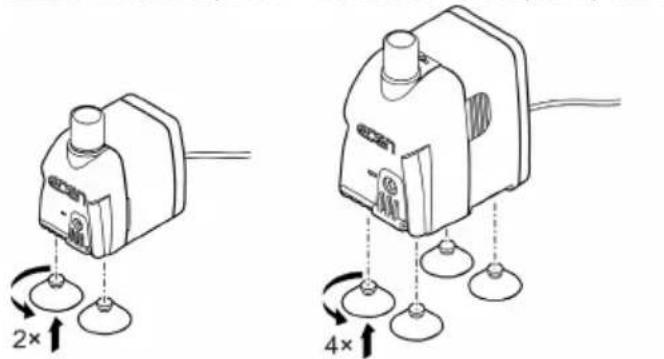

Install the suction cups.

EDEN PAS 300,500 EDEN PAS 600,800,1200

PAS0006

• If required, attach a hose at the outlet (pressure side) of the pump. ( Technical data)

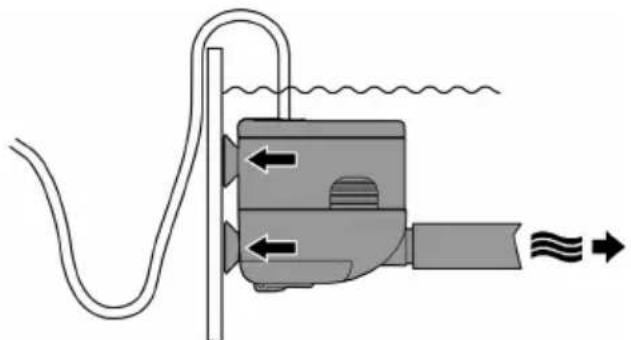

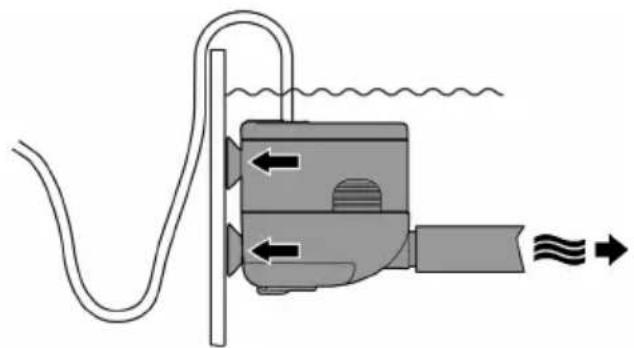

• Fasten the pump on the aquarium wall using the suction cups.

PAS0001

Commissioning/start-up

NOTE

Never allow the pump to run dry. Otherwise the pump may be destroyed.

• Only operate the pump when it is submerged or flooded.

EN

Switching ON/OFF

• Switching on: Plug the power plug into the outlet.
• The unit switches on immediately.
• Lay the mains cable so that a drip loop is formed and the lowest point is below the socket. This prevents dripping water from entering the socket.
• Switching off: Pull the power plug from the outlet.

Form a drip loop

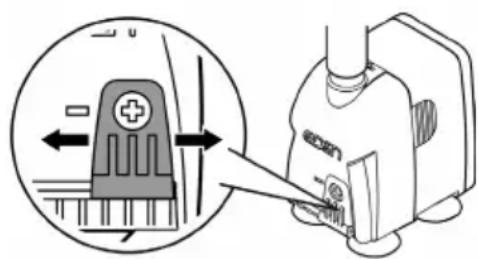

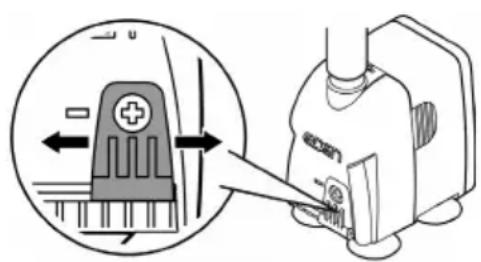

Set the flow rate
BSE0003
PAS0004

Maintenance and cleaning

CAUTION

Risk of injury due to unexpected start-up. Internal monitoring functions may switch off the unit and automatically reactivate it.

Disconnect the power plug before carrying out any work on the unit.

NOTE

Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

If possible, clean the unit with clear water and a soft brush or a sponge; remove stubborn dirt with the aid of the recommended cleaning agents.

Cleaning the device

① Clean the unit as required but at least twice per year.

• Recommended cleaning agent for removing stubborn limescale deposits: - Vinegar- and chlorine-free household cleaning agent.
  After cleaning, thoroughly rinse all parts in clean water.

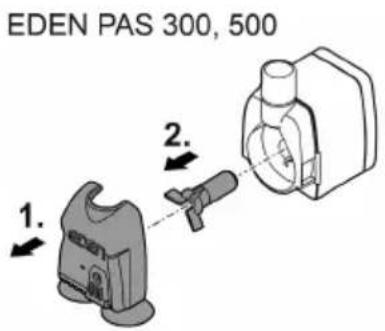

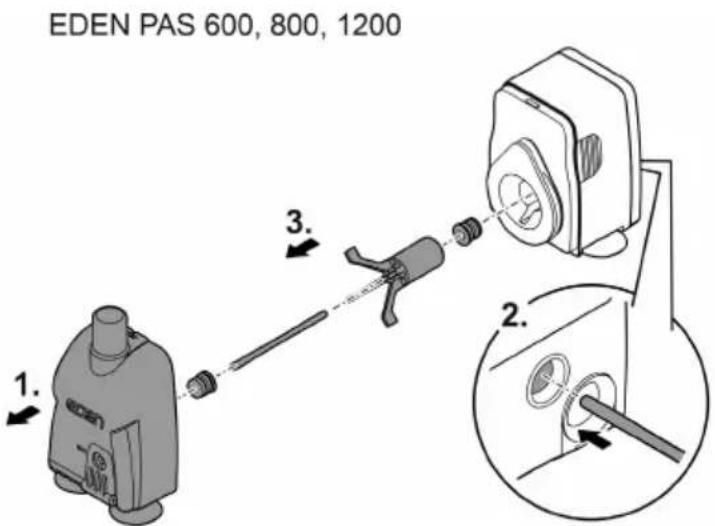

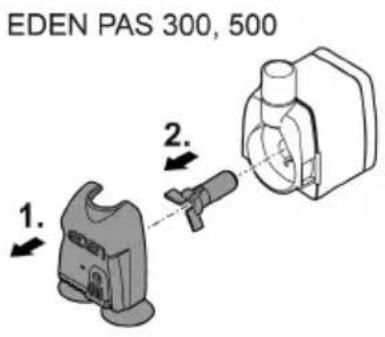

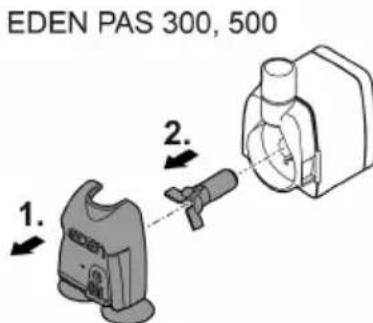

Cleaning/replacing the impeller unit

How to proceed:

• Pull the filter cage off the motor block by applying strong pressure.
• Remove the impeller unit, clean or replace.
• Reassemble the unit in the reverse order.

PAS0003

Malfunction remedy

Malfunction	Cause	Remedy
The unit does not start up	No mains voltage	Check the mains voltage.
	Impeller unit blocked	Clean the unit
Water flow insufficient	Pump housing or impeller unit soiled	Clean the unit
	Flow controller set to insufficient flow rate	Move the flow controller in the + direction
	Impeller unit worn	Replace the impeller unit.
	Pump housing clogged	Clean the unit

Wear parts

• Suction cups, impeller unit

Technical data

PAS		300	500	600	800	1200
Connection voltage	V AC	230	230	230	230	230
Mains frequency	Hz	50	50	50	50	50
Max. power consumption	W	5	5	11	20	25
Max. pump capacity	l/h	300	500	600	800	1150
Max. pump head	m	0.5	0.8	1.3	1.5	2
Protection type		IPx8	IPx8	IPx8	IPx8	IPx8
Max. immersion depth	m	1	1	1	1	1
Connection diameter, pressure side	mm	13	13	13	17	17
Permissible range, water temperature	°C	+4 ... 35	+4 ... 35	+4 ... 35	+4 ... 35	+4 ... 35
Dimensions	Length	mm	35	35	45.5	54
	Width	mm	51	51	65	78
	Height	mm	54	54	78	89
Length of power cable		m	1.5	1.5	1.5	1.5
Weight		kg	0.2	0.2	0.4	0.6

EN

Disposal

NOTE

Do not dispose of this unit with household waste.

• Dispose of the unit by using the return system provided for this purpose.
• Should you have questions, please contact your local disposal company. They will give you information on how to correctly dispose of the unit.
  Render the unit unusable by cutting the cables.
