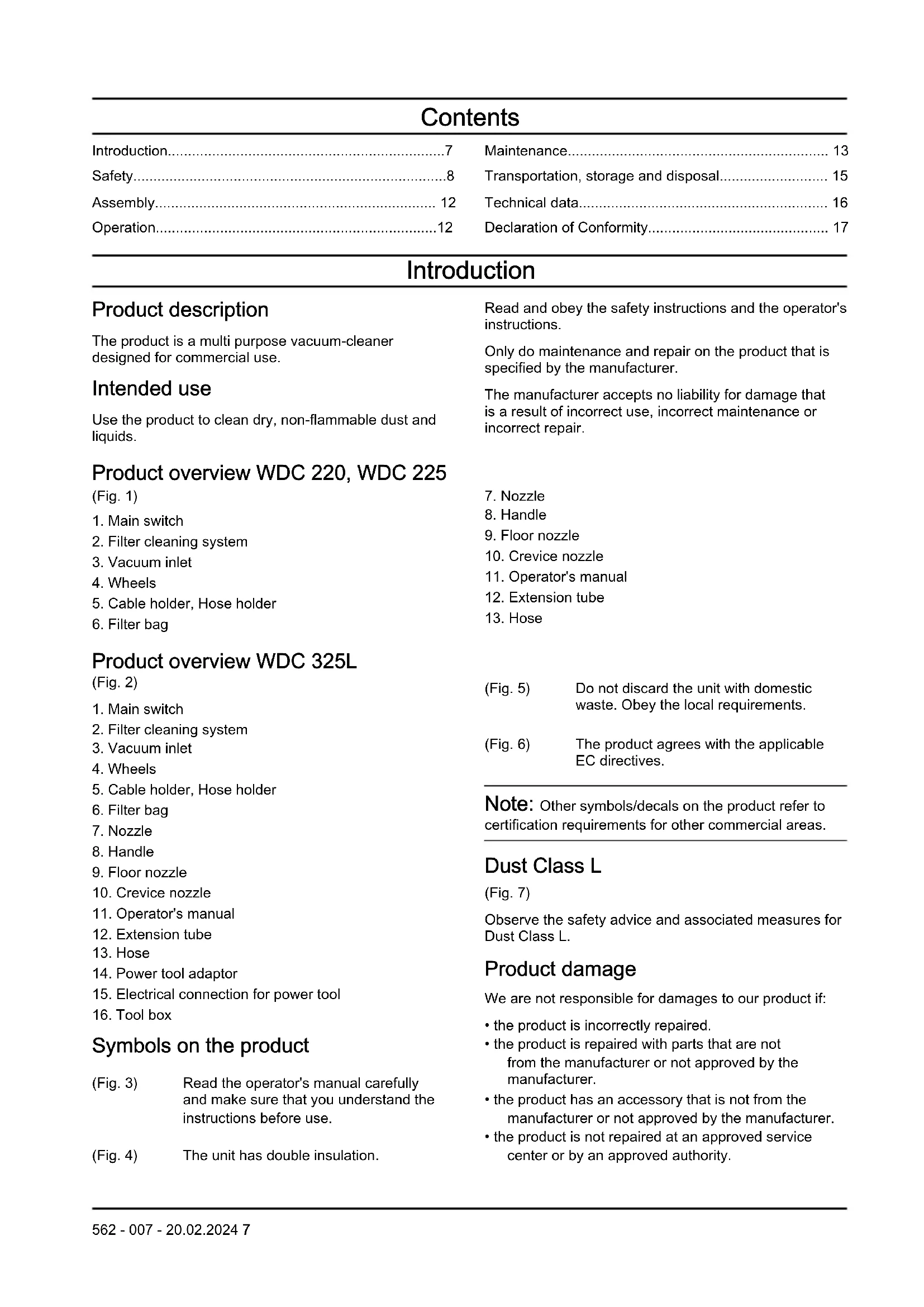

USER MANUAL WDC 220 HUSQVARNA

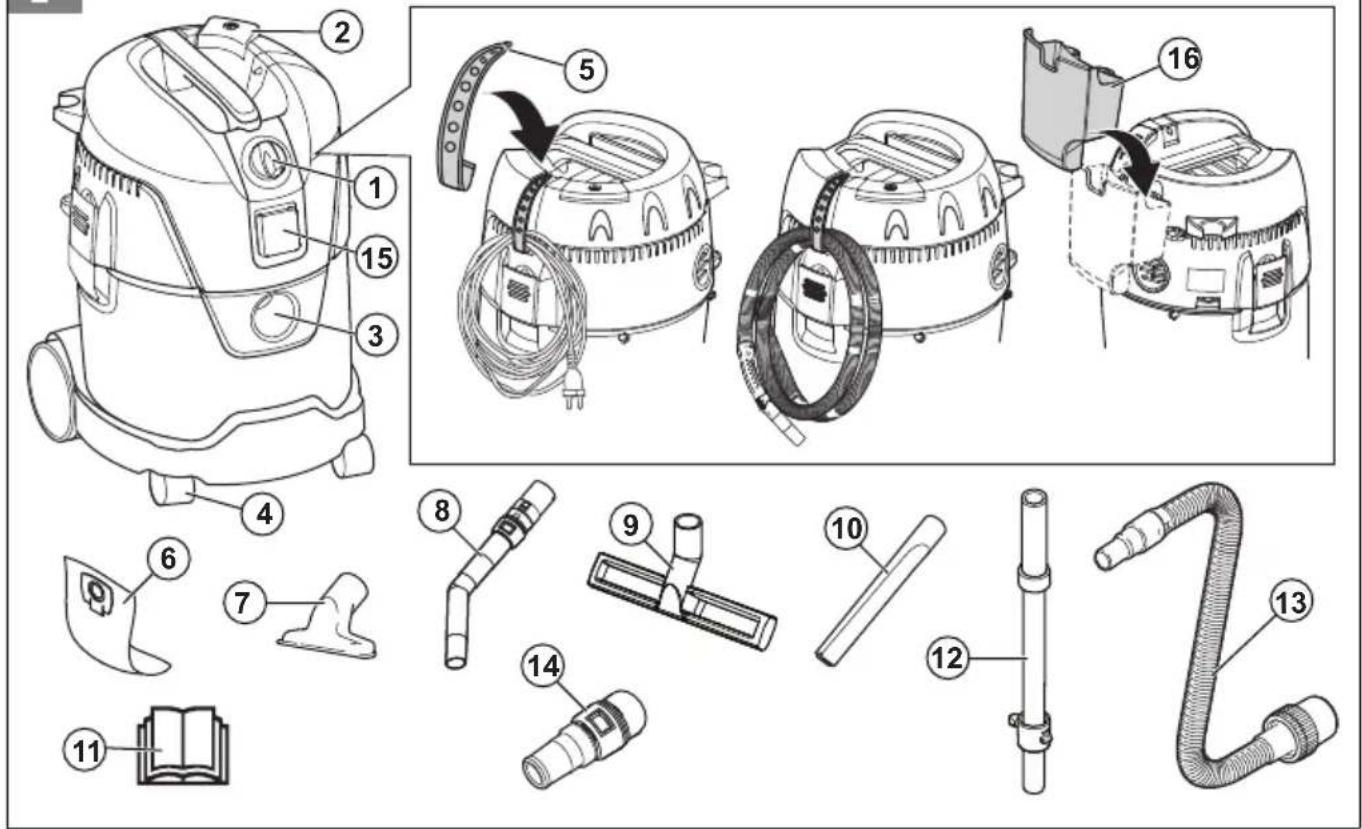

2. Filter cleaning system

5. Cable holder, Hose holder

2. Filter cleaning system

5. Cable holder, Hose holder

15. Electrical connection for power tool

Symbols on the product (Fig. 3) Read the operator's manual carefully and make sure that you understand the instructions before use. (Fig. 4) The unit has double insulation. (Fig. 5) Do not discard the unit with domestic waste. Obey the local requirements. (Fig. 6) The product agrees with the applicable EC directives. Note: Other symbols/decals on the product refer to certification requirements for other commercial areas. Dust Class L (Fig. 7) Observe the safety advice and associated measures for Dust Class L. Product damage We are not responsible for damages to our product if:

the product is incorrectly repaired.

the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.

the product has an accessory that is not from the manufacturer or not approved by the manufacturer.

the product is not repaired at an approved service center or by an approved authority.

562 - 007 - 20.02.2024 7Safety

Safety definitions Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of

injury or death for the operator or bystanders if the instructions in the manual are not obeyed. CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed. Note: Used to give more information that is necessary in a given situation. General safety instructions

WARNING: Read the warning

instructions that follow before you use the product.

If the product and/or an accessory is damaged it must be repaired by an approved service center. Do not use a damaged product.

Do not let a child operate the product. Do not let a person, without knowledge of the instructions operate or do maintenance on the product.

The product must only be operated under supervision.

Make sure that you always monitor a person, with decreased physical capacity or mental capacity, that uses the product.

Children must be monitored to make sure that they do not play with the product.

Do not use the product without the filters in correct position.

Stop the product and disconnect the mains plug in the following situations:

Before cleaning and maintenance.

If there is foam or liquid in the area.

Do not go away from the product when it is connected. Disconnect the mains plug when it is not in operation and before maintenance.

Do not use the product if the cord or the plug is damaged. Hold the plug, not the cord, to disconnect. Do not hold the plug or the product with wet hands. Reset all controls before disconnecting.

Do not pull the product by the cord. Do not use the cord as a handle. Do not close a door on the cord, or pull the cord around sharp edges or corners. Do not run the

cord away from hot surfaces.

Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts. Do not put objects into the openings or use with the opening blocked. Keep the openings free of dust, lint, hair, and anything else that can decrease the flow of air.

Do not vacuum clean dangerous dust with WDC 220, WDC 225.

Do not vacuum clean flammable or flammable liquids such as gasoline. Do not use the product in areas where such products may be.

Do not vacuum clean anything that is burning or smoking, such as cigarettes, matches or hot ashes.

Be careful when cleaning on stairs.

If foam or liquid comes from the product, stop the product immediately.

Do not use the product as a water pump.

Connect the product to a correctly grounded mains socket. The socket outlet and the extension cable must have an operative protective conductor (only applicable to non double- insulated products).

Make sure that there is good airflow at the work area.

Do not use the product as a ladder or step ladder.

When dust removers are used, the rate at which air is exchanged in the room must be adequate if the exhaust air from the vacuum cleaner is blown into the room. Obey the national regulations before use.

For Dust Class L products, WDC 325L, tell and train the operator before use:

How to use the product.

The risks of the material to be picked up.

Safe disposal of the picked up material.

For Dust Class L products, WDC 325L, the following applies:

Use the product to clean dry, non-flammable dust and liquids, dangerous dusts with OEL

. Dust Class L (IEC 60335-2-69). The dust with this class has OEL

Products with the Dust Class L, has a tested filter material. The maximum degree of permeability is 1%. There is no special requirement for disposal. Note: Refer to local laws. They can regulate the age of the operator. Safety for double-insulated products

WARNING: Only use the product as

given in this manual and only with the manufacturer’s recommended accessories.

WARNING: Only applicable to UK:

Read these important instructions.These instructions have been prepared with safety and efficiency paramount. The operator must be trained by an approved instructor and must understand these instructions for operation. The operator must know all the related regulations and legislation in force at the time of operation.

WARNING: Before you connect the

product: Make sure that the mains voltage and the mains frequency of the power supply match the data on the rating plate of the wet/dry vacuum cleaner.

WARNING: This product has double

insulation. Use only Husqvarna replacement parts. See instructions on how to do service on double-insulated products.

WARNING: The product has a special

cord. If the cord is damaged, it must be replaced by a cord of the same type. This is available at approved service centers and dealers and must be installed by approved personnel.

WARNING: Service on a double-

insulated product requires knowledge of the system. In a double-insulated products, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a mean for grounding be added to the appliance. Service must be done only by approved service personnel. Replacement parts for a double-insulated product must be identical to the parts they replace. A double- insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED.” A symbol may also be used on the product. Electrical safety

It is recommended that the vacuum-cleaner should be connected via a residual current circuit breaker.

Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension lead so that the protection class is maintained.

Connectors and couplings of power supply cords and extension leads must be watertight. Extension lead

As an extension lead, only use the version specified by the manufacturer or one of a higher quality.

When using an extension lead, check the minimum cross-sections of the cable: Cable length Cross section < 16 A < 25 A < 20 m 1.5 mm

section of the vacuum- cleaner contains live components. Contact with live components leads to serious or even fatal injuries.

Never spray water on to the upper section of the vacuum- cleaner.

Electric shock due to faulty mains connecting lead. Touching a faulty mains connecting lead can 10 562 - 007 - 20.02.2024result in serious or even fatal injuries.

Do not damage the mains power lead (for example by driving over it, pulling or crushing it).

Regularly check whether the power cord is damaged or shows signs of ageing.

If the electric cable is damaged, it must be replaced by an authorized Husqvarna distributor or similar qualified person in order to avoid a hazard.

In no circumstances should the power supply cord be wrapped around fingers or any part of the operator's body. CAUTION: The appliance socket (only on some models) is only designed for the purposes defined in the operating instructions. The connection of different appliances can result in damage.

Prior to plugging in an appliance, always stop the product and the appliance that is to be connected.

Read the operating instructions to the appliance to be connected and observe the safety notes contained in these. CAUTION: Damage due to unsuitable mains voltage. The appliance can be damaged as a result of being connected to an unsuitable mains voltage.

Make sure that the mains voltage and the mains frequency of the power supply match the data on the rating plate of the wet/dry vacuum cleaner. Safety instructions for operation To clean liquids CAUTION: Do not clean flammable liquids.

Remove the filter bag before you start to clean liquids. Do a check that the float or the water level limit function correctly.

Use a special filter element or filter screen.

If foam comes from the product, stop the work immediately and empty the tank. Dangerous materials

Do not clean dangerous materials. This can cause injuries.

Do not clean the following materials:

hot materials, for example burning cigarettes and hot ash.

flammable, explosive, aggressive liquids, for example gasoline, solvents, acids and alkalis.

562 - 007 - 20.02.2024

11• flammable, explosive dust, for example magnesium or aluminum dust. Spare parts and accessories CAUTION: Only use spare parts and accessories for the safety of the product.

Use only spare parts and accessories from Husqvarna.

Use only the brushes supplied with the product or referred to in the operator's manual. Explosive or flammable atmosphere CAUTION: Do not use the product in explosive or flammable atmospheres. Do not use the product near liquids, gas or fume that can cause flammable atmospheres. Blower function

WARNING: Dust can cause health

problems.The product has a blower function. Do not blow the outgoing air randomly in closed areas. Use the blower function only with a clean hose. Safety instructions for maintenance

WARNING: Read all warning

instructions that follow before you do maintenance on the product. To empty the dirt container CAUTION: Cleaned material can be dangerous to the environment. Discard the dirt referring to legal regulations. Assembly

WARNING: Read and understand the

safety chapter before you assemble the product. To do before installation

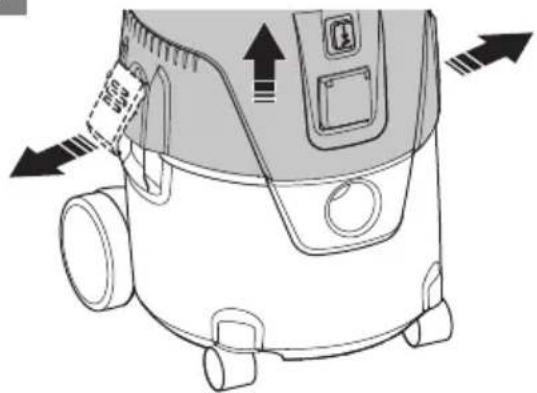

1. Unlock the clasps and lift off the motor unit. (Fig. 8)

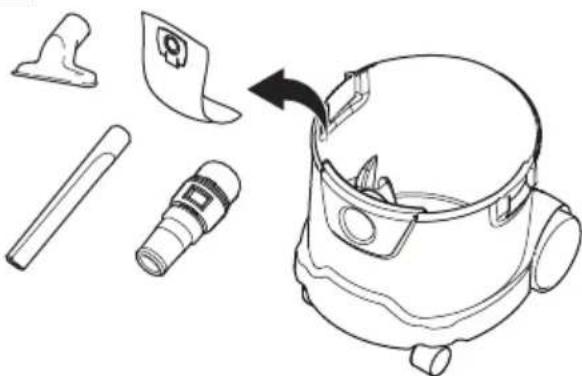

2. Remove the accessories from the dirt container.

3. Make sure that all parts are included. See the

product overview. Necessary tools: Screwdriver. To install the filter bag

1. Put the main switch to the "0" position.

2. Disconnect the product. (Fig. 10)

3. Unlock the clasps and lift off the motor unit. (Fig. 8)

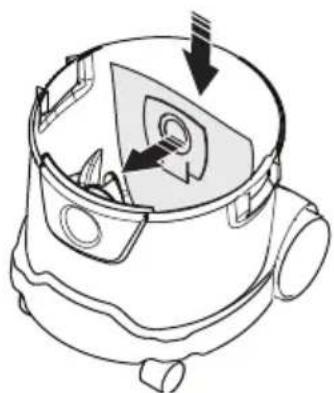

4. Put the filter bag in the dirt container.

5. Attach the cardboard part of the filter bag on the

vacuum inlet. Make sure that the rubber membrane is passing past the heightening of the vacuum inlet. (Fig. 11)

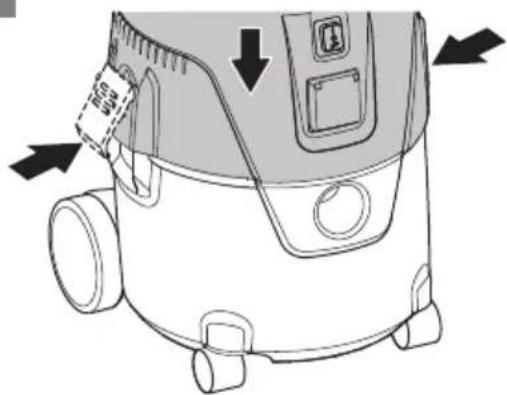

6. Put the motor unit on the dirt container and lock the

clasps. (Fig. 12) To attach the accessories

1. Put the accessories in their position for easy access.

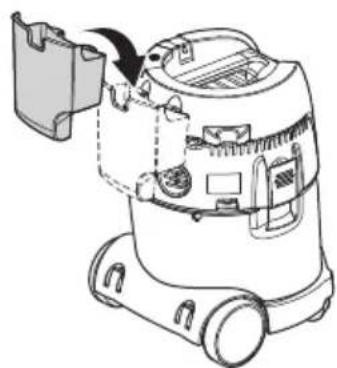

2. Attach the tool box at the rear of the product. (Fig.

3. Attach the holder for the the cable and the hose at

the rear of the product. (Fig. 15) To install the hose

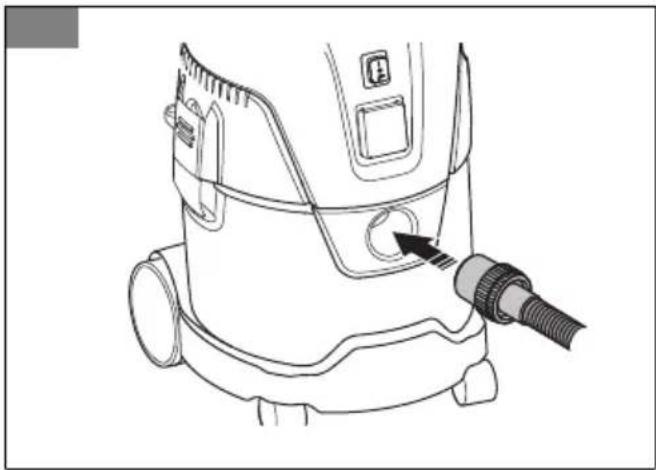

1. Put the hose in the vacuum inlet on the front of the

2. Connect the appliance into the mains.

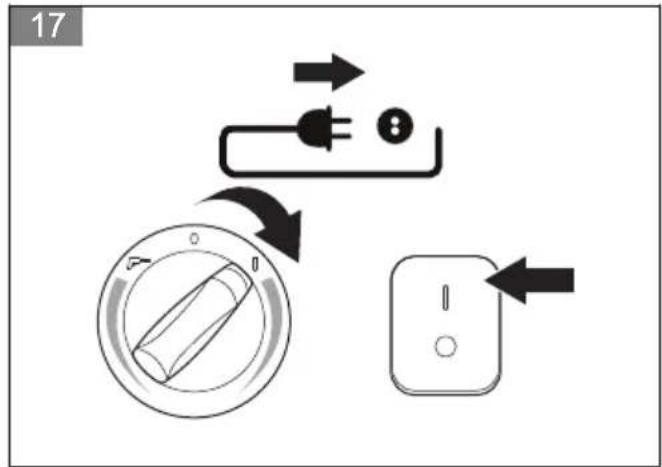

3. Put the main switch to the "I" position. (Fig. 17)

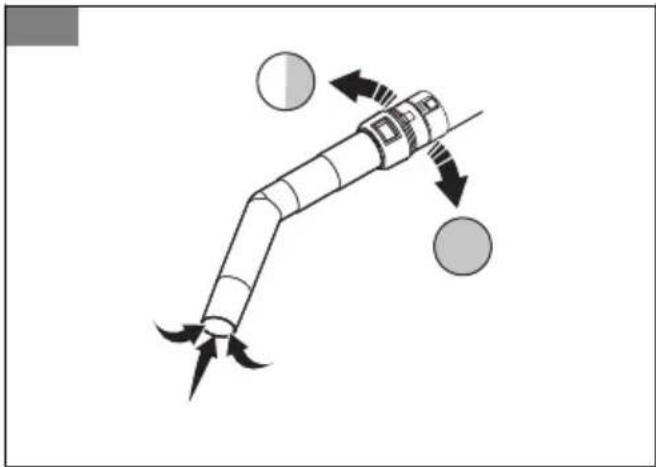

4. Adjust the suction power on the handle or by the

main switch*. *Only on some models. (Fig. 18) To install the tube holder

1. Move the tube holder vertically on the extension

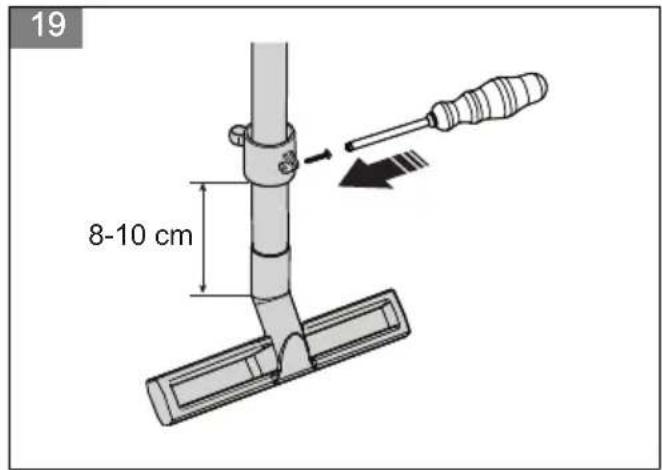

2. Use a screwdriver to install the tube holder on

correct height of the extension tube. (Fig. 19)

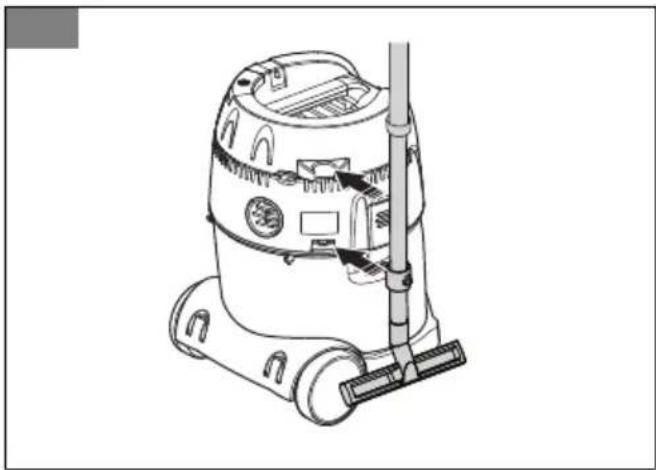

3. Park the extension tube at the holders on the rear of

the product. (Fig. 20) Operation Introduction

WARNING: Before you operate the

product, you must read and understand the safety chapter. To start the product Before the product is used, make sure that the frequency and voltage shown on the rating plate is the same as the mains voltage. 12 562 - 007 - 20.02.20241. Make sure that the main switch is in position "0". (Fig. 10)

2. Do a check that correct filters are in position in the

3. Put the hose into the vacuum inlet at the front of the

product. Push the hose forward until it is installed tightly in position in the vacuum inlet. (Fig. 16)

4. Connect the two extension tubes with the handle.

Twist the extension tubes to make sure that they are correctly in position.

5. Attach a nozzle to the extension tube. Select the

nozzle after the type of material that is to be cleaned.

6. Connect the plug into the mains.

7. Put the main switch into position "I" to start the

product. (Fig. 17) To stop the product

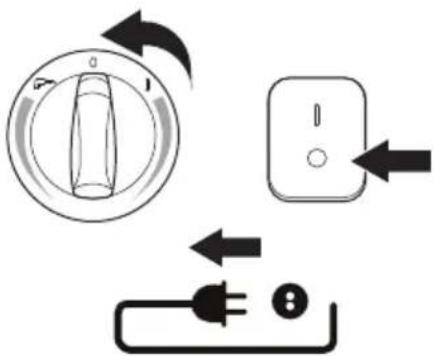

1. Put the main switch into position "0" to stop the

2. Disconnect the plug from the mains. (Fig. 10)

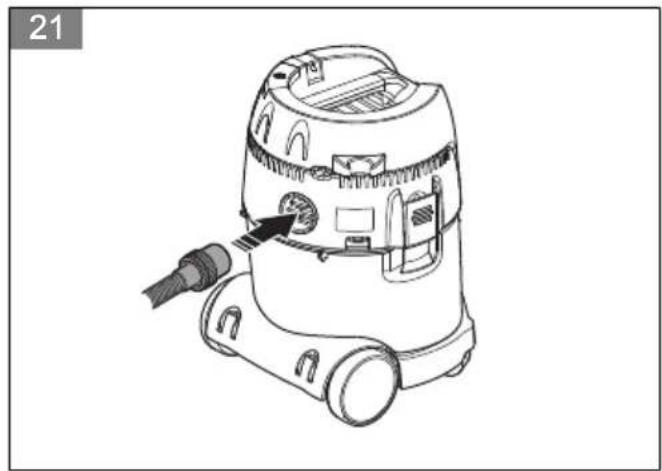

To use the blow function

1. Put the hose in the opening on the rear of the

2. Connect the plug into the mains.

3. Put the main switch to the "I" position. (Fig. 17)

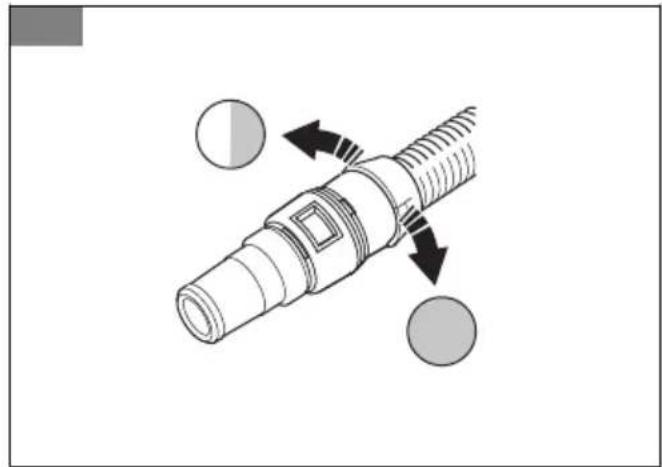

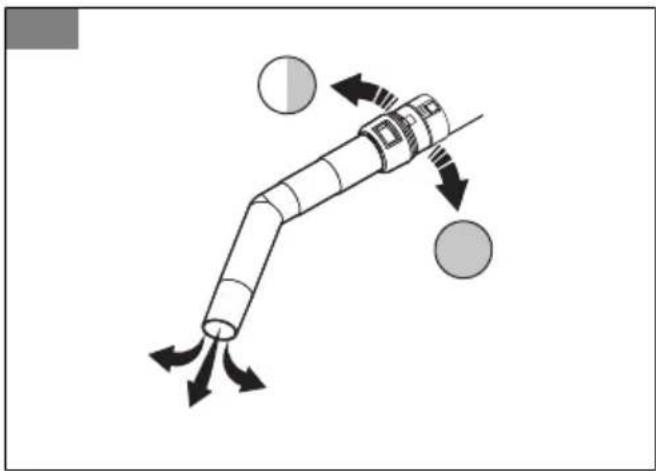

4. Adjust the blow power on the handle or by the main

switch*. *Only on some models. (Fig. 22) To use the power tool socket* *Only on some models. CAUTION: Follow the operating instructions and safety instructions for appliances connected to the power tool socket. Note: The maximum power consumption of the connected tool is told in section Technical data on page

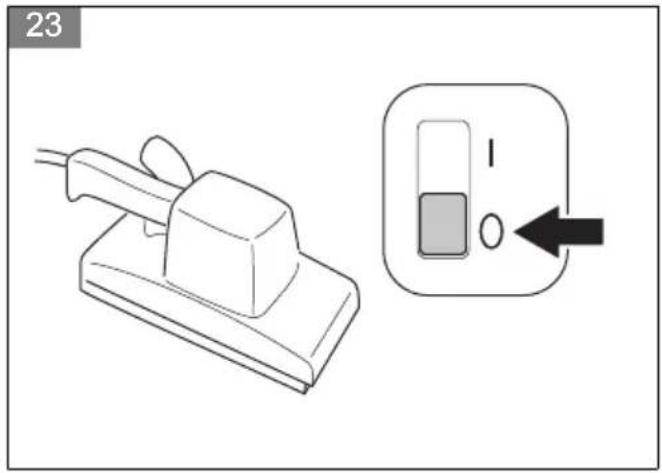

1. Make sure that the switch on the power tool is in

position "0". (Fig. 23)

2. Disconnect the handle from the hose. Press the

hatches on the hose end (A) and pull out the handle (B). (Fig. 24)

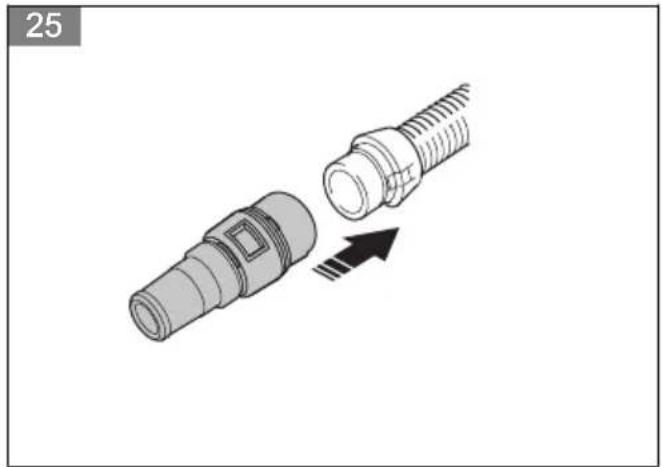

3. Connect the power tool adaptor. (Fig. 25)

4. Adjust the suction power on the power tool adaptor

or by the main switch*. *Only on some models. (Fig. 26)

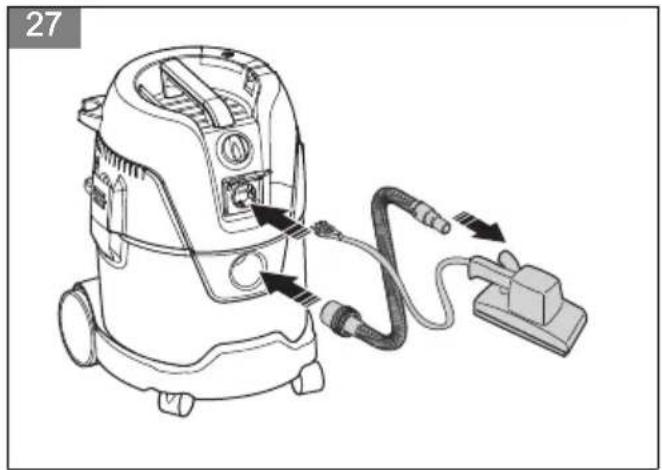

5. Connect the hose to the vacuum inlet of the product

and to the power tool. Connect the cable of the power tool to the electrical connection of the product. (Fig. 27)

6. Make sure that the switch on the power tool is in

position "0". (Fig. 23)

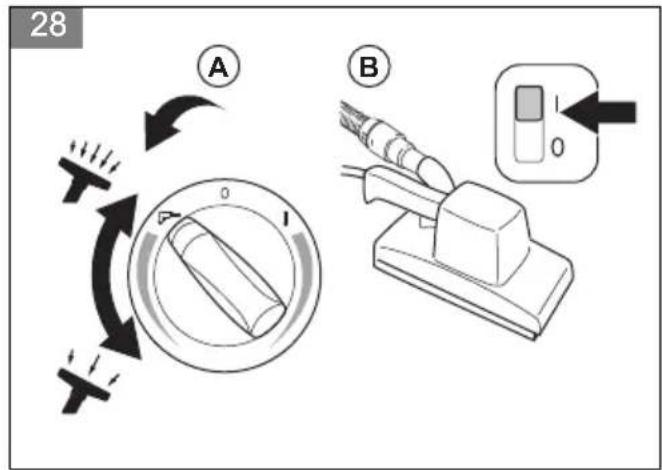

7. Turn the main switch on the product to the power

8. Put the switch of the power tool to "I" (B). (Fig. 28)

Note: You can start and stop the product with the main switch on the product (A) or on the power tool (B). To clean liquid Note: The product has a float system that stops the airflow through the product at the maximum liquid level. CAUTION: Do not clean liquid without the float system in position.

1. Make sure that the filter and the filter tension (the

float system) is in position, see To replace the filter on page 14 . Remove the filter bag if it is installed.

2. Use the floor nozzle to clean liquid.

3. At the maximum liquid level, a noticeable change

of the motor sound is heard. The suction power decreases.

4. Stop the product, see

To stop the product on page

To empty the dirt container after liquid pick up on page 14

WARNING: Before you do

maintenance, you must read and understand the safety chapter. For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent. For more detailed information, refer to .

562 - 007 - 20.02.2024 13Regular service and inspection

Regular service and inspection of the product must be done by qualified personnel referring to related legislation and regulations.

Electrical tests for ground continuity, insulation resistance, and condition of the flexible cord must be done frequently.

If a defect is found, the product must be removed from service and repaired by an approved service technician. Maintenance of Dust Class L products The following applies for Dust Class L products, WDC 325L.

During maintenance and cleaning, use the product safely for maintenance personnel or other persons.

In the maintenance area:

Use filtered mandatory airflow.

Use protective clothing.

Clean the maintenance area so that no harmful material get out in other areas.

If the parts can not be cleaned satisfactorily during maintenance and repair:

Put the parts in correctly sealed bags.

Discard the parts referring to legal regulations. To empty the dirt container after liquid pick up

1. Stop the product, see

To stop the product on page

2. Disconnect the hose from the vacuum inlet by pulling

3. Unlock the clasps and lift off the motor unit. (Fig. 8)

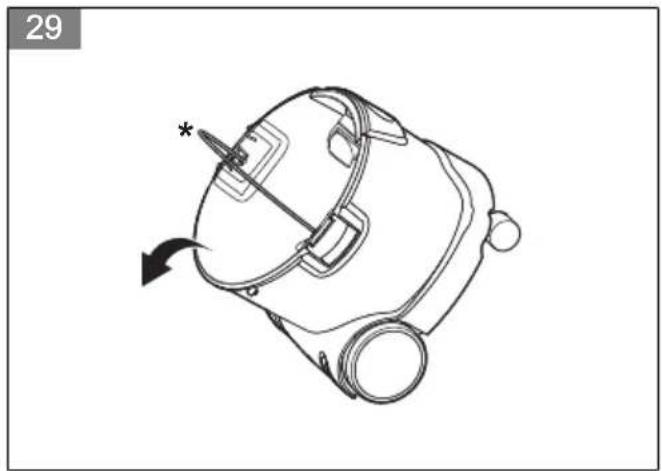

4. Empty the dirt container by tilting it rearward and put

the liquids into a floor drain. * Handle only on some models. (Fig. 29) CAUTION: Always empty and clean the dirt container and the float system after liquid pick up. Do not pick up liquid without the float system and filter installed in the product.

5. Put the motor unit on the dirt container and lock the

clasps. (Fig. 12) To empty the dirt container after dry pick up

1. Stop the product, see

To stop the product on page

2. Unlock the clasps and lift off the motor unit. (Fig. 8)

3. Do a check to see if the filter bag is full.

4. Remove the filter bag if it is full.

CAUTION: Do not pick up dry material without the filter and the filter bag in position.

5. Install a new filter bag, see

To install the filter bag on page 12

Note: The suction efficiency of the product depends on the dimension and quality of the filter and the filter bag. Use only Husqvarna filter and filter bags.

6. Put the motor unit on the dirt container and lock the

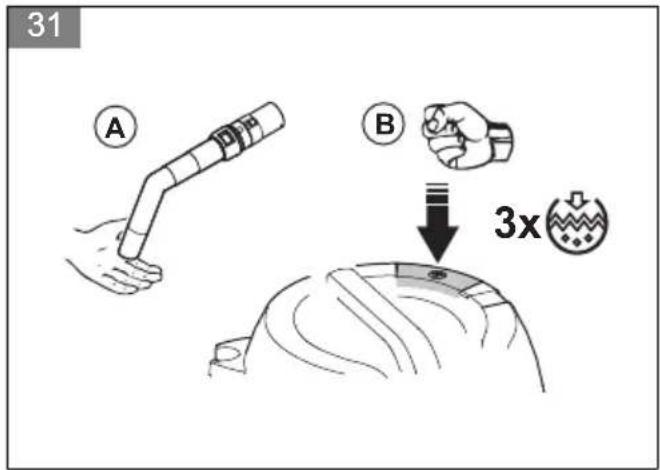

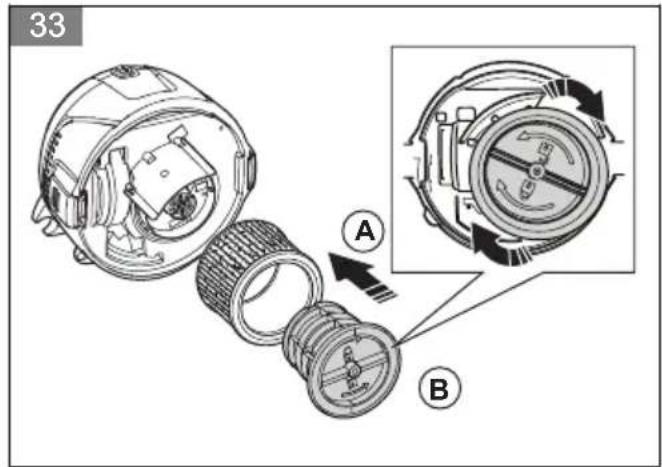

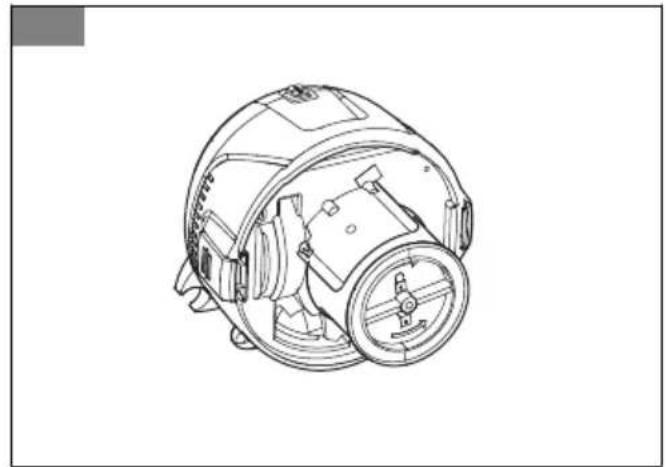

clasps. (Fig. 12) To clean the filter, filter cleaning system The product has a semi-automatic filter cleaning system. Use the filter cleaning system regularly, at the latest when the cleaning performance is no longer sufficient. Regular use of the filter cleaning system increases the life of the filter.

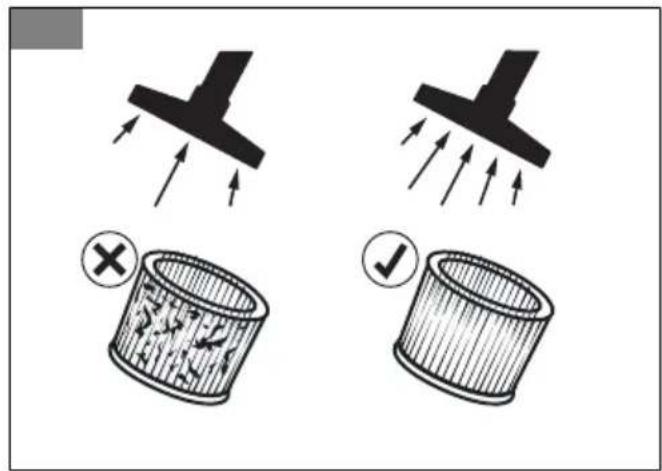

1. Clean the filter when the suction power is no longer

sufficient. (Fig. 30)

2. Put the hose in the vacuum inlet on the front of the

3. Connect the appliance into the mains.

4. Put the main switch to the "I" position. (Fig. 17)

5. Put the handle in your hand (A) to make suction into

6. Beat the filter cleaning button 3 times with your fist

7. If the suction power is not sufficient, remove the

filter, see To replace the filter on page 14

8. Shake, brush or wash the filter to clean it.

9. Let the filter dry.

10. Install the filter, see

To install the filter bag on page

To clean the product externally

1. Stop the product, see

To stop the product on page

2. Clean the product with a dry cloth, and a small

quantity of spray polish. To replace the filter The product is designed for continuous heavy work. Depending on the number of running hours, the dust filter should be replaced.

1. Stop the product, see

To stop the product on page

2. Unlock the clasps and lift off the motor unit. (Fig. 8)

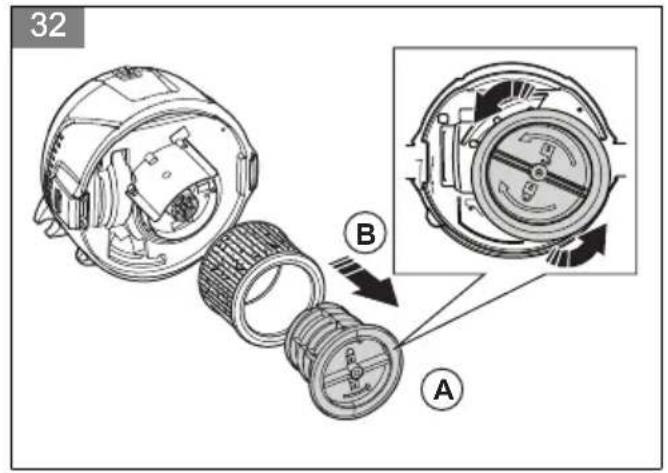

3. Rotate the filter tension (A) counter clockwise and

pull it out. Pull out the filter (B). (Fig. 32)

5. Make sure that the filter and the filter tension is in

6. Put the motor unit on the dirt container and lock the

clasps. (Fig. 12) To replace the filter bag

1. Stop the product, see

To stop the product on page

2. Unlock the clasps and lift off the motor unit. (Fig. 8)

3. Do a check to see if the filter bag is full. Remove the

filter bag if it is full.

4. Pull the cardboard part of the old filter bag from the

5. Lift the filter bag (A) and discard it.

6. Put the new filter bag in the dirt container (B).

7. Attach the cardboard part of the filter bag on

the vacuum inlet (C). Make sure that the rubber membrane is passing past the heightening of the vacuum inlet. (Fig. 35)

8. Put the motor unit on the dirt container and lock the

clasps. (Fig. 12) Transportation, storage and disposal Transportation and storage

Disconnect the plug from the mains when the product is not in operation.

Wind up the cord starting from the product.

Use the cable holder to attach the cord on the motor unit.

Use the hose holder to attach the hose on the motor unit.

Close all clasps on the motor unit.

Do not tilt the product if there is liquid in the dirt container.

Do not use a crane hook to lift the product.

Keep the product in a dry and frost free area. To recycle the product Follow these steps to make the product unusable.

1. Disconnect the plug from the mains.

2. Cut the power cord.

3. Do not discard the product in usual domestic waste.

Disposal (in accordance with 2012/19/ EC): The product must not be added to normal household waste. It must be disposed of in line with local environmental regulations. Make sure that the product is discarded through or via your municipal recycling collection centre. (Fig. 5)

We, Husqvarna, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare on our sole responsibility that the product: Description Pressure washer Brand Husqvarna Type / Model WDC 220, WDC 325L Identification Serial numbers dating from 2023 and onwards complies fully with the following UK regulations: Description The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

The Supply of Machinery (Safety) Regulations 2008 Electromagnetic Compatibility Regulations 2016 and that the following standards and/or technical specifications are applied: EN 60335-1:2012/A11:2014/A13:2017/A15:2021, EN 60335-2-69:2012, EN 55014-1:2017/A11:2020, EN 55014-2:1997+A1:2001+A2:2008, EN 61000-3-2 :2014, EN 61000-3-3:2013, EN IEC 63000:2018. For information relating to noise emissions, refer to Technical data on page 16

Huskvarna, 2024-02-14 󰥽󰥜 󰤫󰤴󰥯󰥠 󰤯󰥴󰤫󰥤 󰥣󰤵󰥘 󰤯󰥴󰥯󰥅󰤙󰥠/󰤏󰤡󰤙󰥩󰥤 󰥗󰤌󰤫󰤥󰥠 Husqvarna 󰤇󰤵󰥤 󰤫󰥩󰤙󰤵󰥥󰥠 󰤕󰥵󰥩󰥕󰥠 28562 -007 -20.02.2024UK Declaration of Conformity We, Husqvarna, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declare on our sole responsibility that the product: DescriptionPressure washer BrandHusqvarna Type / ModelWDC 220, WDC 325L IdentificationSerial numbers dating from 2023 and onwards complies fully with the following UK regulations: Description The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

The Supply of Machinery (Safety) Regulations 2008 Electromagnetic Compatibility Regulations 2016 and that the following standards and/or technical specifications are applied: EN 60335-1:2012/A11:2014/ A13:2017/A15:2021, EN 60335-2-69:2012, EN 55014-1:2017/A11:2020, EN 55014-2:1997+A1:2001+A2:2008, EN 61000-3-2 :2014, EN 61000-3-3:2013, EN IEC 63000:2018. For information relating to noise emissions, refer to 󰤏󰥨󰤏󰥵󰤓󰥠 󰤕󰥵󰥩󰥕󰥠 󰥳󰥔 󰤕󰤥󰥕󰤽󰥠 27
