Product type	TV wall mount
Brand	Sony
Model	SUWL500
Weight	4.7 kg (10 lb 6 oz)
Material	Metal
Tilt angle	0°, 5°, 10°, 15° or 20°
Compatibility	Sony LCD TVs 32 to 46 inches (models KDL-46D30xx, KDL-40D30xx, KDL-32D30xx, etc.)
Installation	Only by a certified installer
Minimum wall load capacity	4 times the weight of the TV
Wall mounting screws	4 screws of 8 mm diameter (not supplied)
Supplied accessories	Base fixing bracket (2), fixing hook (2), screws (+PSW6×16) (4), screws (+BVST4×12) (6), hex key (1)
Safety	Do not disassemble, modify, or install any unspecified device. Do not lean on the TV.
Maintenance	Clean with a soft dry cloth. Do not use liquids.
Repairability	Not user serviceable. Contact a certified installer.

Frequently Asked Questions - SUWL500 SONY

Which TVs are compatible with the Sony SUWL500 mount?

The mount is designed for Sony LCD TVs of the KDL-46D30xx, KDL-40D30xx, KDL-32D30xx series, and other models listed in the manual. Consult the complete list of compatible models in the manual.

What is the maximum weight supported by the SUWL500?

The weight of the mount itself is 4.7 kg. The maximum load depends on the TV, but the wall must support at least 4 times the weight of the TV.

Is the tilt adjustable?

Yes, the tilt angle can be set to 0°, 5°, 10°, 15° or 20° using the supplied hex key.

Which screws are needed to fix the mount to the wall?

You must use at least 4 screws of 8 mm diameter suitable for the wall material. These screws are not supplied with the mount.

Can I install the mount myself?

No, installation must be carried out by a certified Sony dealer or professional installer. Incorrect installation may cause the TV to fall and cause injury.

How to adjust the tilt angle?

Detach the fixing hook, remove the two screws from the arm base, choose the hole corresponding to the desired angle (5, 10, 15 or 20 degrees), then screw back. Both arms must be set to the same angle.

Can the TV be removed easily?

Yes, first unplug the power cord, remove the two lower fixing screws, then lift the TV to unhook it. Have another person help you.

What safety precautions should I follow?

Never disassemble or modify the mount, do not install an incompatible TV, do not lean on the TV, and ensure the wall is strong enough. Read the manual carefully.

Where can I download the full manual?

The manual is available free in PDF format at notice-facile.com. You can also request a translation by email.

What to do if the wall is not strong enough?

The wall must support at least 4 times the weight of the TV. If not, reinforce the wall before installation or choose another location. Consult a professional.

USER MANUAL SUWL500 SONY

© 2007 Sony Corporation

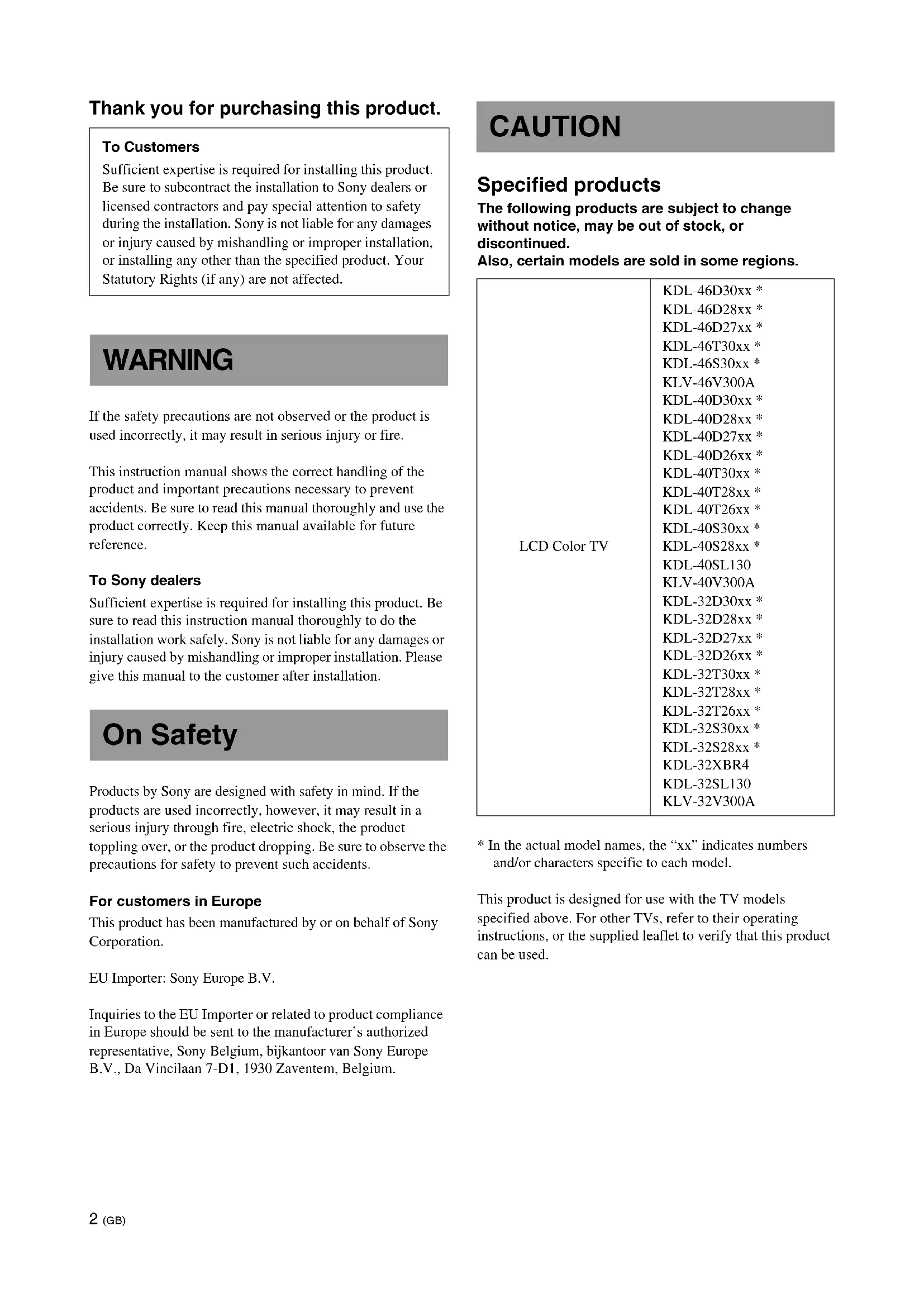

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation. Sony is not liable for any damages or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected.

WARNING

If the safety precautions are not observed or the product is used incorrectly, it may result in serious injury or fire.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference.

To Sony dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. Please give this manual to the customer after installation.

On Safety

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents.

For customers in Europe

This product has been manufactured by or on behalf of Sony Corporation.

EU Importer: Sony Europe B.V.

Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer's authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.

CAUTION

Specified products

The following products are subject to change without notice, may be out of stock, or discontinued.

Also, certain models are sold in some regions.

LCD Color TV

KDL-46D30xx * KDL-46D28xx * KDL-46D27xx * KDL-46T30xx * KDL-46S30xx * KLV-46V300A KDL-40D30xx * KDL-40D28xx * KDL-40D27xx * KDL-40D26xx * KDL-40T30xx * KDL-40T28xx * KDL-40T26xx * KDL-40S30xx * KDL-40S28xx * KDL-40SL130 KLV-40V300A KDL-32D30xx * KDL-32D28xx * KDL-32D27xx * KDL-32D26xx * KDL-32T30xx * KDL-32T28xx * KDL-32T26xx * KDL-32S30xx * KDL-32S28xx * KDL-32XBR4 KDL-32SL130 KLV-32V300A

• In the actual model names, the "xx" indicates numbers and/or characters specific to each model.

This product is designed for use with the TV models specified above. For other TVs, refer to their operating instructions, or the supplied leaflet to verify that this product can be used.

To Customers

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock, the product toppling over, or the product dropping can result.

Be sure to subcontract the installation to licensed contractors and keep small children away during the installation.

If the Wall-Mount Bracket or the TV is not installed correctly, the following accidents may occur. Be sure licensed contractors carry out installation.

The TV may fall and cause a serious injury such as a bruise or a fracture.
- If the wall on which the Wall-Mount Bracket is installed is unstable, uneven, or not perpendicular to the floor, the unit may fall and cause injury or property damage. The wall should be capable of supporting a weight of at least four times the TV weight. (Refer to your TV's instructions for its weight.)
- If the installation of the Wall-Mount Bracket on the wall is not sufficiently sturdy, the unit may fall and cause injury or property damage.

Be sure to subcontract moving or dismounting of the TV to licensed contractors.

If persons other than licensed contractors transport or dismount the TV, it may fall and cause injury or property damage. Be sure that two or more persons carry or dismount the TV.

Do not spill liquid of any kind on the TV.

If you allow the TV to get wet, this may result in a fire or an electric shock.

Do not remove screws, etc., after mounting the TV.

If you do so, the TV may fall and cause injury or property damage.

Do not disassemble or make alterations to the parts of the Wall-Mount Bracket.

If you do so, the Wall-Mount Bracket may fall and cause injury or property damage.

Do not mount any equipment other than the specified product.

This Wall-Mount Bracket is designed for use with the specified product only. If you mount equipment other than specified, it may fall or break, and cause injury or property damage.

Do not cover the ventilation holes of the TV.

If you cover the ventilation holes (with a cloth, etc.), heat may build up inside and cause fire.

Do not apply any load other than the TV on the Wall-Mount Bracket.

If you do so, the TV may fall and cause injury or property damage.

Do not lean on or hang from the TV.

Do not lean on or hang from the TV as it may fall on you and cause serious injury.

Do not expose the TV to rain or moisture.

It may cause a fire or an electric shock.

Never place the TV in hot, humid or excessively dusty places, or in a place where the TV is subjected to mechanical vibrations.

If you do so, it may cause a fire or an electric shock.

Keep flammable objects or open flames (e.g., candles) away from the TV.

To prevent a fire, keep flammable objects or open flames (e.g., candles) away from the TV.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

Do not install the Wall-Mount Bracket on wall surfaces where the corners or the sides of the TV protrude away from the wall surface.

Do not install the Wall-Mount Bracket on wall surfaces such as a pillar, where the corners or the sides of the TV protrude away from the wall surface. If a person or object happens to hit the protruded corner or side of the TV, it may cause injury or property damage.

Do not handle the product with excessive force during cleaning or maintenance.

Do not apply excessive force on the topside of the TV. If you do so, the TV may fall and cause injury or property damage.

Do not install the TV over or under an air-conditioner.

If the TV is exposed to water leaks or air current from an air-conditioner for a long time, it may cause a fire, an electric shock or a malfunction of the TV.

Precautions

• If you use the TV installed on the Wall-Mount Bracket for a long time, the wall behind or above the TV may become discolored or the wallpaper may come unstuck, depending on the material of the wall.
• If the Wall-Mount Bracket is removed after installing it on the wall, the screw holes are left.
• If you have routed 300-ohm feeder cables behind the wall, we recommend that you change them to 75-ohm coaxial cables. If it is necessary to continue to use 300-ohm feeder cables, be sure there is sufficient space available between the TV and the feeder cables behind the wall before installing. Consult your licensed contractor regarding an appropriate location (free from radio noise, etc.) before installing.

Installing the Wall-Mount Bracket

To Sony Dealers

WARNING

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or licensed contractors and pay special attention to safety during the installation.

To Sony Dealers

The following instructions are for Sony Dealers only. Be sure to read safety precautions described above and pay special attention to safety during the installation, maintenance and checking of this product.

Be sure to install the Wall-Mount Bracket securely to the wall following the instructions in this instruction manual.

If any of the screws are loose or fall out, the Wall-Mount Bracket may fall and cause injury or property damage. Be sure to use the appropriate screws for the material of the wall and install the unit securely using four or more 8mm (11/32 inches) diameter (or equivalent) screws.

Be sure to use the supplied screws and attachment parts properly following the instructions given in this instruction manual. If you use substitute items, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to assemble the bracket properly following the instructed procedure explained in this instruction manual.

If any of the screws are loose or fall out, the TV may fall and cause bodily injury to someone or damage to the TV.

Be sure to tighten the screws securely in the designated position.

If you fail to do so, the TV may fall and cause bodily injury to someone or damage to the TV.

Be careful not to subject the TV to shock during installation.

If the TV is exposed to shock, it may fall or break apart. This may cause injury.

Be sure to install the TV on a wall that is both perpendicular and flat.

If you fail to do so, the TV may fall and cause injury.

After proper installation of the TV, secure the cables properly.

If people or objects get tangled with cables, this may result in injury or damage to the TV.

Do not allow the AC power cord or the connecting cable to be pinched.

If the AC power cord or the connecting cable is pinched between the unit and the wall or is bent or twisted by force, the internal conductors may become exposed and cause a short circuit or an electrical break. This may cause a fire or an electric shock.

Be careful not to hurt your hands or fingers during the installation.

Be careful not to hurt your hands or fingers when installing the Wall-Mount Bracket or the TV.

The screws needed to secure the Wall-Mount Bracket to the wall are not supplied.

Use the appropriate screws for the wall material and structure when mounting the Wall-Mount Bracket.

For instruction on installing the WallMount Bracket to your TV please download the information at SONY website.

Before installation

If you intend to install a TV that is not specified on page 2, be sure to refer to its operating instructions, or the supplied leaflet.

Step 1: Checking the parts required for the installation

1 Prepare four or more 8 mm (11/32 inches) diameter or equivalent screws (not supplied) and a screwdriver. Select screws suitable for the material of the wall.
2 Unpack the carton and check to see that all the following items are included.

Base Bracket (2)

Mounting Hook (2)

Screw (+PSW6× 16) (4)

Screw (+BVST4× 12) (6)

Hexagon wrench (1)

Step 2:

Deciding on the installation location

1 Referring to the TV installation dimensions table on page 12, decide on the installation location.

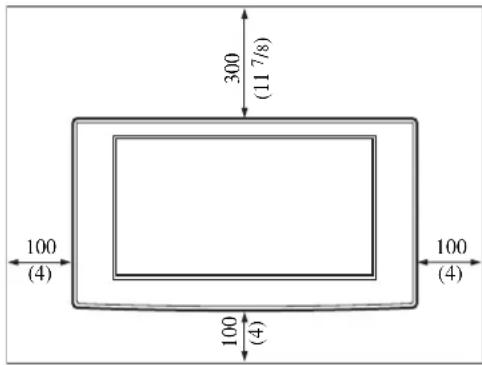

Allow for suitable clearance between the TV and the ceiling and protruding parts of the wall as shown below.

Unit: mm (inches)

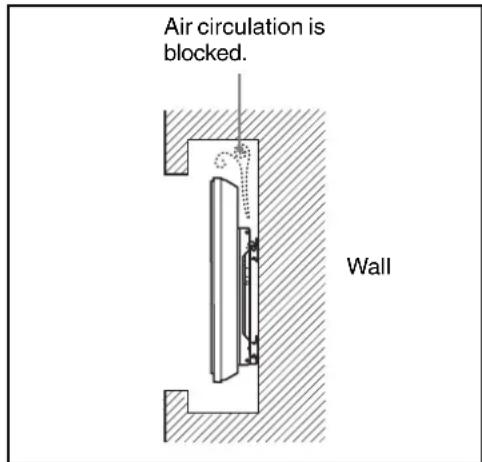

Never install the TV set as shown below:

Note

If you intend to route the cables in the wall, make a hole in the wall to insert the cables before beginning the installation.

2 Referring to the Wall mounting dimensions diagram on page 13, determine the positions of the screws for installing the Base Bracket.

WARNING

The wall that the TV will be mounted on should be able to support a weight of at least four times that of the TV (Refer to your TV's instructions for its weight.).

Determine the strength of the wall the TV will be mounted on. Reinforce the wall sufficiently, if necessary.

Step 3:

Installing the Base

Bracket on the wall

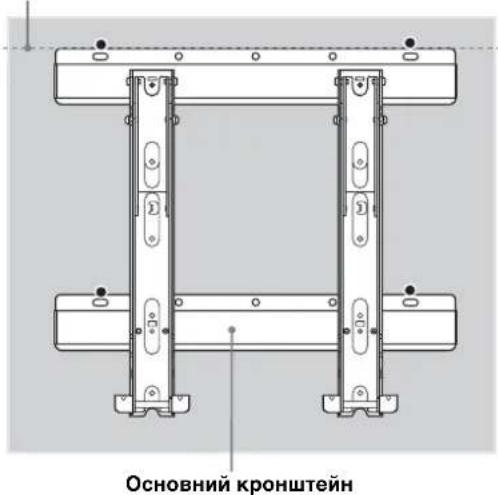

1 Secure the Base Bracket to the wall using four or more 8 mm (11/32 inches) diameter or equivalent screws (not supplied).

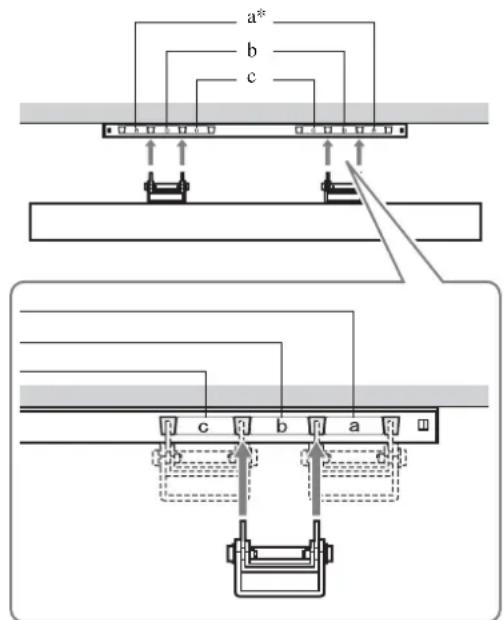

Determine the screw holes (d, h) for attaching the Mounting Hook to the Base Bracket. Then attach them securely using the supplied screws (+BVST4 × 12).

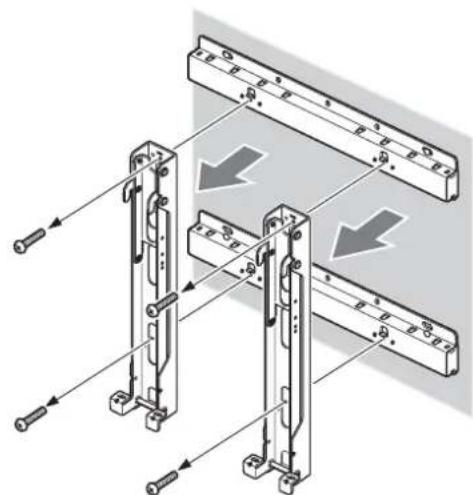

2 Secure the Base Bracket and the Mounting Hook on the wall using the four or more 8mm (11/32 inches) diameter or equivalent screws (not supplied).

Select four screw holes with the mark shown in the diagram below and tighten the screws securely so that they will not become loose.

Align the unit so that it is level.

3 Remove the screws which were attached in procedure 1 and detach the Mounting Hook from the Base Bracket.

CAUTION

Be careful not to drop the Mounting Hook when removing the screws from the Mounting Hook.

WARNING

• The screws required for this procedure are not supplied. Select screws suitable for the material and structure of the wall.
• If the Base Bracket cannot be attached securely enough, use additional screws.
• Be sure to confirm that the Base Bracket is securely attached to the wall.

Step 4:

Preparing for the

installation of the TV

If you intend to install a TV that is not specified on page 2, be sure to refer to its operating instructions, or the supplied leaflet.

1 Remove the screws from the rear of the TV. Then detach the Table-Top Stand from the TV.

Place the TV with its screen facing down on a stable cloth-covered work surface.

For the following TV users:

KDL-46/40D30xx , KDL-46/40D28xx ,

KDL-46/40D27xx*, KDL-40D26xx*,

For the following TV users:

KDL-32D30xx , KDL-32D28xx ,

KDL-32D27xx , KDL-32D26xx ,

• In the actual model names, the "xx" indicates numbers and/or characters specific to each model.

Notes

• When removing the Table-Top Stand from the TV, lay the display face down on a stable work surface that is larger than the TV.
• To prevent damaging the surface of the LCD display, make sure to place a soft cloth on the work surface.

CAUTION

• If pressure or shock is applied to the surface of the TV, the LCD display may break or become damaged.
• Lay the display face down on a stable and level surface with the Table-Top Stand hanging over the edge of the surface. Having the display face and the base of the Table-Top Stand on the same level surface will create an unstable working condition and can damage the TV.
• When detaching the Table-Top Stand from the TV, hold the Table-Top Stand securely with both hands.

When using an electric screwdriver, set the torque setting to approximately 2N· m {20 kgf·cm}. Do not lift the Mounting Hook before the screws (two screws each for left/right) are secured. This may distort the Mounting Hook or the TV cabinet.

2 Referring to the Screw and Hook locations diagram/table on page 13, determine the screw positions, and secure the Mounting Hook to the rear of the TV.

Secure the Mounting Hook to the rear of the TV temporarily, using the supplied four screws (+PSW6× 16)
2 Be sure that both screws are securely tightened with equal torque strength to the rear of the TV.

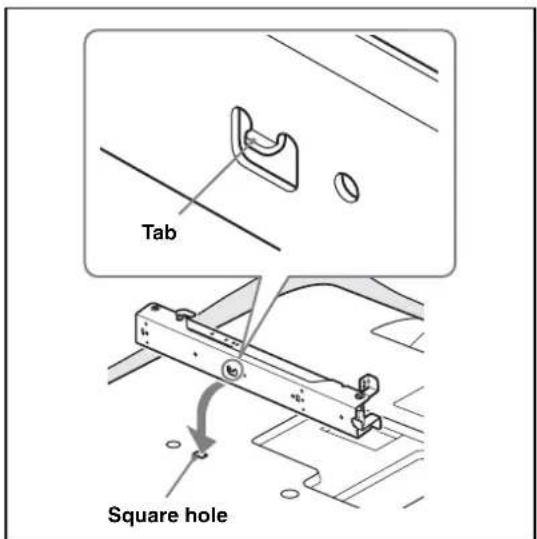

Align the tab on the rear of the Mounting Hook with the square hole on the rear of the TV as in the illustration below.

Note

Be sure not to use any screws other than the supplied ones (+PSW6× 16) when securing the Mounting Hook.

3

Adjust the angle of the Mounting Hook using the supplied hexagon wrench.

When installing the TV parallel to the wall (0 degrees), adjustment of the Mounting Hook angle (procedures

1 and 2 below) is not necessary. Make sure that each arm base is screwed in securely.

1 Remove the two screws from the arm base of the Mounting Hook. Choose the holes corresponding to the desired angle (5, 10, 15 or 20 degrees).
2 Adjust the angles of the top and bottom ② arm to fit the corresponding hole, and firmly secure each arm using the two screws removed in the previous procedure 1.

Notes

• Be sure to adjust the right and left arms to the same angle.
• Make sure that the two arm bases are screwed in securely.

CAUTION

Be careful not to pinch your fingers when adjusting the angle of the Mounting Hook.

Notes on the adjustment angles

• When installing TV models other than those specified on page 2 (depending on the model's size and dimensions, etc.), the adjustment angles listed (0, 5, 10, 15, 20 degrees) for the arms may be limited.
• For the available adjustment angles of the arms when installing TV models other than those specified on page 2, refer to their operating instructions, or the supplied leaflet.

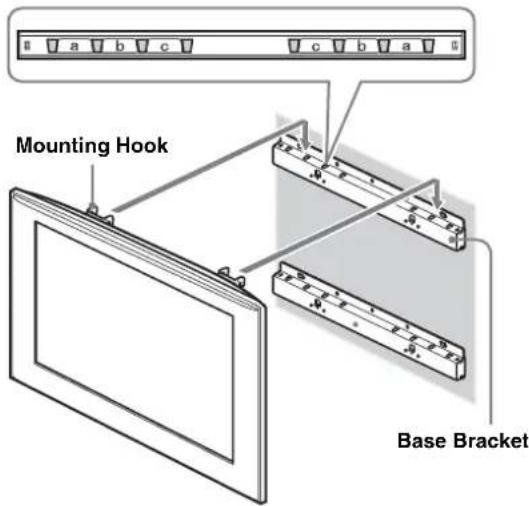

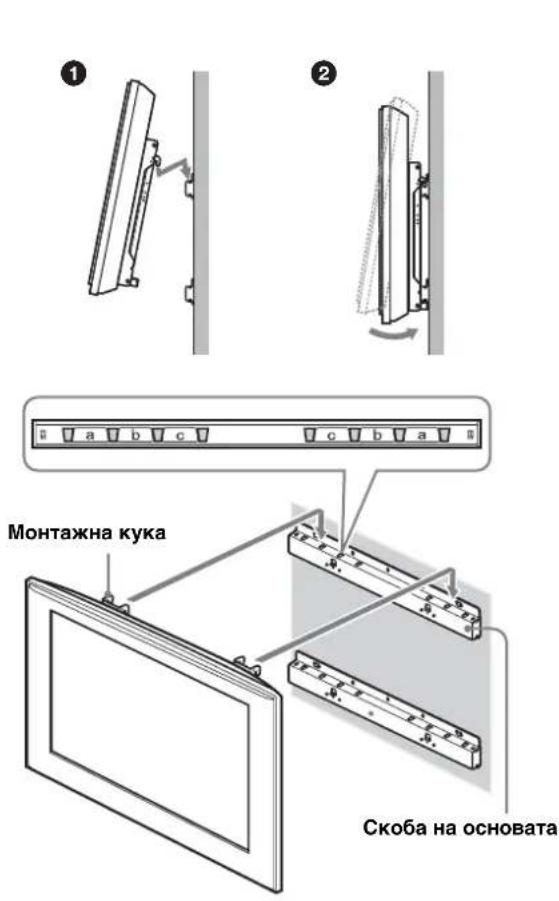

Step 5: Installing the TV on the wall

If you intend to install a TV that is not specified on page 2, be sure to refer to its operating instructions, or the supplied leaflet.

WARNING

Be sure to complete the installation before connecting the AC power cord to the wall outlet. If you allow the AC power cord to be pinched under or between pieces of equipment, this may result in a short circuit or an electric shock.

Be careful not to stumble over the AC power cord or the TV, as you may hurt yourself.

1 Connect the AC power cord and the connecting cable(s) supplied with the TV to the TV.

Connect the AC power cord and the connecting cable(s) to the connectors on the rear of the TV. For details on connecting the AC power cord and the connecting cable(s), refer to the instruction manual of the TV.

Notes

• You cannot connect the cables to the TV after installing it on the Base Bracket.
• Subcontract the cable routing in the wall to a licensed contractor.

2 Install the TV onto the Base Bracket.

Referring to the Screw and Hook locations diagram/table on page 13, determine the holes of the Base Bracket for latching the upper hooks of the Mounting Hook.
Hold the TV securely with both hands, and gently align it on the wall.

WARNING

Be sure that two or more persons hold the TV when carrying it.

0

2

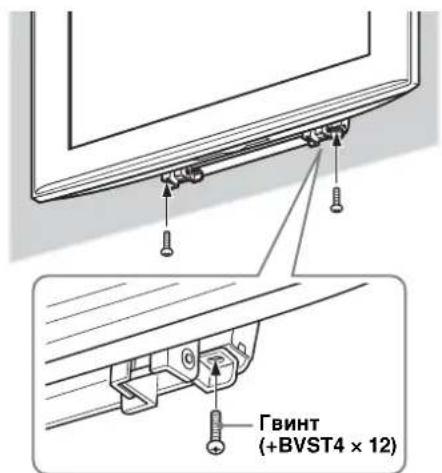

3 Firmly secure the TV and the Base Bracket using the two supplied screws (+BVST4× 12)

Note

When using an electric screwdriver, set the torque setting to approximately 1.5N· m {15 kgf·cm}.

WARNING

Be sure to tighten both left and right securing screws firmly. If you fail to do so, the TV may fall when it is pushed upward and cause injury.

Confirming the completion of the installation

Check the following points.

The hooks of the Mounting Hook are firmly latched in the holes of the Base Bracket.
- The cord and the cable are not twisted or pinched.
- The two screws that secure the Mounting Hook and the Base Bracket are securely tightened.

WARNING

Do not adjust the angle of the Mounting Hook when the TV is installed on the wall and be sure to install completely. It may cause the product to fall and result in injury or product damage. Also, improper placement of the AC power cord, etc., may cause fire or electric shock through a short circuit. Be sure to confirm the completion of the installation for safety.

3

Be sure to hold the TV and slide it upward to remove the TV.

CAUTION

• Be careful not to allow the cord and cables to get caught when removing the TV.
• Be careful not to hurt your hands or fingers when removing the TV.

WARNING

Be sure that two or more persons hold the TV when carrying it.

When removing the TV

To Sony Dealers

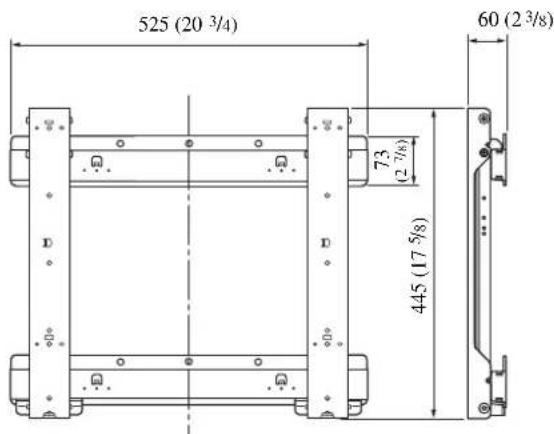

Specifications

Unit: mm (inches)

Weight: 4.7kg (10 lb 6 oz)

1 Unplug the AC power cord from the wall outlet.
2 Remove the two screws which secure the TV and the Base Bracket. (Refer to 3 of Step 5 on page 10 for the screw positions.)

Design and specifications are subject to change without notice.

TV installation dimensions table

The table below shows the dimensions of the TV that is mounted on this product. Refer to this table to decide on the installation location.

If you intend to install a TV that is not specified below, be sure to refer to its operating instructions, or the supplied leaflet.

Screen centre point

Unit: mm (inches)

Model Name	Display dimensions		Screen centre dimension	Length for each mounting angle
				Angle (0°) Angle		(20°)
	A B C D E F G H
KDL-46D30xx */KDL-46D28xx */KDL-46D27xx */KDL-46T30xx */KDL-46S30xx */KLV-46V300A	1,114 (43 7/8)	730 (28 3/4)	106 (4 1/4)	505 (20)	175 (7)	373 (14 3/4)	705 (27 7/8)	545 (21 1/2)
KDL-40D30xx */KDL-40D28xx */KDL-40D27xx */KDL-40D26xx */KDL-40T30xx */KDL-40T28xx */KDL-40T26xx */KDL-40S30xx */KDL-40S28xx */KDL-40SL130/KLV-40V300A	981 (38 5/8)	643 (25 3/8)	157 (6 1/4)	505 (20)	170 (6 3/4)	338 (13 3/8)	622 (24 1/2)	543 (21 1/2)
KDL-32D30xx */KDL-32D28xx */KDL-32D27xx */KDL-32D26xx */KDL-32T30xx */KDL-32T28xx */KDL-32T26xx */KDL-32S30xx */KDL-32S28xx */KDL-32XBR4/KDL-32SL130/KLV-32V300A	790 (31 1/8)	530 (20 7/8)	137 (5 1/2)	424 (16 3/4)	160 (6 3/8)	318 (12 5/8)	516 (20 3/8)	464 (18 3/8)

Some models may not be available in certain regions.
Figures in the above table may differ slightly depending on the installation.

• In the actual model names, the "xx" indicates numbers and/or characters specific to each model.

WARNING

The wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV.

Refer to your TV's instructions for its weight.

Wall mounting dimensions diagram

Unit: mm (inches)

Screw and Hook locations diagram/table

Model Name	Screw location	Hook location
KDL-46D30xx */KDL-46D28xx */KDL-46D27xx */KDL-46T30xx */ KDL-46S30xx */KLV-46V300A	e, g b
KDL-40D30xx */KDL-40D28xx */KDL-40D27xx */KDL-40D26xx */ KDL-40T30xx */KDL-40T28xx */KDL-40T26xx */KDL-40S30xx */ KDL-40S28xx */KDL-40SL130/KLV-40V300A
KDL-32D30xx */KDL-32D28xx */KDL-32D27xx */KDL-32D26xx */ KDL-32T30xx */KDL-32T28xx */KDL-32T26xx */KDL-32S30xx */ KDL-32S28xx */KDL-32XBR4/KDL-32SL130/KLV-32V300A	f, j c

Some models may not be available in certain regions.

• In the actual model names, the "xx" indicates numbers and/or characters specific to each model.

Screw location

When installing the Mounting Hook on the TV.

Hook location

When installing the TV onto the Base Bracket.

• Hook position "a" cannot be used for the models in the table above.

Avant I'installation

To3H IIpoIyKT e IIOH3BeIeH OT HJH OT HMeTO Ha Sony Corporation.

BHOCHTeJI B EC: Sony Europe B.V.

3aHTBAHnI IO BHOCTeJIa HJIN 3aHTBAAHc Cbtp3AHc bC cBoTBeTcBHeTO Ha IPOyKTHTe CbJIacHO 3aKHOJaTeJIcTBOTo Ha EBpOIIeckHc BIO3, CJIeJIbIa ce OTIpaBRT KbM YIbJIHOMOeHHN IIpeIcTaBHTeJI Ha IpnOHBOHNTeJIa Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, BeJIHnI.

BHIMAHNE

Yka3aHn npOdyKtN

CneHnTe npOdykTn noJnEkaT Ha npomHa 6e3 yBeDOMJIeHHe, MoKe Da He ca HAnuHn NIn BeYe da He ce npOn3BExkDaT.

OcBeH ToBa, OnpeJeIeH N MoIeN Ce npOdaBAt cAmo B HAKON perNoHn.

IIBeTeH LCD TeJIeBn3Op

KDL-46D30xx*

KDL-46D28xx

KDL-46D27xx*

KDL-46T30xx*

KDL-46S30xx*

KLV-46V300A

KDL-40D30xx*

KDL-40D28xx*

KDL-40D27xx

KDL-40D26xx*

KDL-40T30xx*

KDL-40T28xx

KDL-40T26xx

KDL-40S30xx*

KDL-40S28xx*

KDL-40SL130

KLV-40V300A

KDL-32D30xx*

KDL-32D28xx*

KDL-32D27xx

KDL-32D26xx*

KDL-32T30xx*

KDL-32T28xx

KDL-32T26xx

KDL-32S30xx*

KDL-32S28xx*

KDL-32XBR4

KDL-32SL130

KLV-32V300A

*BДeHCTBHTeJIHHTe HMeHa Ha MOJeJIHTe "XX" O3Haayaba HOMcpa H/INXapaKTcPcHCTKN, CIIHΦHn 3a BceKN MoJI.

To3H IIpoIyKT e IIpoEeKTHpaH 3a H3IIIOJI3BaHe c MoJeJIHTe TcJIeBn3OpH, yka3aHH IO-Topc. OTHOCHOpyrN TeJIeBn3OpH, BIXTe INCtpyKIIINTE 3a pa6Ota HIN IocTaBeHaTa 6pOwypa, 3a Ja IIpoBepHte JaIH MOKeTe Ja H3IIIOJI3BaTe To3H IIpoIyKT.

Dno notpe6nteIte

ПЕДУПЕЖДЕНЕ

Ako He ce cna3BaT cJeHnTe npedna3Hm MepK, TOBa MoKe Da DOBeDe Do cepNo3Ho HapaHbAHe Nn CmbpT OT NoXap, eNektpnuecknydap, naDaHe nn ppeo6pbuaHe Ha npOdykTa.

ПовереTe MOHTаЖа на ЛиценЗираMuHn3ПьЛнТeЛи И ДрБжTe DeцaTaHaCTpaHи NO ВpeMe Ha MOHTaЖа.

Ako KOH3OJaTa 3a MOHTaX Ha cTeHa HIN JINCIJIeT He ca MOHTpaHH IIpaBNIHO,MOKe Ja B3HNKHAT CIEJHNTe HNIIeHTN.YBepTe ce, Yc MOHTaXbT CC N3BbPbIBa OT JINIeH3HpAH N3IbJIHITeJIH.

TcIcBn3OpbT MoKc Ia IaIaHc H Ja IpcN3BnKa cepHO3HO HapaHBAHe, KaTO KOHTy3H HJIN CUYIBaHe.
Ako cTchata,Ha KOrTO c MOHTnpaHa KOH3OJIaTa 3a MOHTaX Ha cTeHa e HeCTa6HJIHa, HepaBHa HHe e IepIeHNKUJyRpaHa Ha NODa, KOHcTpkyIuTAt MoKe Ja HAnHe HJa IIpNvHHn HapaHbAHe HIN IOBpeJa Ha HMyIeCtBO.CTchata Tpr6Ba JAmoKc Ja H3IbPxN IIOHe YeTHPn IIbTH TeTJIoTO Ha TeJIeBH3Opa. (OTHOCHO TcTJIoTO Ha TcJIeBUN3Opa, BNKTc pKOBODCTBOTo HA TeJIeBH3Opa.)
AKOMHTaKbT Ha KOH3OJaTa 3a MOHTaKa CTcHa Hc eIOCTaTbUHO 3IpaB, KOHCTpyKIIHrTa MoKe Ia IIaHe HJa IIpNHHH HapaHbAHC HJIN IOBpcJa Ha HMyIecTBO.

YBepete ce, ye cTe Bb3JoxnI npemecTbaHTo nIIN DeMOHTaJa Ha TeJIeBN3opa Ha IInceH3npaHI N3IbJIHNTEJI.

Ako npyH JnHa,OCBeH JnHeH3HpAH H3IbJInTeJIN, TpaHCIOPTpAP HJN DeMOHTpAP JInCHJIe,TOIMoKeJa IaIa II pUHHH HapaHBaHe HJN IOBpeHa Ha HMyIcCTBO.OChrypcTc DBC HJN NOBcC JnHa 3a HocchC HJN DeMOHTaX Ha TeJIeBH3Opa.

He pa3nBaIte HnKaKBr TeuHOCTN Bbpxy TeJIeBn3opa.

Ako TeJIeBn3OpbT ce HAMoKpH, TOBa MoXe Ja IIpNHHI NOxap IIN cJIeKTpNcckN yJap.

He cBaJIaIe BnHTObe n dpyrncJed MOHTaJa Ha TeJeBn3Opa.

AkoToHaHnpaBHTe,TeJIeBn3OpbT MoKe IaIaHe HJa IIpHuHHnHa paHABaHc HIN IOBpcJa Ha HMyIecCTBO.

He demontpauTe n He npomehaTe yactnte Ha KOH3OJaTa 3a MOHTaK Ha cTeHa.

Ako ro HaipapBHTe, KOH3oJaTa 3a MOHTaJHa cTeHa MoKe Ja IIaHe H Ja IpruHHn HapaHbAHC HIN IOBpcJa Ha HMyIecTBO.

He moHTnpaIte npyro o6OpyDbaHe, OCBeH yKa3aHn npOdyKT.

Ta3N KOH3OJa 3a MOHTaX Ha cTeHa e IIpoeKTHpaHa 3a H3IOJI3BaHC cAmO c yKa3aHHTc IIPOJyKTH. AKO MOHTIpaTe O6OpYBaHe, pa3JIuHNo OT yKa3aHOTo, To MOKe Ja IaIHe HJIn Da ce CUYIN Jda IIpHUnHn HapaIIBaHe HIN IOBpeJa Ha HMyIecTBO.

He NOKpNBaIte BeHTnlaZuHOHHTe OTBOpN Ha TeJIeBN3Opa.

Ako IOKpHcTe BCHTNJaUHOHHTe OTBOPn (CKbPna HJIN pyrO), HAtpyHaHaTa B'BB B'TpEIIIOCTTa TOJIINHa MoKe Ja IIpIYHHI IOXkap.

He noIaraiTe KOH3OJaTa 3a MOHTaX Ha CTeHa Ha HnKaKbB dpyr TOBaP, OcBeH TeJIeBn3Opa.

Ako ro HanpaBHTc, TCJIeBn3OpbT MoKc Da IaIaHe II aIIpHUNH HapaHBaHe IIIN IOBpeHa HMyIecTBO.

He ce 6nraTe n He yBncBaIte Ha TeJeBn3Opa.

He ce 06IgraTe H He yBHCbaTe ot TcJIcBn3Opa, 3aIoTO MoKc Ja IaIHc H Ja IIpuuHn cepNo3HO HapaHbAhe.

He n3larate TeleBn3opa Ha IbXd nn Bnara.

ToBa MoXe Da npHnHHn NoXap HnH cIeKtpnueckn yIap.

Hnkora He nocTaBnTe TeIeBn3Opa Ha ropeu, BnaJxHn IIn IpeKaJeHo npaShn MecTa IIn Ha MxCTO, KbdeTo e IopIoXeH Ha MexaHnHn Bn6paun.

AkoToHaipabHTc,TOBaMoKcJaIIpHnHHNoKap HJNeKTpHueckn yIap.

ДрьжтевьзламенMuпpeдmetиИи OTКрТ ПламьК (HanримерСBEци) Hab相对较OT TeleВиЗopa.

3aJa IpcIOTBpaTHTc IOxkap,IpbXkTC Bb3IIaMCHMN IIpeIMeTH HIN OTKpHT IIaMbK (HaIIpHMeP cBeIH) HAcTaPAHH OT TcJIcBN3Opa.

BHIMAHNE

Ako cIeHNHe npEpa3Hm MepKn He ce cna3BaT, MoKe Da Bb3HnKHe HapaHbAhe Nnn NobpeDa Ha NMyEcTBOTO.

He MOHTIpaIte KOH3OJaTa 3a MOHTaJHa CTeHa Ha CTeHnIOBbPxHOCTu, KbIeTO bIITe IJINCTpaHnte Ha TeJIeBu3Opa Ce N3DaBaT HAcTpaHn OT NOBbPxHOCTTa Ha CTeHata.

Hc MOHTpaNTe KOH3OJIaTa 3a MOHTaK Ha CTeHa HA CTeHHN IOB'bpXHOCTn, HauPHeMep KOJIOHa, KBJTeTO bJIInTe HIN CTpaIIHTe Ha TeJIeBH3Opa ce H3JaBaT HAcTpaHHOT IOB'bpXHOCTTa Ha CTcHaTa.

Ako JInue HINI INpeIMeT yIapn

H3JaHeHHbIJI NJIN CTpaHa Ha

TeJIeBn3opa,TOBa MoKe Ja IIpHUNH HapaHbHe HIN IOBpeHa HMyIecCTBO.

He TpeTnpaIte npOdyKta c npeKaJIeHa cnla no BpeMe Ha NOuchCTBaHe IJN NODpBxKka.

He npHaarate npeKaJeHa cnJa BbpyrOphTa qact Ha TeCBeH3Opa.AKO rHaIpaBHTc,TeJIeBn3OpBT MoKe Ja IaIHe H Ja IIpHUnH HapaHBAHe HIN IOBpeHa HA HMyIecTBO.

He moHTnpaIte TeJIeBn3opa HaN JIIN POD KJIIMaTnK.

Ako TeJIeBH3OpBT e N3IOKeH IIpoIbJIJKHTeJIHO Ha TeU HJIN B3JyIHHO TcYcHHeOT KJIHMaTHK, TOBA MOXc Ja IIpeIN3BnKa IIOxAp, eJIeKTpHueCKn YIap INH Hen3IIpaBHOCT Ha TeJIeBH3Opa.

ПредпаЗн меркn

AkoIbIroBpeMeH3IOJI3BaTeTeJIeBu3Op,MOHTnpaHa KOIH3OJa 3a MOHTaK Ha cTeHa,CTeHaTa 3aJ Hn Ha TCJCIBu3Opa MoKc Ja CC o6c3uBCTn Hn TaTcBT Ja ce pa3JIeHH,B 3aBHCIMOCOT MaTePHaJa Ha cTeHaTa.
AKO KOH30JAta 3a MOHTaX Ha cTeHa 6bIe IpeMaxHaTa OT cTeHaTa cJIeIMoHTaXa, IIeOCtHaT OTBOPH OT BHTOBCTc.
- AKO cTe IpeKapaJIH 300-OMOBH fIeepHI Ka6eJIH 3aI CTcHaTAt, IpeIopbUBAmc Bn JIa rH CmCHNTc CbC 75-OMOBH KOaKcHJIH KabeJIH. AKO TpIbBa Ia IIPOJbJIxHTe Ja H3IOJI3BaTe 300-OMOBH fIeepHI Ka6eJIH, IpeII MOHTaKa OCTaBcTe IOCTaTbUHO CBO6OJHO MRCTO McXJy TCJCSBHI3Opa H fIuCpHIc Ka6eJIH 3aI cTeHaTa. IpeII MoHTaKa ce KOHCyJIITnpaIte c JINueH3HpA H3IIbJIHHTeJ OTHOCHO IIIOXoJRIOTo McCTOIOJOXChNC (6c3 paJIno CMyUChN H npYr).

Mоntаж Ha KOH3ОЛa 3a cTeHa

До диспбуториTe Ha Sony

PNEyIPEXDEHNE

Do notpe6nte nnte

3aMOHTaKaHaTO3nIPOjyKTcH3NCKBa Heo6xoJHMHTOINT.Bb3IOKeTe MOHTaKa Ha HInCTp6yTopnHaSonyHINJINIEH3npaHN H3IIbJIHNTEJIINo6bPHeTeCNEIIaJIHO BHIMaHHe Ha 6e301aACHOCTTaIOBpMeHaMOHTaKa.

Dnctpn6byTopnte Ha Sony

CJIeIHHTe HHCtpyKIIHH ca cAmO 3a IIHcTpHb6yTopHte Ha Sony. IpOueTeTc McpKHTc 3a 6c30IacHOCT, OIIHcaHH IIO-TOpe H IO6bPHeTe CIIeIIHaJIHO BHNMaHHe Ha 6c30IacHOCTTa IIO BpEme HA MOHTaKa, IIOIDIpBxKkata H HHCNEKIIHrTa Ha IPOdyKtA.

MOnTnpaIte 3dpaBO KOH3OJaTa KbM CTeHaT, KaTO CJIeDBATe INCTpyKcIInTe B TOBa pBKOBoDCTBO 3a pa6ota.

Ako HKOIOT BnHTOBeCe pa3XJa6H IINIIaHHe,KOH3OJIaTa 3a MOHTaK Ha CTcHa MoKc Ia IIaIHc N Ja IIpaHH HapaHbAHC IIINIOBpcHa HMyIIECTBO. H3IOJI3BaIte IOJxOJaIII 3a MaTePHaJa Ha cTeHaTa BnHTObE MoHTHpAITc KOHCTpyKUHrTa 3IpaBO,

KaTO H3IOJI3BaTe YeTnpH NII IOBuee BNHTa C dHaMeTbP 8 mm (NJN cKBnBaJIeHTH).

N3noJ3BaIte npaBnIHO
DOCTaBeHnte BnHTOBe N
OKaUBaIu YactN, KaTO CJIeDbATE
HNCTpyKcIInTe B TOBa
pbKOBoIDcTBO 3a pa6Ota. Ako
N3NoJ3BaTe 3aMeCTBaIu
eJeMeHTN, TeJIeBn3OpbT MoKe Da
PaNdHe N Da pRnuHn TeJeCHa
NOBpeDa NII da Ce NOBpeDN.

YBepete ce, ye cIIO6BaTe KOH3OJaTa npaBnJHo, KaTO CJIeDbATE npoUeDypata, ONIcaHa B TOBa pKOBODCTBO 3a pa6ota.

Ako HKOOTBHTOBeTe ce pa3Xla6H HIN HnHe, TCJcBn3OpBT MOKc Na IaHNC H da IIpHnHH TcJIcCHa IIOBpeHa HIN Da CE IIOBpeH.

3aterheTe 3dpaBO BnHTOBete Byka3aHOTO NOJoxeHne.

AkoHcroHaipabntc,TeJIeBn3OpbT MoKc Ja IaIaHc HJa IIpHUnHH TeJeCeHa IOBpeJa IIN Ja ce IIOBpeH.

Bнмаваite Да He ударп TeJIeВИЗОрЯ NO ВpeMe Ha MOHTaЖа.

AkoTeJIeBn3OpbT6bIe yIapeH,ToM MoKe Ia IaIHe HIN Da CCyHn. TOBa MoKe Ia IOBCncIO HapaHBAHC.

MOnTnpaIe TeIeBn3opa Ha cTeHa, KOrTo e nepneHdNkUyIrpHa n paBHa.

Ako He HaupaBHToBa,TeJIeBn3Op'bT MoKe Ja IaIaNHe H Da IIpuHHH HapaHaBaHe.

Cnei npabnHna MOHTaX Ha TeJeBn3opa, oBe3Opacete npabnHNo Ka6eInte.

Ako xopa HJH IIpeIMEtH ce 3aJIeTaT B Ka6eJIHTe, TOBa MoKe Ia IIpHUNH HapaHBAHe HJH IOBpeJa Ha TeJIeBN3Opa.

He donyckaite npntnckahe Ha 3axpaHbauu Ka6eI uHa CBbp3BaunKa6eI.

Ako 3axpaHbAIIHT Ka6eJI HIN CBbp3BaIHT Ka6cJI 6bIaT IIpHTnCHaTH MeJy KOHCTpyKIIHTa I CTehata, HIN aKO 6bIaT O'BHATN HIN ycKaHN CbC CHJa, B'TpEIHHTe IIPOBOHIN MOKe Da CC OROJr T Ja IIpHInHIT KbCO cBeINHeHHe HIN eJIe TOBa MoKe Ja IIpHInHHIOXap HIN e

BHMaBaTe Da He HapaHnte npbCTnTe nI npbCte cn no BpeMe Ha MOHTaxa.

BHHMaBaHTe Ha He HapaHHe IpbcHTHe HIN pTbIeTe cH IO BpcMC Ha MOHTaKa Ha KOH3OJaTa 3a MOHTaK Ha CTeHa HIN Ha TeJIeBN3Opa.

BnHTOBete, Heo6xOdImn 3a 3aKpeNBaHe Ha KOH3OJaTa 3a MOHTaX Ha CTeHa KbM CTeHaTa, He Ce DoCTaBt.

H3IOJI3BaIte IOIXOJIIIN BHHTOBe cIopei MaTePHaJa Ha CTchAra H KOHCTpyKIIrTa, KORATO MOHTnpaTc KOH3OIJaTa 3a MOHTaX Ha cTeHa.

3a INHCTpyKUIN OTHOCHO MOHTaJa Ha KOH3OJaTa 3a MOHTaX Ha CTeHa KbM BaUNI TeJIeBn3Op CBaJIeTe INHΦopMaunrTa OT ye6 caNTbT Ha SONY.

PpeDn MoHTaX

Ako Bb3HaMepeBaTe Na MOHTnpaTe TeJIeBH3Op, KOHTo He e yKa3aHn Ha cTp.2, IIPOBepeTe B HhCTpyKIIHHe My 3a pa6Ota HIN B IocTaBeHaTa 6poWypa.

CTbPkca1:

HnKora He MoHTnpaIe TeJeBn3Opa, KaKTo e NOKa3aIO IO-IOJY:

3a6eJexkka

AkoBb3HaMepBaTeJaIPOkapateKa6JIHTe B cTcHaTa,HaIIpaBcTeOTBOPBCtHaTa,3aJa BMbKHeTe Ka6JIHTe IIpeHHaJATO HaMOHTaKa.

2 KaTo ce KoHcyIHTnpaTe cbc cxemata C pa3Mepn 3a MOHTaX Ha cTeHa Ha cTp.15, onpeJeIeTe NOLOXeHNeto Ha BnHTOBete 3a MOHTaX Ha cKo6aTa Ha OCHObata.

PpeynpexkdeHne

CTeHaTa,Ha KOrTo Ile 6bIe MoHTHpA H TcJIcBn3OpT, Tp8Ba Ia MoKc Ia NODbPka HaH-MaJIKo YetHrpN IIbTH TeTIOTo Ha TEJIeBH3Opa(BNXTe HnCtpyKuHnTe 3a paOTo HA TeJIeBH3Opa OTHOcHTo TReIOTMy.). OIpCeJIcTe 3IpaBnHaTa Ha CTcHATA,Ha KOrTo IIE 6bIe MOHTHpA TcJIeBn3OpT. AKO e Heo6XoIHMo, yChIeTe CTeHaTa IOCTaTbHIO.

CTbPk3:

MoHTaX Ha cKO6aTa Ha OCHOBaTa Ha cTeHaTa

1

3aKpenete cKobata Ha ochOBata KbM CTeHaTata, KaTO n3NOJ3BaTe ueTpnp nn nobuee BnHTa C DnaMeTbp 8 mm nn eKBnBaJIeHTHn (He ca DOCTaBeHn).

OIIpeIeJIePe pa3MepHte Ha OTBOpHTe 3a BHTOBeTe (Ⅱ, B) 3a 3aKpeIIBaHe Ha MOHTaXHaTa KYKa KbM cKO6aTa Ha OCHOBaTa. IocJIe rN 3akpeHte 3IpaBO cIOCTaBeHNTE BHTObE (+BVST4×12).

3aKpeIeTe cKoBaTa Ha oChOBaTa H MOHTaXHaTa KYKa Ha cTeHaTa, KaTO HIOJI3BaTc YCTnPH INIOBcYe BHTa C IIHaMeTbP 8 mm INH eKBHBAJEHTHH (He ca IOCTaBeHN).

H36epTe YeTHpN OTBopa 3a BnHTOBe cbc 3HaK Ha CXcMaTa IIO-JIOJy H 3aBnTc 3npaBO BnHTOBeTe, Taka Ye Ja He Ce pa3XJa6T.

PaBHcTe KOHcTpkyKIIHTa XOpH3OHTaJIHO.

OTCTpaHCTC BHTOBCTC,IOCTaBCHN B IpoIeIpya 1 NOTKaHeTe MOHTaXHaTa KyKa OT CKoBaTa Ha OCHoBaTa.

BHMaHne

BHHMaBaHTe Ja He H3NpycheTe MOHTaXHaTa KyKa, KOraTo OTCpaHBAte BHHTOBcTe OT HeJ.

PpeynpexdHne

BHTOBeTe,Heo6xOHNM3aTa3nIpoUeIpya,He CCIOCTABRT.N36cpcTc BHTTOBC,IOJXOnIuN 3a MaTePnaJaH KOHCTpyKunraHa CTeHaTa.
Ako cko6aTa Ha OCHOBaTa Hc MoKe Ja cc 3aKpeHIOCTaTb'HO 3IpaBO,H3IOJI3BaHTe IOITbJHHTeJHH BHHTOBe.
-Поверета Кбога Н осова e 3дрво 3akpeпа KM cTeHaTa.

CTbPk4:

Podrotobka 3a

MOHTaX Ha TeJIeBn3Opa

AkoBb3HaMepeTaJaMOHTHpateTeJIeBH3Op,KoHTO Hc yka3aH Ha cTp.2,IIPOBCpcTe B HnCTpyKuHnTc My 3a pa6ota HINBIOCTABeHaTa 6poWypa.

1 Maxhete BnHTOBete OT 3aHaTa qact Ha TeJeBn3Opa. Nocle CBaJIeTe NOCTaBkata 3a MaCa OT TeJeBn3Opa.

IocTaBete TeJIeBn3Opa c ekpaHa HaIOJy Ha ctA6HJa IOBbPxHOCT, IOKpHTa c KbPna.

3a noTpe6nteJIte Ha cNeIHNTe TeIeBUNOp:

KDL-46/40D30xx . KDL-46/40D28xx .

KDL-46/40D27xx . KDL-40D26xx .

KDL-46/40T30xx , KDL-40T28xx ,

PaBHHeHaKaHnKa B 3aHnHaTa YacT Ha MOHTaKHaTa KyKa C KBaIpaTHnA OTBOp B 3aHaTa YacT Ha TeJIeBn3Opa, KaKTo e IOKa3aHO Ha IOJHaTa HIOCTpaIIH.

3a6eJexka

BHHMaBaHTeJaHnH3IO3BaTeIpyrH BnHTOBc,OCBeH IOCTaBeHHTe (+PSW6× 16) ,KORATo 3aKpeINBaTe MOHTaXHaTAt Kyka.

PerylnpaTe brbna Ha MOHTaXHaTa KyKa c DoctaBeHnA WeCTOrpam.

Korato MoHTnPaTe TcBn30pa ycnpCnHO Ha cTeHaTa (O rpaIyca),peYJInpAHeTo Ha bTbJa Ha MOHTaXHaTa KyKa (IPOeIpyH 1 H 2 IIO-IoIy) He e Heo6xOIMo. IIpoBepeTe JaIIH BcKa OCHOBa Ha paMTo 已 e 3IpaBO 3aBnHTeHa.

MaxHcTe IBaTa BnHTa OT OCHObTa Ha paMOTO Ha MOHTaXHaTa KyKa. H36cpCTc OTBOp, cBOTBeTcTBaII Ha JeIaHn bTbJI (5, 10, 15 II20 rpaIyca).
PeryIpaTe bIHTe Ha rOpHTo ⑦ IIOJIHOTo ② paMo, TaKa Ye Ia IacHaT Ha cBOTBeTHNIA OTBOP H 3IpaBO 3aKpeIeTe BcRAKO paMo C IBaTa BNHTa, INBaIcHN IIpu IIpcDIIHHaTa IIpoUcDypa 1.

3a6eJexkka

PeryJInpaIte IaCHOTOn H JABOTO pAMO IOeHaKbB bΓbJI.
-ПpoBepTeДaJIHДBeTe OCHOBnHa paMeHaTa ca 3ДpaBO 3aBHHTeHH.

BHMaHne

BHHMaBaHTe Ha He 3aHnHHe IpbcHTe cn,IOKaTo peryHpaTe bIbJa Ha MOHTaKHHaTc KyKa.

3a6eJekKa no HargnaCHe Ha bTInTe

Korato MOHTnPaTe MoJcJH Ha TCJIcBn3Opn, pa3JINHH OT yKa3aHnTe Ha cTp.2 (B 3aBHcHmOC TOT pa3MePHTe Hra6apHTHe Ha MoJcJa Hpyn), H36poCHnTe bJIn Ha paMeHaTa (0,5,10,15,20 rpaIyca) MoKe Ja ca orpauHnueHn.
- OTHOCHO B3MOXHHTE bJIN 3a peRyHpaHe Ha paMeHaTa IIpH MOHTaK Ha MoJeHN TeJEBH3OpH, KOHTO ca pa3JIYHH OT ONHCaHHTe Ha cTp.2,BHXTe HnCTpyKuHHTe 3a pa6Ota HIN IOCTaBChata 6poWypa.

Съпka 5 :МоHTаж Ha TeJIeВиЗОраHa CTeHata

AkoBb3HaMepeBaTeJaMOHTHpaTe TeJEBn3Op,KoHTO He c yka3aHa cTp.2,IIPOBepeTe B HnCTpyKuHnTe My 3a pa6ota HIN BIOCTaBChata 6poWypa.

PpeynpexdHne

IobbpiTe MOHTaKa IIpeHn Ia CBbpxKeTe 3axpaHbuaII Ka6eJI KbM KOHTaKTa.AKO IIpHTNCHeTc 3axpaHbuaII Ka6eJI IOI NII IN MeJy O6OpYBaHe, TOBa MoKe Ia IOBeIe NO KbCo cBeHNHe Hne IIN eJIeKtpNueckn yIap. BHMaBaHTe Ia He ce cIbHeTe B 3axpaHbuaII Ka6eJI Ha TeJIeBn3Opa, 3a Ia He Ce HapaHtE.

1 CbpxKeTe KbM TeJeBn3opa 3axpaHBaun Ka6eN i CBp3Baun(Te) Ka6eN(n), DOCTaBeHn C TeJeBn3opa.

CbpxTe 3aXpaHbIINKa6eJINcBbP3BaIIIN Ka6eJ(N) KbM KOHeKTopTE B 3aHaTt Ha TeJIeBH3Opa.3a IIOpO6HOCTN OTHOCHO CBpb3BaHETo H3aXpaHbIINKa6eJIN CbP3BaIIINKa6eJ(N), BHXTe HHCTpyKIIHNTe 3a pa6oTa Ha TeJIeBH3Opa.

3a6eJexka

He MoKete Ja CbBpKete KaBeJIHTe KbM TeJIeBn3opa cTeI KaTo rO MOHTIpaTe Ha cKObaTa Ha oCHOBaTa.
Bb3IOKCTe IPOkAPBaHcTo Ha Ka6JIHTe BCTHeTAta HJIINHeH3HpaH 3IbJIHTeJ.

2 MoNTpaIte TeJIeBn3Opa KbM cKo6aTa Ha OCHOBaT.

KATO CC KOHCyJITnpaTe cbe Cxema/ta6JIuHa pa3IOLOXCHNC Ha BHTOBC H KyKa Ha cTp.15, OIIpeJeIeTe OTBOPHTe Ha cKObaTa Ha oCHOBaTa, KOHTO Ie 3aKJIOvAT TOpHNTe KyKn Ha MOHTaXHaTa KyKa.
2IpybXTe TeJIeBn3Opa 3IpaBO cIbe pIbe H BHHMaTeJIHO rpoBHeTe Ha CTeHaTa.

PpeynpexdHne

Ochrypcte IBC HIN IOBcye JHua, KOHTO Ja Hocrt TeJIeBH3opa.

3 3aKpenete 3dpaBO TeJeBn30pa n cKO6aTa Ha OCHObata C Dbata DOCTaBeHn BnHTa (+BVST4 x 12).

3a6eJexka

Korato H3IOI3BaTe cIEKtpuuecka OTBepTKa, 3aJaNTc HAcTPOKaTa Ha BbPTIIIN MOMEHT IIpH6JIIN3TEJHO Ha 1,5 N·m {15 kgf·cm}.

PpeDynpexdHne

3aTcHCTc 3npaBO JCBN HJCCHN BHT. AKO He HaipapBHTe TOBa,TeJIeBN3OpbT MOKe Ja NaIHe np6ByTaHc HAppeN IJa IIpNCHH HapaHBAHe.

NotBbpxKdeneHa npNKJIOUvBaHcTo Ha MOHTaJa

PpOBepTe cIeHNte TouKn.

• KyKHTe Ha MOHTaXHaTa KyKa ca 3JpaBO 3aKJIIOueHH B OTBOpHTe Ha cKO6aTa Ha OCHOBaTa.
  Ka6JIntc Hc ca ycykaHn nn npHTncHaTH.
  -ⅡBaTa BnHTa, KOHTo OCHypBaT MOHTaKHaTa KyKa HCKo6aTa Ha OCHOBaTa ca 3JpaBO 3aBHTH.

PpeynpexKdHne

Hc pcryIinaTc bIbJaHa MOHTaXHaTa Kyka, KOraTo TeJIeBH3OpBT e MOHTpHa Ha cTeHaTa Hce yBepTe, Ye cTe 3aBbPIHH MoHTaXa Iokpa. ToBa MoKe Ja IIpNHHIIaHaHeTo Ha IIpoDyKTA Ha da IOBCdI Do HapaHbBAHC IIINIOBpcJa Ha IIpoDyKTA. OcbEH TOBa HeIIpaBNIHOTo IOCTaBHe Ha 3axpaHbAIIH Ka6cII N IpyrH MoKe Ja IIpNHH IIoxkap HIIeKTPnEeCKn Ydap OT Kbco CbcIHcHHe. IIpoBepTe 3aBbPiIBaHETo Ha MOHTaXa OT IJeHa ToKa Ha 6e3OIIacHocT.

He po3bpaTe KpOnuTeH dIa HactiHHoro KpInJIeHNr I He HamaraTecs 3mInHTn NOro KOHcTpyKciHO.

Y TaKOMy pa3i KPOHIITeHH IJI HAcTIHHORO KPIIJIChHH MOXc BIIaCTH N 3aBdaTH TpaBMN NH IOIIKOJHTN MaHHO.

He BCTaHOBJIouTe iHwe 06laHaHHa, OKpIM Bka3aHoro Bnpo6y.

Ie KPOHHTeIN JIA NaCTiHOrO KpiJIeHHI np3Hauchn IJI BHKOpHcTaHH TiiBKn i3 Bka3aHHM BHPo6aMH. Y pa3i BCtAHOBJIeHH IHIoro O6JiaHaHHB IH MOXc BIIaCTN YI 3JaMaTHcR N 3aBJaATN TpaBMN HIOIIKOHTM MaHO.

He 3aKpNbAaTe BeHTnlaCiHi OTBOpHa TeJIeBi3opi.

KIO 3aKpHTN BcHTNJIaI Hi OTBOPn (HaIIpHKJIaI, IIIMaTKOM TKaHHH ToIO), TO IIIBNIIeHII TeMIIepaTpyh BCEpeINHI IIpHcTPOIO MoKe IIpH3BeCTN IO IOKeXi.

He BCTaHOBJIouTe Ha KPOHHTeH dJa HactiHHoro KpinIeHHa IHwi npEdMeTn Ha Doaay Do TeJeBi3opa.

Y taKomy pa3i TcJIcBi3Op MoXc BnactH ⅢaBdaTH TpaBMn YI IOIIKOJHTN MaHNo.

He cnpaTecn He BiwaTeCn Ha TeIeBi3Op.

He ciHpaTecHa TeJIeB3Op i He 3BiIyHTccs3 HbOTo, OCKJIbKn IprHcTpIMoKe BIIaCTn 3aBdaTH cepHo3HOITpaBMH.

He niДаВаTe TeIeBi3Op Ii BODn I BOJOrn.

Ic moKe cnpHHHHT 3aropaHH a6o eJektpHHn yap.

He BCTaHOBIOIte TeIeBi3Op y rApAUX, BOJOrnX YN CNJIbHO 3aIIJIeHnx Micx, a TaKoJy Micx, De BIn 6yDe 3a3HaBaTn dii MexaHiUoi Bi6paui.

IHaKHe Ie MoKe cInpuHHHTaRopAHHa a6o eJIeKTpHnHn yap.

TpmaTe 3aMncti MaTepiAn Ta DxKepeJa BiKpntoro BOrHIO (HaPnKlaD, CbiUKN) nOdani BiTeIeBi3opa.

IIIO6 He IOnyCTHTN IOXcXi, TpHMaIe 3aIMnCTi MaTepiJIaT a JKepeJa BiIKpHTOrO BOrHIO (HaIprHKJaI, CBiUKN) IOnaJI bI TeJIeBi3opa.

OBEPEXHO!

HeoTpMaHHHaCTynHx npaBn MoXe cTaTH npuHIO OToPMaHH TaBM N NOKoJKeHHa MaHa.

He BCTaHOBJIouTe KPOHSTeHДЯ HactiHHoro KpinJIeHHaTakIM YINOM, IO KyTu 6iUHi NOBepxHi TeIeBi3opa 6yDyTB BVcTynatn 3a PLOuNHy CTiHN.

Hc BCTaHOBJIIOTe KPOHIITeH IJIa
HaCTIINHO KPIIIeHH TaKHM YHHOM,
IIO KYTH 6iHi IOBepxHi TcJIeBi3Opa
6yDyTB BnCTyHATn 3a IIIOUHN CyH
(HaIPHKJIAI, Ha KOJIOni). YIapNBINCb
o6 BnCTyIaOuH N KyT a6O bIHy
IOBepxHIO TeJIeBI3Opa, JIOHNa YN
IHIN O6'KT MOKe CIIpHUNHTN TpaBM
IIOIKOJKCHHA MaHa.

He 3actocobyte HaMipHy cnIy nId Yac YnueHHa TExHicHoro 06cnyroByBaHHa Bnpo6y.

He cniI cIIbHO TnCHyTH Ha TeJIeBi3Op 3Bepxv. Y TaKOMy pa3i TeJIeBi3Op MOKe BnAcTH N 3aBdaTH TpaBMN NH IOIIKOJHTH MaHIO.

He BCTaHOBJIouTe TeJeBi3Op Niad a6o NaKoHdNciOHePOM.

BntiKaHHaBOH, a TaKoK TpHbJa Iia CTpyMeHraIOBiTPR3 KOHNIOHePA MOKe cTaTH IIpHuNHOIO 3aRopaHH, cJIckTpHuHOrO yIapy NH IOJOMKn TeJIeBi3opa.

3actepexeknna

Y3JIcXHOCrBiMaTePiaJy CTHNTPHBaJIe BHKOpHCTaHHI TeJIeBIsOpa Ha KPOHITeHII IJIa HAcTIHHORo KPIIJIcHHa MOKc CnPnHHTn 3He6apBJIeHHa CTHHIO3aHy TeJIeBIsOpa HAI HHM a6o BiKJIeIOBaHHaIIaJIep.
KIO JMOHTyBaTH BCTaHOBJIeHn paHIIe KPOHITcH INJHa HAcTIHHO KpINJIeHHN,TO y CTiHi 3aJIINIaTbCt OTBOPH BiI TBHHTiB.
- KIIO 3a CTIOIO IPOKJIaeHO IIIBOJHi Ka6JI 3 OIOPOM 300 OM, peKOMeHIOBaHO 3aMIHTH IX Ha KOAKciaJIbHI Ka6JI 3 OIOPOM 75 OM. KIIO IOJaJIbIIe BHKOPHCtAHHRA IIIBOJAHx Ka6JIb 3 OIOPOM 300 OM e IIeO6XIIM, IpeE BCTaHOBJIeHHAM 3a6e3IIeYTe IOCTaTHIO BiCTaHb MIX TeJIeBI3OpOM i IIIBOJAHMN Ka6JIaHM, IIO IIPOKJIaHEi 3a CTIOIO. IpeE BCTaHOBJIeHHAM IPOKOHcyJIbTyIteC8 3 IIIIEH3OBaHHM IIIPRAIIHKOM IIIOI BOIIIOBIHO rO MicIIpaO3TaIIyBaHHr TeJIeBi3opa (IOJaI BiI BIIINBy paioiopeeIKoI ToIO).

BcTaHOBJIeHHa KpoHsTeiHa dJa HacTiHHoro KpInJIeHHa

InopmaiaIJa IInepiB Sony

YBAGA!

InΦopmaiaДЯсnoXnBaayib

IIIA BCTaHOBJIcHHIbOro Bnpo6y Hc06xIOH MaTHIOCTaTHiIN IOCBiI. IOBipIe BNKOHyBaTHBCTaHOBJIcHHI TiIbKN IIJcPam YN JIICh3OBaHMIIIPraHHKAM Sony Ta IIpHIJIaIe HaJIexKHy yBaRy 6c3NEci IIJ Yac BCTaHOBJIcHHI.

InΦopMaiaIaIaIaIepiB Sony

Hactyni iHctpyKii cTocyIbce TiIbKn IJIepiB Sony.ObOB'3KOBO IIPOHTaNTc HABcNCHI Bnuc IIpaBHJaTexHIKN 6e3IIeKN Ta IIpHiJIaTe OcOJIbBy yBaIg 6c3IIeCi IIq Yac BCTaHOBJeHH, TexHiYHOrO 06CJyTOBvBAHN I IpeBipKN IbOBoBHy.

HadiiHo BCTaHOBiTb KpOHwTeH dIHaCTiHHoro KpinJIeHNHa CTiHi, DOTpIMyUOuNCb IHcTpYKciI y cboMy noci6nky 3 ekcnlyataui.

KIOXOa6OINH TBHHT OcIa6He YBNIIaIe, KPOHITeIH JJIHaCTiHHOROKPiIIeHHMOKe BnAcTH 3aBdaTHTPaBMN NH IOIKoDHTM MaHO.

Bn6npaTe rBnHTn 3 ypaxyBaHHMaTepeiaJy cTINH HauHIO BcTaIOBtB Bpi6 3a IOIOMOIO YOTHPbOX

6iJIbIe TBHNTiB iAmETpOM 8 MM (a6o cKBiBaJIeHT).

BnKOpNCToBvIe rBnHTn KpInnIbHi eIemEnTn 3 KOMPJIeKTy NOCTaUHn BIDNOBIdHO do IHcTpkyi y ubomy noci6Hnky 3 ekCnPyataui. Y pa3i BnKOpNCtAHn iHux eIemEnTiB TeJeBi3Op MOxe Bnactn I N0sKOuNTnc a6o 3aBdaTH φi3nHuNX TpaBM.

HaJIeXHm YInHom cKlaIb KPOHsTeH, DOTpIMyUOuNc b IHCTpyKciY yCbOMy noci6Hnky 3 ekCnIyatauii.

KIO XOa 6 OHH TBHHT OCJa6He YN BnIaJe, TeJIeBi3Op MOKc Bnactn I IOoKOJNTncra a6o 3aBdaTH φi3HHX TpaBM.

HadiiHo 3aKpyuTe rBnHTn y BiDIOBIDHNX Micx.

B iHIOmy pa3i TCJcBi3Op MOKc BnactN IIOIkoJIHTncA a6o 3aBdaTH φi3HHHX TpaBM.

ObepiraTe TeIeBi3Op BiD cTpycIB NiId Yac BCTaHOBJIeHHJ.

Pi iieio ctpcy TeJIeBIOp MoKe Bnactn a6o po3IaMaTHc. Ic moKe cnpuHHHT npaMy.

BctaHOblIOte TeIeBi3Op Ha pIBHn, BepTKkaJIbHi cTIHi.

B iHoumy pa3i TeJIeBi3Op MOKe Bnactu n cIpuHHHTu TpaBMH.

KOMNOHENTiB, Heo6xIDnXДЯ BCTaHOBJIeHHJ

1 Piidrotyte He MeHsE QOTnPbOx rBnHTiB diametpom 8 MM a6o anaIorIHoro Tnny (He nocTauaHOtbcra) Ta BnKpyTKy. Bn6epitb rBnHTn, 3BaKaIOuHa bNactNbOcTi MaTepiany CTInH.

2 Po3naKyIte KapToHHy Kopo6ky I nepeBiPe TnABHicTb TaKnx KOMNoHEtIb.

OchOBHn KPOHTeH (2)

MOnTaXnIraK(2)

BHT (+PSW6× 16) (4)

ΓBHT(+BVST4×12) (6)

UeTnprHnn KJIIOu (1)

Kpok 2:

ObepiTb micue

BCTaHOBJIeHHr

1 CnnpaOuHcB Ha Ta6IuIOMHTaXHnx po3MipiB dIyTeJIeBi3opa Ha cTOp. 14, Bn3HaUTeMicse po3Ta7yBaHHa TeJIeBi3opa.

3aJIHITe BiIbHH IIpOcTip MIX TeJIeBi3OpOM, CTJeEO I BnCTyIIaIOYHMN eJIeMeHTaMn CTiHH, JK BKa3aHO HIXKYe.

OunnnnBHMipy:MM

Y KOHOMy pa3i He BcTaHOBIIIOHTe TcJIcBi3Op TaK,IK NOKa3aHo HIXuC:

Pnmuitka

Ka6cJI MaOTb 6yTH IpOKJaCHi y cTIHi, IpeI THM, Jk PO3IOuATn BCtAHOBJIeHHN, IpeI6aUTC OTBip y cTIHi JIIA BBeENHNa6eJIiB.

2 CnnpaOuYncb Ha Ta6nIcuOp03MipIB 0oDo HactiHHoroKpInJIeHnHa Ha CTOp.15,Bn3HaUTeNoJIOXeHnRABnHTiB y paMKaxBCTaHOBJIeHnOCHOBHOrOKpoHSTeHnHa.

NONEPEDXEHHA

CTiHa, HApKII BcTaHOBIOeTbc8 TeJIeBi3Op, MyCHTb BnTPmByaTH BaRy, UOHaHMcHUsC B OHTpH pa3H 6IJIbIbIy 3a Bary TeJIeBi3Op (Bara TeJIeBi3Opa 3a3NaueHa B iHCTpyKu3 eKIIyataaTeJIeBi3Opa).

Bn3haTcMiHicTb ctiHn,Ha kky 6yIe BCTaHOJIeHO TeJIeBI3Op. KIIIO Heo6XiHNO, 3miHITb CTiHy.

Kpok 3:

BcTaHOBJIeHHa

OCHOBHORO

KpoHsTeHa Ha CTiHi

1 3aKpinitb OCHOBn KPOHTeH Ha cTIHi He MeHs, HIX YoTnpMa rBNHTamN DiAmetpom 8 MM a6o aHaIorichoro Tnpy (He NOCTaayTObca).

Bn3HaHTe OTBOPH III rBHHTH (r, B) IJI KpIIJIeHH MOHTaXHOrO rKa JIO OCHOBHOKPOHITHeHa. HaniHo npHKpiiItb I KOMIOHeHTH OIN He IO OJHO rBHHTaMH, IIO IOnaIOTBc(+BVST4×12).

3aKpiniTb oChOBHH KPOHHTeHH i3 MOHTaXHHM RaKom Ha cTIHi He MeHH, HIX YoTHPMa TBHHTAMH JiaMcTpOM 8 MM a6o aHaJorIHHO TIIy (He IOnaOTbc).

BCTaBTe TBHHTB YoTHnO TBOPH III TBHHTN 3 IO3HaUKOIO ●, 3a3HaueHi Ha MaJIIOHKy HIXKc; 3a6c3IIeTc HaIiHc 3aTAYBaHHraBHTIB, IonoepdKaOuH IXHe BiIKpyuBaHH.

BnpiBnHte KOHeTpKzio.

BnIyuITbTBHHT,3aKpInJcHHa cTani 1i BiIOKpeMTe MOHTaXHHraK BiOCHOBHOro KPOHIteHy.

YBAGA

CuiKyIe 3a THM, a6H He BnCyCTHTM MOHTaXHH raK IIJ TaBnYteHH 3 HbOTo TBHNTiB.

NONEPEDXEHHA

• _BH T Heo6xiiH IBAHKOHaIIIieI IpoJeyn,HeIOaOTbc.Bb6epiTB _BH T 3BaKaHOuHa BJIactHBocTi MaTcpiAly n ctpyKtpy CTHH.
  KIOHaIIHe KpIIeHnOcHOBHoro KPOHIITeHnHa He 3a6e3neYeHe,CKOpHCTaHTecr JOATKOBMn FBHTAMN.
• O6OB'3KOBO IIepeKOHaITecB TOMY, IIO OCHOBHH KPOHHTcH HajiHo 3aKpInJcHo Ha cTHi.

Kpok 4:

Плд roTOBka do

BCTaHOBJIeHHJ

TeJIeBɪ3opa

BCTAHOBJIIOUOHTeJIeBI3Op,AKHHe BKJIIOUcHO IOIpeJIky,HaBeJeHOHa cTOp.2,O6OB'3KOB03BcPnITbc4Io IHCTpykui3CKCNJyatauii IboroTeJIeBi3Opa a6o JINCTiBKN,IIIO JOJaETcbc.

1 BnKpyTiB rBnHTn 3 3aHbOi naHeJI TeIeBi3opa. BiD'cHaNte HaCTiNbHy CTiIky BiD TeIeBi3opa.

IIOJIOKITbTeJIeBI3OpHa cTIIKypo6OyIOBepxHIO, BkPHTyTKaHHHO,CKpaHOM yHn3.

Modeni TeJIeB1OpiB:

KDL-46/40D30xx , KDL-46/40D28xx ,

KDL-46/40D27xx , KDL-40D26xx ,

2 BcTaHOBITb TeJIeBi3Op Ha OCHOBHn KPOHHTeH.

CnnpaOuHcB Ha Jiarpamy/ta6JHIO po3TaUyBaHHraBHTIB Ta rakib Ha cTOp.15, Bn3HaITb OTBOPn OCHOBHOro KPOHIIteHa, H aKi YINJIaTHMyTbcR BcpxHi rauch MoHTaXHOro raka.
HaIIHO TpIMaIOUHTeJIeBI3Op IbOMa pyKaMn, 06epexKHO BnpiBnHnTe HOro Ha CTiHi.

NONEPEDXEHHA

Pam'raTtC,IOIpcHcCCHH TcJIcBi3opaMaO6OB'3KOBO 3IIINCHOBaTHCb BIBOX.

HaDiInHo 3aKpinitb TeIeBi3Op Ha OCHOBHOMy KPOHSTeHi DBOMa TBnHTaMn, IIO DoJaOTbcr (+BVST4 x 12).

3

PnmuItka

3aTocOByIOH eJIeKTPnHy BHKpyTKy, BcTaHOBiTb 3HaueHH MometHy 3aTHeHH HpH6JHH3HO Ha 1,5 H-M.

NONEPEDXEHNA

O6OB'3KOBHOHaHINHO 3aTgHITb JIBHn I npABn KpInNJIbHi TBHHTn. IHaKIIe BHaCJIIOK IOHTOBxY BROPy TCJcBi3Op MOXc BNaCTn n CnPnHHHTn TpaBMn.
