Product type	High-frequency concrete vibrator
Model	MSW-HFCV-A7
Rated voltage	230 V / 50 Hz
Rated power	2000 W
Exciting force	8.6 kN
Head size	60 mm
IP protection class (head)	IPX8
IP protection class (converter)	IPX5
Dimensions (L x W x H)	2600 x 200 x 75 mm
Weight	14.4 kg
Power supply	Single-phase 230 V~ 50 Hz
Motor	Integrated permanent magnet motor
Integrated protection	Anti-blocking of the vibrating head and thermal protection against overheating
Safety device	PRCD (residual current device) with Test and Reset buttons
Intended use	Vibration of cement sludge (concrete)
Operating conditions	Do not use in explosive atmospheres; keep work area clean and well-lit
Recommended extension cable	Cross-section of at least 1.5 mm² for outdoor use
Air operation	Do not exceed 3 minutes maximum
Maintenance	Clean after use; regular inspection of cable and hose; repair by qualified professional
Noise level	Low noise during operation

Frequently Asked Questions - HFCVA7 MSW

How to correctly connect the vibrator?

Plug the device into a compatible 230 V~ socket. First press the Test button on the PRCD, then press the Reset button. The indicator light should come on, indicating that the connection is functional.

How long can I run the vibrator in air?

Never run the vibrator for more than 3 minutes when not immersed in cement sludge, to avoid overheating.

Can I use an extension cable?

Yes, provided it has a cross-section of at least 1.5 mm² and is suitable for outdoor use. All connections must be secure.

What to do if the power cord or hose is damaged?

Stop use immediately. Repairs must be carried out by a qualified professional before reuse.

What is the exciting force of the HFCVA7 model?

The exciting force is 8.6 kN, allowing efficient vibration of concrete.

Is the device waterproof?

The vibrating head is rated IPX8 (prolonged immersion), while the converter is rated IPX5 (protected against water jets). Do not immerse the converter.

Can I fully immerse the converter?

No, only the vibrating head is designed for immersion. The converter must remain out of the water.

How to maintain the vibrator after use?

Clean the head and hose thoroughly. Inspect for any damage. Store in a dry place out of reach of children. Repairs must be carried out by a qualified technician.

What type of plug is needed?

The device is designed for a single-phase 230 V~ 50 Hz power supply. Use a compatible socket; do not modify the plug.

What are the integrated protections?

The vibrator is equipped with an anti-blocking protection for the head in case of jamming, a thermal protection against overheating, and a PRCD (residual current device) for electrical safety.

USER MANUAL HFCVA7 MSW

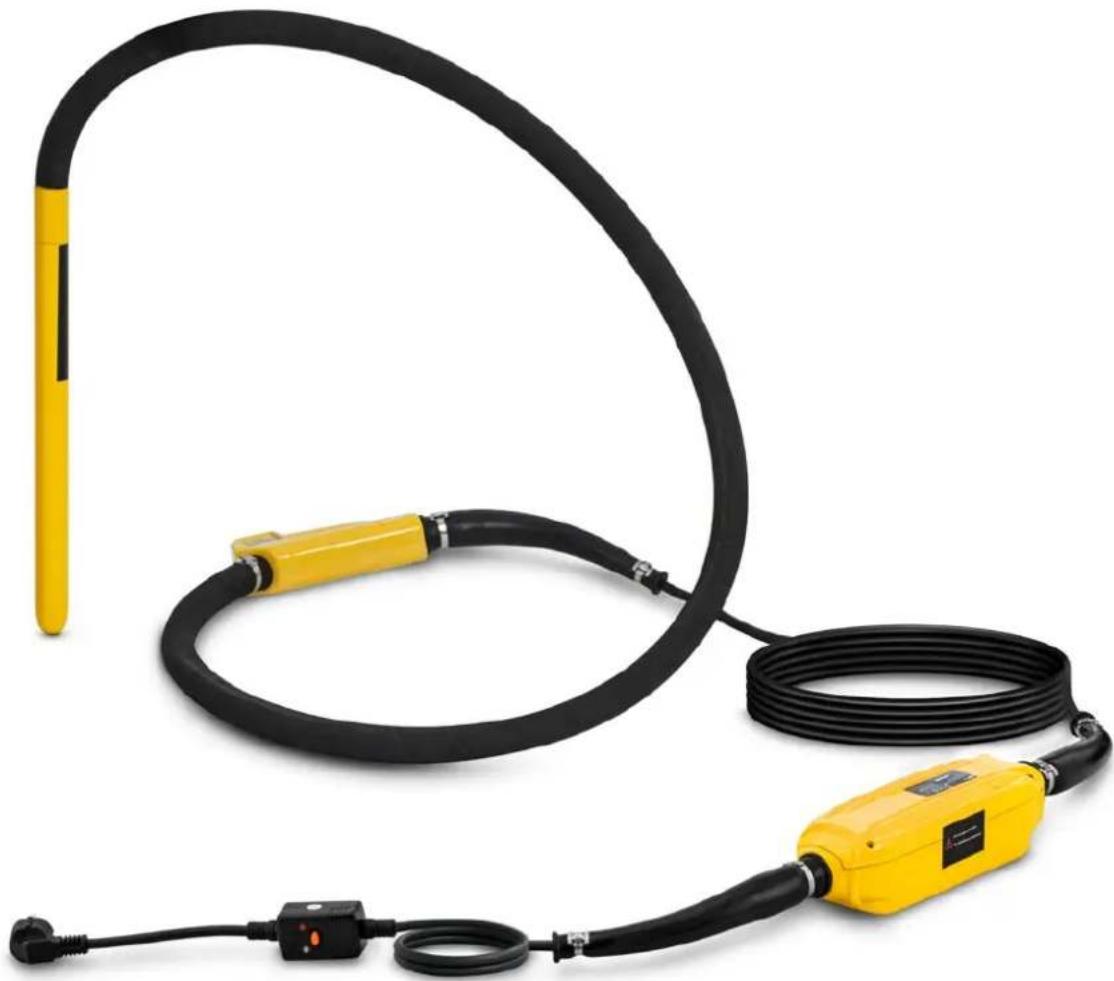

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

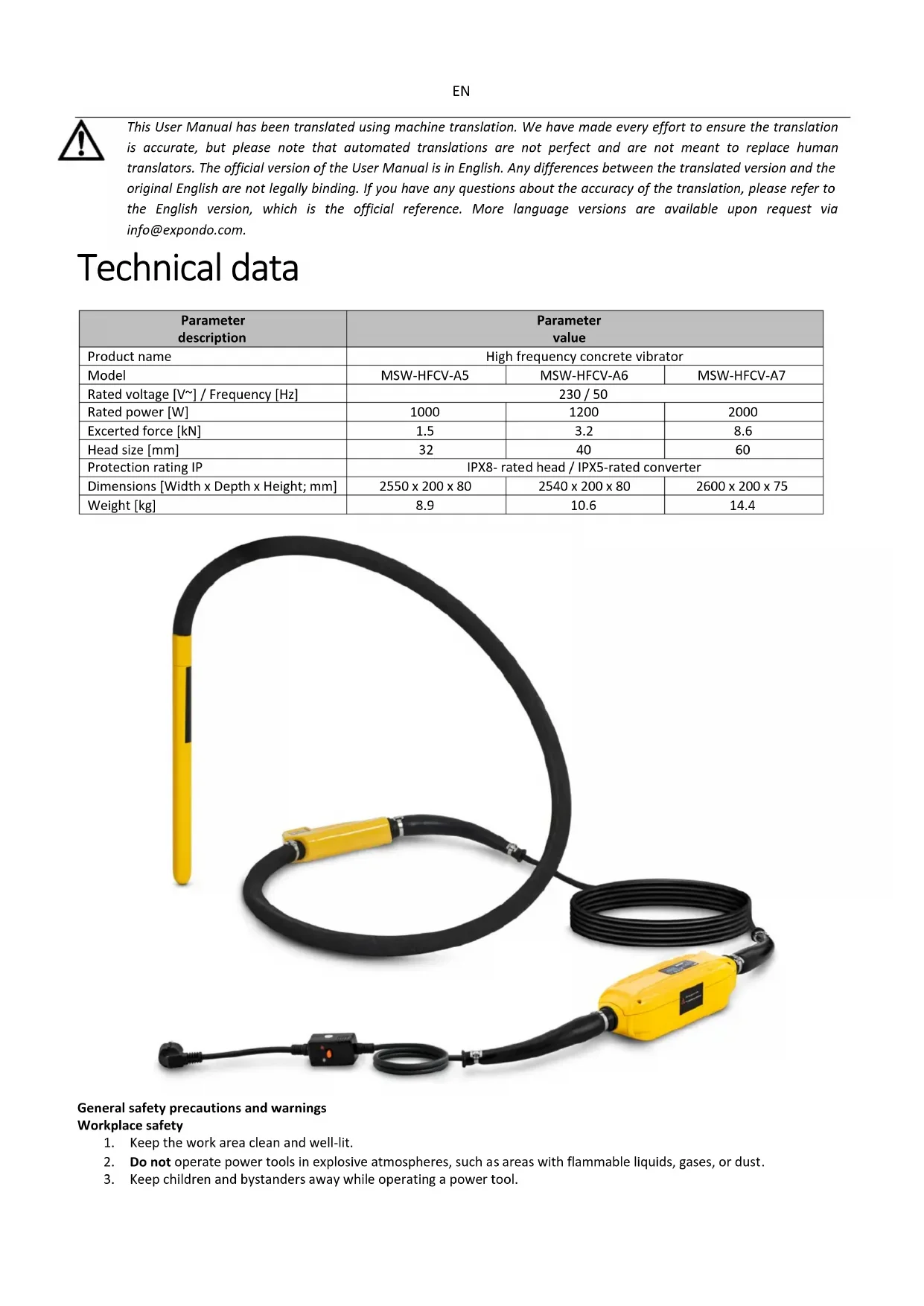

Technical data

Parameter description	Parameter value
Product name	High frequency concrete vibrator
Model	MSW-HFCV-A5	MSW-HFCV-A6	MSW-HFCV-A7
Rated voltage [V~] / Frequency [Hz]	230 / 50
Rated power [W]	1000	1200	2000
Excerted force [kN]	1.5	3.2	8.6
Head size [mm]	32	40	60
Protection rating IP	IPX8- rated head / IPX5-rated converter
Dimensions [Width x Depth x Height; mm]	2550 x 200 x 80	2540 x 200 x 80	2600 x 200 x 75
Weight [kg]	8.9	10.6	14.4

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

General safety precautions and warnings

Workplace safety

1. Keep the work area clean and well-lit.
2. Do not operate power tools in explosive atmospheres, such as areas with flammable liquids, gases, or dust.
3. Keep children and bystanders away while operating a power tool.

Proper attire

1. Do not wear loose clothing or jewelry that could be caught in moving parts.
2. Wear leather gloves when handling the vibrator hose.

Electrical safety

1. Power tool plugs must match the outlet. Never modify the plug in any way, and do not use adapters with earthed (grounded) power tools.
2. Avoid bodily contact with earthed or grounded surfaces, such as pipes, radiators, ranges, or refrigerators.
3. Never use the cord to carry, pull, or unplug power tools. Keep cords away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
4. When operating a power tool outdoors, use an extension cord rated for outdoor use. This reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication.
2. Use personal protective equipment, such as eye protection, dust masks, non-slip safety shoes, hard hats, or hearing protection, depending on the specific task to reduce the risk of injury.
3. Prevent accidental starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, or when picking up or carrying the tool.
4. Remove any adjusting keys or wrenches before turning on the power tool.
5. Do not overreach. Maintain proper footing and balance at all times.

Power tool use and care

1. Do not force the power tool. Use it only for its intended applications.
2. Disconnect the plug from the power source and/or remove the battery pack before making any adjustments, changing accessories, or storing the tool.
3. Store idle power tools out of the reach of children and prevent access to untrained persons.
4. Maintain power tools regularly. If damaged, have the power cable or protective sleeves replaced by a qualified technician.
5. Use the power tool, accessories, and attachments in accordance with these instructions, considering the work conditions and type of work to be performed. Using a tool for unintended tasks can result in hazardous situations.
6. If necessary, have your power tool serviced by a qualified technician using only identical replacement parts.

Service

- Have your power tool serviced by a qualified repair person, using only identical replacement parts.

Warning! The safety precautions and instructions in this manual cannot cover all potential conditions and situations. It is crucial that the operator understand that caution and common sense are essential to mitigate risks not covered in this manual.

Product general features

1. The motor is integrated into the vibrating head, eliminating the need for an external motor. This design makes operation easier and safer for users.
2. The powerful permanent magnetic motor provides higher efficiency.
3. High frequency and excited force result in excellent vibration performance.
4. The device can connect directly to a single-phase power supply. Ensure the correct voltage: Use a 230V-50Hz power supply.
5. There is no rotating shaft inside the hose, which provides greater comfort for the operator's arms and hands.
6. Built-in protection prevents the vibrating head from jamming during operation.
7. Thermal protection prevents the motor from overheating during no-load operation.
8. The device is designed for a longer lifespan and operates with reduced noise.

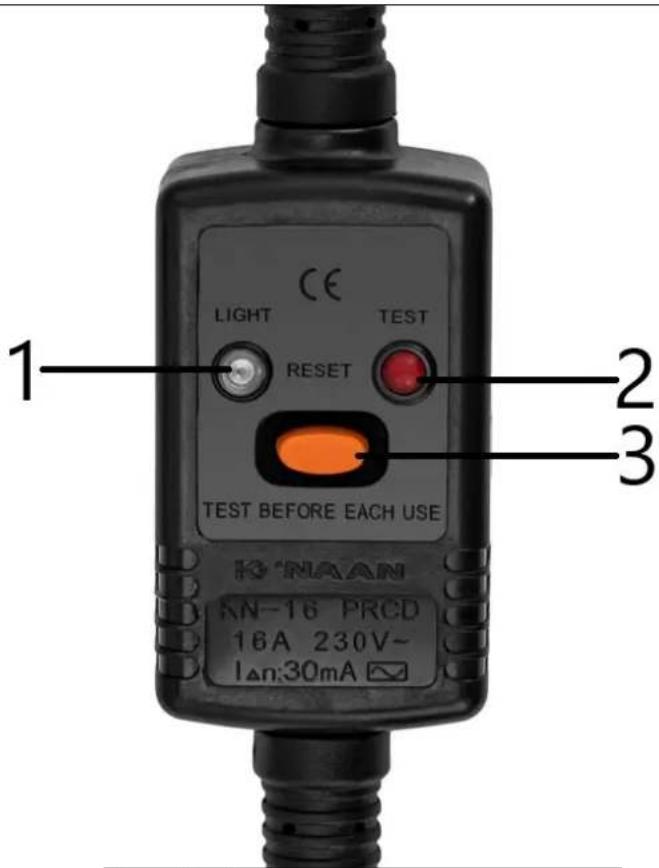

1 2 3 LIGHT TEST RESET TEST BEFORE EACH USE KINAAN AN-16 PRCD 16A 230V~ lan:30mA

1	Indicator
2	Test button
3	Reset button

Operations

Warnings:

1. Ensure that the power supply to the concrete vibrator matches its rated power requirement. Also, verify that the power socket matches the plug of this vibrator.
2. If an extension cable is necessary, make sure it has a cross-sectional area of at least 1.5 mm^2 . Each connection must be secure, and the socket should match the plug from the vibrator. Inspect the extension cable to ensure there is no damage.
3. Do not touch the vibrating head or the heat-radiating part of the converter immediately after the vibrator stops running, as it may cause burns.
4. Never run the vibrator for more than 3 minutes when it is not submerged in cement mud.
5. Stop using the vibrator immediately if there is damage to the power cable or hose. Repairs must be performed by a qualified professional before using it again.
6. Avoid moving, lifting, or pulling the vibrator by its power cable or RCD plug.
7. Do not attempt to modify the vibrator's plug or replace the RCD plug with another type.
8. Do not turn off the power supply while the vibrating head is submerged in cement mud.
9. This vibrator is intended solely for cement mud vibrating purposes. Do not use it for any other applications.

Operation steps:

1. Connect the vibrator plug to a compatible socket. Press the "Test" button on the RCD plug first, then press "Reset" on the RCD plug to confirm that the indicator light is on. The indicator light shows that the power connection is functional.
2. Lift the vibrating head by the hose to prevent contact with any objects or surfaces. Begin running the vibrator by pressing the ON/OFF switch on the converter. The vibrator will start at a lower frequency and reach its highest frequency within 5 seconds. Once at full speed, turn off the vibrator using the ON/OFF switch on the converter.
3. After the initial run, the vibrator is ready for operation. Insert the vibrating head gradually into the cement mud. When removing it, pull slowly to prevent splashing.
4. Once the job is complete, switch off the vibrator and disconnect the power supply. Inspect the equipment thoroughly to ensure there is no damage before storing.

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial electrical equipment with coiled tubing and a vertical probe (no text or symbols visible)

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

Yellow and black industrial electrical equipment with coiled tubing and terminal connectors (no visible text or symbols)

Yellow and black industrial welding torches with coiled cable, no visible text or symbols

Yellow and black industrial electrical equipment with coiled tubing and connectors (no visible text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.
