Product type	Oscillating multi-tool
Brand	Fein
Model	Multimaster MM 700 1.7 Q Basic
Power consumption	700 W
Oscillation angle	1.7°
No-load speed (adjustable)	11 000 – 20 500 osc/min
Weight according to EPTA	1.5 kg
Power supply	Mains cable, 230 V, 50/60 Hz
Double insulation	Yes
Accessory attachment	QuickIN system (clamping lever)
Tool orientation	In 30° increments
Main functions	Sawing, sanding, scraping, cutting adhesive beads, sheet metal cutting
Specific applications	Glazing removal, bodywork, body sanding
Sanding pad	Large and small triangle, repositionable abrasive sheets at 120°
Sound pressure level LpA	82 dB(A) (K=3 dB)
Sound power level LwA	93 dB(A) (K=3 dB)
Vibration (typical value)	< 7 m/s² (class VC2)
Maintenance	Blow out ventilation slots with dry compressed air
Spare parts	Accessories, fastening element (user-replaceable)
Warranty	Legal warranty + Fein manufacturer's warranty

Frequently Asked Questions - Multimaster MM 700 1.7 Q Basic Fein

How do I change the accessory on the Fein Multimaster MM 700 1.7 Q Basic?

Use the clamping lever of the QuickIN system: open the lever, remove the old accessory, insert the new one and close the lever. Check that the accessory is securely attached before starting the tool.

Which accessories are compatible with this model?

Only original Fein accessories designed for this power tool are recommended. Using unauthorized accessories may cause overheating and damage the machine.

How to adjust the oscillation speed?

The speed is adjusted via the electronic speed controller (positions 1 to 6). For sanding with the small pad, use a high speed (4-6); for the large pad, a medium speed (max 4). For scraping, a medium to high speed is recommended.

What are the essential safety instructions?

Always wear safety glasses, a dust mask and suitable gloves. Do not touch the moving blade. Hold the tool by the insulated surfaces. Disconnect before changing any accessory.

How to maintain the tool after heavy use?

Regularly clean the ventilation slots with dry, oil-free compressed air. For work on metals, use a residual current device (RCD) upstream. Check the condition of the power cable.

Can I use this tool to saw wood?

No, this model is not designed for sawing wood. Use the Fein MM 700 MAX for wood sawing applications. The tool is intended for cutting adhesive beads, body panels, and sanding.

How to replace a worn abrasive sheet?

Peel off the worn sheet and attach a new one to the sanding pad. For better adhesion, briefly press the running tool onto a flat surface. You can rotate the sheet by 120° if only one tip is worn.

What to do if the tool overheats or vibrates abnormally?

Stop the tool immediately. Check that the accessory is correctly attached and not worn. Overloading or using an unsuitable accessory can cause overheating. Consult the manual for part replacement.

Where to find spare parts and the list of accessories?

The spare parts list is available at www.fein.com. Use only original Fein parts. You can replace accessories and the fastening element (lever) yourself.

How to orient the tool for difficult access?

The tool can be oriented in 30° increments: loosen the lever, turn the accessory to the desired position, then close the lever. Lock it well before working.

USER MANUAL Multimaster MM 700 1.7 Q Basic Fein

Illustration of two electric toothbrush designs with brand logos (no text or symbols on the devices themselves)

MM 700-1.7 (**) 7 229 ...

MM 700-1.7Q (**) 7 229 ...

MM 700-1.7Q (**) MM 700-1.7 (**)
		7 229 ... 7 229 ...
P_1	W 450 450
P_2	W	2	5
n_S	/min, min ^-1 , rpm, r/min 10000 – 19500 10000 – 19500
	° 2 x 1.7 2 x 1.7
	kg 1,65 1,45
L_pA	dB 85,0 85,0
K_pA	dB 3,0 3,0
L_wA	dB 96,0 96,0
K_wA	dB 3,0 3,0
L_pCpeak	dB 97,0 97,0
K_pCpeak	dB 3,0 3,0

de 17 pt 41 tr 66 sl 91 et 118 th 143 en 21 el 45 hu 70 sr 95 lt 122 ja 148 fr 25 da 50 cs 74 hr 99 lv 126 hi 152 it 29 no 54 sk 78 ru 103 zh(CM) 130 ar 159 nl 33 sv 58 pl 82 uk 108 zh(CK) 135 es 37 fi 62 ro 87 bg 113 ko 139

I 13 13 16 16 14 15 4 5 6 7 8 9 10 4 11 12

Mechanical assembly diagram showing a key inserted into a housing with a tool, no text or symbols present

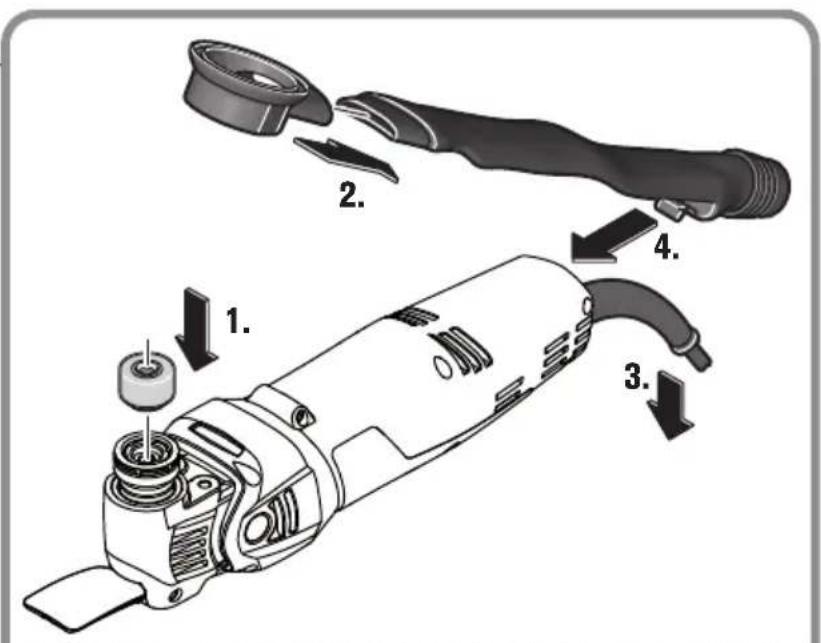

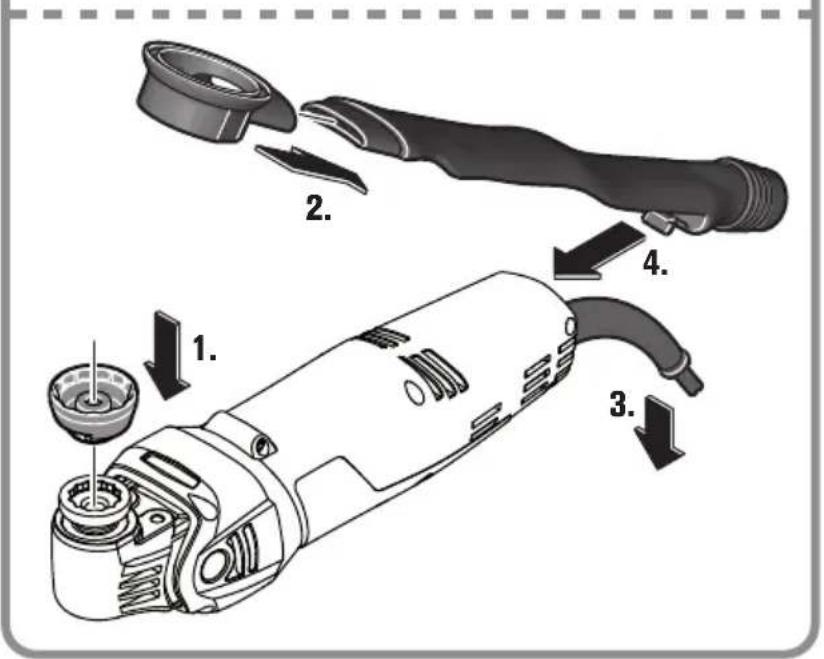

MM 700-1.7Q (**)

1. 2. 180° 4. 3. 5. 180°

Simple line drawing of a spray gun emitting a droplet, enclosed in a rounded square frame (no text or symbols)

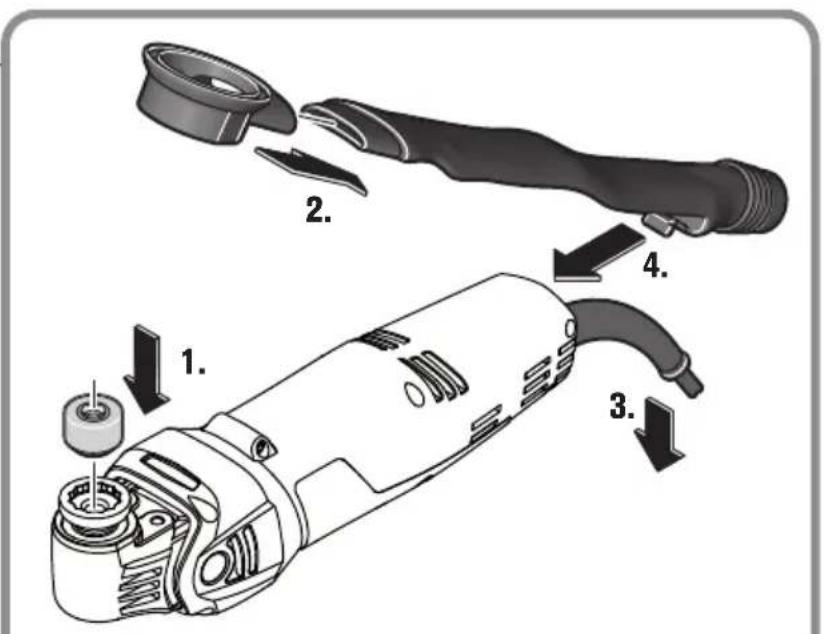

MM 700-1.7 (**)

Diagram showing exploded view of a mechanical device with numbered parts and directional arrows indicating assembly steps.

Diagram showing exploded view of a mechanical device with labeled parts and directional arrows indicating assembly steps.

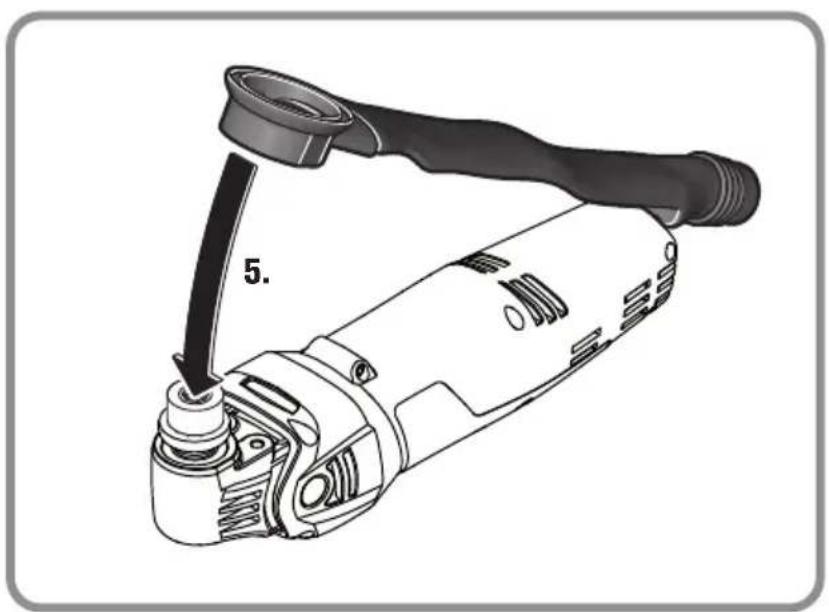

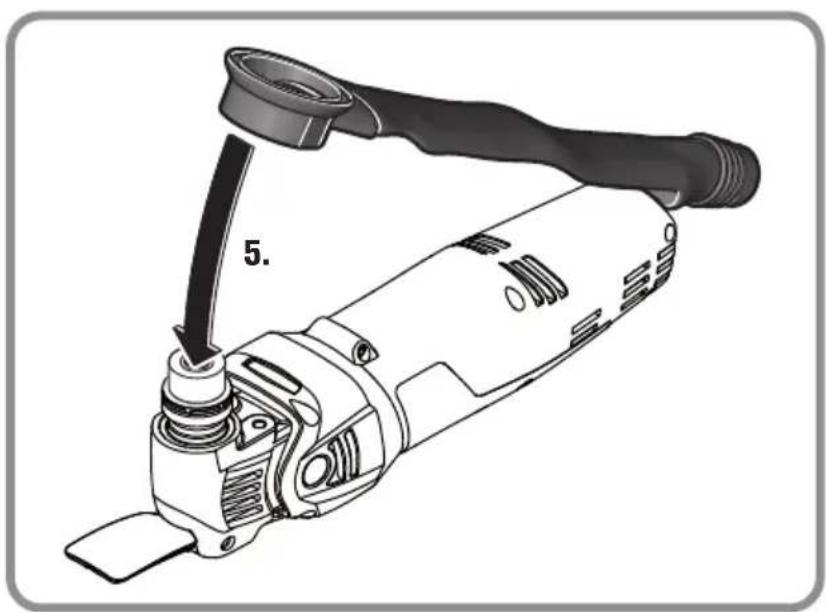

5.

Simple line drawing of a spray gun emitting a droplet, no text or symbols present

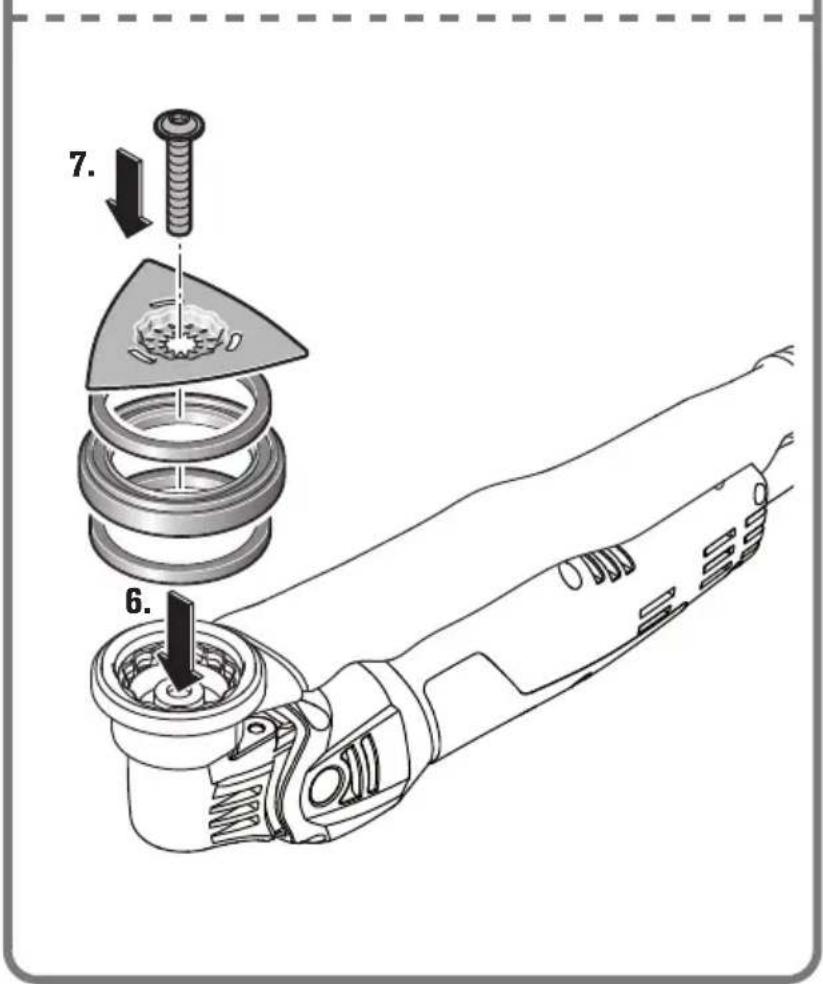

MM 700-1.7 (**)

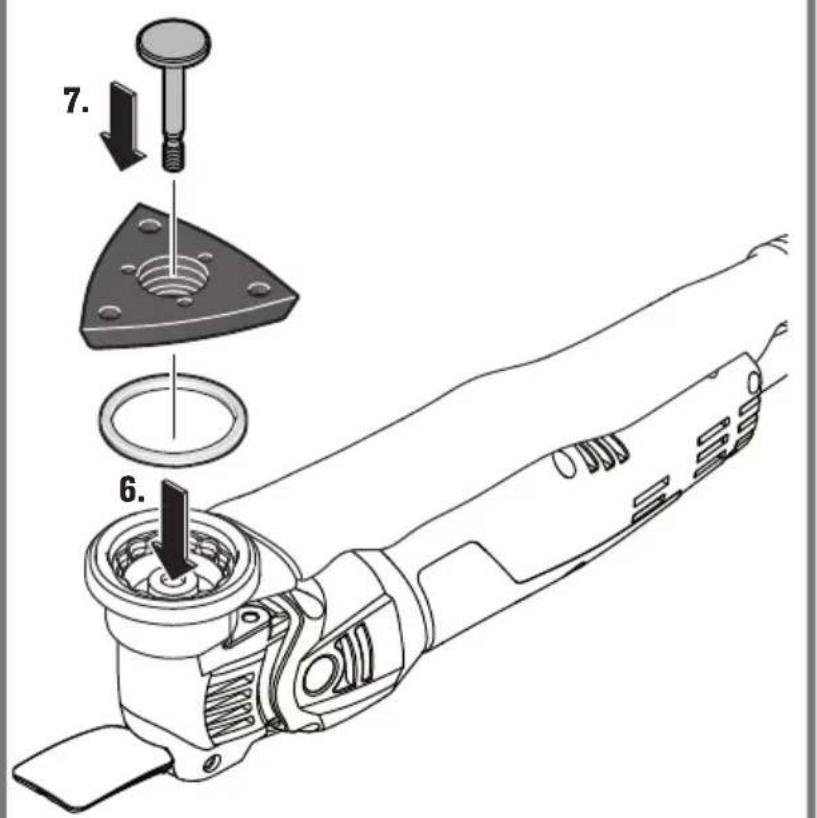

7. 6.

7. 6.

Simple line drawing of a spray gun emitting a droplet, no text or symbols present

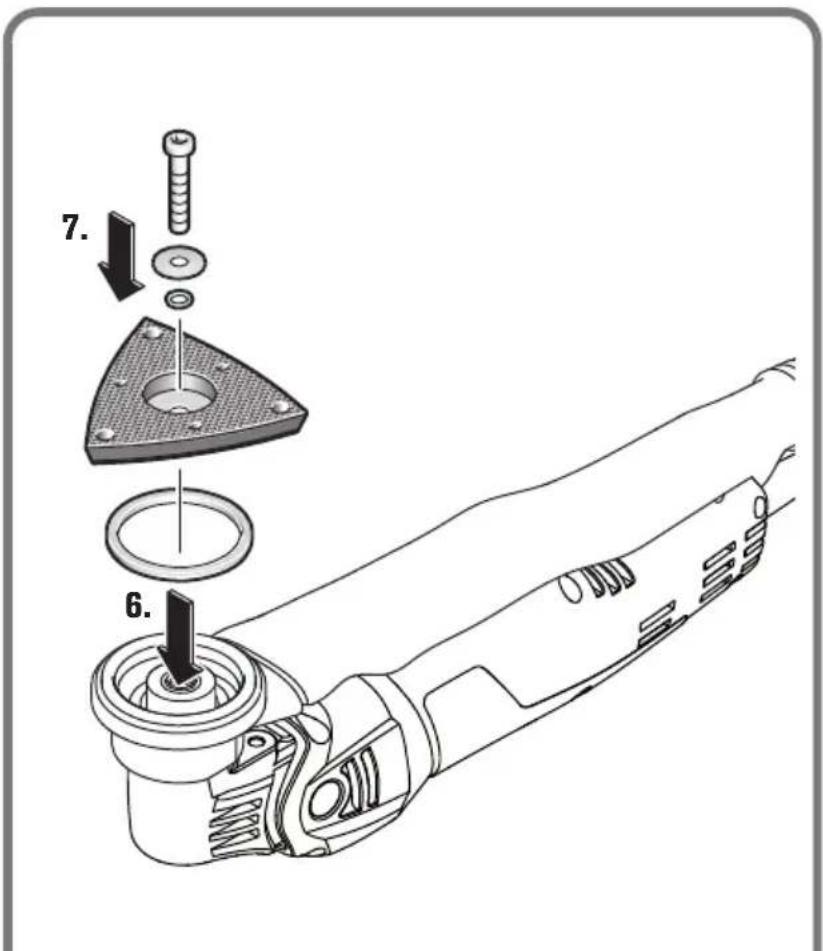

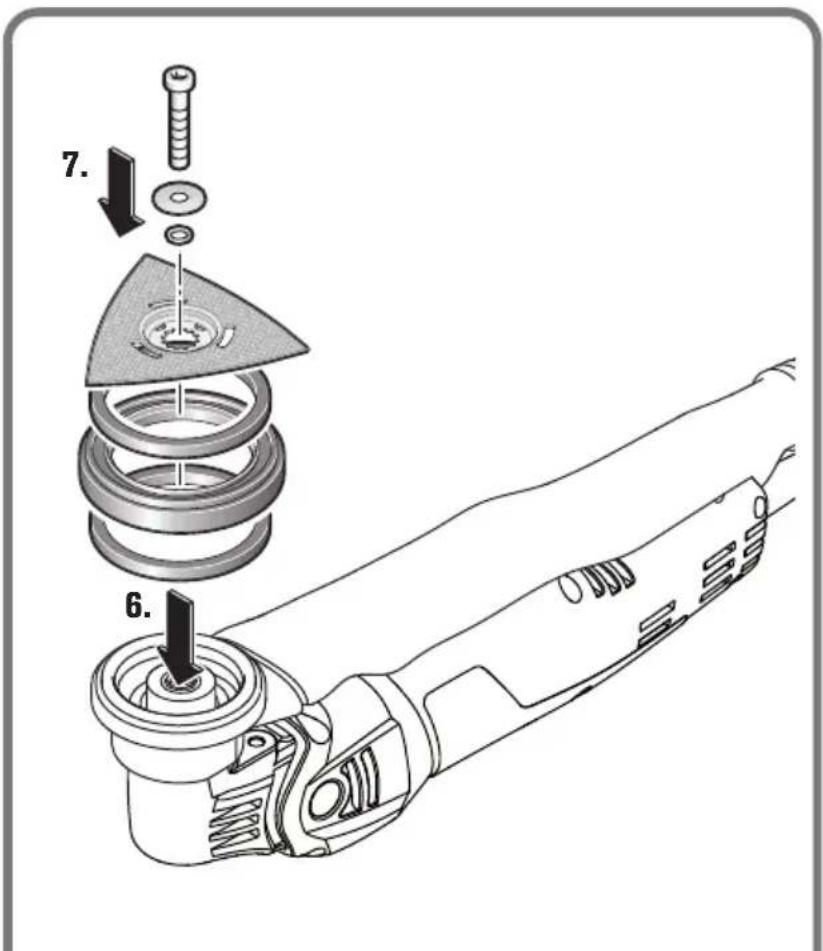

MM 700-1.7 (**)

Technical diagram of a mechanical assembly with numbered parts and labeled parts

7. 6.

Simple line drawing of a spray gun emitting a droplet, enclosed in a rounded square frame (no text or symbols)

MM 700-1.7Q (**)

Diagram of a hairdryer with labeled parts including disassembled tool, power cord, and mechanical components

Diagram of a power tool with labeled parts including disassembly, assembly, and maintenance steps

5.

Simple line drawing of a spray gun emitting a droplet, no text or symbols present

MM 700-1.7Q (**)

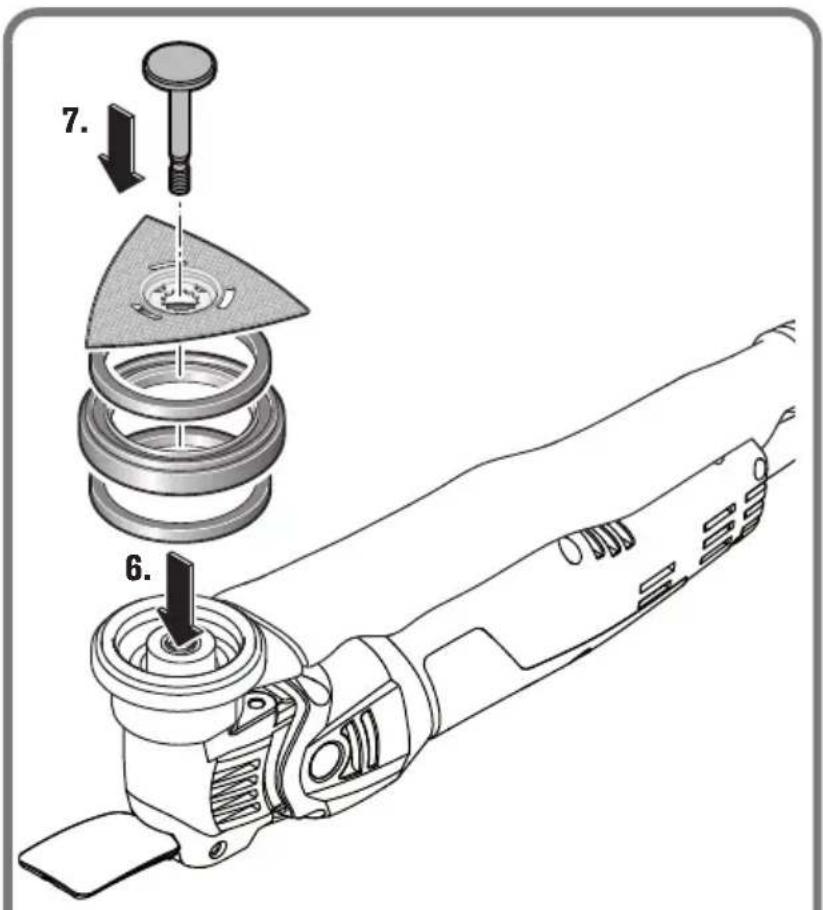

7. 6.

7. 6.

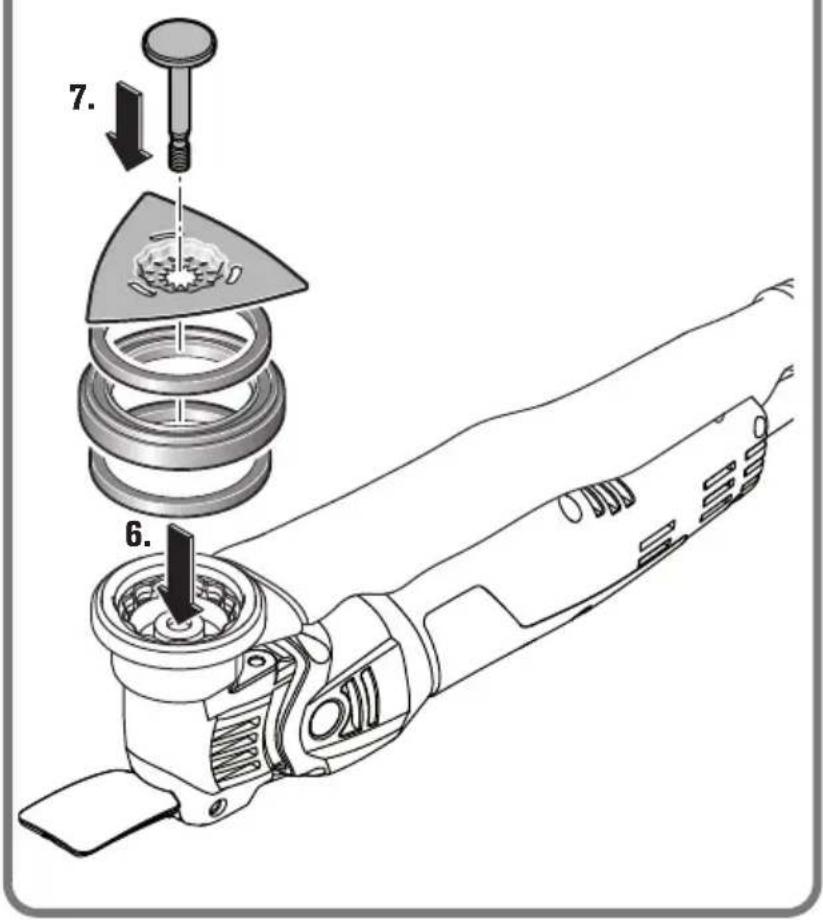

Simple line drawing of a spray gun emitting a droplet, no text or symbols present

MM 700-1.7Q (**)

7. 6.

7. 6.

Translation of the Original Instructions.

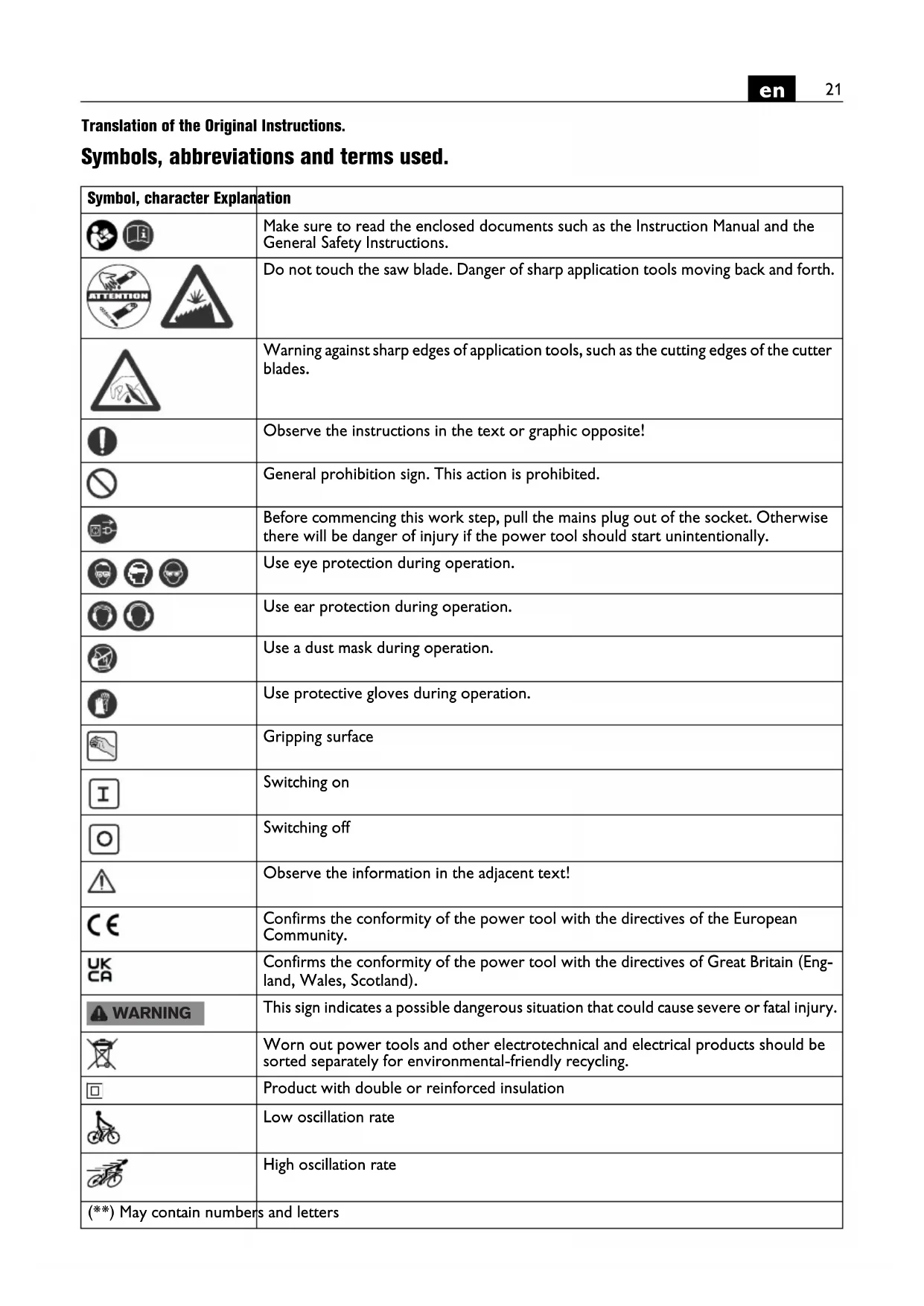

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Do not touch the saw blade. Danger of sharp application tools moving back and forth.
	Warning against sharp edges of application tools, such as the cutting edges of the cutter blades.
	Observe the instructions in the text or graphic opposite!
	General prohibition sign. This action is prohibited.
	Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Use eye protection during operation.
[BA2X]	Use ear protection during operation.
	Use a dust mask during operation.
	Use protective gloves during operation.
	Gripping surface

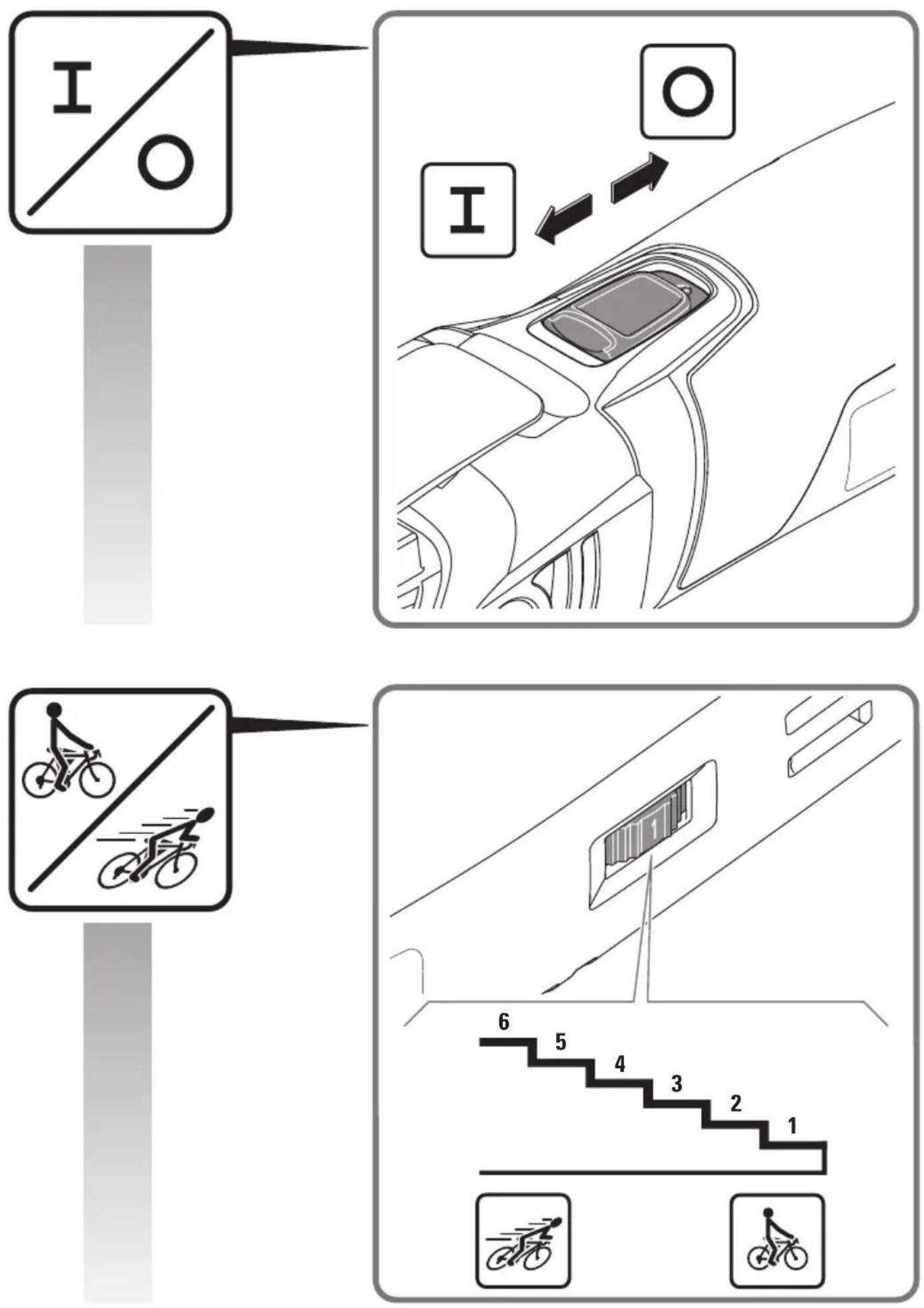

	Switching on
[32HS]	Switching off
	Observe the information in the adjacent text!
	Confirms the conformity of the power tool with the directives of the European Community.
	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Product with double or reinforced insulation
	Low oscillation rate
[8ASY]	High oscillation rate
(**) May contain numbers and letters
Symbol, character Explanation
(Ax - Zx) Marking for internal purposes

Character Unit of measurement, international		Unit of measurement, national	Explanation
P_1	W	W	P o w
P_2	W	W	O u t
UV	V	R	a t
fHz Hz Frequency
n_S	/min, min ^-1 , rpm, r/min	/min Rated oscillation	rate
	°	°	Oscillation angle
	kg	kg	Weight according to EPTA-Procedure 01
L_pA	dB	dB	Sound pressure level
L_wA	dB	dB	Sound power level
L_pCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty
a	m/s ^2	m/s ^2	Vibrational emission value according to EN 62841 (vector sum of three directions)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

Hand-guided oscillator for use without water supply in weather-protected environments using the application tools and accessories recommended by FEIN.

• for cutting polyurethane beads for glazier work in automobiles, lorries and busses
• for sawing out chassis sections and removing under-seal materials
• for sanding of chassis parts

This power tool is not suitable for sawing wood and similar materials. For such applications, use i.e. the FEIN MM 700 MAX.

This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10 %. When in doubt, please refer to the generator instruction/specification guide.

Special safety instructions.

Hold power tool by the insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Grasp the power tool in such a safe manner that your body never comes into contact with the application tool, especially while working with application tools such as saw blades or other blades pointed toward the grasping range. Touching sharp tips or cutting edges can lead to injuries.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Before putting into operation, check the mains connection and the mains plug for damage.

Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.

Handling hazardous dusts

For work procedures with this power tool where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Emission values for vibration

Vibration	a
Classification of FEIN application tools according to vibration class	Weighted acceleration*
VC0	< 2,5 m/s^2
VC1	< 5 m/s^2
VC2	< 7 m/s^2
VC3	< 10 m/s^2
VC4	< 15 m/s^2
VC5	< 30 m/s^2
Ka	1,5 m/s^2
* These values are based on a work cycle consisting of no-load and full-load operation of the same duration.For information on the vibration class assigned to the application tool, please see the enclosed data sheet 3 41 30 451 06 0.

Operating Instructions.

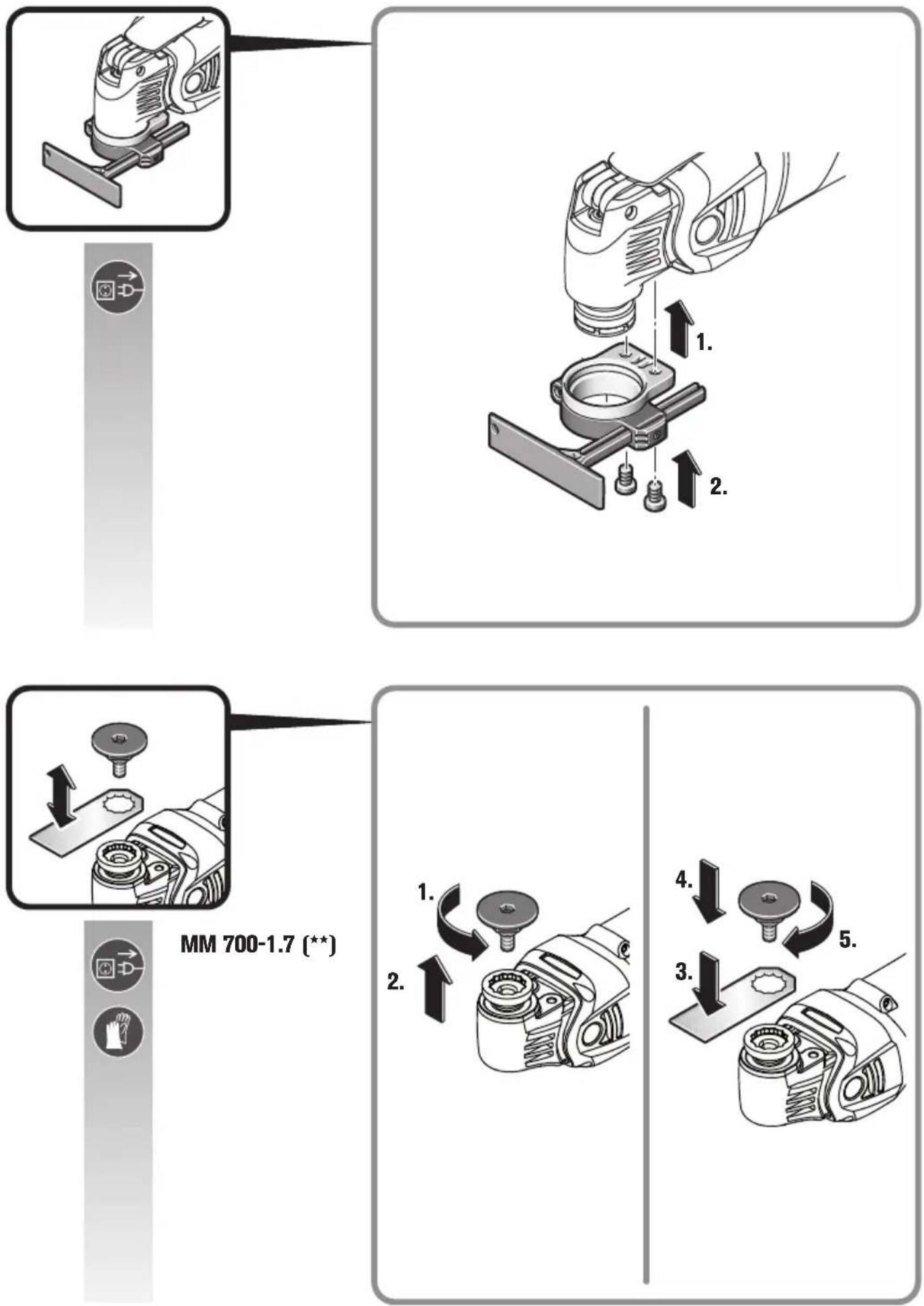

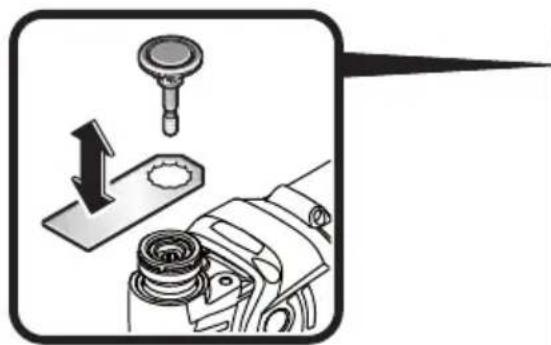

Changing the tool.

Do not use accessories not specifically intended and recommended for this power tool by FEIN. The use of non-original FEIN accessories can lead to overheating of the power tool and destroy it.

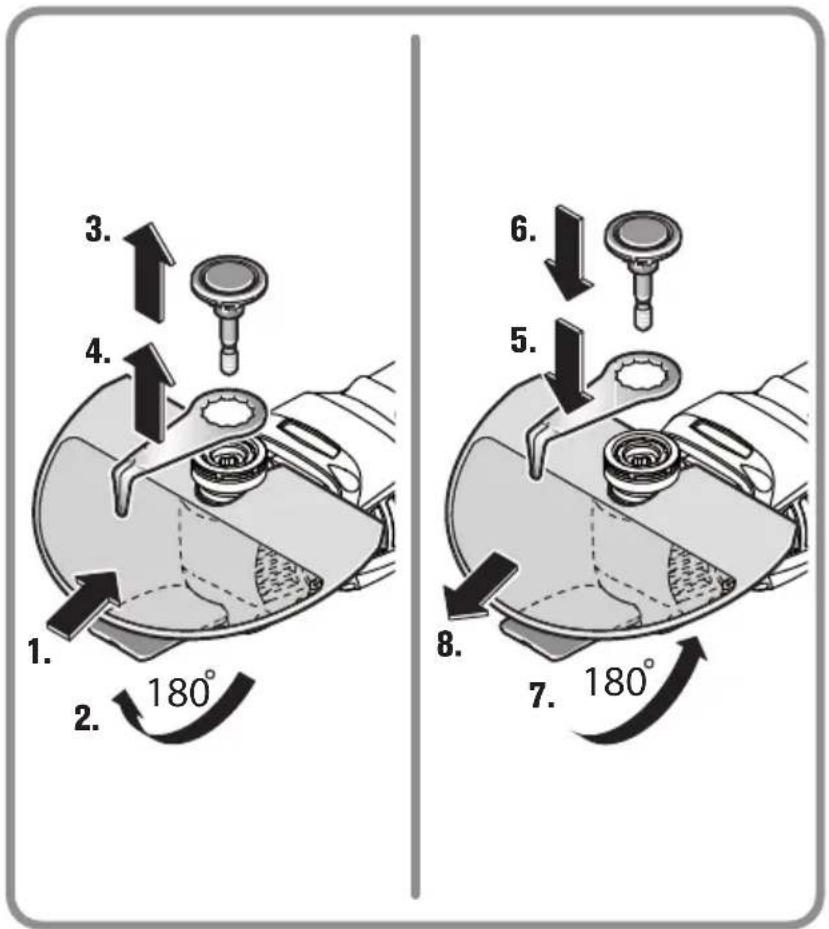

When changing application tools with sharp cutting edges, use cover 3 21 74 011 00 0 to protect yourself against hand/arm injuries.

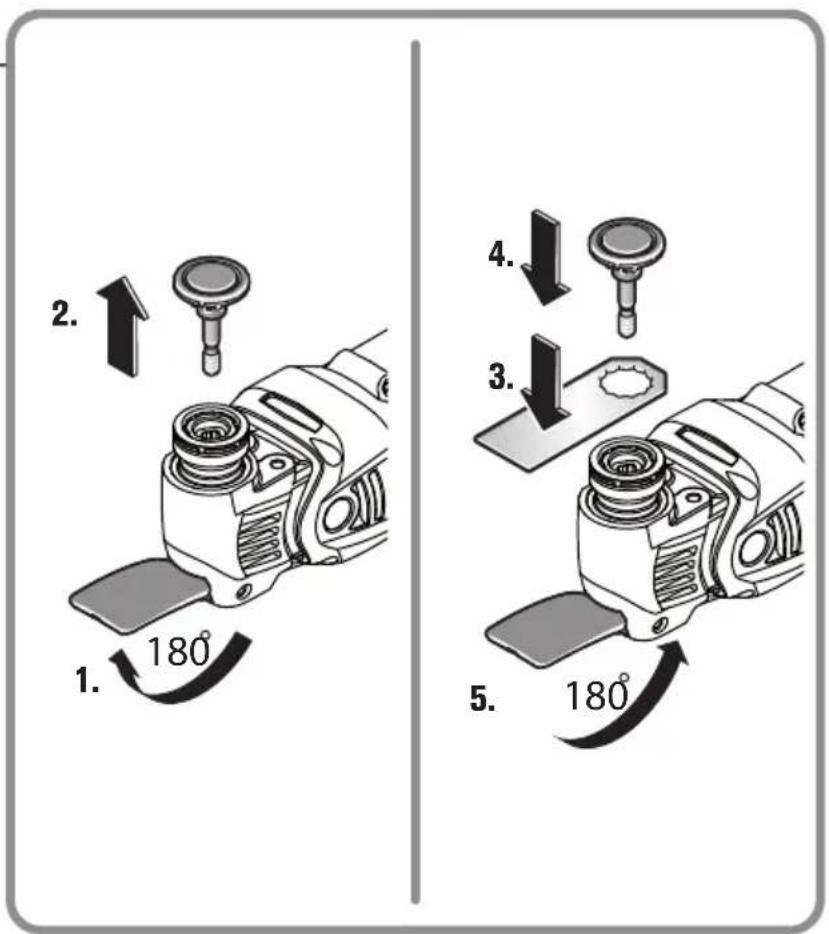

MM 700-1.7Q (**) :

! Firmly press in the fastening element to the stop. Then lock the clamping lever.

Do not switch the power tool on while the clamping lever is open. Otherwise there is danger of crushes or contusions to the hand and fingers.

Do not overload the power tool. Overloading increases the vibration on the power-tool housing and can cause the power tool to become very hot. Danger of injury.

Additional operating instructions.

MM 700-1.7Q (**) :

Do not actuate the clamping lever while the power tool is running. Otherwise there is danger of injury.

MM 700-1.7 (**)/MM 700-1.7Q (**):

Guide the power tool toward the work piece only when switched on.

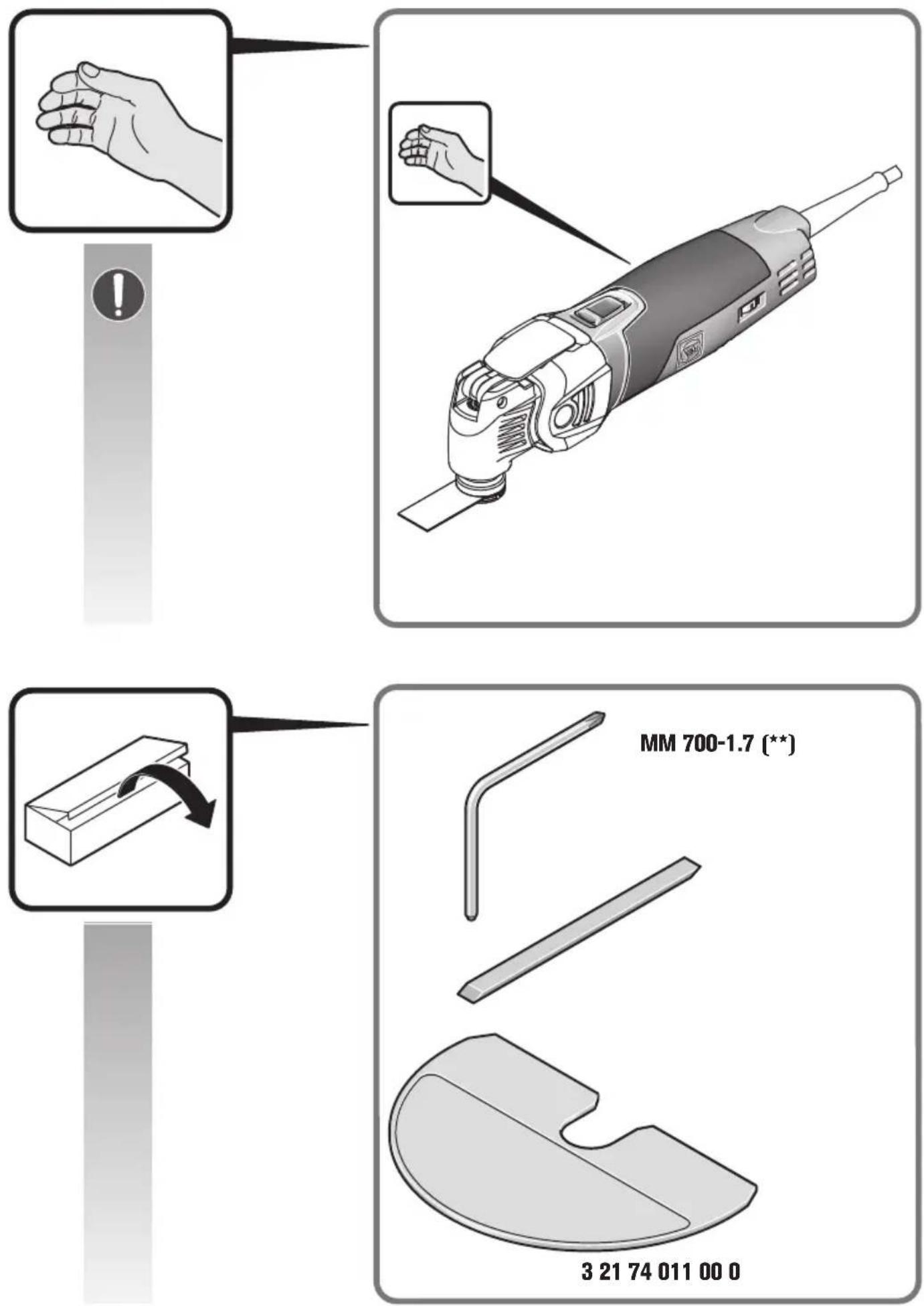

Before using, sharpen used and even new cutter blades with the cleaning block.

The symptom for worn blades is a clearly increased feed force at lower working progress.

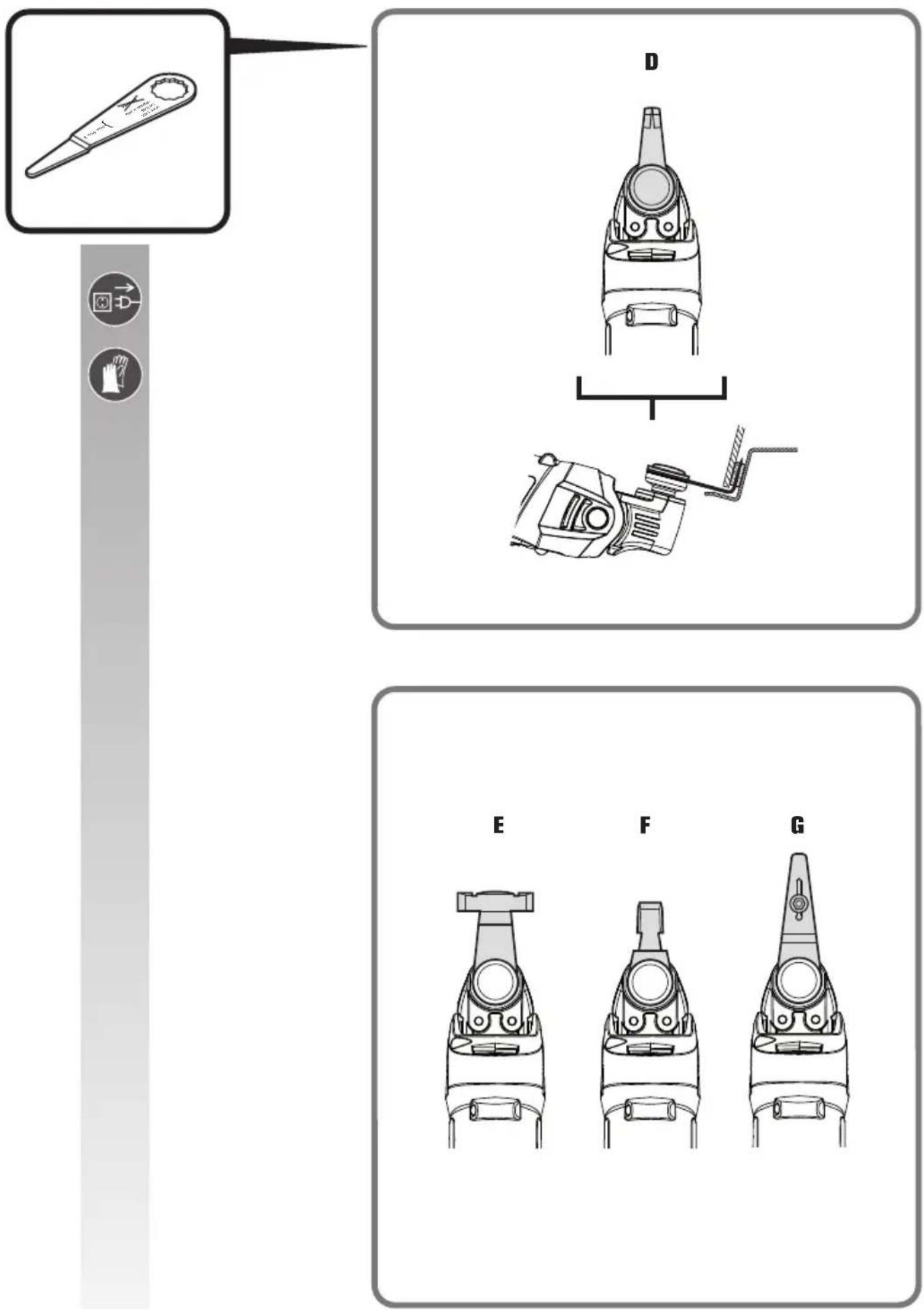

The application tool can be offset in 30^ steps and fastened in the most favourable working position.

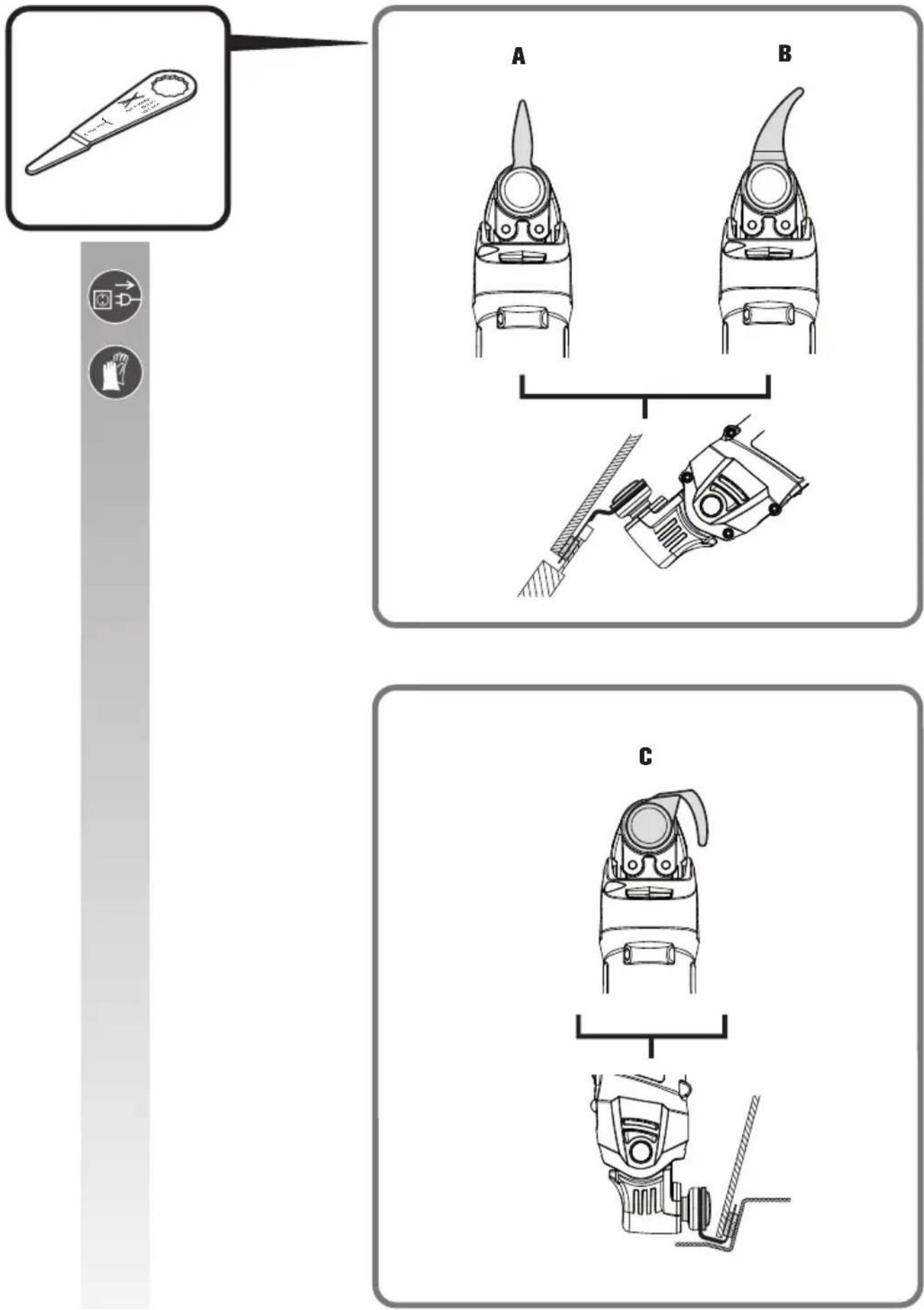

Guide straight, bent or offset cutter blades at a right angle to the window flange (see page 14–15, Cutter blades A – D).

For U-shaped cutter blades, pay attention that the traverse of the cutter blade is led parallel to the window pane of the vehicle (see page 15, Cutter blades E - F).

The scraper knife is used for cutting back bond remainders on the window flange or the pane. Before re-bonding the vehicle window, cut back the remaining bead to a height of approx. 2 mm (see page 15, Cutter blades G).

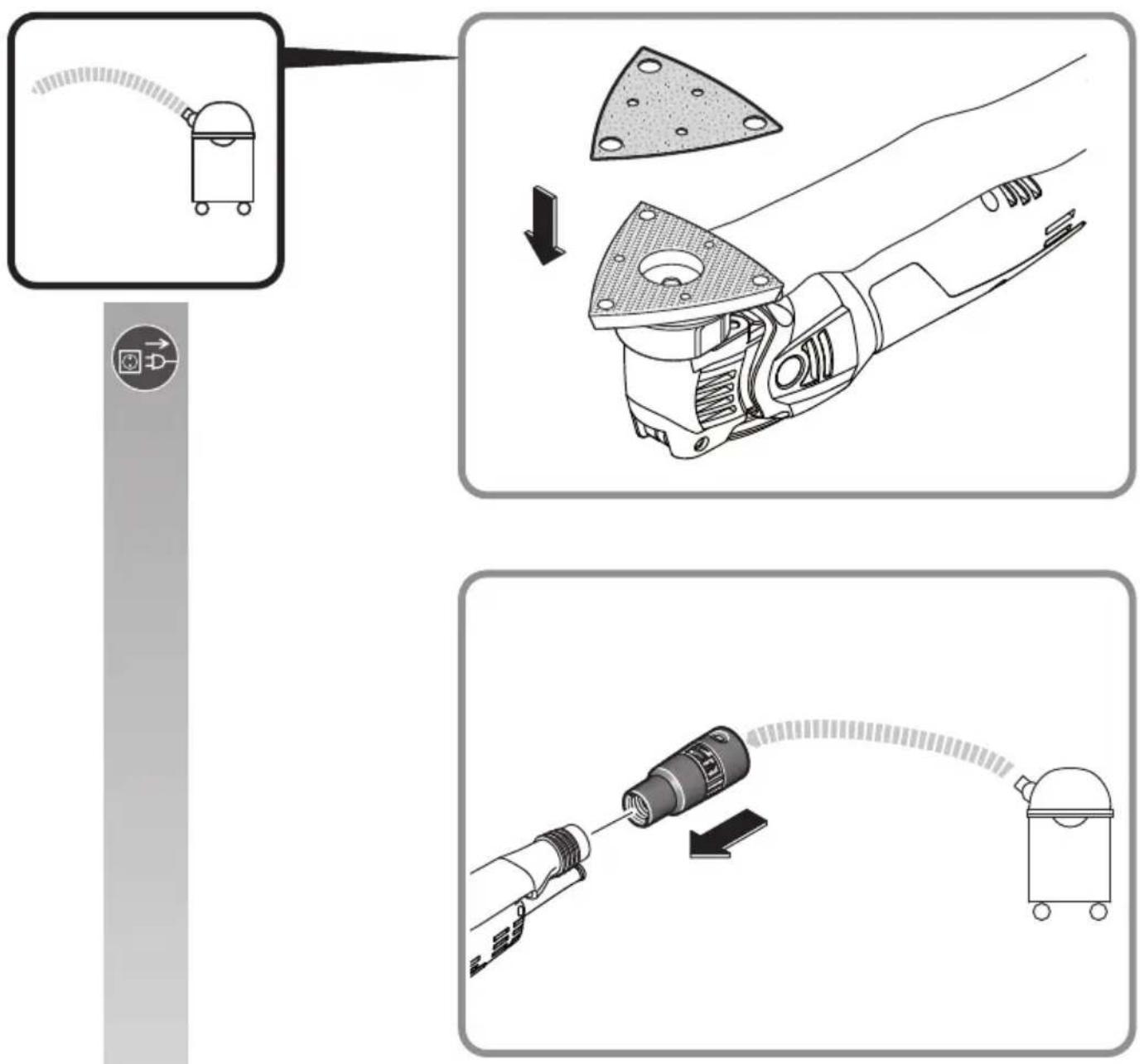

Notes on sanding.

Press the power tool with the sanding sheet briefly and firmly against a flat surface and briefly switch the power tool on. This provides for good adhesion and prevents premature wear.

When only one tip or corner of the sanding sheet is worn, it can be removed again and reattached turned by 120^ .

Work with the entire surface of the sanding plate, not only with the tip.

When sanding with small triangle sanding plates, select a high oscillating frequency (electronics level 4 – 6); when sanding with the round sanding plate and the large triangle sanding plate, select a moderate oscillating frequency (max. electronics level 4).

Sand with continuous motion applying moderate pressure. Applying excessive pressure does not increase the rate of removal, it only wears off the sanding sheet faster.

Notes on sawing chassis sections.

Select a high oscillating frequency. Round saw blades can be released and clamped offset again, to allow for uniform wearing off.

Notes on scraping.

Select a moderate to high oscillating frequency.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power

tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.

When working gypsum-containing materials, dust can settle within the power tool and switch element, which can harden in connection with humidity. This can impair the switching mechanism. Blow out the interior of the power tool via the ventilation slots and the switch element frequently with dry and oil-free compressed air.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

When the machine's power supply cord is damaged, it must be replaced by the manufacturer or their representative.

The current spares parts list for this power tool can be found on our website at www.fein.com.

Use only original spare parts.

If required, you can change the following parts yourself:

Application tool, fastening element (MM 700-1.7Q (**)

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market.

After placing the product on the Great Britain market the CE mark loses its mark validity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at:

C. & E. Fein GmbH

Hans-Fein-Straße 81

73529 Schwäbisch Gmünd-Bargau, Germany

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

EN 62841-1:2015 + AC:2015

EN 62841-2-4:2014 + AC:2015

EN 55014-1:2017 + A11:2020

EN 55014-2:2015

EN 55014-2:1997 + A1:2001 + A2:2008 + AC:1997

EN 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

EN 63000:2018

2011/65/EU, 2006/42/EG, 2014/30/EU

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

EN 62841-1:2015 + AC:2015

EN 62841-2-4:2014 + AC:2015

EN 55014-1:2017 + A11:2020

EN 55014-2:2015

EN 55014-2:1997 + A1:2001 + A2:2008 + AC:1997

EN 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

EN 63000:2018

Supply of Machinery Regulations 2008,

EMC Regulation 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product Management Development

QR code image containing encoded data, no visible human-readable text
