| Product type | Oscillating multi-tool |
| Brand | Fein |
| Model | Multimaster MM 700 1.7 Q Bus & Truck |
| Power supply | Mains (corded) |
| Rated voltage | 230 V |
| Frequency | 50/60 Hz |
| Power consumption (P1) | 700 W |
| Weight (according to EPTA-Procedure 01) | Approx. 2.0 kg |
| Protection class | II (double insulation) |
| Tool change | Quick-clamp lever |
| Speed control | Yes, 6 positions |
| Oscillation angle | Not specified |
| Main applications | Cutting polyurethane adhesive (glazing removal), cutting sheet metal, sanding, scraping |
| Recommended protective equipment | Safety glasses, hearing protection, dust mask, gloves |
| Compliance | CE, UKCA |
| Maintenance | Blow dry compressed air through the ventilation slots |
| Repairability | Spare parts available at www.fein.com |
| Warranty | Statutory warranty + Fein manufacturer warranty |
| Recycling | Do not dispose of with household waste; return to recycling center |
Frequently Asked Questions - Multimaster MM 700 1.7 Q Bus & Truck Fein

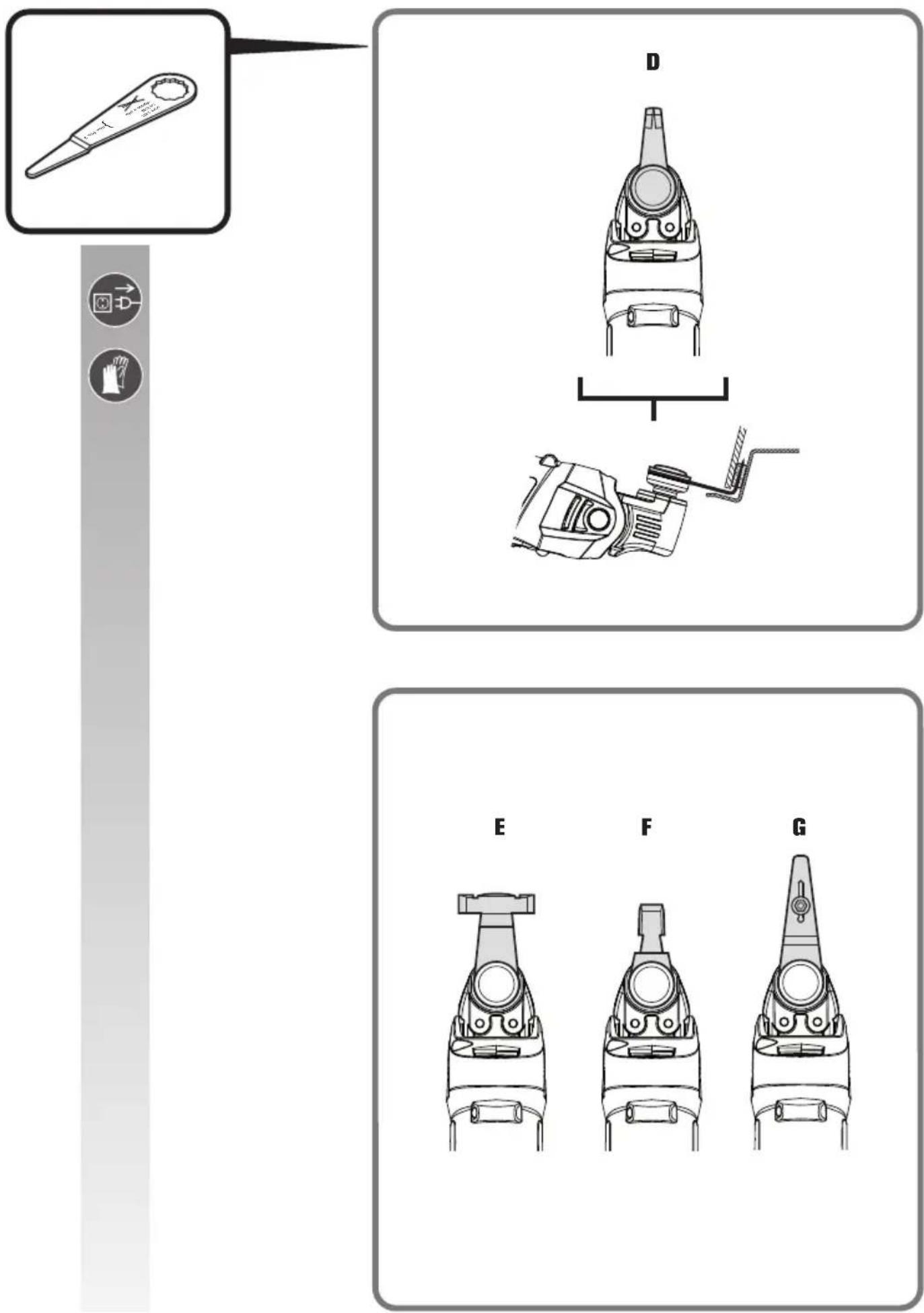

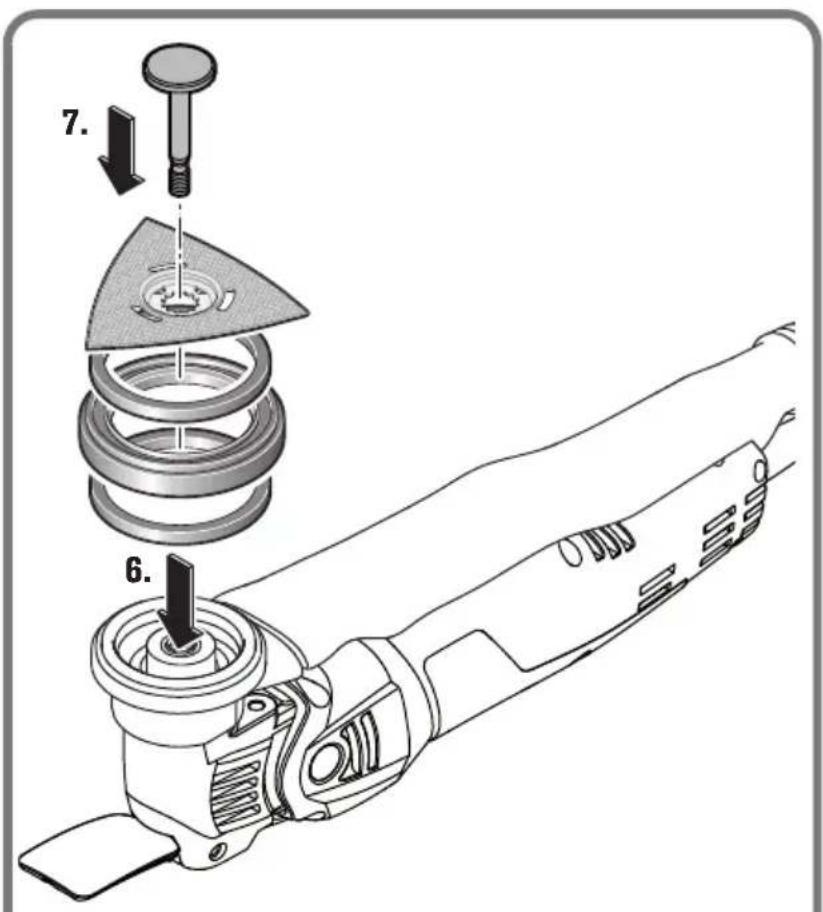

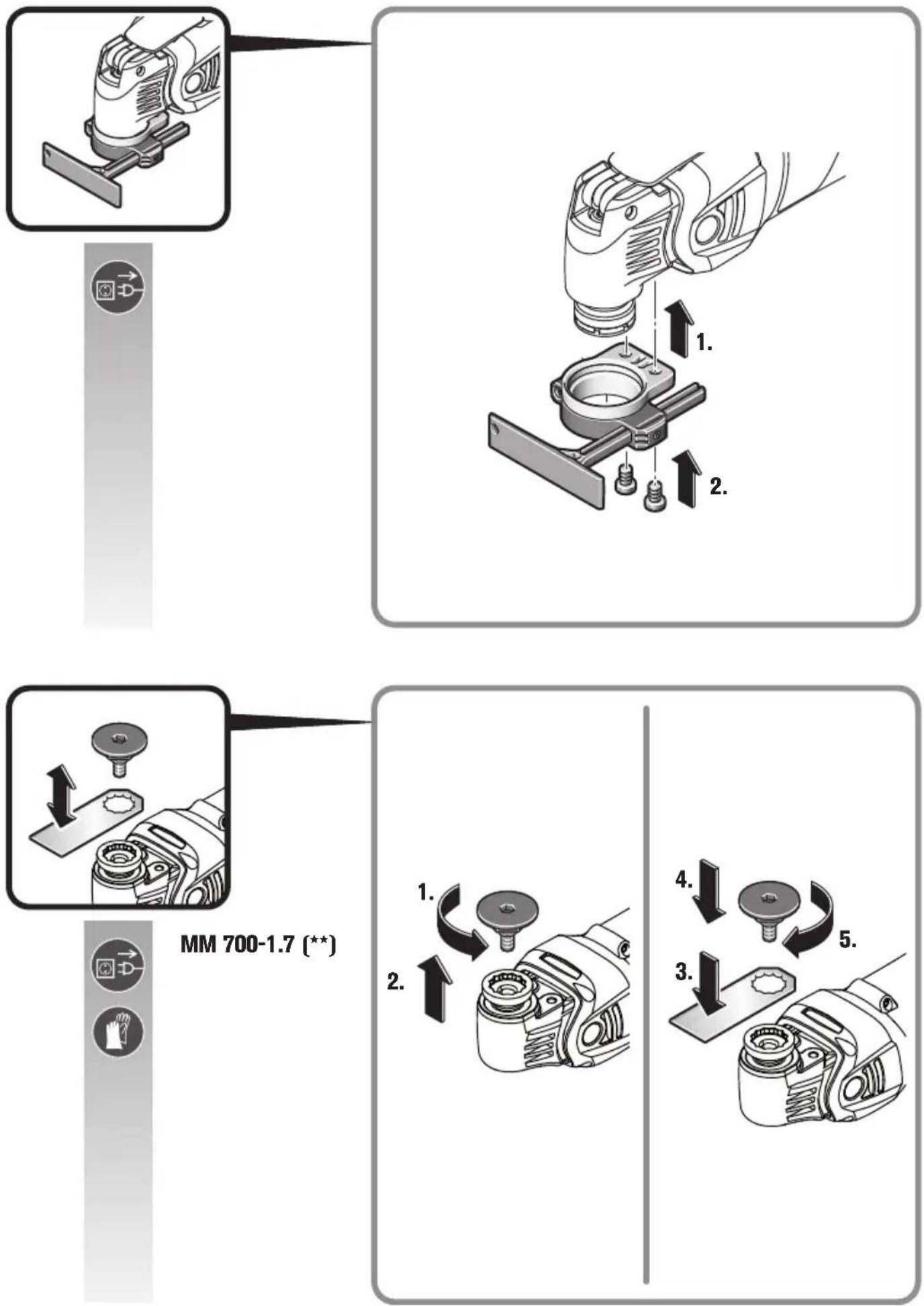

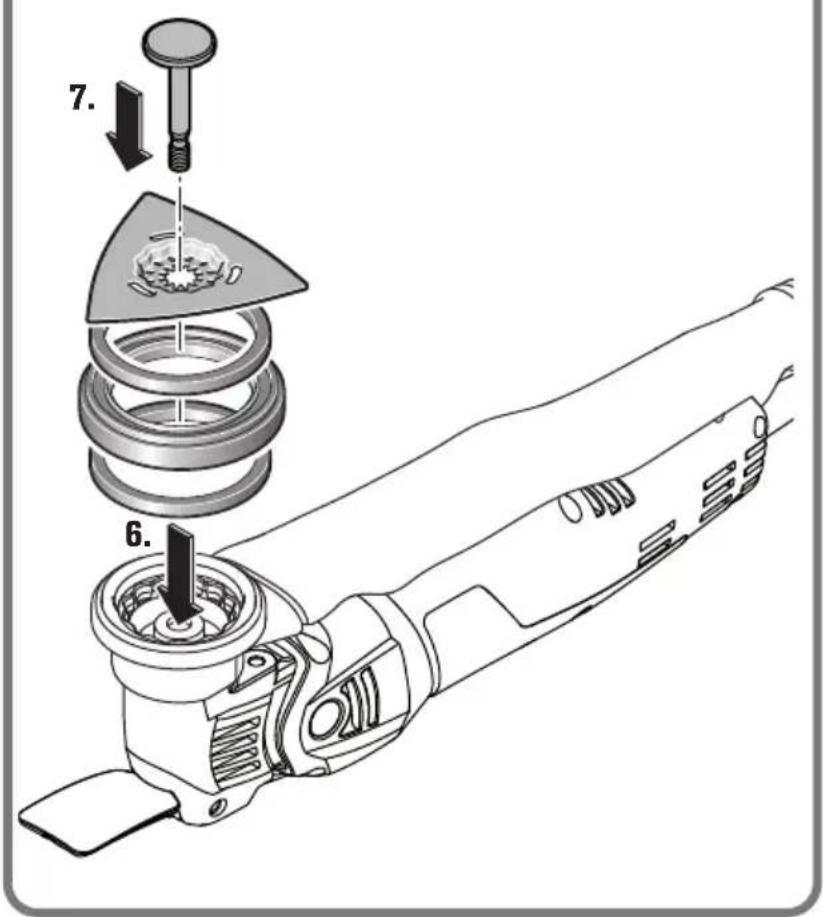

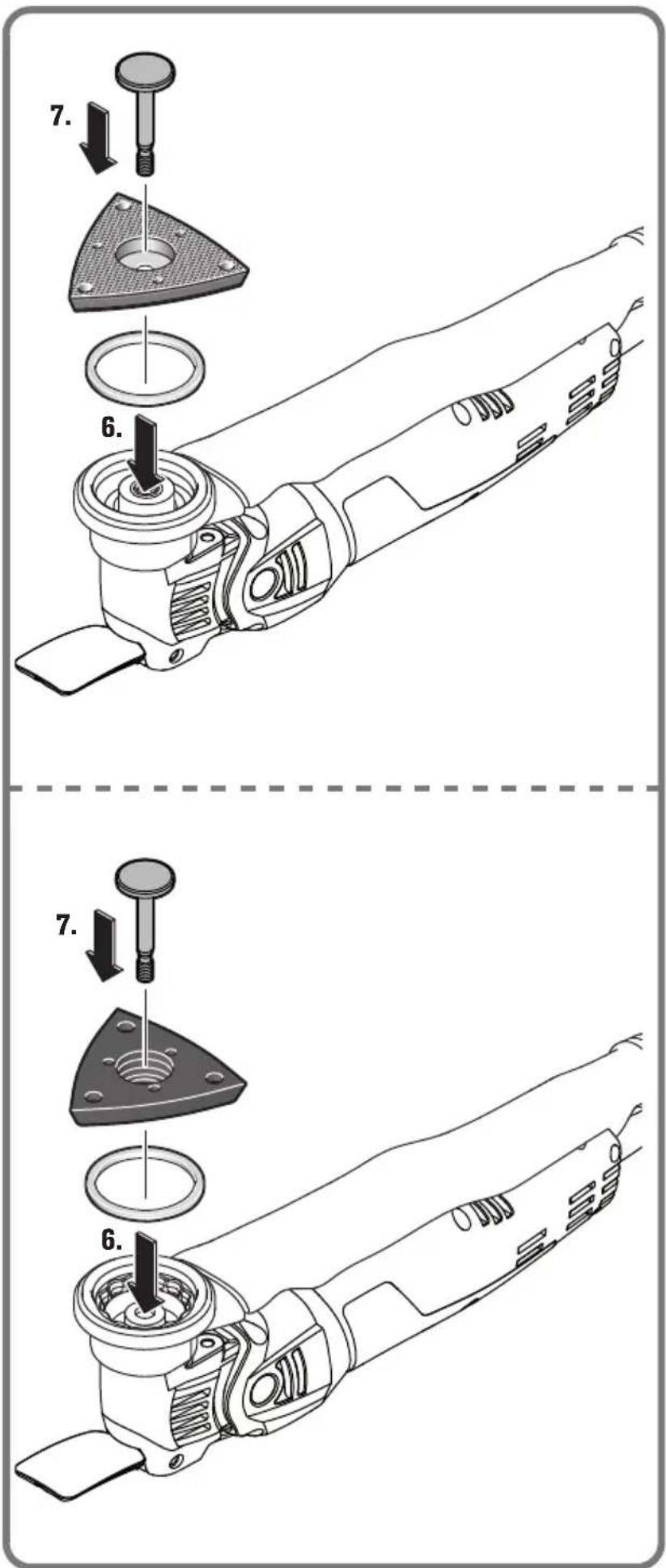

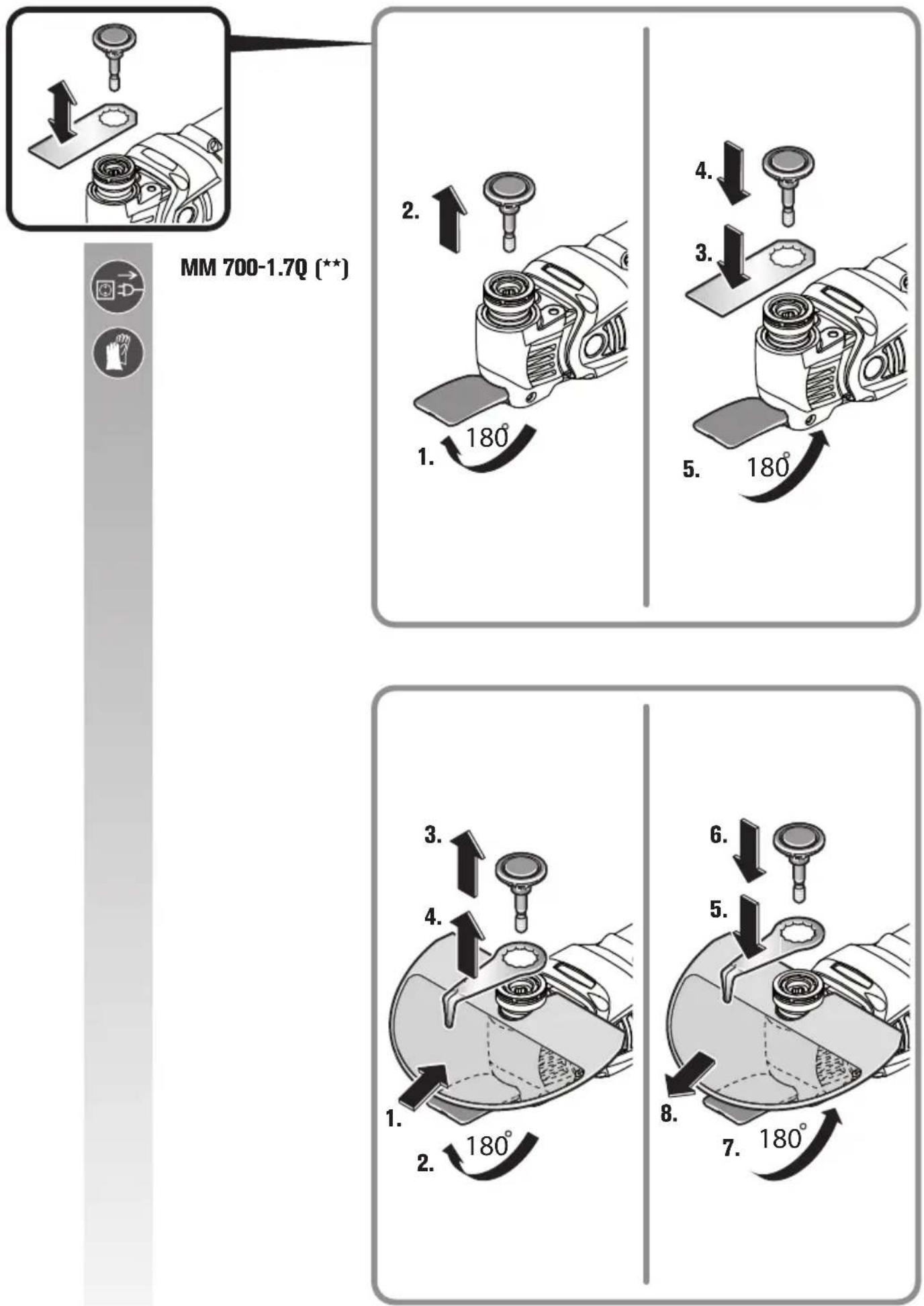

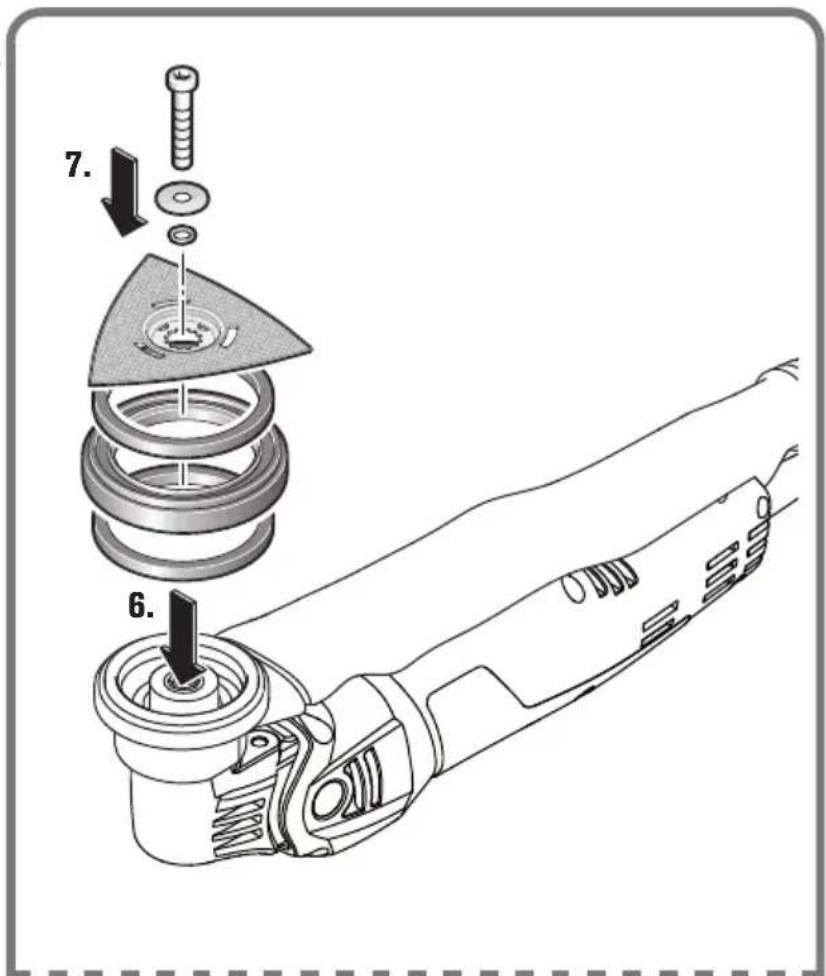

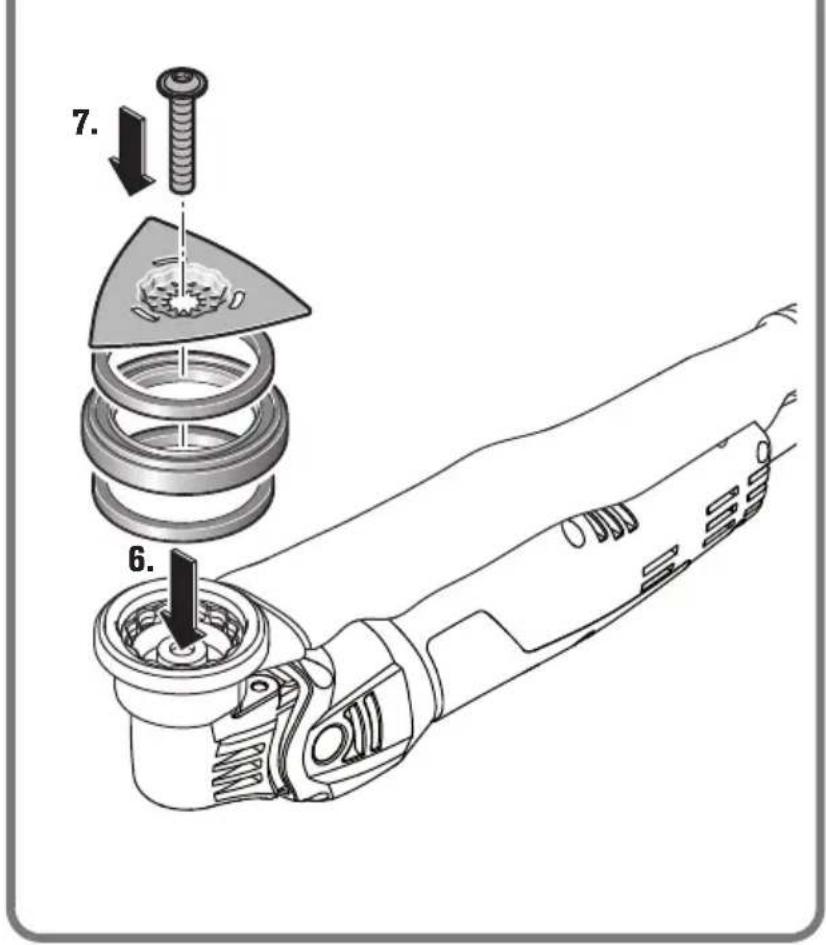

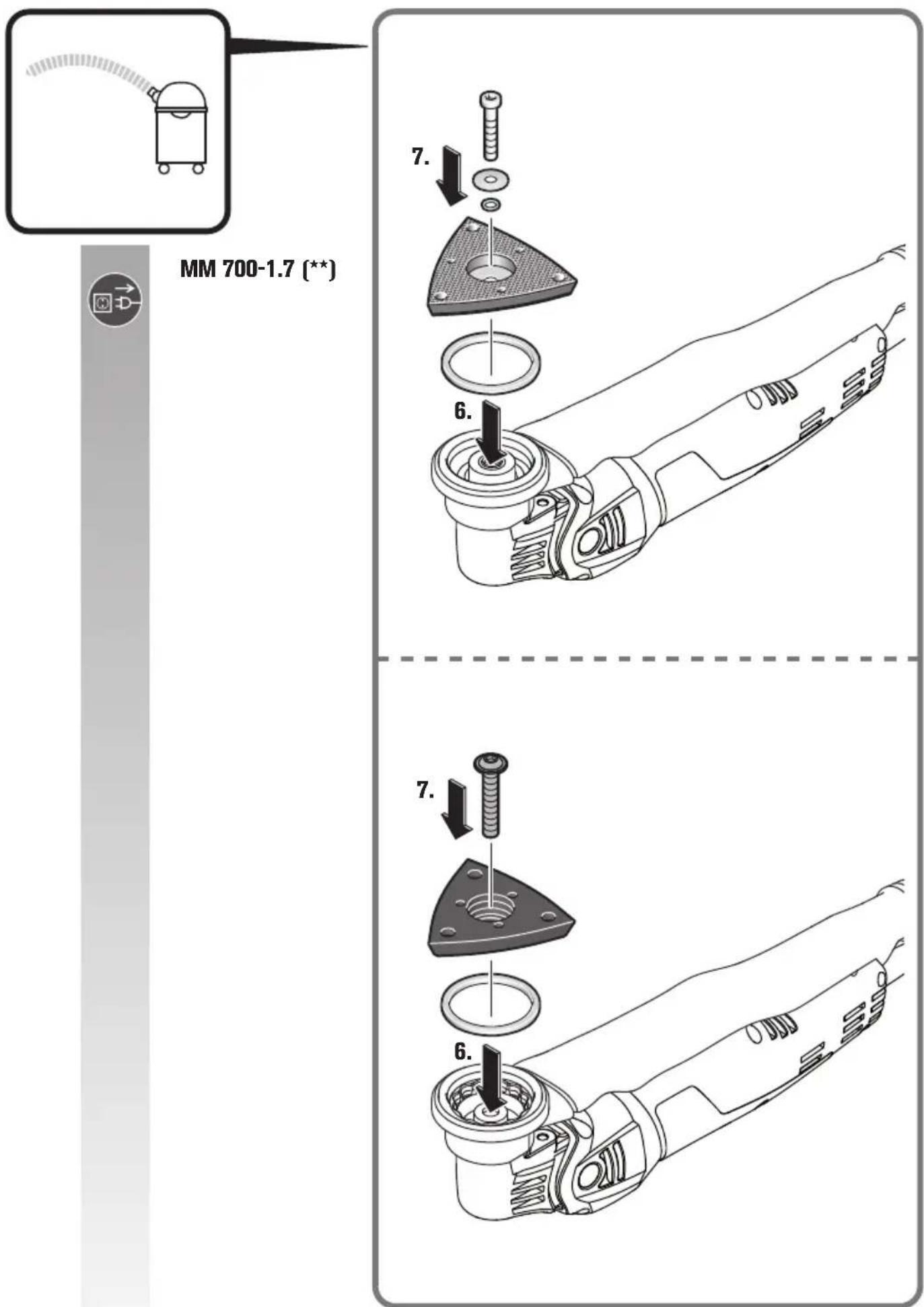

How to change the working tool on the Multimaster MM 700?
To change the tool, open the clamping lever, remove the used tool, place the new tool (blade, pad, scraper) onto the mounting element, then close the lever firmly. Never start the machine with the lever open.
What are the main applications of this tool?
This tool is designed for cutting polyurethane adhesive beads when removing automotive glass (cars, trucks, buses), cutting body sheet metal, removing underbody coatings, sanding and scraping body parts.

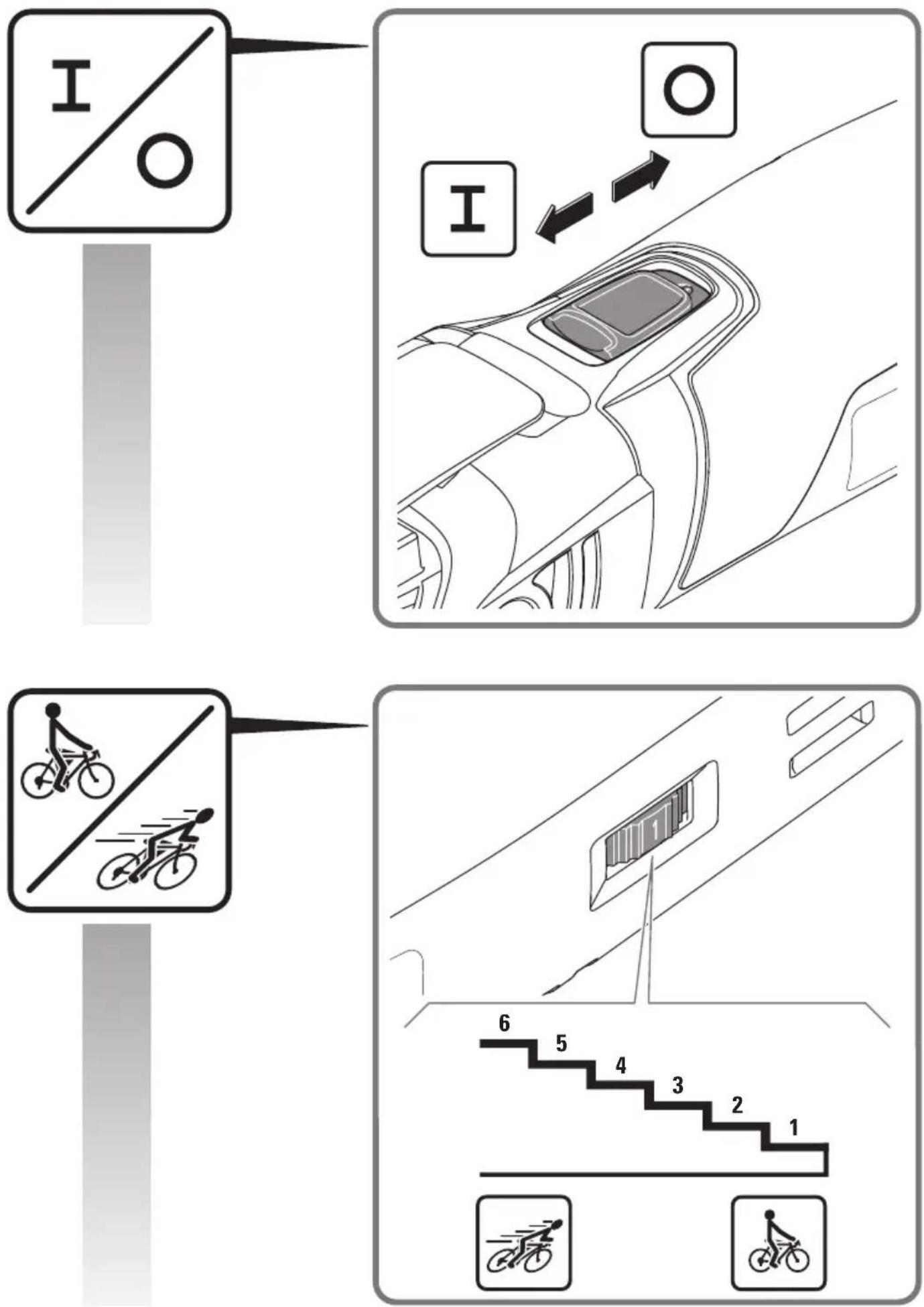

How to adjust the oscillation speed?
The speed control offers 6 positions. Use high speed (positions 4-6) for small triangular pads and sawing, medium speed (position 4 max.) for the large pad, and medium to high for scraping.
What accessories can I use with this tool?

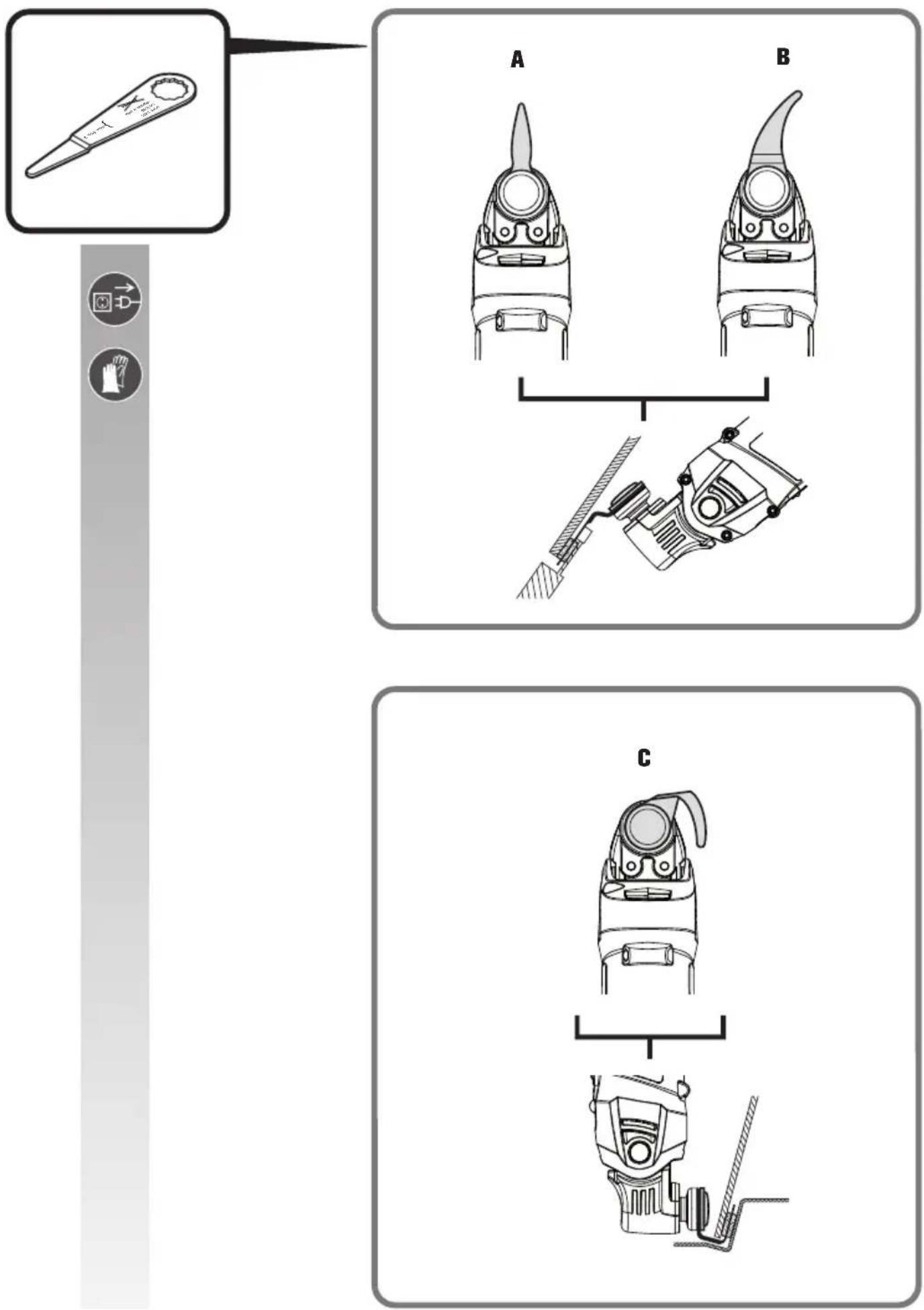

Use exclusively original FEIN accessories specially designed for this model, such as saw blades, triangular sanding pads (small and large), straight, angled, curved or U-shaped knives, and scrapers. Using non-adapted accessories may damage the tool.
How to clean the tool?
Regularly clean the ventilation slots with non-metallic tools. When working on metals, blow dry, oil-free compressed air inside through the slots. For plaster work, blow frequently to prevent dust hardening.
What to do if the power cable is damaged?
If the cable is damaged, it must be replaced by the manufacturer (Fein) or its authorized representative. Do not use the tool with a defective cable.
Can I use the tool with a generator?
Yes, provided that the generator has sufficient power and complies with ISO 8528, class G2 (harmonic distortion factor lower than 10%). If in doubt, consult the generator manufacturer.
How to reduce vibrations during use?
Use the tool with light and constant pressure, choose the appropriate speed, keep the tool and accessories in good condition, and wear gloves to keep hands warm. Take regular breaks.
What is the warranty on this tool?
The statutory warranty applies according to the country of market placement. Fein additionally offers a manufacturer warranty according to its declaration. Keep the manual and proof of purchase.
How to recycle the tool at end of life?
Do not dispose of the tool with household waste. Take it to an approved recycling center for electrical and electronic equipment, in accordance with environmental guidelines.
