USER MANUAL RB37K63602C SAMSUNG

English User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product. - You can check the model code and version on the barcode label at the bottom left of the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual. - User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges. NOTE Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs. RB6000K_User-servicing-manual.indb 1 2020-12-22 5:33:34English The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

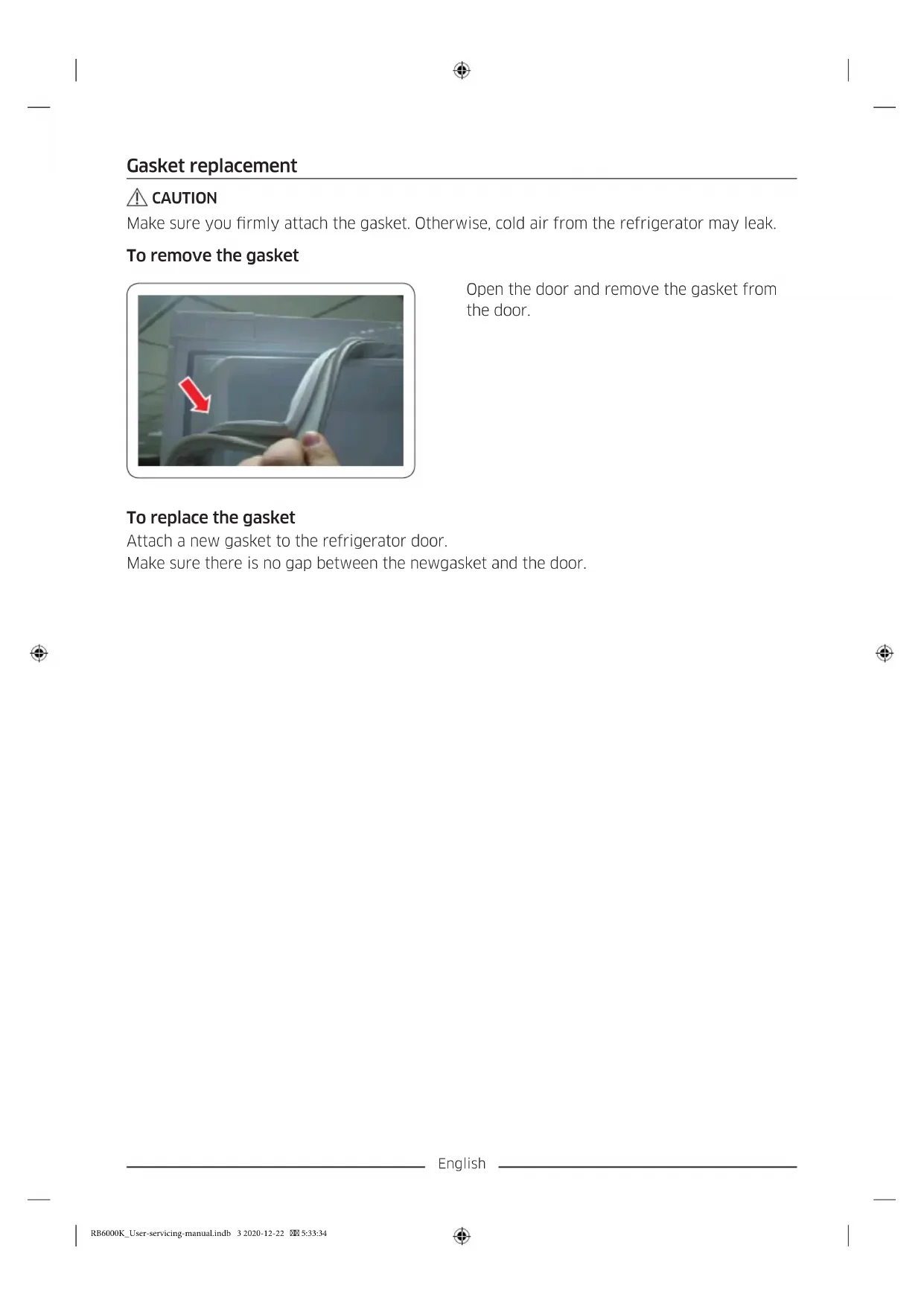

01 Top hinge 02 Drawer 03 Middle hinge 04 Barcode label 05 Bottom hinge RB6000K_User-servicing-manual.indb 2 2020-12-22 5:33:34English Gasket replacement CAUTION Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak. To remove the gasket Open the door and remove the gasket from the door. To replace the gasket Attach a new gasket to the refrigerator door. Make sure there is no gap between the newgasket and the door. RB6000K_User-servicing-manual.indb 3 2020-12-22 5:33:34English Drawer replacement CAUTION Check that the drawer is inserted properly into the rail during assembly. To remove the drawer Pull out the drawer as far as it goes. To reattach the drawers Reattaching the drawers follows the reverse order of their respective removal steps. Hinge replacement To replace the hinges, you must remove the doors rst. CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover. WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors. RB6000K_User-servicing-manual.indb 4 2020-12-22 5:33:34English Tools required (not provided) Phillips screwdriver Flat-head screwdriver 11 mm spanner 8 mm socket wrench (for bolts) Allen wrench (5 mm) Remove the fridge door Top hinge

1. With the fridge door closed, loosen and

remove two screws on the top of the door. (RB37 Glass door models only)

2. Open the fridge door, and then pull up to

open the dongle cover at the top of the door. RB6000K_User-servicing-manual.indb 5 2020-12-22 5:33:35English

3. Lift up the wire cover (1) and turn it to

the front by 90 degrees to remove. Then, remove the space cover (2).

RB37 Glass door models

• Open the fridge door, and slightly lift up the left side of the wire cover (1) to remove. Then, remove the space cover (2) then the dongle PBA connector (3). NOTE Keep the space cover in a safe place. It is necessary when you return the door to the initial position (before reversing the door).

4. Remove the top frame cover (4) from the

• For models that have the display panel on the top of the fridge, locate the service holes on the top frame cover (4). - Insert a at-head screwdriver into the left hole and release the left side rst then the upper and lower locks of the right side in this sequence. Then, slide to the left to remove. RB6000K_User-servicing-manual.indb 6 2020-12-22 5:33:36English

5. Pull out the left side of the hinge cover

(5) to remove, and then slightly lift up the bottom to pull out. CAUTION When removing the hinge cover, use caution not to damage the connectors and wires on or around the fridge door. NOTE Keep the hinge cover in a safe place. It is necessary when you return the door to the initial position (before reversing the door).

6. Disconnect the connectors on or around

the fridge door. Loosen the screws from the top hinge (6) to remove. CAUTION To prevent the fridge door from falling, make sure to hold the fridge door tight while removing the top hinge.

7. When the top hinge is removed, lift up to

remove the fridge door. Keep the door in a safe place. CAUTION The door is heavy. To prevent damage or injury, use caution while removing the door. Middle hinge

1. Open the freezer door, and remove the

middle hinge (7) by loosening the screws.

• For RB37 glass door models, use the 5 mm Allen wrench for removing the bolts. RB6000K_User-servicing-manual.indb 8 2020-12-22 5:33:36English

2. Gently lift up to remove the freezer door.

3. Lay down the refrigerator with care. Then,

remove the screws from the levelling leg (10) and the bottom hinge (11).

4. Reassemble in the opposite order of

disassembly after replacing the Top hinge, Middle hinge, and/or Bottom hinge. CAUTION

• Make sure the wire connectors are connected properly.
