G20 - Pressure washer GREENWORKS - Free user manual and instructions

Product type	High pressure cleaner
Brand	Greenworks
Model	G20
Service voltage	220-240 V ~ 50 Hz
Rated power	1400 W
Rated pressure	8 MPa
Allowable pressure	11 MPa
Rated water flow	5.6 l/min
Maximum water flow	7.6 l/min
Max. inlet pressure	0.7 MPa
Max. inlet temperature	40 °C
Sound pressure level (LPA)	80 dB(A) (k=3 dB(A))
Sound power level (LWA)	87.6 dB(A) (k=3 dB(A))
Protection rating	IPX5
Vibrations	< 2.5 m/s² (K=1 m/s²)
Warranty period	2 years (domestic use), 30 days (professional)
Applications	Cleaning of terraces, cars, boats, outdoor furniture
Package contents	Main unit, detergent tank, rotary nozzle, adjustable jet nozzle, water inlet connector, trigger and tube, high pressure hose, screws
Maintenance	Clean nozzles with a paperclip, drain water before storage, use a pump protector
Standards	EN 60335-2-79, EN 60335-1, EN 62233, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN ISO 3744

Frequently Asked Questions - G20 GREENWORKS

What types of surfaces can I clean with the Greenworks G20?

This pressure washer is ideal for cleaning terraces, concrete yards, walls, cars, boats, motorcycles, barbecues, and outdoor furniture. Use the adjustable jet nozzle to adapt the pressure.

How do I connect the water supply hose?

Make sure the tap is closed, then connect the water inlet connector to the water inlet of the pressure washer. Then open the tap and purge the air by pressing the trigger before plugging in the appliance.

Can I use hot water?

No, never use hot water. The maximum inlet water temperature is 40 °C. Use only cold water from the mains.

How do I change the nozzle safely?

Turn off the pressure washer, close the water supply, press the trigger to release pressure. Engage the trigger lock, then press the nozzle release button to remove it. Insert the new nozzle until it clicks.

How do I use the detergent tank?

Pour a suitable detergent into the tank, then install it on the gun. Turn on the appliance and apply the detergent to the dry surface in wide movements. Do not let the detergent dry before rinsing.

Why does my pressure washer have pressure pulsations?

This is often due to a clogged nozzle. Unplug the appliance, turn off the water, remove the nozzle and clean it with an unfolded paperclip. Rinse it before reinstalling.

How do I store the appliance after use?

Unplug the appliance, empty the water from the hose and gun by pressing the trigger. Store it in a dry, frost-free place. It is recommended to use a pump protector for winter storage.

Can I use an extension cord?

Yes, but the extension cord must be suitable for outdoor use and its connection must remain dry and at least 60 mm above the ground. Use a cable of sufficient cross-section to avoid voltage drops.

How do I maintain the water inlet filter?

The filter is located at the water inlet. Check it regularly and clean it if necessary. If it is damaged, replace it before use to avoid damaging the pump.

What should I do if the pump does not start?

First check that the water supply is open and the hose is not kinked. Make sure the switch is ON. If the problem persists, press the trigger to purge air. If nothing works, contact Greenworks customer service.

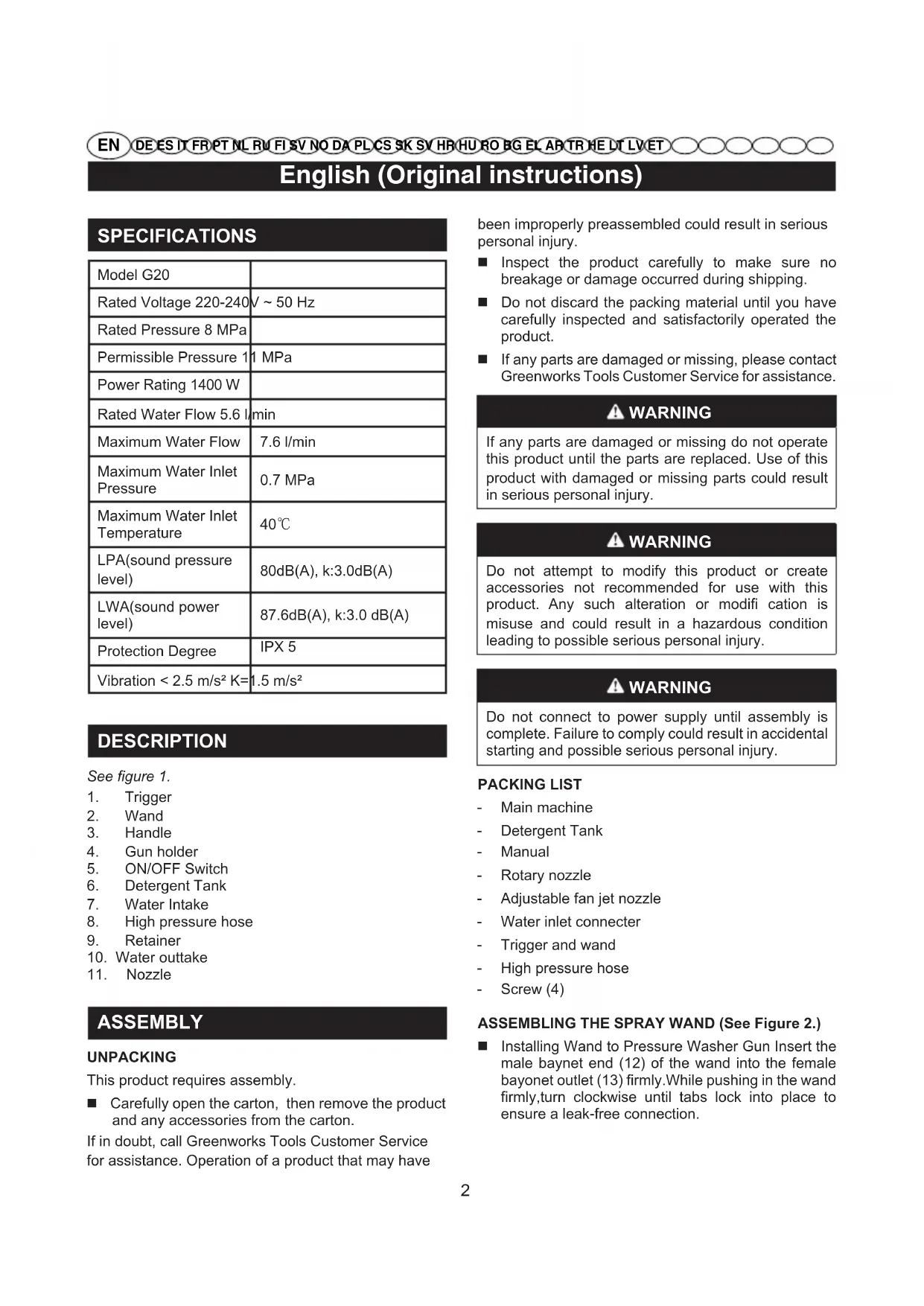

USER MANUAL G20 GREENWORKS

English (Original instructions)

SPECIFICATIONS

Model G20
Rated Voltage 220-240V ~ 50 Hz
Rated Pressure 8 MPa
Permissible Pressure 11 MPa
Power Rating 1400 W
Rated Water Flow 5.6 l/min
Maximum Water Flow	7.6 l/min
Maximum Water Inlet Pressure	0.7 MPa
Maximum Water Inlet Temperature	40°C
LPA(sound pressure level)	80dB(A), k:3.0dB(A)
LWA(sound power level)	87.6dB(A), k:3.0 dB(A)
Protection Degree	IPX 5
Vibration < 2.5 m/s2 K=	1.5 m/s2

DESCRIPTION

See figure 1.

1. Trigger

2. Wand

3. Handle

4. Gun holder

5. ON/OFF Switch

6. Detergent Tank

7. Water Intake

8. High pressure hose

9. Retainer

10. Water outtake

11. Nozzle

ASSEMBLY

UNPACKING

This product requires assembly.

■ Carefully open the carton, then remove the product and any accessories from the carton.

If in doubt, call Greenworks Tools Customer Service for assistance. Operation of a product that may have

been improperly preassembled could result in serious personal injury.

■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please contact Greenworks Tools Customer Service for assistance.

WARNING

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING

Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

PACKING LIST

• Main machine
• Detergent Tank
• Manual
• Rotary nozzle
• Adjustable fan jet nozzle
• Water inlet connector
• Trigger and wand
• High pressure hose
• Screw (4)

ASSEMBLING THE SPRAY WAND (See Figure 2.)

■ Installing Wand to Pressure Washer Gun Insert the male baynet end (12) of the wand into the female bayonet outlet (13) firmly. While pushing in the wand firmly, turn clockwise until tabs lock into place to ensure a leak-free connection.

English (Original instructions)

ASSEMBLING THE WATER INLET CONNECTOR (See Figure 3.)

■ Align the connector with the water intake.
■ Rotate the connector clockwise to ensure it is tight.

ASSEMBLING THE HANDLE (See Figure 4.)

■ Align the handle with the handle base.
■ Insert the screw and turn clockwise with a screwdriver until the screw is tight.
■ Push the handle into the groove.
■ Insert the screw and turn clockwise with a screwdriver until the screw is tight.

OPERATION

Applications

This pressure washer can be used for the purposes listed below:

■ Removing dirt and mould from decks, cement patios, and walls.
■ Cleaning cars, boats, motorcycles, outdoor furniture and barbeques.

CONNECTING HIGH PRESSURE HOSE (See Figure 5.)

Fiting

■ Push the connector (14) of the high pressure hose into the mount (15) on the trigger handle until it engages.

Removing

■ Actuate the spring button (16) and pull the high pressure hose out of the mount.

CONNECTING THE WATER SUPPLY TO PRESSURE WASHER (See Figure 6.)

The water supply must come from a water main. NEVER use hot water or water from ponds, lakes, etc. For ease of use, a self-coiling hose (not provided) is recommended.

NOTE: When using the self-coiling hose, be sure that the hose does not become crimped during use as this may cause damage to the pump.

CAUTION

When connecting the appliance to the water supply mains (not public drinking water supply mains), please observe the local regulations of local boards or local water supplier.

To ensure that there is no transfer of contaminant into the water supply, the appliance must not be connected directly to the public drinking water supply mains.

If the appliance is connected to portable water mains, backflow prevention devices should be incorporated in or fixed to the water supply system. The installation should be accepted by local boards or water supplier and should be conducted by professional technical personnel. The backflow prevention devices should be appropriate to fluid categories and comply with the requirement to avoid back siphonage according to EN 60335-2-79:2009.

WARNING

Always switch off the mains disconnecting switch when leaving the machine unattended

WARNING

Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60mm above the ground.

Before connecting the garden hose to the pressure washer:

■ Run water through the hose for 120 seconds to clean any debris from the hose.
■ Inspect the filter in the water intake.
■ If the filter is damaged, do not use the machine until the filter has been replaced.

NOTE: There must be a minimum of 3 metres of unrestricted hose between the pressure washer intake and the garden tap.

■ With the garden tap turned completely off, attach the end of the garden hose to the threaded tap connector.

USING THE GUN (See Figure 7.)

For greater control and safety, keep both hands on the gun at all times.

■ Squeeze the trigger (17) to operate the pressure

English (Original instructions)

washer.

■ Release the trigger to stop the flow of water through the nozzle.

To engage the lock-out:

■ Press the lock-out button (18) to the ON position.

To disengage the lock-out:

■ Press the lock-out button to the OFF position.

USING THE NOZZLES (See Figure 8.)

CAUTION

NEVER change nozzles without engaging the lock out on the gun and NEVER point the lance at your face or at others.

To connect a nozzle to the lance:

■ Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
■ Engage the lock out on the gun by pulling down on the lock out until it clicks into the slot.
■ Press the button on the lance and insert the nozzle, aligning the pin on the nozzle with hole.
■ Rotate the nozzle to adjust the spray shape.

ADDING DETERGENT TO THE PRESSURE WASHER (See Figure 9-10.)

Use only detergents designed for pressure washers; household detergents, acids, alkalines, bleaches, solvents, flammable material, or industrial grade solutions can damage the pump. Many detergents may require mixing prior to use.

Prepare cleaning solution as instructed on the solution bottle.

NOTE: Use a funnel, if needed, to prevent accidental spilling of the detergent outside the tank. If any detergent is spilled during the filling process, make sure the unit is cleaned and dried before proceeding.

To apply soap:

■ Pour detergent in the detergent tank.
■ Install the soap tank to the trigger gun.
■ Start the pressure washer and spray the detergent on a dry surface using long, even, overlapping strokes. To prevent streaking, do not allow detergent to dry on the surface.

STARTING AND STOPPING THE PRESSURE WASHER (See Figure 11.)

CAUTION

Do not run the pump without the water supply connected and turned on.

■ Turn the garden hose on then squeeze the high pressure trigger to relieve air pressure. Once a steady stream of water appears, release the trigger.
■ After ensuring the switch is in the OFF position, connect the pressure washer to the power supply.
■ Set the switch to the ON(I) position to start the motor.
■ Turn the garden hose on then squeeze the high pressure trigger.

MAINTENANCE

WARNING

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING

Before inspecting, cleaning, or servicing the machine, shut off motor, wait for all moving parts to stop, and disconnect plug from power source. Failure to follow these instructions can result in serious personal injury or property damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING

Do not at any time let brake fluids, petrol, petroleum based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an authorized service centre.

English (Original instructions)

POWER SUPPLY CORD REPLACEMENT

If replacement of the power supply cord is necessary, this must be done by an authorized service centre in order to avoid a safety hazard.

NOZZLE MAINTENANCE (See Figure 12.)

Excessive pump pressure (a pulsing action felt while squeezing the trigger) may be the result of a clogged or dirty nozzle.

■ Unplug the pressure washer.
■ Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
■ Remove the nozzle from the lance.

NOTE: Never point the spray lance at your face.

■ Using a straightened paper clip or nozzle cleaning tool, free any foreign materials clogging or restricting the nozzle.
■ Using a garden hose, clear/flush debris out of nozzle.
■ Reconnect the nozzle to the lance.
■ Turn on the water supply.

STORING THE PRESSURE WASHER

Store in a dry, covered, frost-free area where the weather can't damage it. Always empty water from gun, hose and pump.

NOTE: The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months.

DISPOSAL

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

ANMERKUNG: There must be a minimum of 3 metres of unrestricted hose between the pressure washer intake and the garden tap.

STARTING AND STOPPING THE PRESSURE WASHER (See Figure 11.)

ATTENZIONE

Always switch off the mains disconnecting switch when leaving the machine unattended.

AVISO

■ Installing Wand to Pressure Washer Gun Insert the male baynet end (12) of the wand into the female bayonet outlet (13) firmly. While pushing in the wand firmly, turn clockwise until tabs lock into place to ensure a leak-free connection.

GENERELT VEDLIKEHOLD

VEDLIKEHOLD AV MUNNSTYKKE (See Figure 12.)

For stort pumpetrykk (en pulserende rytme når man trykker utløseren) kan være følgen av at munnstykket er tett eller tilsmusset.

UDSKIFTNING AF EL-LEDNING

Model G20
Rated Voltage 220-240V ~ 50 Hz
Rated Pressure 8 MPa
Permissible Pressure 11 MPa
Power Rating 1400 W
Rated Water Flow 5.6 l/min
Maximum Water Flow	7.6 l/min
Maximum Water Inlet Pressure	0.7 MPa
Maximum Water Inlet Temperature	40°C
LPA(sound pressure level)	80dB(A), k:3.0dB(A)
LWA(sound power level)	87.6dB(A), k:3.0 dB(A)
Protection Degree	IPX 5
Vibration	< 2.5 m/s2 K=1.5 m/s2

DESCRIPTION

Patrz rysunek 1.

NEVER change nozzles without engaging the lock out on the gun and NEVER point the lance at your face or at others.

If replacement of the power supply cord is necessary, this must be done by an authorized service centre in order to avoid a safety hazard.

ÎNTRETINEREA DUZEI (Vezi Figura 12.)

Модел G20
Rated Voltage 220-240V ~ 50 Hz
Rated Pressure 8 MPa
Permissible Pressure 11 MPa
Power Rating 1400 W
Rated Water Flow 5.6 l/min
Maximum Water Flow	7.6 l/min
Maximum Water Inlet Pressure	0.7 MPa
Maximum Water Inlet Temperature	40°C
LPA(sound pressure level)	80dB(A), k:3.0dB(A)
LWA(sound power level)	87.6dB(A), k:3.0 dB(A)
Protection Degree	IPX 5
Vibration	< 2.5 m/s2 K=1.5 m/s2

ОПИСАНИЕ

(Виж фиг. 1.)

detergent to dry on the surface.

AUKŠTO SLĖGIO PLAUTUVO IJUNGIMAS IR IŠJUNGIMAS (Žr. 11 pav.)

!SPÈJIMAS

All new Greenworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Greenworks Tools are designed primarily to be used by DIY consumers.

This warranty is non-transferable.

LIMITATIONS

This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.
2. Routine tune up or adjustment.
3. Damage caused by improper handling/abuse/misuse or neglect.
4. Overheating due to lack of maintenance.
5. Damage due to fittings/fasteners becoming loose/detached through lack of maintenance.
6. Damage caused by cleaning with water.
7. Machines serviced or repaired by non-authorised Greenworks Tools service centres.
8. Machines incorrectly assembled or adjusted.
9. Damage caused by improper use of the machine.
10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by the warranty, including but not limited to:

12. Batteries

13. Electric cables
14. Blade and blade assemblies
15. Belts

16. Filters
    • Chucks and tool holders

17. Certain products may contain components such as engines, transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer's warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer's warranty period.

18. Second hand goods are not covered under this warranty policy.
19. The fitting of spares, replacements or extra components which are not supplied or approved by Greenworks Tools Europe GmbH.

Warranty

To claim a warranty on any product under this policy a proof of original purchase is required. Credit card statement do not qualify as sufficient proof of purchase. In the first instance of a warranty event occurring the consumer should return the product to the original place of purchase with their proof of purchase. The machine will be sent to our central service facility and an inspection made. If the machine be found to be at fault it will be repaired and sent back to the address of the consumer free of charge. Machines that retail for less than €100 euros including sales taxes will generally be replaced.

If the central service facility finds that machine is not found to be at fault

then the consumer will be advised they will need to pay for the cost of the repair.

This warranty policy is subject to change from time to time to accommodate the needs of new products. A copy of the latest warranty policy will be available at www.greenworkstools.eu.

Greenworks Tools garantibetingelser for gjør-det-sely-maskiner

GARANTIPERIODE

"הכלה" Greenworks Tools

"בַרְשָׁה בִיּוֹת

תְרָהוֹת אַלְבָר

:הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

EN EC DECLARATION OF CONFORMITY

Manufacturer: Changzhou Globe Co., Ltd.

Address: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Name and address of the person authorised to compile the technical file:

Name: Peter Söderström

Adress: Hjortronvägen 3, 555 93 Jönköping, Sweden

Herewith we declare that the product

Category ......High Pressure Washer

Model G20

Serial Number ...... See product rating label

Year of Construction ...... See product rating label

■ is in conformity with the relevant provisions of the Machinery Directive

■ is in conformity with the provisions of the following other EC-Directives MD Machinery Directive 2006/42/EC

2014/30/EU (EMC-Directive), and

2000/14/EC (Noise-Directive) incl.modifications (2005/88/EC)

And furthermore, we declare that

■ The following (parts/clauses of) European harmonised standards have been used EN 60335-2-79

EN 60335-1

EN 62233

EN 55014-1

EN 55014-2

EN 61000-3-2

EN 61000-3-3

EN ISO 3744

the following (parts/clauses of) other technical standards and specifications have been used EN ISO 3744

Measured sound power level LWA: 87.6dB(A)

Guaranteed sound power level LWA: 91 dB(A)

Conformity assessment method to Annex V/ Directive 2000/14/EC

Place, date: Changzhou, 22/07/2016

Quality Director

Signature: Ted Qu Haichao (BEn

Ted Qu

DE

Adresse: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Indirizzo: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

FR DÉCLARATION DE CONFORMITÉ EC

Fabricant : Changzhou Globe Co., Ltd.

Adresse : No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

2014/30/EU (Directive EMC), et

2000/14/CE (Dir ective Émissions Sonores) y-compris modifications (2005/88/CE)

Endereço: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adres: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

2014/30/EC (Директива EMC), e

Osoite: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

Adress: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresse: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

2014/30/EU (EMC-Direktivet), og

2000/14/EC(Støydirektiv) inkl. endringer (2005/88/EC)

Adresse: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adres: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

2014/30/EC (Smernica EMC) a

Naslov: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Ime i prezime, i adresa osobe ovlaštene da sastavi tehničku datoteku:

Ime i prezime: Peter Söderström

MD Machinery Directive 2006/42/EC

2014/30/EC (EMC-Direktiva) i

2000/14/EC (Direktiva o buci) uključujući preinake (2005/88/EC).

Cím: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

Adresa: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

MD Machinery Directive 2006/42/EC

2014/30/EC (Директива за EMC) и

MD Machinery Directive 2006/42/EC

Adres: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China :

MD Machinery Directive 2006/42/EC

EC&2005/88/EC/2000/14 7:30' V 7:30'

(Ted Qu Haichao (BEng, CEng, MIET: בַרָהִיָה) Changzhou, 22/07/2016 : בַרָהִיָה, אַבְרָהִיָה

Ted Qu

LT EC ATITIKTIES DEKLARACIJA

Gamintojas: Changzhou Globe Co., Ltd.

Adresas: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

2014/30/EK (EMC-direktyva), ir

2000/14/EK (Triukšmo direktyva) jskaitant pakeitimus (2005/88/EK).

Adrese: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC

Aadress: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China

MD Machinery Directive 2006/42/EC
