ERGN300 - Electric mower PANASONIC - Free user manual and instructions

Product Type	Electric hair trimmer for nose, ears, eyebrows, mustache and beard
Brand	Panasonic
Model	ERGN300
Power Supply	2 AAA LR03 alkaline batteries (not included)
Battery Life	Approximately 6 months (1 use/week, 90 seconds)
Main Functions	Trims nose, ear, eyebrow, mustache, beard hair
Blade Material	Stainless steel (inner metal blade)
Included Accessories	Cleaning brush
Cleaning	Washable with water (mild soap) or dry brushing
Maintenance	Blade replacement and regular cleaning
Spare Parts	Replaceable outer and inner blades
Safety	Protective cap, do not insert too deeply, use under supervision for children
Recommended Use	Dry use on clean skin, washable after use
Minimum Age	8 years with supervision
Noise Level	58 dB (A) re 1 pW
Household Use	Yes
General Information	Washable product (waterproof symbol), do not use hot water or detergents other than soap

Frequently Asked Questions - ERGN300 PANASONIC

How to install the batteries in the ERGN300 trimmer?

Pull the battery cover to remove it. Insert two AAA LR03 alkaline batteries observing polarity, then close the cover. Make sure the device is off before installation.

What is the battery life?

With two AAA Panasonic LR03 alkaline batteries, the battery life is approximately 6 months with weekly use of about 90 seconds in dry mode at room temperature (20°C).

How to clean the trimmer?

You can clean the trimmer in two ways: 1) Dry cleaning: remove the blades and brush with the provided brush. 2) Water cleaning: open the water inlet, foam with mild soap, rinse with clean water and dry. Do not use hot water or harsh detergents.

Can I use the trimmer underwater or in the shower?

The device is washable with water but not designed for underwater use. It can be cleaned under a faucet but should not be submerged. Use it dry only.

How to replace the blade?

Make sure the device is off. First remove the wash switch ring if necessary. Turn the outer blade to remove it, then pull out the inner blade. Insert the new inner blade, then attach the outer blade by aligning the marks.

Is the device suitable for children?

The device can be used by children aged 8 years and older under supervision. Children must not play with it and cleaning must not be done by children without supervision.

What to do if the trimmer stops working?

First check the correct battery installation (polarity and condition). If the problem persists, clean the inner blade and the trimmer housing. If nothing changes, replace the batteries or the blade. Contact an authorized service center if necessary.

Can the cutting length be adjusted?

This device does not allow adjusting the cutting length. It is designed to cut very short hair (less than 0.5 mm) and is not suitable for long or uniform cutting.

Can I use batteries other than LR03?

It is recommended to use alkaline AAA LR03 batteries (type R03). Using different batteries may reduce performance or damage the device. Do not recharge non-rechargeable batteries.

Where to find replacement blades?

Replacement blades (inner and outer) are available from authorized Panasonic service centers or authorized dealers. Refer to the manual for exact references or contact customer service.

USER MANUAL ERGN300 PANASONIC

Operating Instructions (Household) Nose & Facial Hair Trimmer Model No. ER-GN300

English. 3
Deutsch 19
Francais. 35
Italiano 51
Nederlands 67
Espanol. 83
Dansk 99
Portugues. 115
Norsk 131
Svenska 147
Suomi 163
Polski 179
Česky 195
Slovensky 211
Magyar 227
Româna 245
Türkce 261

Panasonic

Operating Instructions (Household) Nose & Facial Hair Trimmer Model No. ER-GN300

Contents

Safety precautions 5

Parts identification 8

Installing or replacing the alkaline batteries..... 9

Before use 9

Using 10

Cleaning 11

Opening and closing the water inlet. 13

Installing or removing the blade 13

Installing or removing the trimmings box.....15

Troubleshooting 16

Specifications 17

Thank you for purchasing this Panasonic product. Before operating this unit, please read these instructions completely and save them for future use.

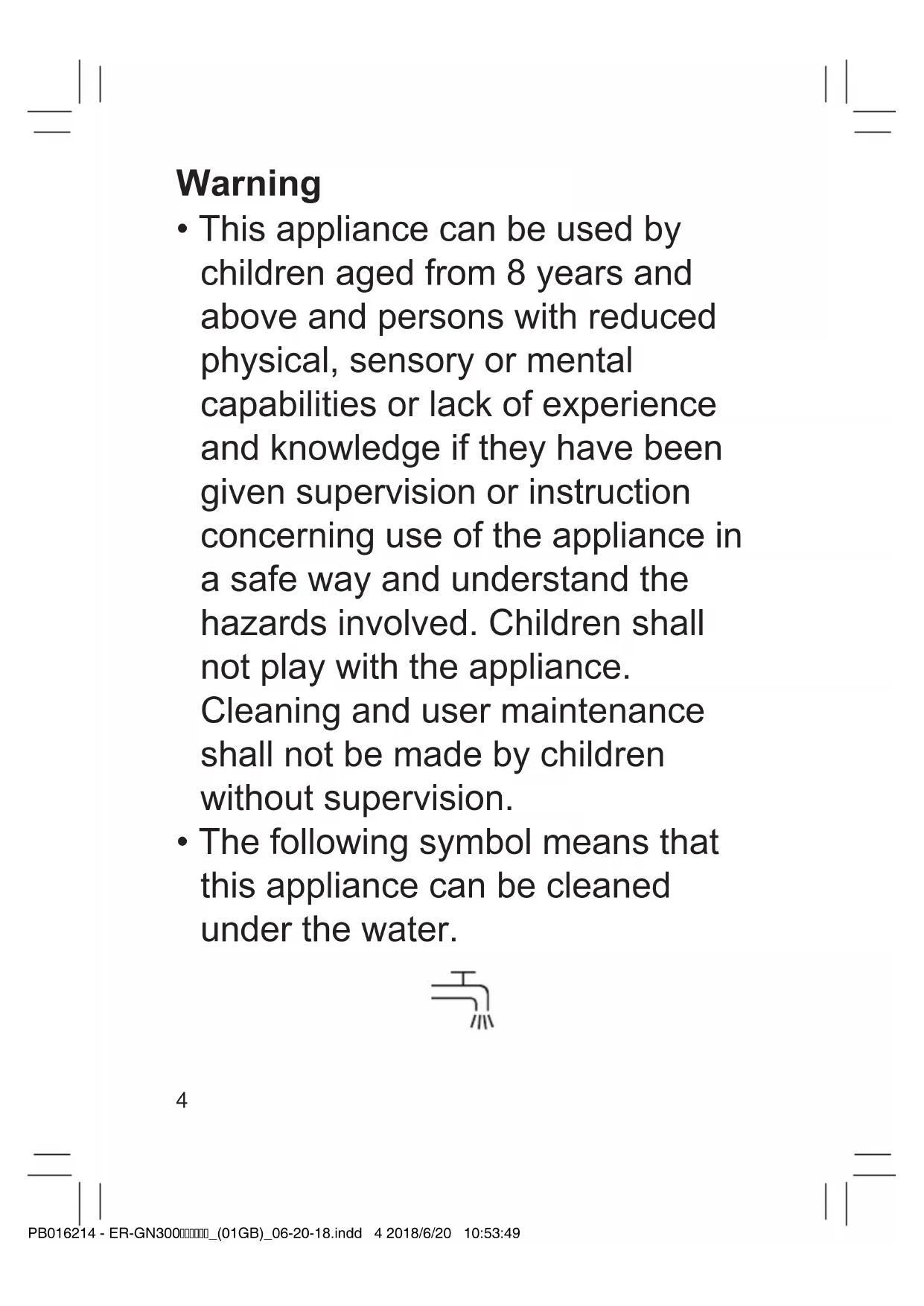

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The following symbol means that this appliance can be cleaned under the water.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

This product

Do not store within reach of children or infants. Do not let them use it.

• Putting parts or accessories in the mouth may cause an accident or injury.
• Store with the protection cap attached after use.

Immediately stop using if there is an abnormality or malfunction.
- Using it in such conditions may cause fire, or injury.

CAUTION

To protect your skin

Do not press the blade with excessive force or insert too deeply into your nostril/ear canal.
Do not press the blade with excessive force against your skin.

• Doing so may result in injury to your skin.

Do not touch the blade of the inner blade (metallic part) with your finger.
- Doing so may result in injury to your finger.

Check the blade for deformation or damage before use. Use the trimmer to cut nose hair and ear hair and outline eyebrows, moustache, or beard.

• Failure to do so may result in injury to your skin.

CAUTION

This product

Do not share with your family or others.

• Doing so may result in infection or inflammation.

Do not drop or subject to shock.

• Doing so may cause injury.

Never modify, disassemble, or repair.

• Doing so may cause an accident or injury.

Contact an authorized service centre for repair.

The batteries

Do not throw into fire, short circuit or disassembly.

• Doing so may cause a burn or injury.

Always follow the precautions printed on the alkaline batteries.

Check the polarity of the alkaline batteries (and) and install them correctly.

Do not mix new and old alkaline batteries or different types of alkaline batteries.

Remove the alkaline batteries immediately and dispose of them safely when they are discharged.

Remove the alkaline batteries when not using the appliance for an extended period of time.

Please use the alkaline batteries by the recommended use-by date.

Non-rechargeable batteries are not to be recharged.

• Failure to do so may cause injury or surrounding contamination due to heat generation, bursting, or leakage of the alkaline batteries.

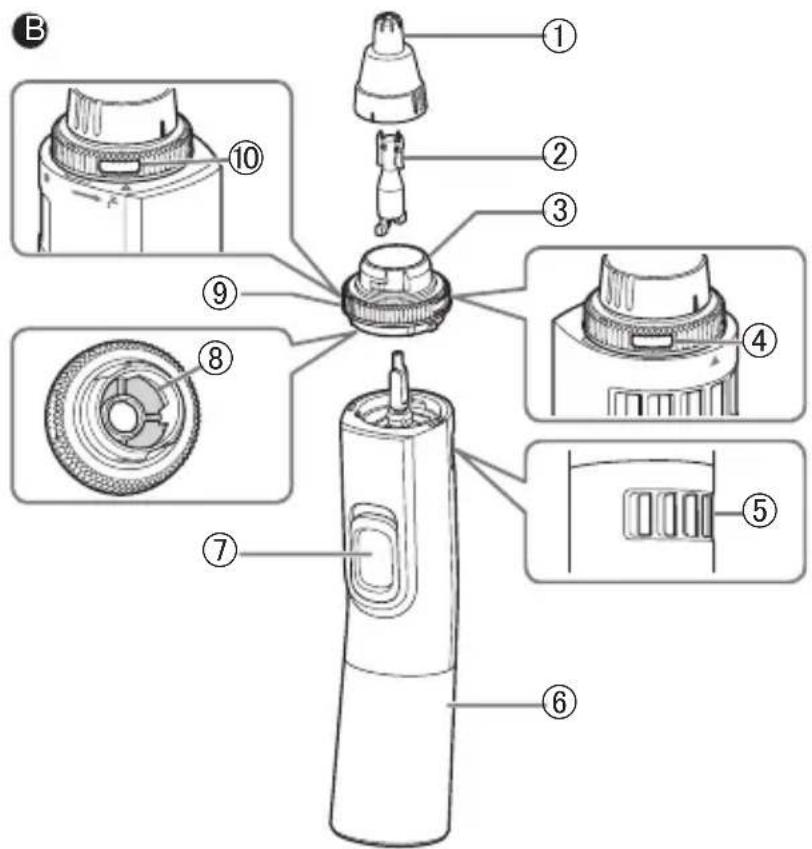

Parts identification

A

A Protective cap

⑧ Filter
⑨ Wash switch ring
Water inlet

Main body

① Outerblade
② Inner blade
③ Trimmings box
④ Water outlet
⑤ Exhaust hole
⑥ Battery cover
⑦ Power switch [O/I]

Accessory

Cleaning brush (Brush)

Alkaline batteries are not enclosed.

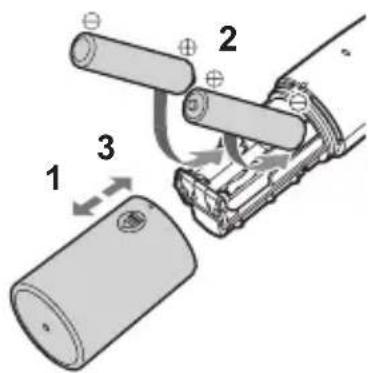

Installing or replacing the alkaline batteries

• Make sure that the power is off.

• Pull the battery cover straight to remove it.

• Check the polarity of the alkaline batteries ( and and install them.
• Insert the battery cover straight.

You can use the appliance for approximately 6 months with two Panasonic LR03 (AAA Alkaline Batteries). (When using dry in an environment at a 20^ room temperature, once a week, and 90 seconds at a time.)

Notes

• When insert the alkaline batteries, wipe off the main body carefully to prevent water droplets from getting inside.
• Confirm nothing adheres to the terminals (⊕ and ⊙ of the alkaline batteries.
• Be sure to use LR03 (AAA Alkaline Batteries). If any batteries other than the specified ones are used, the power and the number of times of use will be different.
• Panasonic alkaline batteries are recommended.
• When replacing alkaline batteries, replace both of them with new ones.

Before use

Be sure to close the water inlet of the wash switch ring during use. Otherwise, the main body cannot provide sufficient suction power.

Check that the marks of "1", "O" and "▲" align (as shown in right figure).

Using

1. Remove the protective cap and hold the main body so as not to block the exhaust hole (4).
2. Slide the power switch on the main body to the "O" position to turn on the power. The outer blade surface may get a little warm during use, but performance will not be affected.

3.Trim

Trimming your nose hair and ear hair

1. Insert the tip (b) of the outer blade into your nostril or ear canal.
2. Insert it slowly so as not to injure your nostril or ear canal.
3. Cut the nose hair and ear hair by moving the main body.
4. Cut hairs using the tip (b) of the outer blade (metallic part).
5. Some trimmings may remain inside your nostril or ear canal after cutting, so remove them using a tissue or similar.

Outlining your eyebrows, moustache, or beard

1. Apply the tip of the outer blade to the hair (eyebrow, moustache or beard) you would like to cut.

2. Cut the hair by moving the appliance slowly against the direction of hair growth.

3. You cannot trim the hair to length with this appliance.

4. It is not suitable for the hair below 0.5 mm .

1. After use, slide the power switch on the main body to the "I" position to turn off the power and clean it. (See page 11).

10

Cleaning

Wet cleaning

1. Wet the outer blade with water, and apply some hand soap and some water to the outer foil.
2. Slide the power switch to the "O" position, and let it foam for approximately 10 seconds.
3. Turn off the power.

To clean lightly dirty parts To clean heavily dirty parts

• Quick cleaning

• Open the water inlet (see page 13) and turn on the power again.

• If the trimmings box is removed, open the water inlet after attaching the trimmings box (see page 15).

1. Pour water through the water inlet at the “ ” above the “ ” mark, rinse well and slide the power switch to the “I” position.

• Complete cleaning
• Slide the power switch to the "I" position.

• Remove the blades and the trimmings box (see pages 13 and 15) and rinse under running water.

• Cover the drainage outlet of washbasin to prevent the inner blade from flowing away.

1. Wipe off water with a towel or similar item, and let it dry naturally.

2. It will dry faster with the blades and the trimmings box removed (see pages 13 and 15).

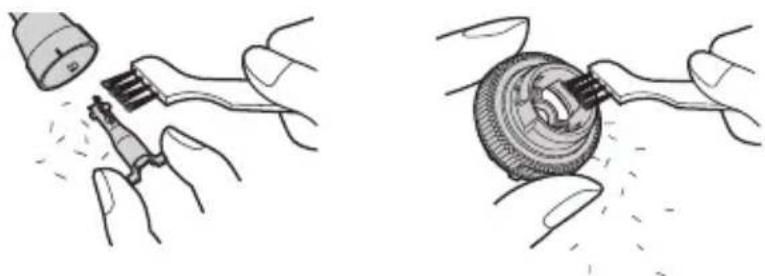

Cleaning with the brush

Remove the blades and the trimmings box (see pages 13 and 15) and lightly brush off the trimmings with the brush.

• Be careful not deform the inner blade
• Be careful not to damage the filter.

Notes

• The battery cover should not be removed from the main body as this can affect the watertight construction of the appliance.
• Do not use hot water or any detergents other than hand soap. Doing so may result in malfunction.
• In order to prevent malfunction, be careful not to hit the appliance against a washbasin.
• Do not use thinner, benzine, alcohol or other chemicals to clean the appliance. Doing so may result in malfunction, cracking or discoloring of the parts. Please use a cloth soaked with soapy water to wipe the dirt.
  After cleaning, be sure to attach the blades, the trimmings box and the protective cap. (See pages 14~15)

Opening and closing the water inlet

1 How to open

Rotate the wash switch ring until its "O" mark aligns with "i" mark of the main body to open the water inlet.

2 How to close

Rotate the wash switch ring until its "O" mark aligns with "A" mark of the main body.

Installing or removing the blade

• Make sure that the power is off.

How to remove the blade

1. Rotate the outer blade and remove it.

2. Rotate the outer blade until its " " mark aligns with the " " mark of the main body.

1. Pull to remove the inner blade.

How to attach the blade

1. Insert the inner blade straight along the inner surface of the outer blade.

1. Insert the main body's shaft (c) into the hole of the inner blade.

2. Align the "1" mark of the outer blade with the "1" mark of the trimmer.

1. Rotate to attach the outer blade.

2. Rotate the outer blade to align its "1" mark with the "▲" mark of the main body.

Installing or removing the trimmings box

• Make sure that the power is off.

How to remove

Rotate to remove the wash switch ring.

• Rotate the wash switch ring until its "O" mark aligns with "O" mark of the main body.

How to attach

1. Insert the trimmings box.

2. Align the "○" mark of the wash switch ring with the "●" mark of the main body.

3. Be careful not to damage the filter with the shaft (4)

4. Rotate to attach the wash switch ring.

5. Rotate the wash switch ring to align its "O" mark and the "▲" mark of the main body.

Troubleshooting

Problem Action

The cutting performance has reduced.

Replace the blade.

(See pages 13~14)

There is an odd odour.

Replace the alkaline batteries.

Blade does not move/ rotate smoothly.

(See page 9)

The suction power is low.

Clean the inner blade.

(See pages 11~12)

The appliance is not turned on.

Clean the trimmings box.

(See pages 11~12).

Close the water inlet.

(See pages 9 and 13).

Place the alkaline batteries correctly.

(See page 9).

Replace the alkaline batteries.

(See page 9).

If the problems still cannot be solved, contact the store where you purchased the appliance or a service centre authorized by Panasonic for repair.

Specifications

Power supply Dry-cell battery
Battery type	Two LR03 (AAA Alkaline Batteries) (Sold separately)
Airborne Acoustical Noise 58	dB (A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Panasonic

Betriebsanleitung

Identification of dele 104

33, Wanbao North Street, Wanbao Industry Zone, Zhongcun, Panyu District, Guangzhou City, Guangdong Province, China

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletisim A.S.

Cobançesme Mah. Bilge Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 0212 454 60 20

www.tesan.com.tr

URUNUN KULLANIM ÖMRÜ 7 YILDIR

© Panasonic Corporation 2018

EN,GE,FR,IT,DU,SP,DA,PT,NW, SW,FI,PL,CZ,SK,HU,RO,TK

Printed in China

ER970GN3001503 S0718-0
