USER MANUAL ERGD51 PANASONIC

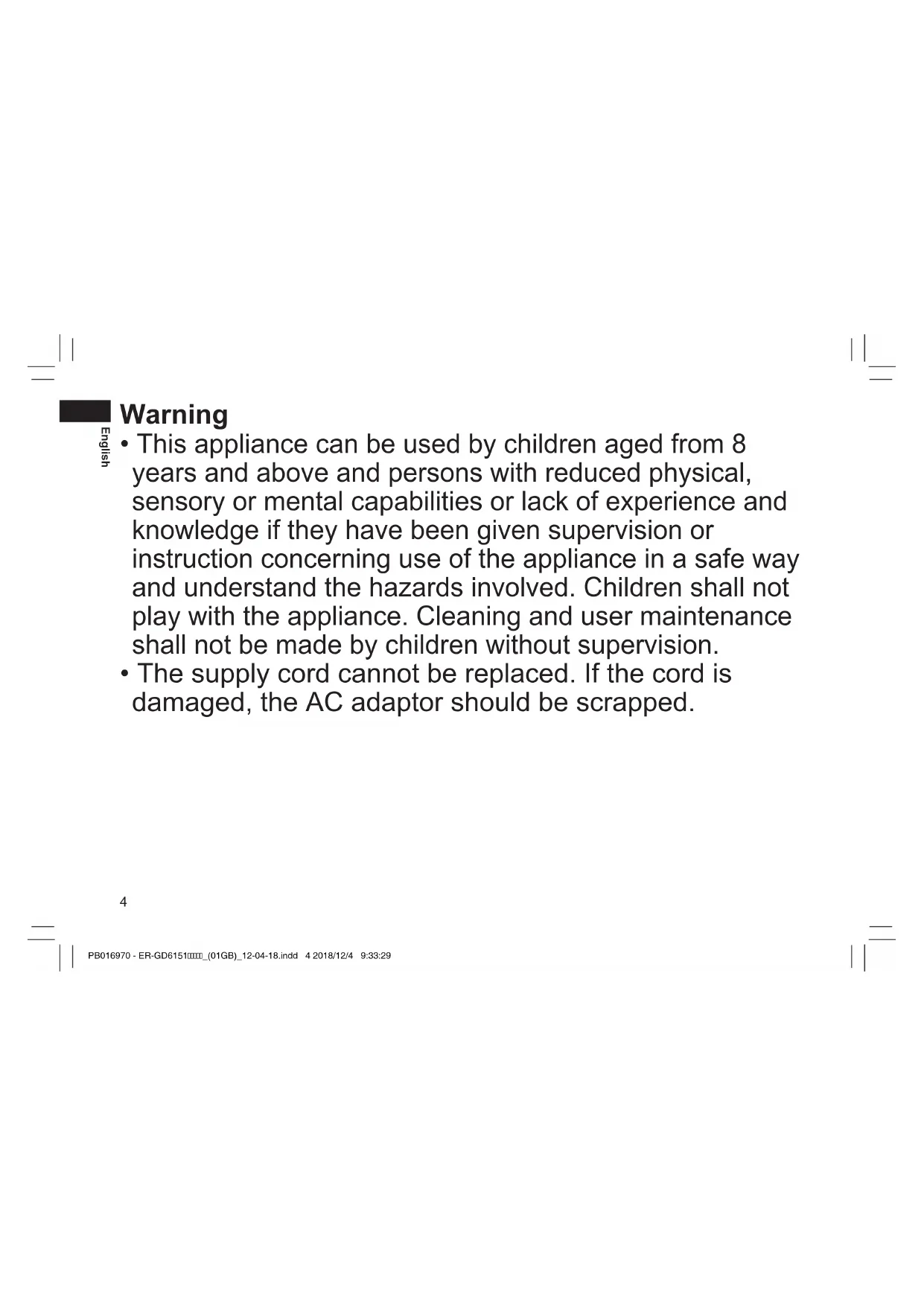

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 4 2018/12/4 9:33:295 English

• The following symbol means suitable for cleaning under an open water tap.

• Do not clean with water when the AC adaptor is attached.

• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 10.)

• Thefollowingsymbolindicatesthataspecicdetachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 5 2018/12/4 9:33:296 English Safety precautions Toreducetheriskofinjury,lossoflife,electricshock,re, and damage to property, always observe the following safety precautions. Explanation of symbols The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. DANGER Denotes a potential hazard that will result in serious injury or death. WARNING Denotes a potential hazard that could result in serious injury or death. CAUTION Denotes a hazard that could result in minor injury or property damage. The following symbols are used to classify and describe the type of instructions to be observed. Thissymbolisusedtoalertuserstoaspecic operating procedure that must not be performed. Thissymbolisusedtoalertuserstoaspecic operating procedure that must be followed in order to operate the unit safely. WARNING ►This product This product has a built-in rechargeable battery. Do not throw into ame or heat. ‑ Doingsomaycauseuidleak,overheating,or explosion. Do not modify or repair. ‑ Doingsomaycausere,electricshock,or injury. Contact an authorized service centre for repair (battery change, etc.). Never disassemble except when disposing of the product.

• The main body or AC adaptor is deformed or abnormally hot.

• The main body or AC adaptor smells of burning.

• There is abnormal sound during use or charging of the main body or AC adaptor. ‑ Immediately request inspection or repair at an authorized service centre. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 6 2018/12/4 9:33:297 English WARNING ►Power supply Do not connect or disconnect the adaptor to a household outlet with a wet hand. ‑ Doing so may cause electric shock or injury. Do not immerse the AC adaptor in water or wash with water. Do not place the AC adaptor over or near water lled sink or bathtub. Never use the appliance if the AC adaptor is damaged or if the power plug ts loosely in a household outlet. Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord. ‑ Doingsomaycauseelectricshockorredueto a short circuit. Do not use in a way exceeding the rating of the household outlet or the wiring. ‑ Exceeding the rating by connecting too many plugstoonehouseholdoutletmaycausere due to overheating. Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor. ‑ Failuretodosomaycausereorelectricshock. Always unplug the adaptor from a household outlet when cleaning. ‑ Failure to do so may cause electric shock or injury. Regularly clean the power plug and the appliance plug to prevent dust from accumulating. ‑ Failuretodosomaycausereduetoinsulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth. ►Preventing accidents Do not store within the reach of children or infants. Do not let them use it. ‑ Putting parts or accessories in the mouth may cause an accident or injury. If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician. If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician. ‑ Failure to do so may result in physical problems. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 7 2018/12/4 9:33:308 English CAUTION ►Protecting the skin Do not press the blade strongly on your lip or skin. Do not use this product for any purpose other than trimming beard. ‑ Doing so may cause skin injury. Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes). ‑ Doing so may cause injury to ears or uneven skin. Do not forcefully press the blade. Also, do not touch blade with nails. Do not bring the blade into contact with hard objects. ‑ Doing so may cause the blade to become damaged and injure the skin as the blade is very thin. Be careful when using it. Check that the blades are not damaged or deformed before use. ‑ Failure to do so may cause skin injury. ►Note the following precautions Do not allow metal objects or trash to adhere to the power plug or the appliance plug. ‑ Doingsomaycauseelectricshockorredueto a short circuit. Do not share your appliance with your family or other people. ‑ Doingsomayresultininfectionorinammation. Do not drop or hit against other objects. ‑ Doing so may cause injury. Do not wrap the cord around the adaptor and main body when storing. ‑ Doing so may cause the wire in the cord to breakwiththeload,andmaycauseredueto short circuit. Disconnect the adaptor from the household outlet when not using. ‑ Failuretodosomaycauseelectricshockorre due to electrical leakage resulting from insulation deterioration. Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

Failure to do so may cause electric shock or injury. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 8 2018/12/4 9:33:309 English Handling of the removed battery when disposing DANGER The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products. Do not charge the battery after it has been removed from the product. Do not throw into re or apply heat. Do not solder, disassemble, or modify the battery. Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects. Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins. Never peel off the tube. ‑ Doingsomaycauseuidleak,overheating,or explosion. The battery contains alkaline uid. If it comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water. ‑ Failure to do so may cause loss of vision.

Consult a physician immediately. WARNING After removing the rechargeable battery, do not keep it within reach of children and infants. ‑ The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately. The battery contains alkaline uid. If it comes in contact with the skin or clothes, rinse off with clean water, such as tap water. ‑ Failure to do so may cause skin injury. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 9 2018/12/4 9:33:3010 English Important information

• Before using an attachment, check that it has been installed correctly. Failure to do so may cause beard to be cut too short.

• The appliance should not be used on animals.

• Apply the oil to the blade before and after each use. (See page 16.) Failure to apply the oil may cause the following problems. ‑ The blade has become blunt. ‑ Shorter operating time. ‑ Louder sound.

• Store the main body in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.

• Be sure to place the protective cap on the main body to protect blade when carrying around or storing. Parts identication

3 Appliance socket 4 Blade Trimming height comb attachment 5 Dial 6 Trimming height indication mark Detail trimming attachment ER-GD61 Protective cap AC adaptor (RE9‑86)

• The shape of the AC adaptor differs depending on the area.

• One of the power supply units specied is provided with this appliance. 7 Adaptor 8 Power plug 9 Cord 0 Appliance plug Accessories Cleaning brush Oil Pouch ER-GD61 PB016970 - ER-GD6151_(01GB)_12-04-18.indd 10 2018/12/4 9:33:3111 English Preparation Charging

• Make sure that the main body is turned off.

Connect the appliance plug to the appliance socket.

Plug in the adaptor into a household outlet.

• Check that the charge status lamp ( ) glows.

• Charging is completed after approx. 1 hour.

Disconnect the adaptor when the charge status lamp stops glowing. (for safety and to reduce energy usage) <How to check if the charging is completed> Remove and reinsert the appliance plug. If the charge status lamp glows and turns off after approximately 5 seconds, it is completed. Notes

• If there is noise from the radio or other sources while using or charging the appliance, move to a different location to use the appliance.

• When the appliance is not used for 6 months or more, thebatterywillweaken(leakbatteryuid,etc.).Fully charge the battery once every 6 months.

• Whentheapplianceischargedforthersttimeorit has not been in use for more than 6 months, the charging time may change or the charge status lamp maynotglowintherstfewminutes.Inaddition,the operating time may become shorter. Please charge it for more than 8 hours in such cases.

Recommended ambient temperature for charging is 0 °C – 35 °C. The charging time may change or battery performance may decrease outside of the recommended temperature.

• A full charge supplies enough power for approximately 50 minutes of use. (Based on using at 20 °C –

The operating time may differ depending on the frequency of use and the operating method.

• You can charge the battery before it is completely discharged. However, it is recommended to charge when the battery is completely discharged. The battery life depends strongly on factors such as how it is used and stored. AC operation If you connect the AC adaptor to the appliance in the same way as for charging, and turn on the power, you can use it.

The battery will be discharged, even with the AC operation.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 1 minute or more. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 11 2018/12/4 9:33:3212 English How to use

• Apply the oil to the blade before and after each use. (See page 16.)

• The appliance may not operate in an ambient temperature lower than approximately 0 °C.

• Please clean the appliance after each use. (See pages 14 and 15.) <Note before trimming>

• Make sure that the main body is turned off.

• Check that the blades are not damaged or deformed before use.

• Do not use with shaving foam applied or when the beard is wet. A wet beard may stick to the skin or bunch up, making itdifculttotrim.

• Before trimming, comb your moustache with a comb.

Select the desired attachments, then press the power switch to turn on the power and trim.

• Use the appropriate attachment as needed. It can also be used without the attachment. ●Withouttheattachment(Seepage13.) ●Trimmingheightcombattachment(Seepage13.) ●Detailtrimmingattachment ER-GD61 (See page 14.)

Turn off the switch after use. Removing and mounting the attachments

• Take care not to injure hands, etc., with the blade when removing or mounting the attachment. ►Removing the attachment Hold the main body securely and pull the attachment out upward and remove it from the main body.

) part securely and remove the detail trimming attachment.

ER-GD61 ►Mounting the attachment Mount the attachment to the main body until it clicks.

• If the attachment is not attached correctly, it may shift and end up cutting too much during use. Click ER-GD61

• You can follow the same procedure to remove and mount the protective cap. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 12 2018/12/4 9:33:3313 English Without attachment

• Use without the attachment for design precise lines. Place the blade horizontally against the skin and towards the beard line trim slowly. Trimming height: approx. 0.1 mm (Fixed blade thickness is 0.1 mm) Trimming height comb attachment

• The digit on the attachment indicates the target trimming length.

• Actual beard length will be a little longer than the height you set.

• The desired results may not be achieved if beard is too long. In this case, trim the beard to a length of about 20 mm before using the appliance.

• Beard will be easy to accumulate in the attachment when a lot of beard is cut. When this happens, clean the attachment. (See pages 14 and 15.)

Turn the dial and adjust the trimming height indication mark

) to the desired height.

• Trimming height: approx. 0.5 mm to 10 mm

Apply the at part of the comb against your skin and cut your beard by combing it left and right. Flat part of the comb PB016970 - ER-GD6151_(01GB)_12-04-18.indd 13 2018/12/4 9:33:3414 English Detail trimming attachment ER-GD61

• Use the attachment for trimming narrow areas and for detailed trimming. Place the blade horizontally against the skin and towards the beard line trim slowly. Trim gradually from the ends by bringing the blade in contact with the skin. Maintenance Cleaning

• Clean the main body and the blade after each use. (If not cleaned, the motion will become poor and the sharpness will worsen.)

• Do not use thinner, benzine, alcohol or other chemicals. Doing so may cause failure, cracking or discoloration of the main body. Wipe the main body only with a soft cloth slightly dampened with tap water or soapy tap water.

• Make sure that the main body is turned off.

attachment and turn the main body on. (See page 12.)

2. Run water down the

water inlet at the back of the main body, rinse thoroughly for approximately 20 seconds, and then turn the main body off.

attachment and blade. (See pages 12 and 15.)

2. Clean the main body,

the blade and the attachments with running water.

• Shake up and down several times to remove the water.

• Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 14 2018/12/4 9:33:3515 English

3. Wipe off the water with a towel

and let it dry naturally.

• It will dry faster with the blade removed.

4. Apply the oil to the blade after

drying. (See page 16.)

5. Attach the blade and the

protective cap to the main body.

• Besuretoplacetheprotective cap on the main body to protect blade when storing. ER-GD61 ►With the brush

1. Remove the attachment and blade.

(See page 12 and this page.)

2. Clean the main body using the brush.

• Keeppressingdownthe cleaning lever (

) to raise the moving blade (

) when cleaning between the stationary blade (

) and the moving blade.

4. Apply the oil to the blade. (See page 16.)

5. Attach the blade and the protective cap to the main

• Besuretoplacetheprotectivecaponthemain body to protect blade when storing. Removing and mounting the blade

• Please check if the blade is deformed or damaged before removing and mounting it. ►Removing the blade

1. Hold the main body in front.

2. Push the metal part of the blade

to the left with the thumb’s belly.

• It is no problem when touch the bladebyngers.

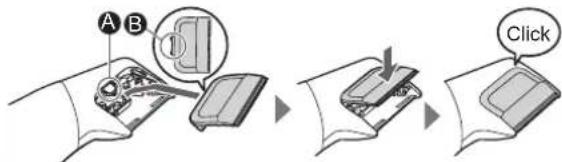

• Be careful not to let the blade fall. ►Mounting the blade Fit the mounting hook (

) into the blade mounting

) on the main body and then push in until you hear a click.

• Apply the oil to the blade before and after each use.

Apply a drop of the oil to each indicated point.

Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds. ►Replacement parts Replacement part is available at your dealer or Service Centre. Replacement parts for ER‑GD61/ER‑GD51 Blade WER9500 Lubrication oil WES003P

• Do not use any blade other than the one dedicated as it may cause defect in performance.

• We recommend Panasonic lubrication oil WES003P. Troubleshooting Perform the following actions. If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair. Problem Action The main body has become blunt. Operating time is short. Main body stopped functioning. Until problems are solved, please follow each procedure as follows:

1. Charge the main body.

2. Clean the blade and apply oil.

4. Have the battery replaced by an

authorized service centre. Charge the battery for approximately 8 hours continuously to rejuvenate it. If few uses remain even after charging, the battery has reached the end of its life. (Fluid may be leaking due to degradation at the end of battery life.) Contact an authorized service centre for repair. PB016970 - ER-GD6151_(01GB)_12-04-18.indd 16 2018/12/4 9:33:3617 English Problem Action The main body cannot be charged. Insert the appliance plug into the mainbodyrmly. Check the charge status lamp glows. (See page 11.) Makes a loud sound. Apply oil. (See page 16.) Conrmthatthebladeisproperly attached. Blade life Blade life varies according to the frequency and period of use of the main body. For example, the blade life is approximately 3 years when using the main body for 5 minutes 10 times a month.Replacethebladesifcuttingefciencyreduces substantially despite proper maintenance. Battery life Battery life will vary according to the frequency and length of use. If the battery is charged once a month, the service life will be approximately 3 years. Iftheoperatingtimeissignicantlyshorterevenaftera full charge, the battery has reached the end of its life. Removing the built-in rechargeable battery Remove the built-in rechargeable battery before disposing of the main body. The battery is to be disposed of safely. Please make sure that the battery is disposed of at an ofciallydesignatedlocationifthereisone. Thisguremustonlybeusedwhendisposingofthe main body, and must not be used to repair it. If you dismantle the main body yourself, it will no longer be waterproof, which may cause it to malfunction.

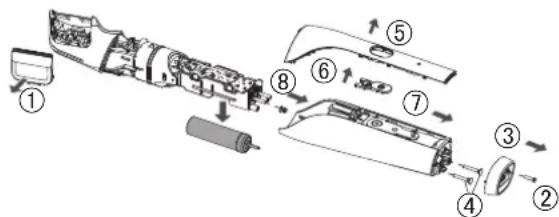

• Remove the main body from the AC adaptor.

• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.

• Perform steps 1 to 8 and lift the battery, and then remove it.

• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

PB016970 - ER-GD6151_(01GB)_12-04-18.indd 17 2018/12/4 9:33:3618 English For environmental protection and recycling of materials This main body contains a Nickel‑Metal Hydride battery. Please make sure that the battery is disposed of at an ofciallyassignedlocation,ifthereisoneinyour country. Specications Power source See the name plate on the AC adaptor. (Automatic voltage conversion) Motor voltage
