USER MANUAL ER1511 PANASONIC

Operating Instructions

AC/Rechargeable Professional Hair Clipper

Model No. ER1511

English 2 Dansk 35 Cesky 65

Deutsch 7 Portuguès 40 Slovensky 70

François 13 Norsk 45 Magyar 75

Italiano 19 Svenska 50 Romänă 81

Before operating this unit, please read these instructions completely and save them for future use.

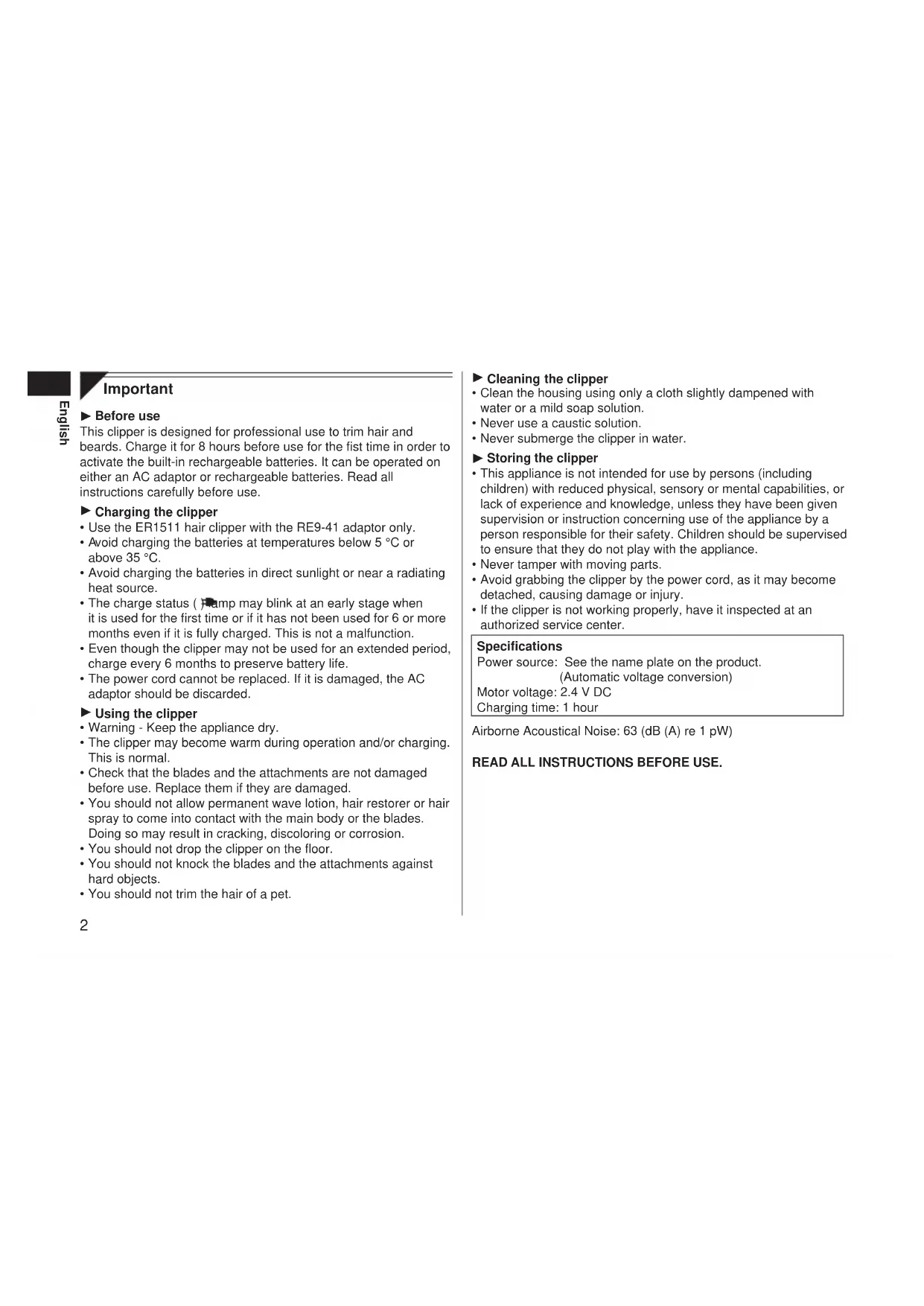

Important

Before use

This clipper is designed for professional use to trim hair and beards. Charge it for 8 hours before use for the fist time in order to activate the built-in rechargeable batteries. It can be operated on either an AC adaptor or rechargeable batteries. Read all instructions carefully before use.

Charging the clipper

• Use the ER1511 hair clipper with the RE9-41 adaptor only.
• Avoid charging the batteries at temperatures below 5^ or above 35^ .
• Avoid charging the batteries in direct sunlight or near a radiating heat source.
  The charge status ( ) clamp may blink at an early stage when it is used for the first time or if it has not been used for 6 or more months even if it is fully charged. This is not a malfunction.
  Even though the clipper may not be used for an extended period, charge every 6 months to preserve battery life.
• The power cord cannot be replaced. If it is damaged, the AC adaptor should be discarded.

Using the clipper

• Warning - Keep the appliance dry.
• The clipper may become warm during operation and/or charging. This is normal.
• Check that the blades and the attachments are not damaged before use. Replace them if they are damaged.
• You should not allow permanent wave lotion, hair restorer or hair spray to come into contact with the main body or the blades. Doing so may result in cracking, discoloring or corrosion.
• You should not drop the clipper on the floor.
• You should not knock the blades and the attachments against hard objects.
• You should not trim the hair of a pet.

Cleaning the clipper

• Clean the housing using only a cloth slightly dampened with water or a mild soap solution.
• Never use a caustic solution.
• Never submerge the clipper in water.

Storing the clipper

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Never tamper with moving parts.
• Avoid grabbing the clipper by the power cord, as it may become detached, causing damage or injury.
• If the clipper is not working properly, have it inspected at an authorized service center.

Specifications

Power source: See the name plate on the product. (Automatic voltage conversion)

Motor voltage: 2.4 V DC

Charging time: 1 hour

Airborne Acoustical Noise: 63 (dB (A) re 1 pW)

READ ALL INSTRUCTIONS BEFORE USE.

Parts identification

A

B

E

0

C

A Main body

① Trimming height indicator
② Dial (Height adjustment control)
③ 0-CHARGE/1 switch
④ Battery capacity lamp
⑤ Charge status ( )
⑥ Appliance socket

Blade

⑦ Mounting hook
⑧ Cleaning lever
⑨ Movingblade
Stationary blade

3 mm comb attachment
4 mm comb attachment
6 mm comb attachment
9 mm comb attachment
6 12 mm comb attachment
15 mm comb attachment
AC adaptor (RE9-41)
① Power cord
(12) Appliance plug
1 Cleaning brush
Oil
Charging stand
③ Charging plug
④ Socket
Comb attachment shelves (× 2)
N Connectors (× 2)

Charg

Charging the hair clipper

1 Connect the power cord to the charging stand.
2 Slide the 0-CHARGE/1 switch to "0-CHARGE".
3 Place the clipper on the charging stand and plug in the adaptor into a household outlet.

• Charge status (mp) glows and charging starts.
• Charging is completed when Charge status (mp) blinks. (Max. 1 hour later)
• 1 full charge will provide approximately 70 minutes of continuous operation.

Connecting the comb attachment shelf to the charging stand

Determine the connection position for the charging stand and comb attachment shelf. Firmly insert the connector into the slot at the bottom of the charging stand.

If the unit wobbles, then further push in the connector since it has not been firmly inserted.

About the LED display

While charging

"HIGH", "MID" or "LOW" blinks.

After charging is completed

blinks once every second.

10 minutes after charging is completed

blinks once every 2 seconds

"HIGH/MID/LOW" go out.

While using

"HIGH" blinks - The battery capacity is enough.

"MID" blinks - The battery capacity is approx. 60% or less.

"LOW" blinks - The battery capacity is approx. 10% or less.

Charge the clipper when "LOW" starts to blink.

Charging without the charging stand

1. Slide the 0-CHARGE/1 switch to "0-CHARGE", and insert the appliance plug into the clipper.

2. Plug in the adaptor into a household outlet.

AC operation

If you connect the AC adaptor to the clipper in the same way as for charging, and turn on the power, you can use it even if the battery capacity is low.

If the clipper does not operate, charge the clipper for approximately 1 minute.
- Be careful not to discharge the battery completely with the power left turned on. It results in shortening the battery life.

Cut

Using the hair clipper

Turn the dial clockwise or counterclockwise to adjust the moving blade back and forth to get the desired height. Adjustable in 5 stages from 0.8mm to 2.0mm in 0.3mm steps without attachments.

Using the comb attachments

1 Select the trimming heights indicated on the insides and sides of the attachments.
2 Set the dial to "0.8" and then mount the attachment to the clipper as illustrated.

Removing the attachment from the clipper Remove the attachment as illustrated.

Care

Blade maintenance

Removing and mounting the blade

Removing the blade
1. Hold the clipper with the switch facing upward and push the blade with your thumb while catching the blade in your other hand.
- Be sure to turn off the power before you remove the blade.

Mounting the blade

1. Set the dial to "2.0".

2. Fit the mounting hook into the blade mounting on the clipper and push in until it clicks.

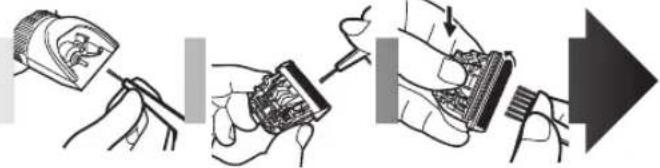

Cleaning the blade

1. Brush off any hairs from the clipper and from around the blade.

2. Remove the blade and brush off the hairs from the blade edge.

3. Brush the hairs out from between the stationary blade and the moving blade while pressing down on the cleaning lever to raise the moving blade.

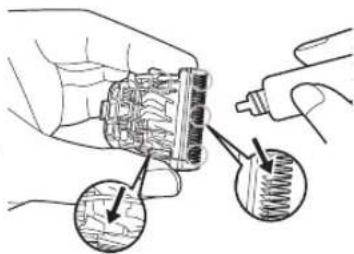

Lubrication

1. Apply a few drops of the oil to the space between the stationary blade and moving blade.

2. Apply the oil to the clipper before and after each use.

3. Set the dial to "2.0" and then remount the blade on the clipper.

Removing the built-in rechargeable batteries

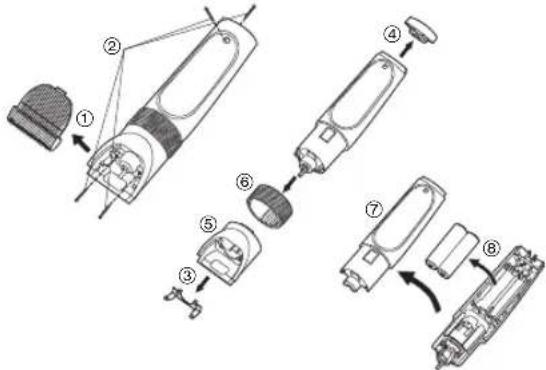

1. Remove the blades ① and four screws ②.
2. Remove the spring ③, the under cover ④, and the blade holder ⑤.
3. Remove the dial ⑥ and open the housing ⑦ ,and then take out

two batteries ⑧.

• Disconnect the clipper from a household outlet.
• Discharge the batteries completely before removing them.
• Be careful not to short-circuit the batteries.

WARNING - Do not attempt to replace the batteries for the purpose of reusing the clipper. This could result in the risk of fire or electric shock.

Important notice regarding environmental protection

The built-in rechargeable Nickel-Metal Hydride batteries contain substances that may be environmentally harmful. Please remove the batteries before discarding your clipper.

For environmental protection and recycling materials

This clipper contains Nickel-Metal Hydride batteries. Please make sure that the batteries are disposed of at an officially assigned location, if there is one in your country.

Please read "Information for Users on Collection and Disposal of Old Equipment and used Batteries" on page 91.
