USER MANUAL 12AYPV7E650 Wolf Garten

Woman using a lawn mower in a garden, surrounded by flowering shrubs (no text or symbols visible)

3

Diagram of a vehicle's wheel assembly and maintenance, showing components like wheels and a valve (no text or labels)

Diagram of a grass lawn mower with labeled components and motion arrows (no text or symbols)

B

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

3

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement

C

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or movement.

C

Mechanical diagram showing a wheel and gear assembly with no visible text or symbols

3

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

C

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

4

Mechanical diagram of a wheel-mounted device with attached bracket and mounting bracket (no text or symbols)

Mechanical diagram showing a rotating mechanical component with directional arrows indicating motion (no text or symbols)

5

A "click"

B

Diagram showing a hand holding a tool with a magnified view of a device and a downward arrow indicating action or measurement.

C

1.

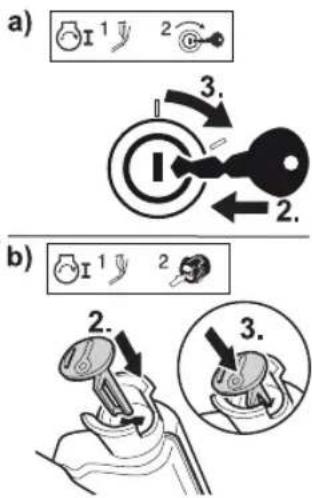

a) I 1 2 3. b) I 1 2 3.

6

Simple line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

B

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

C

Mechanical diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

6
D

Technical line drawing of a mechanical component with no visible text or symbols

E

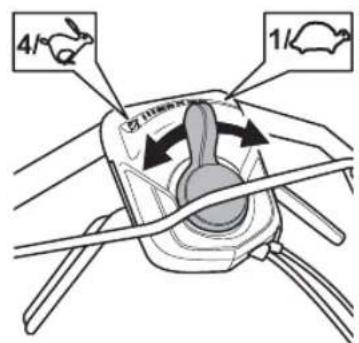

4/3 1/3

F

Diagram of a device with directional arrows indicating rotation or movement (no text or symbols)

G

Diagram illustrating insect behavior with labeled parts and two inset images showing mouse and rabbit positions.

7

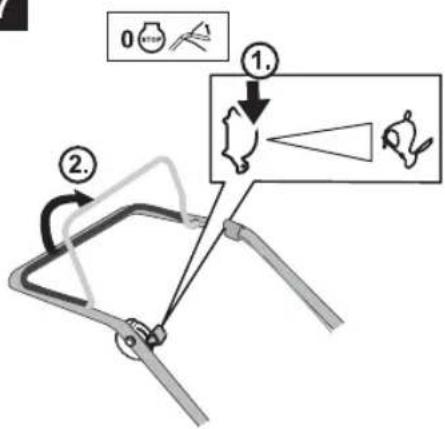

0 ①. ②.

8

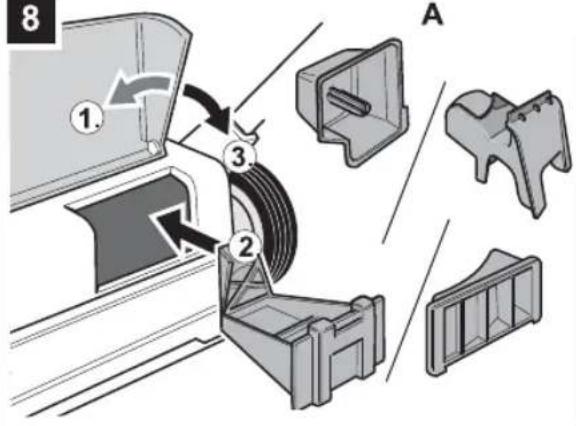

8 ① ② ③ A

A

Mechanical diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

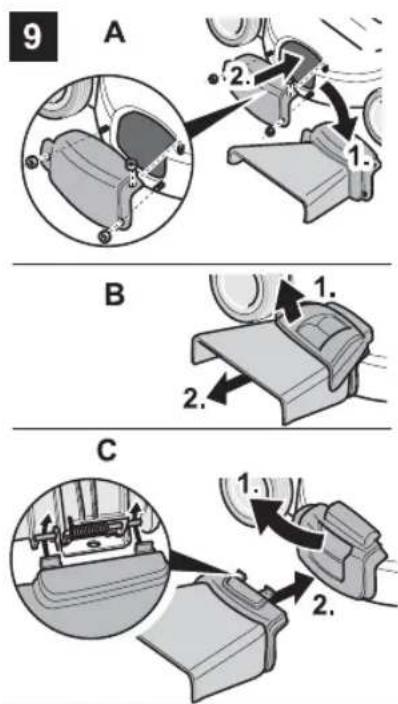

9 A 2. 1. B 1. 2. C 1. 2.

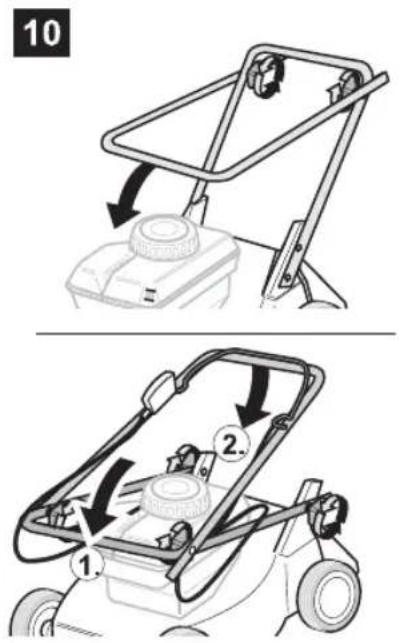

10 1. 2.

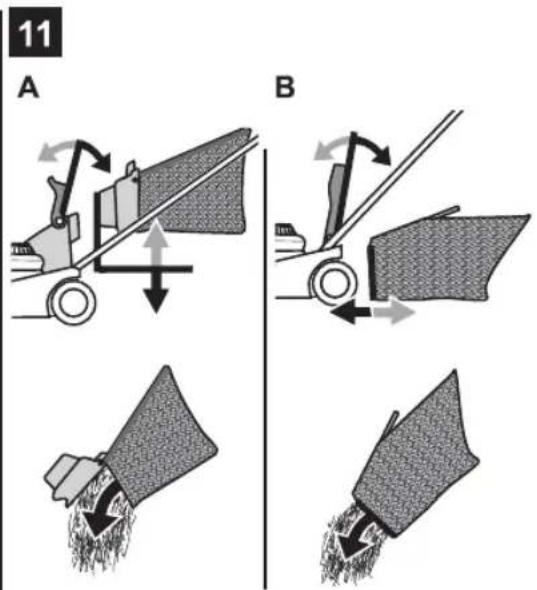

11 A B

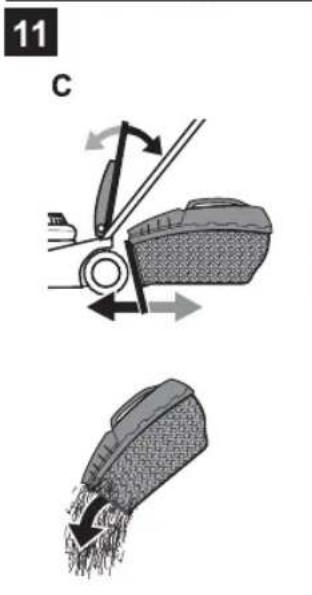

11 C

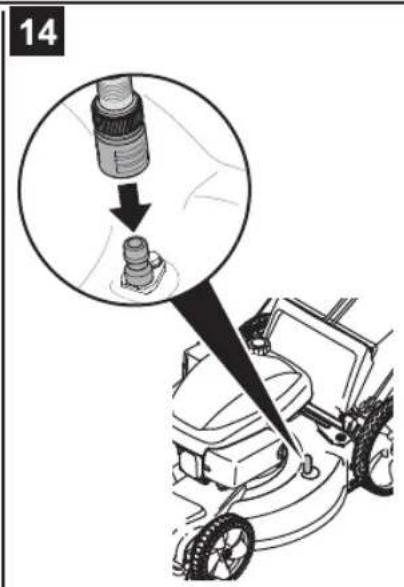

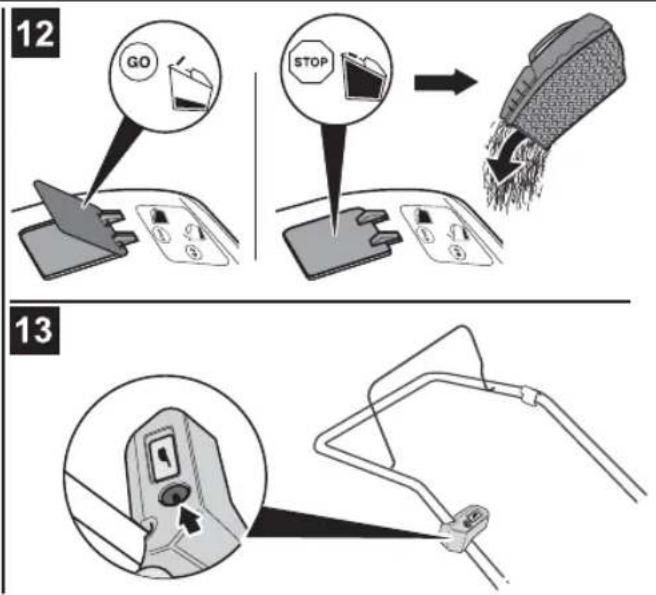

12 GO STOP 13

14

Mechanical assembly diagram showing a tool interacting with a component, labeled 'A' and number '15' (no text or symbols on the diagram itself)

Diagram of a car interior showing a hand holding a car with a magnified inset highlighting the interior structure (no text or symbols present)

Diagram showing a mechanical assembly with a circular component and a hand holding a tool, no visible text or symbols

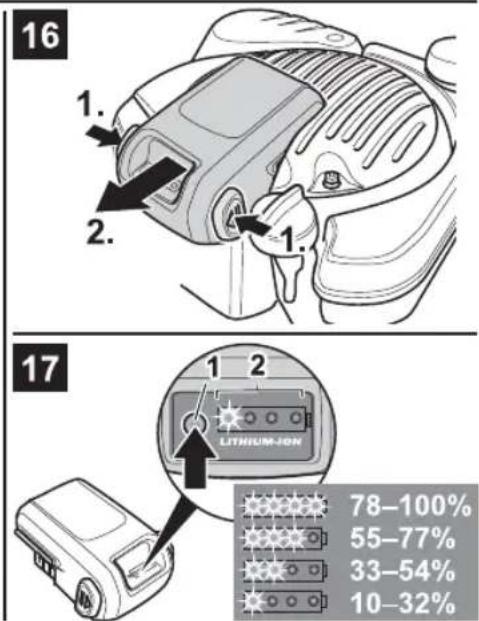

16 1. 2. 1. 17 LITHUM-ION 78-100% 55-77% 33-54% 10-32%

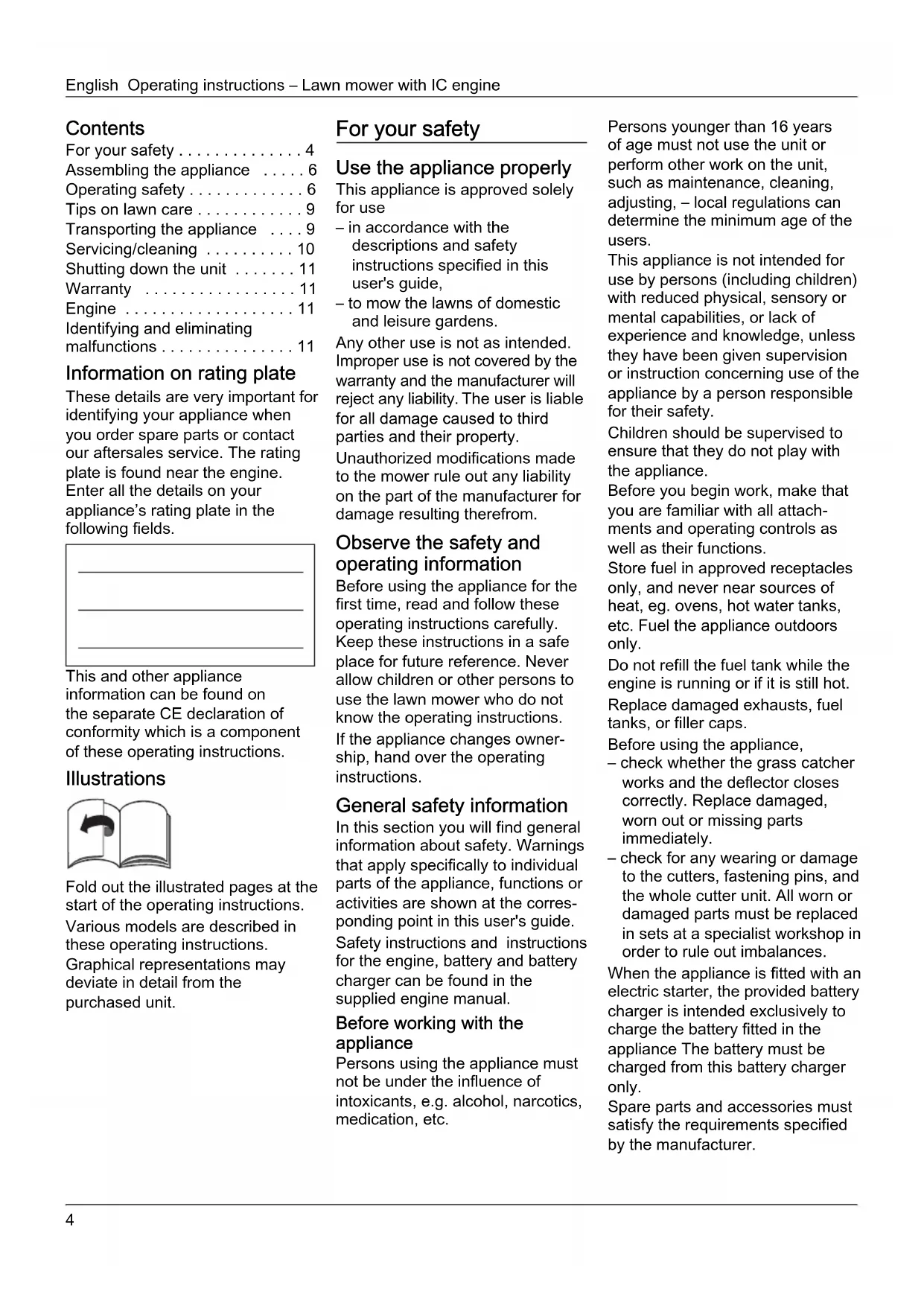

English 4

(Original operating instructions)

Français 13

For your safety .... 4

Assembling the appliance ..... 6

Operating safety 6

Tips on lawn care ..... 9

Transporting the appliance .... 9

Servicing/cleaning 10

Shutting down the unit ..... 11

Warranty 11

Engine 11

Identifying and eliminating malfunctions .... 11

Information on rating plate

These details are very important for identifying your appliance when you order spare parts or contact our aftersales service. The rating plate is found near the engine. Enter all the details on your appliance's rating plate in the following fields.

This and other appliance information can be found on the separate CE declaration of conformity which is a component of these operating instructions.

Illustrations

Fold out the illustrated pages at the start of the operating instructions.

Various models are described in these operating instructions.

Graphical representations may deviate in detail from the purchased unit.

For your safety

Use the appliance properly

This appliance is approved solely for use

– in accordance with the descriptions and safety instructions specified in this user's guide,

– to mow the lawns of domestic and leisure gardens.

Any other use is not as intended. Improper use is not covered by the warranty and the manufacturer will reject any liability. The user is liable for all damage caused to third parties and their property.

Unauthorized modifications made to the mower rule out any liability on the part of the manufacturer for damage resulting therefrom.

Observe the safety and operating information

Before using the appliance for the first time, read and follow these operating instructions carefully.

Keep these instructions in a safe place for future reference. Never allow children or other persons to use the lawn mower who do not know the operating instructions.

If the appliance changes ownership, hand over the operating instructions.

General safety information

In this section you will find general information about safety. Warnings that apply specifically to individual parts of the appliance, functions or activities are shown at the corresponding point in this user's guide.

Safety instructions and instructions for the engine, battery and battery charger can be found in the supplied engine manual.

Before working with the appliance

Persons using the appliance must not be under the influence of intoxicants, e.g. alcohol, narcotics, medication, etc.

Persons younger than 16 years of age must not use the unit or perform other work on the unit, such as maintenance, cleaning, adjusting, – local regulations can determine the minimum age of the users.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Before you begin work, make that you are familiar with all attachments and operating controls as well as their functions.

Store fuel in approved receptacles only, and never near sources of heat, eg. ovens, hot water tanks, etc. Fuel the appliance outdoors only.

Do not refill the fuel tank while the engine is running or if it is still hot.

Replace damaged exhausts, fuel tanks, or filler caps.

Before using the appliance,

– check whether the grass catcher works and the deflector closes correctly. Replace damaged, worn out or missing parts immediately.

– check for any wearing or damage to the cutters, fastening pins, and the whole cutter unit. All worn or damaged parts must be replaced in sets at a specialist workshop in order to rule out imbalances.

When the appliance is fitted with an electric starter, the provided battery charger is intended exclusively to charge the battery fitted in the appliance. The battery must be charged from this battery charger only.

Spare parts and accessories must satisfy the requirements specified by the manufacturer.

Therefore use original spare parts and original accessories only or spare parts and accessories authorised by the manufacturer.

All repair work must be conducted exclusively at a specialised garage.

When working with the appliance

When working with or on the appliance you must wear protective clothing. This includes:

• safety shoes,
• trousers,
  – close-fitting garments,
• hearing protection,
• protective goggles, etc.

All safety devices must be installed on the appliance, and they must be complete and in a fully functional condition.

Do not make any changes to the safety devices.

Operate the vehicle only when it is in good technical condition as stipulated and delivered by the manufacturer.

Never change the engine settings preset at the factory.

Keep away from naked flames, avoid creating sparks and do not smoke.

Before all work on this appliance

If the lawn mower has an engine, always turn off it off before doing any working on it (e.g. repair work and adjustments) and before transporting it (e.g. lifting or carrying) in order to avoid injury

• switch OFF the engine,
• remove the ignition key (if used),
• wait until all moving parts have come to a complete stop and the engine has cooled down,
  – remove the spark plug connector on the engine in order to prevent the engine from accidentally being started,
• remove the starter battery from the engine,
• which takes into account additional safety information in the engine manual.

After working with the appliance Never leave the unit without switching off the engine and – if used – without removing the ignition key.

Safety devices

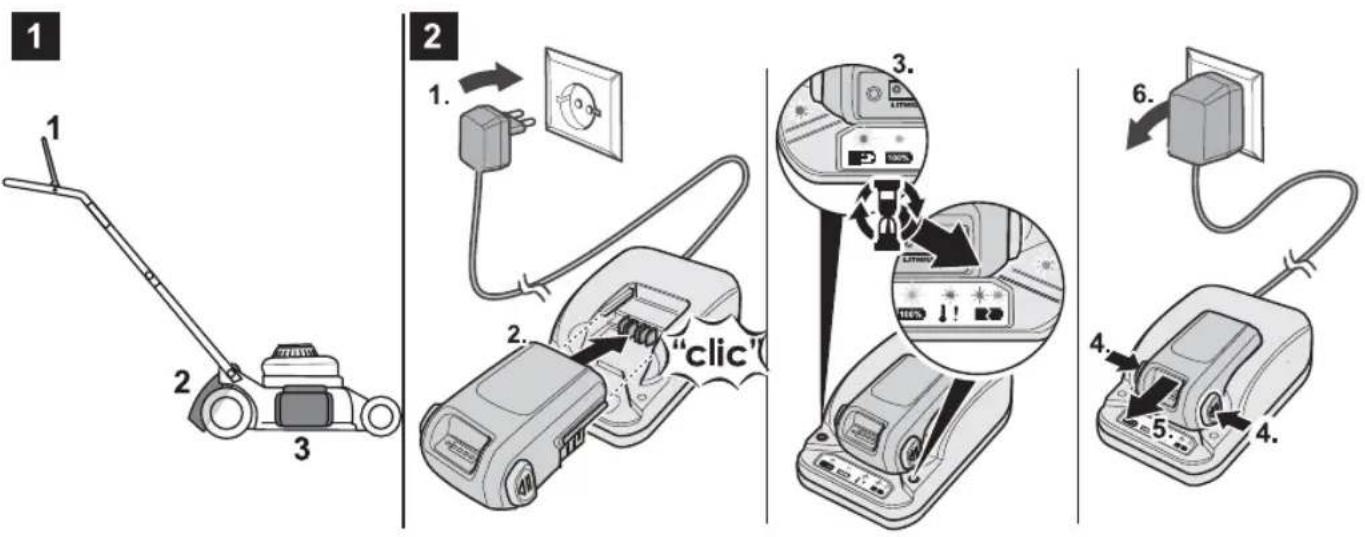

Fig. 1

! Danger

Never use a lawn mower if it has damaged safety devices or if there are no safety devices fitted.

Safety lever (1)

The safety lever stops the motor and cutting blades in an emergency.

There must be no attempt to circumvent this function, which is crucial for your personal safety.

Ejection flap (2) or impact protection (3)

The ejection flap/impact protection protects you from being injured by the blade or by ejected solid objects. The lawn mower must always be operated with the ejection flap or impact protection.

Symbols on the appliance

On the appliance you will find various symbols on adhesive labels. These symbols are explained in the following:

Attention! Before starting up the unit, read the operating instructions!

Keep third parties away from the danger area!

Switch off the engine and remove the ignition key before carrying out any work on the unit and before leaving the unit.

Please follow additional information in the section entitled "For your safety".

Diagram showing four types of electrical or mechanical symbols: battery, switch, circuit breaker, open book with wrench, and warning sign.

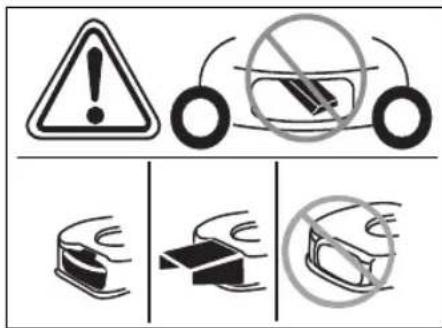

Before working on the cutters, remove the spark-plug terminal! Keep fingers and feet away from the cutting tools! Switch off the lawn-mower and remove the spark plug connector before adjusting, cleaning, or checking it.

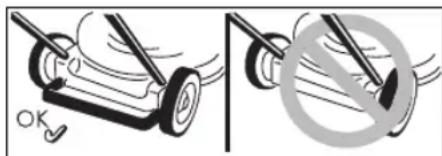

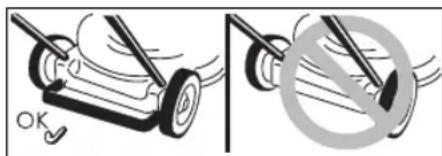

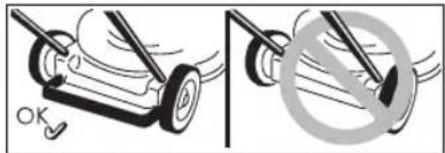

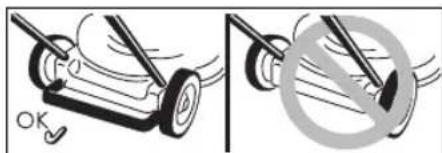

Two diagrams showing a mechanical component with curved arrows indicating motion, one circled (no text or symbols)

Risk of injury – only work with impact protection mounted.

OK

Risk of injury – only work with tail clamp mounted.

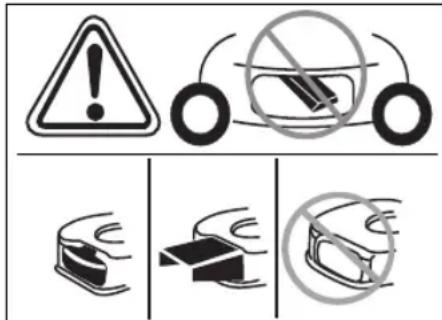

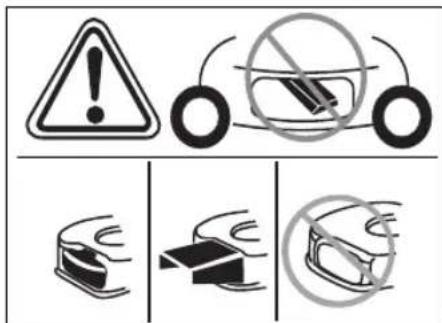

Warning symbols and safety icons for car accidents, including warning signs, no violations, and broken-out masks

Risk of injury – only work with deflector mounted.

Always keep these symbols on the appliance in a legible state.

Symbols in the user's guide

Symbols are employed in the user's guide to indicate hazards or draw attention to important information. They have the following specific meanings:

Danger

Draws your attention to sources of potential danger associated with the task you are undertaking at the time which constitute a danger to persons.

Caution

Used to highlight hazards which are associated with the activity that is being described, whereby damage could occur to the appliance.

Note

This indicates important information and application tips.

Assembling the appliance

Assembly of the unit is illustrated on a separate supplementary sheet.

Disposal instructions

Dispose of packaging remnants, old units, etc., in accordance with local regulations.

Operating safety

Also follow the instructions in the engine handbook.

Danger

Accident

- No person, especially children, and/or animals should be allowed to stand close to the mower while it is in use. Risk of injury due to ejected stones or other objects.

Falling over

• Operate the vehicle at walking speed only.

• Be particularly careful when mowing in reverse and pulling the appliance towards you.

• When mowing on steep slopes, there is a risk of the mower tipping over and you could be injured as a result. Mow crossways to the slope, never upwards and downwards. Do not mow on inclines greater than 20%.

• Be particularly careful when changing the direction and always pay attention to a good position.
• Mowing along perimeters involves a risk of injury. Mowing near edges, hedges, or steep inclines is dangerous. Keep a safe distance from perimeters when mowing.
• If the ground is wet the mower could slip due to reduced traction and overturn. Mow only when the grass is dry.
• Work only by daylight or in good artificial lighting. Injury
• Always maintain a safe distance from the rotating tool by means of the steering handle.
• The working area of the operator is behind the steering handle during operation.
• Never place your hands, feet, or other parts of the body near rotating parts.
• Do not use the unit in adverse weather conditions, e.g. if there is a probability of rain or a storm.
  – Turn off the engine and wait until the blade has stopped:

– before tilting the lawn mower,

– for transporting over surfaces other than grass,

- Switch off the engine to prevent the engine from being started unintentionally: Remove ignition key (if used), remove starter battery from the engine, leave the engine to cool down and remove the spark-plug terminal,

– before you clear the ejector of blockages and other hindrances,
– before you check, clean, or configure the lawn mower or perform any work on it,

– immediately after a foreign object is hit. Check the appliance for damage, and have any damage repaired at a specialised garage,

– immediately after the appliance starts to vibrate with unusual violence and before you check the appliance.

– Never lift or carry the appliance when the engine is running.
- Check the surface on which the appliance is to be used and remove all objects that the appliance can take up and fling out.
- If the cutting tool hits a foreign object (e.g. stone) or if the machine starts vibrating violently: stop the engine immediately. Before continuing to use the unit, have it checked for damage by a service centre.
– In the case of mowers with rotary blades, never stand in front of grass ejection holes.

Lawn mowers with grass catchers:

- If you remove the grass catcher, you or other persons might get injured due to ejected, mowed materials or foreign bodies. Never empty the grass sack while the engine is running. Switch off the appliance.

Danger of asphyxiation due to carbon monoxide poisoning.

Run the internal combustion engine outdoors only.

Explosion and fire hazard

– Petrol vapours are explosive, and petrol is highly flammable.
- Fill the fuel before starting the engine. Keep the fuel tank closed when the engine is running or still hot.
- Fill with fuel only when the engine has been switched OFF and has cooled down. Keep away from naked flames, avoid creating sparks and do not smoke. Fuel the appliance outdoors only.

- Do not start the engine when fuel has spilt. Remove the appliance from the surface soiled with fuel and wait until the fuel vapours have evaporated.

- To avoid fire hazard, please keep the following parts free of grass and escaping oil:

-engine
-exhaust
- batteries/storage batteries
-petrol tank.

Tripping over

- Operate the vehicle at walking speed only.

Caution

Damage to the lawn mower

• Stones, scattered branches, and similar objects can damage the machine and impair its correct operation. Remove all objects from the appliance's path before every use.
• Operate the appliance only when it is in good technical condition Subject the appliance to a thorough visual check before using it. In particular, check the safety devices, controls and threaded connections for damage and secure attachment. Replace damaged parts before operating the unit.
• Never use a battery which is deformed, has been dropped or damaged.
• Do not expose the battery or battery charger to rain or humidity.

i Operating times

Comply with the national/municipal regulations concerning the times when the mower may be used (if required, contact your local authority).

i Directions

Specified positions on the unit (e.g. on the left, on the right) are always seen from the steering handle in the working direction of the unit.

Before starting up the unit for the first time Filling the engine with oil

Caution

The lawn mower is delivered without any lubricating oil due to transportation reasons.

■ Therefore, you must fill the engine with oil before putting into operation for the first time. Please see engine manual.

Charge the battery

(appliances with electric starter) Observe and follow all instructions and information concerning the battery and battery charger in the engine manual.

Risk of chemical burns/poisoning

In extreme cases be alert to the escape of liquids or gases.

Risk of electric shock

Before using the charger, always check for external damage. Never use a battery charger which is damaged or has been dropped.

Caution

• Ensure that the power supply operates at 220–230 V and 50 Hz according to the specifications on the rating plate of the charger.
• Protect the battery and battery charger from humidity, rain, snow and frost.
• Charge battery in well ventilated and dry rooms only.
• Remove the battery before disconnecting the battery charger from the mains.
• Never insert objects into the contacts of the battery.
  – Before working on the battery charger, disconnect it from the mains.
• Do not open the battery or battery charger. Have all work on the battery and battery charger carried out by a service centre.

Fig. 2

■ Before using the unit for the first time, charge the battery for approx. 1 hour. Only use the battery charger included in the delivery.

i Note

Detailed information concerning the charging process and battery status indicator can be found in the engine manual.

i Disposal information for the charger

The charger is subject to the disposal regulations for electrical appliances. Observe the local regulations.

Always make any adjustments before using the unit

Risk of injury

Before all work on this appliance

• Switch off engine.
• remove the ignition key (if used),
• Wait until all moving parts have come to a standstill; the engine must have cooled down,
  – remove the spark plug connector on the engine in order to prevent the engine from accidentally being started,
• Remove the starter battery from the engine.

Hang the grass catcher (only in the case of lawn mowers with grass catchers)

Fig. 11

■ Lift up the deflector flap and hook the grass sack onto the appliance.

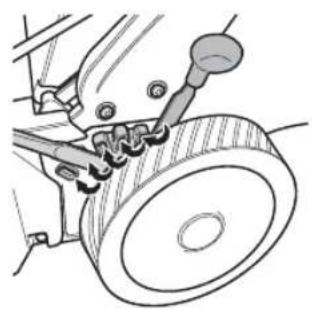

Set the cutting height

Caution

Select cutting height for uneven terrain to prevent the cutter from ever coming into contact with the ground.

Fig. 3

Set the cutting height of the grass as required.

Setting option (depending on model) from approx. 3 cm to maximum 9 cm.

i Note

If units have individual wheel adjustment, set all wheels to the same height.

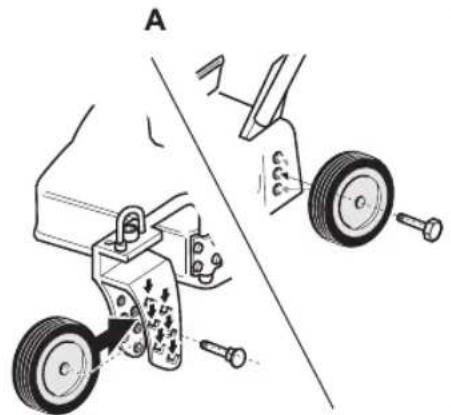

Model A

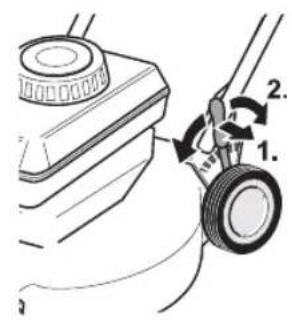

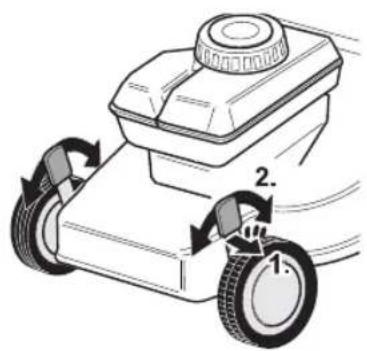

■ Attach the wheels in the position required.

Model B

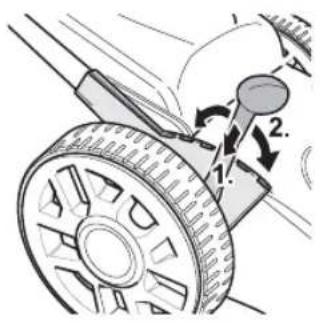

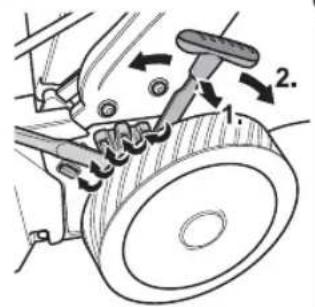

■ Pull the flap and snap into place in the position required.

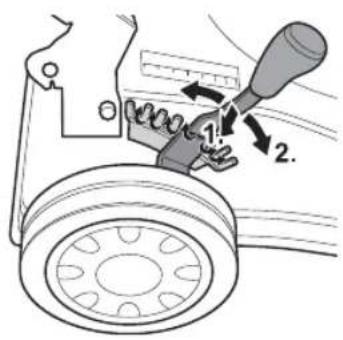

Model C

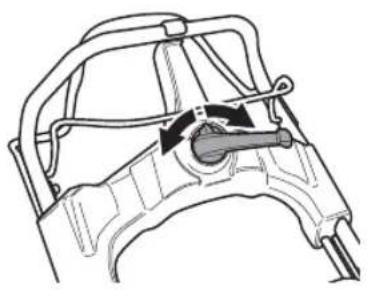

■ Advance or push back the lever of the central vertical adjustment and snap into place in the position required.

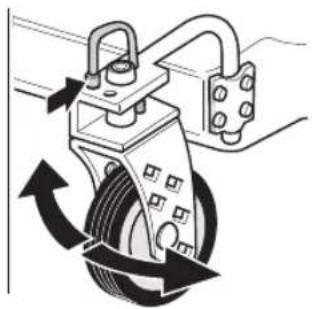

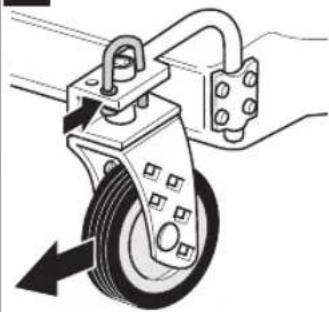

Locking front wheels

(only units with lockable front wheels)

Fig. 4

Lock wheels to drive straight ahead – set the wheels in forward position and put hoop into large hole. Wheels are freely movable – put clamp into large hole.

Filling with petrol and checking oil level

■ Fill up with lead-free petrol (see engine manual).
■ Fill fuel tank up to max. 2 cm below the lower edge of the inlet nozzle.
■ Close fuel tank tightly.
■ Check oil level and, if required, top up (see Engine manual).

Clean the battery compartment on the engine

■ Remove foreign objects and dirt from the battery compartment using a cloth and brush.

Starting the engine

Fig. 5

Danger

To prevent injury:

• do not start the engine when you are standing in front of the ejector;
• keep hands and feet well away from the cutting blade;
  – never place your hands, feet, or other parts of the body near rotating parts; always keep away from the ejector.

Before starting the engine, disengage the clutches for all cutters and drives.

Do not tip the appliance when starting. Keep the appliance on an even surface with little or the shortest possible grass.

i Information about the engine

• Observe the information in the engine manual.
• Some models do not have an throttle. The engine speed is set automatically. The engine always runs at the optimal engine speed.

- Insert starter battery into the battery compartment on the engine until it engages – Fig. 5A.

■ Open the fuel tap (if fitted).

■ Set throttle (if available) to /max – Fig. 5B.

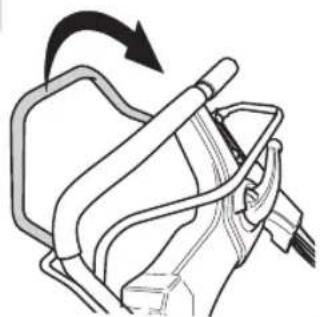

■ Stand behind lawn mower – Press and hold safety hoop – Fig. 5C.

■ Turn ignition key on the steering handle until the engine starts (start attempt max. 5 seconds, wait at least 1 minute before the next attempt) – Fig. 5C.

When the engine is running:

■ When the engine has started, push the throttle (if fitted) between ⚙/max and ⚙/min to warm up the engine briefly.

■ Set the throttle to full throttle (if available).

i Note

If you need more information about operating the engine, please refer to the engine manual.

Stopping the engine

Fig. 7

■ Bring throttle (if available) into position /min.
■ Release the safety hoop.
The engine and the cutting tool stop after a short time.

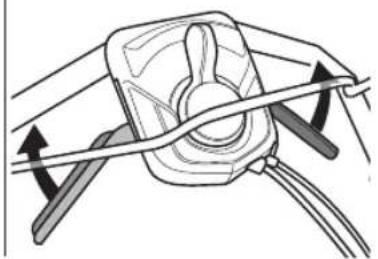

Working with the unit Engaging/disengaging gear drive

(only in the case of lawn mowers with gear drives)

Fig. 6A, B, C

Putting gear drive into gear

■ Pull and hold the lever/hoop.

■ Release lever/hoop.

i Information for units according to Fig. 6C

The unit can be switched on/off with the left or the right lever or even with both levers together.

i Note

When the unit is pulled back, there may be increased resistance on the back wheels on account of the design. This is not a fault with the unit but occurs for technical reasons.

Remedial action (depending on model): Without pulling the drive handle, push unit forwards a little, then backwards.

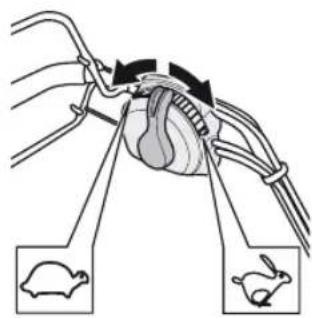

Changing drive speed of the wheel drive

(depending on model)

Caution

Damage to the lawn mower Make adjustments when the engine is running only.

Model 6D, E

■ Select from the different speeds using the small lever (1/min/ and 4/max/)

Fig. 6F, G

■ Select from the different speeds using the lever (1/min/ and 4/max/

i Note

For technical reasons the speed may be difficult to change when the unit is at a standstill.

Remedy: Pull drive bar and select speed setting.

Detaching and emptying the grass sack

(for lawn mowers without grass catchers)

Fig. 11

If cut grass is left lying on the ground or if the level indicator (optional, Fig. 12) indicates that the basket is full:

■ Release safety hoop and wait until the engine stops.
■ Lift the deflector flap and unhook the grass sack.
■ Empty out the contents.

Working without the grass sack Whenever you detach the grass sack, the deflector flap drops down. When working without a grass catcher, the mowed grass is ejected directly downwards.

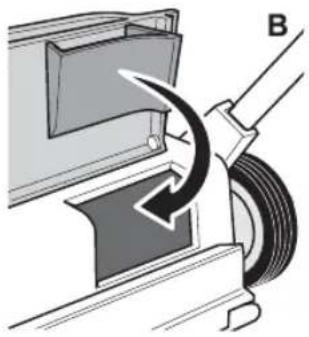

Retrofitting for mulching

(for units with optional mulcher)

Units with rear discharge:

Fig. 8A

■ Lift the ejection flap.
■ Remove the grass catcher.
■ Insert mulch key (depending on model).
■ Lower the ejection flap.

i Note

Models with integrated mulching function do not require a separate mulch key – a specially shaped rear flap assumes this function (Fig. 8B).

Units with side discharge:

Fig. 9

■ Attach impact protection/mulch lock instead of the side discharge (Fig. 9A)
or
■ Remove side discharge – impact protection/mulch lock closes automatically (Fig. 9B).

Changing units over to side discharge

(depending on model)

■ If fitted:
Remove grass catcher and lower the rear discharge flap.
■ Lift impact protection/mulch lock and attach side discharge (Fig. 9C).

After finishing work

■ Remove the ignition key (if used).
■ Wait until all moving parts have come to a complete stop and the engine has cooled down.
■ Turn off the fuel tap (if fitted – see engine manual).
■ Disconnect the spark plug terminal on the engine.
■ Empty the grass sack.
■ Remove starter battery from the engine – Fig. 16.
■ Recharge battery if required. Fig. 17
To check the battery charge, press the button (1) on the battery. The LEDs (2) indicate the approximate battery charge. If an LED is flashing, recharge the battery immediately.

i Note

Leave engine to cool down before placing unit in closed room.

Tips on lawn care

Here are some tips to help you keep your lawn looking healthy and ensure uniform growth.

Mowing

Lawns consist of various grass types. Frequent mowing promotes the growth of grass, resulting in strong roots and a firm sward. If you seldom cut the grass, you will enhance the development of high-growing types of grass and other weeds, such as clover, daisies).

The normal height of a lawn is approx. 4–5 cm. Only ^1/_3 of the total height should be mown; therefore cut 7–8 cm long grass to normal height.

Try not to cut the grass shorter than 4 cm, otherwise the lawn will suffer during dry periods.

If the grass has grown particularly high (for example, during a holiday period), cut it back to its normal height in several stages.

When mowing, always overlap the mown swaths slightly.

Mulching (using the accessories)

The grass is cut into small pieces (approx. 1 cm) and left to lie on the lawn. The lawn therefore retains a lot of nutrients.

For the best possible result the grass must always be kept short, see also section "Mowing".

Observe the following when mulching:

• Do not mow wet grass.
• Never mow more than 2 cm.
• Mow slowly.
• Use the maximum engine speed.
  – Clean the cutters regularly.

Transporting the appliance

Short distances by hand

Danger

Objects may be caught and ejected by the rotating cutter deck and cause injury and/or damage.

First stop the engine before moving it over surfaces other than grass.

Using a vehicle

Danger

Before transportation, always stop the engine and leave to cool down. Remove spark-plug terminal.

The appliance must not be tilted when it is transported.

For transport on or in a vehicle, secure the appliance adequately against slipping.

Empty the fuel tank before transporting the unit. Filler cap must be closed tightly.

Lawn mowers with collapsible bars: Fig. 10

■ The steering handle can be folded down to facilitate storage.

Servicing/cleaning

Danger

To protect against injury before all work on the appliance

• switch OFF the engine,
• Remove the ignition key (if used),
• wait until all moving parts have come to a complete stop and the engine has cooled down,
  – remove the spark plug connector on the engine in order to prevent the engine from accidentally being started,
• Remove the starter battery from the engine.
  – which takes into account additional safety information in the engine manual.

Danger

To protect against injury from the cutters, have a specialist garage perform all work such as replacing or regrinding the cutters (special tools required).

Tightening torque of the blade screw:

• 51–68 Nm (lawn mower with steel housing)
• 36-44 Nm (lawn mower with plastic housing)

Caution

When tilting the unit, always ensure that the spark plug is face up to prevent fuel or oil damaging the engine.

Servicing

Caution

Please observe the maintenance instructions in the engine manual. At the end of the grass-cutting season, have the appliance checked and serviced in a specialist workshop.

Have any repairs carried out by a service centre only.

Caution

Environmental hazard caused by engine oil.

After changing the oil, take the waste oil to a waste oil collecting point or to a waste disposal company.

Batteries/storage batteries pollute the environment.

Used batteries do not belong in domestic waste. Give used batteries to your dealer or other disposal company. Remove batteries before appliances are scrapped.

Note

Observe the inspection and maintenance intervals in the engine manual.

Depending on the model, your unit features an electronic maintenance indicator (Fig. 13). Observe the appropriate maintenance indicators in addition to the written maintenance instructions.

Operation as well as further information can be found in the separate operating instructions which are enclosed with the maintenance indicator.

Before each operation

■ Check oil level; if required top up.
■ Check screw connections are tight, if required tighten.
■ Check safety devices.
■ Remove foreign objects and dirt from the battery compartment on the engine using a cloth and brush.

Check the point of contact of the clutch:

(only in the case of lawn mowers with gear drives)

• The lawn mower should not drive forwards when the engine is running and when the gear drive is not engaged.
• The lawn mower should drive forwards when the engine is running and the gear drive is engaged.

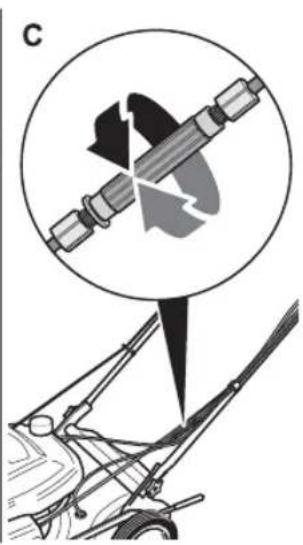

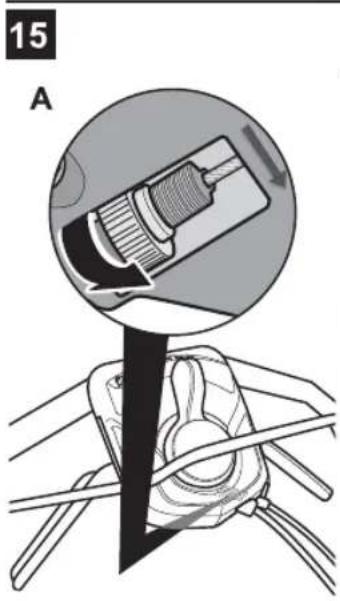

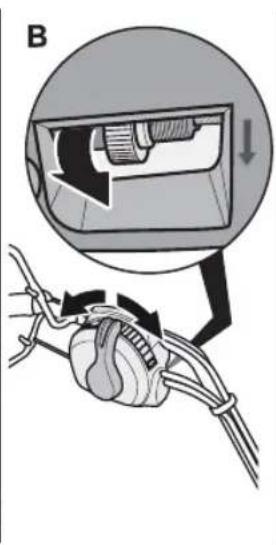

Fig. 15

■ If required, set contact point using thumb wheel/adjusting nut on the wheel drive lever (depending on design on the underside of the control panel) or Bowden cable.

Note

Adjustments are not possible on some models.

After the first 2–5 operating hours

■ Change oil (please see engine manual enclosed).

After mowing or when required

■ recharge battery.

Once a season

■ Change oil (please see engine manual enclosed).
■ Lubricate the pivot points and torsion spring on the ejector cover.
■ At the end of the season the appliance must be checked and serviced at a specialist garage.
■ Have the battery and battery charger tested regularly (at least 1x year) by a service centre.

Cleaning

Caution

Clean the appliance after every use. Failure to clean the appliance can damage the materials and cause malfunctions.

Do not clean the unit with a high-pressure cleaner.

Cleaning the grass sack

(only in the case of lawn mowers with grass catchers)

The easiest time to clean the grass catcher is immediately after mowing.

■ Detach and empty the grass sack.
■ The grass sack can be cleaned by means of a powerful jet of water from a garden hose.
■ Allow the grass sack to dry out thoroughly before using it again.

Cleaning lawn mower

Danger

Work on the cutters can cause injury. Wear safety gloves for your protection.

Caution

When tilting the unit, always ensure that the spark plug is face up to prevent fuel or oil damaging the engine.

Do not splash the unit with water, otherwise electric components may be damaged.

Protect the battery and battery charger from humidity.

Whenever possible, always clean the appliance directly after mowing.

Clean the battery compartment on the engine

■ Remove foreign objects and dirt from the battery compartment on the engine using a cloth and brush.

Units without deck washing system:

■ Clean the cutter chamber and the ejector cover with brush, hand broom, or cloth.
■ Set the appliance down on its wheels, and remove all visible grass residue and other soiling.

Units with deck washing system: Fig. 14

Lawn mowers with a deck washing system feature a water connection. Grass clippings can then be rinsed off the underside of the mower deck and deposits of corrosive chemicals prevented. After mowing, proceed as follows:

■ Place unit on level ground, free of debris, stones, etc.

i Note

Discharge chute must not be directed at houses, garages, etc.

■ Attach a commercially available hose adapter (optionally included in the product package) to a water hose and connect to the water connection on the mower deck.
■ Turn on water.

■ Start engine and leave running for several minutes.
■ Stop engine and remove water hose from the appliance.

At the end of the cleaning process:

■ Start engine and leave running for several minutes to dry the underside of the mower deck.
■ Stopping the engine.

Shutting down the unit

Danger

Risk of explosion and fire.

When there is fuel (petrol) in the tank, never keep the appliance in rooms where fuel vapours can come into contact with naked flames or sparking.

Caution

Damage to mower materials.

• Keep the vehicle only in clean and dry rooms when the engine is cold.
• Protect the lawn mower when storing it for longer periods of time e.g. against rust in winter.
• Store the battery and battery charger in a cool and dry location.
• Protect the battery and battery charger from humidity, rain, snow and frost.

At the end of the season or when the vehicle will not be used for longer than a month:

■ drain off the fuel into a suitable receptacle, and immobilise the engine as described in the engine manual.

Caution

Drain fuel outdoors only.

■ Clean the appliance and the grass sack.
■ To protect metal parts from rust, wipe them all down with an oiled cloth (resin-free oil) or apply an oil spray.
■ Charge the battery.

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.

Engine

The manufacturer of the engine is liable for all engine-related problems with respect to output power, power measurement, specifications, warranties, and service. More detailed information can be found in the owner/operator handbook provided separately by the engine manufacturer.

Identifying and eliminating malfunctions

Malfunctions that occur during the operation of your lawn mower often have simple causes that you should know and be able to repair on your own. In cases of doubt your specialised garage will be pleased to assist you further.

Problem Possible cause(s) Remedy

Engine does not start.	Throttle is not in the right position.	Set throttle to position N or CHOKE (if the engine is cold).
		Set throttle to max position or START (if the engine is warm).
	Lawn mower is standing in long grass.	Place the lawn mower onto a surface with shorter grass.
	No fuel in the tank. Fill tank with clean, fresh fuel.
	Spark plug terminal not connected. Connect spark plug terminal.
	Fuel old or dirty. Replace with new fuel.
	Air filter clogged. Clean air filter.
	Battery not inserted correctly.	Insert battery correctly into the battery compartment on the engine until it engages.
	Battery discharged. Charge battery with provided battery charger.
	Lead damaged.	Check whether electric lead OK.
	Battery defective.	Have battery tested by a service centre.
Unusual noises (rattling, clanging, knocking).	Screws, nuts, or other fasteners loose	Tighten parts. If the noises persist: Contact a specialist garage.
Shaking, vibrations.	Cutter(s) loose.	Cutter fastening screw must be tightened at specialist garage.
	Cutter(s) damaged. Cutters must be replaced at specialist garage.
	Cutters not balanced correctly.	Cutters must be replaced or balanced at specialist garage.
	Engine not secure. Engine must be secured at specialist garage.
Unclean cut or speed is decreasing.	Grass too high.	Set larger cutting height, if necessary mow twice.
Grass is not being picked up or grass catcher is not filling.	Grass too damp.	Let the lawn dry.
	Ejector clogged. Switch OFF engine, remove hindrance.
	Cutters blunt.	Cutters must be replaced or reground at a specialist garage.
	Insufficient power from motor.	Mow more often. Select a greater cutting height.
	Grass sack full.	Switch off engine. Unload grass catcher.
	Dirty grass sack.	Switch off engine. Clean air ducts in the grass catcher.
Wheel drive does not work.	V belt torn or gears defect.	Damaged parts must be replaced at a specialist garage.
	Cable pull/Bowden cable torn.	Damaged parts must be replaced at a specialist garage.

Sommaire

Three safety symbols: triangular warning triangle, vertical line with bidirectional arrow, and circuit board with plug symbol.

Three safety icons: tool, hand gesture, and warning sign with a hammer and sickle symbol

Two diagrams showing mechanical components with curved lines and a circle highlighting a specific part (no text or symbols present)

Illustration of a lawn mower with a protractor and a circular no-smoking symbol (no text or labels)

Warning symbols and safety icons for car safety, including warning triangle, car, and helmet with Chinese labels

Image containing three horizontal lines, likely representing text lines or placeholders.

Diagram showing three types of electrical protection symbols: fuse, switch, and warning sign.

Two diagrams showing mechanical components with curved lines and a circle highlighting a circular feature (no text or symbols)

Warning symbols and safety icons for car accidents, including warning, no-drawn car, and broken-out masks

Diagram showing three types of mechanical or electrical components: a hand holding a tool, a valve with a handle, and an open book with a wrench.

Two diagrams showing mechanical components with curved lines and a magnified inset (no text or symbols)

Warning symbols and safety icons for car accident detection, including warning triangle, no-dsymbol sign, and broken-out masks.

Two diagrams showing a mechanical component with a circular arrow indicating rotation or force application (no text or symbols present)

Warning symbols and safety icons for car safety, including warning triangle, car, and broken-out signs with no text.

Three safety symbols: triangular warning triangle, vertical line with bidirectional arrow, and circuit board with plug icon

Diagram showing three types of electrical protection symbols: hand, switch, and warning triangle with tool

Two diagrams showing mechanical components with curved lines and a circle highlighting a specific part (no text or symbols present)

Illustration of a manual lawn mower with a stopper and no stop sign, showing no text or symbols on the diagram itself.

Warning symbols and safety icons for car accidents, including warning signs, no-drawn car, and broken-out masks.

Three safety symbols: warning triangle, vertical bar with bidirectional arrow, and circuit breaker with plug symbol.

Diagram showing three types of electrical circuit symbols: forward winding, circuit breakers, and open book with fuse.

Two diagrams showing mechanical components with curved arrows indicating motion, one circled (no text or symbols)

Illustration of a manual lawn mower and a prohibition symbol (no text or symbols present)

Warning symbols and safety icons for car accidents, including warning, no-drawn car, and broken-out masks

Diagram showing three types of electrical circuit symbols: battery, switch, and fuse, with corresponding visual representations.

Two diagrams showing a mechanical device with wheels and a circle highlighting a specific component (no text or symbols present)

Warning symbols and safety icons for car accidents, including warning signs, no-drumed vehicle, and broken car fragments

Three horizontal lines inside a rectangular frame, no text or symbols present

Three safety symbols: warning triangle, human figure with bidirectional arrow, and circuit board with plug symbol.

Diagram showing three types of electrical circuit symbols: battery, switch, and warning symbol.

Two diagrams showing mechanical components with curved lines and a circle highlighting a circular feature (no text or symbols)

Illustration of a lawn mower with a tool, showing motion and no text or symbols (no readable text or symbols)

Warning symbols and safety icons for car accidents, including warning, no-drawn car, and broken-out masks

Fare for skade – det må kun arbeides med påsatt utkastklaff.

Transporter aldri maskinen i vippet stilling.

Three black-and-white safety symbols: warning triangle, human figure with bidirectional arrow, and map with circuit symbol.

Diagram showing four safety symbols: hand holding, tool, wrench, and warning triangle with crossbones.

Two diagrams showing a manual pushpin mechanism with a circular motion indicator (no text or symbols)

Illustration of a manual lawn mower and a prohibition symbol (no text or symbols present)

Warning symbols and safety icons for car accidents, including warning signs, no violations, and hazard signs

Detectar e reparar as avarias 107

Three safety symbols: triangular warning triangle, vertical line with bidirectional arrow, and circuit board with plug icon

Three safety symbols: hand holding arrows, pipe with valve, open book with wrench, and warning sign.

Two diagrams showing mechanical components with curved arrows, one highlighted with a circle (no text or symbols)

Warning symbols and safety icons for car accidents, including warning signs, no car, and broken fragments

Detectar e reparar as avarias

Diagram showing three types of mechanical or electrical symbols: hand, valve, and warning symbol.

Two mechanical diagrams showing a wheel and a circular component with curved lines, no text or symbols present.

Warning symbols and safety icons for car accidents, including warning signs, no-drawn car, and broken-out masks.

Diagram showing three types of mechanical or electrical components: a hand holding a valve, a motor with a fuse, and an open book with a handle.

Two diagrams showing a mechanical component with curved lines and a circle highlighting a specific section (no text or symbols present)

Warning symbols and safety icons for car accidents, including warning signs, no violations, and hazard signs

Three safety symbols: warning triangle, vertical line with bidirectional arrow, and circuit board with directional arrows.

Diagram showing three types of mechanical or electrical symbols: hand, valve, and warning symbol.

Two mechanical diagrams showing a roller and a circular component with a ring, no text or symbols present.

Illustration of a manual lawn mower with motion blur and no warning symbol (no text or labels)

Warning symbols and safety icons for car safety, including warning triangle, car, and broken-out signs

Three safety symbols: warning triangle, human figure with bidirectional arrow, and circuit board with plug-in device.

Diagram showing three types of mechanical or electrical symbols: directional arrows, circuit diagram, and open book with wrenches, plus a warning triangle.

Two diagrams showing mechanical components with curved arrows indicating motion, no text or symbols present

Illustration of a manual lawn mower with a stopper and no stop sign, showing motion and tool path (no text or symbols)

Warning symbols and safety icons for car accidents, including warning, no-drawn car, and broken-out masks

Diagram showing four types of electrical or mechanical symbols: fuse, switch, circuit breaker, and warning symbol.

Two illustrations showing a manual pushpin and a circular motion control mechanism (no text or symbols)

Nebezpečenstvo poranenia – pracujte iba s namontovanou protinárazovou ochranou.

Illustration of a manual lawn mower and a prohibition symbol (no text or labels)

Warning symbols and safety icons for car accidents, including warning signs, no violations, and broken-out masks

Nebezpečenstvo poranenia – pracujte iba s namontovanou odhadzovacou koncovkou.

Udržiavajte tieto symboly na náradí stále v čitatelnom stave.

Symboly v návode

Three safety symbols: triangular warning triangle, human figure with bidirectional arrow, and circuit board with circuit symbol.

Three-step diagram showing mechanical and electrical symbols: tool, gear, and circuit board with an open book.

Two diagrams showing a manual pushpin and a circular motion capture mechanism (no text or symbols)

Warning symbols and safety icons for car accidents, including warning triangle, car, and broken-out signs

Diagram showing three safety symbols: hand holding arrows, circuit diagram with wrench and plug, and warning sign with tool.

Two diagrams showing mechanical components with curved lines and a magnified inset (no text or symbols)

Illustration of a manual lawn mower and a prohibition symbol (no text or labels)

Nevarnost nastanka poškodb – kosite samo s pritrjenim držajem.

Warning symbols and icons for car safety, including warning triangle, car, and various helmet and gear features

Three safety symbols: warning triangle, human figure with bidirectional arrow, and circuit board with plug symbol.

Diagram showing three types of electrical circuit symbols: battery, switch, and warning symbol.

Two diagrams showing mechanical components with curved lines and a circle, no text or symbols present

Opasnost od ozljede – raditi samo sa ugradjenim odbojnikom.

Illustration of a manual lawn saw and a circular no-smoking symbol (no text or labels)

Warning symbols and safety icons for car accidents, including warning signs, no-drumed vehicle, and broken-out masks.

Opasnost od ozljede – raditi samo sa ugradjenim uređajem za izbacivanje.

Three safety symbols: warning triangle, human figure with bidirectional arrow, and circuit board with plug icon

Diagram showing three types of electrical circuit symbols: battery, switch, and warning symbol.

Isključiti motor i izvući ključ za paljenje pre svih radova na aparatu i pre nego što napustite aparat. Pridržavati se dopunskih uputstava u poglavlju "Za vašu sigurnost".

Pre radova na alatima za rezanje izvući utikač svećica za paljenje! Prste i noge odmaknuti od alata za rezanje!

Pre podešavanja ili čišćenja aparata ili pre kontrole isključiti aparat i izvući utikač svećica za paljenje.

Two diagrams showing mechanical components with curved lines and a circle, no text or symbols present

Opasnost od povrede – raditi samo sa montiranim odbojnikom.

OK

Opasnost od povrede – raditi samo s montiranim zadnjim branikom.

Warning symbols and safety icons for car accidents, including warning, no-drawn car, broken car, and broken car.

Opasnost od povrede – raditi samo s montiranim izbacivačem.

Three safety symbols: warning triangle, human figure with bidirectional arrow, and map with bicycle icon

Three safety symbols: directional arrows, circuit diagram with switches, and warning sign with a wrench.

Two diagrams showing mechanical components with curved lines and a magnified inset (no text or symbols)

Opasnost od ozljede – raditi samo sa montiranim odbojnikom.

OK

Warning symbols and safety icons for car accidents, including warning, no-drawn car, and accident detection

Opasnost od ozljede – raditi samo sa montiranim uredjajem za izbacivanje.

Two diagrams showing mechanical components with curved lines and a circle highlighting a specific part (no text or symbols present)

Illustration of a manual lawn mower with a tool, showing no text or symbols (no readable text or symbols)

Warning symbols and safety icons for car collision hazard, showing no violations in vehicle and helmet.

Three safety symbols: triangular warning triangle, vertical bar with bidirectional arrow, and circuit board with circuit symbol.

Diagram showing three safety symbols: directional arrows, mechanical tools, and a warning triangle.

Two diagrams showing a roller being pulled by a pulley, with no text or symbols present.

Warning symbols and safety icons for car collision hazard, including warning sign, no-dsymbol object, and broken-out vehicle.

Empty rectangular frame with three horizontal lines inside (no text or symbols)

Three safety symbols: triangular warning triangle, vertical rectangle with bidirectional arrow, and circular icon with battery

Diagram showing three safety symbols: a hand holding a tool, a switch, and an open book with tools.

Two diagrams showing mechanical components with curved lines and a magnified inset (no text or symbols)

Illustration of a manual lawn mower and a circular no-smoking symbol (no text or symbols present)

Warning symbols and safety icons for car collision hazard, including warning sign, no-dsymbol sign, and broken-out helmet.

Three safety symbols: warning triangle, human figure with bidirectional arrow, and map with circuit symbol.

Diagram showing three types of electrical protection symbols: fuse, switch, and warning sign.

Two diagrams showing mechanical components with curved lines and a circle highlighting a specific part (no text or symbols present)

Warning symbols and safety icons for car accidents, including warning signs, no-drawn car, and broken-out masks.

Three safety symbols: warning triangle, human figure with bidirectional arrow, and bicycle on map (no text or labels)

Diagram showing three types of electrical protection symbols: fuse, switch, and warning symbol.

Two diagrams showing mechanical components with curved lines and a circle highlighting a specific part (no text or symbols present)

Warning symbols and safety icons for car accidents, including warning signs, no-drawn car, and broken-out masks.

Three safety symbols: triangular warning triangle, vertical barrier with bidirectional arrow, and mechanical device with circuit symbol.

Diagram showing three types of electrical protection symbols: fuse, switch, and warning sign.

Two diagrams showing mechanical components with curved and straight lines, no text or symbols present

Illustration of a manual lawn saw with motion blur and no text or symbols

Warning symbols and safety icons for car accidents, including warning signs, no violations, and broken-out masks

Three safety symbols: warning triangle, vertical bar with bidirectional arrow, and bicycle on map (no text or labels)

Diagram showing three types of electrical protection symbols: current direction, circuit switch, and safety warning symbol.

Two diagrams showing mechanical components with curved lines, one highlighted by a circle (no text or symbols)

Warning symbols and safety icons for car accidents, including warning, no-drawn car, and broken-out masks

Three safety symbols: warning triangle, human figure with bidirectional arrow, and circuit board with plug symbol.

Diagram showing four types of electrical circuit symbols: fuse, switch, hand tool, open book with wrench, and warning symbol.

Two diagrams showing a mechanical component with curved lines and a circle highlighting a specific section (no text or symbols present)

Illustration of a manual lawn mower and a prohibition symbol (no text or labels)

Warning symbols and safety icons for car accidents, including warning signs, no-drumed vehicle, and broken car.

Stylized white wolf head logo inside a circular frame (no text or symbols)
