USER MANUAL JARO 3050 P BRENNENSTUHL

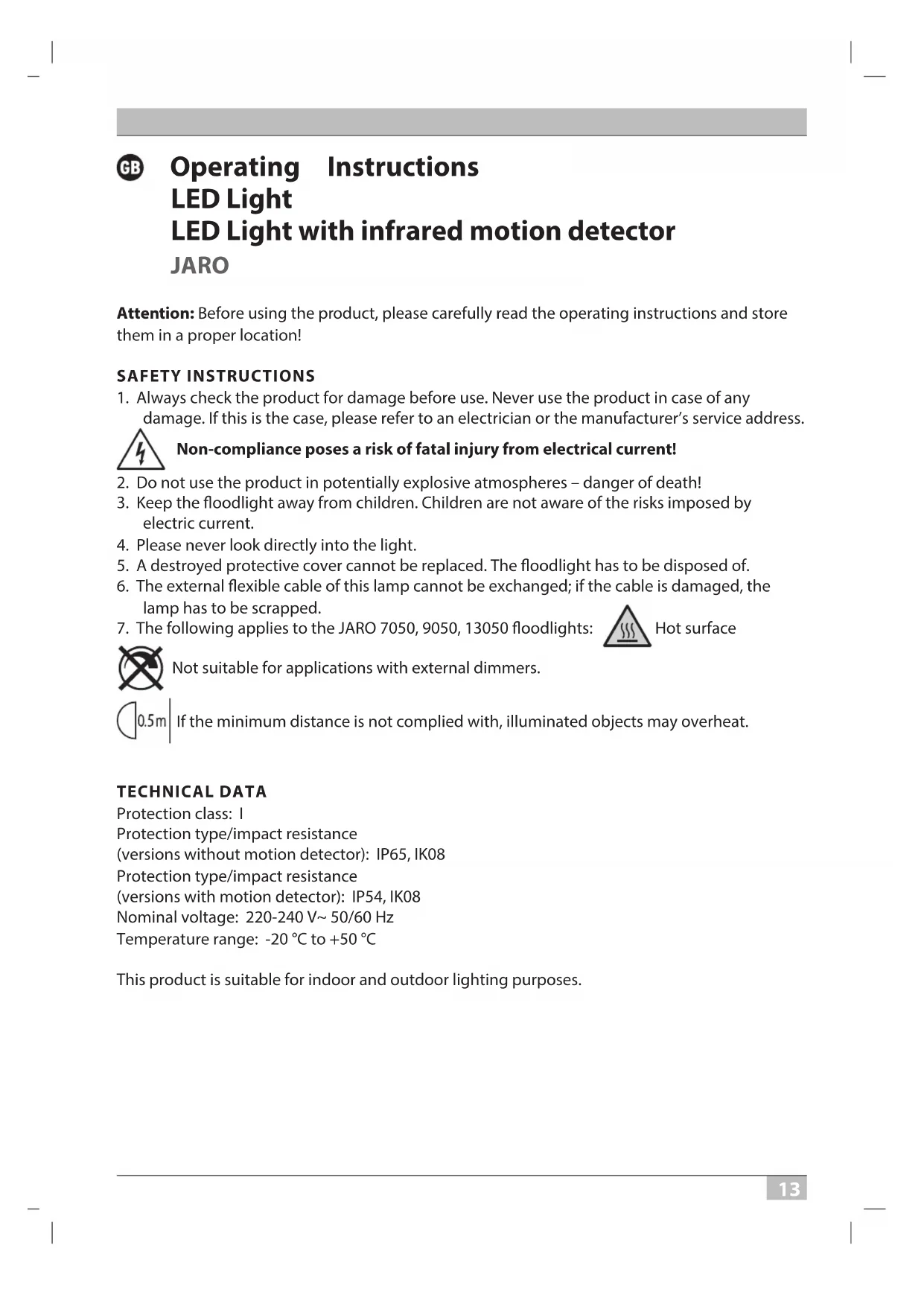

Operating instructions

1. Always check the product for damage before use. Never use the product in case of any

damage. If this is the case, please refer to an electrician or the manufacturer’s service address. Non-compliance poses a risk of fatal injury from electrical current!

2. Do not use the product in potentially explosive atmospheres – danger of death!

3. Keep the oodlight away from children. Children are not aware of the risks imposed by

4. Please never look directly into the light.

5. A destroyed protective cover cannot be replaced. The oodlight has to be disposed of.

6. The external exible cable of this lamp cannot be exchanged; if the cable is damaged, the

lamp has to be scrapped.

7. The following applies to the JARO 7050, 9050, 13050 oodlights:

Hot surface Not suitable for applications with external dimmers. If the minimum distance is not complied with, illuminated objects may overheat. TECHNICAL DATA Protection class: I Protection type/impact resistance (versions without motion detector): IP65, IK08 Protection type/impact resistance (versions with motion detector): IP54, IK08 Nominal voltage: 220-240 V~ 50/60 Hz Temperature range: -20 °C to +50 °C This product is suitable for indoor and outdoor lighting purposes. 20P114 LED Strahler Jaro PIR 0533228 210327.indd 13 27.03.2021 16:10:471414 Operating Instructions JARO INSTALLATION AND CONNECTION TO POWER SUPPLY 10 – 50 W see gures p. 4, 7 and 8

1. Before installation, always switch o the voltage supply

2. Installation position: the oodlight should ideally be mounted using the wall bracket. The

oodlight must be installed at a height of less than 3 m

Recommended installation height for models with motion detector 2.5 m. The oodlight can be angled up and down.

3. Remove the mounting bracket from the oodlight

4. Mark the position of the drill holes for fastening the mounting bracket and drill

corresponding holes into the wall

. Attach the bracket to the wall using suitable screws.

5. Open the plug connection

6. Feed the connection cable through the plug sleeve, which has a seal

7. Attach the oodlight to the mounting bracket.

8. Connect the strands of the connection cable to the luster terminal in the input connector in

(N = blue cable, earth symbol = green/yellow cable, L = brown cable).

9. Slide the cases over the input connector as shown in

and tighten it. Take care to ensure that both cases are suciently tightened – this ensures a sucient seal.

10. Re-attach the mounting bracket to the oodlight.

11. Adjust the desired position of the oodlight and fasten the U bolts.

12. Switch the supply voltage back on

INSTALLATION AND CONNECTION TO POWER SUPPLY 80 – 150 W see gures p. 5 and 6 Mounting position: The spotlight should be ideally xed with the wall bracket. It must be installed at a height less than 3 m

The light can be tilted by 90° downwards and by 45° upwards

1. Always turn o the power supply before installation

2. Unscrew the junction box

on the back and loosen the pressure plate

through the inlet pipe of the junction box and connect the braids of the connection cable according to marking N and L

4. Fasten the pressure plate and screw the junction box on

5. Remove the retaining bracket from the spotlight

6. Mark the position of boreholes

for securing the retaining bracket and drill the respective holes on the wall. Attach the bracket to the wall with suitable screws

7. Secure the spotlight to the retaining bracket

8. Adjust the desired position of the spotlight and tighten the U-bolts

9. Turn the power supply back on

20P114 LED Strahler Jaro PIR 0533228 210327.indd 14 27.03.2021 16:10:471515 JARO Operating Instructions FUNCTIONAL DESCRIPTION (only for versions with motion sensor) This oodlight is equipped with an infrared sensor. It is switched on automatically if the sensor detects motion in the environment. If possible, do not direct the motion sensor at swimming pools, heating air exhausts, air conditioning units or objects which are exposed to major temperature uctuations. Avoid directing the motion sensor at trees or bushes or at places which could be frequently visited by pets. The motion sensor can be turned horizontally to the right and left and angled vertically up and down. When mounting the oodlight remember that the motion sensor will react most sensitively to motions crossing its eld of detection from one side to the other and least sensitively to motions directly approaching the unit.

CONFIGURING THE MOTION DETECTOR PIR

Three controllers are located on the rear of the motion detector

TIME – time adjustment (left): Using this controller, you can select any switch-on time between approx. 10 seconds and 5 minutes after the last motion was detected. Rotating the TIME controller clockwise decreases the time period, rotating it counterclockwise increases it. LUX – light adjustment (sun and moon symbol, right)

The light adjustment determines from what brightness level the sensor will switch on the oodlight. The (sun symbol) position indicates that the sensor works by day and at night, in the (moon symbol) position, the sensor will only work at night. To adjust the sensor, wait until the desired ambient brightness is reached. Completely rotate the light adjustment controller to the (moon) symbol. Slowly rotate the controller in the direction of the (sun) symbol until the oodlight is switched on by the motion. The oodlight will now be activated from the set brightness when a motion is detected.

The sensitivity of the sensor depends on the ambient temperature. The lower the ambient temperature, the greater the sensitivity of the motion detector. The sensor is at its most sensitive when the SENS controller is turned all the way to the (+) direction. Motion sensor: passive infrared sensor (PIR) Detection range: up to 10 m/up to 120° (horizontal)

Time adjustment: approx. 10 sec. to 5 min. Ambient brightness: 0 – 2000 lux Sensitivity: 3 to 10 m depending on the installation location

20P114 LED Strahler Jaro PIR 0533228 210327.indd 15 27.03.2021 16:10:471616 Operating Instructions JARO MAINTENANCE ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened. CLEANING Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning. DISPOSAL Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste! The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner. For possibilities of disposal of the used appliance, please contact your local or municipal administration.

EU DECLARATION OF CONFORMITY
