USER MANUAL 1507290 BRENNENSTUHL

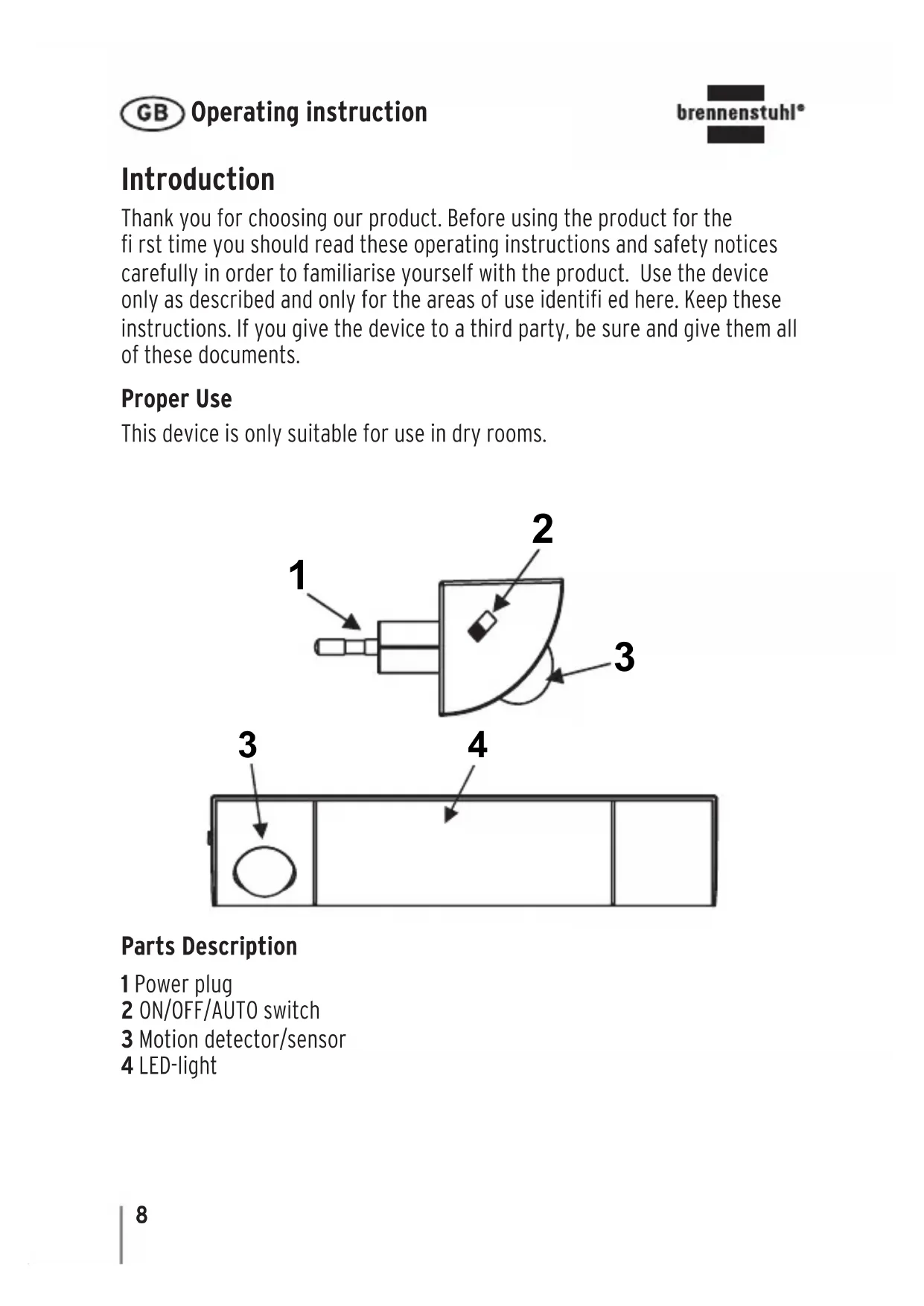

• BA-A6_NL09.indd 8 05.03.2010 10:56:459 Operating instruction Technical Data Power supply: 230 V~ 50 Hz Power Input: ca. 2 W Monitoring angle: ca. 100° Quantity of LEDs: 9 Range: max. 5 Meter Brightness: ca. 20 Lux Light duration: 30 ± 5 seconds Operating temperature: -10°C to 45°C Protection Class: IP20 Functions: ON/OFF/Auto Safety Notices POTENTIALLY FATAL ACCIDENT HAZARD FOR INFANTS, TODDLERS AND CHILDREN! Never leave children unsupervised with either the packaging materials or the product. The packaging material poses a suffocation risk and life- threatening danger from electrical shock. Children frequently underesti- mate dangers. Keep product out of reach of children. CAUTION! DANGER OF INJURY! Never operate the product if it is damaged. POTENTIALLY FATAL HAZARD FROM ELECTRICAL SHOCK! Do not expose the product to rain or moisture. If water gets into the product, the risk of electrical shock increases. Under no circumstances should you open the product’s housing. Unplug the device from the electrical outlet when the product is not in use. Before Use In order to prevent unintended activation, the product should be installed away from heat sources, other lights and smoke exhaust fans and away from strong sources of electomagnetic interference. Never aim the sensor at refl ective surfaces such as smooth white walls. Make sure that the motion detector is aimed at the area to be monitored. The motion detector‘s monitoring area can vary depending on the mounting height, mounting location as well as ambient temperature. BA-A6_NL09.indd 9 05.03.2010 10:56:4610 Operating instruction Operation This nightlight has 3 functions: On: The nightlight is on constantly Off: The nightlight is off constantly Auto: In darkness, the integrated motion detector activates the light auto- matically for 30 seconds. The motion detector registers the movements of persons in the monitoring area. The light will remain on as long as there is a person moving in the monitoring area. Maintenance and Cleaning The product is maintenance-free. Do not perform any technical alterations on this product. To clean, fi rst remove the nightlight from the electrical outlet. Then you can clean the nightlight with a soft, clean, dry cloth. Do not use any aggressive cleaning agents, as they can damage the plastic housing. Disposal Do not dispose of electrical devices in your household rubbish! In compli- ance with European Guideline 2002/96/EC concerning used electrical and electronic devices and the implementation of this guideline in national law, used electrical and electronic devices must be collected separately and recycled in an environmentally sound manner. You can learn about currently applicable disposal measures for used electrical devices from your county or municipal administrative agencies. Return the device through available collection facilities. Declaration of Conformity The CE-Symbol was applied in conformity with the following European Guidelines: 2006/95/EC Low Voltage Guideline 2004/108/EC EMC- Guideline The Declaration of Conformity is fi led with the manufacturer. Technical modifi cations reserved. BA-A6_NL09.indd 10 05.03.2010 10:56:4611 Operating instruction Manufacturer Hugo Brennenstuhl GmbH & Co.KG 72074 Tübingen · Germany lectra-t, CH-6340 Baar H. Brennenstuhl S.A.S. 67460 Souffelweyersheim · France www.brennenstuhl.com BA-A6_NL09.indd 11 05.03.2010 10:56:4612 Conseils d’utilisation Lumière de nuit NL 9 Sommaire Introduction p. 13
• Usage correct de l’appareil p. 13
• Description des pièces p. 13
• Spéci cations techniques p. 14
• Avis de sécurité p. 14
• Avant la mise en fonction p. 14
• Commande p. 15
• Maintenance et nettoyage p. 15
• Mise au rebut p. 15
• Déclaration de conformité p. 15
• Producteur BA-A6_NL09.indd 12 05.03.2010 10:56:46Conseils d‘utilisation p. 16
