USER MANUAL 80729 Tvilum

T V I L U M - S C A N B I R K © T V I L U M - S C A N B I R K, 12-12-2008

• Theassemblyinstructionmustbereadandunderstoodbeforeusingthetableforthefirsttime. The assembly instruction gives you important information concerning safety, use, installation and maintenance of the table. This way you protect yourself and your children as well as avoid damaging the table.

• Keeptheassemblyinstructionandhanditovertoapossiblynewowner.

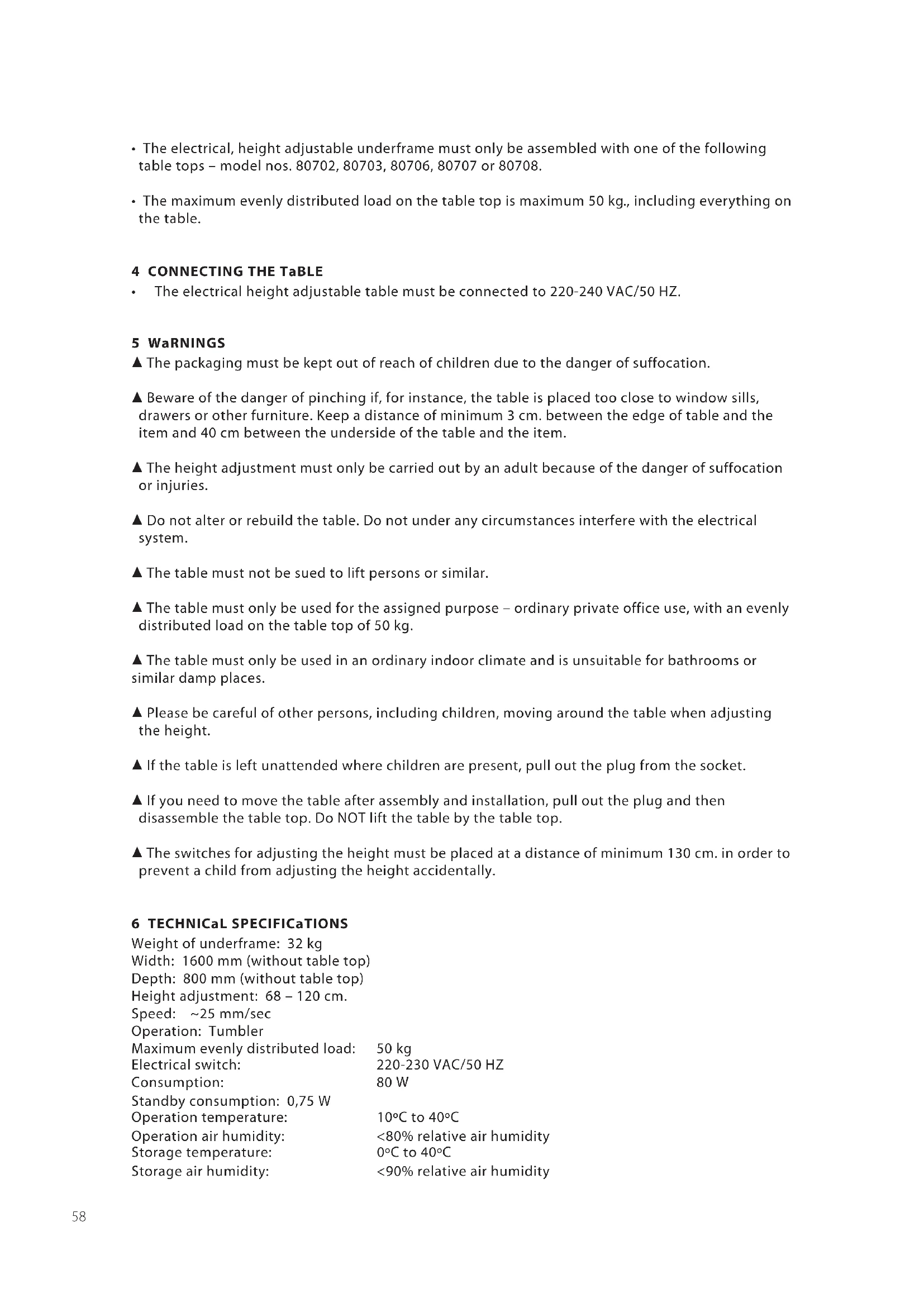

The packaging must be kept out of reach of children due to the danger of suffocation.

Beware of the danger of pinching if, for instance, the table is placed too close to window sills, drawers or other furniture. Keep a distance of minimum 3 cm. between the edge of table and the item and 40 cm between the underside of the table and the item.

The height adjustment must only be carried out by an adult because of the danger of suffocation or injuries.

Do not alter or rebuild the table. Do not under any circumstances interfere with the electrical system.

The table must not be sued to lift persons or similar.

The table must only be used for the assigned purpose – ordinary private office use, with an evenly distributed load on the table top of 50 kg.

The table must only be used in an ordinary indoor climate and is unsuitable for bathrooms or similar damp places.

Please be careful of other persons, including children, moving around the table when adjusting the height.

If the table is left unattended where children are present, pull out the plug from the socket.

If you need to move the table after assembly and installation, pull out the plug and then disassemble the table top. Do NOT lift the table by the table top.

The switches for adjusting the height must be placed at a distance of minimum 130 cm. in order to prevent a child from adjusting the height accidentally. 6 TECHNICaL SPECIFICaTIONS Weight of underframe: 32 kg Width: 1600 mm (without table top) Depth: 800 mm (without table top) Height adjustment: 68 – 120 cm. Speed: ~25 mm/sec Operation: Tumbler Maximum evenly distributed load: 50 kg Electricalswitch: 220-230VAC/50HZ Consumption: 80W Standby consumption: 0,75 W Operationtemperature: 10ºCto40ºC Operation air humidity: <80% relative air humidity Storagetemperature: 0ºCto40ºC Storage air humidity: <90% relative air humidity59 7 OPERaTING THE TaBLE

• Whenworkingstandingup,yourelievethepressureonyourbackandlowerbackandyoucanuse your whole body. Your freedom of movement will increase and you may vary your working positions.

• Usetheheightadjustmentfeatureseveraltimesdailyifonlyforasmalladjustmentwhenchanging between working at the screen or reading and writing.

• Ifyoudonotusethetableforawhile,youcanswitchoffthepowerforsafetyreasonsandinorder to save money. 9 maINTENaNCE /CLEaNING

• Cleanthetablewithadampclothusinganordinarycleaningdetergent.Keepwaterawayfromthe electrical parts. The height adjusting system does not need maintenance. 10 DISPOSING OF THE TaBLE

• Thepackagingis100%recyclableandshouldnotbeleftintheenvironment.Disposalofthetable musttakeplaceinaccordancewiththerequirementsinyourarea.

• Thetableismadeofrecyclablematerials.Disposalofitmusttakeplaceinaccordancewiththe wastedisposalrequirementsinyourarea. 11 STaTEmENT OF CONSENT EU STaTEmENT OF CONSENT Manufacturer: Tvilum-Scanbirk Egon Kristiansens Allé 2 8882 Fårvang Denmark Tel.: [phone] DECLaRE THaT THE PRODUCT Series: Performance Model no.: 80729 With table top model no.: 80702, 80703, 80706, 80707 or 80708 Type: Office desk Label year: 2008 IS IN aCCORDaNCE WITH: Directive2004/108/ECofTheEuropeanParliamentandoftheCouncilof15December2004on approximation of the laws of the Member States relating to electromagnetic compatibility Directive2004/108/ECofTheEuropeanParliamentandoftheCouncilof12December2006onthe harmonisationofthelawsoftheMemberStatesrelatingtoelectricalequipmentdesignedforuse within certain voltage limits Directive98/37/ECofTheEuropeanParliamentandoftheCouncilof22June1998onthe approximation of the laws of the Member States relating to machinery.60 have been drawn up in accordance with the following national standards implementing a harmonized law on machinery: DS/EN 527-1:2000 Office furniture. Work places and desks. Part 1: Dimensions. DS/EN527-2:2002Officefurniture.Workplacesanddesks.Part2:Mechanicalsafetyrequirements. DS/EN 527-3:2003 Office furniture. Work places and desks. Part 3: Methods of test for the determination of the stability and the mechanical strength of the structure. DS/EN ISO 12100-1: 2005 Safety of machinery. Basic concepts, general principles for design.

Part 1: Basic terminology and methodology.

DS/EN ISO 12100-2:2005 Safety of machinery. Basic concept, general principles for design.

Part 2: Technical principles.

DS/EN ISO 13857:2008 Safety of machinery. Safety distances to prevent hazard zones being reached by upper and lower limbs. DS/EN 349:1994 Safety of machinery. Danger areas and safety distances. Protection of the body. DS/EN55014-1:2007Electromagneticcompatibility–Requirementsforhouseholdappliances, electric tools and similar apparatus – Part 1: Emission. DS/EN55014-2:1997Electromagneticcompatibility–Requirementsforhouseholdappliances, electric tools and similar apparatus – Part 2: Product family standard. DS/EN 60335-1:2006 Household and similar electrical appliances – Safety – Part1:Generalrequirements. DS/EN61000-3-2:2006Electromagneticcompatibility(EMC)–Part3-2:Limits–Limitsforharmonic currentsemissions(equipmentinputcurrentuptoandincluding16Aperphase). EN61000-3-3:2008Electromagneticcompatibility(EMC)–Part3-3:Limits–Limitationsofvoltage fluctuationsandflickerinpubliclow-voltagesupplysystemsforequipmentwithratedcurrentupto and including 16 A. Title: Vice President R&D Name: Kim Primdahl Andersen Company: Tvilum-Scanbirk
