This camera is equipped with a built-in instruction guide. In-Camera Guide The camera displays explanations for MENU items and the setting values. 1 Press the MENU button or the Fn (Function) button. 2 Select the desired item, then press the (Delete) button. English Learning more about the camera (“Help Guide”) “Help Guide” is an on-line manual. Refer to it for in-depth instructions on the many functions of the camera. 1 Access the Sony support page. http://www.sony.net/SonyInfo/Support/ 2 Select your country or region. 3 Search for the model name of your camera within the support page.

• Check the model name on the bottom of your camera. Viewing the Guide (Delete) MENUGB

Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.Model No. WW808143 (DSC-RX10)Serial No. _____________________________Model No. AC-UB10/AC-UB10B/AC-UB10C/AC-UB10DSerial No. _____________________________DSC-RX10 Model No. WW808143 To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS

-SAVE THESE INSTRUCTIONS

INSTRUCTIONS If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet. [ Battery pack If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.• Do not disassemble.• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.• Do not incinerate or dispose of in fire. WARNING CAUTIONGB

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.

• Keep the battery pack out of the reach of small children.

• Keep the battery pack dry.

• Replace only with the same or equivalent type recommended by Sony.

• Dispose of used battery packs promptly as described in the instructions. [ AC Adaptor Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus.

[ RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.call2recycle.org/ Caution: Do not handle damaged or leaking Lithium-Ion batteries. [ Battery pack This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3 B/NMB-3 B

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). For Customers in the U.S.A. and CanadaGB

UL is an internationally recognized safety organization. The UL Mark on the product means it has been UL Listed. If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669) The number below is for the FCC related matters only. [ Regulatory Information This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. [ CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. [ Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. For Customers in the U.S.A. Declaration of Conformity Trade Name: SONY Model No.: WW808143 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.GB

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. [ Notice for the customers in the countries applying EU Directives Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany Hereby, Sony Corporation, declares that this WW808143 Digital Still Camera is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ [ Notice If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again. This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3 meters (9.8 feet). The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit. For Customers in Canada For Customers in EuropeGB

[ Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. [ Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. For Customers in SingaporeGB

The number in parentheses indicates the number of pieces.

• Rechargeable Battery Pack NP-FW50 (1)

• Power Cord (mains lead) (not supplied in the USA and Canada) (1)

• Shoe Cap (1) (Attached on the camera)

• Eyepiece Cup (1) (Attached on the camera)

• You can zoom using the manual ring when in Auto Focus mode. You can adjust the focus using the manual ring when in Manual Focus mode or Direct Manual Focus mode. H Exposure compensation dial I Flash J Multi interface shoe* K Mode dial (Auto Mode)/ (Program Auto)/ (Aperture Priority)/ (Shutter Priority)/ (Manual Exposure)/ 1/2 (Memory recall)/ (Movie)/ (Sweep Panorama)/ (Scene Selection) L Hook for Shoulder Strap M Focus mode dial N Aperture ring A (Display panel illumination) button B Microphone C Viewfinder D Diopter-adjustment dial E MOVIE (Movie) button F (Flash pop-up) button G Display panel H C (Custom) button I Hook for Shoulder Strap Identifying partsGB

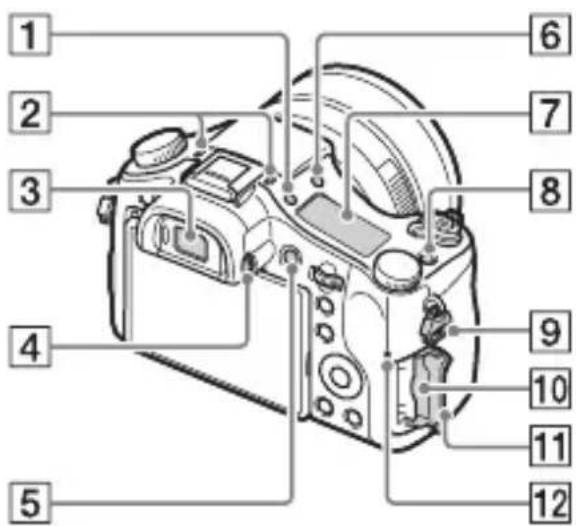

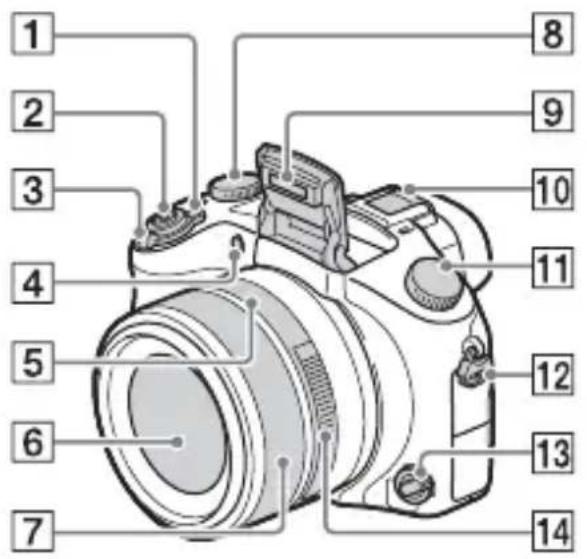

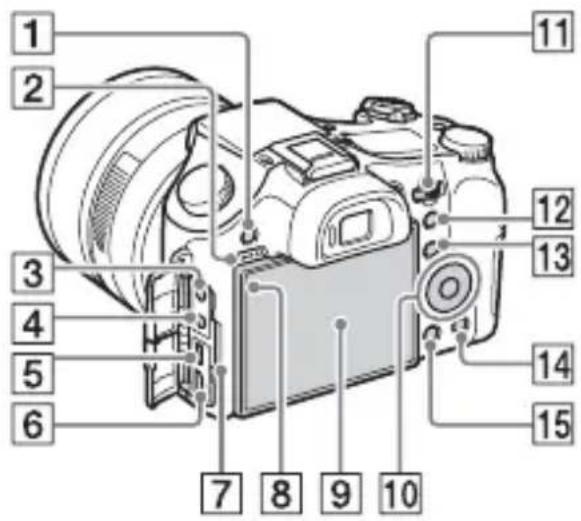

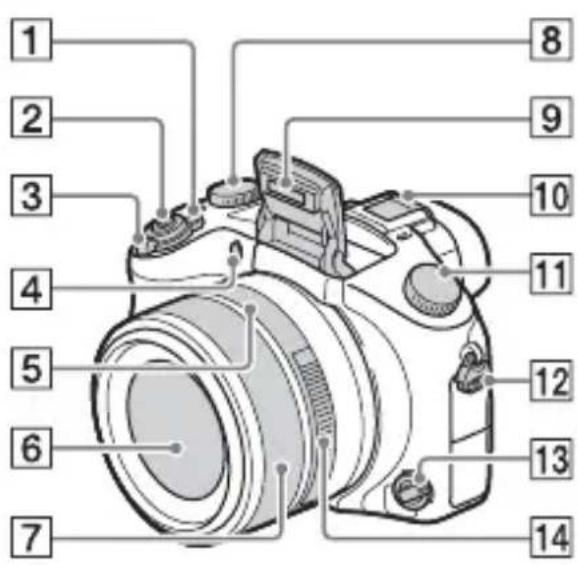

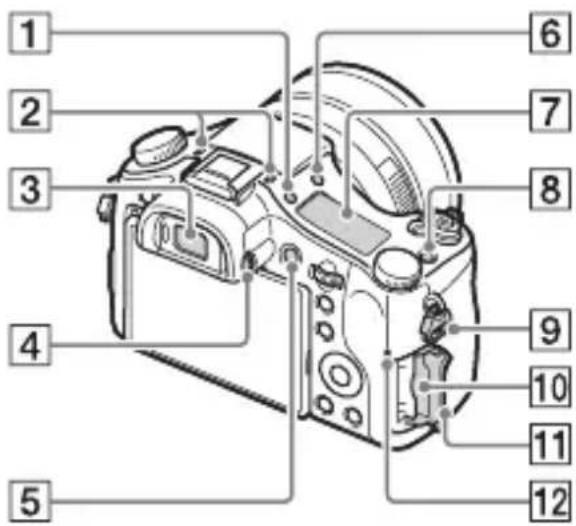

J Memory card slot K Memory card cover L Access lamp A MENU button B Speaker C m (Microphone) jack

• When an external microphone is connected, the camera switches from the internal microphone to the external microphone. If the external microphone is a plug-in- power type, the power of the microphone is supplied by the camera. D i (Headphones) jack E Multi Terminal

• Supports Micro USB compatible device. F HDMI micro jack G Charge lamp H Light sensor I LCD screen J Control wheel K Control dial L For shooting: AEL (AE lock) button For viewing: (Playback zoom) button M For shooting: Fn (Function) button For viewing: (Send to Smartphone) button N (Delete/In-Camera Guide) button O (Playback) button A Aperture Click Switch

• Set the Aperture Click Switch to OFF when shooting movies. If you change the aperture value while shooting a movie with the Aperture Click Switch set to ON, the sound of the aperture ring will be recorded. B Wi-Fi sensor (built-in)GB

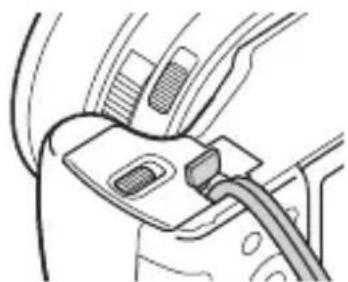

• Touch the mark when you connect the camera to a smartphone equipped with the NFC function.

• NFC (Near Field Communication) is an international standard of the short-range wireless communication technology. D Battery eject lever E Battery insertion slot F Connection plate cover Use this when using an AC-PW20 AC Adaptor (sold separately). Insert the connection plate into the battery compartment, and then pass the cord through the connection plate cover as shown below.

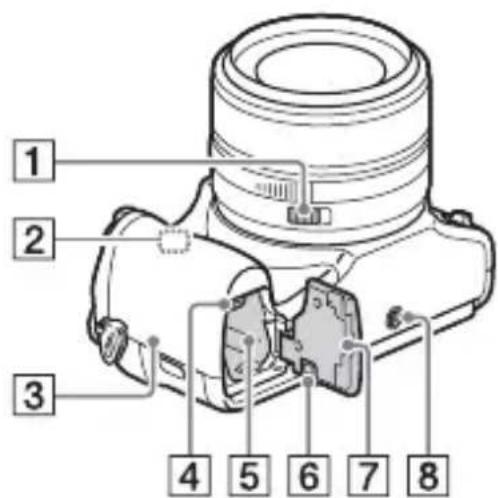

• Make sure that the cord is not pinched when you close the cover. G Battery cover H Tripod socket hole

• Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

• For details on compatible accessories for the multi interface shoe, visit the Sony web site, or consult your Sony dealer or local authorized Sony service facility. You can also use accessories that are compatible with the accessory shoe. Operations with other manufacturers’ accessories are not guaranteed.GB

Inserting the battery pack

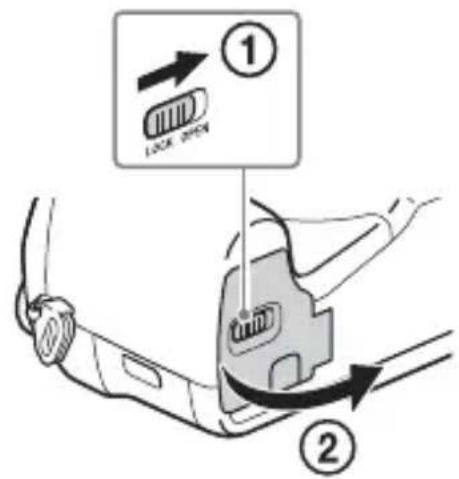

Insert the battery pack.

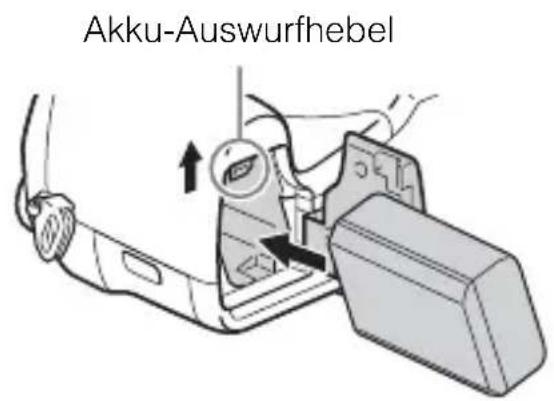

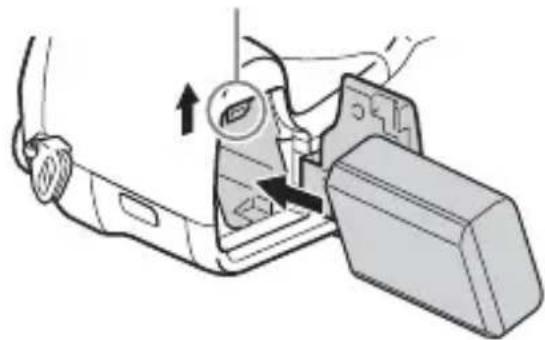

• While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.

• Closing the cover with the battery inserted incorrectly may damage the camera. Battery eject leverGB

Charging the battery pack

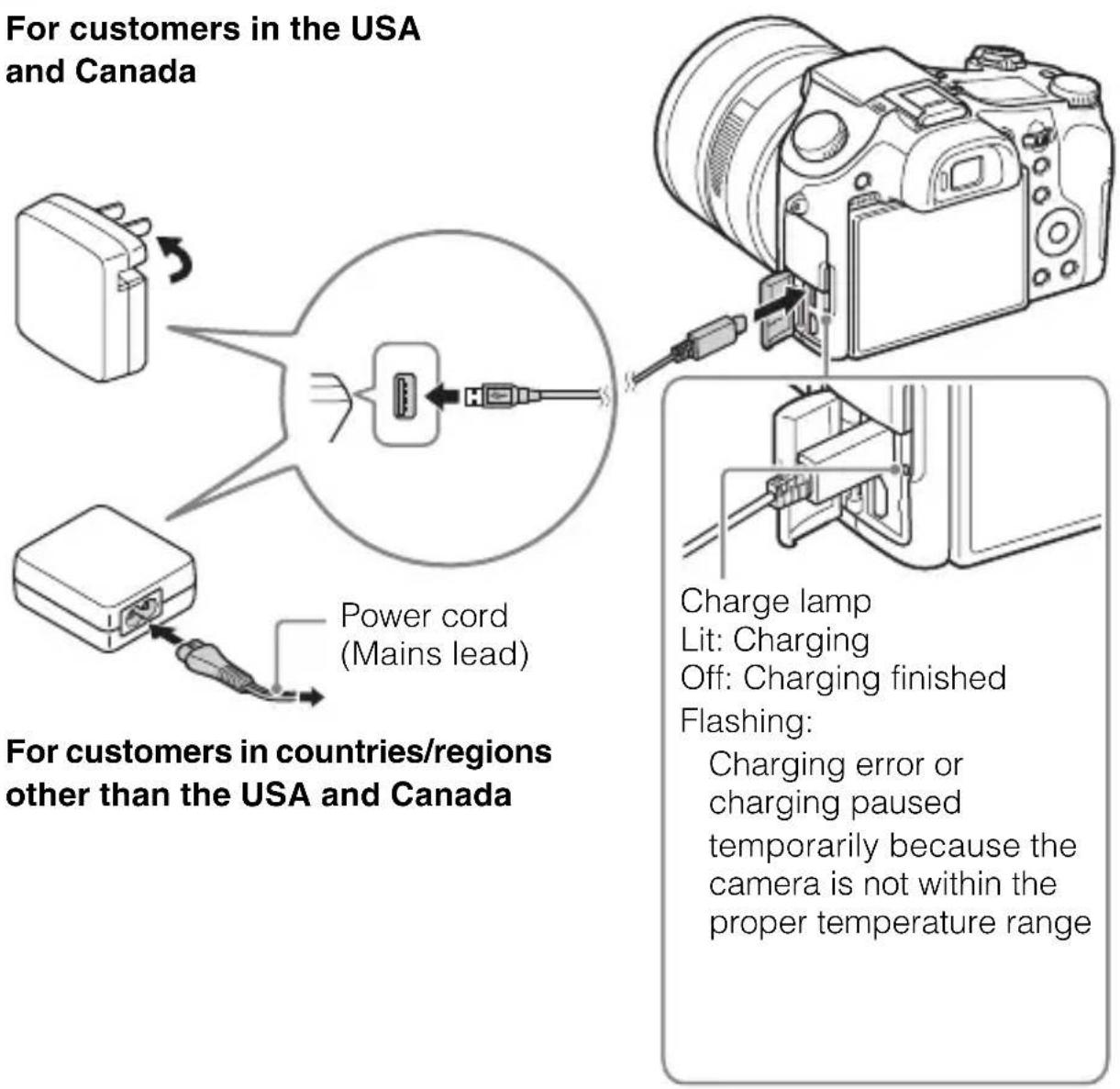

Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied).

Connect the AC Adaptor to the wall outlet (wall socket). The charge lamp lights orange, and charging starts.• Turn off the camera while charging the battery.• You can charge the battery pack even when it is partially charged.• When the charge lamp flashes and charging is not finished, remove and re-insert the battery pack.Power cord (Mains lead)For customers in the USA and CanadaFor customers in countries/regions other than the USA and CanadaCharge lampLit: ChargingOff: Charging finishedFlashing:Charging error or charging paused temporarily because the camera is not within the proper temperature rangeGB

• If the charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10°C to 30°C (50ºF to 86ºF).

• The battery pack may not be effectively charged if the terminal section of the battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton swab to clean the terminal section of the battery.

• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.

• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).

• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied).

• Power is not supplied during shooting/playback if the camera is connected to a wall outlet with the supplied AC adaptor. To supply power to the camera during shooting/playback, use the AC-PW20 (sold separately) AC adaptor.

Charging time (Full charge) The charging time is approximately 310 min. using the AC Adaptor (supplied).

• The above charging time applies when charging a fully depleted battery pack at a temperature of 25°C (77°F). Charging may take longer depending on conditions of use and circumstances. Notes NotesGB

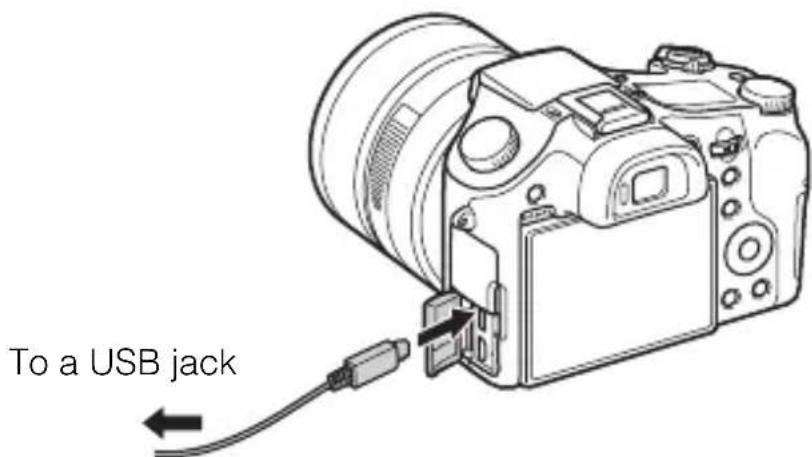

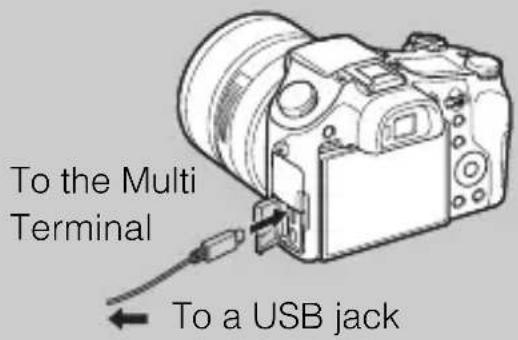

Charging by connecting to a computer The battery pack can be charged by connecting the camera to a computer using a micro USB cable.

• Note the following points when charging via a computer: – If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time. – Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. That may cause the camera to malfunction. Before turning on/ off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer. – No guarantees are made for charging using a custom-built computer or a modified computer. Notes To a USB jackGB

Battery life and number of images that can be recorded and played back

• The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.

• The number of images that can be recorded is for shooting under the following conditions: – Using Sony “Memory Stick PRO Duo” (Mark2) media (sold separately) – The battery pack is used at an ambient temperature of 25°C (77°F). – [Display Quality] is set to [Standard]

• The number for “Shooting (still images)” is based on the CIPA standard, and is for shooting under the following conditions: (CIPA: Camera & Imaging Products Association) – DISP is set to [Display All Info.]. – Shooting once every 30 seconds. – The zoom is switched alternately between the W and T ends. – The flash strobes once every two times. – The power turns on and off once every ten times.

• The numbers of minutes for movie shooting are based on the CIPA standard, and are for shooting under the following conditions: – [ Record Setting]: 60i 17M(FH)/50i 17M(FH) – Typical movie shooting: Battery life based on repeatedly starting/stopping shooting, zooming, turning on/off, etc. – Continuous movie shooting: Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then continued by pressing the MOVIE button again. Other functions, such as zooming, are not operated. Battery life Number of images Shooting (still images) LCD screen Approx. 210 min. Approx. 420 images Viewfinder Approx. 170 min. Approx. 340 images Typical movie shooting LCD screen Approx. 70 min. — Viewfinder Approx. 70 min. — Continuous movie shooting LCD screen Approx. 145 min. — Viewfinder Approx. 145 min. — Viewing (still images) Approx. 315 min. Approx. 6300 images NotesGB

Inserting a memory card (sold separately)

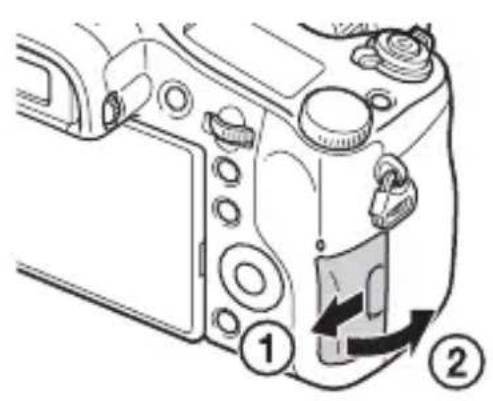

Insert the memory card (sold separately).

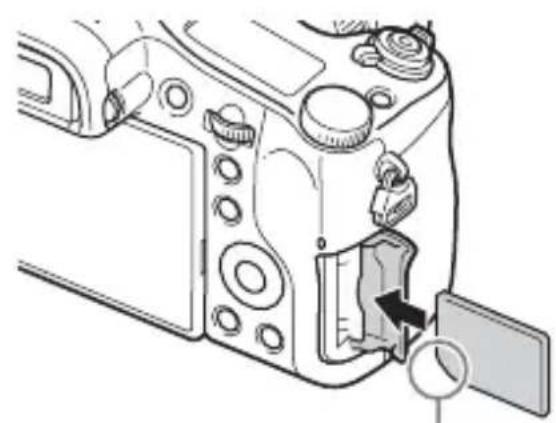

• With the notched corner facing as illustrated, insert the memory card until it clicks into place.

Close the cover. Ensure the notched corner faces correctly.GB

Memory cards that can be used

• In this manual, the products in the table are collectively referred to as follows: A: “Memory Stick PRO Duo” media B: “Memory Stick Micro” media C: SD card D: microSD memory card

• When using “Memory Stick Micro” media or microSD memory cards with this camera, make sure to use with the appropriate adaptor.

To remove the memory card/battery pack Memory card: Push the memory card in once to eject the memory card. Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

• Never remove the memory card/battery pack when the access lamp (page 9) is lit. This may cause damage to data in the memory card. Memory card For still images For movies

Memory Stick XC-HG Duo Memory Stick PRO Duo (Mark2 only) Memory Stick PRO-HG Duo B Memory Stick Micro (M2) (Mark2 only)

SD memory card (Class 4 or faster) SDHC memory card (Class 4 or faster) SDXC memory card (Class 4 or faster)

microSD memory card (Class 4 or faster) microSDHC memory card (Class 4 or faster) microSDXC memory card (Class 4 or faster) Notes NotesGB

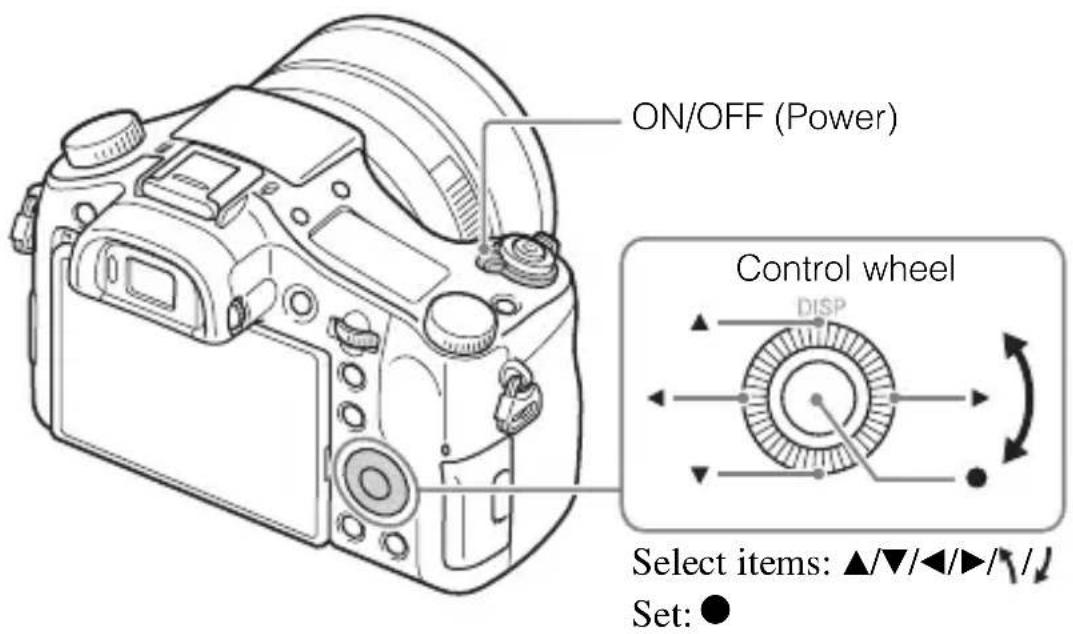

Set the ON/OFF (Power) switch to ON. Date & Time setting is displayed when you turn on the camera for the first time.• It may take time for the power to turn on and allow operation.

Check that [Enter] is selected on the screen, then press z on the control wheel.

Select a desired geographic location by following the on-screen instructions, then press z.

• When setting [Date/Time], midnight is 12:00 AM, and noon is 12:00 PM.

Check that [Enter] is selected, then press z. Control wheelON/OFF (Power) Select items: v/V/b/B// Set: zGB

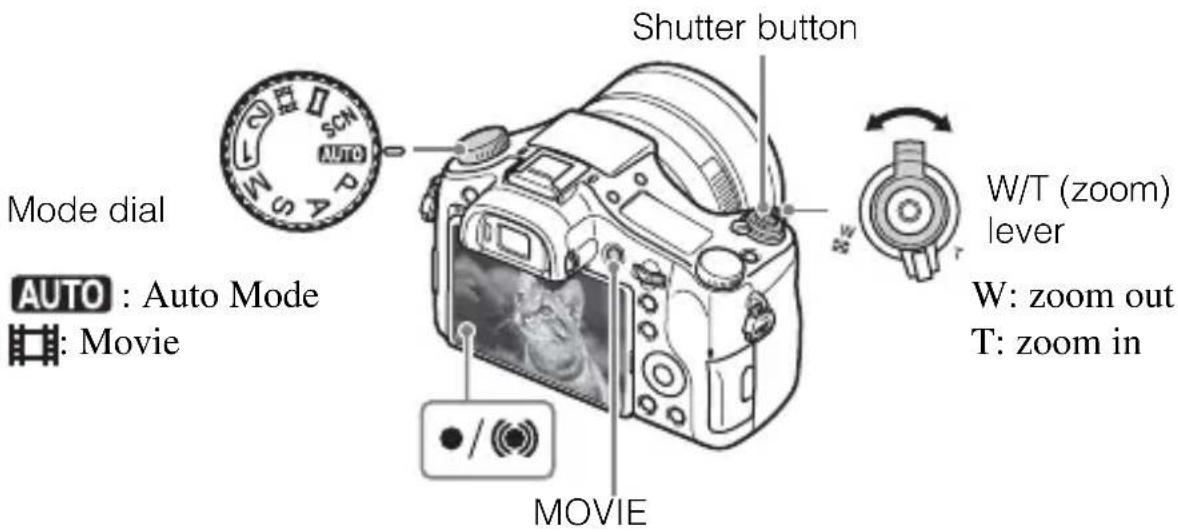

Shooting still images Shooting movies

• Do not pull up the flash manually. This may cause a malfunction.• When using the zoom function while shooting a movie, the sound of the camera operating will be recorded. The sound of the MOVIE button operating may also be recorded when movie recording is finished.• Continuous movie shooting is possible for approximately 29 minutes at one time with the camera’s default settings and when the ambient temperature is approximately 25°C (77°F). When movie recording is finished, you can restart recording by pressing the MOVIE button again. Recording may stop to protect the camera depending on the ambient temperature. Shooting still images/movies

Press the shutter button halfway down to focus. When the image is in focus, a beep sounds and the z or indicator lights.

Press the shutter button fully down to shoot an image.

Press the MOVIE (Movie) button to start recording.

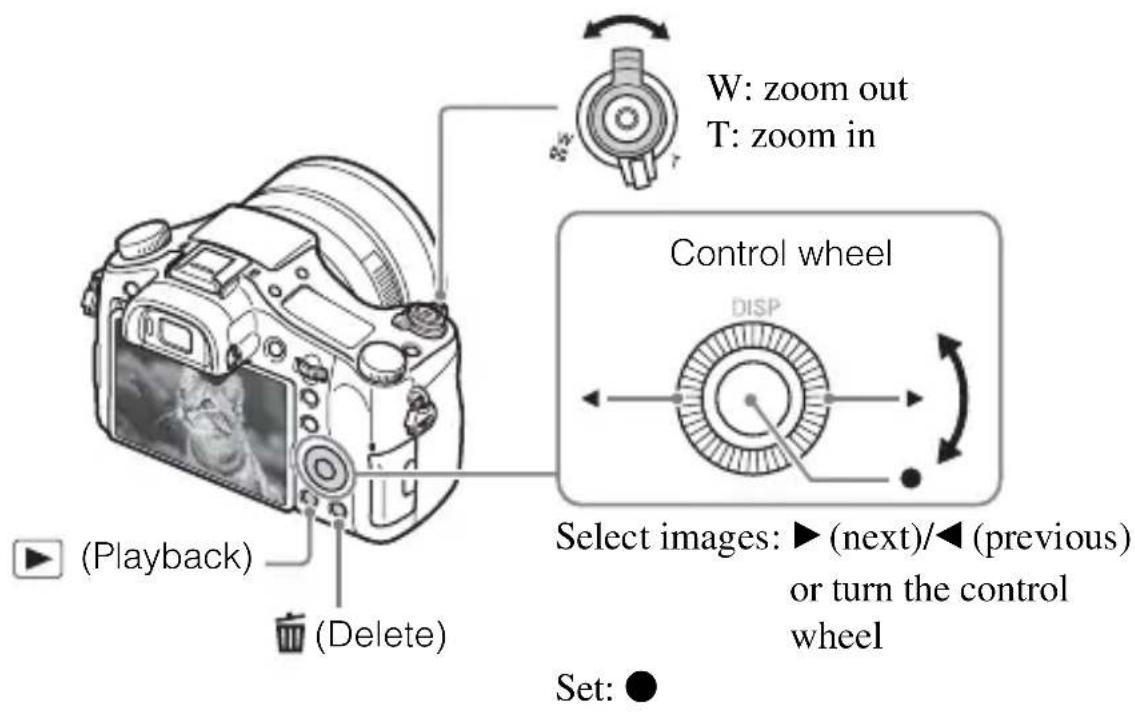

Selecting next/previous image Select an image by pressing B (next)/b (previous) on the control wheel or by turning the control wheel. Press z in the center of the control wheel to view movies.

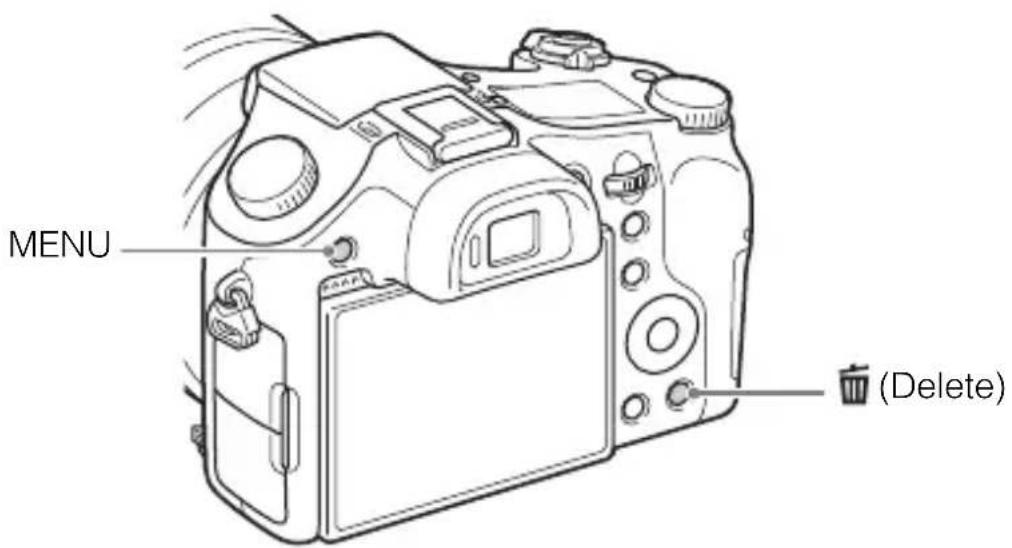

Deleting an image 1 Press the (Delete) button. 2 Select [Delete] with v on the control wheel, then press z.

Returning to shooting images Press the shutter button halfway down. Viewing images

Press the (Playback) button. (Delete)Control wheel (Playback)W: zoom outT: zoom in Select images: B (next)/b (previous) or turn the control wheelSet: zGB

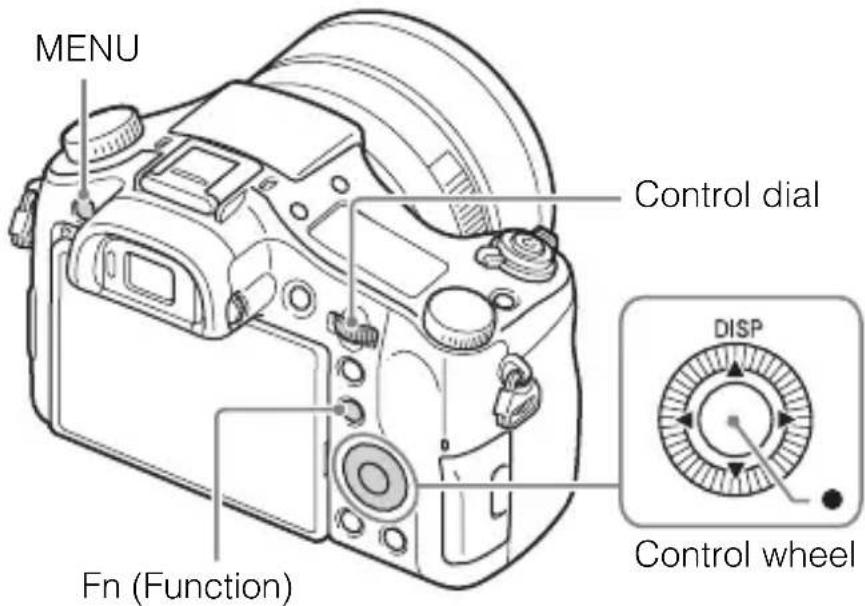

Other functions can be operated using the control wheel, MENU button, etc.

Control wheel DISP (Display Contents): Allows you to change the screen display. z (Eye AF): Focuses on a person’s eyes when you press the button. Shoot images by pressing the shutter button while z is being pressed.

Fn (Function) button Allows you to register 12 functions and recall those functions when shooting. 1 Press the Fn (Function) button. 2 Select the desired function by pressing v/V/b/B on the control wheel. 3 Select the setting value by turning the control wheel.

Control dial You can instantly change the appropriate setting for each shooting mode just by turning the control dial. Introduction of other functions Control dial Control wheel Fn (Function) MENUGB

Menu Items (Camera Settings) Image Size Selects the size of still images. Aspect Ratio Selects the aspect ratio for still images. Quality Sets the image quality for still images. Panorama: Size Selects the size of panoramic images. Panorama: Direction Sets the shooting direction for panoramic images. File Format Selects the movie file format. Record Setting Selects the size of the recorded movie frame. Drive Mode Sets the drive mode, such as for continuous shooting. Flash Mode Sets the flash settings. Flash Comp. Adjusts the intensity of flash output. Red Eye Reduction Reduces the red-eye phenomenon when using flash. Focus Area Selects the area of focus. AF Illuminator Sets the AF illuminator, which provides light for a dark scene to aid focusing. ISO Adjusts the luminous sensitivity. ND Filter Sets the function that reduces the amount of light. You can set to a slower shutter speed, reduce the aperture value, etc. Metering Mode Selects the metering mode that sets which part of the subject to measure to determine the exposure. White Balance Adjusts color tones of an image. DRO/Auto HDR Compensates automatically for brightness and contrast. Creative Style Selects the desired image processing. Picture Effect Selects the desired effect filter to achieve a more impressive and artistic expression. Focus Magnifier Enlarges the image before shooting so that you can check the focus in detail. Long Exposure

Sets noise reduction processing for shots with a shutter speed of 1/3 second or longer.GB

High ISO NR Sets noise reduction processing for high-sensitivity shooting. Lock-on AF Sets the function to track subject and continue focusing. Smile/Face Detect. Selects to detect faces and adjust various settings automatically. Sets to automatically release the shutter when a smile is detected. Soft Skin Effect Sets the Soft Skin Effect and the effect level. Auto Obj. Framing Analyzes the scene when capturing faces, close-ups, or subjects tracked by Lock-on AF function, and automatically trims and saves another copy of the image with a more impressive composition. Auto Mode You can shoot selecting either Intelligent Auto or Superior Auto. Scene Selection Selects pre-set settings to match various scene conditions. Movie Selects the exposure mode to suit your subject or effect. SteadyShot Sets SteadyShot for shooting still images. Reduces blur from camera shake when shooting while holding the camera. SteadyShot Sets SteadyShot for shooting movies. Color Space Changes the range of reproducible colors. Auto Slow Shut. Sets the function that automatically adjusts the shutter speed following the brightness of the environment. Audio Recording Sets whether to record audio when shooting a movie. Audio Rec Level Adjusts the audio recording level during movie recording. Audio Out Timing Sets the timing of audio output during the movie recording. Wind Noise Reduct. Reduces wind noise during movie recording. Memory Registers the desired modes or camera settings.GB

(Custom Settings) Zebra Displays stripes to adjust brightness. MF Assist Displays an enlarged image when focusing manually. Focus Magnif. Time Sets the length of time the image will be shown in an enlarged form. Grid Line Sets a grid line display to enable alignment to a structural outline. Audio Level Display Sets whether or not to display the audio level on the screen. Auto Review Sets auto review to display the captured image after shooting. DISP Button Sets the screen display modes that can be selected by pressing DISP on the control wheel. Peaking Level Enhances the outline of in-focus ranges with a specific color when focusing manually. Peaking Color Sets the color used for the peaking function. Exposure Set. Guide Sets the guide displayed when exposure settings are changed in the shooting screen. Live View Display Sets whether or not to reflect settings such as exposure compensation in screen display. Pre-AF Sets whether or not to perform auto focus before the shutter button is half pressed. Zoom Setting Sets whether to use the Clear Image Zoom and Digital Zoom when zooming. FINDER/MONITOR Sets the method for switching between the viewfinder and screen. AEL w/ shutter Sets whether to perform AEL when the shutter button is half pressed. Exp.comp.set Sets whether to reflect exposure compensation value to flash compensation. Bracket order Sets order of shooting for exposure bracket and white balance bracket. Face Registration Registers or changes the person to be given priority in the focus.GB

(Wireless) Write Date Sets whether to record a shooting date on the still image. Function Menu Set. Customizes the functions displayed when the Fn (Function) button is pressed. Custom Key Settings Assigns a desired function to the button and dial. Zoom Func. on Ring Sets the zooming function of the manual ring. When you select [Step], you can move the zoom position to a fixed step of the focal length. MOVIE Button Sets whether to always activate the MOVIE button. Dial/Wheel Lock Sets whether to disable the control dial and the control wheel temporarily by using the Fn button when shooting. You can disable/enable the control dial and the control wheel by pressing and holding down the Fn button. Send to Smartphone Transfers images to display on a smartphone. Send to Computer Backs up images by transferring them to a computer connected to a network. View on TV You can view images on a network-enabled TV. Ctrl w/ Smartphone Shoots still images by controlling the camera remotely by a smartphone. Airplane Mode You can set this device to not perform wireless communications. WPS Push You can register the access point to the camera easily by pushing the WPS button. Access Point Set. You can register your access point manually. Edit Device Name You can change the device name under Wi-Fi Direct, etc. Disp MAC Address Displays the MAC address of the camera. SSID/PW Reset Resets the SSID and password of smartphone connection. Reset Network Set. Resets all network settings.GB

(Playback) (Setup) Delete Deletes an image. View Mode Sets the way in which images are grouped for playback. Image Index Displays multiple images at the same time. Display Rotation Sets the playback direction of the recording image. Slide Show Shows a slide show. Rotate Rotates the image. Enlarge Image Enlarges the playback images. 4K Still Image PB Outputs still images in 4K resolution to an HDMI- connected TV that supports 4K. Protect Protects the images. Specify Printing Adds a print order mark to a still image. Monitor Brightness Sets the screen brightness. Viewfinder Bright. When using an electronic viewfinder, sets the brightness of the electronic viewfinder. Finder Color Temp. Sets the color temperature of the viewfinder. Volume Settings Sets the volume for movie playback. Audio signals Sets the operating sound of the camera. Upload Settings Sets the upload function of the camera when using an Eye-Fi card. Tile Menu Sets whether to display the tile menu every time you press the MENU button. Mode Dial Guide Turns the mode dial guide (the explanation of each shooting mode) on or off. Delete confirm. Sets which Delete or Cancel is preselected in the Delete confirmation screen. Display Quality Sets the display quality. Pwr Save Start Time Sets the length of time until the camera turns off automatically.GB

PAL/NTSC Selector (only for 1080 50i compatible models) By changing the TV format of the device, shooting in a different movie format is possible. Demo Mode Sets demonstration playback of a movie to on or off. HDMI Resolution Sets the resolution when the camera is connected to an HDMI TV.

Operates the camera from a TV that supports “BRAVIA” Sync. HDMI Info. Display Selects whether or not to display information to the TV while connected to an HDMI compatible TV. USB Connection Sets the USB connection method. USB LUN Setting Enhances compatibility by limiting the functions of the USB connection. Language Selects the language. Date/Time Setup Sets date and time, and daylight savings. Area Setting Sets the location of use. Format Formats the memory card. File Number Sets the method used to assign file numbers to still images and movies. Select REC Folder Changes the selected folder for storing images. New Folder Creates a new folder for storing still images and movies (MP4). Folder Name Sets the folder format for still images. Recover Image DB Recovers the image database file and enables recording and playback. Display Media Info. Displays the remaining recording time of movies and the recordable number of still images on the memory card. Version Displays the camera software version. Setting Reset Restores settings to their defaults.GB

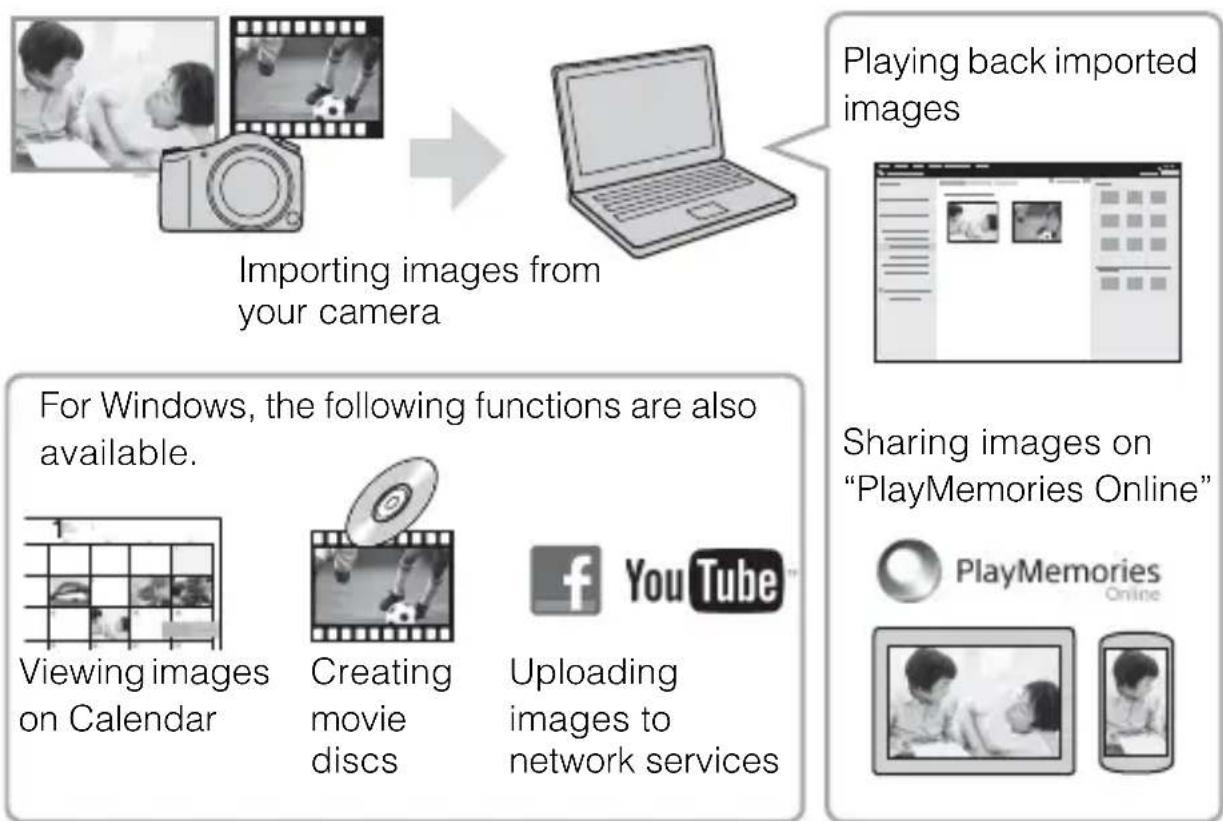

The software “PlayMemories Home” allows you to import still images and movies to your computer and use them. “PlayMemories Home” is required for importing AVCHD movies to your computer.

• An Internet connection is required to install “PlayMemories Home”.• An Internet connection is required to use “PlayMemories Online” or other network services. “PlayMemories Online” or other network services may not be available in some countries or regions.• Refer to the following URL for Mac software:http://www.sony.co.jp/imsoft/Mac/• If the software “PMB (Picture Motion Browser),” supplied with models released before 2011, has already been installed on your computer, “PlayMemories Home” will overwrite it and will be installed. Use “PlayMemories Home,” the successor software of “PMB.” Features of “PlayMemories Home” NotesImporting images from your cameraSharing images on “PlayMemories Online”Uploading images to network servicesCreating movie discsViewing images on CalendarFor Windows, the following functions are also available.Playing back imported images z Installing “PlayMemories Home” You can install “PlayMemories Home” from the following URL:www.sony.net/pm/GB

Installing “PlayMemories Home” on a computer

• Do not disconnect the micro USB cable (supplied) from the camera while the operating screen or the accessing screen is displayed. Doing so may damage the data.• To disconnect the camera from the computer, click on the tasktray, then click (disconnect icon). For Windows Vista, click on the tasktray.

Using the Internet browser on your computer, go to the following URL, and then click [Install] t [Run]. www.sony.net/pm/

Follow the instructions on the screen to complete the installation.

• For details on “PlayMemories Home”, refer to the following PlayMemories Home support page (English only): http://www.sony.co.jp/pmh-se/ Notes z Adding available functions to “PlayMemories Home” When you connect the camera to your computer, functions may be added to “PlayMemories Home.” We recommend that you connect the camera to your computer even if “PlayMemories Home” is already installed on your computer.To a USB jackTo the Multi TerminalGB

Below are examples of the functions available when you use “Image Data Converter”. • You can edit RAW images using multiple correction functions, such as tone curve or sharpness.• You can adjust images using white balance, brightness and Creative Style, etc.• You can save displayed and edited still images to your computer.There are two ways to save RAW images: save and leave as RAW data or save in a general-purpose file format.• You can display and compare the RAW images/JPEG images that are shot with this camera.• You can rank images in five levels.• You can set the color label.

Viewing “Image Data Converter Guide” For details on how to use “Image Data Converter,” refer to the “Image Data Converter Guide.” Features of “Image Data Converter”

• For Windows 8, start “Image Data Converter Ver.4” t In the menu bar, choose “Help” t “Image Data Converter Guide.”• For details on “Image Data Converter,” you can also refer to the camera’s “Help Guide” (page 2) or the following “Image Data Converter” support page (English only):http://www.sony.co.jp/ids-se/GB

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images [ Image Size]: L: 20M When [ Aspect Ratio] is set to [3:2]*

• When the [ Aspect Ratio] is set to other than [3:2], you can record more pictures than shown above. (Except when [ Quality] is set to [RAW].)

Movies The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes (a product specification limit). The maximum continuous recording time of an MP4 (12M) format movie is about 15 minutes (limited by the 2 GB file size restriction). (h (hour), m (minute)) Number of still images and recordable time of movies Capacity Quality 2 GB Standard 295 images Fine 170 images Extra fine 125 images RAW & JPEG 58 images RAW 88 images Capacity Record Setting 2 GB 60i 24M(FX)/50i 24M(FX) 10 m 60i 17M(FH)/50i 17M(FH) 10 m 60p 28M(PS)/50p 28M(PS) 9 m 24p 24M(FX)/25p 24M(FX) 10 m 24p 17M(FH)/25p 17M(FH) 10 m 1440×1080 12M 15 m VGA 3M 1 h 10 mGB

• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings. Functions built into this camera

• This manual describes 1080 60i-compatible devices and 1080 50i-compatible devices. To check whether your camera is a 1080 60i-compatible device or 1080 50i- compatible device, check for the following marks on the bottom of the camera. 1080 60i-compatible device: 60i 1080 50i-compatible device: 50i

• This camera is compatible with 1080 60p or 50p-format movies. Unlike standard recording modes up to now, which record in an interlacing method, this camera records using a progressive method. This increases the resolution, and provides a smoother, more realistic image. On use and care Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens. Notes on recording/playback

• Before you start recording, make a trial recording to make sure that the camera is working correctly.

• This camera is designed to be dust and moisture-resistant, but is not waterproof or splash-proof.

• Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.

• If moisture condensation occurs, remove it before using the camera.

• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged. Do not use/store the camera in the following places

• In an extremely hot, cold or humid place In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.

• Storing under direct sunlight or near a heater The camera body may become discolored or deformed, and this may cause a malfunction.

• In a location subject to rocking vibration Notes on using the cameraGB

• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.

• In sandy or dusty places Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired. Carl Zeiss lens The camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp images with excellent contrast. The lens for the camera has been produced under a quality assurance system certified by Carl Zeiss in accordance with the quality standards of Carl Zeiss in Germany. Notes on the screen, electronic viewfinder and lens

• The screen and electronic viewfinder are manufactured using extremely high- precision technology, and over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen and electronic viewfinder. These dots are a normal result of the manufacturing process, and do not affect the recording.

• Take care that your fingers or other objects are not caught in the lens when it is operating. Notes on shooting with the viewfinder This camera is equipped with an Organic Electro-Luminescence viewfinder with high resolution and high contrast. This viewfinder achieves a wide viewing angle and a long eye relief. This camera is designed to provide an easily viewable viewfinder by appropriately balancing various elements.

• The image may be slightly distorted near the corners of the viewfinder. This is not a malfunction. When you want to check every detail of the entire composition, you can also use the LCD screen.

• If you pan the camera while looking into the viewfinder or move your eyes around, the image in the viewfinder may be distorted or the color of the image may change. This is a characteristic of the lens or display device and is not a malfunction. When you shoot an image, we recommend that you look at the center area of the viewfinder. Notes on the flash

• Do not carry the camera by the flash unit, or use excessive strength on it.

• If water, dust or sand get into the open flash unit, it may cause a malfunction.

• Take care that your finger is not in the way when pushing the flash down. On camera’s temperature Your camera and battery may get hot due to continuous use, but it is not a malfunction.GB

On the overheat protection Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies. On charging the battery If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity. This is due to the battery characteristics, and is not a malfunction. Charge the battery again. Warning on copyright Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws. No guarantee in the case of damaged content or recording failures Sony cannot provide a guarantee in the case of failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc. Cleaning the camera surface Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing: – Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide. Maintaining the screen

• Hand cream or moisturizer left on the screen may dissolve its coating. If you get any on the screen, wipe it off immediately.

• Wiping forcefully with tissue paper or other materials can damage the coating.

• If fingerprints or debris are stuck to the screen, we recommend that you gently remove any debris and then wipe the screen clean with a soft cloth. Notes on wireless LAN We assume no responsibility whatsoever for any damage caused by unauthorized access to, or unauthorized use of, destinations loaded on the camera, resulting from loss or theft. Notes on disposal/transfer of the camera To protect personal data, perform the following when disposing of or transferring the camera.

• Reset all camera settings by performing [Setting Reset] (page 28).

• Delete all registered people’s faces from [Face Registration] (page 25).GB

Camera [System] Image device: 13.2 mm × 8.8 mm (1.0 type) Exmor R CMOS sensor Total pixel number of camera: Approx. 20.9 Megapixels Effective pixel number of camera: Approx. 20.2 Megapixels Lens: Carl Zeiss Vario-Sonnar T

8.3× zoom lens f = 8.8 mm – 73.3 mm (24 mm – 200 mm (35 mm film equivalent)) F2.8 While shooting movies (16:9): 26 mm – 212 mm

When [ SteadyShot] is set to [Standard] SteadyShot: Optical Exposure control: Automatic exposure, Aperture priority, Shutter priority, Manual exposure, Scene Selection White balance: Automatic, Daylight, Shade, Cloudy, Incandescent, Fluorescent (Warm White/ Cool White/Day White/Daylight), Flash, Color temperature/Color filter, Custom File format: Still images: JPEG (DCF, Exif, MPF Baseline) compliant, RAW (Sony ARW 2.3 Format), DPOF compatible Movies (AVCHD format): AVCHD format Ver. 2.0 compatible Video: MPEG-4 AVC/H.264 Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator

• Manufactured under license from Dolby Laboratories. Movies (MP4 format): Video: MPEG-4 AVC/H.264 Audio: MPEG-4 AAC-LC 2ch Recording media: “Memory Stick PRO Duo” media, “Memory Stick Micro” media, SD cards, microSD memory cards Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto): Approx. 1.0 m to 10.2 m (3.28 ft. to 33.46 ft.) [Input and Output connectors] HDMI connector: HDMI micro jack Multi Terminal*: USB communication USB communication: Hi-Speed USB (USB 2.0) Microphone jack: 3.5 mm Stereo mini jack Headphones jack: 3.5 mm Stereo mini jack

• Supports Micro USB compatible device. [Viewfinder] Type: Electronic viewfinder Total number of dots: 1 440 000 dots Frame coverage: 100% Magnification: 0.70 × (35 mm-format equivalent) with 50 mm lens at infinity, –1 m

(diopter) SpecificationsGB

Eye point: Approx. 23 mm from the eyepiece, 21.5 mm from the eyepiece frame at –1 m

(diopter) Diopter adjustment: –4.0 m

(diopter) [Screen] LCD screen:

7.5 cm (3.0 type) TFT drive

Total number of dots: 1 228 800 dots [Power, general] Power: Rechargeable battery pack NP-FW50, 7.2 V AC Adaptor AC-UB10/UB10B/ UB10C/UB10D, 5 V Power consumption: Approx. 2.1 W (during shooting with the LCD screen) Approx. 2.7 W (during shooting with the viewfinder) Operating temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F) Dimensions (CIPA compliant):

129.0 mm × 88.1 mm × 102.2 mm

(5 1/8 inches × 3 1/2 inches × 4 1/8 inches) (W/H/D) Mass (CIPA compliant) (Approx.): 813 g (1 lb 12.7 oz) (including NP- FW50 battery pack, “Memory Stick PRO Duo” media) Microphone: Stereo Speaker: Monaural Exif Print: Compatible PRINT Image Matching III: Compatible [Wireless LAN] Supported standard: IEEE 802.11 b/g/n Frequency: 2.4GHz Supported security protocols: WEP/

(1 5/16 inches × 3/4 inches × 1 13/16 inches) (W/H/D) Design and specifications are subject to change without notice.GB
