USER MANUAL ARM 3400 BOSCH
OBJ DOKU-35583-005.6m Page 1 Thursday, January 14, 2016 1:12 PM
70538 Stuttgart
GERMANY
www.bosch-garden.com
F 016 L81 374 (2015.03) C / 208 EURO
ARM
33|34|34R|1300-34R|3400|36|37|37R|1400-37R|3700
BOSCH
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=w
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montage und Betrieb
www.bosch-garden.com

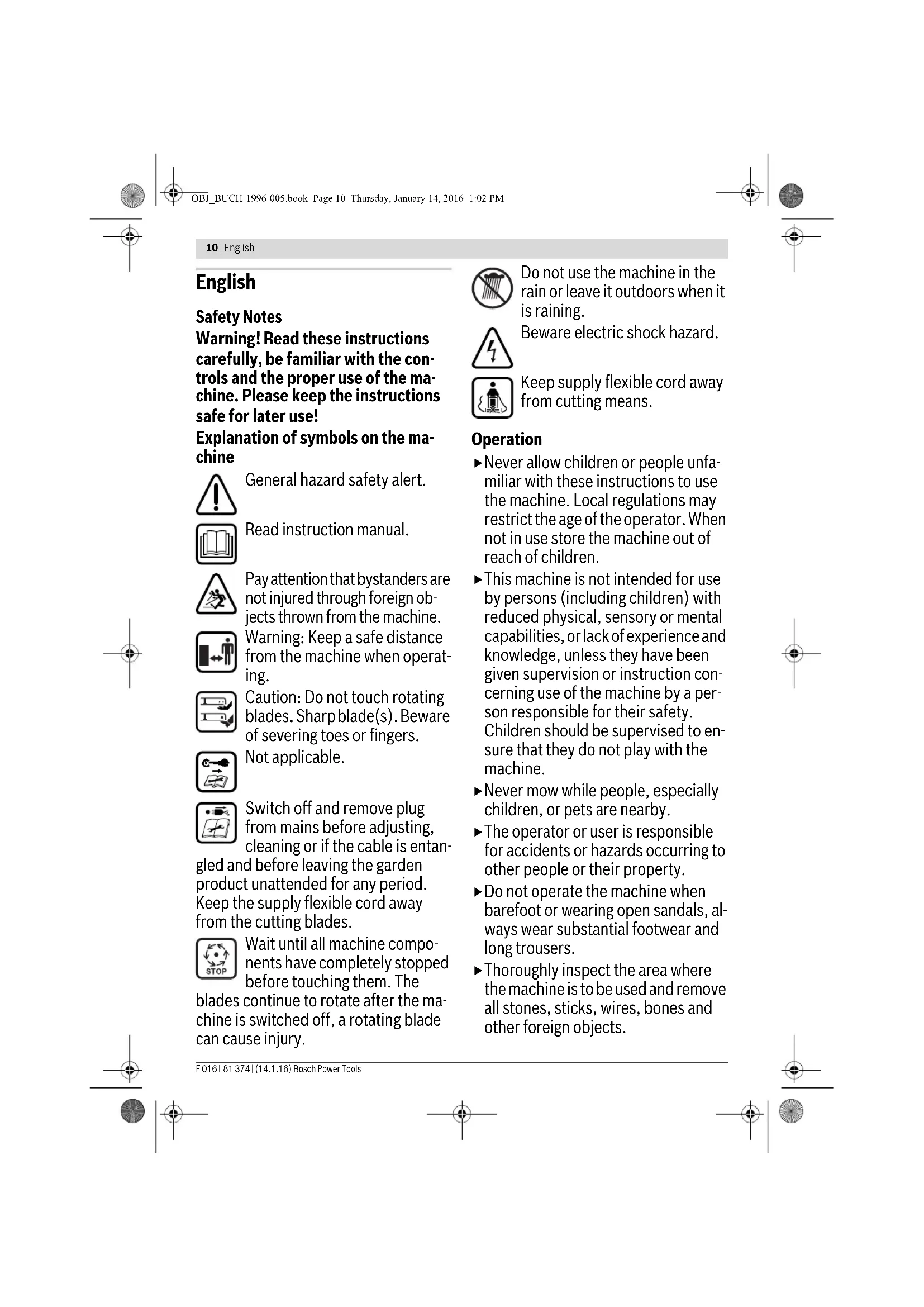

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!
Explanation of symbols on the machine
General hazard safety alert.
Read instruction manual.
Pay attention that bystanders are not injured through foreign objects thrown from the machine.
Warning: Keep a safe distance from the machine when operating.
Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.
Not applicable.
Switch off and remove plug from mains before adjusting, cleaning or if the cable is entan-
gled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting blades.
Wait until all machine components have completely stopped before touching them. The
blades continue to rotate after the machine is switched off, a rotating blade can cause injury.
Do not use the machine in the rain or leave it outdoors when it is raining.
Beware electric shock hazard.
Keep supply flexible cord away from cutting means.
Operation
▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children.
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
▶ Never mow while people, especially children, or pets are nearby.
▶The operator or user is responsible for accidents or hazards occurring to other people or their property.
▶ Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
▶ Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects.
English | 11
▶ Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
▶ Mow only in daylight or in good artificial light.
- Avoid mowing in bad weather conditions especially when there is a risk of lightning.
- Avoid operating the machine in wet grass, where feasible.
▶ Walk, never run.
▶ Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place.
▶ Always wear ear protection.

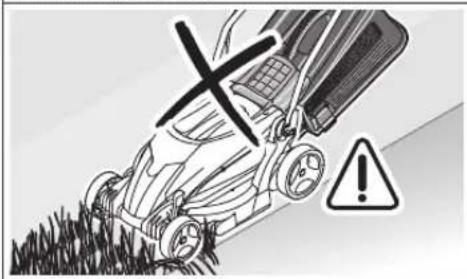

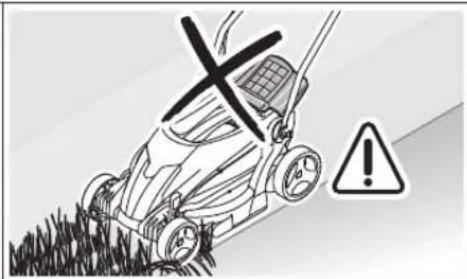

▶ Working on banks can be dangerous.
- Do not mow on excessively steep slopes.
- Always be sure of your footing on slopes or wet grass.

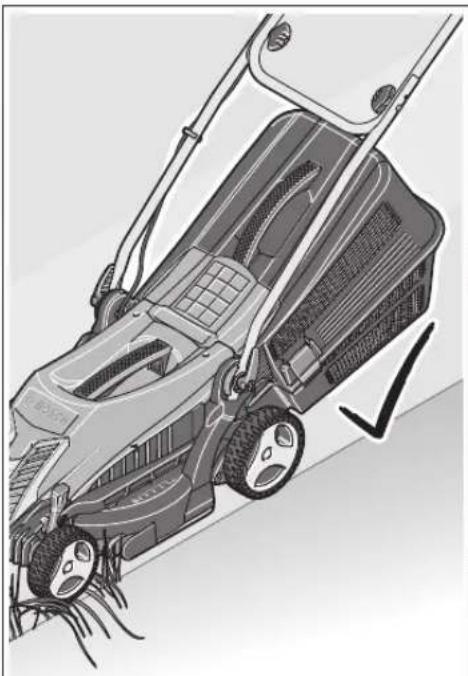

- Mow across the face of slopes - never up and down.
- Exercise extreme caution when changing direction on slopes.
▶ Use extreme caution when stepping back or pulling the machine towards you.
▶ Never mow by pulling the mower towards you.
▶ Wait until the blades stop if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.
▶ Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.
▶ Switch on the motor according to the instructions with feet well away from rotating parts.
▶ Do not put hands or feet near or under rotating parts.
▶ Always stand clear of the discharge zone when operating the machine.
▶ Never pick up or carry the machine while the motor is running.
▶ Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
▶ Regularly inspect the supply cable and any extension cables. Do not connect damaged cables to the supply or touch a damaged cable before it is disconnected from the supply. A damaged cable can lead to contact with live parts. Beware electric shock hazard.
Remove the plug from the socket:
- Whenever you leave the machine.
– before clearing a blockage,
– before checking, cleaning or working on the machine,
12 | English
– after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
- if the machine starts to vibrate abnormally (check immediately).
Connecting to the mains
▶The voltage indicated on the rating plate must correspond to the voltage of the power source.
▶ We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
▶ Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer. See the operating instructions for the order no. and types.
▶ Never touch the mains plug with wet hands.
▶ Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.
▶ Always wear gardening gloves when handling or working near the sharp blades.
Electrical Safety
▶ Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
▶The blades continue to rotate for a few seconds after the machine is switched off.
▶ Caution – do not touch the rotating blade.
Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 VAC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.
Extension cords/leads should only be used if they comply with H05VV-F, H05RN-F types or IEC type design (60227 IEC 53, 60245 IEC 57).
If you want to use an extension cable when operating your product, only the following cable dimensions should be used:
- 1.0 mm ^2 : max. length 40 m
- 1.5 mm ^2 : max. length 60 m
- 2.5 mm²: max. length 100 m
Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.
▶WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.
Cable connections should be kept dry and off the ground.
It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.
For products not sold in GB:
WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.
The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.
If the supply cord is damaged, it must be replaced by a Bosch Service Centre.
Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Products sold in AUS and NZ only:
Use a residual current device (RCD) with a rated residual current of 30 mA or less.
Maintenance
▶ Always wear gardening gloves when handling or working near the sharp blades.
- Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
▶ Check the grass catcher frequently for wear or deterioration.
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Ensure replacement cutting means of the right type are used.
▶ Ensure replacement parts fitted are Bosch approved.
▶ Before storage ensure machine is clean and free from debries, if necessary clean with a soft, dry brush.
Symbols
The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.
Symbol Meaning
| Reaction direction | |
| Movement direction | |
| Wear protective gloves |
| Weight | |
| Switching On | |
| Switching Off | |
| Permitted action | |
| Prohibited action | |
| Accessories/Spare Parts |
14 | English
Intended Use
The garden product is intended for domestic lawnmowing.
Technical Data
| Lawnmower ARM 33/ARM 34/ARM 34 R/ | ARM 1300-34 R/ARM 3400 | ARM 36/ARM 37/ARM 37 R/ARM 1400-37 R/ARM 3700 | |
| Article number | 3 600 HA6 1.. 3 600 HA6 2.. | ||
| Rated power input | W 1300 1400 | ||
| Blade width | cm 34 37 | ||
| Height of cut | mm 20 - 70 20 -70 | ||
| Grassbox, capacity | l | 4 | 0 |
| Weight according to EPTA-Procedure 01:2014 | kg 12.0 12.5 | ||
| Protection class | ☐ /II /II | ☐ | |
Serial number see type plate on the garden product
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions.
Malfunctions are not to be expected for system impedances below 0.36 ohm.
Noise/Vibration Information
| Sound emission values determined according to EN 60335-2-77. | 3 600 ... | HA6 1.. | HA6 2.. |
| Typically the A-weighted noise levels of the product are: | |||
| Sound pressure level | dB(A) | 91 | 92 |
| Sound power level | dB(A) | 96 | 96 |
| Uncertainty K | dB | =2 | =1 |
| Wear hearing protection! | |||
| Vibration total values an(triax vector sum) and uncertainty K determined according to EN 60335-2-77: | |||
| Vibration emission value ah | m/s2 | <2.5 | <2.5 |
| Uncertainty K | m/s2 | =1.5 | =1.5 |
Declaration of Conformity C€
| 3 600 ... HA6 1... HA6 2... | |||
| We declare under our sole responsibility that the product described under “Technical data” is in conformity with all relevant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60335-1, EN 60335-2-77, EN 50581.2000/14/EC: Guaranteed sound power level: Conformity assessment procedure according to Annex VI. | dB(A) | 96 | 96 |
Equipment category: 32
Notified body:
SRL, Sudbury, England, Nr. 1088
Technical file (2006/42/EC, 2000/14/EC) at:
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=mc
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
English | 15
Mounting and Operation
| Action Figure Page | |

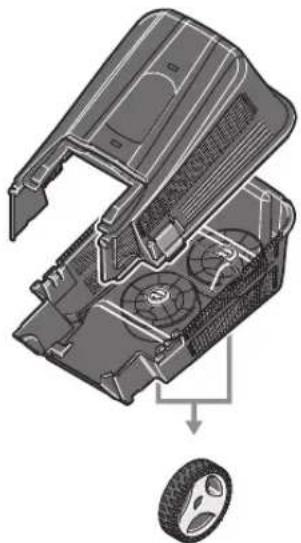

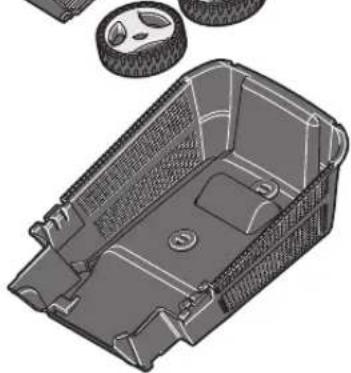

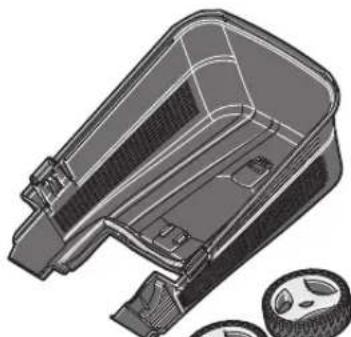

| Delivery Scope | 1 201 |

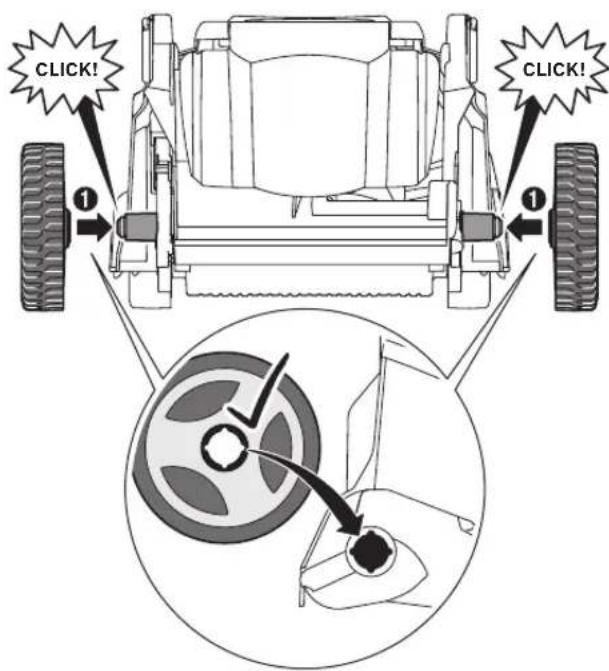

| Wheel Assembly | 2 202 |

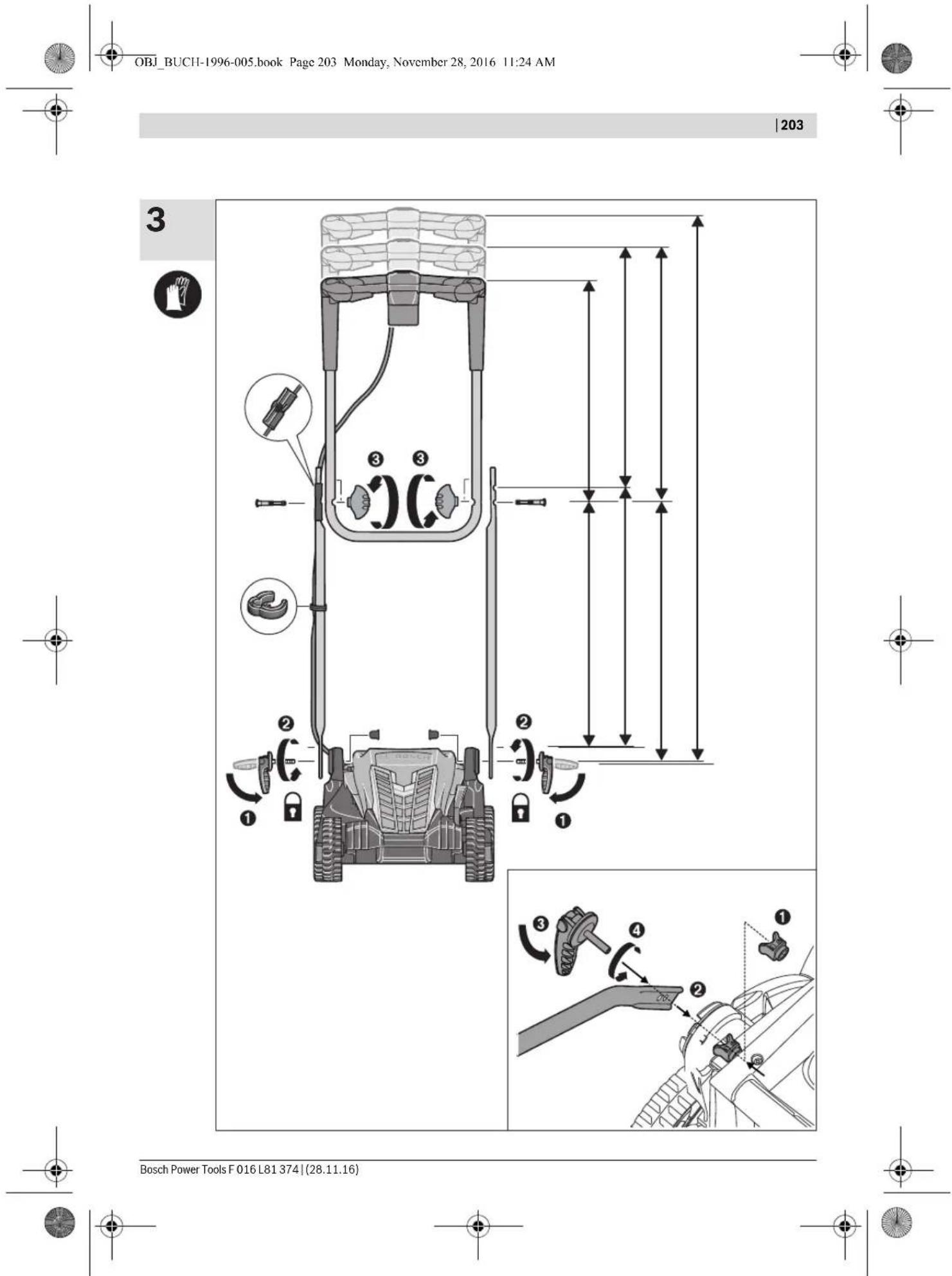

| Handle Assembly | 3 203 |

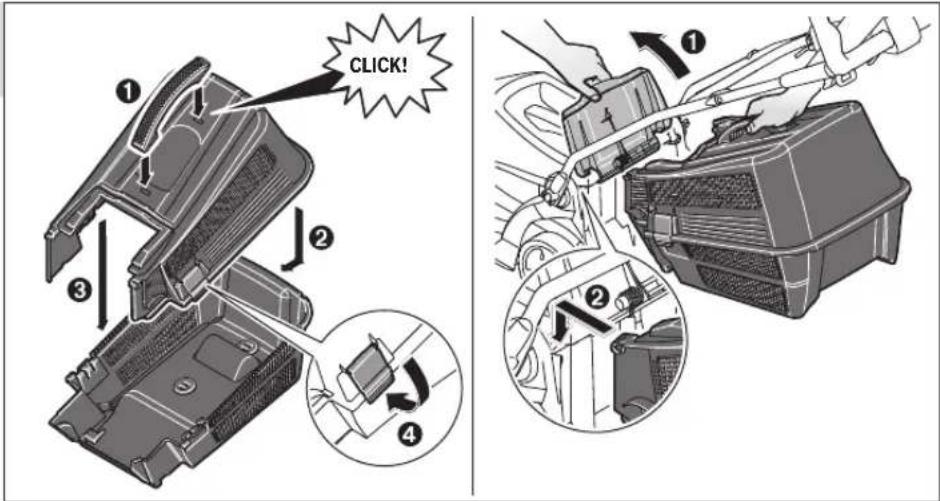

| Snap together the GrassboxGrassbox fitting/removing | 4 204 |

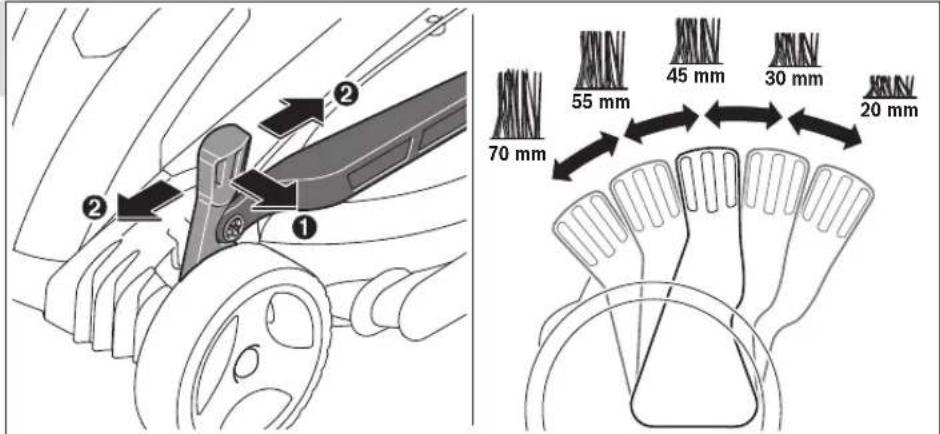

| Adjusting the Cutting Height | 5 204 |
| Action Figure Page | |

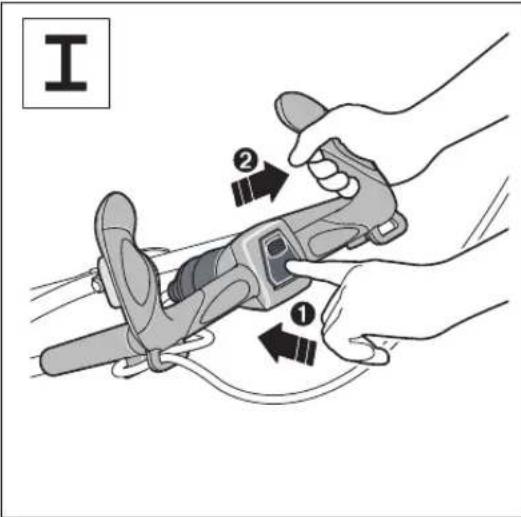

| Starting 6 205 | |

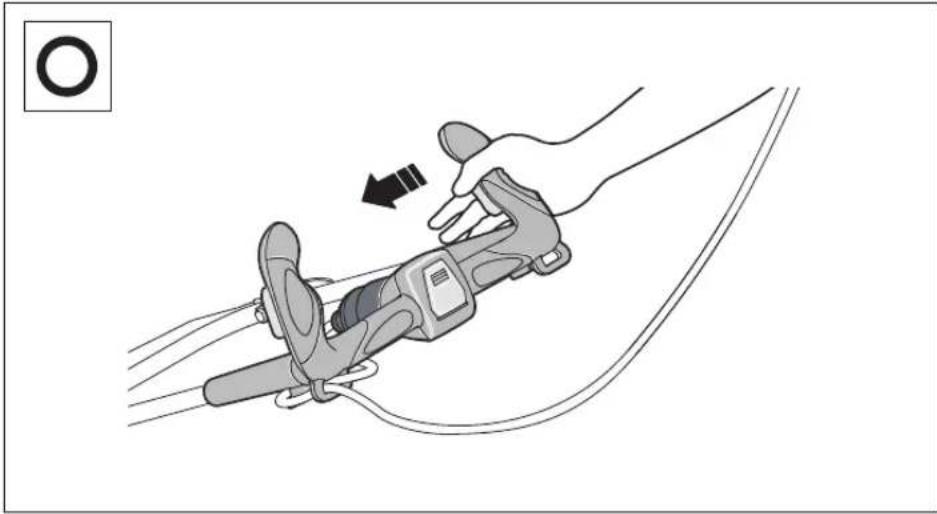

| Stopping | 6 205 |

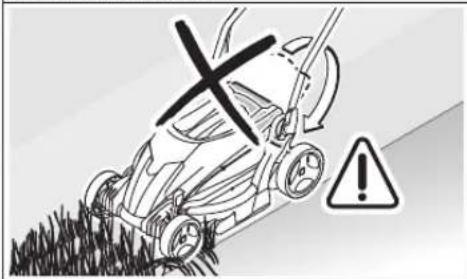

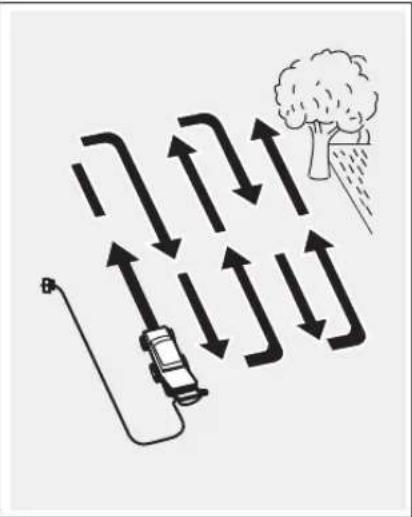

| Working Advice | 7 206 |

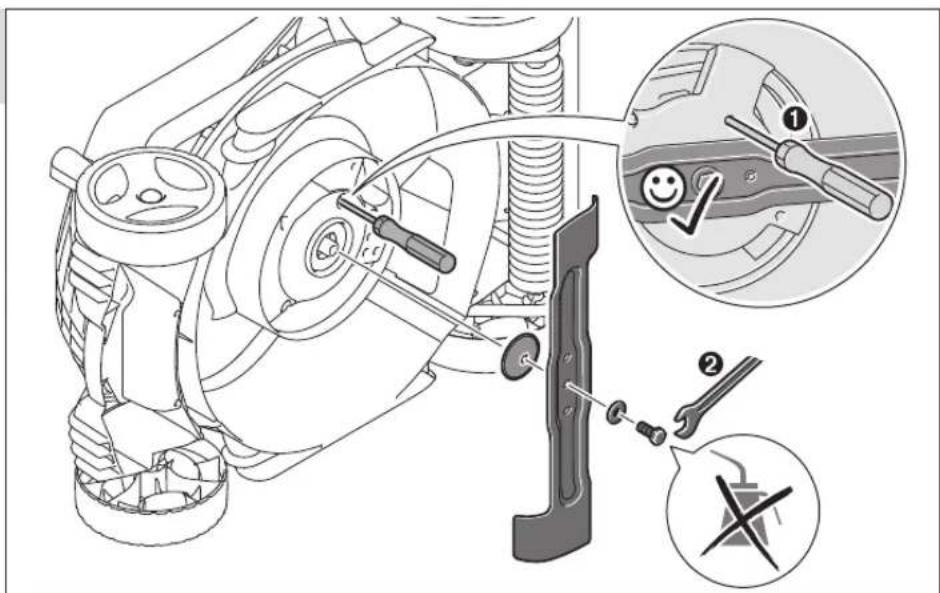

| Blade Maintenance | 8 206 |
| Selecting Accessories | 9 207 |
Troubleshooting
Problem Possible Cause Corrective Action
| Motor refuses to start Power turned off Turn power on | ||
| Mains socket faulty Use another socket | ||
| Extension cable damaged Inspect cable, replace if damaged | ||
| Fuse faulty/blown Replace fuse | ||
| Grass too long Increase height of cut and tilt garden product to reduce starting load | ||

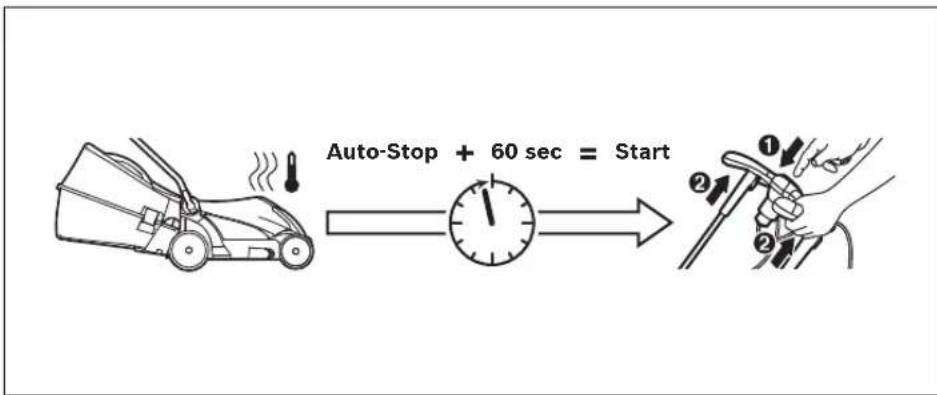

| Motor protector has activated | Allow motor to cool and increase height of cut | |
| Machine functions intermittently | Extension cable damaged Inspect cable, replace if damaged | |
| Internal wiring of machine damaged | Contact Service Agent | |
| Motor protector has activated | Allow motor to cool and increase height of cut | |
| Machine leaves ragged finish and/or Motor labours | Height of cut too low | Increase height of cut |
| Cutting blade blunt Replace the blade | ||
| Possible clogging | Check underneath the garden product and clear out as necessary (always wear protective gloves) | |
| Blade fitted upside down | Refit blade correctly | |
| Blade not rotating while garden product switched on | Cutting blade obstructed | Switch off garden productClear obstruction (always wear protective gloves) |
| Blade nut/bolt loose | Tighten blade nut/bolt (17 Nm) | |
| Excessive vibrations/noise | Blade nut/bolt loose | Tighten blade nut/bolt (17 Nm) |
| Cutting blade damaged | Replace the blade | |
After-sales Service and Application Service
www.bosch-garden.com
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Bosch Power Tools F 016 L81 374 | (14.1.16)
16 | Français
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Disposal
The garden product, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of garden products into household waste!
Only for EC countries:
According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
Français
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=w
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Robert Bosch (France) S.A.S.
| Henk Becker | Helmut Heinzelmann |
| Executive Vice President | Head of Product Certification |
| Engineering | PT/ETM9 |
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montaje y operación
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=w
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic or background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.
38 | Italiano
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montaggio ed uso
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montage en gebruik
www.bosch-garden.com
Teknisk dossier (2006/42/EF, 2000/14/EF) ved:
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
A## B## i.v. H:m
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montering og drift
www.bosch-garden.com
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
jsw Sea i.v. h.w.
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montering och drift
www.bosch-garden.com
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montering og drift
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
jus Bao i.v. h:m
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Asennus ja käyttö
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montaj ve işletim
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=m
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montaż i praca
www.bosch-garden.com
Robert Bosch Sp. z o.o.
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montáž a provoz
www.bosch-garden.com
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montáž a používanie
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
jaw Seo i.v. h:m
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
jaw Beo i.v. h:m
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Awe Beo i.v. h:m
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
jaw Beo i.v. h.w.
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=w
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Tel. service scule electrice: (021) 4057540
Fax: (021) 4057566
E-Mail: infoBSC@ro.bosch.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2.
Stowmarket, Suffolk IP14 1EY, England
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
jaw Beo i.v. h:m
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Монтиране и работа
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Монтажа и користење
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=w
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Srpski | 167
Montaža i Rad
| Cilj rukovanja Slika Strana | |
| Obim isporuke | 1 201 |
| Montaža točkova | 2 202 |
| Montaža rama za prihvat | 3 203 |
| Sastavljanje korpe za prihvatanje trave Ubacivanje/vadjenje korpe za prihvatanje trave 4 204 | |
| Cilj rukovanja Slika Strana | |
| Podešavanje visine sečenja 5 204 | |
| Uključivanje | 6 205 |
| Isključivanje | 6 205 |
| Uputstva za rad | 7 206 |
| Održavanje noža | 8 206 |
| Biranje pribora | 9 207 |
Traženje grešaka
www.bosch-garden.com
Molimo navedie kod svih pitanja i naručivanje rezervnih delova neizostavno broj predmeta sa 10 mesta prema tipskoj tablici baštenskog uredjaja.
Srpski
Bosch-Service
Dimitrija Tucovića 59
11000 Beograd
Tel.: (011) 6448546
Fax: (011) 2416293
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
JwE Bao i.V. H.W.
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Montaža i rad
| Radnja Slika Stranica | |
| Opseg isporuke | 1 201 |
| Montaža kotača | 2 202 |
| Montaža stremena ručke | 3 203 |
| Sastavljanje košare za sakupljanje trave Umetanje/skidanje košare za sakupljanje trave 4 204 | |
| Namještanje visine rezanja | 5 204 |
| Uključivanje | 6 205 |
| Isključivanje | 6 205 |
| Upute za rad | 7 206 |
| Održavanje noževa | 8 206 |
| Biranje pribora | 9 207 |
Traženje greške
www.bosch-garden.com
Kod svih upita i naručivanja rezervnih dijelova molimo neizostavno navedite 10-znamenkasti kataloški broj sa tipske pločice vrtnog uređaja.
Hrvatski
Robert Bosch d.o.o
Kneza Branimira 22
10040 Zagreb
Tel.: (01) 2958051
Fax: (01) 2958050
Zbrinjavanje
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=md
Robert Bosch Power Tools GmbH
70538 Stuttgart, GERMANY
Stuttgart, 01.01.2017
Lietuviškai | 199
www.bosch-garden.com
2x
OBJ_BUCH-1996-005.book Page 202 Monday, November 28, 2016 11:24 AM
202|
2
OBJ_BUCH-1996-005.book Page 203 Monday, November 28, 2016 11:24 AM
| 203
Bosch Power Tools F 016 L81 374 | (28.11.16)
204
4
5
| 205
6
206|
7
8
9
F016800370
F 016 800 343
