Product type	Professional rotary laser level
Brand	Bosch
Model	GRL 150 HV Set 3
Working range (without receiver)	Approx. 30 m
Working range (with LR 1 receiver)	Up to 150 m
Leveling accuracy	< ±0,1 mm/m
Self-leveling range	±8% (±5°)
Leveling time	15 s
Rotation speeds	150 / 300 / 600 rpm
Laser class	2 (635 nm, < 1 mW)
Laser power supply	2 LR20 (D) batteries 1.5 V or 2 NiMH rechargeable batteries 1.2 V (9 Ah)
Battery life (batteries)	Approx. 60 h
Battery life (rechargeable)	Approx. 40 h
Operating temperature	-10 °C to +50 °C
Protection rating	IP54 (dust-proof and splash-proof)
Weight (laser only)	1,8 kg
Dimensions (laser)	183 x 170 x 186 mm
LR 1 laser receiver	Range 150 m, accuracy ±1 mm (fine) / ±3 mm (medium)
Receiver power supply	1 9 V 6LR61 battery
Receiver battery life	Approx. 50 h
Receiver weight	0,36 kg
Charger	100-240 V~, 50/60 Hz, charging time 14 h
Main features	Automatic leveling, shock warning, rotation/lines/points modes, optional remote control
Maintenance	Clean with a soft damp cloth, no solvents
Safety	Laser class 2, do not look into the beam, use only with Bosch accessories
Spare parts / repairability	Repair only by Bosch authorized service center, article number required

Frequently Asked Questions - GRL 150 HV Set 3 BOSCH

How to turn on the GRL 150 HV laser?

Press the On/Off switch (4). The device starts self-leveling. The leveling indicator (3) flashes green and then stays green once leveled. The laser automatically enters rotation mode.

What is the leveling accuracy of this device?

The accuracy is less than ±0.1 mm/m. For a distance of 20 m, the maximum allowable deviation is ±4 mm.

How to use the LR 1 laser receiver?

Place the receiver at least 50 cm from the laser, turn it on with the switch (26). Select the precision (fine/medium) with the button (27). Move the receiver until the center display (e) lights up and a continuous beep sounds.

What to do if the device does not level?

If the leveling indicator (3) stays red, the device is tilted more than 8%. Place it on a stable surface and wait for leveling. If it is out of range for 2 hours, it turns off automatically.

How to change the laser batteries?

Turn the lock (15) of the battery compartment (14) to the open position, remove the compartment, insert two LR20 (D) batteries observing polarity, close and turn the lock to the closed position.

Can I use rechargeable batteries in the laser?

Yes, use NiMH rechargeable batteries type R20 (D) with a capacity of 9 Ah. The supplied charger (21) is suitable for these batteries. Charging time is approximately 14 h.

How to activate the shock warning?

Press the shock warning button (2). The indicator (1) lights up green, then after 30 s, the warning is active. In case of shock, the laser flashes and the indicator flashes red. To reset, press the button (2) again.

How to clean the measuring tool?

Use a soft damp cloth. Do not use detergents or solvents. Clean the laser outlet regularly. Never immerse the tool in water.

Where to find the laser serial number?

The serial number (19) is on the rating plate of the rotary laser. It is required for any spare parts or repair requests.

What to do if the laser is damaged?

Entrust the repair to a Bosch authorized service center. Do not open the device yourself. Use only original spare parts.

USER MANUAL GRL 150 HV Set 3 BOSCH

ORU BUCH-757-004 bank Page 1 Wednesday, December 10, 2008 4:24 PM

Exterior view of a black H250S air filtration device with control panel and sensor buttons (no readable text or symbols)

BOSCH 13 20 R.1 Regulator 4

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

1 609 929 R48 (2008.12) T / 509 XXX

GRL 150 HV Professional LR 1 Professional

BOSCH

The following original

nl Dorspronkeilike

gebruiksaanwijzing

da Original brugsaneisning

sv Bruksanvisning I original

no Original driftsinstruks

reinstructionl original

Exploded view diagram of Bosch industrial sensor components with numbered parts and labels

1 609 929 R48 | (10.12.08) Bosch Power Tools

46 48 38

1 609 929 R48 | (10.12.08) Bosch Power Tools

5

A 37 38 36 33 39 40 41

Close-up of a Bosch F-1250 digital camera module mounted on a flat surface (no visible text or symbols)

Exterior view of a steel-framed ceiling structure with a hanging device and a small inset image (no text or symbols visible)

Interior view of a room with two cameras mounted on a tripod, showing perspective projection lines and measurement scales (no text or symbols)

Diagram showing a 3D cube with internal lines and a ruler, no text or symbols present

Architectural 3D rendering of a two-story building facade with exposed beams and structural framing (no text or symbols)

1 609 929 R48 | (10.12.08) Bosch Power Tools

OBJ_BUCH-757-004.book Page 6 Wednesday, December 10, 2008 4:25 PM

6|

Diagram of a surveying instrument mounted on a tripod in a room, with no visible text or symbols.

Architectural floor plan diagram showing structural connections and supports (no text or labels)

100 m 100 m

Interior view of a room with a camera setup and measurement equipment (no visible text or symbols)

Bosch Power Tools 1 609 929 R48 | (10.12.08)

8 | Deutsch

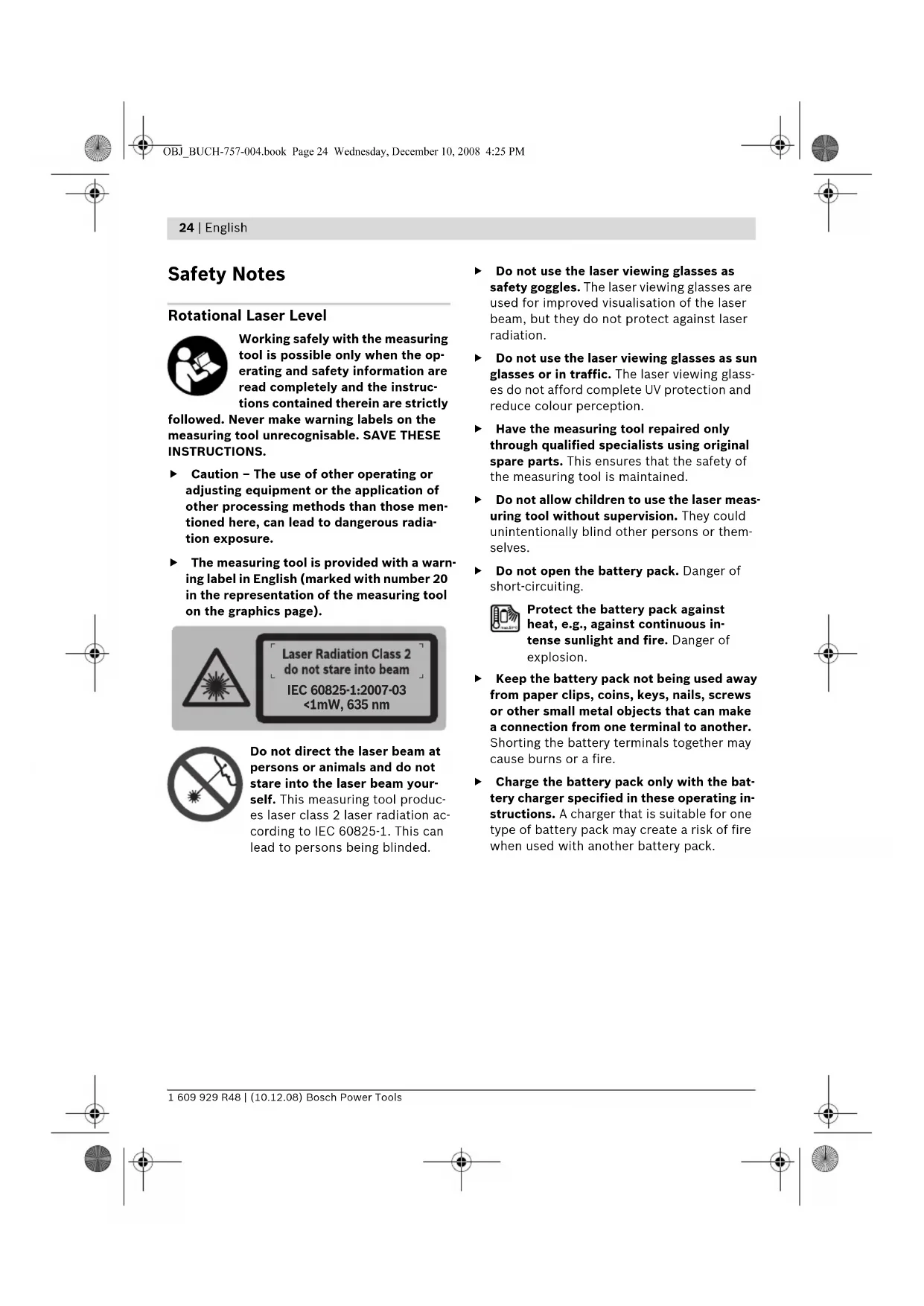

Sicherheitshinweise

Rotationslaser

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. Mauna i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montage

Pure geometric diagram with crosshair and circle shapes without any text or symbols

14 | Deutsch

Pure geometric diagram with crosshair and circle shapes without any text or symbols

20 | Deutsch

Diagram illustrating a measuring technique with ruler and pointer, showing step-by-step measurement of 30 mm height.

Rotational Laser Level

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are strictly

followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS.

▶ Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure.
The measuring tool is provided with a warning label in English (marked with number 20 in the representation of the measuring tool on the graphics page).

Laser Radiation Class 2 do not stare into beam IEC 60825-1:2007-03 <1mW, 635 nm

Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to IEC 60825-1. This can lead to persons being blinded.

▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.
▶ Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.
Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves.
▶ Do not open the battery pack. Danger of short-circuiting.
Protect the battery pack against heat, e.g., against continuous intense sunlight and fire. Danger of explosion.
Keep the battery pack not being used away from paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Charge the battery pack only with the battery charger specified in these operating instructions. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Battery Charger

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.

▶ Do not charge other batteries with the battery charger. The battery charger is only suitable for charging the Bosch battery/battery pack inserted in the rotational laser level. Danger of fire and explosion when charging other batteries/battery packs.
▶ Keep the battery charger clean. Contamination can lead to danger of an electric shock.
Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
▶ Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

Laser Receiver

Working optimally with the measuring tool is possible only when the operating manual and working instructions are read completely, and the instructions contained therein are strictly followed. SAVE THESE INSTRUCTIONS.

Keep the measuring tool away from cardiac pacemakers. The magnet plate 29 generates a field that can impair the function of cardiac pacemakers.

▶ Keep the measuring tool away from magnetic data medium and magnetically-sensitive equipment. The effect of the magnet plate 29 can lead to irreversible data loss.

Functional Description

While reading the operating instructions, unfold the graphics page with the illustration of the rotational laser level, battery charger and laser receiver, and leave it open.

Intended Use

Rotational Laser Level

The measuring tool is intended for determining and checking precise horizontal partitions, vertical lines, building lines and plumb points.

Battery Charger

Use the battery charger only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.

Laser Receiver

The measuring tool is intended for quick finding of rotating laser beams.

26 | English

Product Features

The numbering of the product features refers to the illustration of the rotational laser level, battery charger and laser receiver on the graphics page.

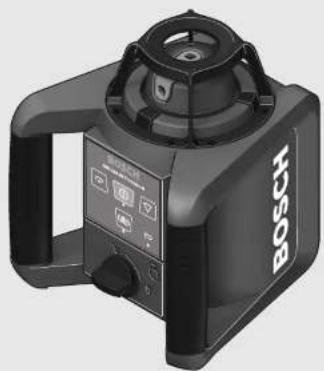

Rotational laser level/Battery charger

1 Shock-warning indicator
2 Shock-warning button
3 Automatic levelling indicator
4 On/Off button of the rotational laser level
5 Button for rotational operation and selection of the rotation speed
6 Variable laser beam
7 Reception lens for remote control
8 Exit opening for laser beam
9 Plumb beam

10 Rotation head

11 Button for line operation and line length selection

12 Charge-control indicator

13 Battery pack*

14 Battery compartment

15 Locking knob of the battery compartment

16 Locking knob of the battery pack*

17 Socket for charge plug*

18 Tripod mount 5/8"

19 Serial number of the rotational laser level

20 Laser warning label

21 Battery charger*

22 Mains plug of the battery charger*

23 Charge connector*

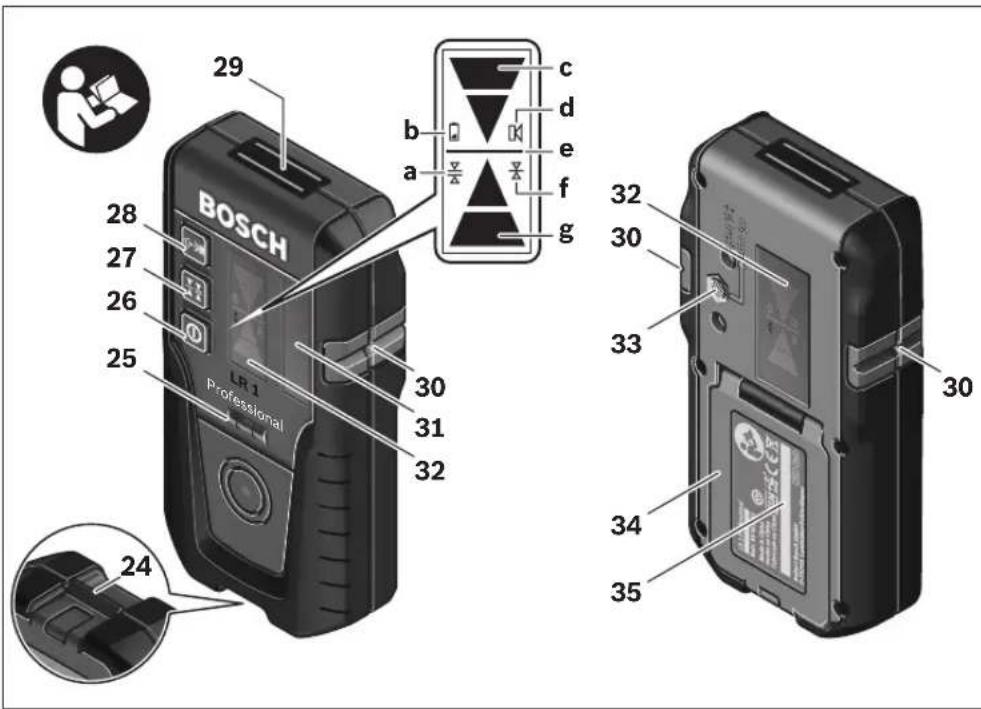

Laser receiver\*

24 Latch of battery lid
25 Laser receiver spirit level
26 On/Off button of laser receiver

27 Button for adjustment of the measuring accuracy
28 Audio signal button
29 Magnet plate
30 Centre mark
31 Reception area for the laser beam
32 Display
33 Retainer openings for holder
34 Battery lid
35 Serial number of laser receiver

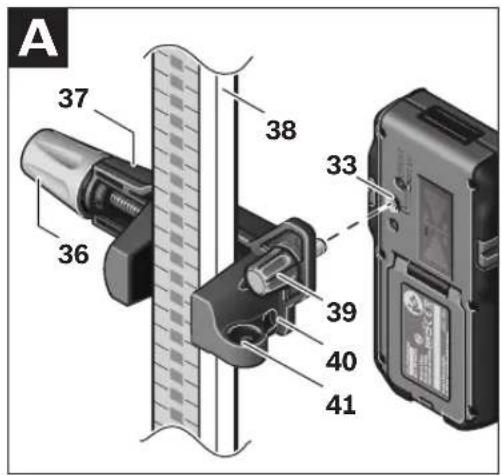

36 Locking screw for holding device
37 Holder upper edge
39 Fastening screw of holder
40 Holder
41 Spirit level holder

Indicator elements of laser receiver

a "Medium" adjustment indicator
b Battery indication
c Direction indicator, up
d Audio signal indicator
e Centre indicator
f "Fine" adjustment indicator
g Direction indicator, down

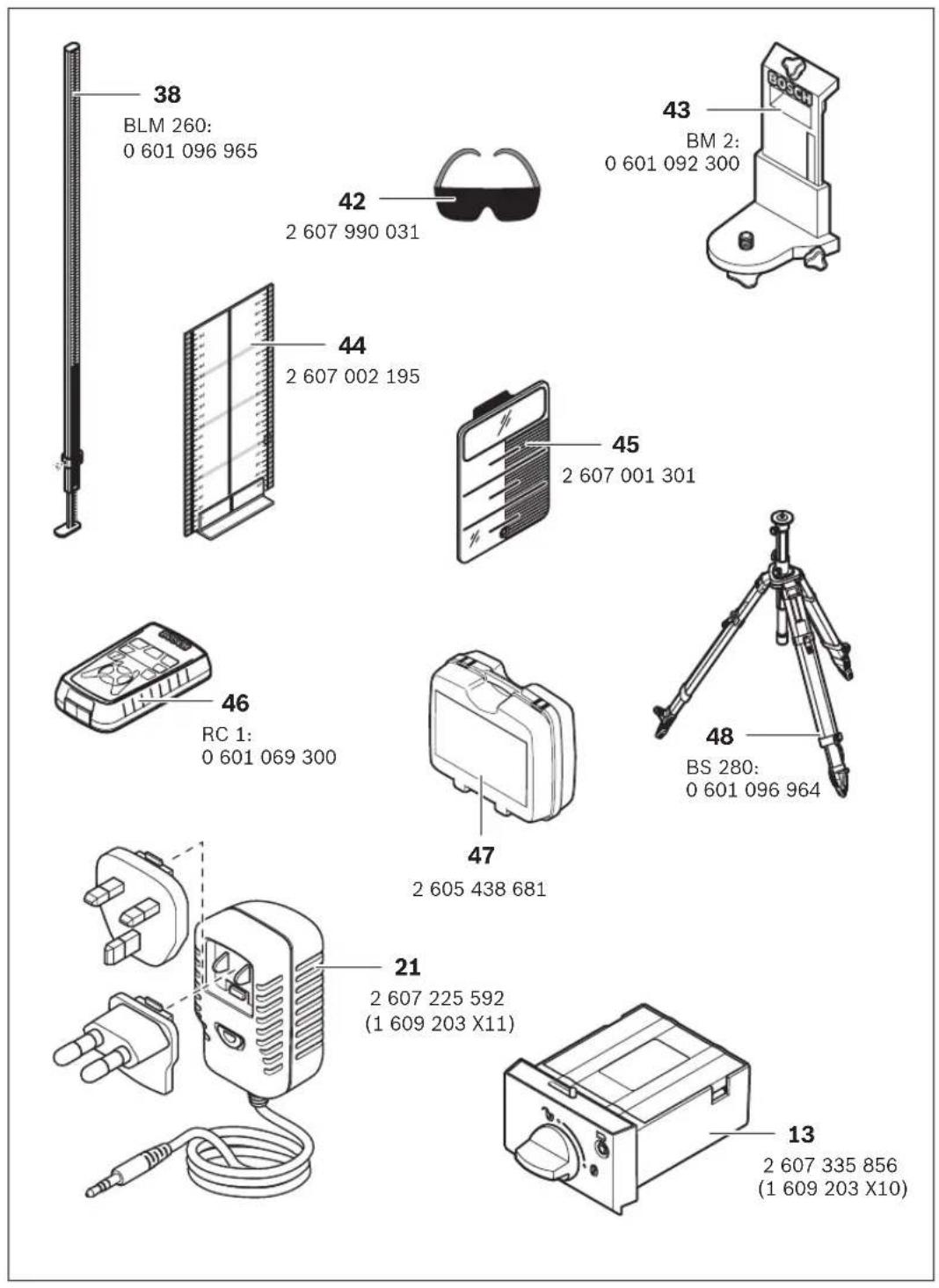

Accessories/Spare parts

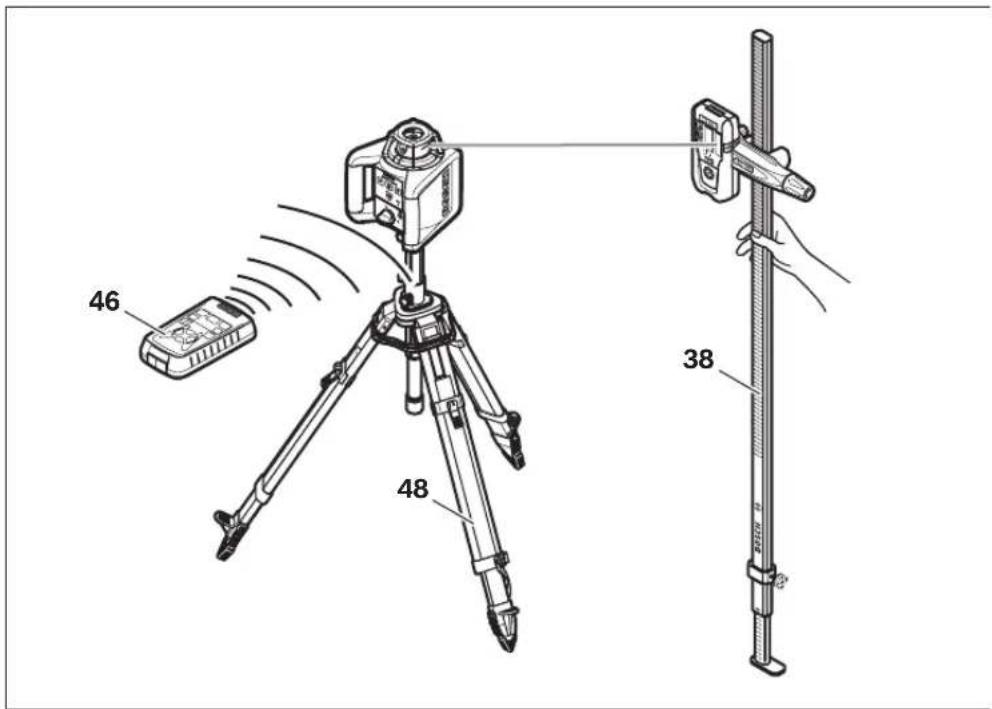

38 Construction laser measuring rod*
42 Laser viewing glasses*
43 Wall holder* (available as of mid 2009)
44 Measurement plate with stand*
45 Ceiling measurement plate*
46 Remote control* (available as of mid 2009)
47 Case

48 Tripod*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

English | 27

Technical Data

Rotational Laser Level GRL 150 HV
	Professional
Article number	3 601 K15 300
Working range (radius)1)
- without laser receiver, approx.	30 m
- with laser receiver, approx.	150 m
Levelling Accuracy1)2)	<± 0.1 mm/m
Self-levelling range, typically	±8% (±5°)
Levelling duration, typically	15 s
Rotational speed	150/300/600 min-1
Operating temperature -10 ... +50 °C
Storage temperature	-20 ... +70 °C
Relative air humidity, max.	90 %
Laser class	2
Laser type	635 nm, <1 mW
Laser beam ∅ at the exit opening, approx.1)	5 mm
Tripod mount (horizontal)	5/8"
Batteries (NiMH)	2 x 1.2 VKR20 (D) (9 A h)
Batteries (alkali-manganese)	2 x 1.5 V LR20 (D)
Operating life time, approx.
- Batteries (NiMH)	40 h
- Batteries (alkali-manganese)	60 h
Weight according to EPTA-Procedure 01/2003	1.8 kg
Dimensions	1 8 3 x 1 7 0 x 1 8 6 mm
Outdoor use possible	●
Degree of protection	IP 54 (dust and splash water protected)
1) at 20 °C
2) alongside the axes
Please observe the article number on the type plate of your rotational laser level. The trade names of individual rotational laser levels may vary.
For clear identification of your rotational laser level, see the serial number 19 on the type plate.

28 | English

Laser Receiver LR 1

	Professional
Article number	3 601 K15 400
Working range ^1)
- with rotational laser level GRL 150 HV	150 m
Receiving angle	120°
Receivable rotation speed	>200 min ^1
Measuring accuracy ^2)
- “Fine” adjustment	± 1 mm
- “Medium” adjustment	± 3 mm
Operating temperature	- 10 °C ... +50 °C
Storage temperature	- 20 °C ... +70 °C
Battery	1 x 9 V 6 L R 6 1
Operating life time, approx.	50 h
Weight according to EPTA-Procedure 01/2003	0.36 kg
Dimensions	148 x 73 x 30 mm
Outdoor use possible	●
Degree of protection	IP 54 (dust and splash water protected)

1) The working range can be decreased by unfavourable environmental conditions (e.g. direct sun irradiation).

2) depends on clearance between laser receiver and rotational laser level

Please observe the article number on the type plate of your laser receiver. The trade names of individual laser receivers may vary.

For clear identification of your laser receiver, see the serial number 35 on the type plate.

Battery Charger

Article number 1 609 203 X11
Rated voltage	V~ 100-240
Frequency	Hz 50/60
Output voltage	V= 7.5
Charging current	A	1.0
Allowable charging temperature range	°C 0-45
Charging time	h	14
Number of battery cells		2
Rated voltage (Rechargeable batteries)	V=	2 x 1.2
Weight according to EPTA-Procedure 01/2003	kg 0.2
Protection class		☐/II

Noise Information

Rotational Laser Level

Measured values determined according to EN 60745.

Typically the A-weighted sound pressure level of the measuring tool is less than 70 dB(A).

Laser Receiver

The A-weighted sound pressure level of the audio signal at one meter distance is 95 dB(A).

Do not hold the measuring tool close to your ear!

Declaration of Conformity CE

Rotational laser level/Battery charger: We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents: EN 61010-1, EN 60825-1 (measurement tool) respectively EN 60950-1 (battery charger) according to the provisions of the directives 2006/95/EC, 2004/108/EC, 98/37/EC (until 28 Dec 2009), 2006/42/EC (from 29 Dec 2009).

Technical file at: Robert Bosch GmbH, PT/ESC, D-70745 Leinfelden-Echterdingen

CE 08

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Amina i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Assembly

Power Supply of the Rotational Laser Level

Operation with Batteries/Rechargeable Batteries

Use only alkali-manganese or rechargeable batteries.

To open the battery compartment 14, turn the locking knob 15 to position and pull out the battery compartment.

When inserting batteries, pay attention to the correct polarity according to the representation on the inside of the battery compartment.

Always replace all batteries at the same time. Only use batteries from one brand and with the identical capacity.

Shut the battery compartment 14 and turn the locking knob 15 to the position.

In case the batteries have been inserted incorrectly, the measuring tool cannot be switched on. Insert the batteries with correct polarity.

Remove the batteries from the measuring tool when not using it for extended periods. When storing for extended periods, the batteries can corrode and discharge themselves.

Operation with Battery Pack

Charge the battery pack 13 before using for the first time. The battery pack can only be charged with the battery charger 21 intended for it.

▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.

Insert the appropriate mains plug 22 for your mains supply into the battery charger 21 and allow it to engage.

Insert the charge plug 23 of the battery charger into the socket connector 17 of the battery pack. Connect the battery charger to the mains supply. Charging the empty battery pack takes approx. 14 h. The battery charger and the battery pack are protected against overcharging.

A battery that is new or has not been used for a longer period does not develop its full capacity until after approx. 5 charging/discharging cycles.

30 | English

Do not charge the battery pack 13 each time after using, otherwise its capacity will be reduced. Charge the battery pack only when the charge-control indicator 12 flashes or lights up continuously.

A considerably reduced operating period after charging indicates that the battery pack is used up and must be replaced.

If the battery pack is empty, the measuring tool can also be operated off of the battery charger 21 when connected to a power supply. Switch the measuring tool off, charge the battery pack for approx. 10 min and then switch the measuring tool on again with the battery charger connected. To change the battery pack 13, turn the locking knob 16 to position and pull out the battery pack 13.

Insert a new battery pack and turn the locking knob 16 to the position.

Remove the battery pack from the measuring tool when not using it for longer periods. When storing for longer periods, the rechargeable batteries can corrode and discharge themselves.

Charge-control Indicator

When the charge-control indicator 12 flashes red for the first time, the measuring tool can still be operated for approx. 2 h.

When the charge-control indicator 12 lights up red continuously, measurements are no longer possible. The measuring tool switches off automatically after 1 minute.

Power Supply of the Laser Receiver

Use only alkali-manganese batteries.

Press the latch 24 of the battery lid outward and open the battery lid 34.

When inserting the battery, pay attention to the correct polarity according to the representation on the inside of the battery compartment.

When the battery indication b appears for the first time on the display 32, the laser receiver can still be operated for approx. 3 h.

Remove the battery from the laser receiver when not using it for longer periods. When storing for longer periods, the battery can corrode and discharge itself.

Operation

Starting Operation of the Rotational Laser Level

• Avoid heavy impact to or falling down of the measuring tool. After severe exterior effects to the measuring tool, it is recommended to carry out an accuracy check (see "Levelling Accuracy of the Rotational Laser Level", page 33) each time before continuing to work.
  Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.

Setting Up the Measuring Tool

Horizontal position

Vertical position

Position the measuring tool on a firm surface in the horizontal or vertical position, mount it to a tripod 48 or to the wall mount 43.

Due to the high levelling accuracy, the measuring tool reacts sensitively to ground vibrations and position changes. Therefore, pay attention that the position of the measuring tool is stable in order to avoid operational interruptions due to re-levelling.

Switching On and Off

Do not direct the laser beam at persons or animals (especially not at their eye level), and do not stare into the laser beam yourself (not even from a distance). Immediately after switching on, the measuring tool sends out the vertical plumb beam 9 and the variable laser beam 6.

For switching on the measuring tool, press the On/Off button 4. The indicators 1, 3 and 12 light up briefly. The measuring tool immediately

starts the automatic levelling. During the levelling, the levelling indicator 3 lights up green and the laser flashes in point operation.

The measuring tool is levelled in as soon as levelling indicator 3 lights up green continuously and the laser beam is steady. After the levelling is completed, the measuring tool automatically starts in rotational operation.

With the operating mode buttons 5 and 11, the operating modes can already be specified during levelling in (see "Operating Modes of the Rotational Laser Level", page 31). In this case, the measuring tool starts in the set operating mode upon completion of levelling in.

To switch off the measuring tool, press the On/Off button 4 again.

To save the batteries, the measuring tool is automatically switched off when not within the self-levelling range for more than 2 h or when the shock warning is actuated for more than 2 h (see "Automatic Levelling of the Rotational Laser Level", page 33). Reposition the measuring tool and switch it on again.

Operating Modes of the Rotational Laser Level

Overview

All three operating modes are possible with the measuring tool in horizontal and vertical position.

Rotational Operation

Rotational operation is especially recommended when using the laser receiver. You can select between different rotational speeds.

Line Operation

In this operation mode, the variable laser beam moves within a limited aperture angle. This increases the visibility of the laser beam in comparison to rotational operation. You can select between different aperture angles.

Point Operation

This operation mode enables the best visibility of the variable laser beam. As an example, it is used for easy projecting of heights or checking building lines.

Rotational Operation (150/300/600 min ^-1 )

Each time after switching on, the measuring tool is in rotational operation mode with average rotational speed.

To switch from line operation to rotational operation, press the rotational operation button 5. Rotational operation starts with average rotational speed.

To change the rotational speed, press the rotational operation button 5 again until the requested speed is reached.

When working with the laser receiver, the highest rotational speed should be set. When working without laser receiver, reduce the rotational speed for improved visibility of the laser beam and use the laser viewing glasses 42.

Line Operation, Point Operation (10°/25°/35°, 0°)

To switch to line or point operation, press the line operation button 11. The measuring tool switches to line operation with the smallest aperture angle.

To change the aperture angle, press the line operation button 11. The aperture angle is increased in two steps; at the same time, the rotational speed is increased with each step. When pressing the line operation button 11 a third time, the measuring tool switches to point operation after brief post-pulsation. Pressing button 11 again takes you back to line operation with the smallest aperture angle.

Note: Due to inertia, it is possible for the laser to slightly move beyond the end point of the laser line.

To position the laser line or the laser point within the rotational plane, manually turn the rotation head 10 to the requested position or use the remote control 46.

Turning the Rotational Plane when in the Vertical Position

When the measuring tool is in the vertical position, it is possible to rotate the laser point, laser line or rotational plane around the vertical axis with help of the remote control 46. For this, observe the operating instructions of the remote control.

32 | English

Starting Operation of the Laser Receiver

▶ Protect the laser receiver against moisture.
▶ Do not subject the laser receiver to extreme temperatures or variations in temperature.

As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the laser receiver to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the laser receiver can be impaired.

Position the laser receiver at least 50 cm away from the rotational laser level. Position the laser receiver in such a manner that the laser beam can reach the reception area 31. Set the highest rotational speed on the rotational laser level.

Switching On and Off

▶ A loud audio signal sounds when switching on the measuring tool. Therefore, keep the laser receiver away from your ear or other persons when switching on. The loud audio signal can cause hearing defects.

To switch on the laser receiver, press the On/Off button 26. Two audio signals sound and all display indicators light up briefly.

To switch off the laser receiver, press the On/Off button 26 again.

When no button is pressed on the laser receiver for approx. 10 minutes and when no laser beam reaches the reception area 31 for 10 minutes, the laser receiver automatically switches off in order to save the battery. The switching off is indicated by an audio signal.

Selecting the Setting of the Centre Indicator

With button 27, you can specify with which accuracy the position of the laser beam is indicated as central on the reception area:

• "Fine" adjustment, (indication f on the display),
• “Medium” adjustment, (indication a on the display).

An audio signal sounds when the accuracy setting is changed.

Whenever switching on the laser receiver, the accuracy level "medium" is set.

Direction Indicators

The bottom g, centre e and top c indicators (both on the front and rear side of the laser receiver) indicate the position of the rotating laser beam in the reception area 31. Additionally, the position can be indicated with an audio signal (see "Audio Signal for Indication of the Laser Beam", page 32).

Laser receiver too low: When the laser beam runs through the top half of the reception area 31, the bottom direction indicator g appears on the display.

When the audio signal is switched on, a slow-beat signal sounds.

Move the laser receiver upward in the direction of the arrow. When approaching the centre mark 30, only the tip of the direction indicator g is indicated.

Laser receiver too high: When the laser beam runs through the bottom half of the reception area 31, the top direction indicator c appears on the display.

When the audio signal is switched on, a fast-beat signal sounds.

Move the laser receiver downward in the direction of the arrow. When approaching the centre mark 30, only the tip of the direction indicator c is indicated.

Laser receiver in centre position: When the laser beam runs through the reception area 31 at the centre mark 30, the centre indicator e lights up. When the audio signal is switched on, a continuous signal sounds.

Audio Signal for Indication of the Laser Beam

The position of the laser beam on the reception area 31 can be indicated via an audio signal.

After the laser receiver has been switched on, the audio signal is always switched off.

When switching on the audio signal, you can choose between two volume levels.

To switch on the audio signal or change the volume level, push the acoustic signal button 28 until the requested volume level is indicated. At medium volume level, the audio signal indicator d in the display flashes; at high volume level, the indicator is continuously lit. When the audio signal is set to off, the indicator goes out.

Automatic Levelling of the Rotational Laser Level

Overview

After switching on, the measuring tool automatically detects the horizontal or vertical position. To change between the horizontal and vertical position, switch the measuring tool off, reposition it and switch on again.

After switching on, the measuring tool checks the horizontal and vertical position and automatically levels out any unevenness within the self-leveling range of approx. 8% ( ±0.8 m/10 m).

When the measuring tool is inclined by more than 8 % after switching on or after a position change, levelling in is no longer possible. In this case, the rotor is stopped, the laser flashes and levelling indicator 3 continuously lights up red. Reposition the measuring tool and wait for it to re-level. Without repositioning, the laser is automatically switched off after 2 minutes and the measuring tool after 2 hours.

When the measuring tool is levelled in, it continuously checks the horizontal and vertical position. Automatic re-levelling takes place after position changes. To avoid faulty measurements, the rotor stops during the levelling process, the laser flashes and the levelling indicator 3 flashes green.

Schock-warning Function

The measuring tool has a shock-warning function; after position changes or shock to the measuring tool, or in case of ground vibrations, it keeps the measuring tool from levelling in at changed heights, and thus prevents vertical errors.

To switch on the shock-warning function, press the shock-warning button 2. The shock-warning indicator 1 continuously lights up green, and the shock-warning function is activated after 30 seconds.

When the levelling-accuracy range is exceeded after a position change of the measuring tool or when heavy ground vibrations are detected, the shock-warning function is actuated: The rotation is stopped, the laser flashes, the levelling indicator 3 goes out and the shock-warning indicator 1 flashes red. The current operating mode is stored.

After the shock-warning function has actuated, press the shock-warning button 2. The shock-warning function is restarted and the measuring tool starts the levelling. As soon as the measuring tool is levelled in (levelling indicator 3 continuously lights up green), it starts in the stored operating mode. Now, check the height of the laser beam with a reference point and correct the height, if required.

When the function is not restarted by pressing button 2 after the shock-warning function has actuated, the laser is automatically switched off after 2 minutes and the measuring tool after 2 hours.

To switch off the shock-warning function, press shock-warning button 2 once, or, when the shock warning is actuated (shock-warning indicator 1 flashing red) press it twice. When the shock-warning function is shut off, the shock-warning indicator 1 goes out.

Levelling Accuracy of the Rotational Laser Level

Influences on Accuracy

The ambient temperature has the greatest influence. Especially temperature differences occurring from the ground upward can divert the laser beam.

The deviations play a role in excess of approx. 20 m measuring distance and can easily reach two to four times the deviation at 100 m.

Because the largest difference in temperature layers is close to the ground, the measuring tool should always be mounted on a tripod when measuring distances exceeding 20 m. If possible, also set up the measuring tool in the centre of the work area.

Accuracy Check of the Measuring Tool

Apart from exterior influences, device-specific influences (such as heavy impact or falling down) can lead to deviations. Therefore, check the accuracy of the measuring tool each time before starting your work.

For the accuracy check, an unobstructed measuring distance of 20 m on firm ground between two walls A and B is required. With the measuring tool in the horizontal position, a transit

34 | English

measurement is to be carried out across both axes X and Y (both positive and negative) (altogether 4 complete measurements).

- Mount the measuring tool in the horizontal position onto a tripod 48 (accessory) or place it on a firm and level surface near wall A. Switch the measuring tool on.

A B I 20 m

- After levelling, direct the laser beam in point operation onto the close wall A. Mark the centre point of the laser beam on the wall (point 1).

A 180° I B II

- Turn the measuring tool around by 180^ , allow it to level in and mark the centre point of the laser beam on the opposite wall B (point II).

- Without turning the measuring tool, position it close to wall B. Switch the measuring tool on and allow it to level in.

A I B II

- Align the height of the measuring tool (using the tripod or by underlaying, if required) in such a manner that the centre point of the laser beam is projected exactly against the previously marked point II on wall B.

A III d I 180° B II

- Rotate the measuring tool by 180^ without changing the height. Allow it to level in and mark the centre point of the laser beam on wall A (point III). Take care that point III is as vertical as possible above or below point I.

- The difference d of both marked points I and III on wall A amounts to the actual deviation of the measuring tool for the measured axis.

Repeat the measuring procedure for the other three axes. For this, turn the measuring tool prior to each measuring procedure by 90°.

On the measuring section of 2 × 20 m = 40 m , the maximum allowable deviation is: 40 m × ± 0.1 mm/m = ± 4 mm .

Consequently, the difference d between points I and III for each of the four individual measurements may not exceed 4 mm max.

If the measuring tool should exceed the maximum deviation in anyone of the four measuring procedures, have it checked at a Bosch after-sales service agent.

Working Instructions for the Rotational Laser Level

▶ Always use the centre of the laser point for marking. The size of the laser point changes with the distance.

Laser Viewing Glasses (Accessory)

The laser viewing glasses filter out the ambient light. This makes the red light of the laser appear brighter for the eyes.

▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

Working with the Remote Control (Accessory)

While pressing the operator buttons, the measuring tool can be brought out of alignment so that the rotation is briefly stopped. This effect is avoided when using the remote control 46.

Reception lenses 7 for the remote control are located on three sides of the measuring tool, among other locations above the control panel on the front side.

Working with the Tripod (Accessory)

The measuring tool is equipped with a 5/8" tripod mount for horizontal operation on a tripod. Place the measuring tool via the tripod mount 18 onto the 5/8" male thread of the tripod and screw the locking screw of the tripod tight.

On a tripod 48 with a measuring scale on the elevator column, the height difference can be adjusted directly.

Working with the Wall Mount (Accessory) (see figure C)

The measuring tool can also be fastened to the wall mount 43. In horizontal operation, the wall mount allows for usage of the measuring tool at any height. In vertical operation, the measuring tool can be fastened to a 5/8" tripod 48.

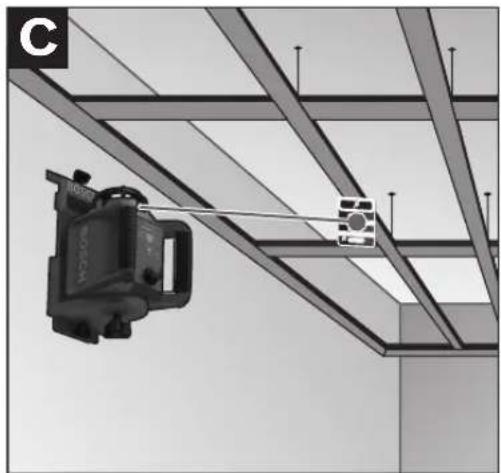

Working with the Ceiling Measurement Plate (see figure C)

As an example, the ceiling measurement plate 45 can be used for easy height adjustment of drop ceilings. Fasten the ceiling measurement plate with the magnetic holder, e.g., to a beam. The reflecting half of the ceiling measurement plate improves the visibility of the laser beam in unfavourable conditions; the laser beam can also be seen from the rear side through the transparent half.

Working with the Measuring Plate (Accessory)

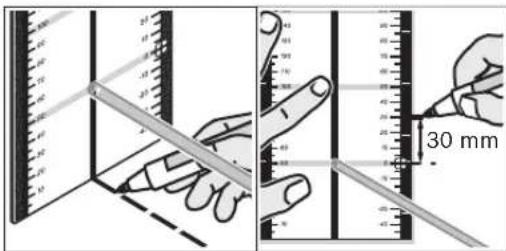

With the measuring plate 44, it is possible to project the laser mark onto the floor or the laser height onto a wall.

Diagram illustrating a ruler measuring the 30 mm height with hand positioning and measurement tool

With the zero field and the scale, the offset or drop to the required height can be measured and projected at another location. This eliminates the necessity of precisely adjusting the measuring tool to the height to be projected.

The measuring plate 44 has a reflective coating that enhances the visibility of the laser beam at greater distances or in intense sunlight. The brightness intensification can be seen only when viewing, parallel to the laser beam, onto the measuring plate.

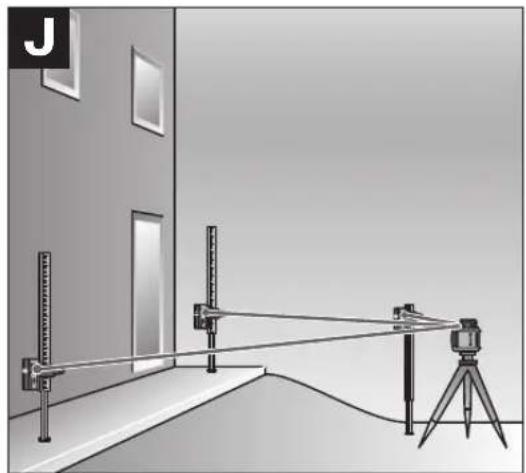

Working with the Measuring Rod (Accessory) (see figure J)

For checking irregularities or projecting gradients, it is recommended to use the measuring rod 38 together with the laser receiver.

0+50 0 0-50 X

A relative millimeter scale ( ±50 cm) is marked on the top of the measuring rod 38. Its zero height (90 to 210 cm) can be preset at the bottom of the elevator column. This allows for direct reading of deviations from the specified height.

36 | English

Working Instructions for the Laser Receiver

Marking

When the laser beam runs through the center of the reception area 31, its height can be marked at the centre mark 30 right and left on the laser receiver. The centre mark is located 45 mm away from the top edge of the laser receiver.

Aligning with the Spirit Level

The laser receiver can be aligned vertically (plumb line) with the spirit level 25. A laser receiver attached out-of-level leads to faulty measurements.

Attaching with the Holder (see figure A)

With the holder 40, the laser receiver can be fastened to a construction laser measuring rod 38 (accessory) as well as to other auxiliary tools with a width of up to 65 mm.

Screw the holder 40 to the retainer opening 33 on the rear side of the measuring tool with fastening screw 39.

Loosen the locking screw 36, slide the holder onto the construction laser measuring rod 38, for example, and retighten the locking screw 36.

The holder 40 can be horizontally aligned with help of the spirit level 41.

The upper edge 37 of the holder is located at the same height as the centre mark 30 and can be used for marking of the laser beam.

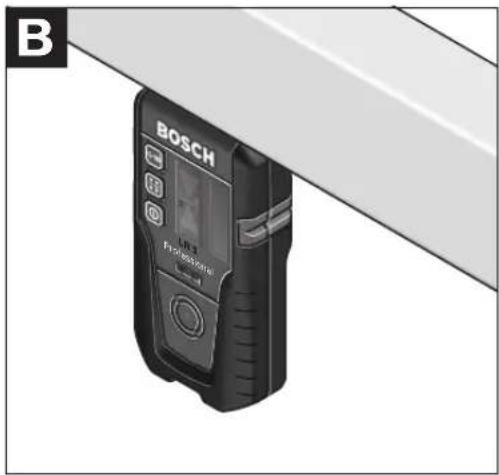

Attaching with the Magnet (see figure B)

When a positive-lock attachment is not absolutely required, the laser receiver can be attached to steel parts via the face side using the magnet plate 29.

Work Examples

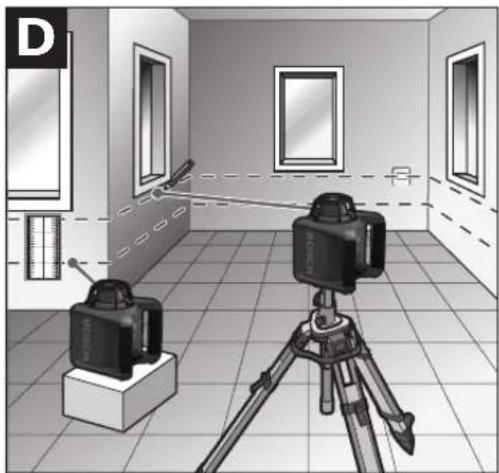

Projecting/Checking Heights (see figure D)

Position the measuring tool in the horizontal position onto a firm support or mount it onto a tripod 48 (accessory).

Working with tripod: Align the laser beam to the requested height. Project or check the height at the target location.

Working without tripod: Determine the height difference between the laser beam and the height at the reference point with help of the measurement plate 44. Project or check the measured height difference at the target location.

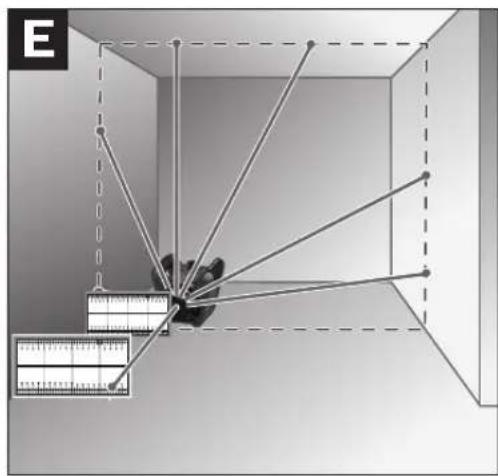

Parallel Alignment of a Plumb Beam/Projecting Right Angles (see figure E)

When right angles are to be projected or when partitions are to be aligned, the plumb beam 9 must be aligned parallel, meaning at the same distance to a reference line (e.g. a wall).

For this, set up the measuring tool in the vertical position and position it in such a manner that the plumb beam runs approximately parallel to the reference line.

For exact positioning, measure the clearance between plumb beam and reference line directly on the measuring tool with help of the measurement plate 44. Measure the clearance between plumb beam and reference line again as far away as possible from the measuring tool.

Align the plumb beam in such a manner that it has the same clearance to the reference line as when measured directly at the measuring tool.

The right angle to the plumb beam 9 is indicated by the variable laser beam 6.

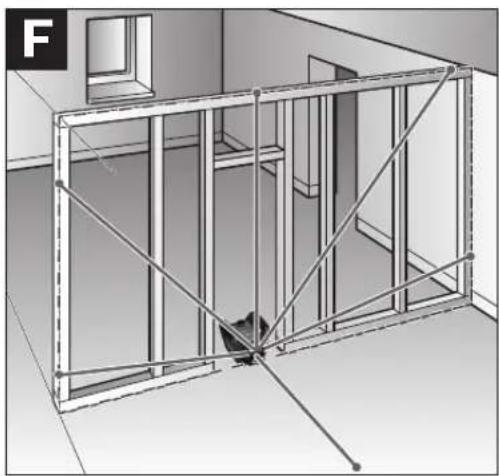

Indicating a Plumb Line/Vertical Plane (see figure F)

To indicate a plumb line or a vertical plane, set up the measuring tool in the vertical position. When the vertical plane is supposed to run at a right angle to a reference line (e.g. a wall), then align the plumb beam 9 with this reference line.

The plumb line is indicated by the variable laser beam 6.

English | 37

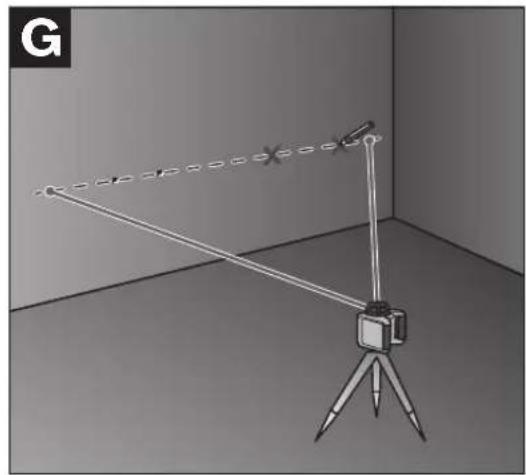

Working without Laser Receiver (see figure G)

Under favourable light conditions (dark environment) and for short distances, it is possible to work without the laser receiver. For better visibility of the laser beam, either select line operation, or select point operation and manually rotate the rotation head 10 to the target location.

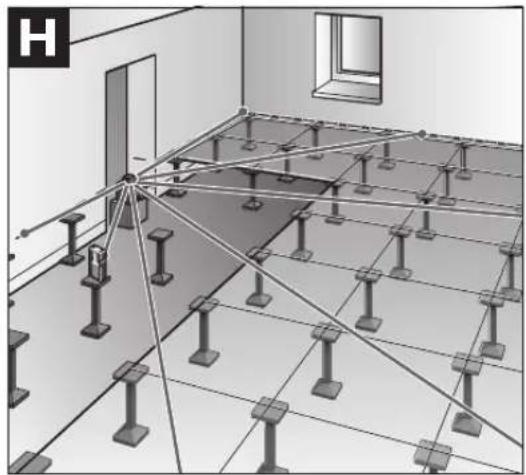

Working with the Laser Receiver (see figure H)

Under unfavourable light conditions (bright environment, direct sunlight) and for larger distances, use the laser receiver for improved finding of the laser beam. When working with the laser receiver, select rotational operation with the highest rotational speed.

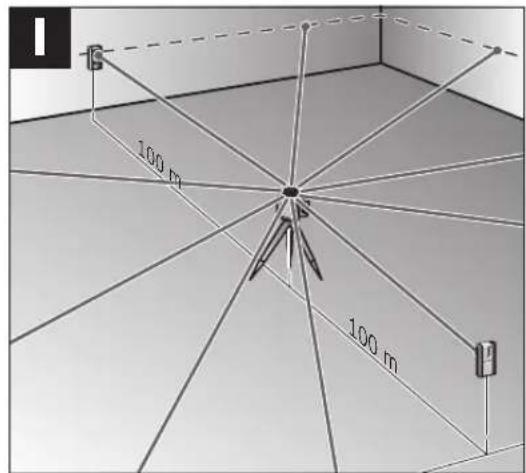

Measuring Over Long Distances (see figure I)

When measuring over long distances, the laser receiver must be used to find the laser beam. In order to reduce interferences, the measuring tool should always be set up in the centre of the work surface and on a tripod.

Working Outdoors (see figure J)

The laser receiver should always be used when working outdoors.

When working on unsafe ground, mount the measuring tool onto the tripod 48. Activate the shock-warning function in order to avoid faulty measurements in case of ground vibrations or shock to the measuring tool.

Overview of Indications

	Laser beam	Rotation of the laser*	green red green red
Switching on the measuring tool(1 s self-check) ●	●		●
Levelling in or re-levelling	2x/s	○	2x/s
Measuring tool levelled in/ready for operation ●		●	●
Self-levelling range exceeded 2x/s ○	●
Shock-warning function activated ●
Shock warning actuated 2x/s ○ 2x/s
Battery voltage for ≤2 h operation			2x/s
Battery empty	○	○	●
	* for line and rotational operation
	2x/s	Flashing frequency (twice per second)
	●	Continuous operation
	○	Function stopped

38 | English

Maintenance and Service

Maintenance and Cleaning

Keep the rotational laser level, battery charger and laser receiver clean at all times.

Do not immerse the rotational laser level, battery charger and laser receiver into water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Particularly clean the surfaces at the outlet opening of the rotational laser level regularly and pay attention for any lint.

If the rotational laser level, battery charger or laser receiver should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for Bosch power tools.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the rotational laser level, battery charger and laser receiver.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

People's Republic of China

Website: www.bosch-pt.com.cn

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: [phone]

Tel.: [phone]

Fax: [phone]

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

Indonesia

PT. Multi Tehaka

Kawasan Industri Pulogadung

Jalan Rawa Gelam III No. 2

Jakarta 13930

Indonesia

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.multitehaka.co.id

Philippines

Robert Bosch, Inc.

Zuellig Building

Sen. Gil Puyat Avenue

Makati City 1200, Metro Manila

Philippines

Tel.: [phone]

www.bosch.com.ph

Malaysia

Robert Bosch (SEA.) Pte. Ltd.

No. 8a, Jalan 13/6

46200 Petaling Jaya,

Selangor,

Malaysia

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Toll Free Tel.: [phone]

Fax: [phone]

www.bosch.com.sg

Thailand

Robert Bosch Ltd.

Liberty Square Building

No. 287, 11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone] - 18 88 (10 lines)

Fax: [phone]

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501, Thailand

Bosch Service – Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Prakanong District

10110 Bangkok

Thailand

Tel.: [phone] - 4

Fax: [phone]

Fax: [phone]

Singapore

Robert Bosch (SEA.) Pte. Ltd.

38 C Jalan Pemimpin

Singapore 915701

Republic of Singapore

Tel.: [phone]

Fax: [phone]

www.bosch.com.sg

Vietnam

Robert Bosch (SEA) Pte. Ltd - Vietnam

Representative Office

Saigon Trade Center, Suite 1206

37 Ton Duc Thang Street,

Ben Nghe Ward, District 1

HCMC

Vietnam

Tel.: [phone]

Fax: [phone]

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

40 | English

Disposal

The rotational laser level, battery charger, laser receiver, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of rotational laser level, battery charger and laser receiver into household waste! According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and

its implementation into national right, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Ni-MH: Nickel metal hydride

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

Subject to change without notice.

1 609 929 R48 | (10.12.08) Bosch Power Tools

Français | 41

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aucuca i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montage

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

52 | Français

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

54 | Français

Diagram illustrating a measurement procedure with ruler and pointer, showing step-by-step alignment and scale adjustment.

Robert Bosch (France) S.A.S.

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Ameka i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaje

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

64 | Español

Pure geometric diagram with crosshair and circle shapes without any text or symbols

66 | Español

Pure geometric diagram with crosshair and circle shapes without any text or symbols

70 | Español

Diagram illustrating a measurement procedure with ruler, pencil, and scale, showing step-by-step alignment and measurement range.

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aneua i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montagem

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

84 | Português

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

86 | Português

Diagram illustrating a ruler measuring the 30 mm height with hand positioning and measurement setup

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aucuca i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaggio

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

100 | Italiano

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

102 | Italiano

Diagram illustrating a ruler measuring the 30 mm height with hand positioning and measurement tools

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

104 | Italiano

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. A##u a i.v. Nu#yen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montage

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

114 | Nederlands

In- en uitschakelen

Pure geometric diagram with crosshair and circle shapes without any text or symbols

116 | Nederlands

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

120 | Nederlands

Pure geometric diagram with crosshair and circle shapes without any text or symbols

122 | Nederlands

18 Stativholder 5/8"

19 Serienummer rotationslaser

20 Laser-advarselsskilt

21 Ladeaggregat*

22 Ladeaggregatets netstik*

23 Ladestik*

Lasermodtager\*

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Amaia i.v. NuOyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montering

Energiforsyning rotationslaser

Pure geometric diagram with crosshair and circle shapes without any text or symbols

130 | Dansk

Pure geometric diagram with crosshair and circle shapes without any text or symbols

132 | Dansk

Nivelleringsautomatik rotationslaser

Oversigt

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

134 | Dansk

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppn. Aneua i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montage

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone]

Fax: [phone]

152 | Svenska

Avfallshantering

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aucuca i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montering

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

160 | Norsk

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

162 | Norsk

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

164 | Norsk

Arbeid med veggholderen (tilbehør) (se bilde C)

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aseata i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Asennus

Diagram illustrating a ruler measuring the 30 mm distance using a pencil, showing step-by-step measurement setup.

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

182 | Suomi

Hävitys

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aneua i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Συναρμολόγηση

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

196 | Ελληνικά

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aneua i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaj

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Pure geometric crosshair symbol with concentric circles and lines, no text or labels present

214 | Türkçe

Tasfiye

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. Avena i.v. Puoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaż

Diagram illustrating a measurement procedure with ruler and pencil, showing step 30 mm for scale adjustment.

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

228 | Polski

Robert Bosch Sp. z o.o.

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Aneka i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montáž

Diagram illustrating a measurement procedure with ruler and scale, showing hand positioning and 30 mm measurement annotation

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Zpracování odpadů

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aetuca i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montáž

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

256 | Slovensky

Diagram illustrating a measuring process with ruler and pencil, showing step-by-step measurement setup with 30 mm scale indicator.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macena i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Összeszerelés

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

278 | Magyar

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. A##u a i.v. Nu#yen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Сборка

Diagram illustrating a ruler measuring the 30 mm height with hand positioning and measurement tools

Pure geometric diagram with crosshair and circle shapes without any text or symbols

292 | Русский

Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification

ppa. Amina i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Монтаж

Pure geometric diagram with crosshair and circle shapes without any text or symbols

308 | Українська

Diagram illustrating a measuring technique with ruler and pointer, showing step-by-step measurement of 30 mm diameter.

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. A##uia i.v. Nu#gen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montare

Alimentarea cu energie a nivelei cu laser Functionare cu baterii/acumulatori

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

324 | Română

Utilizarea plăcii de măsurare (accesoriu)

Diagram illustrating a measuring process with ruler and pencil, showing step-by-step measurement setup with 30 mm scale indicator.

Bosch Service Center

Str. Horia Măcelariu Nr. 30–34,

013937 Bucureşti

Tel. Service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aneua i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Монтиране

Захранване на ротационния лазер

Diagram illustrating a ruler measuring the 30 mm height with hand positioning and measurement tools

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

342 | Български

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. A##u a i.v. Nu#yen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaža

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

352 | Srpski

Vrste rada rotacionog lasera

Pregled

Sve tri vrste rada su moguće u horizontalnom i vertikalnom položaju mernog alata.

Rotacioni rad

Rotacioni rad je posebno preporučljiv pri upotrebi laserskog prijemnika. Možete birati izmedju raznih rotacionih brzina.

Linijski rad

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

354 | Srpski

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

356 | Srpski

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. Amaia i.v. NuOyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaža

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

370 | Slovensko

Preverjanje točnosti merilnega orodja

Diagram illustrating a measuring process with ruler and pencil, showing step-by-step measurement of 30 mm height.

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

372 | Slovensko

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

374 | Slovensko

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. Ameia i.v. NuOyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaža

Električno napajanje rotacionog lasera Rad sa baterijama/aku-baterijom

Koristite isključivo alkalno-manganske baterije ili aku-baterije.

Za otvaranje pretinca za baterije 14 okrenite zatvarač 15 u položaj živadite pretinac za baterije.

Kod stavljanja baterija pazite na ispravan polaritet prema shemi u pretincu za baterije.

Zamijenite uvijek sve baterije istodobno. Koristite samo baterije jednog proizvođača i istog kapaciteta.

Zatvorite pretinac za baterije 14 i okrenite zatvarač 15 u položaj

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

382 | Hrvatski

Načini rada rotacionog lasera

Pregled

Svi načini rada su mogući u horizontalnom i vertikalnom položaju mjernog alata.

Rotacioni rad

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

386 | Hrvatski

Radovi sa stativom (pribor)

Mjerni alat raspolaže sa 5/8"-stezačem stativa, za horizontalni rad na stativu. Stavite mjerni alat sa pričvršćenjem stativa 18 na 5/8" navoj stativa i stegnite sa steznim vijkom stativa.

Kod stativa 48 sa mjernom skalom na izvatku se može izravno podesiti visinski pomak.

Diagram illustrating a measurement procedure with ruler, pencil, and scale, showing step-by-step instructions for measuring 30 mm.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Aseua i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montaaž

Pöördlaseri toide

Patareide/akude kasutamine

Diagram illustrating a ruler measuring the 30 mm height with a hand using a pencil to measure the measurement.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Jenaia i.v. Moyen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montāža

Diagram illustrating a measuring technique with ruler, pencil, and 30 mm scale indicator

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

418 | Latviešu

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. A##u a i.v. N##yen

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.10.2008

Montavimas

Pure geometric diagram with crosshair and circular shapes (no text or symbols)

434 | Lietuviškai

Darbas su matavimo lentele (pap. jranga)

Diagram illustrating a measuring process with ruler and pencil, showing step-by-step measurement setup with 30 mm scale indicator.

A X I B II

Diagram illustrating ruler measurement steps with a pencil and ruler, showing 30 mm scale adjustment

Diagram illustrating a measuring process with ruler and pointer, showing step-by-step measurement of 30 mm height.

40 m x ±0.1 mm/m = ±4 mm.

Robert Bosch Korea Mechanics and Electronics Ltd.

전동공구 사업부

Diagram illustrating a ruler measuring the height of 30 mm, with hand positioning and measurement setup.

Yeuroy Alasarate Alasarate

Ye مۇشر الانتصاف

f Yeشر الاضبط دقيق

O+50 O O-50 X

Diagram illustrating a measurement procedure with ruler and ruler, showing step-by-step alignment and scale adjustment.
