Type de produit	Decorative wall hood
Marque	ELICA
Modèle	L64,5CM IX/A/60
Largeur (cm)	64,5
Poids approximatif (kg)	15
Alimentation électrique	230 V ~ 50 Hz
Puissance maximale (W)	250
Nombre de vitesses	4 (including timed intensive)
Éclairage	LED (replacement by technical service)
Type d'évacuation	Ducted (external evacuation) or recirculating (recycling)
Filtre à graisse	Metallic, dishwasher-safe
Filtre à charbon (optionnel)	Active, washable and regenerable or disposable depending on model
Distance minimale de la table de cuisson	50 cm (electric) / 65 cm (gas or mixed)
Fonctions	On/Off, speed selection, lighting, temperature alarm
Indicateurs de saturation	Grease filter (40 h), charcoal filter (160 h)
Nettoyage	Damp cloth and neutral detergent. No abrasives or alcohol
Entretien filtre à graisse	Monthly or as indicated
Entretien filtre à charbon	Every 2 months (wash) or replacement every 3-4 months
Classe d'efficacité énergétique	Not specified
Niveau sonore	Not specified

Frequently Asked Questions - L64,5CM IX/A/60 ELICA

How to clean the hood's grease filter?

The metallic grease filter can be washed by hand with a mild detergent or in the dishwasher at low temperature and quick cycle. It must be cleaned at least once a month or when the saturation signal (flashing number 1) appears on the display.

How to replace the charcoal filter?

For the recirculating version, remove the chassis by turning the knobs 90°, insert the new charcoal pad, then reassemble. If the filter is washable, clean it with hot water and dry it in the oven at 100°C for 10 minutes. Replace it every 3-4 months.

What does the flashing number 1 on the display mean?

The flashing number 1 indicates that the grease filter needs cleaning. This signal appears after 40 hours of use. To reset it, hold down button 2 for more than 3 seconds until the signal turns off.

Can the hood be used in recirculation mode?

Yes, the hood can operate in recirculating (filtering) mode. You must install an activated charcoal filter (not supplied). The extracted air is degreased and deodorized before being returned to the room.

What is the minimum distance between the hood and the cooking hob?

The minimum distance is 50 cm for electric cooktops and 65 cm for gas or mixed cooktops. Always follow the hob manufacturer's instructions if a greater distance is specified.

How to reset the charcoal filter signal?

To activate or deactivate the charcoal filter signal, with the hood off, hold down buttons 2 and 3 simultaneously for 3 seconds. The number 1 will flash to confirm deactivation.

What to do if the display shows a flashing letter 't'?

The flashing letter 't' indicates an excessive temperature alarm. The motor will automatically switch to speed 3. The alarm condition persists until the temperature decreases. You can exit this mode by pressing buttons 2, 3, or 4.

How to use the intensive speed?

The intensive speed (4) is activated by pressing button 4. It is timed to 5 minutes, after which the hood automatically returns to speed 2. To deactivate it before the end, press button 3 (switches to speed 3) or button 2 (turns off the hood).

Can I clean the hood with abrasive products?

No, use only a damp cloth with neutral liquid detergents. Avoid cleaning tools, abrasive products, and alcohol. Never use solvents.

What to do if the hood stops working?

Before contacting technical service, check that the appliance is properly plugged in and that the circuit breaker has not tripped. Make sure the filters are not clogged. If the problem persists, contact a qualified professional.

USER MANUAL L64,5CM IX/A/60 ELICA

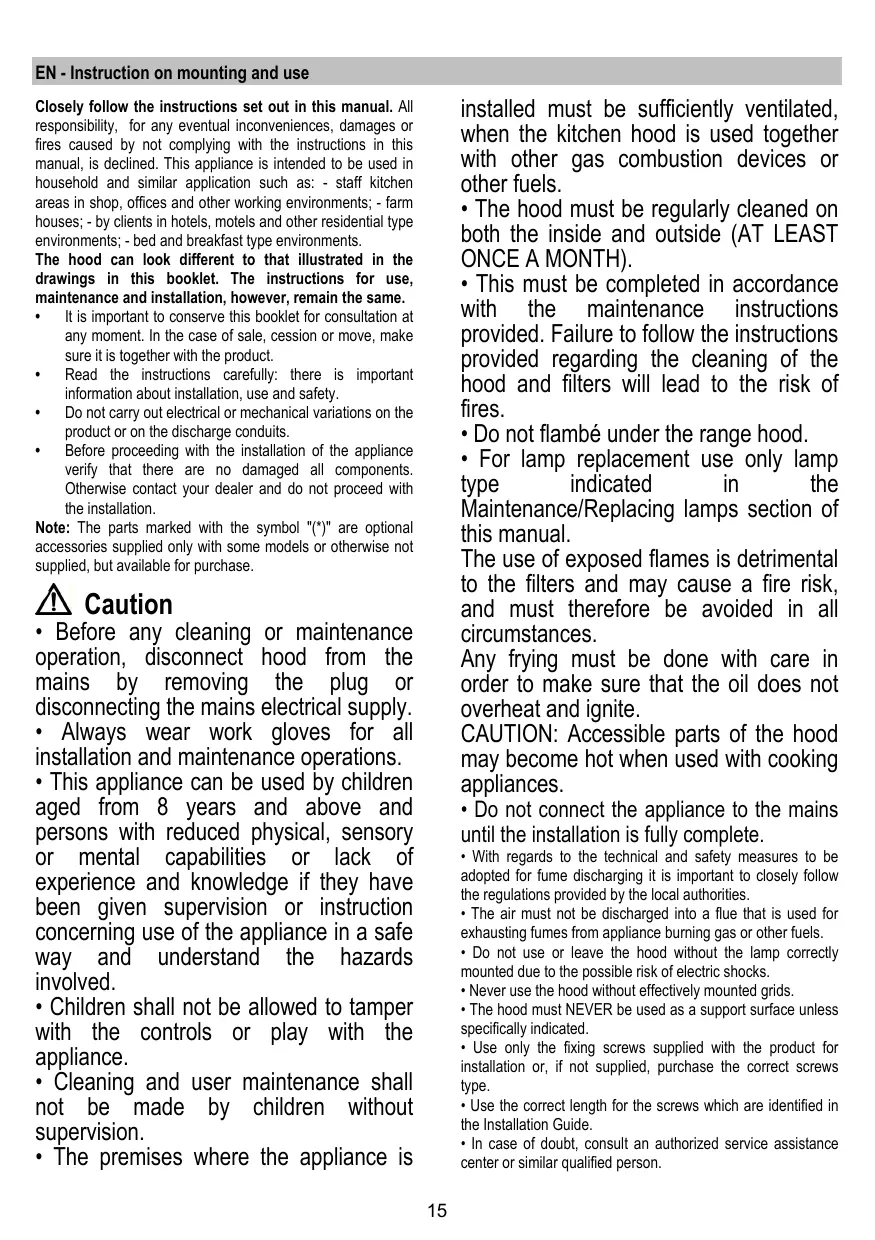

EN Instruction on mounting and use

UK Instructions for mounting and use

KK Installation and use instructions

Closely follow the instructions set out in this manual. All responsibility for any eventual inconveniences, damages, or fires caused by not complying with the instructions in this manual is declined. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices, and other working environments; - farm houses; - by clients in hotels, motels, and other residential type environments; - bed and breakfast type environments.

The hood can look different from that illustrated in the drawings in this booklet. The instructions for use, maintenance, and installation, however, remain the same.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession, or move, make sure it is together with the product. - Read the instructions carefully: there is important information about installation, use, and safety. - Do not carry out electrical or mechanical variations on the product or on the discharge conduits. - Before proceeding with the installation of the appliance, verify that there are no damaged components. Otherwise, contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(^)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply.
• Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is

installed must be sufficiently ventilated when the kitchen hood is used together with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambe under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.
• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Extraction version

In this case, the fumes are conveyed outside the building by

means of a special pipe connected to the connection ring located on top of the hood.

CAUTION!

The exhaust pipe is not supplied and must be purchased separately.

The diameter of the exhaust pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with an activated charcoal filter, it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using tubes and discharge holes on walls with smaller dimensions will cause a reduction in suction performance and a drastic increase in noise.

Any responsibility in this matter is therefore declined.

Use a duct of the minimum indispensable length. Use a duct with as few elbows as possible (maximum elbow angle: 90°). Avoid drastic changes in the duct cross-section.

Filtration version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50 cm from electric cookers and 65 cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws ( ), guarantees ( ), etc.), eventually removing them and keeping them.

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

1. Lights ON/OFF

2. Motor ON/OFF

When key "2" is pressed, the motor switches to speed 1.

If the key is pressed during operation, the hood switches to OFF state.

3. Speed decrease

When key "3" is pressed, the speed decreases from 4 (intense) to 1.

4. Speed increase

When key "4" is pressed with the hood in OFF state, the hood switches to speed 1.

If the key is pressed during operation, the speed increases from 1 to 4 (intense).

The intense speed is timed. The standard timing is 5 minutes, after which the hood sets to speed 2.

To deactivate the function before the end of the time, press key "3", the hood sets to speed 3; when key "2" is pressed, the hood turns off.

A signal on the display corresponds to each speed:

OFF: No signal

Speed 1: 1, Speed 2: 2, Speed 3: 3, Speed 4: 4 flashing

5. Display

Grease filter signalling

The grease filter is signalled by the display with number 1 flashing after 40 hours of use.

This means that the grease filter needs to be washed.

The signalling is visible with the hood in ON state.

To eliminate the grease filter signalling, press key "2" for more than 3", until it turns off.

The signalling can be eliminated with the hood in ON state.

Carbon filter signalling (only for filtering version)

The carbon filter is signalled by the display with number 2 flashing after 160 hours of use.

This means that the carbon filter installed must be replaced.

The signalling is visible with the hood in ON state.

To eliminate the carbon filter signalling, press key "2" for more than 3", until it turns off.

The signalling can be eliminated with the hood in ON state.

In case both filters are signalled at the same time, numbers 1 and 2 flash on the display alternately.

The signalling can be reset by carrying out the above-described procedure twice.

First it resets the grease filter signalling, then the carbon filter signalling.

In the standard mode the carbon filter signalling is not active.

In case the filtering version hood is used, it is necessary to enable the carbon filter signalling.

Activation of carbon filter signalling:

Set the hood to OFF and keep keys "2" and "3" pressed contemporaneously for 3 seconds.

Numbers 1 and 2 flash alternately for 2 seconds.

Deactivation of carbon filter signalling:

Set the hood to OFF and keep keys "2" and "3" pressed contemporaneously for 3 seconds.

Number 1 flashes for 2 seconds.

Temperature Alarm

The hood is equipped with a temperature sensor which activates the motor at speed 3 in case the temperature in the display zone is too high.

The alarm condition is indicated by the display with the letter t flashing.

This condition remains as such until the temperature falls below the alarm threshold.

This mode can be quit by pressing key "2", "3" or "4".

Every 30 seconds the sensor checks the ambient temperature of the display zone.

Display Symbols

Symbol	State
1	Speed 1
2	Speed 2
3	Speed 3
4	Speed 4 (intense)
5	Grease filter maintenance
6	Carbon filter maintenance
7	Grease filter and carbon filter maintenance
8	Temperature Alarm

Maintenance

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

Fig. 14-32

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 31

It absorbs unpleasant odors caused by cooking.

The charcoal filter can be washed once every two months (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65°C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100°C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Remove the filter holder frame by turning the knobs (g) 90° that affix the chimney to the cooker hood.

Insert the pad (i) of activated carbon into the frame (h) and fit the whole back into its housing (j).

It is possible to use a traditional carbon filter, neither washable nor regenerable, to be replaced every 3 - 4 months.

The filter holder frame of the carbon filter is welded together; the eventual frame supplied with the hood is not, therefore, to be used.

Insert it into its housing and fix it turning the 2 plastic knobs.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

Activation signal charcoal filter:

• European Directive 2012/19/EC
• Waste Electrical and Electronic Equipment (WEEE).

This product is marked with the crossed-out wheeled bin symbol. This means that this product must not be disposed of with household waste, but must be handed over to a separate collection system for electrical and electronic equipment. Please contact your local authorities or the retailer where you purchased this product for more information on how to dispose of it properly.

The symbol on the product or its packaging indicates that this product must not be treated as household waste. Instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

This product has been designed, tested and manufactured in accordance with:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance characteristics: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC - Electromagnetic compatibility: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

Instructions for correct use, to get the best performance from the hood: Turn on (ON) the aspirator at minimum speed when you start cooking and leave it running for a few minutes after turning off the hob. Increase the speed only when necessary and for a short time. Increase the speed only in extreme situations. Change the filters/active carbon filters when necessary to maintain good efficiency of the hood. Clean the filters/grease filters when necessary to maintain good efficiency of the grease filter. Use the maximum diameter of the exhaust system to reduce noise, as per this guide for optimizing efficiency and reducing noise.

Use

Aspirators for recirculation: They suck and filter the air, while at the same time recycling it.

Venting version

The hood is vented outdoors by means of an air duct connected to the exhaust flange.

WARNING!

The air duct is not included with the hood and must be purchased separately.

The diameter of the air duct must correspond to the diameter of the exhaust flange.

WARNING!

If the aspirator is equipped with active carbon filters, they must be removed.

Connect the aspirator to the air duct and open the vent. The diameter of the duct must correspond to the diameter of the exhaust flange for air extraction.

Connecting to the air duct and vent with a smaller diameter reduces suction performance and significantly increases noise and energy consumption.

In this case, the manufacturer accepts no responsibility.

Use a duct with the required diameter. Use a duct with as few bends as possible (maximum bend: 90 degrees, do not exceed the recommended length of the duct!).

Venting with filter

This appliance is intended for use in households and similar applications. To use the aspirator in this variant, it is necessary to install an additional filtration system based on a filter with active carbon.

Models without an aspiration motor are intended for operation only in the variant of an aspirated version and must be connected to a peripheral aspiration unit, which is purchased separately.

Instructions for connection are supplied with the peripheral aspiration unit.

INSTALLATION

The minimum distance between the surface on which the cooking appliances or other parts of the kitchen aspirator are placed must be no less than 50 cm in the case of electric cookers and no less than 65 cm in the case of gas or combined cookers.

If the instructions for the gas cooking appliance specify a greater distance, this must be taken into account.

The voltage in the electrical network must correspond to the voltage specified on the plate with the data of the aspirator, placed on its inner side. If the aspirator is supplied with a plug for connection to the socket, the corresponding standards and regulations must be observed, and the socket must be placed in an accessible location after installation. If it is not supplied with a plug (direct connection to the network), or if the plug is not in an accessible location after installation, use a double-pole switch in accordance with the standards, so that the network can be disconnected under overload conditions, in accordance with the installation rules.

WARNING!

Before connecting the aspirator to the network, check that it functions correctly, and check that the cable is installed as required.

Before proceeding with installation:

• Make sure that the product you have purchased corresponds in size to the chosen place for installation.
• Remove the filters with active carbon (if the model you have chosen is equipped with them). To do this, follow the operations in the relevant paragraph. Mount the filters again only if you wish to use the aspirator in the filtration version.
• Make sure that during transport, inside the aspirator, no loose items have fallen, such as screws, nuts, etc.; if you find any, remove them or store them.

It is recommended that you consult a qualified technician to ensure that the

accessories are suitable for the purpose. The wall, according to the table, must be sufficiently stable to withstand the load.

No need

1. ON/OFF light

2. ON/OFF motor

Pressing button "2" the aspirator stops at 1-2 speed of operation.

OFF: The device does not turn off

Speed No 1:1

Speed No 2:2

Speed No 3:3

Speed No 4: 4 stops

5. Display

Indicator for oil change

The indicator for oil change activates every 40 hours of operation and as a display appears the symbol 1, which starts to blink. When this symbol appears, it means that the oil must be changed.

The symbol appears when the aspirator is turned on (in ON position).

To reset the symbol from the display, press button "2" and hold it until the symbol disappears.

The symbol can be reset when the aspirator is turned on (in ON position).

Filter alarm with active carbon filter (self-cleaning version)

The analyzer for the filter with active carbon filter must be reset every 160 hours of operation. When this happens, the display will show number 2, which indicates that the filter needs to be replaced.

When this message appears, the active carbon filter must be replaced.

The message appears when the aspirator is turned on (in position ON).

To reset the message, press button "2" and hold it for 3 seconds until the message disappears.

The message can be reset when the aspirator is turned on (in position ON).

The device has been designed, tested, and manufactured in accordance with:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31,

EN/IEC 62233.

• Performance characteristics: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. To reduce the impact on the environment, use the hood at minimum speed when starting to cook and let it run for a few minutes after finishing. Increase the speed only in case of large amounts of smoke and steam, and use higher speeds only in extreme situations. Replace the charcoal filter when necessary to maintain good efficiency in reducing odors. Clean or replace the grease filter when necessary to maintain good efficiency of the grease filter. Use the maximum diameter of the duct system specified in this manual to optimize efficiency and minimize noise.

Operation

The hood is designed for operation in the air exhaust mode (outside) or in the recirculation mode.

Using the external exhaust mode

In this mode, the air is discharged outside through a duct connected to the connecting ring.

WARNING!

The exhaust pipe is not included in the kit and must be purchased separately.

The diameter of the exhaust pipe must match the diameter of the connecting ring.

WARNING!

If the hood is equipped with a charcoal filter, remove it.

Connect the exhaust pipe to the exhaust pipe with a diameter corresponding to the air outlet opening (connecting flange).

Installing pipes with a smaller diameter will reduce the suction power of the air and sharply increase the noise level.

The manufacturer disclaims any liability for the above.

Use the pipe with the minimum necessary length. Use the pipe with the minimum number of bends (maximum bend angle: 90°). Avoid sharp changes in the pipe diameter.

Air

The air must be discharged through a duct that meets the requirements of the distributor. The extracted air is purified and then returned to the room through the upper grille.

Models without a motor unit can operate in the air exhaust mode outdoors, so they must be connected to an external exhaust installation (not included in the supply).

Connection instructions are supplied with the external exhaust unit.

Installation

The distance between the lower edge of the hood and the hob must be at least 50 cm for electric hobs, and at least 65 cm for gas or combination hobs.

If the installation instructions for the gas hob specify a greater distance, take this into account.

The voltage must correspond to the voltage indicated on the technical data plate, which is located inside the appliance. If the socket is equipped with a plug, connect the extractor to the mains socket. It must comply with current regulations and be located in an easily accessible place. It can be switched on only after installation. If the socket is not equipped with a plug (direct connection to the mains), and the mains socket is not located in an easily accessible place, also after installation, use a suitable two-pole switch that ensures complete disconnection from the mains under overvoltage category III conditions, in accordance with installation instructions.

WARNING!

Before connecting the electrical system of the extractor to the mains and checking its correct functioning, make sure that the power cable is correctly installed.

Press button "4" with the switch in the OFF position, the extractor will switch to speed 1.

Press the button again, increase the speed and from speed 1 switch to speed 4 (intensive).

The intensive speed is programmed by time. Standard programming is 5', after this time the extractor automatically switches to speed 2.

To disable this function, press button "3" before the time elapses; the extractor switches to speed 3. Pressing button "2" turns off the extractor.

Each speed corresponds to its own signal on the display:

Right on the display for each speed.

• Do not use or operate the extractor without correctly installed lamps, as there is a risk of electric shock. Never use the extractor without the correctly installed grid! The extractor must never be used on a hob without pans. Use the screws for fixing provided in the installation kit; if they are not in the kit, purchase screws of the correct type. Use the correct length of screws as specified in the installation manual.
• If in doubt, consult an authorized service center or qualified personnel.

CAUTION!

• Failure to install the fixing screws or devices in accordance with these instructions may result in a risk of electric shock. Do not use with a programmer, timer, separate remote control or any other device that switches on automatically.

This product is marked in accordance with the European Directive 2012/19/EC on waste electrical and electronic equipment (WEEE). By ensuring that this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This appliance can be connected to the exhaust duct or used in recirculation mode. If it is connected to the exhaust duct, it must be installed in accordance with local regulations regarding exhaust air discharge. For detailed information on how to install and connect the exhaust duct, contact the local authorities, the waste disposal service, or the store where you purchased the appliance.

The product has been designed, manufactured, and produced in accordance with:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Tips for correct use and to reduce environmental impact: Turn on the extractor at minimum speed before starting to cook and leave it running for a few minutes after cooking is finished. Increase the speed only when there is a large amount of smoke and vapors, and use the boost speed only in extreme cases. To maintain efficient odor extraction, replace the charcoal filter(s) when necessary. To maintain efficient grease filter performance, replace the grease filter(s) when necessary. Use the maximum diameter of the air exhaust system as indicated in the instructions to optimize efficiency and minimize noise.

The hood is designed for use in extraction mode, exhausting air outdoors, or in recirculation mode with air recirculation.

Use

The hood is designed for use in extraction mode, exhausting air outdoors, or in recirculation mode with air recirculation.

Extraction mode

In extraction mode, the hood exhausts air to the outside through an exhaust pipe connected to the flange.

WARNING!

The exhaust pipe is not supplied and must be purchased separately.

The diameter of the exhaust pipe must match the diameter of the outlet ring.

WARNING!

If the hood is equipped with charcoal filters, they must be removed.

The end of the hood must be connected to an exhaust pipe with the same diameter as the hood outlet (with a flange).

Using flexible pipes and adapters with a smaller diameter will reduce the efficiency of operation and significantly increase the noise level.

Therefore, we disclaim any liability for the above.

! Use the shortest possible duct. ! Use a duct with a minimum number of bends (maximum bend angle: 90°). ! Avoid sudden changes in the cross-section of the duct.

Version with recirculation

The air is drawn in, filtered, and then returned to the room. To use the hood in recirculation mode, it is necessary to install a carbon filter system with activated carbon.

Hood models without a motor block can operate only in one mode: exhaust air to the outside, so they must be connected to an external exhaust system (not included in the supply).

Installation instructions for connection

equipment.

Installation

The distance from the lower part of the hood to the cooking surface must be at least 50 cm for electric hobs, and 65 cm for gas or combined hobs.

It is necessary to take into account the distances specified in the installation instructions for gas hobs.

The voltage in the electrical network must correspond to the characteristics indicated on the label located inside the hood. If the hood is supplied with a plug for connection to the electrical network, connect the plug to a socket that complies with current standards and is accessible. If the hood is not supplied with a plug (direct connection to the electrical network) or the socket is not accessible, install a certified omnipolar switch to ensure complete disconnection from the network in case of overvoltage category III, in full compliance with installation rules.

WARNING!

Before reconnecting the hood to the electrical network, check that the installation is correct, so that the control of the network is properly installed.

Speed noaTkoM MoTaKy:

• Check the dimensions of the device supplied to you according to the selected installation location. Remove the filter/cap from the inlet/outlet (the inlet/outlet also has the corresponding dimensions). The filter/cap is reinstalled depending on whether you want to use the hood in recirculation mode.
• Check that no objects have been left inside the hood during transport (e.g., packages with screws, warranty cards, etc.). If any, remove them and keep them.

The mounting kit includes screws for fixing, calculated for standard walls/ceilings. However, it is necessary to contact a qualified technician to verify the suitability of the materials depending on the type of wall or ceiling. The wall/ceiling must be strong enough to support the weight of the hood.

Operation

1. ON/OFF Light

2. ON/OFF Motor

Press button “2” to turn the motor on to speed 1.

Press the button again during operation to turn the hood off (OFF mode).

3. Decrease speed

Press button “3” to decrease the speed from speed 4 (intensive) to speed 1.

4. Increase speed

Press button “4” when the motor is off (OFF), the motor will switch to speed 1.

Press the button during operation to increase the speed from 1 to 4 (intensive).

The intensive speed can be programmed for a certain time. The standard programming is 5 minutes; after this time, the hood will automatically switch to speed 2.

After pressing the button «3», the extractor switches to speed 3, pressing the button «2», the extractor turns off.

The speed switch corresponds to the selected position:

OFF: off

Speed 1: 1

Speed 2: 2

Speed 3: 3

The filter must be cleaned regularly to maintain the performance of the hood.

WARNING!

The filter diameter must not be less than the diameter of the air duct.

WARNING!

The filter must be installed without gaps, it must be securely attached. Check the filter for damage; replace it with a new one if necessary.

To avoid damage to the filter, do not use sharp objects when cleaning.

! Minimum distance from the hob to the hood: 65 cm. ! Maximum distance: 90 cm. ! Do not install the hood above a gas hob without following the manufacturer's instructions.

Water connection

The water connection must be made by a qualified technician.

The device must be installed at a distance of at least 1 meter from the wall and other objects.

The manufacturer is not responsible for damage caused by improper use. The user must follow the instructions in this manual. The warranty is void if the device is opened or modified.

Installation

The distance between the device and the wall or other objects must be at least 50 cm for electric heaters and 65 cm for gas or combined heaters.

If the gas pipe installation requires additional work, contact a specialist. The installation must be carried out in accordance with the technical requirements. If the device is connected to the gas supply, it must be installed by a qualified technician. If the device is not connected to the gas supply (only electric connection), or if a qualified technician is not available, then the installation must be carried out by a certified specialist in accordance with the manufacturer's instructions.

WARNING!

Before connecting the device to the electrical supply, make sure that the electrical installation is properly grounded.

During installation:

• Check that the voltage and frequency of the power supply match the specifications on the rating plate.
• Remove any packaging materials (if any) (see also the instructions). If the packaging is damaged, do not use the device. Keep the packaging materials (plastic bags, cardboard, etc.) out of reach of children. Dispose of them properly.

The device must be installed on a stable surface using the provided brackets (fasteners). Make sure that the materials are suitable for the surface. The device must be level.

Maintenance

1. Cleaning the device

2. Replacing the motor

The main motor must be replaced every 2 years. If the main motor is replaced, the device must be disconnected from the power supply.

3. Speed Temperature

Press the "3" button to select temperature 1 4 (carcass) temperature setting.

4. Temperature adjustment

Press the "4" button to select the OFF mode. The temperature setting is displayed.

If the 1-4 (carcass) temperature setting is not needed, it can be turned off.

Carcass temperature setting is displayed. Standard measures of the temperature setting are shown, and its value, 忍 5

When the value is set, press the "2" button to adjust the temperature setting, and the temperature setting is displayed.

The following parameters are adjustable:

OFF: Off

Speed: 11

2 Temperature: 2

Speed 3: 3

Speed 4: 4 temperature settings

5. Operation

Maintenance instructions

Filter adapter 40 cartridges without any 1 It is given through the bracket.

This is how the word is used in the text.

For the state, the salt is returned.

Ohu valjatombega version

aizai jSjally Jusail (yJusall Jywi

j

（）

31

a a a a a a a a a a a a a

∴ S ΔOBC = S ΔABC + S_ΔBOC

J 1

1 1

pill jls i1 -

1 1

alii w g jwll wll alll (aaii)

jssll jie gaaal (i)

（h）

(j) ( a + b) = 10

E 1

JLJI 1

4.3 4

jia 与 aieill jzg jbi

∴ a + b = 1

a 1000000000000000000000000000000000000000000000000000

(2)

1

Jgss

J 1

32-14

a

.

)

Laiy Jaii

a1i 1

pJdI 1-0gall

i j 15

JbI 1

i

.0

a

ill jll jiliiil 0j jia blaill

3 3 3 3 3 3 3 3 3 3 3 3

aaiiaaiilaiabio aolll

e 1

. t

J 1

Basically ii.

Because 4° > 3° < 60°

i 1

30 5 a 1111 2abio

aaii 4ai jai

Jaii "2" cieil 1e bially

1. a{c}_{j} - a + c = 1

Jaiy Jia jiu li li liai liu biai

. OFF

aeyal jallesl .3

Janni 3" C1ieoll

jL jzlal jdl jial lal lal

e 1
