USER MANUAL TOPCLEAN SELF X Ulsonix
L. Automatik-Taste
M. Manuelle Fahr-Taste
This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via info@expondo.com.
Technical data
| Parameter description | Parameter value | |
| Product name | Self-driven floor scrubber | |
| Model | TOPCLEAN SELF X | |
| Voltage [V] | 24 | |
| Battery | 12V / 100Ah | |
| Power [W] | Driveline | 400 |
| Brush | 550 | |
| Suction motor power | 500 | |
| IP protection class | IP20 | |
| Dimensions (LxWxH) [cm] | 137 x 86 x 106 | |
| Weight [kg] | 162 | |
| Working capacity [m3/h] | 2000 | |
| Dirty water tank capacity [L] | 65 | |
| Water tank capacity [L] | 60 | |
1. General description
The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.
DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.
To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.
Legend
| CE | The product satisfies the relevant safety standards. |
 | Read instructions before use. |
 | The product must be recycled. |
 | WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign) |
 | Wear foot protection. |
 | Wear protective clothing. |
 | ATTENTION! Electric shock warning! |
 | ATTENTION! Rotating parts, entanglement hazard! |
 | WARNING! Toxic substances, danger of poisoning! (concerns the battery) |
Protect against rain and excessive moisture.
PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.
2. Usage safety
ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.
The terms "device" or "product" are used in the warnings and instructions to refer to the:
Self-driven floor scrubber
2.1. Electrical safety
a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
c) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service center.
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
e) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
f) Do not use in very humid environments or in the direct vicinity of water tanks.
g) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.
2.2. Safety in the workplace
a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorized persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
g) Use the device in a well-ventilated space.
h) The device produces dust and debris during operation. It is important to protect bystanders from their harmful effects.
i) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
j) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
k) Keep packaging elements and small assembly parts in a place not available to children.
I) Keep the device away from children and animals.
Remember! When using the device, protect children and other bystanders.
2.3. Personal safety
a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
g) Do not wear loose clothing or jewelry. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewelry or long hair may get caught in moving parts.
h) If suction is to be connected to the device, check all connections and make sure they are tight. Using a dedusting system may reduce the risks associated with dust.
i) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
j) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
k) Do not put your hands or other items inside the device while it is in use!
I) The operator of the equipment is required to wear full footwear that protects the feet and long trousers.
2.4. Safe device use
a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Keep the device out of the reach of children.
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
i) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
j) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
k) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
I) Do not leave this appliance unattended while it is in use.
m) Clean the device regularly to prevent stubborn or acidic grime from accumulating.
n) The specified vibrations emission was measured using standard measurement methods. Vibrations emissions may change if the device is used in different surroundings.
o) Do not touch any moving parts or accessories unless the device has been disconnected from the compressed air supply.
p) Do not cover the air intake and outlet.
q) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
r) Keep the device away from sources of fire and heat.
s) Do not cover the ventilation openings!
t) Do not use or park the machine on surfaces with a steep incline (turn off the suction first when working on inclines).
u) Take special care when working around edges, stairs, inclines and descents.
v) Objects such as ropes, cords, straps, as well as hot, glowing or flammable or toxic objects must not be swept.
ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.
3. Use guidelines
The product is designed for cleaning flat surfaces, especially where performance is needed over large areas (workshops, warehouses, pavements, shopping malls, etc.).
The user is liable for any damage resulting from unintended use of the device.

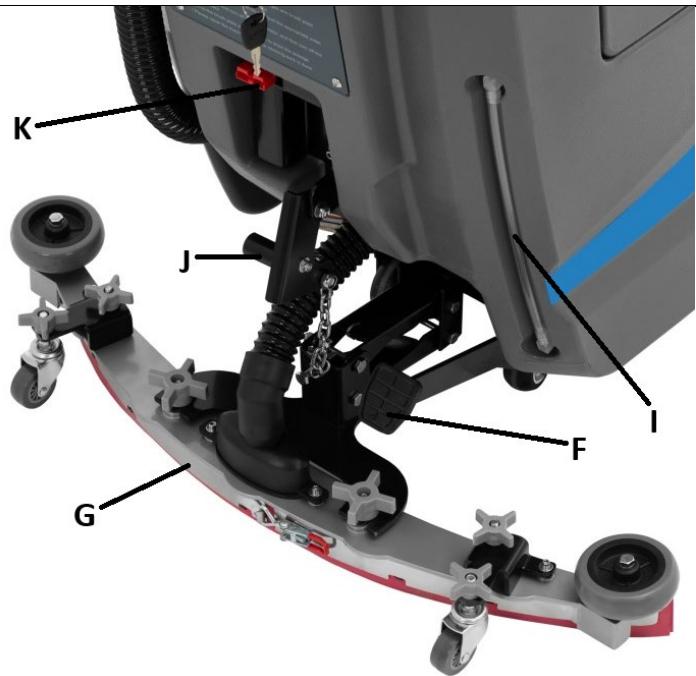

3.1. Device description
A. Steering handle with control panel
B. Cover for waste tank with filter

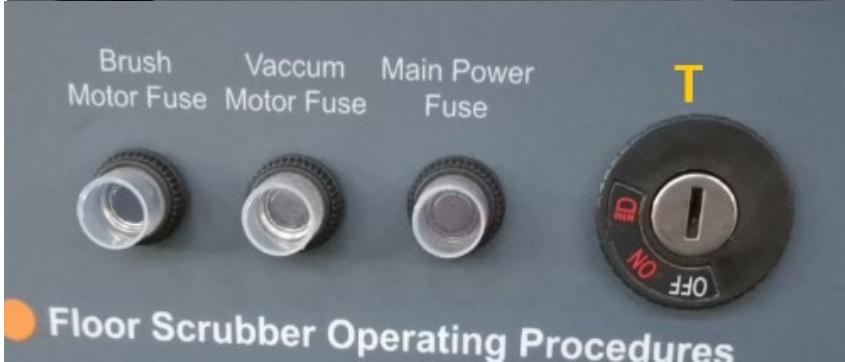

C. Panel wit main switch and fuses
D. Cover for battery compartment
E. Clean water tank filler
F. Brush module lifting pedal
G. Suction rake
H. Sewage emptying hose with cap
I. Water tank fill gauge
J. Suction rake lifting lever
K. Battery charger connecting port
L. Automatic-drive button
M. Manual drive button
N. Machine ON/OFF indicator light
O. Battery voltage meter
P. Forward/reverse-driving switch lever
Q. Brush ON/OFF switch
R. Vacuum ON/OFF switch
S. Drive speed adjustment dial
T. Main machine switch (OFF-Standby/ON-ON with water spray)
3.2. Preparing for use
APPLIANCE LOCATION
The ambient temperature must not exceed 40° C and the relative humidity must not exceed 85%, protect the unit from rain or excessive moisture. Do not cover the appliance during operation or charging! Keep the device away from all hot surfaces and fire. Always use the device on a stable, dry surface and out of the reach of children and persons with reduced mental, sensory and intellectual functions. When charging the battery, the device should be positioned in such a way that the mains plug can be reached at any time. Make sure that the energy supply of the device corresponds to the data given on the rating plate!
ASSEMBLING THE APPLIANCE
The appliance is supplied almost completely assembled for use, however before the first use the suction rake (G) need to be attached to its lifting and vacuum mechanism that connect it with the rest of the machine by screwing it with the holder. Also adjust the suction rake (G) using existing screw handles for wheels assembly attachment on it when it creates too much or less resistance during operation.
Prior first start-up it is recommended that the appliance is connected to a charger for possible recharging. To do this, first connect the cable with the plug to the corresponding socket on the machine (K), and then connect the plug from the charger to the socket of mains. The display on the control panel shows the current battery voltage (fully charged >24V; please charge it immediately when display shows ≤21V).
IMPORTANT: the machine can only be charged when switched off - main switch (T) key in the "OFF" position. Do not charge the machine with fully charged or almost fully charged battery – it must be used at least 30 minutes before recharging. Do not charge the machine over 10 hours long!
While charging the sewage tank must be emptied and the battery compartment cover (D) opened prior a good ventilation.
The battery charger has a simple charge status indicator light:
- Red or green light flashing – waiting/preparing mode
• Red light flashing - <80% charged
• Yellow light flashing - >80% charged - Green light flashing – almost 100% charged
- Green light always on – charging completed
3.3. Device use
- Fill fresh, running water into the clean water tank (E) – observe its level on the fill gauge (I) – and appropriate detergent (if needed) that does not foam. IMPORTANT: clean water temperature cannot exceed 50° C.
- Lower the brush and suction rake module (H and G).
- Put the main switch key (T) on the ON or ON+water spraying position
- Start the brushing and vacuuming mechanism but putting corresponding switches into the ON position (Q and R).
- Choose the machine driving direction with the lever (P).
- Adjust machine driving speed with the dial (S).
- Choose one of the 2 drive buttons (L or M) – for either manual or automatic drive.
• After cleaning first turn off brush and the vacuum function (Q and R). - Lift up suction and rake and brush module with the corresponding levers (F and J).
- Dispose sewage tank when it is full or when finishing work by removing the sewage outlet pipe (H) for its holder and removing its cap.
TIPS FOR OPERATING THE MACHINE:
- Make sure that the machine's battery is enough charged before each use. Even if you use the machine infrequently or do not use it for a long period (more than 15 days), connect the machine to the charger once in a while (e.g. once a month).
- Avoid often start and stop work cycles of the machine – it shortens the life of its drive motor.
- Low driving speed at begin using or with inexperienced operators recommended.
• In case of heavy dusting, the use of a water spraying is recommended. - After each use always discharge the sewage from the tank – do not store it in the machine!
- When using with detergent that creates foam, add a defoamer to the sewage tank necessarily to prevent the machine from sucking sewage foam bubbles into the vacuum system motor, which could damage it.
3.4. Cleaning and maintenance
a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
- Wait for the rotating elements to stop.
b) Use only non-corrosive cleaners to clean the surface.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) Do not spray the device with a water jet or submerge it in water.
e) Do not allow water to get inside the device through vents in the housing of the device.
f) Clean the vents with a brush and compressed air.
g) The device must be regularly inspected to check its technical efficiency and spot any damage.
h) Do not leave the battery in the device if it will not be used for a longer period of time.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
I) After each use always discharge the sewage – do not store it in the machine! If the machine will not be used for a long time, empty the clean water tank too.
SAFE REMOVAL OF BATTERIES AND RECHARGEABLE BATTERIES
A 12V 100Ah batteries are installed in the unit (under the battery compartment cover/sewage tank).
Used batteries should be removed from the unit following the same procedure as for installation:
- The unit should be switched off and the charger disconnected.
• [Only if filled] Empty the sewage tank. - Lift the battery compartment cover.
- Disconnect the clamps from the batteries terminals.
- Remove the battery by lifting it.
Recycle batteries with the appropriate organization or company.
TROUBLESHOOTING
a) Please check if the red button is stuck in.
b) If it is, press it to make it pop out.
c) Restart the key switch and operate the machine as usual.
d) If the machine still does not run, refer to the troubleshooting sheet based on the flashing times of reset light (see details in below sheet).
Troubleshooting sheet
| Meter status (Single flash) | Fault description | Possible Causes | |
 | 1 Grid flicker | Low voltage fault | Battery voltage too low |
 | 2 Grid flicker | Motor open circuit fault | Motor wiring open circuit |
 | 3 Grid flicker | Over current / motor short circuit | 1. Overload operation for a long time2. Motor short circuit / motor wiring short circuit |
 | 4 Grid flicker | Not USED | - |
 | 5 Grid flicker | High / low temperature | 1. Overload operation for a long time2. The electromagnetic brake is not released |
EN
 | 6 Grid flicker | Charge suppression | Charging state |
 | 7 Grid flicker | Accelerator failure | 1. The high / low end of accelerator is out of range2. The accelerator tap falls off |
 | 8 Grid flicker | Controller Fault | Internal fault |
 | 9 Grid flicker | Electromagnetic brake failure | Solenoid brake coil open / wire disconnected |
 | 10 Grid flicker | High voltage fault | Battery voltage mismatch |
DISPOSING OF USED DEVICES
Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.
Contact local authorities for information on your local recycling facility.
APPARATETS PLACERING
SAMLING AF APPARATET
PLAATS VAN HET APPARAAT
P. Bryter for fremover/bakover
Q. Bryter for børste PÅ/AV
APPARATENS PLACERING
L. Tipka za automatski pogon
M. Tipka za ručni pogon
N. Indikatorska lampica UKLJUČENO/ISKLJUČENO za stroj
O. Mjerač napona baterije
P. Ručica prekidača za vožnju naprijed/natrag
Q. Prekidač UKLJUČENO/ISKLJUČENO za četku
R. Prekidač UKLJUČENO/ISKLJUČENO za usisavanje
S. Gumb za podešavanje brzine pogona
T. Glavni prekidač stroja (ISKLJUČENO-Pripravnost/UKLJUČENO-UKLJUČENO s raspršivačem vode)
3.2. Priprema za upotrebu
LOKACIJA UREĐAJA
For the disposal of the device please consider and act according to the national and local rules and regulations.
CONTACT
expondo Polska sp. z o.o. sp. k.
- GENERAL DESCRIPTION
- DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL
- USAGE SAFETY
- ELECTRICAL SAFETY
- SAFETY IN THE WORKPLACE
- PERSONAL SAFETY
- SAFE DEVICE USE
- USE GUIDELINES
- DEVICE DESCRIPTION
- PREPARING FOR USE
- ASSEMBLING THE APPLIANCE
- DEVICE USE
- TIPS FOR OPERATING THE MACHINE
- CLEANING AND MAINTENANCE
- SAFE REMOVAL OF BATTERIES AND RECHARGEABLE BATTERIES
- DISPOSING OF USED DEVICES
- SAMLING AF APPARATET
- PLAATS VAN HET APPARAAT
- APPARATENS PLACERING
- PRIPREMA ZA UPOTREBU
- LOKACIJA UREĐAJA
- CONTACT
Brand : Ulsonix
Model : TOPCLEAN SELF X
Category : Washing machine
