Product type	Cross line laser level
Brand	Bosch
Model	GLL 3-80 P Professional
Usage	Professional
Laser technology	Red diode laser 635 nm
Number of lines	3 (2 horizontal, 1 vertical)
Range without receiver	Up to 20 m (diameter)
Range with receiver	Up to 80 m (diameter)
Leveling accuracy	±0.3 mm/m
Self-leveling range	±4°
Leveling time	Approx. 4 s
Operating temperature	-10 °C to 50 °C
Protection rating	IP54 (protected against water splashes and dust)
Power supply	4 AA 1.5 V alkaline batteries
Battery life	Approx. 30 h (continuous)
Weight	0.65 kg (with batteries)
Dimensions (L x W x H)	130 x 70 x 120 mm
Delivery contents	Laser level, 4 AA batteries, laser receiver, wall mount, transport case
Maintenance and cleaning	Clean laser exit windows with a soft, dry cloth. Do not use solvents. Replace batteries if necessary.
Safety	Laser class 2 (≤ 1 mW, do not look directly into the beam). Only use accessories recommended by Bosch.
Repairability	Repair only by an authorized Bosch service center. See manual for spare parts.

Frequently Asked Questions - GLL 3-80 P Professional BOSCH

How to turn on the GLL 3-80 P laser level?

Press the on/off button on the side. The laser turns on and self-levels automatically. Use the desired operating mode by pressing the button multiple times.

What is the maximum range of this laser level?

Without receiver, the range is about 20 m diameter. With the Bosch LR 7 laser receiver, the range can reach 80 m diameter, depending on lighting conditions.

How to change the batteries of the GLL 3-80 P?

Open the battery compartment located under the device. Insert 4 AA 1.5 V batteries following polarity (+/-). Close the cover. Use alkaline batteries for optimal battery life.

The laser level does not self-level, what should I do?

Check that the device is placed on a stable surface and the tilt angle does not exceed ±4°. If self-leveling does not start, the batteries may be low or the device is defective. Contact Bosch service.

Can I use this laser level outdoors?

Yes, the device is rated IP54, thus dust and splash resistant. For better visibility outdoors, use the Bosch LR 7 laser receiver.

How to clean the laser exit windows?

Use a soft, dry cloth. If necessary, lightly dampen the cloth with water. Never use chemicals or solvents that could damage the coating.

What to do if the laser beam becomes weak or intermittent?

Check the battery condition and replace if necessary. Clean the laser exit windows. If the problem persists, contact an authorized Bosch repair center.

Is this laser level compatible with a tripod?

Yes, the GLL 3-80 P has a 1/4 inch (20 threads per inch) thread for tripod mounting. Use a professional tripod for optimal stability.

How to know if the level is correctly calibrated?

Place the device on a flat surface. Turn it on and wait for self-leveling. Check the laser line against a known reference. If in doubt, perform a simple test: rotate the device 180° and compare lines. Refer to the manual for the complete procedure.

What is the warranty period for this product?

Bosch Professional offers a 3-year warranty from the purchase date, subject to online registration within 4 weeks of purchase. Keep your invoice and register on the Bosch Professional website.

USER MANUAL GLL 3-80 P Professional BOSCH

OFJ: BUCH-1046-001.hook Page 1 Tuesday, September 22, 2009 6:41 PM

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

1 609 929 S05 (2008.09) T / 306 XXX

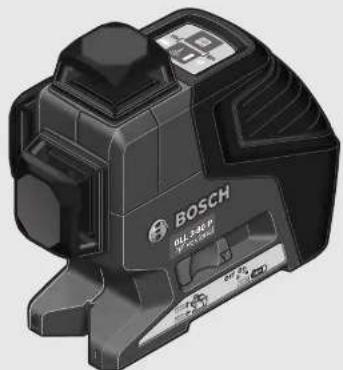

GLL 3-80 P Professional

BOSCH

GLL 3-80 P Professional

4 |

1 609 929 S05 | (22.9.09) Bosch Power Tools

5

6 | Deutsch

Sicherheitshinweise

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS.

▶ Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure.
The measuring tool is provided with a warning label in English (marked with number 13 in the representation of the measuring tool on the graphics page).

Laser Radiation Class 2, do not stare into beam IEC 60825-1:2007-03 <1 mW, 640 nm

▶ Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to IEC 60825-1. This can lead to persons being blinded.
Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.
▶ Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.

Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves.
▶ Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.

Keep the measuring tool and the laser target plate 15 away from cardiac pacemakers. The magnets of the measuring tool and laser target plate generate a field that can impair the function of cardiac pacemakers.

▶ Keep the measuring tool and the laser target plate 15 away from magnetic data medium and magnetically-sensitive equipment. The effect of the magnets of the measuring tool and laser target plate can lead to irreversible data loss.

Functional Description

Please unfold the fold-out page with the representation of the measuring tool and leave it unfolded while reading the operating instructions.

Intended Use

The measuring tool is intended for determining and checking horizontal and vertical lines.

16 | English

Technical Data

Line laser GLL 3-80 P
	Professional
Article number 3 601 K63 300
Working range 1)
- Standard	20 m
- With pulse function	15 m
- With laser receiver	5-80 m
Levelling Accuracy	± 0.2 mm/m
Self-levelling range, typically	± 4°
Levelling duration, typically	<4 s
Operating temperature	-10 °C ... +40 °C
Storage temperature	-20 °C ... +70 °C
Relative air humidity, max.	90 %
Laser class	2
Laser type	640 nm, <1 mW
C6	1
Shortest pulse duration	1/1600 s
Tripod mount	1/4", 5/8"
Batteries	4 x 1 . 5 V L R 0 6 ( A A )
Operating duration
- With 3 laser planes	5 h
- With 2 laser planes	9 h
- With 1 laser plane	18 h
Weight according to EPTA-Procedure 01/2003	0.75 kg
Dimensions	159 x 141 x 75 mm
Degree of protection	IP 54 (dust and splash water protected)

1) The working range can be decreased by unfavourable environmental conditions (e.g. direct sun irradiation).
Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary.
The measuring tool can be clearly identified with the serial number 14 on the type plate.

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

1 Exit opening for laser beam
2 Battery low indicator
3 Pulse-function button
4 Operating mode button
5 Pulse-function indicator
6 Working without automatic levelling indicator

7 On/Off switch

8 Magnets

9 Tripod mount 5/8"

10 Tripod mount 1/4"

11 Latch of battery lid

12 Battery lid

13 Laser warning label

14 Serial number

15 Laser target plate

16 Measurement plate with stand*

17 Laser receiver*

18 Protective pouch*

19 Universal holder*

20 Laser viewing glasses*

21 Tripod*

22 Measuring rod*

* The accessories illustrated or described are not included as standard delivery.

Assembly

Inserting/Replacing the Battery

Alkali-manganese batteries are recommended for the measuring tool.

To open the battery lid 12, slide the latch 11 in the direction of the arrow and fold the battery lid up. Insert the batteries. When inserting, pay attention to the correct polarity according to the representation on the inside of the battery lid.

When the batteries become weak, a single 5 s audio signal will sound. The battery low indicator 2 continuously flashes red. The measuring tool can be operated for less then 2 h.

If the batteries are weak when switching on the measuring tool, the 5 s audio signal will sound directly after switching on the measuring tool.

Always replace all batteries at the same time. Only use batteries from one brand and with the identical capacity.

▶ Remove the batteries from the measuring tool when not using it for extended periods.
When storing for extended periods, the batteries can corrode and discharge themselves.

Operation

Initial Operation

▶ Loud audio signals will sound under certain conditions while operating the measuring tool. Therefore, keep the measuring tool away from your ear or other persons. The loud audio signal can cause hearing damage.

▶ Protect the measuring tool against moisture and direct sun light.

Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.

- Avoid heavy impact or falling of the measuring tool. After heavy exterior impact on the measuring tool, an accuracy check should always be carried out before continuing to work (see “Levelling Accuracy”).

▶ Switch the measuring tool off during transport. When switching off, the levelling unit, which can be damaged in case of intense movement, is locked.

18 | English

Switching On and Off

To switch on the measuring tool, slide the On/Off switch 7 to the “on” position (when working without automatic levelling) or to the “on” position (when working with levelling). Immediately after switching on, the measuring tool sends laser beams out of the exit openings 1.

▶ Do not point the laser beam at persons or animals and do not look into the laser beam yourself, not even from a large distance.

To switch off the measuring tool, slide the On/Off switch 7 to the "off" position. When switching off, the levelling unit is locked.

When exceeding the maximum permitted operating temperature of 45\ °C , the measuring tool switches off to protect the laser diode. After cooling down, the measuring tool is ready for operation and can be switched on again.

Deactivating the Automatic Shut-off

When no button on the measuring tool is pressed for approx. 30 minutes, the measuring tool automatically switches off to save the batteries.

To switch on the measuring tool after automatic shut-off, either slide the On/Off switch 7 to the "off" position and then switch the measuring tool on again or press the operating mode button 4 once or press the pulse-function button 3 once.

To deactivate the automatic shut-off, keep the operating mode button 4 pressed for at least 3 s (while the measuring tool is switched on). Deactivation of the automatic shut-off is confirmed by brief flashing of the laser beams.

▶ Do not leave the switched on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.

To activate the automatic shut-off, switch the measuring tool off and then on again or press and hold the operating mode button 4 for at least 3 s.

Deactivating the Signal Tone

After the measuring tool has been switched on, the audio signal is always activated.

To deactivate/activate the audio signal, press automatic and hold the operating mode button 4 and the pulse-function button 3 at the same time for at least 3 s.

The audio signal activation and deactivation are both confirmed by three short beeps.

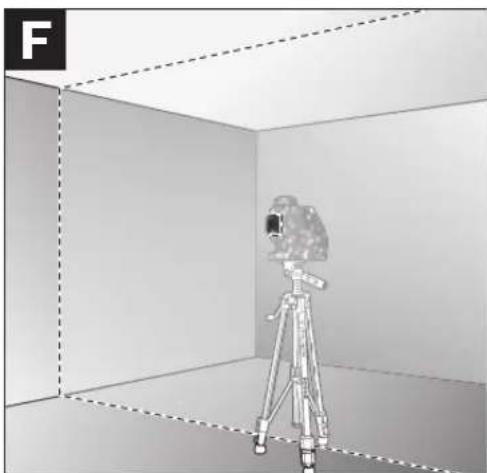

Operating Modes

The measuring tool has several operating modes between which you can switch at any time. These are for:

• Generating a horizontal laser plane,
• Generating a vertical laser plane,
• Generating two vertical laser planes,

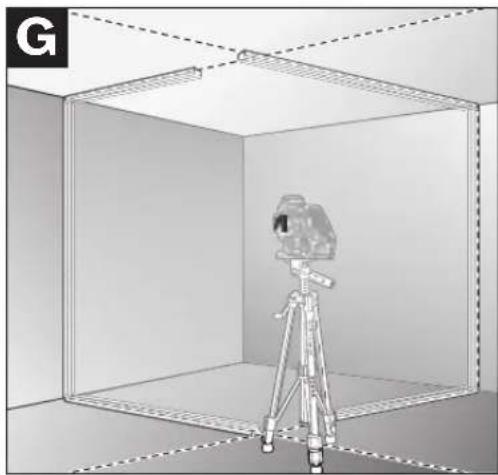

• Generating a horizontal laser plane as well as two vertical laser planes.

After switching on, the measuring tool generates a horizontal laser plane. To change the operating mode, press the operating mode button 4.

All operating modes can be selected both with and without automatic levelling.

Pulse Function

When working with the laser receiver 17, the pulse function must be activated, - independent of the selected operating mode.

In pulse function, the laser lines flash at very high frequency and thus become detectable by the laser receiver 17.

To switch on the pulse function, press button 3. When the pulse function is switched on, the pulse-function indicator 5 lights up green.

When the pulse function is switched on, the visibility of the laser lines is reduced for the human eye. Therefore, shut off the pulse function by pushing button 3 again when working without laser receiver. When the pulse function is switched off, the pulse-function indicator 5 is deactivated.

Automatic Levelling

Working with Automatic Levelling

Position the measuring tool on a level and firm support, attach it to the holder 19 or to the tripod 21.

When working with automatic levelling, push the On/Off switch 7 to the "on" position.

After switching on, the levelling function automatically compensates irregularities within the self-levelling range of ±4° . The levelling is finished as soon as the laser beams do not move any more.

If automatic levelling is not possible, e.g. because the surface on which the measuring tool stands deviates by more than 4° from the horizontal plane, the laser lines begin to flash rapidly. When the audio signal is activated, a fast-beat signal sounds for 30 s (maximum). This alarm is deactivated within 10 s after switching on, in order to allow adjustment of the measuring tool.

Set up the measuring tool in level position and wait for the self-levelling to take place. As soon as the measuring tool is within the self-levelling range of ±4° , all laser beams light up continuously and the audio signal is switched off.

In case of ground vibrations or position changes during operation, the measuring tool is automatically levelled in again. To avoid errors, check the position of the horizontal and vertical laser line with regard to the reference points upon re-levelling.

Working without Automatic Levelling

For working without automatic levelling, slide the On/Off switch 7 to the "on" position. When automatic levelling is switched off, indicator 6 lights up red and for the first 30 s laser beams flash slowly.

When automatic levelling is switched off, you can hold the measuring tool freely in your hand or place it on an inclined surface. The laser lines no longer necessarily run vertical to each other.

Levelling Accuracy

Influences on Accuracy

The ambient temperature has the greatest influence. Especially temperature differences occurring from the ground upward can divert the laser beam.

Because the largest difference in temperature layers is close to the ground, the measuring tool should always be mounted on a tripod when measuring distances exceeding 20 m. If possible, also set up the measuring tool in the centre of the work area.

Apart from exterior influences, device-specific influences (such as heavy impact or falling down) can lead to deviations. Therefore, check the accuracy of the measuring tool each time before starting your work.

Firstly, check the levelling accuracy of the horizontal laser line and then the levelling accuracy of the vertical laser lines.

Should the measuring tool exceed the maximum deviation during one of the tests, please have it repaired by a Bosch after-sales service.

20 | English

Checking the Horizontal Levelling Accuracy of the Lateral Axis

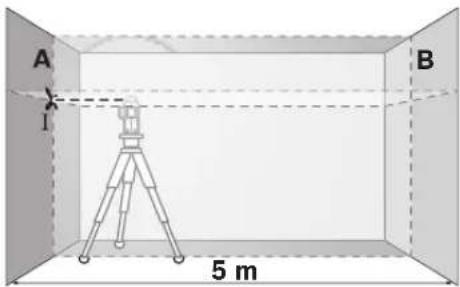

For this check, a free measuring distance of 5 metres on a firm surface between two walls A and B is required.

- Mount the measuring tool onto a tripod, or place it on a firm and level surface close to wall A. Switch on the measuring tool to operation with automatic levelling. Select the operating mode in which a horizontal laser plane as well as a vertical laser plane in front of the measuring tool are generated.

- Direct the laser against the close wall A and allow the measuring tool to level in. Mark the centre of the point where the laser lines cross each other at wall A (point 1).

- Turn the measuring tool by 180° , allow it to level in and mark the cross point of the laser lines on the opposite wall B (point II).

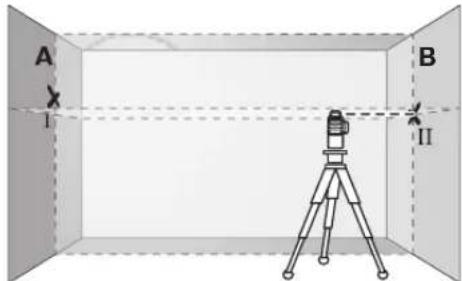

- Without turning the measuring tool, position it close to wall B. Switch the measuring tool on and allow it to level in.

- Align the height of the measuring tool (using a tripod or by underlaying, if required) in such a manner that the cross point of the laser lines is projected against the previously marked point II on the wall B.

- Without changing the height, turn around the measuring tool by 180° . Direct it against the wall A in such a manner that the vertical laser line runs through the already marked point I. Allow the measuring tool to level in and mark the cross point of the laser lines on the wall A (point III).

- The difference d of both marked points I and III on wall A results in the actual height deviation of the measuring tool alongside the lateral axis.

On the measuring distance of 2 × 5 m = 10 m , the maximum allowable deviation is:

10 m x ±0.2 mm/m = ±2 mm.

Thus, the difference d between points 1 and III must not exceed 2 mm (max.).

English | 21

Checking the Levelling Accuracy of the Vertical Lines

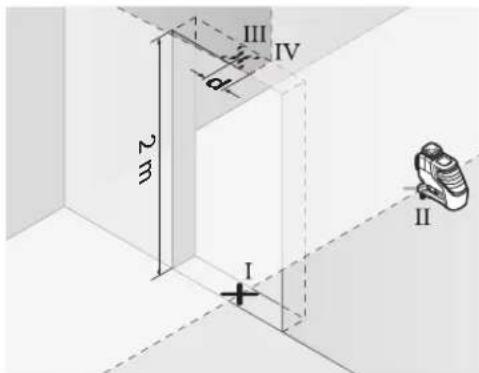

For this check, a door opening is required with at least 2.5 metres of space (on a firm surface) to each side of the door.

- Position the measuring tool on a firm, level surface (not on a tripod) 2.5 m away from the door opening. Switch on the measuring tool to operation with automatic levelling. Select an operating mode in which a vertical laser plane is generated in front of the measuring tool.

- Mark the centre of the vertical laser line at the floor of the door opening (point I), at a distance of 5 metres beyond the other side of the door opening (point II) and at the upper edge of the door opening (point III).

- Rotate the measuring tool by 180° and position it on the other side of the door opening directly behind point II. Allow the measuring

tool to level in and align the vertical laser line in such a manner that its centre runs exactly through points I and II.

• Mark the centre of the laser line at the upper edge of the door opening as point IV.
• The difference d of both marked points III and IV results in the actual deviation of the measuring tool to the plumb line.
• Measure the height of the door opening.

Repeat the measuring procedure for the second vertical laser plane. For this, select an operating mode in which a vertical laser plane is generated aside of the measuring tool, and turn the measuring tool by 90° before beginning with the measuring procedure.

The maximum admissible deviation is calculated as follows:

Doubled height of the door opening x 0.2 mm/m Example: For a door-opening height of 2 m, the maximum deviation may be

2 x 2 m x ±0.2 mm/m = ±0.8 mm. Consequently, points III and IV may be no more than 0.8 mm (max.) apart from each other for each of both measurements.

Working Advice

▶ Always use the centre of the laser line for marking. The width of the laser line changes with the distance.

Working with the Laser Target Plate

The laser target plate 15 increases the visibility of the laser beam under unfavourable conditions and at large distances.

The reflective part of the laser target plate 15 improves the visibility of the laser line. Thanks to the transparent part, the laser line is also visible from the back side of the laser target plate.

Working with the Tripod (Accessory)

A tripod offers a stable, height-adjustable measuring support. Position the measuring tool with the 1/4" tripod mount 10 onto the thread of the tripod 21 or a commercially available camera tripod. For fastening to a commercially available construction tripod, use the 5/8" tripod mount 9. Tighten the measuring tool with the tripod mounting stud.

22 | English

Fastening with the Universal Holder (Accessory) (see figure D)

With the universal holder 19, you can fasten the measuring tool, e.g., to vertical surfaces, pipes or magnetizable materials. The universal holder is also suitable for use as a ground tripod and makes the height adjustment of the measuring tool easier.

Working with the Measuring Plate (Accessory) (see figures A-B)

With the measuring plate 16, it is possible to project the laser mark onto the floor or the laser height onto a wall.

With the zero field and the scale, the offset or drop to the required height can be measured and projected at another location. This eliminates the necessity of precisely adjusting the measuring tool to the height to be projected.

The measuring plate 16 has a reflective coating that enhances the visibility of the laser beam at greater distances or in intense sunlight. The brightness intensification can be seen only when viewing, parallel to the laser beam, onto the measuring plate.

Working with the Laser Receiver (Accessory) (see figure D)

Under unfavourable light conditions (bright environment, direct sunlight) and for larger distances, use the laser receiver for improved finding of the laser lines 17. When working with the laser receiver, switch the pulse function on (see "Pulse Function", page 18).

Laser Viewing Glasses (Accessory)

The laser viewing glasses filter out the ambient light. This makes the red light of the laser appear brighter for the eyes.

▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

Work Examples (see figures C-H)

Applicational examples for the measuring tool can be found on the graphics pages.

Maintenance and Service

Maintenance and Cleaning

Store and transport the measuring tool only in the protective pouch or in the case.

Keep the measuring tool clean at all times.

Do not immerse the measuring tool in water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Regularly clean the surfaces at the exit opening of the laser in particular, and pay attention to any fluff of fibres.

If the measuring tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorised after-sales service centre for Bosch power tools. Do not open the measuring tool yourself.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the measuring tool.

In case of repairs, send in the measuring tool packed in its protective pouch 18.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

People's Republic of China

Website: www.bosch-pt.com.cn

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: [phone]

Tel.: [phone]

Fax: [phone]

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

Indonesia

PT. Multi Tehaka

Kawasan Industri Pulogadung

Jalan Rawa Gelam III No. 2

Jakarta 13930

Indonesia

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.multitehaka.co.id

24 | English

Philippines

Robert Bosch, Inc.

Zuellig Building

Sen. Gil Puyat Avenue

Makati City 1200, Metro Manila

Philippines

Tel.: [phone]

www.bosch.com.ph

Malaysia

Robert Bosch (SEA.) Pte. Ltd.

No. 8a, Jalan 13/6

46200 Petaling Jaya,

Selangor,

Malaysia

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Toll Free Tel.: [phone]

Fax: [phone]

www.bosch.com.sg

Thailand

Robert Bosch Ltd.

Liberty Square Building

No. 287, 11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone] - 18 88 (10 lines)

Fax: [phone]

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501, Thailand

Bosch Service - Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Prakanong District

10110 Bangkok

Thailand

Tel.: [phone] - 4

Fax: [phone]

Fax: [phone]

Singapore

Robert Bosch (SEA.) Pte. Ltd.

38 C Jalan Pemimpin

Singapore 915701

Republic of Singapore

Tel.: [phone]

Fax: [phone]

www.bosch.com.sg

Vietnam

Robert Bosch (SEA) Pte. Ltd - Vietnam

Representative Office

Saigon Trade Center, Suite 1206

37 Ton Duc Thang Street,

Ben Nghe Ward, District 1

HCMC

Vietnam

Tel.: [phone]

Fax: [phone]

Disposal

Measuring tools, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of measuring tools into household waste!

According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national

right, measuring tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Battery packs/batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Subject to change without notice.

Français | 25

Robert Bosch (France) S.A.S.

38 | Español

Modos de operación

40 | Español

50 | Português

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone]

Fax: [phone]

Avfallshantering

116 | Türkçe

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Robert Bosch Sp. z o.o.

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Zpracování odpadů

142 | Slovensky

170 | Українська

Bosch Service Center

Str. Horia Măcelariu Nr. 30-34,

013937 Bucureşti

Tel. Service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

- Usmerite laser na bliski zid A i pustite da se merni alat niveliše. Markirajte sredinu tačke, u kojoj se laserske linije ukršaju na zidu A (tačka 1).

Srpski | 199

• Okrenite merni alat za 180° nedostaje stepen, nivelišite ga i označite tačku ukrštanja laserskih linija na suprotnom zidu B (tačka II).
• Postavite merni alat ne okrećući ga blizu zida B, uključite ga i pustite da se niveliše.

- Postavite merni alat po visini tako (sa stativom ili u datom slučaju podmetačima), da tačka ukrštanja laserskih linija tačno pogadja prethodno označenu tačku II na zidu B.

• Okrenite merni alat za 180° nedostaje stepen, ne menjajući visinu. Upravite ga tako na zid A, da vertikalna laserska linija prolazi kroz već označenu tačku I. Nivelišite merni alat i označite tačku ukrštanja laserskih linija na zidu A (tačka III).
• Razlika d obe obeležene tačke I i III na zidu A daje stvarno visinsko odstupanje mernog alata duž poprečne ose.

Na mernoj liniji od 2 x 5 m = 10 m iznosi maksimalno dozvoljeno odstupanje:

10 m x ±0,2 mm/m = ±2 mm.

Razlika d izmedju tačaka 1 i 111 sme na kraju da iznosi najviše 2 mm.

- Označite sredinu vertikalne laserske linije na podu otvora vrata (tačka I), 5 m rastojanja druge strane otvora vrata (tačka II), kao i na gornjoj ivici otvora vrata (tačka III).

200 | Srpski

• Okrenite merni alat za 180° i postavite ga na drugu stranu otvora vrata direktno iza tačke II. Pustite merni alat da se niveliše i centrirajte vertikalnu lasersku liniju tako, da njena sredina prolazi tačno kroz tačke I i II.
  – Označite sredinu laseske linije na gornjoj ivici otvora vrata kao tačku IV.
• Razlika d obe markirane tačke III i IV daje stvarno odstupanje mernog alata od vertikale.
• Merite visinu otvora vrata.

- Označite sredinu okomite linije lasera na dnu otvora vrata (točka I), na udaljenosti 5 m na drugoj strani otvora vrata (točka II), kao i na gornjem rubu otvora vrata (točka III).

216 | Hrvatski

Robert Bosch Korea Mechanics and Electronics Ltd.

전동공구 사업부

Jalan Rawa Gelam III No. 2

Jakarta 13930

Indonesia

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.multitehaka.co.id

Cara membuang

288 | Tiếng Việt

- عَلَّم مُتَصِفْ خَطَ الْلَيْزِرِ الْعَامُودِي عَلَى أَرْض فَتَحَةُ الْبَاب (الِنَقَطَةٍ) وَعَلَى بَعْد 5 م عَلَى اجَنابِ الْأَخْرِ مِن فَتَحَةُ الْبَاب (الِنَقَطَةٍ) وَأَيْضًا • عَلَى الحَافَةُ العُلْمُّة بِفْتَحَةُ الْبَاب (الِنَقَطَةٍ)
