Product Type	Outdoor LED Projector
Brand	Steinel
Model	XLED One XL
Power Supply	230 V ~ 50 Hz
Power	20 W
Luminous Flux	9,500 lm
Color Temperature	3,000 K (warm white) / 4,000 K (neutral white) / 6,500 K (daylight) switchable
Detection Angle	120°
Detection Range	Up to 12 m
Protection Rating	IP54
Dimensions (L x W x H)	220 x 180 x 220 mm
Weight	0.8 kg
Housing Material	Aluminum and plastic
Color	Black
Main Functions	Infrared motion detector, adjustable lighting duration (5 s to 15 min), adjustable twilight threshold (2 to 2,000 lux), switchable color temperature
Care and Cleaning	Clean with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Safety	Disconnect power before any intervention. Installation by a qualified electrician.
Spare Parts and Repairability	LED not replaceable, the housing can be changed. Contact Steinel customer service.
General Information	Outdoor use, wall mounting, 1.5 m power cable included.

Frequently Asked Questions - XLED One XL STEINEL

How to install the XLED One XL projector?

Attach the wall bracket using the provided wall plugs, connect the power cable to an external switch (230 V), then clip the projector onto the bracket. Ensure installation is carried out by a qualified electrician.

How to adjust the motion detector?

Adjustments are made via the potentiometers located under the cover: Time (lighting duration from 5 s to 15 min), Lux (twilight threshold from 2 to 2,000 lux) and Reach (not present on this model?). Use a screwdriver to adjust.

Can the LED bulb be changed?

No, the LEDs are permanently integrated. In case of defect, the entire LED module must be replaced by Steinel customer service.

What is the detection range?

The detection range is approximately 12 meters with an angle of 120°.

Can the projector be used indoors?

It is designed for outdoor use (IP54), but can be used indoors in damp rooms like a garage, provided safety distances are observed.

How to change the color temperature?

A switch located at the back of the projector allows you to choose between 3,000 K (warm white), 4,000 K (neutral white) and 6,500 K (daylight). Disconnect the device before handling.

What to do if the projector does not turn on?

First check the power supply and circuit breaker. Make sure the twilight threshold (Lux) is not set too high (in broad daylight) and the lighting duration (Time) is not too short. If the problem persists, contact customer service.

Does the projector flicker?

Flickering may indicate overheating or a defect. Check that the projector is not obstructed and ventilation is adequate. If flickering continues, disconnect and consult customer service.

What is the power consumption?

The power is 20 watts, which allows very low consumption relative to the delivered brightness (9,500 lm).

How to clean the projector?

Use a soft, dry cloth. Never use abrasive cleaners, alcohol, or solvents. Disconnect the device before cleaning.

USER MANUAL XLED One XL STEINEL

XLED ONE XLED ONE XL XLED ONE S XLED ONE XL S

GB ... 14 Follow written instructions!

XLED ONE S / XLED ONE XL S

3.2

XLED ONE / XLED ONE XL

3.3
XLED ONE S / XLED ONE XL S

3.4
XLED ONE / XLED ONE XL

3.5
XLED ONE S / XLED ONE XL S

3.7

4.1
XLED ONE S / XLED ONE XL S

3.6
XLED ONE / XLED ONE XL

4.2

XLED ONE S / XLED ONE XL S

4.3
XLED ONE S / XLED ONE XL S

4.4

4.5

4.6

4.7

4.8

4.9

4.11

5.1
XLED ONE S / XLED ONE XL S

2-2.000 Lux

8 sec-35 min

4.10

5.2

5.3

5.6

XLED ONE S / XLED ONE XL S

5.4

5.5

DE

3. XLED ONE / S XLED ONE XL / S

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

7. Störungsbehebung

—Under copyright. Reproduction either in whole or in part only with our consent.

-Subject to change in the interest of technical progress.

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.
• Keep instructions within easy reach.

- Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.

-Work on mains voltage must only be performed by qualified, skilled personnel.

-National wiring regulations and electrical operating conditions must be observed (e.g. DE: VDE 0100, AT: ÖVE-ÖNORM E8001-1, CH: SEV 1000).

-Only use genuine replacement parts.
-Repairs must be made by specialist workshops.

- The cable must not be replaced if it gets damaged. If the cable is damaged, you must replace the entire bracket floodlight with cable.

3. XLED ONE / S XLED ONE XL / S

Proper use

-Bracket floodlight for indoor and outdoor wall and ceiling mounting.

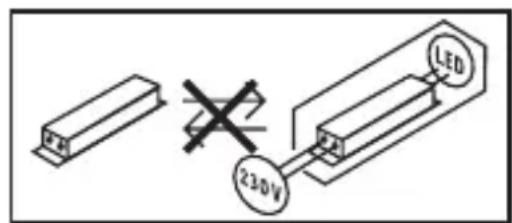

–The unit is not suitable for connecting to a dimmer.

Not dimmable

–These sensor versions (S versions) also feature an infrared sensor for detecting movement.

Operating principle

-Bracket floodlight for illumination.
-Wide-area lighting from LED technology in combination with the opal panel.

The S versions also provide these functions:

-Adjustable floodlight head.
–The integrated infrared sensor detects the heat radiated from moving objects (e.g. people, animals).
–The heat detected in this way is converted electronically into a signal that switches the LED light ON automatically.

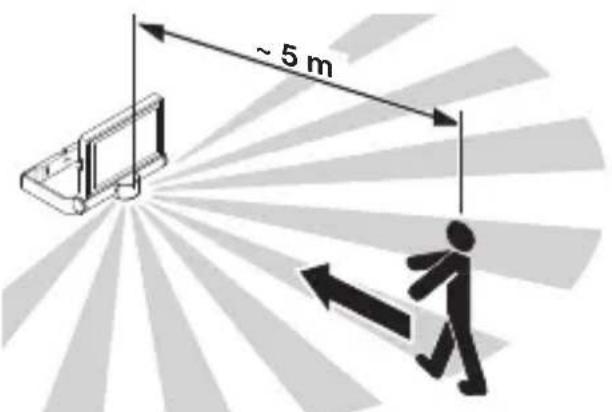

–The most reliable way of detecting motion is to install the light with the sensor aimed across the direction in which a person would walk.

-Reach is restricted when the sensor is approached head on.

-Obstacles (e.g. trees, walls etc.) interrupt the line of sensor vision.

- Heat radiation is not detected through obstacles (e.g. walls or panes of glass), the sensor is not triggered.

-Sudden fluctuations in the temperature from changes in weather are not distinguished sources of heat.

Models

-XLED ONE

-XLED ONE S

-XLED ONE XL

-XLED ONE XL S

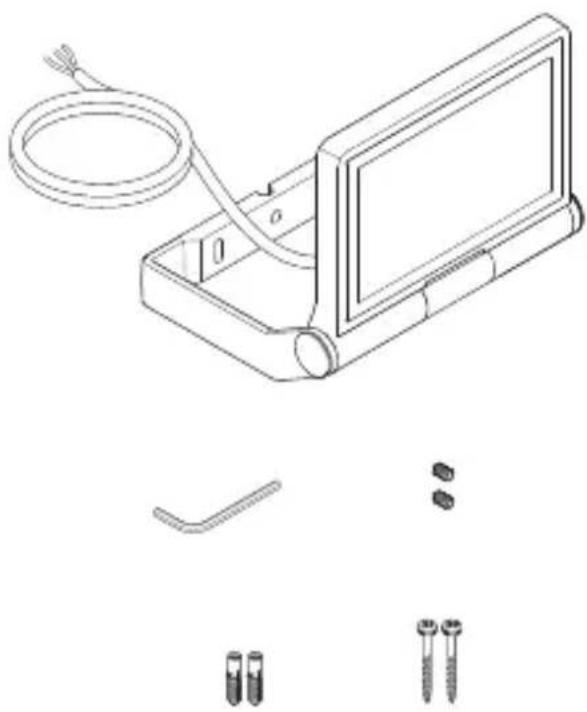

Package contents (Fig. 3.1, 3.2)

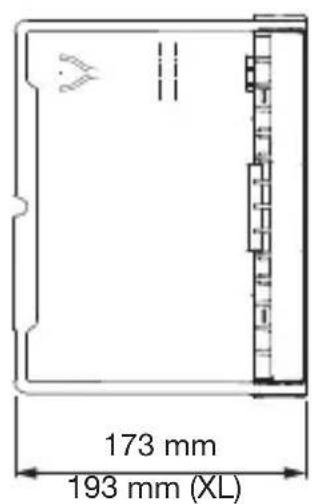

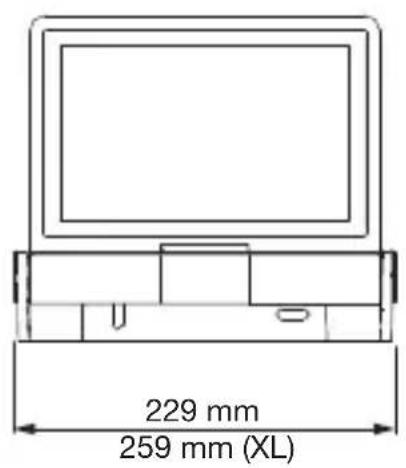

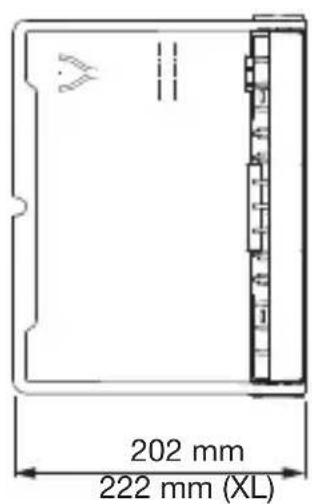

Product dimensions (Fig. 3.3, 3.4)

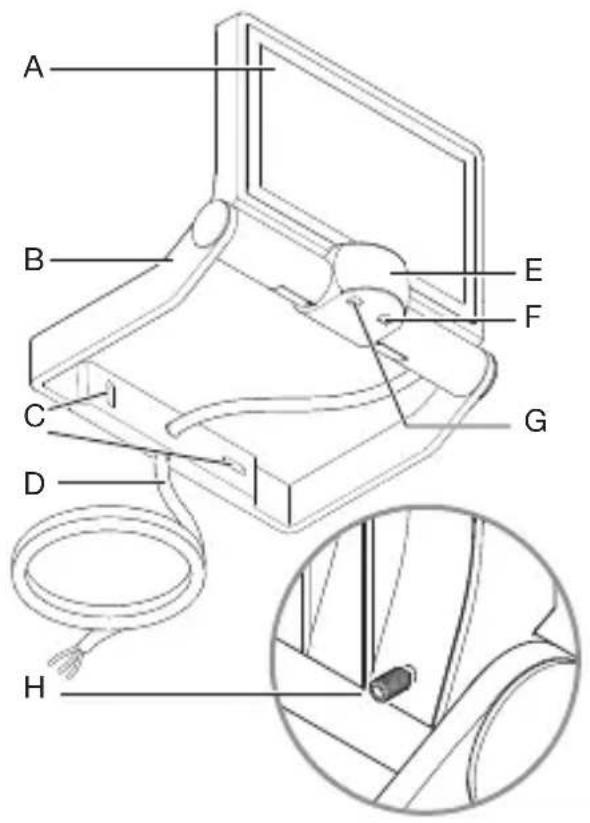

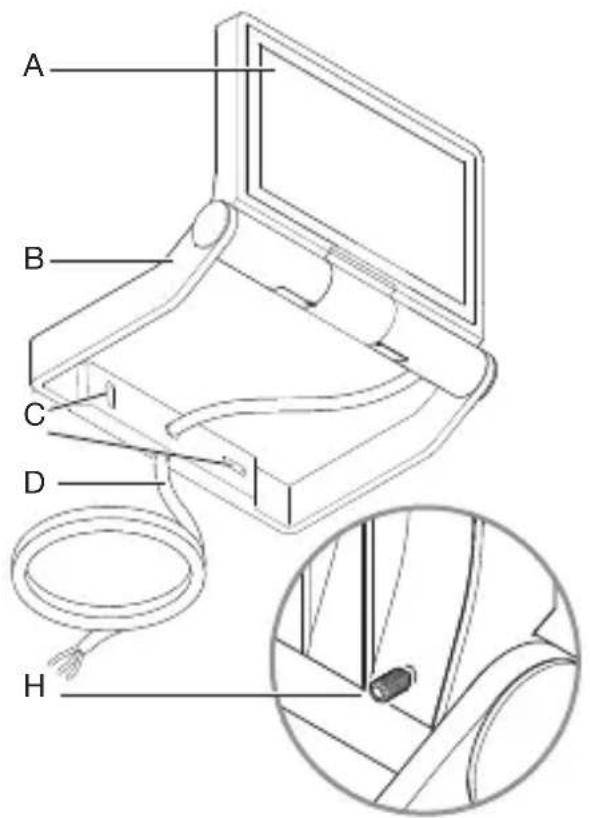

Product parts (Fig. 3.5, 3.6)

A Floodlight head

B Bracket

C Mounting slots

D Cable

E Sensor unit (S versions only)

F Time setting (S versions only)

G Twilight setting (S versions only)

H 2 grub screws

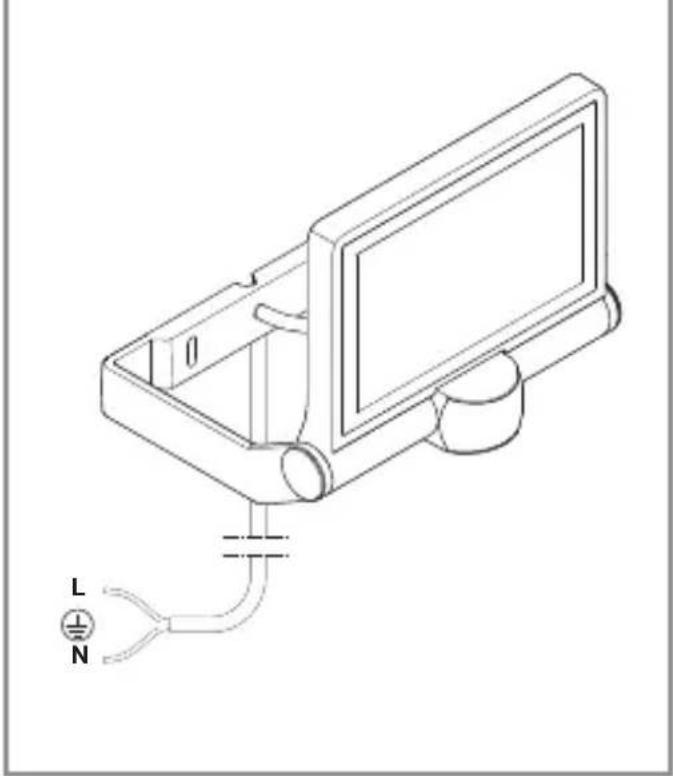

Connection (Fig. 3.7)

The supply lead is a three-core cable:

L = phase (brown, grey or black)

N = neutral conductor (blue)

=Protective-earthconductor (green/yellow)

A mains switch for switching the product ON and OFF may be installed in the mains supply lead.

Technical specifications

-Dimensions (D × W × H):

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

- Power supply: 220-240 V, 50/60 Hz

-Power consumption ( P_on ):

XLED ONE: 17,8 W

XLED ONE S: 18,6 W

XLED ONE XL: 42,6 W

XLED ONE XL S: 42,6 W

-Sensor on standby (P_sb) :

XLED ONE S: 0.50 W

XLED ONE XL S: 0.50 W

-Luminous flux (360°):

XLED ONE/XLED ONE S: 2,050 lm

XLED ONE XL/XLED ONE XL S: 4,200 lm

-Weight:

XLED ONE/XLED ONE S: 1.185 kg

XLED ONE XL/XLED ONE XL S: 1.420 kg

-Area illuminated to the front:

XLED ONE/ XLED ONE S: 364 cm²

XLED ONE XL/ XLED ONE XL S: 464 cm²

-Power factor:

XLED ONE/ XLED ONE S: 0.70

XLED ONE XL/XLED ONE XL S: 0.95

- Efficiency: XLED ONE: 115 lm/W

XLED ONE S: 110 lm/W

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

-Light colour: 3,000 K (warm white)

- Colour-rendering index: R_a ≥ 80

-Average rated life expectancy:

L70B50 at 25°C: >36,000 hours

- Colour consistency SDCM:

starting value: 6

-Luminous intensity distribution:

- Sensor technology: Passive infrared

-Angle of coverage (S only): 180°

- Detection reach (S only):

12 m tangential

- Mounting height: 2 m

– Time setting: 8 s to 35 min

– Twilight setting: 2-2,000 lux

-Ambient temperature:

- 2 0 ^ ° Cto + 4 0 ^ ° C

-IP rating: IP44

-Protection class: /

4. Installation

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure the light is disconnected from the power supply.
• Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
  • Re-connect connection leads.

Preparing for installation

• Check all components for damage. Do not use the product if it is damaged.

- Select an appropriate site to install the product.

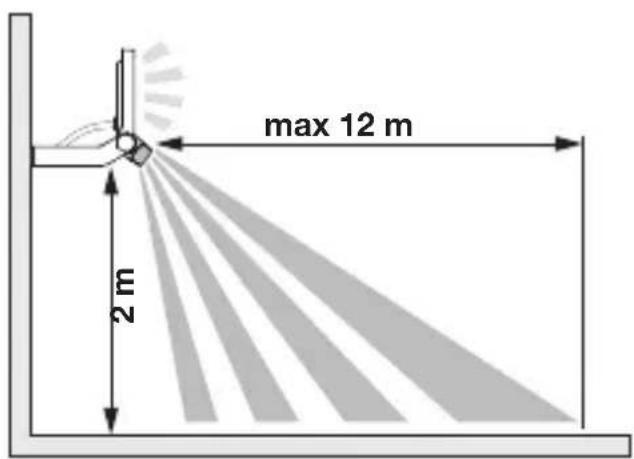

-Taking reach into consideration (Fig. 4.1)

-Taking reach and motion detection into consideration. (Fig. 4.2/4.3)

-Vibration-free.

-No obstacles in detection zone.

-Not in explosive atmospheres.

-Not on normally flammable surfaces.

-Do not look into the LED light from a short distance (<20 cm).

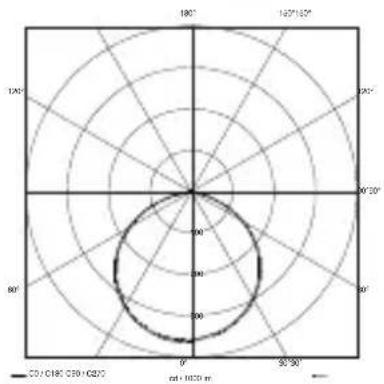

Light distribution curve (Fig. 4.4)

Mounting procedure

• Check to make sure the power supply is switched OFF. (Fig. 3.7)

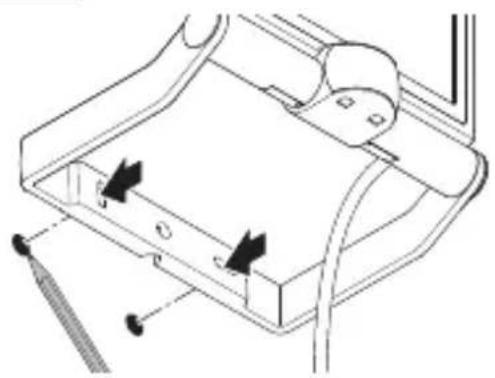

  • Mark drill holes. (Fig. 4.5)

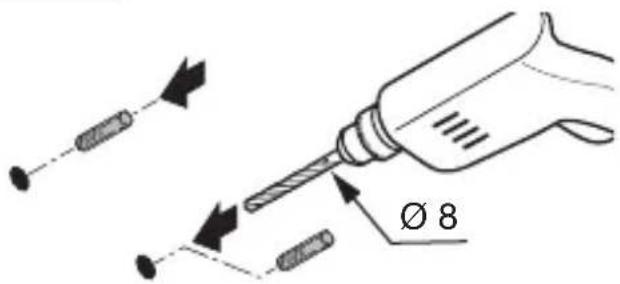

• Drill holes ( 8 mm) and fit wall plugs. (Fig. 4.6)

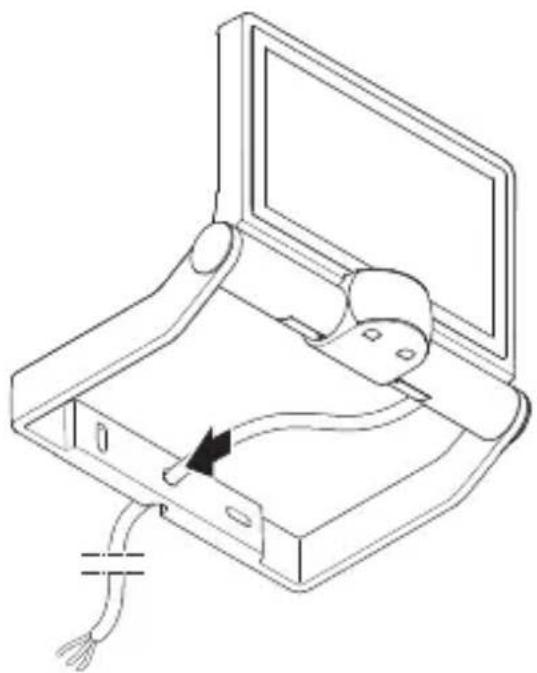

• Feed connection cable through bracket and aim floodlight head. Remember to include extra length of cable for aiming the floodlight head later on. (Fig. 4.7)

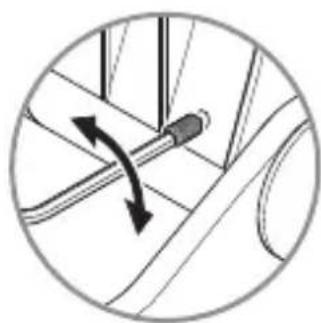

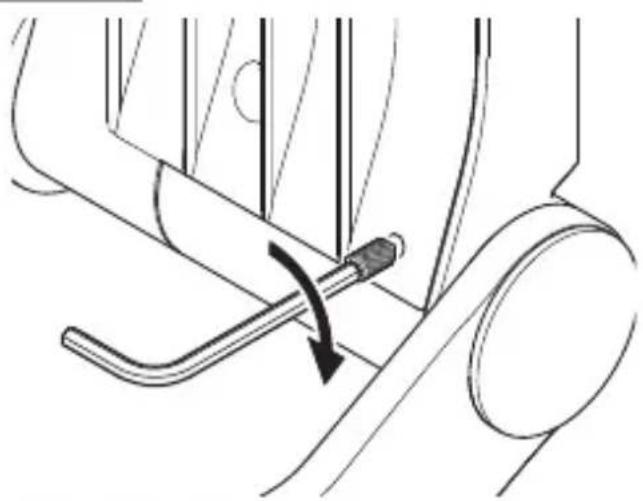

• Aim floodlight head and fix in place with grub screws. (Fig. 4.8)

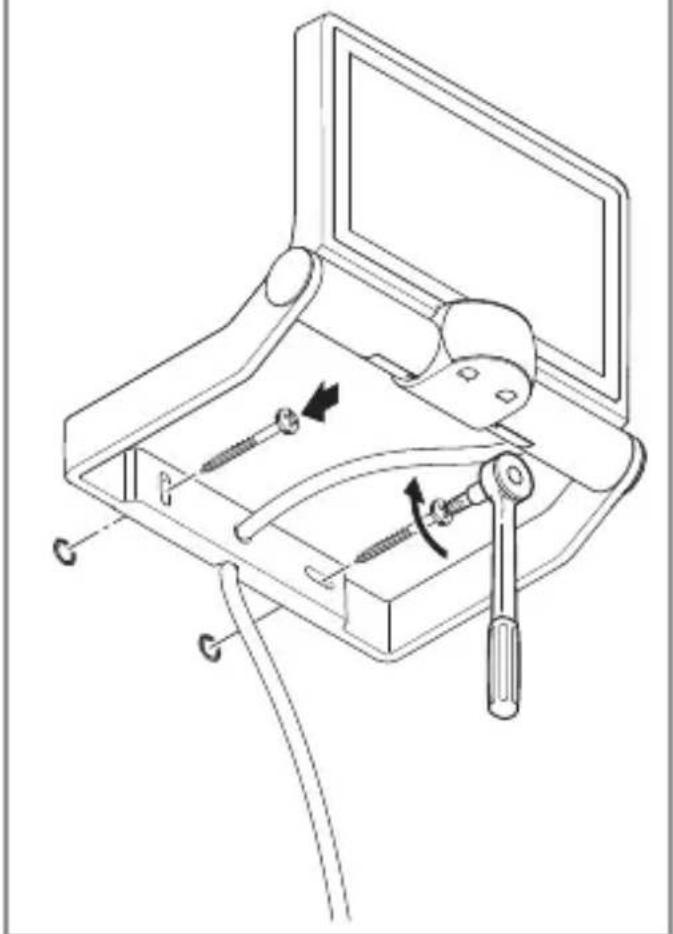

• Screw bracket to mounting surface. (Fig. 4.9)
• Connect power cable to local power supply. (Fig. 4.10)
• Switch ON power supply. (Fig. 4.11)

The light is ready for use. Settings and detection zone can be changed if necessary. → "5. Use"

5. Use

Factory settings

-Time setting: 8 seconds

–Twilight setting: daylight mode

Time setting (S versions only) (Fig. 5.1)

The time (stay-ON time) can be set to any period from approx. 8 seconds to a maximum of 35 minutes. Every movement detected re-activates the light.

Twilight setting (S versions only) (Fig. 5.1)

The brightness response threshold (twilight) can be infinitely varied from approx. 2 to 2,000 lux.

- ⚙ = daylight mode (depending on ambient light level)

- € night-time operation (approx. 2 lux)

Aiming floodlight head (Fig. 5.2)

• Undo the grub screws to alter aim. After altering aim, fix floodlight head in place with grub screws. (Fig. 5.2)

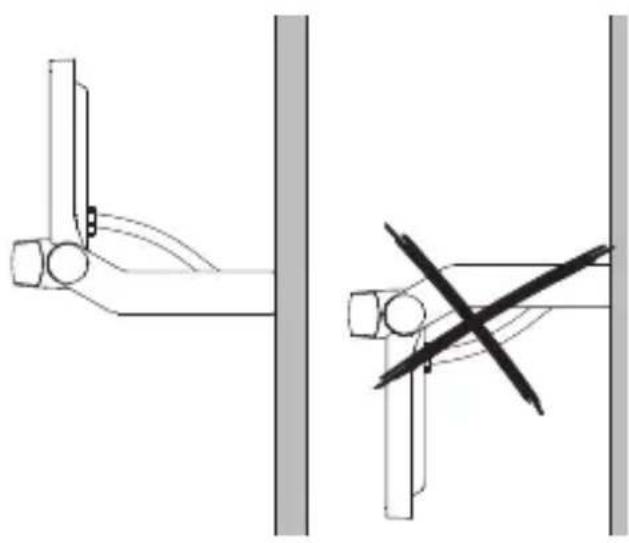

• When aiming the floodlight head, make sure that water can drain out of the drainage holes. (Fig. 5.3)

Aiming sensor unit (S versions only) (Fig. 5.4)

- When aiming the sensor unit, make sure the sensor covers the detection zone.

Adjusting the detection zone (S versions only)

To rule out inadvertent triggering or target specific danger spots, the detection zone can be limited with film shrouds. The film shroud is stuck onto the sensor unit.

-Limiting the horizontal detection zone with film-shroud segments cut to size. (Fig. 5.5/5.6)

- When adjusting the detection zone, select shortest time and daylight operating mode. (Fig. 5.1)

6. Cleaning and Maintenance

Hazard from electrical power.

Contact between water and live parts can result in electrical shock, burns or death.

• Product must not be wet-cleaned.

Risk of damage to property!

Using the wrong detergent can damage the light.

• Make sure detergent does not harm the surface.
• Clean light with a soft cloth and mild detergent.

Important note: the control gear cannot be replaced.

7. Troubleshooting

Light does not switch ON.

-Fuse not switched ON or faulty.

• Switch ON fuse.
• Change faulty fuse.

-Break in wiring.

- Check wiring with voltage tester.

-Short circuit in mains power supply lead.

- Check connections.

-Mains switch OFF.

- Switch ON mains switch.

- Wrong twilight setting selected.

- Re-set brightness response threshold

-Continued movement within the detection zone.

- Check detection zone.

-Light source faulty.

- The light source cannot be changed. Completely replace light.

Light does not switch OFF.

-Continued movement within the detection zone.

• Check detection zone.
• If necessary, limit detection zone.

Light switches ON without any identifiable movement.

-Install light at a non-vibrating site.

- Securely mount enclosure.

–Movement occurring, but is not identified by the observer (e.g. movement behind wall, movement of a small object in immediate light vicinity.)

- Check detection zone.

Light constantly switches ON/OFF.

-Animals are moving in detection zone.

- Check detection zone.

- If necessary, limit detection zone.

8. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic

Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Manufacturer's Warranty

This STEINEL product has been manufactured with utmost care, tested for proper operation and safety and then subjected to random sample inspection. STEINEL guarantees that it is in perfect condition and proper working order.

The warranty period is 36 months and starts on the date of sale to the consumer. We will remedy defects caused by material flaws or manufacturing faults. The warranty will be met by repair or replacement of defective parts at our own discretion. The warranty shall not cover damage to wear parts, damage or defects caused by improper treatment or maintenance. Further consequential damage to other objects shall be excluded.

Claims under the warranty will only be accepted if the unit is sent fully assembled and well-packed with a brief description of the fault, a receipt or invoice (date of purchase and dealer's stamp) to the appropriate Service Centre.

Repair service:

If defects occur outside the warranty period or are not covered by the warranty, ask your nearest service station for the possibility of repair.

FR

3. XLED ONE / S XLED ONE XL / S

Utilisation conforme aux prescriptions

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Bij de levering inbegrepen (afb. 3.1, 3.2)

Productafmetingen (afb. 3.3, 3.4)

XLEDONEXL: 4 2, 6 W

XLEDONEXLS: 4 2, 6 W

-Stand-by sensor (P_sh) :

XLEDONES: 0, 5 0 ^ ° W

XLEDONEXLS: 0, 5 0 W

-Lichtstroom (360°):

XLEDONE / XLEDONES: 2. 0 5 0 lm

XLED ONE XL/XLED ONE XL S: 4.200 lm

-Gewicht:

XLED ONE / XLED ONE S: 1. 1 8 5 kg

XLEDONEXL / XLEDONEXLS: 1. 4 2 0 kg

- Verlicht oppervlak front:

XLEDONE / XLEDONES: 3 6 4 cm ^ 2

XLEDONEXL / XLEDONEXLS: 4 6 4 cm ^ 2

-Vermogensfactor:

XLEDONE / XLEDONES: 0, 7 0

XLEDONEXL / XLEDONEXLS: 0, 9 5

XLEDONES: 1 1 0 lm / W

XLEDONEXL: 9 9 lm / W

XLEDONEXLS: 9 9 lm / W

- Lichtkleur: 3.000 K (warm wit)

- Kleurweergave-index: R_a ≥ 80

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

-Colore della luce:

3.000 K (bianco caldo)

3. XLED ONE / S XLED ONE XL / S

Uso previsto

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

R _ a ≥ 8 0

3. XLED ONE / S XLED ONE XL / S

Utilização prevista

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Itens fornecidos (fig. 3.1, 3.2)

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

R _ a ≥ 8 0

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

XLEDONEXLS: 4 2, 6 W

XLEDONEXLS: 0, 5 0 W

-Ljusflöde (360°):

XLED ONE/XLED ONE S: 2050 lm

XLED ONE XL/XLED ONE XL S: 4200 lm

-Vikt:

XLED ONE/XLED ONE S: 1 185 kg

XLED ONE XL/XLED ONE XL S: 1 420 kg

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

- Sensorteknik: passiv-infraröd

3. XLED ONE / S XLED ONE XL / S

Korrekt anvendelse

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Leveringsomfang (fig. 3.1, 3.2)

Produktmål (fig. 3.3, 3.4)

Produktoversigt (fig. 3.5, 3.6)

XLED ONE: 1 7, 8 W

XLEDONES: 1 8, 6 W

XLEDONEXL: 4 2, 6 W

XLEDONEXLS: 4 2, 6 W

XLEDONES: 0, 5 0 W

XLEDONEXLS: 0, 5 0 W

-Lysstrøm (360°):

XLEDONE / XLEDONES: 2 0 5 0 lm

XLED ONE XL/XLED ONE XL S: 4200 lm

-Vægt:

XLED ONE / XLED ONE S: 1. 1 8 5 kg

XLED ONE XL / XLED ONE XLS: 1. 4 2 0 kg

– Projiceret areal front:

XLED ONE / XLED ONE S: 3 6 4 cm ^ 2

XLEDONEXL / XLEDONEXLS: 4 6 4 cm ^ 2

-Effektfaktor:

XLED ONE / XLED ONE S: 0, 7 0

XLEDONEXL / XLEDONEXLS: 0, 9 5

XLEDONES: 1 1 0 lm / W

XLEDONEXL: 9 9 lm / W

XLEDONEXLS: 9 9 lm / W

– Sensorteknik: Passiv infrarød

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

XLED ONE: 1 7, 8 W

XLEDONES: 1 8, 6 W

XLEDONEXL: 4 2, 6 W

XLEDONEXLS: 4 2, 6 W

-Valmiustila, tunnistin (P _sb ):

XLEDONES: 0, 5 0 W

XLEDONEXLS: 0, 5 0 W

-Valovirta (360°):

XLEDONE / XLEDONES: 2 0 5 0 lm

XLED ONE XL/XLED ONE XL S: 4200 lm

-Paino:

XLED ONE / XLED ONE S: 1, 1 8 5 kg

XLED ONE XL / XLED ONE XLS: 1, 4 2 0 kg

XLEDONEXL / XLEDONEXLS: 4 6 4 cm ^ 2

-Tehokerroin:

XLED ONE / XLED ONE S: 0, 7 0

XLEDONEXL / XLEDONEXLS: 0, 9 5

XLEDONES: 1 1 0 lm / W

XLEDONEXL: 9 9 Im / W

XLEDONEXLS: 9 9 lm / W

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Leveringsomfang (ill. 3.1, 3.2)

Produktmål (ill. 3.3, 3.4)

Produktoversikt (ill. 3.5, 3.6)

A Flomlyshode
B Bøyle
C Utsparinger for montering
D Ledning
E Sensorenhet (kun S-varianter)
F Tidsinnstilling (kun S-varianter)
G Skumringsinnstilling (kun S-varianter)
H 2 settskruer

Tilkobling (ill. 3.7)

XLEDONE: 1 7, 8 W

XLEDONES: 1 8, 6 W

XLEDONEXL: 4 2, 6 W

XLEDONEXLS: 4 2, 6 W

-Standby sensor (P):

XLEDONES: 0, 5 0 W

XLEDONEXLS: 0, 5 0 W

-Lysstrøm (360°):

XLEDONE / XLEDONES: 2 0 5 0 lm

XLEDONEXL / XLEDONEXLS: 4 2 0 0 lm

-Vekt:

XLED ONE / XLED ONE S:1185kg

XLED ONE XL / XLED ONE XLS: 1 4 2 0 kg

- Projisert flate front:

XLEDONE / XLEDONES: 3 6 4 cm ^ 2

XLEDONEXL / XLEDONEXLS: 4 6 4 cm ^ 2

-Effektfaktor:

X L E D O N E / X L E D O N E S : 0, 7 0

XLEDONEXL / XLEDONEXLS: 0, 9 5

XLEDONES: 1 1 0 lm / W

XLEDONEXL: 9 9 lm / W

XLEDONEXLS: 9 9 lm / W

- Lysfarge: 3 000 K (varmhvit)

1 2 m tangential

- 2 0 ^ ° Ctil + 4 0 ^ ° C

• Sensorteknikk: Passiv-infrarød
  -Dekningsvinkel (kun S): 180°
  – Dekningsrekkevidde (kun S):
• Monteringshøyde: 2 m
  – Tidsinnstilling: 8 s til 35 min
• Skumringsinnstilling: 2-2 000 lux
• Omgivelsestemperatur:
• Kapslingsgrad: IP 44
• Kapslingsklasse:

4. Montering

3. XLED ONE / S XLED ONE XL / S

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

-Şebeke bağlantısı:

220-240 V, 50/60 Hz

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

3. XLED ONE / S XLED ONE XL / S

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Rozsah dodávky (obr. 3.1, 3.2)

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

3. XLED ONE / S XLED ONE XL / S

Správne používanie

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Rozsah dodávky (obr. 3.1, 3.2)

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

-Farba svetla: 3 000 K (teplá biela)

- Index podania farieb: R_a ≥ 80

-Senzorová technológia:

pasívna infračervená

-Uhol snímania (iba S): 180°

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

N = conductor neutru (albastru)

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

– Culoarea luminii: 3.000 K (alb rece)

- Index de redare a culorii: R_a ≥ 80

3 ANI GARANTIA PRODUCATORULUI

SI

1. O tem dokumentu

3. XLED ONE / S XLED ONE XL / S

Namenska uporaba

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Obseg dobave (sl. 3.1, 3.2)

Mere izdelka (sl. 3.3, 3.4)

Pregled sestavnih delov (sl. 3.5, 3.6)

X L E D O N E : 1 7, 8 W

XLEDONES: 1 8, 6 W

XLEDONEXL: 4 2, 6 W

XLEDONEXLS: 4 2, 6 W

-Stanje pripr. senzor (P _sb ):

XLED ONE S: 0, 5 0 W

XLEDONEXLS: 0, 5 0 W

-Svetlobni tok (360°):

XLEDONE / XLEDONES: 2 0 5 0 lm

XLEDONEXL / XLEDONEXLS: 4 2 0 0 lm

-Teća:

XLED ONE / XLED ONE S: 1. 1 8 5 kg

XLEDONEXL / XLEDONEXLS: 1. 4 2 0 kg

XLEDONE / XLEDONES: 3 6 4 cm ^ 2

XLEDONEXL / XLEDONEXLS: 4 6 4 cm ^ 2

-Faktor moči:

XLEDONE / XLEDONES: 0, 7 0

XLEDONEXL / XLEDONEXLS: 0, 9 5

- Učinkovitost: XLED ONE: 115 lm/W

XLEDONES: 1 1 0 lm / W

XLEDONEXL: 9 9 lm / W

XLEDONEXLS: 9 9 lm / W

- Barva svetlobe: 3.000 K (topla bela)

-Indeks barvne reprodukcije: Ra ≥ 80

3. XLED ONE / S XLED ONE XL / S

Namjenska uporaba

-Reflektor s okvirnim nosačem za zidnu i stropnu montažu u unutrašnjem i vanjskom prostoru.
-Uređaj nije prikladan za priključak na regulator intenziteta svjetlosti.

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Sadržaj isporuke (sl. 3.1, 3.2)

Dimenzije proizvoda (sl. 3.3, 3.4)

Pregled proizvoda (sl. 3.5, 3.6)

A Glava reflektora

B Okvirni nosač

C Otvori za montažu

D Kabel

ESenzorskajedinica (samo S varijante)

FPodešavanjevremena (samo S varijante)

-Senzorska tehnika: pasivna infracrvena -Kut detekcije (samo S): 180°

- Domet detekcije (samo S): 12 m tangencijalno

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Tarnekomplekt (joon. 3.1, 3.2)

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

- Anduritehnika: passiivne infrapuna

- Vaatenurk (ainult S): 180°

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL: 193 × 259 × 215 mm

XLED ONE XL S: 22 × 259 × 215 mm

-Tinklo jungtis: 220–240 V, 50/60 Hz

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

-Šviesos spalva: 3000 K (šalta balta)

R _ a ≥ 8 0

3. XLED ONE / S XLED ONE XL / S

Pareiza lietošana

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

Piegādes apjoms (3.1, 3.2 att.)

Produkta izmēri (3.3, 3.4 att.)

Informācija par preci (3.5, 3.6 att.)

3. XLED ONE / S XLED ONE XL / S

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

3. XLED ONE / S XLED ONE XL / S

Употреба по предназначение

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

XLEDONEXL: 1 9 3 × 2 5 9 × 2 1 5 MM

XLEDONEXLS: 2 2 × 2 5 9 × 2 1 5 MM

• Мрежово захранване: 220-240 V, 50/60 Hz
  – Консумирана мощност ( P_on ): XLED ONE: 17,8 W XLED ONE S: 18,6 W XLED ONE XL: 42,6 W XLED ONE XL S: 42,6 W

-Standby сензор ( P_sb ): XLED ONE S: 0,50 W XLED ONE XL S: 0,50 W

-Сензор: пасивен инфрачервен сензор

3. XLED ONE / S XLED ONE XL / S

按规定使用

• XLED ONE
• XLED ONE S
• XLED ONE XL
• XLED ONE XL S

供货范围（图 3.1, 3.2）

产品尺寸（图 3.3, 3.4）

产品概览（图3.5,3.6）

XLED ONE:173 × 229 × 195 mm

XLED ONE S: 202 × 229 × 195 mm

XLED ONE XL:

193 × 259 × 215 mm

XLED ONE XL S:

2 2 × 2 5 9 × 2 1 5 mm

XLED ONE/ XLED ONE S:

364 cm²

XLED ONE XL/ XLED ONE XL S:

464 cm²

一 功率因数：：

XLED ONE/ XLED ONE S: 0.70

XLED ONE XL/XLED ONE XL S:

0.95

XLED ONE XL: 99 lm/W

XLED ONE XL S: 99 lm/W

一 光色：3,000 K（暖白）

Contact

www.steinel.de/contact
