REL5A DALI-2 - Smart Home STEINEL - Free user manual and instructions

Product Type	DALI-2 Relay Actuator
Model	REL5A DALI-2
Brand	Steinel
Category	Smart Home Lighting Control
Dimensions (W x H x D)	43 mm x 43 mm x 18 mm
Weight	Approx. 50 g
Power Supply	16 V DC via DALI bus
Switching Capacity	5 A (resistive load at 230 V AC)
DALI Standard	DALI-2 (IEC 62386)
Functions	Broadcast, group, and scene control; on/off switching
Connection	Screw terminals (DA, DA; L, N, out)
Protection Class	IP20
Operating Temperature	-20 °C to +45 °C
Mounting	DIN rail (EN 60715)
Maintenance	Clean with a dry cloth; no user-serviceable parts
Safety	Installation by qualified electrician; disconnect power before wiring
Spare Parts / Repairability	Not user-serviceable; contact Steinel service for replacement
General Information	For indoor use only; designed for lighting control systems

Frequently Asked Questions - REL5A DALI-2 STEINEL

What is the Steinel REL5A DALI-2?

The REL5A DALI-2 is a DALI-2 relay actuator used for switching lighting loads in a DALI system. It supports broadcast, group, and scene control.

What is the switching capacity of the REL5A?

The relay can switch loads up to 5 A resistive at 230 V AC.

Does this device require a separate power supply?

No, it is powered via the DALI bus (16 V DC). No external power supply is needed.

Can the REL5A be used for dimming?

No, the REL5A is a switching relay only. For dimming, use a Steinel DALI dimmer.

How do I connect the REL5A?

Connect the DALI bus to the DA terminals and the load to the L (line) and out terminals. Follow the wiring diagram in the manual.

Is the REL5A compatible with other DALI-2 controllers?

Yes, it is fully DALI-2 compliant and works with any DALI-2 certified controller.

What is the operating temperature range?

The device operates from -20 °C to +45 °C. Do not exceed these limits.

How do I address the relay in the DALI system?

Addressing is done automatically via the DALI controller or manually using a programming tool. Refer to the DALI system manual.

Can I install this relay myself?

Installation should be carried out by a qualified electrician to ensure safety and compliance.

What should I do if the relay does not switch?

Check the DALI bus connection, verify the addressing, and ensure the load is within the 5 A rating. Also inspect the mains wiring.

USER MANUAL REL5A DALI-2 STEINEL

DE

Inhalt

1. About this document 21
2. General safety precautions 21
3. System description 22
4. Electrical connection 26
5. Installation 27
6. Cleaning and maintenance 31
7. Disposal 31
8. Conformity 31
9. Manufacturer's Warranty 32
10. Technical specifications 36
11. Troubleshooting 37

1. About this document

GB

• Under copyright. Reproduction either in whole or in part only with our consent.
• Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

2. General safety precautions

Failure to observe these operating instructions presents hazards!

These instructions contain important information on the safe use of this product. Particular attention is drawn to potential hazards. Failure to observe this information may lead to death or serious injuries.

• Read instructions carefully.
• Follow safety advice.
• Keep instructions within easy reach.

- Working with electrical current may produce hazardous situations. Touching live parts can result in electrical shock, burns or death.

- Work on mains voltage must only be performed by qualified, skilled personnel.

- National wiring regulations and electrical operating conditions must be observed (e.g. DE: VDE 0100, AT: ÖVE-ÖNORM E8001-1, CH: SEV 1000).

- Only use genuine replacement parts. - Repairs must only be carried out by companies qualified to do so

3. System description

Proper use

• DALI2 relay that enables the switching of connected loads.
• Suitable for installation in a concealed box with a minimum depth of 60 mm.

Operating principle

• REL5A DALI2 that enables the switching of connected loads that cannot be integrated into the DALI bus independently, such as non-dimmable lights.
• REL5A DALI2 can be addressed by the application controller and switches the connected consumers with ON or dim telegrams >0.
• REL5A DALI2 follow the signals from the application controller (APC) / control unit via DALI.
• REL5A DALI2 is powered by 230V.

Package contents

GB

3.1

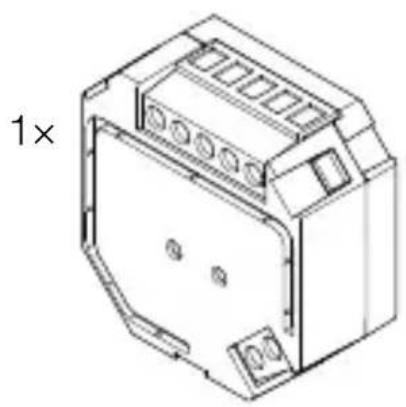

• 1 relay module
• 1 safety data sheet
• 1 quick-start guide

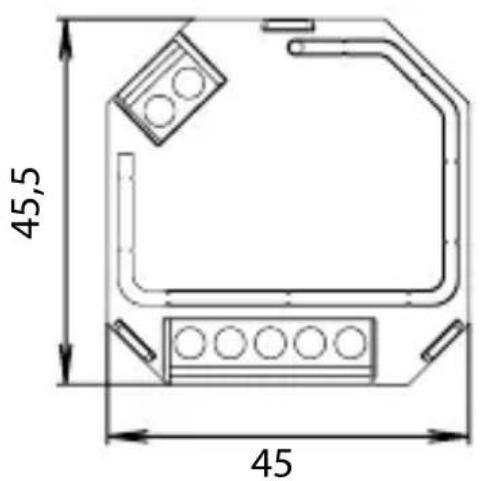

Product dimensions

GB

3.2

Product components

GB

3.3

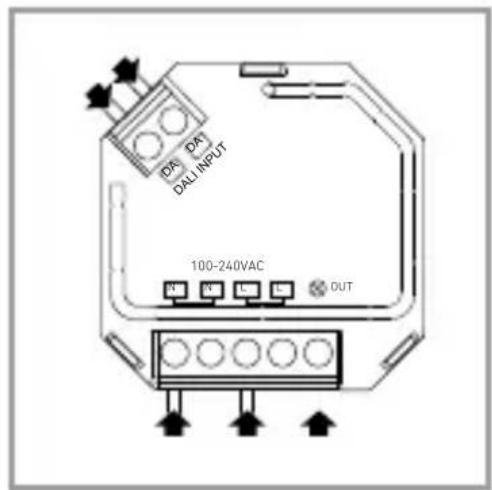

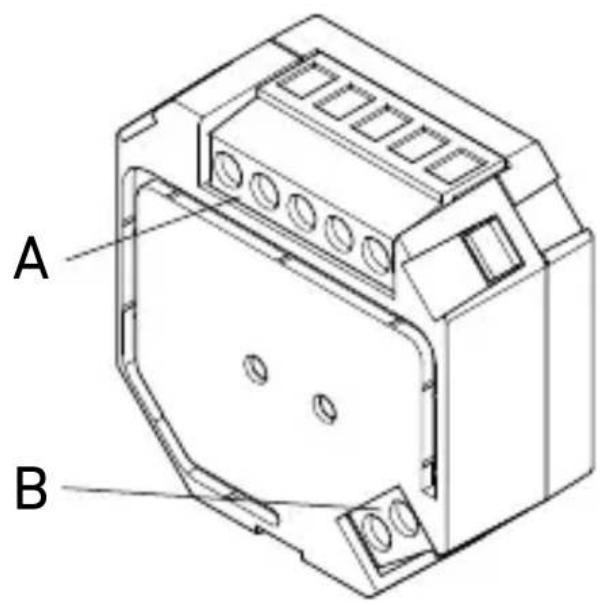

A Connection of supply voltage and relay output
B DALI-2 input

4. Electrical connection

GB

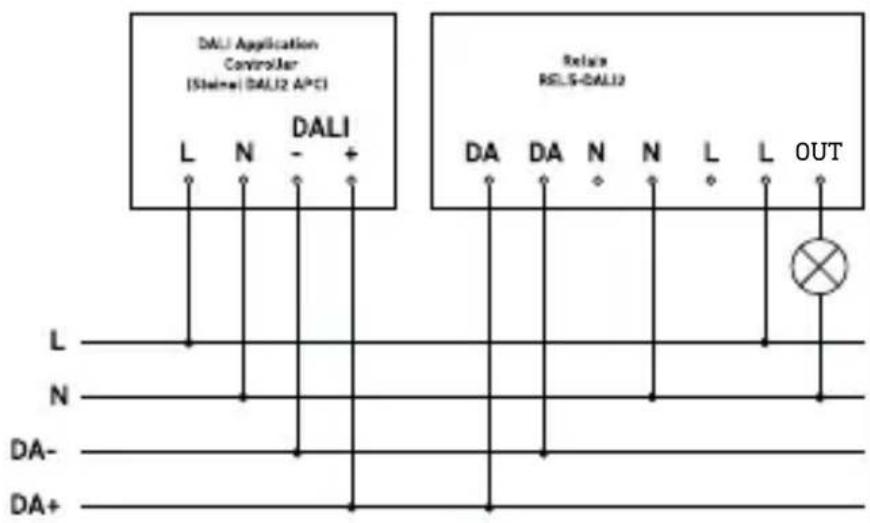

Wiring diagrams

4.1

The mains supply lead is a multiple-core cable:

L = Phase (usually black, brown or grey)

N = Neutral conductor (usually blue)

DA+ = connection to the DALI BUS ( brown)

DA- = connection to the DALI BUS ( brown)

OUT = Phase output

5. Installation

GB

Hazard from electrical power.

Touching live parts can result in electrical shock, burns or death.

• Switch OFF power and interrupt power supply.
• Using a voltage tester, check to make sure that the power supply is disconnected.
• Make sure power supply remains interrupted.

Risk of damage to property!

Mixing up connection leads may produce a short circuit.

• Identify connection leads.
- Connect the leads correctly.

Preparing for installation

• Check all components for damage. Do not use the floodlight if it is damaged.
• Familiarise yourself with the fitting situation and the relevant documentation.

- Select an appropriate site to install the product.

-Vibration-free.
-Not in explosive atmospheres.
-Not on normally flammable surfaces.

5.1

GB

- Put together the tools and material needed: -Screwdriver.

Installation procedure

GB

5.2

• Make sure the power supply is switched OFF.
- Connect mains power supply lead as shown in the wiring diagram.
• "4. Electrical connection"

5.3

GB

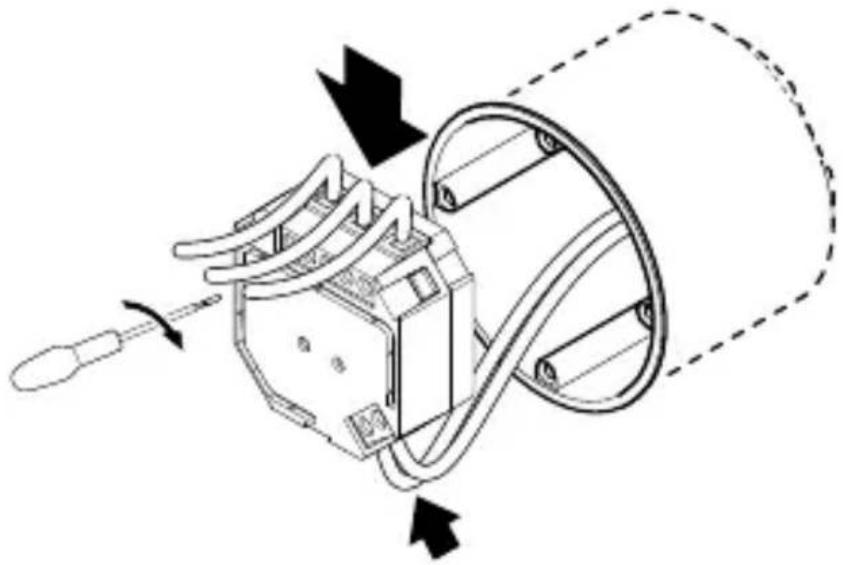

• Fit the relay module into the box.

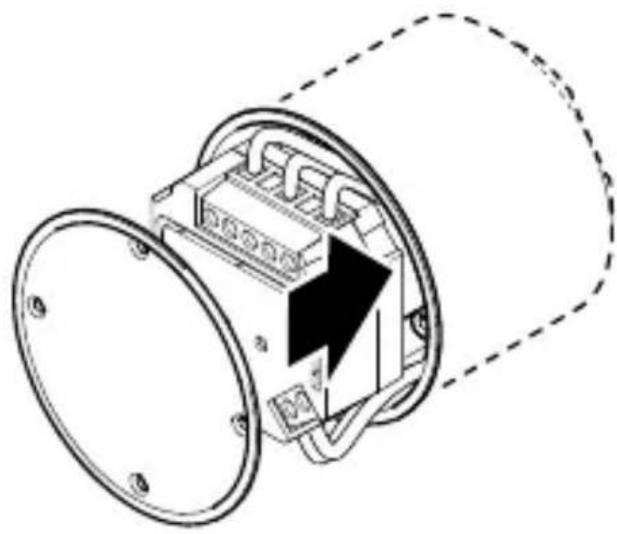

  • Fit a cover onto the box.

5.4

- Switch ON power supply.

6. Cleaning and maintenance

The tool requires no maintenance.

Hazard from electrical power.

Contact between water and live parts can result in electric shock, burns or death.

- Only clean tool in a dry state.

7. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

8. Conformity

STEINEL GmbH hereby declares that the REL5A DALI2 radio equipment type conforms to Directive 2014/53/EU. The full wording of the EU Declaration of Conformity is available for downloading from the following Internet address: www.steinel.de

9. Manufacturer's Warranty

GB

Manufacturer's warranty of STEINEL GmbH, Diesel strasse 80-84, DE-33442 Herzebrock-Clarholz, Germany

All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the customer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall cover all STEINEL Professional products sold and used in Germany.

Our warranty cover for consumers

The provisions below apply to consumers. A consumer is any natural person who, on entering into the purchase transaction, neither acts in exercising their commercial nor their self-employed activity.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased

We shall bear the shipping costs but not the transport risks involved in return shipment.

Our warranty cover for entrepreneurs

The provisions below apply to entrepreneurs. Entrepreneur is a natural or legal person or partnership with legal personality who or which, on entering into the purchase transaction, acts in exercising their or its commercial or self-employed activity.

We have the option of providing warranty cover by rectifying deficiencies free of charge, replacing a product free of charge (if applicable, in the form of a successor model of the same or higher quality) or by issuing a credit note.

In the case of sensors, floodlights, outdoor and indoor lights, the warranty period for the STEINEL Professional product you have purchased is 5 years in each case from the date on which the product was purchased.

Within the scope of warranty cover, we shall not bear your expenses accruing from subsequent fulfillment nor shall we bear your expenses for removing the defective product and installing a replacement product.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty including special consumer protection provisions and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty.

—In addition to this, the warranty shall not cover:
–any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL Professional product that are attributable to wear caused by use or other natural wear,
–any improper or non-intended use of the product or any failure to observe the operating instructions,
–any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
–supplementary or replacement parts which are not genuine STEINEL parts,
–any maintenance or care of products that is not carried out in accordance with the operating instructions,
–any attachment or installation that is not in accordance with STEINEL's installation instructions,
–any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

10. Technical specifications

GB

• Dimensions (H x W x D): 45 x 45.5 x 20.3 mm
• Power supply: 100-240 V\~, 50/60 Hz
• Power consumption stand by: 0.5 W

Output, relay

• Switching voltage AC: 100-240 V, 50/60 Hz
• Resistive load: max. 4.3 A
• Capacitive load: max. 1.3 A
• Inductive load: max. 4.3 A

Switching capacity:

• Incandescent / halogen lamp load: 1,000 W
• LED/ECG - load

300 W (max. 50 pcs, C < 176 µ F)

- Mounting:

into installation box, junction box

- Max.housing temperature: 50°C

- IP rating: IP 20

- Ambient temperature: -25°C to +50°C

- Factory setting: contact closed

11. Troubleshooting

GB

Unit without power.

• Fuse not switched ON or faulty.
• Switch ON fuse.
• Change faulty fuse.
• Break in wiring.
• Check wiring with voltage tester.
• Short circuit in mains power supply lead.
• Check connections.
• Any mains switch OFF
• Switch ON mains switch.
