USER MANUAL ECO-2335 RYOBI

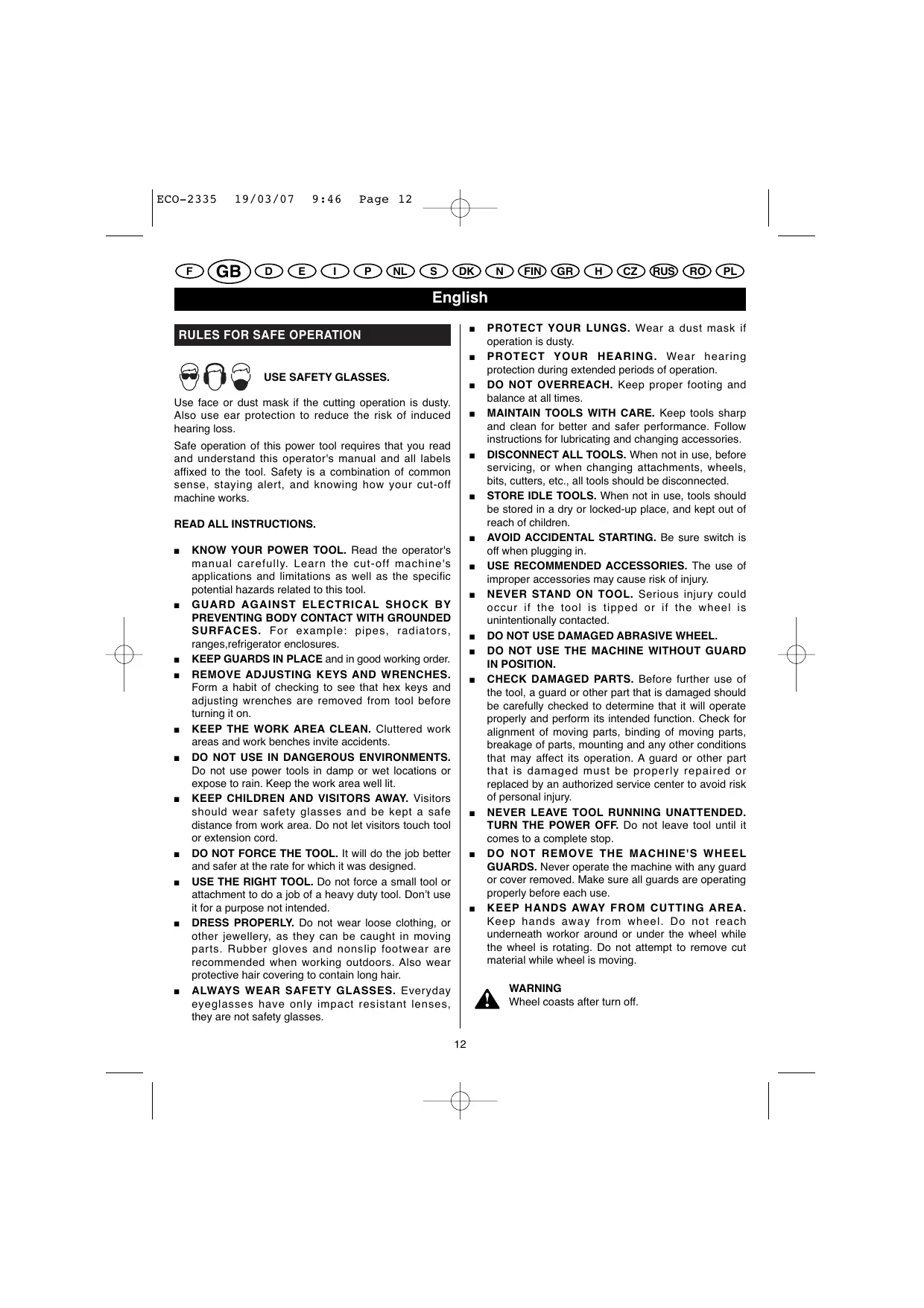

Use face or dust mask if the cutting operation is dusty. Also use ear protection to reduce the risk of induced hearing loss.

Safe operation of this power tool requires that you read and understand this operator's manual and all labels affixed to the tool. Safety is a combination of common sense, staying alert, and knowing how your cut-off machine works.

KNOW YOUR POWER TOOL. Read the operator's manual carefully. Learn the cut-off machine's applications and limitations as well as the specific potential hazards related to this tool.

GUARD AGAINST ELECTRICAL SHOCK BY

PREVENTING BODY CONTACT WITH GROUNDED

SURFACES. For example: pipes, radiators, ranges,refrigerator enclosures. KEEP GUARDS IN PLACE and in good working order. REMOVE ADJUSTING KEYS AND WRENCHES. Form a habit of checking to see that hex keys and adjusting wrenches are removed from tool before turning it on. KEEP THE WORK AREA CLEAN. Cluttered work areas and work benches invite accidents. DO NOT USE IN DANGEROUS ENVIRONMENTS. Do not use power tools in damp or wet locations or expose to rain. Keep the work area well lit. KEEP CHILDREN AND VISITORS AWAY. Visitors should wear safety glasses and be kept a safe distance from work area. Do not let visitors touch tool or extension cord. DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed. USE THE RIGHT TOOL. Do not force a small tool or attachment to do a job of a heavy duty tool. Don’t use it for a purpose not intended. DRESS PROPERLY. Do not wear loose clothing, or other jewellery, as they can be caught in moving parts. Rubber gloves and nonslip footwear are recommended when working outdoors. Also wear protective hair covering to contain long hair. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses have only impact resistant lenses, they are not safety glasses.

PROTECT YOUR LUNGS. Wear a dust mask if operation is dusty. PROTECT YOUR HEARING. Wear hearing protection during extended periods of operation. DO NOT OVERREACH. Keep proper footing and balance at all times. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. DISCONNECT ALL TOOLS. When not in use, before servicing, or when changing attachments, wheels, bits, cutters, etc., all tools should be disconnected. STORE IDLE TOOLS. When not in use, tools should be stored in a dry or locked-up place, and kept out of reach of children. AVOID ACCIDENTAL STARTING. Be sure switch is off when plugging in. USE RECOMMENDED ACCESSORIES. The use of improper accessories may cause risk of injury. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the wheel is unintentionally contacted. DO NOT USE DAMAGED ABRASIVE WHEEL. DO NOT USE THE MACHINE WITHOUT GUARD IN POSITION. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN THE POWER OFF. Do not leave tool until it comes to a complete stop.

DO NOT REMOVE THE MACHINE'S WHEEL

GUARDS. Never operate the machine with any guard or cover removed. Make sure all guards are operating properly before each use. KEEP HANDS AWAY FROM CUTTING AREA. Keep hands away from wheel. Do not reach underneath workor around or under the wheel while the wheel is rotating. Do not attempt to remove cut material while wheel is moving. WARNING Wheel coasts after turn off.

NEVER USE IN AN EXPLOSIVE ATMOSPHERE. Normal sparking of the motor could ignite fumes. INSPECT TOOL CORDS PERIODICALLY and if damaged, have repaired at your nearest Ryobi Authorized Service Center. Stay constantly aware of cord location and keep it well away from the rotating wheel. USE OUTDOOR EXTENSION CORDS. When tool is used outdoors, use only extension cords with approved ground connection that are intended for use outdoors and so marked. DO NOT USE TOOL IF SWITCH DOES NOT TURN IT ON AND OFF. Have defective switches replaced by an authorized service center. KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND GREASE. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleumbased products, or any solvents to clean tool. ALWAYS SUPPORT LONG WORKPIECES. To minimize risk of tipping machine, always support long workpieces. BEFORE MAKING A CUT, BE SURE ALL ADJUSTMENTS ARE SECURE. ALWAYS USE THE VICE CLAMP to secure the workpiece. NEVER TOUCH WHEEL or other moving parts during use. NEVER START THE CUT-OFF MACHINE WHEN THE WHEEL IS IN CONTACT WITH THE WORKPIECE. NEVER cut more than one workpiece at a time. DO NOT STACK more than one workpiece on the machine base at a time. NEVER PERFORM ANY OPERATION "FREEHAND". Always secure the workpiece to be cut in the vice. NEVER hand hold a workpiece. Workpiece will become very hot while being cut. NEVER reach behind, under, or within three inches of the wheel and its cutting path with your hands and fingers for any reason. NEVER reach to pick up a workpiece, a piece of scrap, or anything else that is in or near the cutting path of the wheel.

AVOID AWKWARD OPERATIONS AND HAND

POSITIONS where a sudden slip could cause your hand to move into the wheel. ALWAYS make sure you have good balance. NEVER stand or have any part of your body in line with the path of the wheel.

ALWAYS release the power switch and allow the wheel to stop rotating before raising it out of the workpiece. DO NOT TURN THE MOTOR SWITCH ON AND OFF RAPIDLY. This could cause the wheel to loosen and could create a hazard. Should this ever occur, stand clear and allow the wheel to come to a complete stop. Disconnect your cut-off machine from the power supply and securely retighten the wheel arbor bolt. REPLACEMENT PARTS. All repairs, whether electrical or mechanical, should be made at a Ryobi Authorized Service Center. WARNING When servicing use only identical Ryobi replacement parts. Use of any other parts may create a hazard or cause product damage.

IF ANY PART OF THIS CUT-OFF MACHINE IS MISSING or should break, bend, or fail in any way, or should any electrical component fail to perform properly, shut off the power switch, remove the machine plug from the power source and have damaged, missing, or failed parts replaced before resuming operation. MAKE SURE THE CUT-OFF WHEEL IS SECURELY MOUNTED as described in the operating instructions before connecting the tool to a power supply. Do not tighten wheel excessively, since this can cause cracks.

CHECK THE WHEEL FOR FISSURES AND

CRACKS, and test for normal operation prior to use. ONLY USE A CUT-OFF WHEEL RATED FOR 4800 min-1 OR GREATER. Always store wheels in a dry place with little temperature variation.

ALWAYS EASE THE ABRASIVE WHEEL AGAINST

THE WORK PIECE when starting to cut. A harsh impact can break the wheel. BEFORE CUTTING, press the trigger switch and allow the cut-off wheel to reach full speed before cutting. MAKE SURE THE WORK AREA HAS AMPLE LIGHTING to see the work and that no obstructions will interfere with safe operation BEFORE performing any work using your cut-off machine. DO NOT OPERATE THIS TOOL WHILE UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY MEDICATION. ECO-2335

English WARNING Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alterationor modification is misuse and could result in a harzardous condition leading to possible serious personal injury.

ALWAYS STAY ALERT! Do not allow familiarity (gained from frequent use of your cut-off machine) to cause a careless mistake. ALWAYS REMEMBER that a careless fraction of a second is sufficient to inflict severe injury. STAY ALERT AND EXERCISE CONTROL. Watch what you are doing and use common sense. Do not operate tool when you are tired. Do not rush. SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct other users. If you loan someone this tool, loan them these instructions also. DESCRIPTION (FIG. 1-3)

PRODUCT SPECIFICATIONS Wheel Type Reinforced Abrasive Wheels Wheel Diameter 355 mm (14”) Bore diameter

No Load Speed 3800 min-1 +/- 10% Rating 230 V ~ 50 Hz Input 2300 W Net Weight

Fence Angle - Right 45° - Left 45° Vice Clamp Angle - Right or Left 45° Maximum Cutting Capacities Lower Guard Abrasive Wheel Fence Quick Lock Adjustable Fence Lock Lever Vice Screw Vice Crank Handle Machine Base Vice Clamp Wrench Depth Stop Bolt Spindle Lock Button Motor Machine Arm Switch Trigger Upper Guard Lock Hook Protection Guard Carry Handle Rubber Foot Fence Bolt Chain Live Tool Indicator Wheel Arbor Inner Washer Inner Flangle Spacer Outer Flange Outer Washer Wheel Bolt Scale Indicator Fence Scale Brush Assemblies Brush Cap FEATURES WARNING This cut-off machine has been designed for cutting metals, using reinforced abrasive cut-off wheels only. Do not remove the wheel, install a steel blade, and attempt to cut other types of materials such as wood, masonry, etc. Attempting to cut these other types of materials could cause an accident resulting in possible serious personal injury. MOTOR This machine has a strong motor with sufficient power to handle tough cutting jobs. It also has externally accessible brushes for ease of servicing.

FEATURES A spindle lock button has been provided for locking the spindle whilst changing the abrasive wheel. Pull the spindle lock button while installing, changing, or removing wheel only. POWER CORD The power cord is H07RN-F type with length 1.8 m earthing. ADJUSTMENTS ABRASIVE WHEEL A 355 mm abrasive wheel is included with your cutoff machine. It will cut materials up to 115 mm thick or 233 mm wide, depending upon the thickness or width of the material and the angle setting at which the cut is being made. WARNING To prevent accidental starting that could cause possible serious personal injury, assemble all parts to your cut-off machine before connecting it to power supply. Machine should never be connected to power supply when you are assembling parts, making adjustments, installing or removing wheels, or when not in use.

SELF-RETRACTING LOWER WHEEL GUARD

The lower wheel guard provides protection from each side of the wheel. It retracts over the upper wheel guard as the wheel is lowered into the workpiece. As mentioned previously your cut-off machine has been factory assembled and adjusted. After extended use and wear, the wheel will need to be replaced with a new one. VICE CLAMP A vice clamp has been provided with your cut-off machine. It is located on the end of the vice screw and provides greater control by clamping the workpiece to the fence. It also prevents the workpiece from creeping toward the wheel during a cutting operation. WARNING A 355 mm wheel is the maximum wheel capacity of your cut-off machine. Never use a wheel that is too thick to allow outer flange to engage with the flats on the spindle. Larger wheels will come in contact with the wheel guards, while thicker wheels will prevent the bolt from securing the wheel on the spindle. Either of these situations could result in a serious accident and can cause serious personal injury. ADJUSTABLE FENCE The fence on your cut-off machine has been provided to support the workpiece and provide clamping support to the vice for holding your workpiece securely when making all cuts. It is an adjustable fence that has been provided to make your cut-off machine more versatile. It adjusts from 0° to 45° to the left and right for making angled cuts. The hole pattern allows it to be moved forward when making cuts in tall or thick stock, such as square stock or tube stock. The hole pattern allows it to be moved back when making cuts in stock that is thin or wide, such as angle stock.

REMOVAL AND INSTALLATION OF THE

Unplug your cut-off machine. WARNING Before performing any adjustment, make sure the tool is unplugged from the power supply. Failure to heed this warning could result in serious personal injury.

QUICK LOCK-RELEASE LEVER

A lock lever has been provided on your cut-off machine. This feature allows you to open and close the vice clamp quickly without repetitive turning of the vice crank handle.

For convenience when carrying or transporting your cutoff machine from one place to another, a carrying handle has been provided on top of the machine arm. To transport, turn off and unplug your machine, then lower machine arm and lock it in the down position. Use the transport chain to lock machine arm in the down position.

Push down on machine arm and remove chain from hook on motor housing to release machine arm. Raise machine arm to its full lifted position. Be cautious when raising, machine arm is spring loaded. Pull lower wheel guard upward, exposing wheel bolt that secures abrasive wheel to wheel arbor. Pull the spindle lock button and rotate bolt until spindle locks, preventing shaft from rotating. ECO-2335

In order to avoid spark splashing, under the operational condition, loose the screw and adjust angle of the protection guard. Using the Wrench provided, to loosen and remove bolt. Note: Bolt has right hand threads. Turn bolt counterclockwise to loosen. Remove outer washer, outer flange , and wheel. Do not remove spacer, inner flange and inner washer. Removal of these three parts are not required for wheel changes. ADJUSTABLE FENCE (Fig. 4) The adjustable fence is located at the rear of your cut-off machine. It is used along with the vice clamp to provide a clamp for holding your workpiece securely when making cuts. It also makes your cut-off machine more versatile. The fence can be rotated to obtain cutting angles from 0° to 45° (L&R). It can also be moved back to allow greater cutting widths in thin stock, or moved forward to allow greater cutting depths in tall or thick stock. WARNING If inner flange, inner washer or spacer has been removed, replace those parts before placing wheel on wheel arbor. Failure to do so could cause an accident since wheel will not tighten properly. CUTTING ANGLE ADJUSTMENT (Fig. 4) TO INSTALL (Fig. 3)

WARNING Failure to unplug cut-off machine could result in accidental starting causing possible serious personal injury. WARNING Failure to unplug cut-off machine could result in accidental starting causing possible serious personal injury.

Unplug your cut-off machine. Unplug your cut-off machine. Inspect the replacement wheel for defects such as cracks, chipping, and correct speed rating. If defects are found or the speed rating is not greater than 4800min-1, stop using the wheel. Select another wheel. Clean debris from the inner washer and inner flange. Place new wheel over spacer, then place both on wheel arbor against inner flange. Clean outer flange, then align flats with flats on wheel arbor and slide it onto arbor until it is flushed against wheel. Place recessed side of outer washer against arbor, then insert wheel bolt into threaded end of wheel arbor. Start threads and turn bolt clockwise to snugly tighten. Pull the spindle lock button and rotate bolt until spindle being locked. This will prevent shaft from rotating. Using the wrench provided, securely tighten wheel bolt. Note: Bolt has right hand threads. Turn bolt clockwise to tighten.

Loosen the fence quick lock, by using the wrench supplied. Then loosen the fence bolt to secure the adjustable fence. Rotate fence until the desired angle of cut on the scale is aligned with the indicator in machine base. For precise cuts, check the angle of cut for the fence against the abrasive wheel with a protractor, bevel square, or other similar device. Tighten the fence quick lock, by using the wrench supplied, then securely tighten fence bolt. Return wrench to its storage area in the base. This will secure the fence in place at desired angle. ADJUSTING WIDTH OF CUT (Fig. 5-6)

Unplug your cut-off machine. WARNING Failure to unplug cut-off machine could result in accidental starting causing possible serious personal injury. WARNING Do not overtighten wheel bolt. Overtightening can cause the new wheel to crack, resulting in premature failure and possible serious personal injury.

The default space between the vice and the fence is 0 mm min. to 170 mm max. By following the below adjustment procedures, it is possible to increase that distance so that the vice is between 35 mm and 205 mm or 70 mm and 240 mm from the fence. ECO-2335

WARNING Bevel cutting angle is not suitable for the above 2 suggested distances.

Release tension on the vice clamp by rotating the vice crank handle 1/2 to 1 turn counterclockwise. Lift up the quick lock-release lever and pull back on vice crank handle to slide open the vice. To tighten:

To increase the width of cut of your cut-off machine, loosen and remove the fence quick lock and washer. The use the wrench supplied to loosen and remove the fence bolt and washers to secure fence to machine base. Reposition the curved slot of the fence with the threaded hole (b) at the back of the machine base. Install a fence quick lock through a flat washer into machine base. Do not tighten fence quick lock securely. Align remaining fence bolt hole with the middle threaded hole (a) of the machine base. Install fence bolt through lock washer and flat washer into machine base. Check and adjust fence to 0° cutting angle. Securely tighten fence quick lock and fence bolts. This position is good for cutting thin and wide pieces of stock, such as flat or angled stock. To increase the height of cut of your cut-off machine, follow the above procedure except place the rear fence bolt in the middle threaded hole (a) and the front fence bolt in the front threaded hole. Check and adjust fence to desired cutting angle. Using the wrench provided, securely tighten fence quick lock en fence bolts. Return hex key to its storage area in base. This position is good for cutting tall and thick pieces of stock, such as square or tube stock. Unplug your cut-off machine. WARNING Failure to unplug cut-off machine could result in accidental starting causing possible serious personal injury.

Push the vice crank handle forward to slide the vice clamp against the workpiece. Rotate the lock lever forward and push down to engage its threads with the vice screw. Rotate the vice crank handle clockwise to tighten the vice clamp against the workpiece. DEPTH STOP The depth stop limits the wheel’s downward travel. It allows the wheel to go below the machine base in order to maintain full cutting capacities. The adjustable depth stop is a bolt threaded into the bracket of the machine at the rear. To adjust the depth stop, use the wrench to raise or lower the depth stop bolt. The depth stop has been set already to provide the maximum cutting capacity for the 355mm (14”) abrasive wheel. When the diameter of the wheel has been reduced due to wear, it may be necessary to adjust the depth stop to provide maximum cutting capacity. When a new abrasive wheel is installed, it is necessary to check the clearance of the wheel to the machine base support. LOCK LEVER (Fig. 7-8) DEPTH STOP ADJUSTMENTS (Fig. 9) The lock lever engages the vice clamp to be used along with the fence to provide a vice for securing the workpiece to be cut. It also allows you to open and close the vice quickly without repetitive turning of the vice crank handle.

Unplug your cut-off machine. WARNING Failure to unplug cut-off machine could result in accidental starting causing possible serious personal injury.

Unplug your cut-off machine.

WARNING Failure to unplug cut-off machine could result in accidental starting causing possible serious personal injury.

Loosen the lock nut of the depth stop bolt that is against the machine bracket. The depth stop is lowered by turning the depth stop bolt clockwise and raised by turning the bolt counterclockwise. ECO-2335

By pressing down on the machine arm, lower the wheel and check clearance and maximum cutting distance (distance from adjustable stationary vice where wheel enters) to front of machine base slot. Adjust if necessary. Re-tighten depth stop bolt lock nut securely. WARNING Do not attempt to cut wood or masonry with this cut-off machine. Never cut magnesium or magnesium alloy with this machine. Failure to comply could result in serious personal injury. To prevent machine movement or tipping during cutting procedure, secure cut-off machine in place to a workbench or work surface that is also secure. CAUTION Do not start your abrasive cut-off machine without checking for interference between the wheel and the machine base support. Damage may result to the wheel if it strikes the machine base support during operation of the machine.

WARNING Always use the vice on the cut-off machine to prevent accidents that could result in possible serious personal injury. Tighten the depth stop bolt with the wrench provided. WARNING Never stand or have any part of your body in line with the path of the wheel. Doing so may cause an accident resulting in possible serious personal injury. WARNING Cutting steel will cause sparks. Do not operate in the presence of combustible or flammable materials. Failure to heed this warning could result in a fire or serious personal injury. WARNING Large, circular, or irregularly shaped material may require additional means of clamping to be secured in place adequately for cutting. Use “C” clamps that can be mounted along the left and front side of the machine base. Also use blocks to hold material securely. Failure to comply could result in serious personal injury. OPERATION APPLICATIONS Use only for the purposes listed below:

Cutting all types of ferrous metals such as 50.8 mm (2") x 152.4 mm (6") steel framing studs. Cutting hard metal iron stock such as square bar stock and angle iron. Cutting metal tube and pipe stock. To avoid accidental start up of your cut-off machine, always make sure the switch is off before connecting to power source. Failure to heed this warning could result in serious personal injury. POWER SUPPLY CUT-OFF (Fig. 12-13) Before operating your cut-off machine, check your power supply and make sure it meets the requirements listed on the tool’s data plate. A substantial voltage drop will cause a loss of power and machine overheating. A cut-off is made by cutting across the width of the workpiece. A straight crosscut is made with the adjustable fence set at the zero degree position. Angled cut-offs are made with the adjustable fence set at some angle other than zero. Common causes of power loss and machine overheating are insufficient extension cord size and multiple tools operating from the same power source. To cut with your cut-off machine:

To turn your cut-off machine ON, depress the switch trigger located in the handle portion of the machine arm. To turn it OFF, release the switch trigger.

Firmly secure the material to be cut by using the machine’s vice (or adjustable fence and vice clamp). Loosen the fence quick lock and fence bolts securing the fence. Rotate the adjustable fence to the angle needed. Retighten fence quick lock and fence bolt to secure the fence. ECO-2335

OPERATION WARNING To avoid serious personal injury, always tighten fence quick lock and fence bolts securely before making a cut. Failure to do so, could result in movement of the workpiece while making a cut.

When the cut is complete, release the switch trigger and allow the wheel to stop rotating before raising the wheel out of workpiece. WARNING Do not touch the cut material until it cools or you can be burned. Failure to heed this warning could result in serious personal injury. Place the workpiece flat on the machine base with one surface securely against the adjustable fence. Align cutting line on the workpiece with the edge of the abrasive wheel. Push in the vice crank handle to set the vice clamp against the workpiece. Turn the vice crank handle 1/2 to 1 turn clockwise to securely clamp the workpiece to the fence. MAINTENANCE

To ensure safety and reliability, all repairs — with the exception of the externally accessible brushes — should be performed by a Ryobi Authorized Service Center. BRUSH REPLACEMENT (Fig. 14) WARNING To avoid serious personal injury, keep your hands at least 76.2 mm (3") from wheel.

Your cut-off machine has externally accessible brush assemblies that should be periodically checked for wear. Proceed as follows when replacement is required: When cutting long pieces, support the opposite end of the material with a roller stand or with a work surface level with the machine base.

WARNING Failure to unplug cut-off machine could result in accidental starting causing possible serious personal injury. WARNING Never perform any cutting operation freehand (without placing workpiece in the vice). Material will get hot during cutting operation. Keep hands off of metal being cut to avoid serious personal injury.

Unplug your cut-off machine.

Before turning on machine, perform a dry run of the cutting operation just to make sure that no problems will occur when the cut is made. Start the machine by grasping the handle and fully squeezing the switch trigger. Allow several seconds for the wheel to build up to full speed before letting it come into contact with the material to be cut. Once it reaches full speed slowly lower the handle of the machine arm until the cut-off wheel comes in contact with the material being cut. Continue to use steady and even pressure to obtain a uniform cut through the workpiece. Never force the wheel into the material being cut.

Remove brush cap with a screwdriver. Brush assembly is spring loaded and will pop out when you remove brush cap. Remove brush assembly. Check for wear. Replace both brushes when either has less than 6.35mm (1/4") length of carbon remaining. Do not replace one side without replacing the other. Reassemble using new brush assemblies. Make sure curvature of brush matches curvature of motor and that brush moves freely in brush tube. Make sure brush cap is oriented correctly (straight) and replace. Tighten brush cap securely. Do not overtighten. ECO-2335

English TROUBLESHOOTING PROBLEM CAUSE SOLUTION Machine does not start.

1. Power cord not plugged in.

2. Power cord is damaged.

2. Have the cord replaced at your nearest

authorized service center.

3. Reset circuit breaker.

4. Replace circuit fuse.

5. Have the switch replaced at your nearest

authorized service center.

3. Circuit breaker is tripped.

4. Circuit fuse is blown.

5. Switch is damaged or burned out.

Motor does not reach full.

1. Voltage from power source

2. Circuit is overloaded.

3. Motor burned out.

4. Fuses or circuit breakers

5. Extension cord is too long.

6. Switch is defective.

Motor stalls, blows fuses, or trips circuit breakers.

1. Switch is defective.

2. Voltage from source is low.

3. Fuses or circuit breakers are

wrong size or defective.

1. Request a voltage check.

2. Test on a different circuit or without

anything else on circuit.

3. Have tool serviced and request a voltage

4. Have an electrician replace with

5. Use a shorter extension cord.

6. Have the switch replaced at your nearest

authorized service center.

1. Have the switch replaced at your nearest

authorized service center.

2. Request a voltage check.

3. Have an electrician replace with

a circuit breaker. Motor overheats.

1. Motor is overloaded.

2. Wheel is being fed into

1. Request a voltage check.

2. Feed wheel into work slower.

Machine is noisy when running.

1. Motor needs attention.

1. Have the motor checked at your nearest

authorized service center. Wheel hits table.

1. Wheel not properly installed.

1. See “Removal and Installation of Wheel”

2. Depth stop setting incorrect.

Wheel does not cut through workpiece.

1. Depth stop setting incorrect.

3. Incorrect cutting operation.

1. Adjust the depth stop.

See “Depth Stop” section.

2. Replace with a new 355 mm

abrasive cut off wheel.

3. See “Cut-Off” section.

1. Wheel is out-of-round.

2. Wheel is chipped.

4. Machine is not secure.

3. Tighten wheel bolt on arbor.

4. Check and tighten all hardware.

5. Relocate and secure on a flat surface.

2. Wheel worn too much.

Machine vibrates or shakes excessively.

3. De motor is verbrand.

1. De motor is overbelast.

TUOTTEEN TEKNISET TIEDOT

GARANTIE - CONDITIONS

All Ryobi products are guaranteed against manufacturing defects and defective parts for a period of twenty four (24) months from the date stated on the original invoice drawn up by the retailer and given to the end user. Deterioration caused by normal wear and tear, unauthorised or improper use or maintenance, or overload are excluded from this guarantee as are accessories such as battery packs, light bulbs, blades, fittings, bags, etc. In the event of malfunction during the warranty period, please take the NON-DISMANTLED product, along with the proof of purchase, to your retailer or nearest Authorised Ryobi Service Centre. This warranty in no way affects your legal rights concerning defective products.

DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents. 98/37/EC, 73/23/EEC, 89/336/EEC, EN61029-1, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3, EN61029-2-3 Sound power level
