This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Rollator
Model	UNI_ROLL_05 F	UNI_ROLL_07 F
Height adjustment [mm]	1050 – 1150	880 - 980
Load capacity - capacity max. [kg]	136	136
Dimensions [width x depth x height; mm]	800 x 650 x 1330	700 x 750 x 1000
Weight [kg]	8.35	8.35

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

Read instructions before use.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Rollator

2.1. Safe device use

a) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.

b) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
c) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
d) Keep packaging elements and small assembly parts in a place not available to children.
e) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
f) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
g) Keep the device away from sources of fire and heat.
h) Do not overload the device.
i) Exceeding the maximum permissible user weight can damage the product.
j) Keep the product in good working order. Before each use, check that there is no general damage or damage related to moving parts (cracks in parts and components or any other conditions that may affect the safe operation of the product). In case of damage, have the product repaired before use.
k) Do not overload the transport bag. The bag is designed to transport light items.
I) Before each use, check the correct assembly of the seat (it's lock).
m) Do not expose the device to direct sunlight.
n) The handles of the product should be at the same height.
o) Before each use, check the correct operation of the brakes.
p) It is forbidden to use the product if the transport wheels do not move freely or the user feels the risk of falling over with the product.
q) It is forbidden to use the product on sloping surfaces.
r) Be sure to lock the brake lever before using the seat.
s) CAUTION: When using the seat, it is forbidden to set the product in motion. The product is not intended for the transport of people or animals!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is intended only to facilitate walking. The product should only be used on flat, hard surfaces. Do not use the product on uneven ground, potholes or shaky surfaces.

The product is not a medical device.

The product is outside the scope of the MDD 93/42/ EEC regulations for medical devices.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

3.1.1. UNI\_ROLL\_05 F

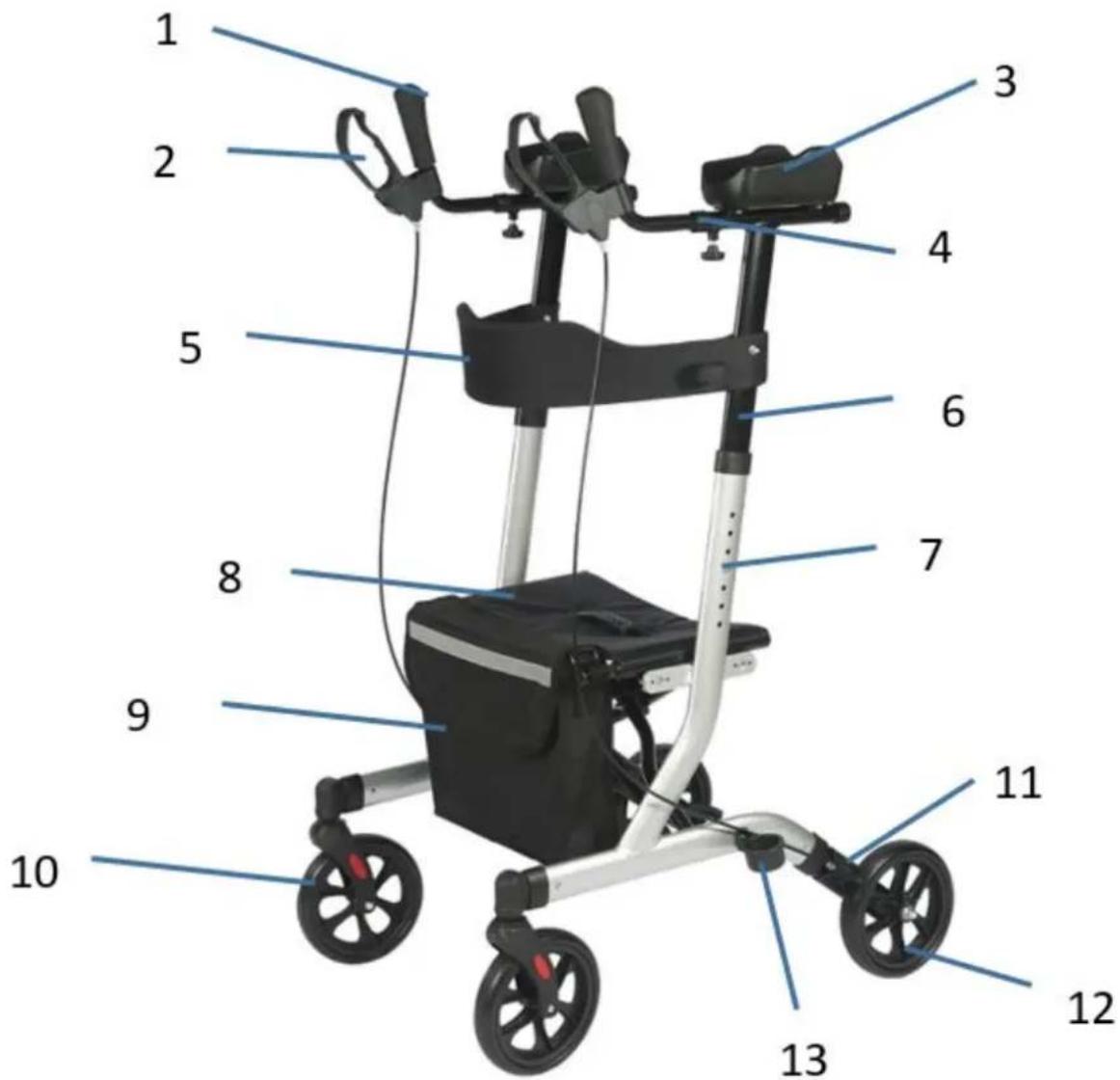

1 2 3 4 5 6 7 8 9 10 11 12 13

1 - Handle
2 - Brake lever
3 - Padded armrest
4 - Brake handle tube
5 - Backrest
6 - Adjustable handle tube
7 - Height adjustment button
8 - Seat
9 - Bag
10 - Front wheels
11 - Lower part of brake
12 - Rear wheels
13 - Walking stick holder

3.1.2. UNI\_ROLL\_07 F

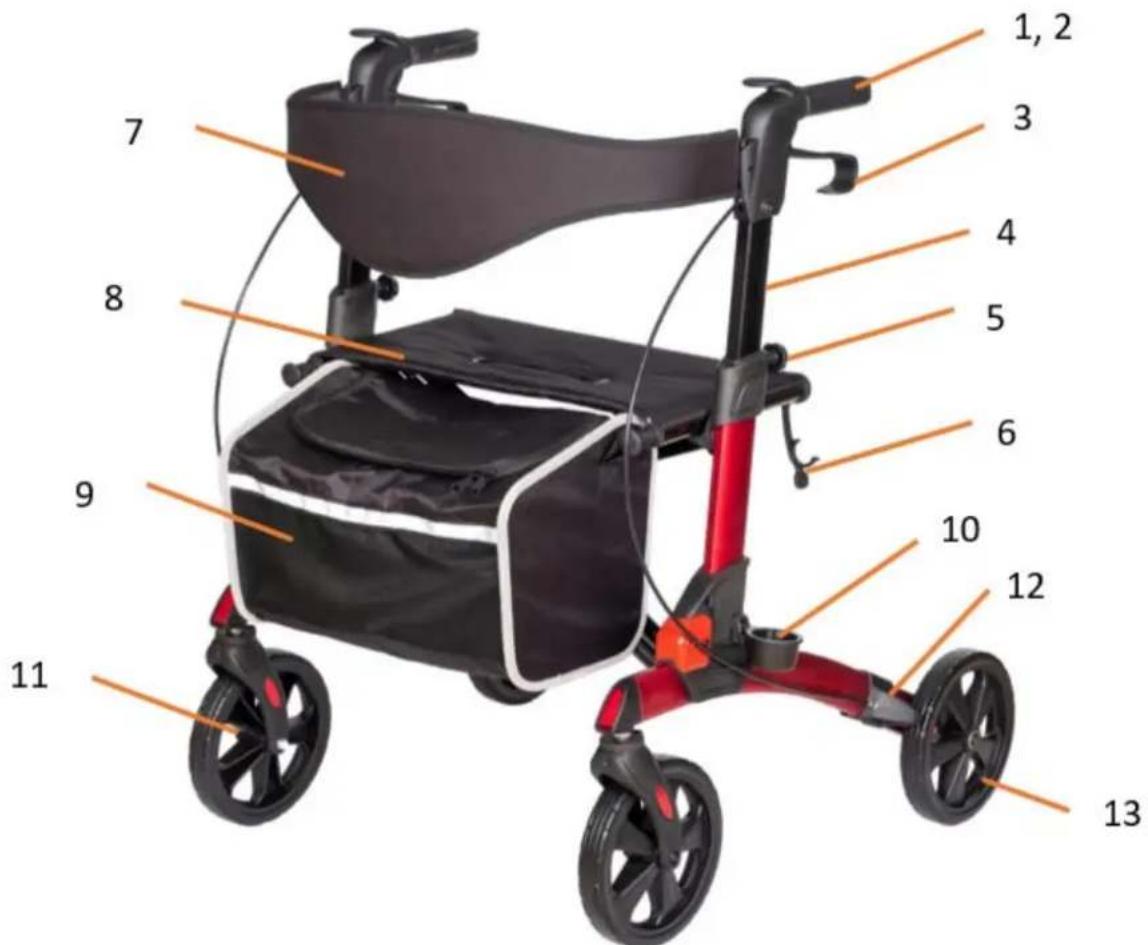

1, 2 3 4 5 6 7 8 9 10 11 12 13

1 - Handle

2 - Rear lamp on the handle

3 - Brake lever

4 - Adjustable handlebar

5 - Handlebar height adjustment knob

6 - Seat clasp

7 - Backrest

8 - Padded seat

9 - Shopping bag

10 - Detachable walking stick holder

11 - Front wheel

12 - Brake adjustment screw

13 - Rear wheel

3.2. Assembling the device / Device use UNI\_ROLL\_05 F

3.2.1. Wheel assembly

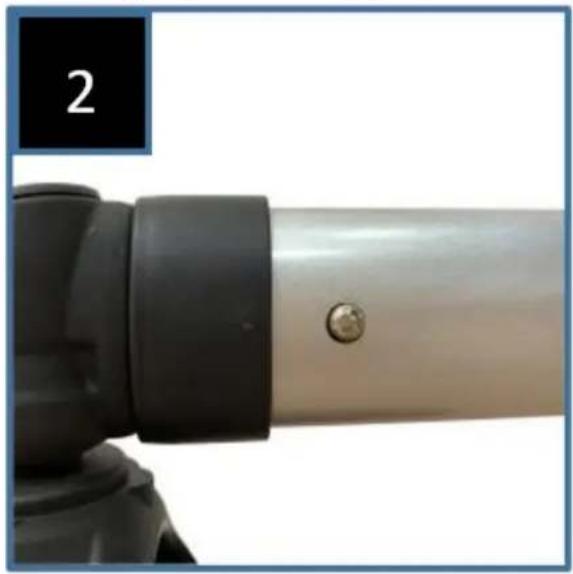

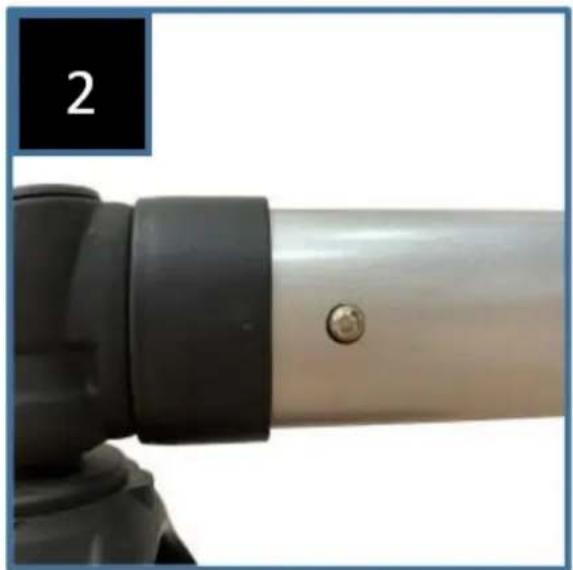

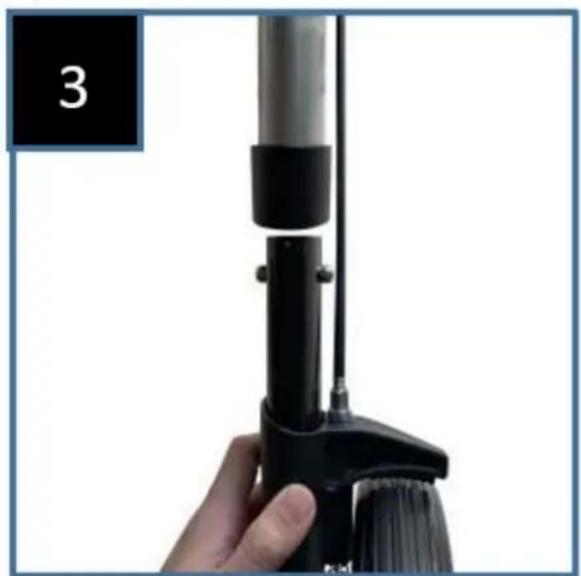

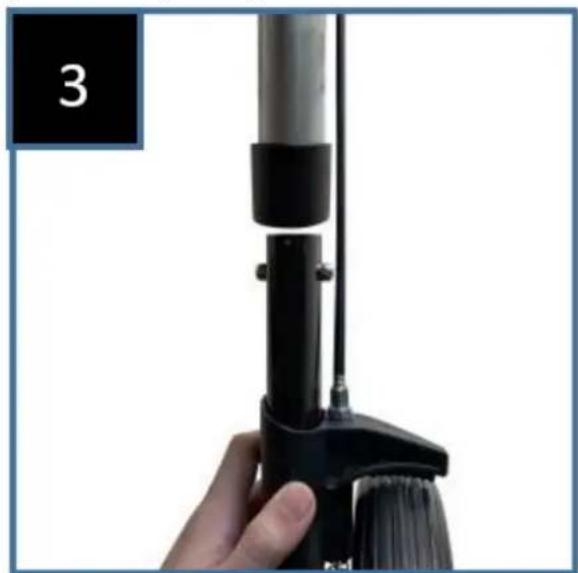

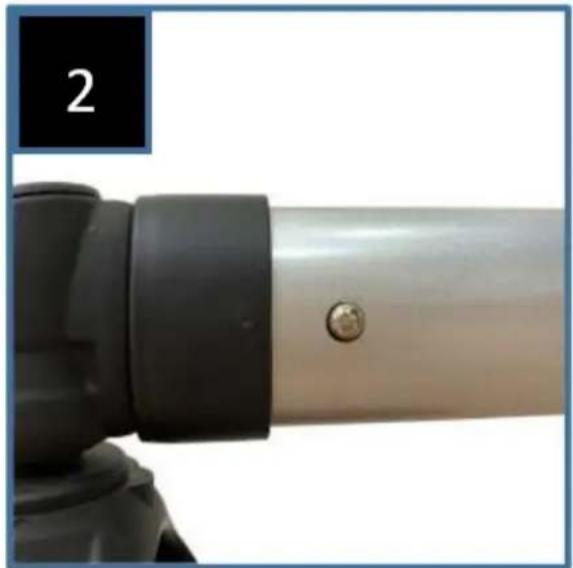

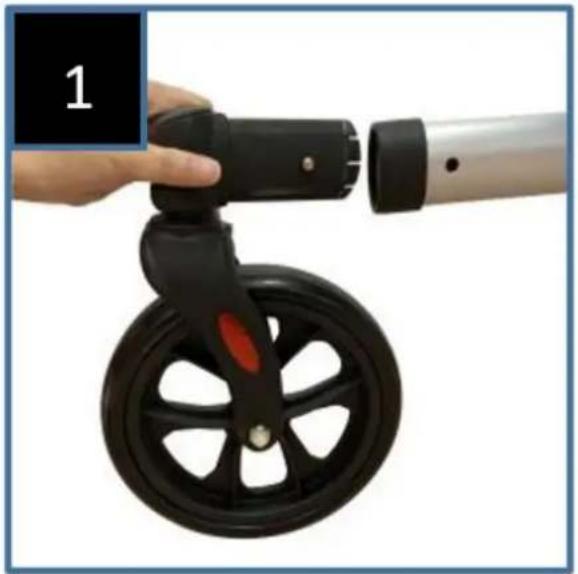

Fit the front wheel into the socket at the front of the frame while pressing the locking pin. The locking pin will pop out when the wheel is securely fastened. Install the second front wheel in the same way (fig. 1-2):

Close-up of a hand adjusting a black and silver station wagon wheel, no text or symbols visible

Close-up of a metallic cylindrical object with a small circular knob, mounted on a tripod (no text or symbols visible)

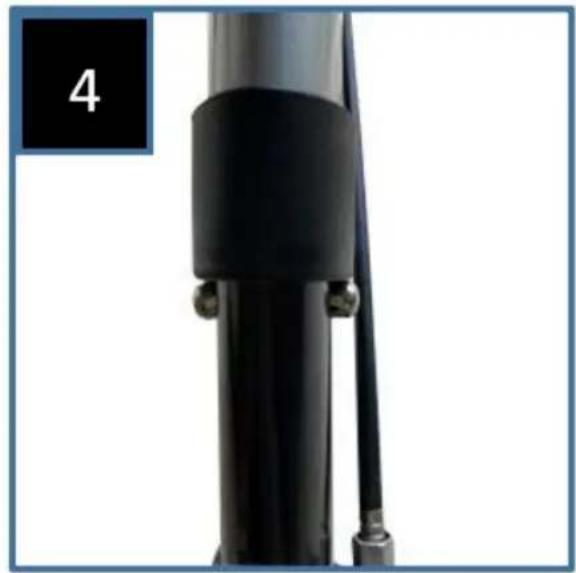

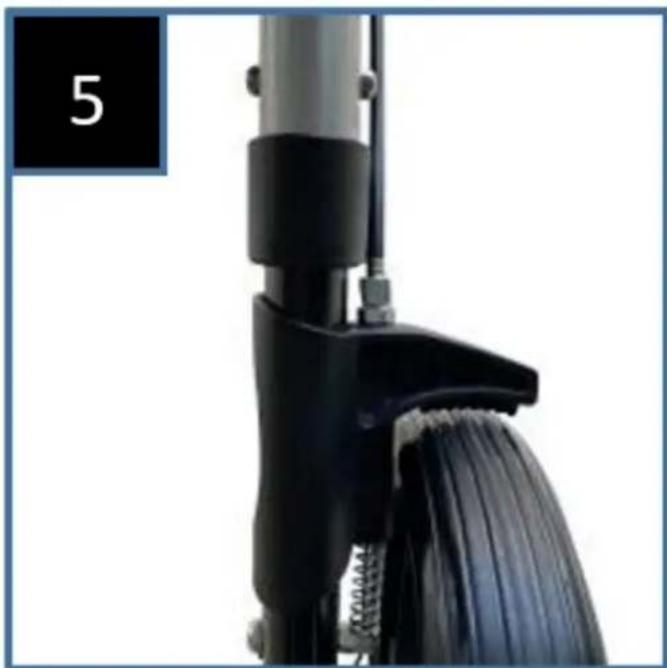

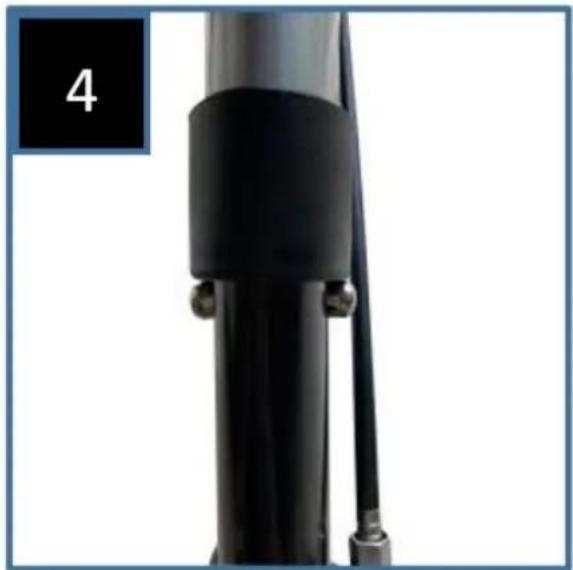

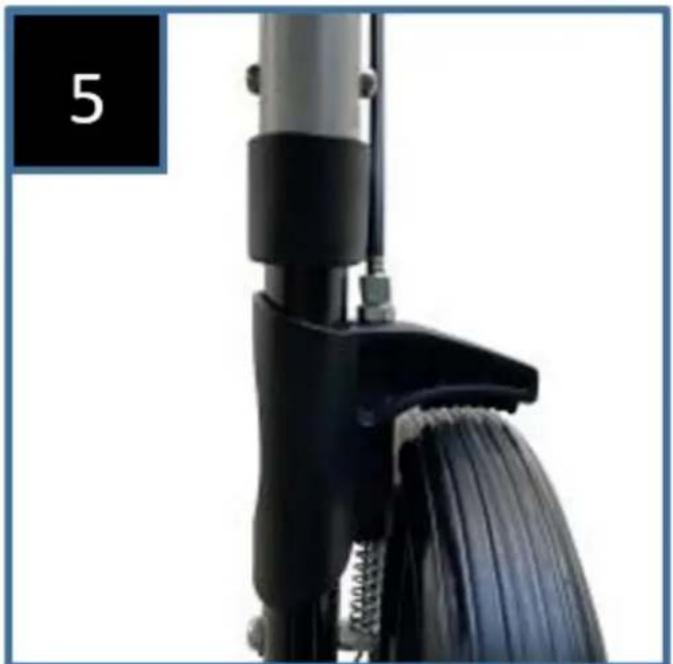

Fit the rear wheel into the socket located at the rear of the frame while pressing the locking pin. The locking pin will pop out when the wheel is securely fastened. Install the second rear wheel in the same way. (Figure 3-5):

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black cylindrical mechanical component with a metallic rod and mounting base (no visible text or symbols)

Close-up of a black broom with a roller being inserted, no visible text or symbols

When attaching the rear wheels, make sure that the wheels are on the outside of the frame and the brake linkage is on the underside.

3.2.2. Handle assembly

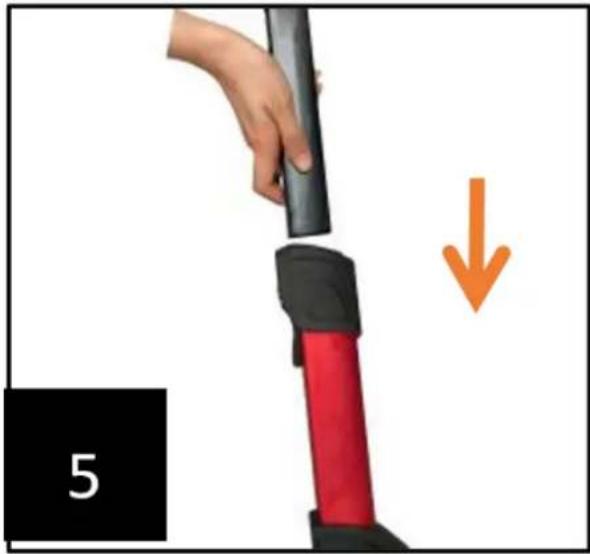

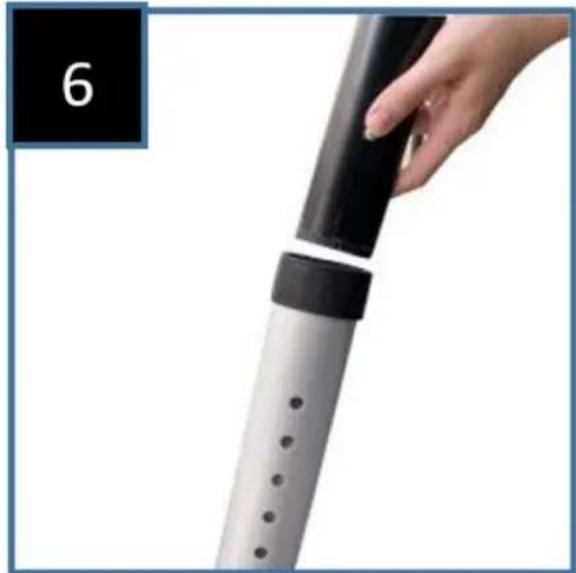

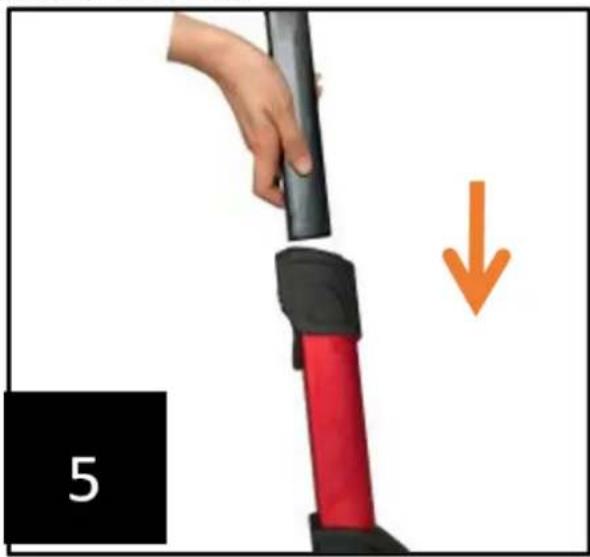

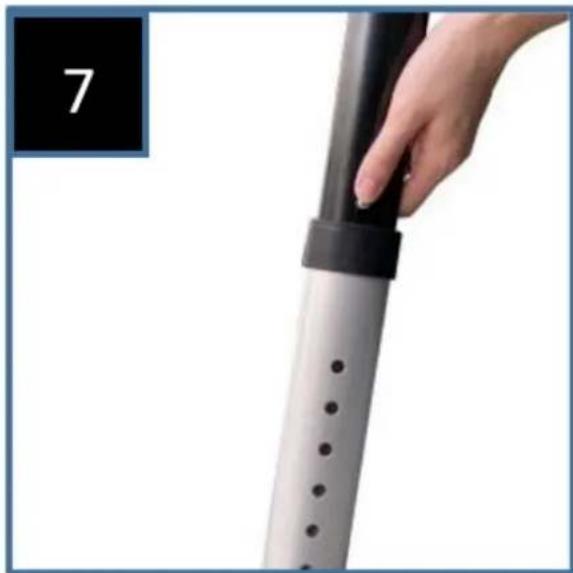

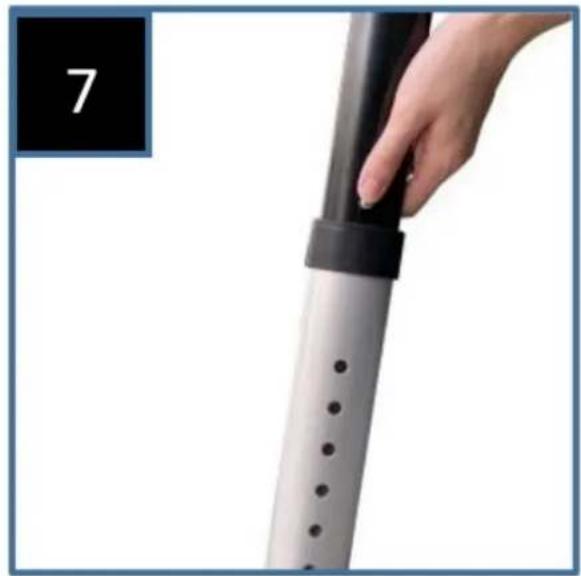

Fix the handles by pressing the locking pin on the base of the handle assembly and sliding it into the socket on the main frame. Repeat these steps on the other side. (Figure 6-7):

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with a black handle and perforated body (no text or symbols visible)

3.2.3. Arm tube assembly

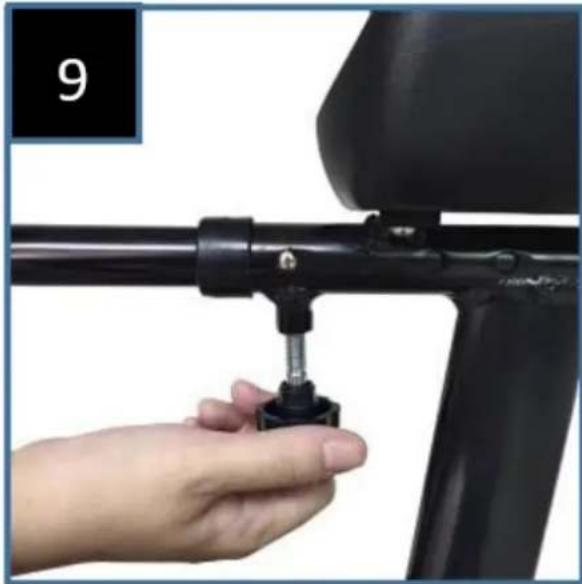

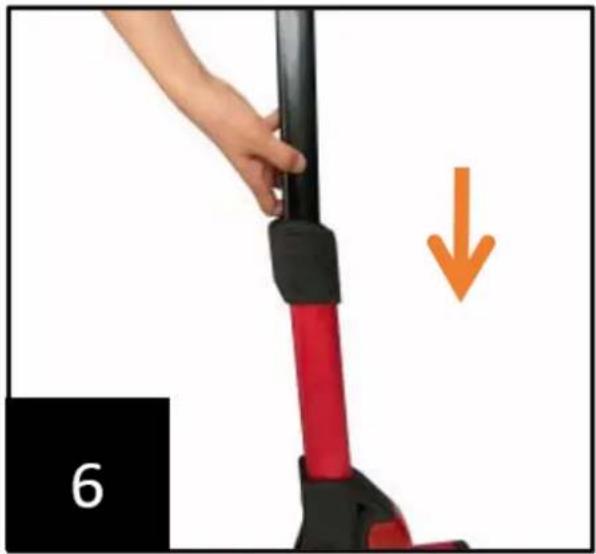

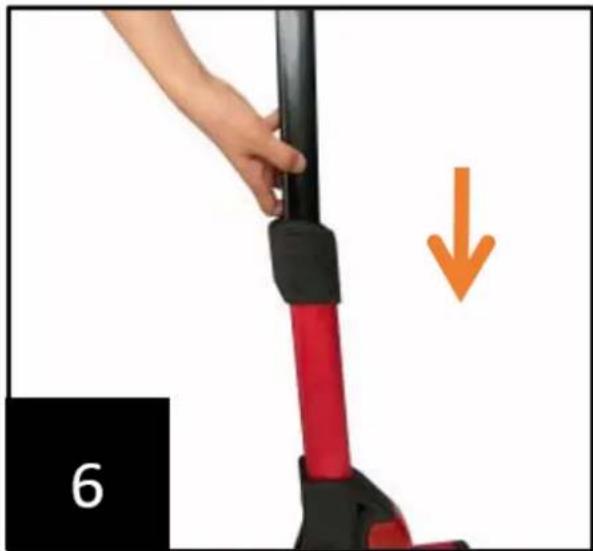

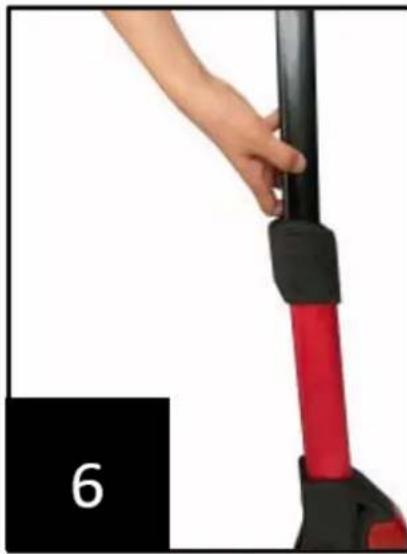

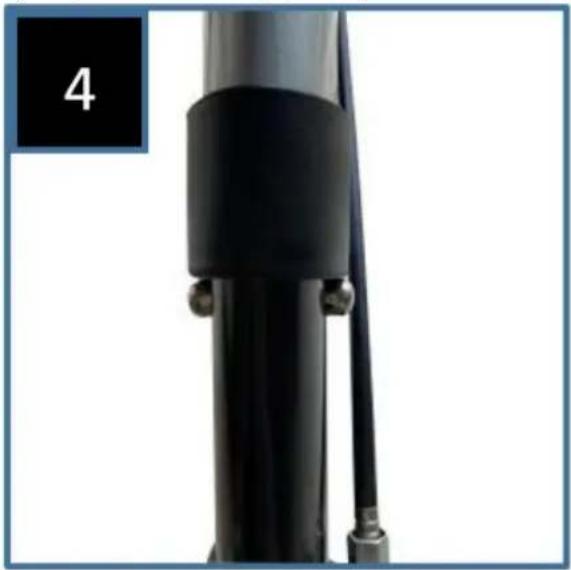

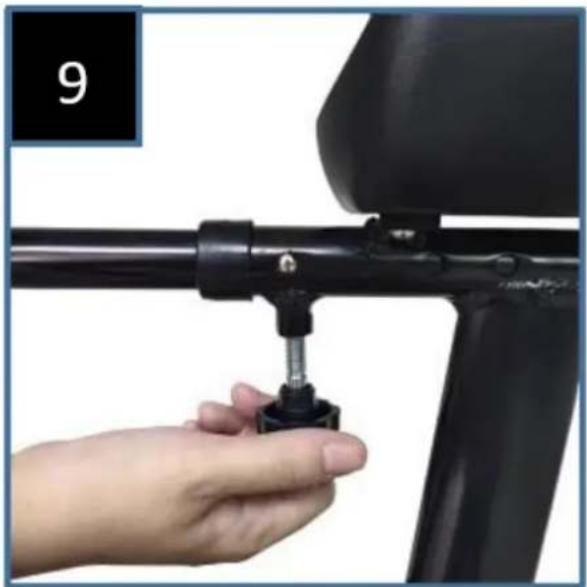

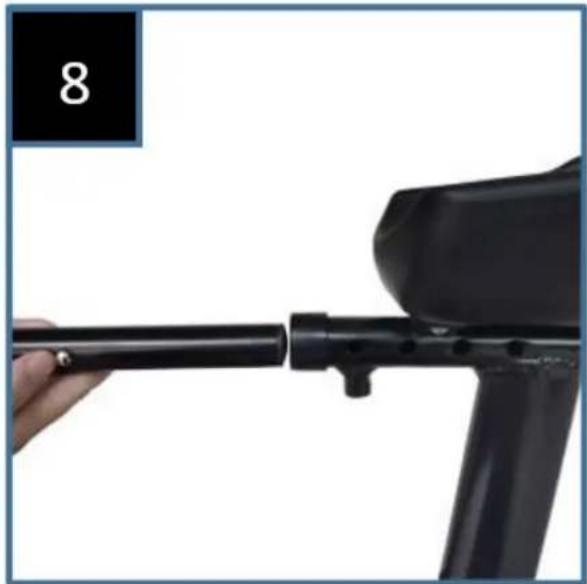

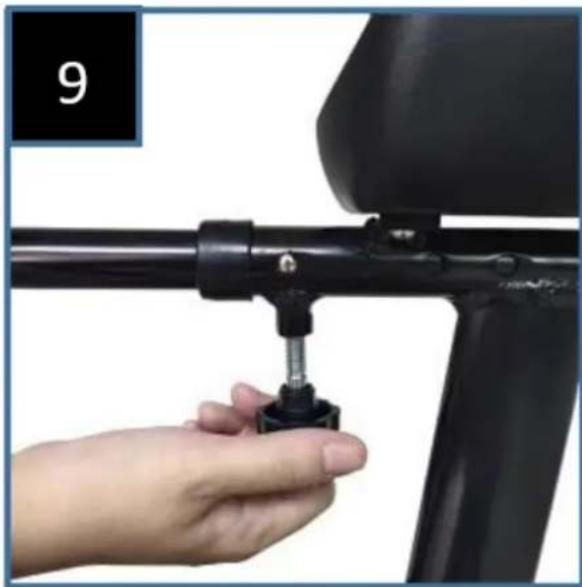

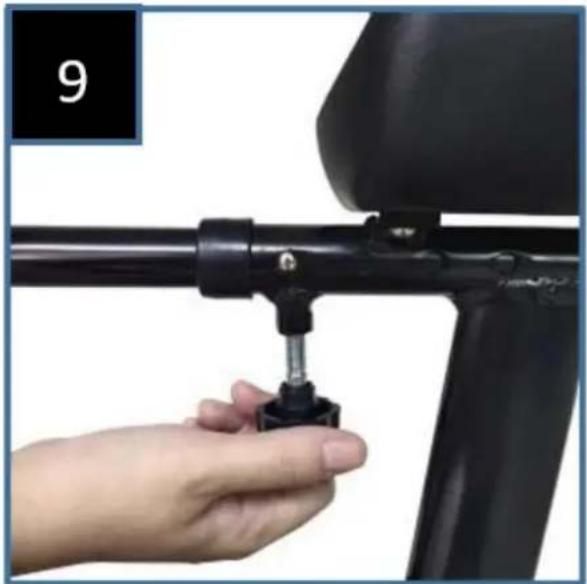

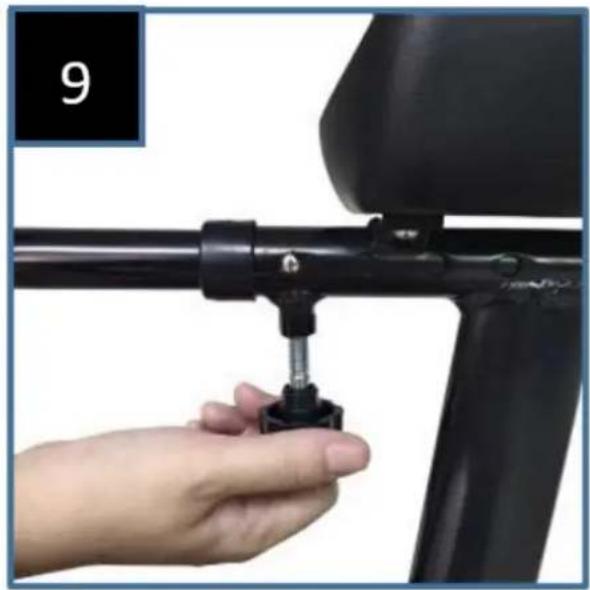

Insert the brake handle tube into the main frame, adjust it to the desired length and then tighten the screw. Repeat this operation on the other side (fig. 8-9):

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small base (no visible text or symbols)

3.2.4. Removing/attaching the transport bag

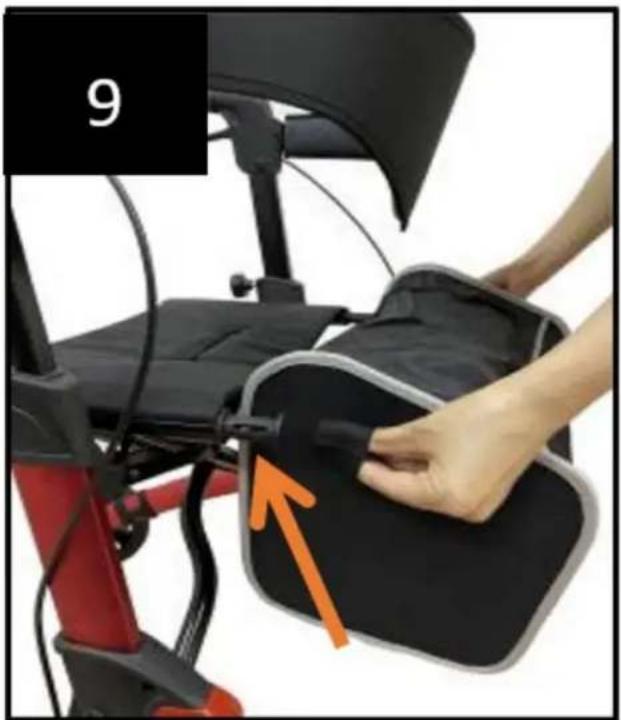

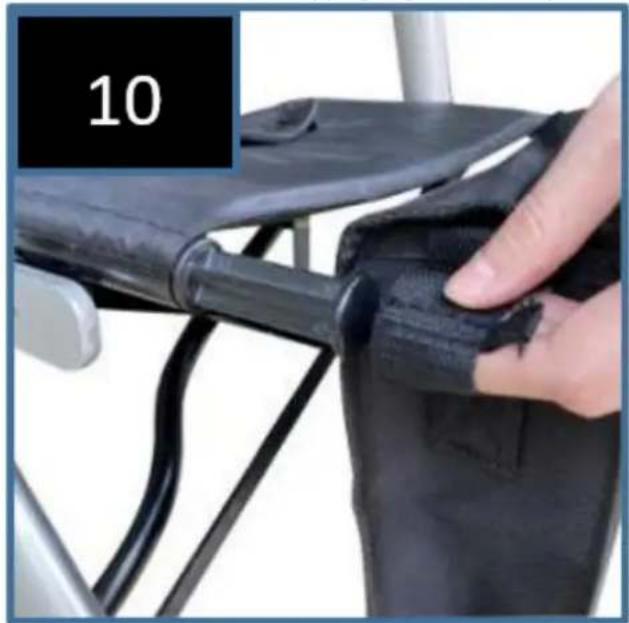

Attach the bag to the hook of the seat frame. The shopping bag can be easily detached during use (fig. 10):

Close-up of a hand holding a black flexible object with a curved handle, no visible text or symbols

3.2.5. Mounting the cane holder

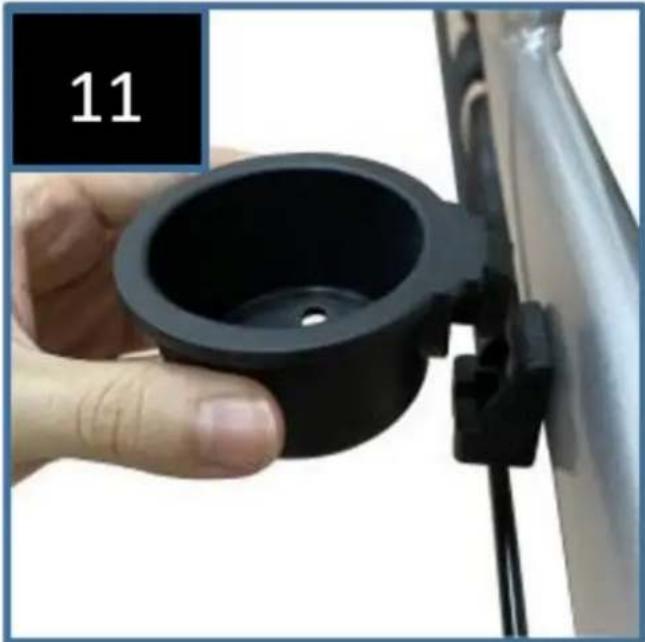

Attach the cane holder to the base, the base of the cane holder is located in the lower left corner of the frame (Figure 11):

Hand holding a black plastic mechanical component with a circular hole, attached to a metal frame (no text or symbols visible)

3.2.6. Unfolding the rollator

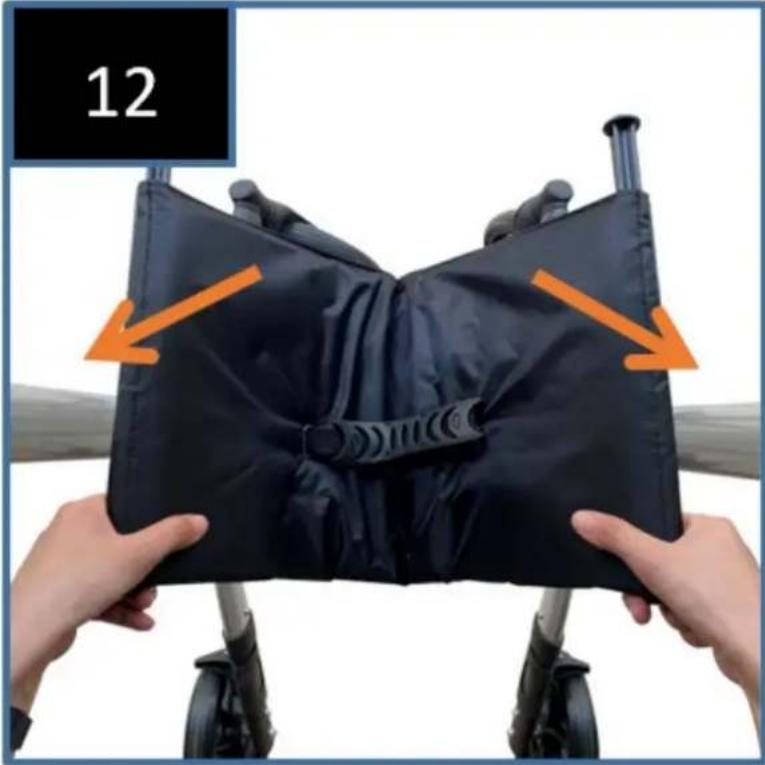

Position the rollator on the wheels. Unfold it by pressing on both sides of the seat frame until it opens fully and a "click" can be heard. At this point, the locking mechanism under the seat is activated (fig. 12).

Close-up of hands holding a black children's seatbelt with orange arrows indicating compression or disassembly (no text or symbols)

3.2.7. Height adjustment

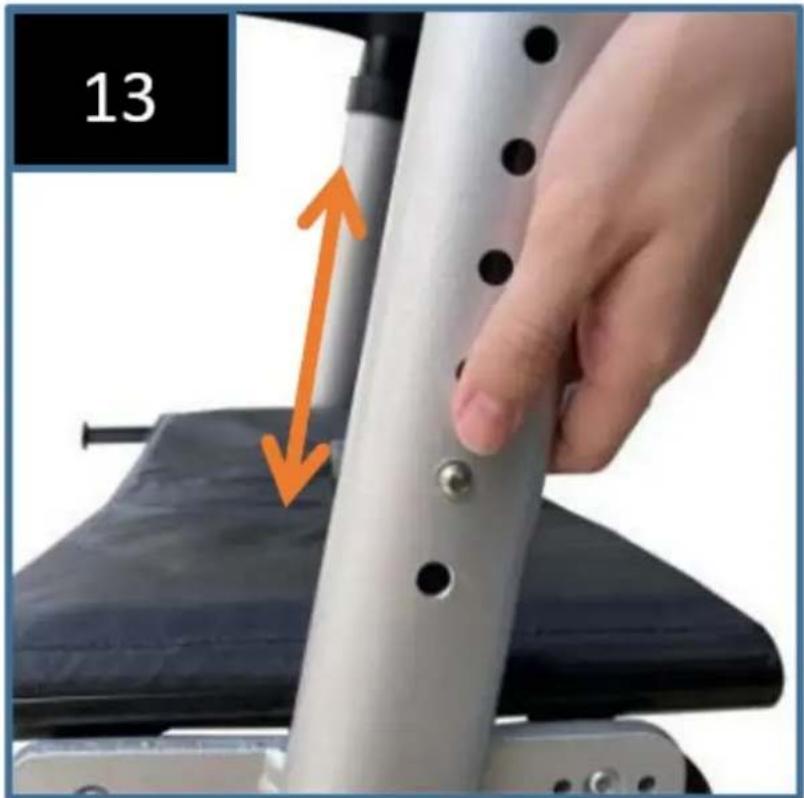

Press the handle button below, as shown in Figure 13, and simultaneously pull the handle upwards. When the handle has moved, release the button. This will automatically lock in the next possible height. Repeat this process until the desired height is reached.

13

3.2.8. Braking / locking

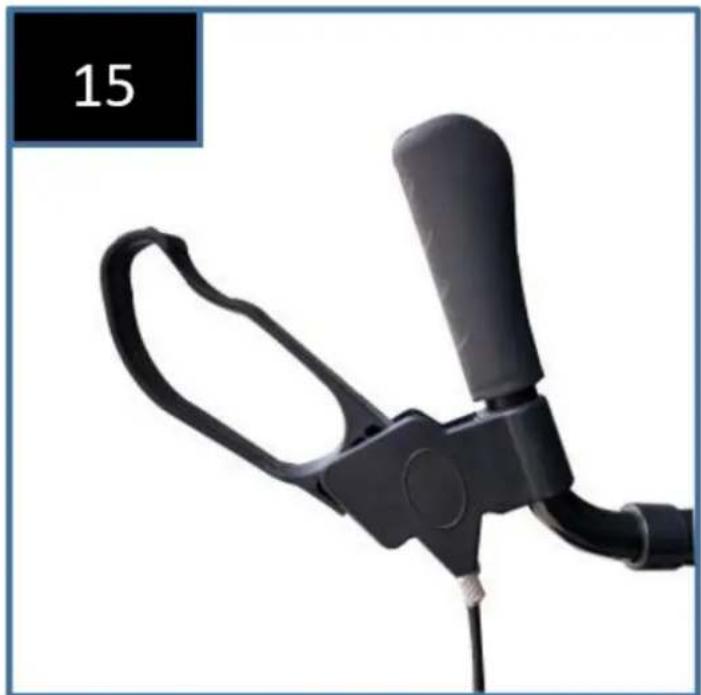

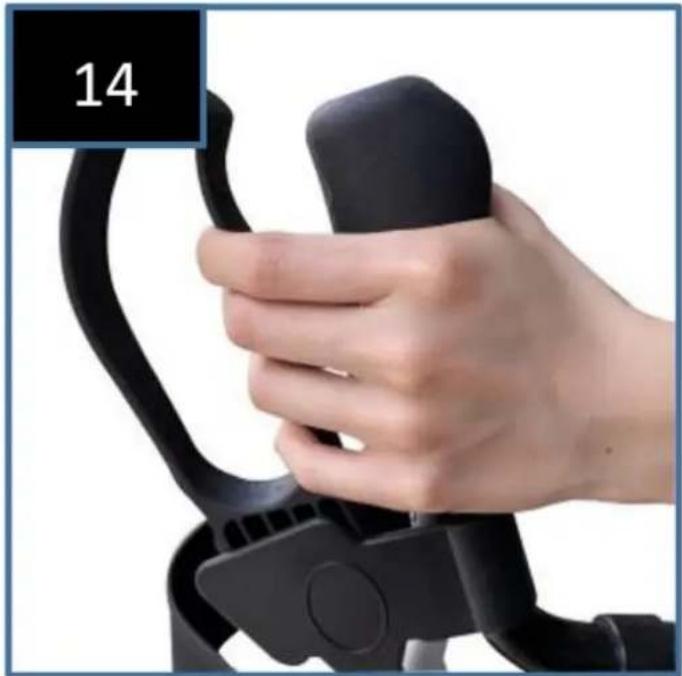

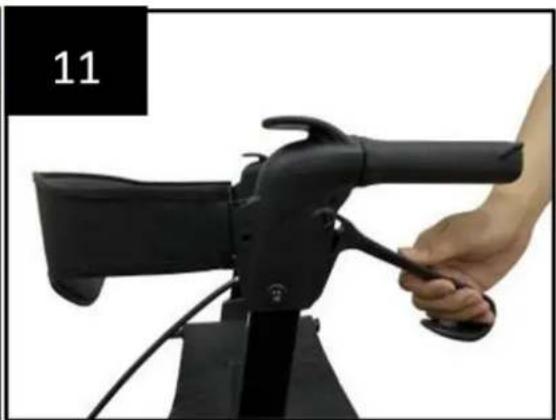

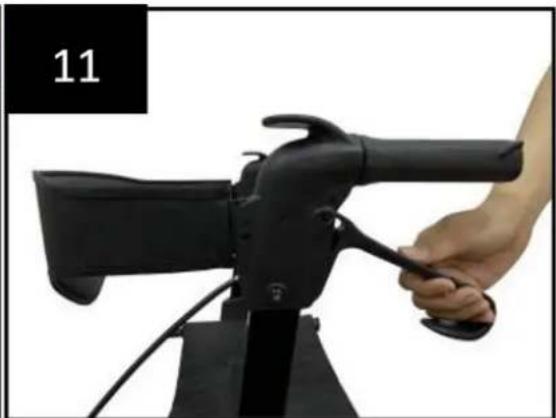

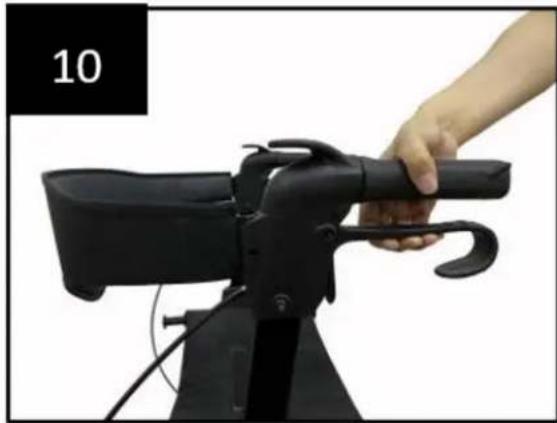

Pull both brake levers upwards to apply the brakes when the rollator is in motion (Fig. 14). Always brake slowly and evenly.

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Press both brake levers downwards to activate the locks when the rollator is stationary (fig. 15). To release the locks, pull the brake levers upwards. The operation of the brakes can be affected by wheel wear. Check the brakes regularly.

Close-up of a black handheld device with a loop handle and cable, labeled '15' in the corner (no other text or symbols)

3.2.9. Brake adjustment

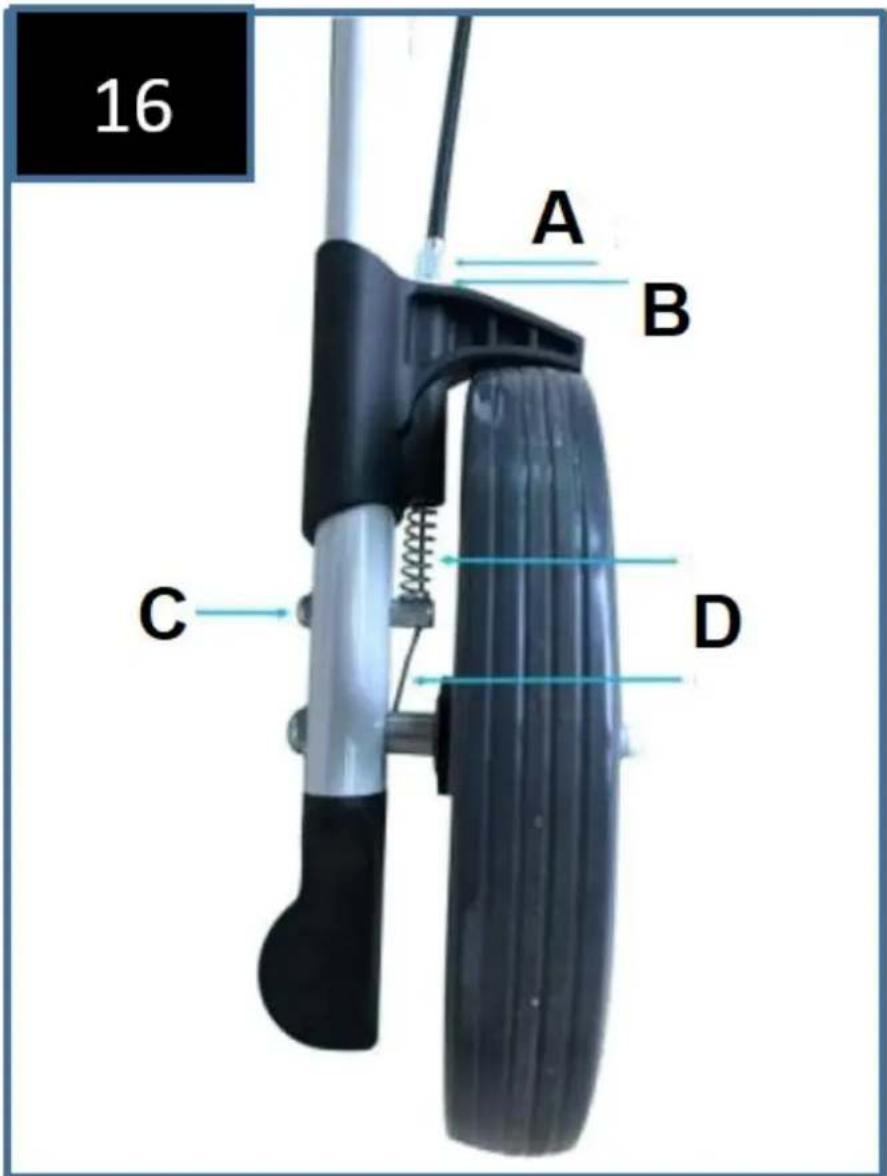

Figure 16 - brake force adjustment. The brake adjustment nut is located at the bottom of the brake cable, above the rear wheel on both sides.

Using a 10mm spanner, loosen the lock nut counterclockwise.

Use an 8mm spanner to adjust the tension on the brakes. To tighten the brakes, turn the adjusting nut counterclockwise.

Note: When the brake lever is released, there must be a small gap between the brake mechanism and the wheel.

16 A B C D

A - Nut A B - Nut B C - Lock screw D - Cables

3.2.10. Seat

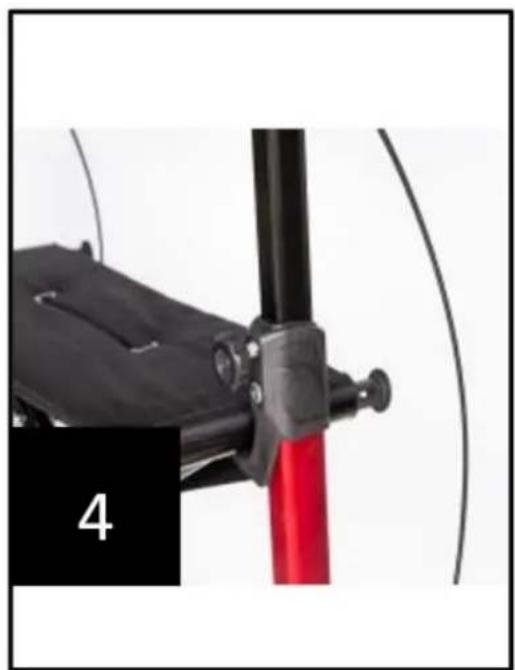

Position the rollator on a level and firm surface. Lock the brakes (parking position). The rollator must stand and must not slip. Sit up straight and do not lean back.

DO NOT MOVE THE ROLLATOR WHILE SITTING ON IT.

3.2.11. Folding / transport / storage

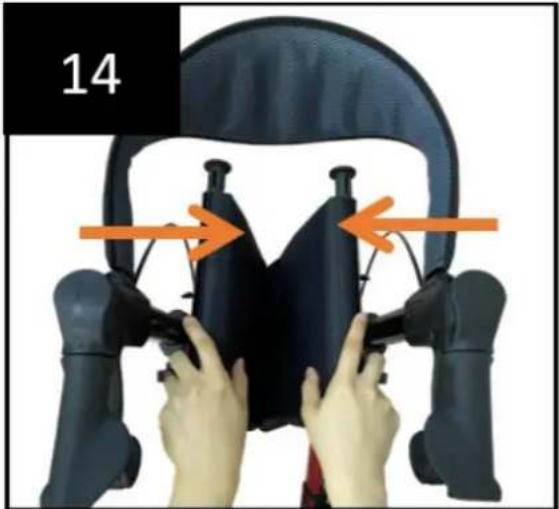

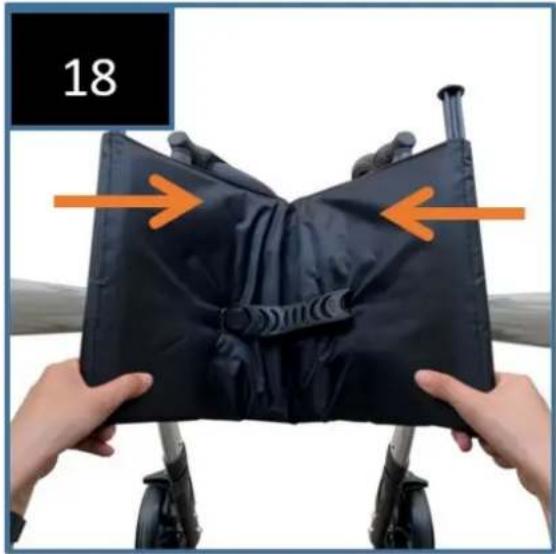

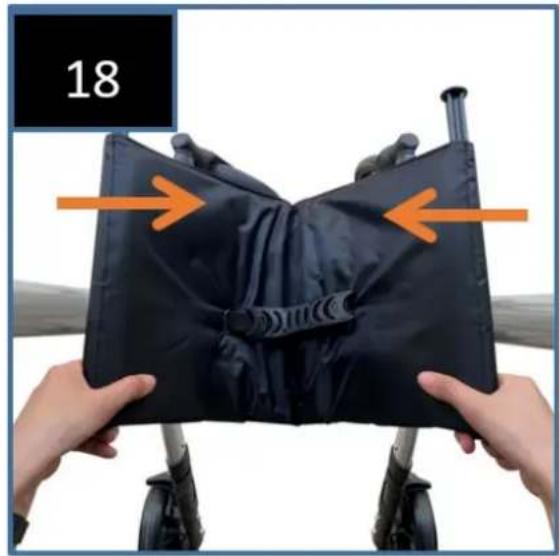

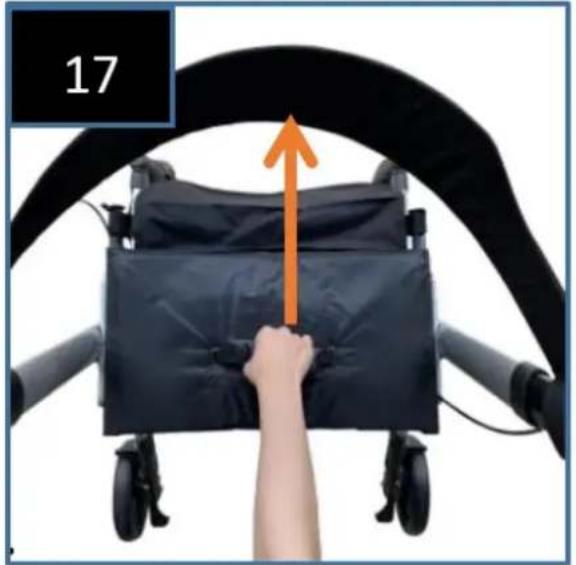

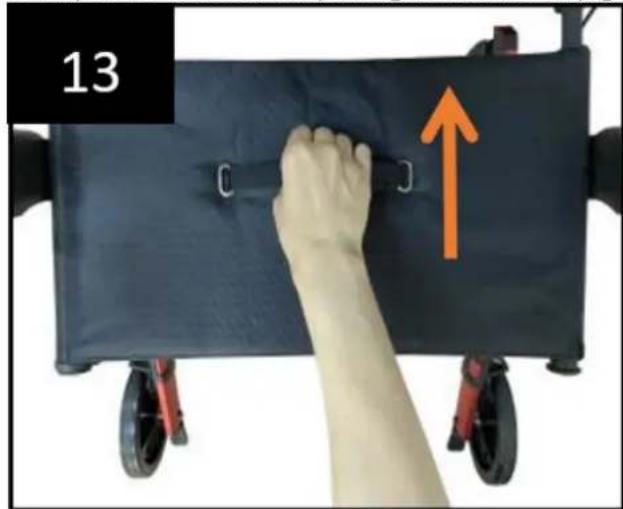

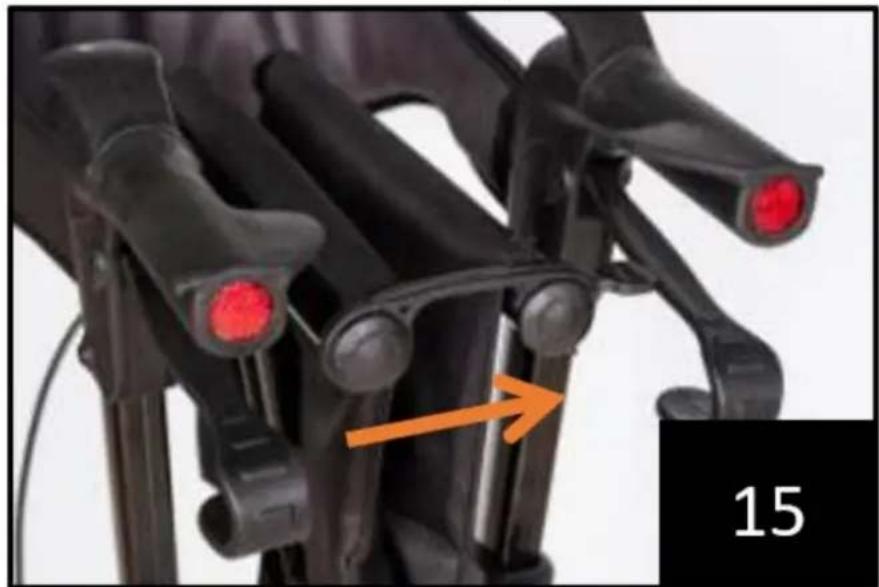

To fold the rollator, pull the seat upwards by the handle at the seat point, as shown in Figure 17. The rollator can now be fully folded and secured by pushing the hand grips towards each other (Figure 17-18).

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black fabric or cushion device with orange arrows pointing to the side (no text or symbols visible)

3.3. Assembling the device / Device use UNI\_ROLL\_07 F

3.3.1. Unfolding the rollator

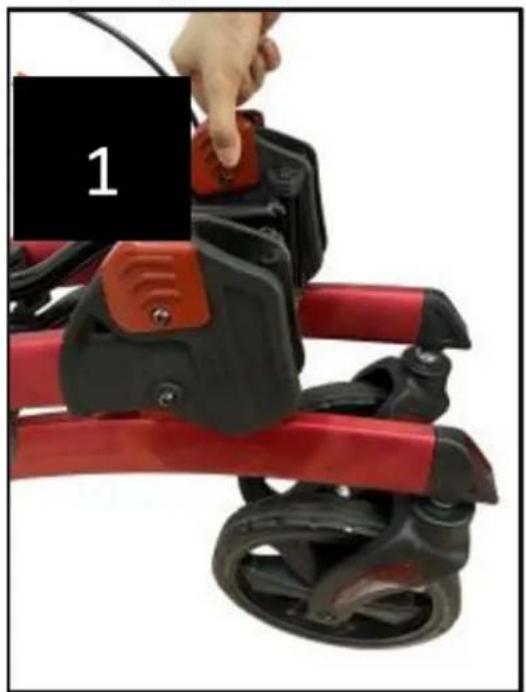

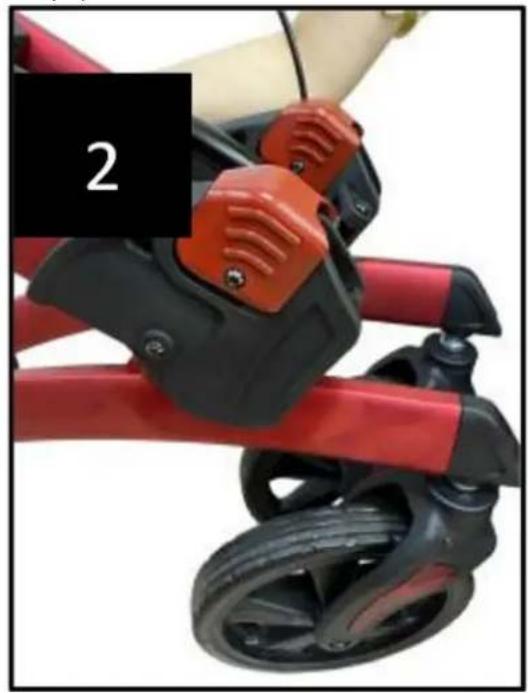

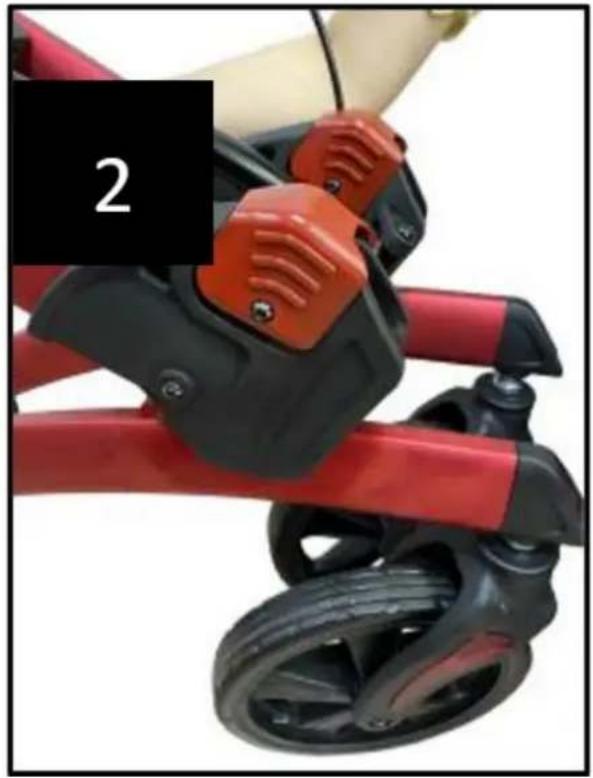

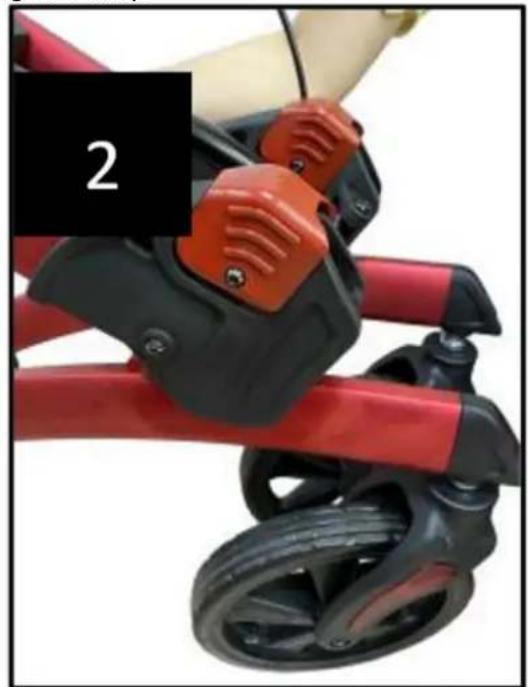

Pull the button by hand on one side and perform the same action on the other side. Then turn the main frame clockwise until a "click" sound is heard. This indicates that the rollator frame is secured in the extended position (figure 1 & 2).

Close-up of a red and black stroller with black buttons and wheels, no visible text or symbols

Close-up of a person using a red and black stroller, no visible text or symbols

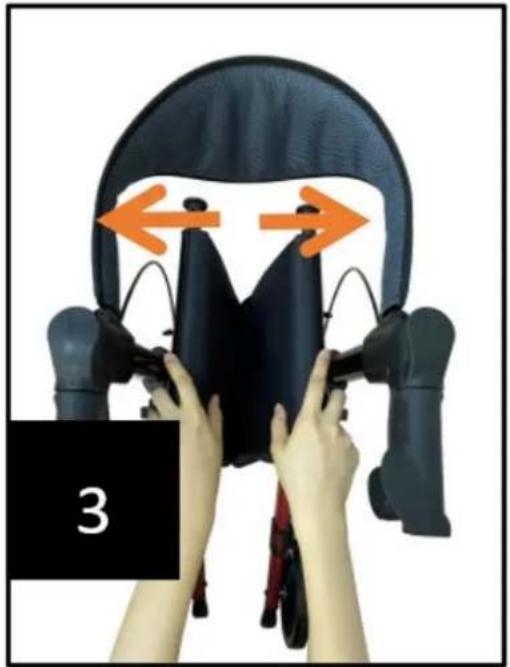

Unfold the rollator by pressing on both sides of the seat frame until it opens fully and there is an audible "click". At this point, the locking mechanism under the seat (Figure 3 & 4) engages.

Person assembling a dark blue mechanical component with orange arrows indicating motion direction (no text or symbols)

Close-up of a black bicycle seat with red lever and cable, no visible text or symbols

3.3.2. Handle assembly

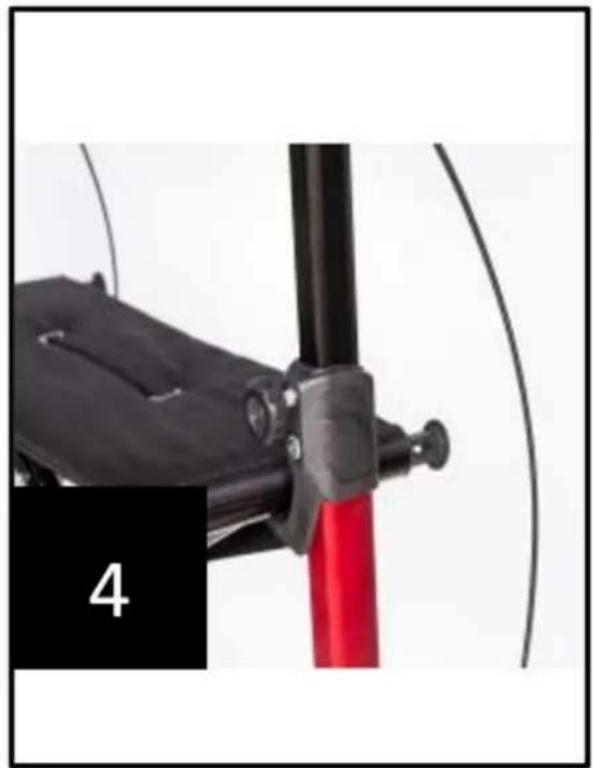

Insert the handles into the base of the handle assembly and slide into the socket on the main frame. Repeat on the other side. (Figures 5 and 6)

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

3.3.3. Height adjustment

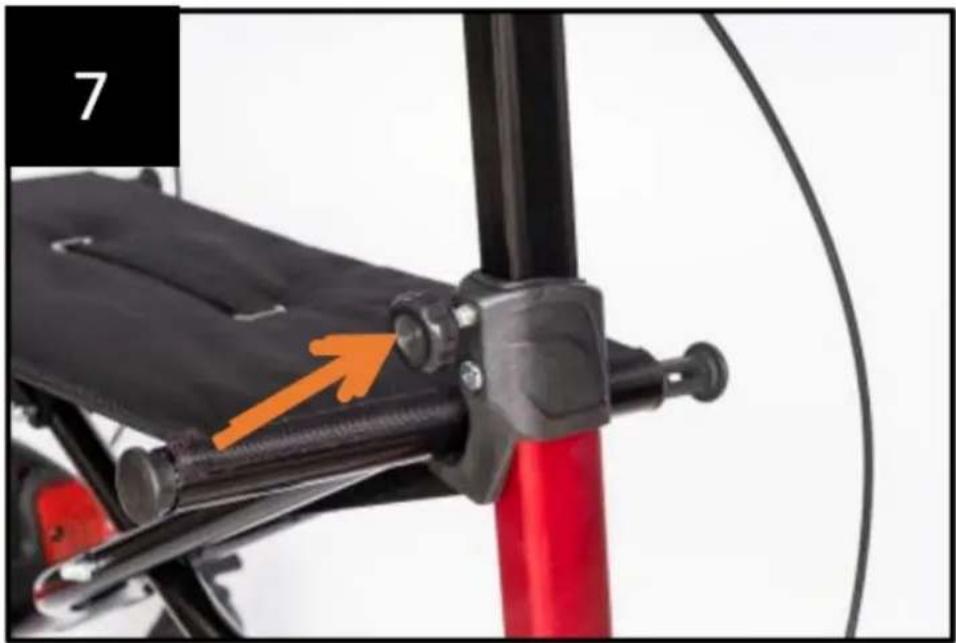

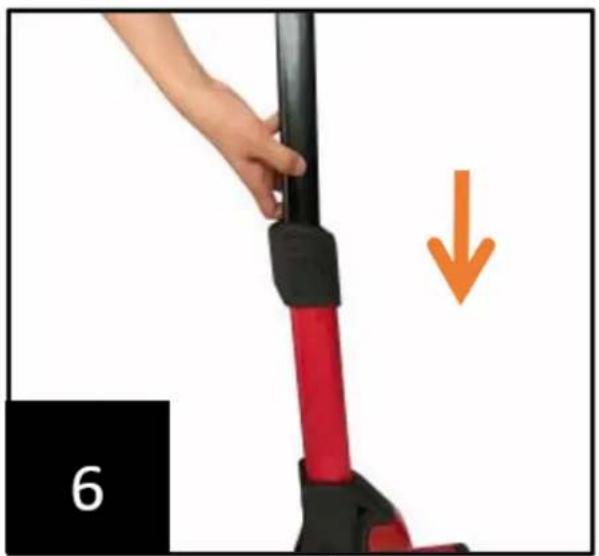

Turn the knob counterclockwise, adjust the push handle up and down to the desired height, then tighten the knob clockwise until it stops. Adjust both sides to the same comfortable height (Figure 7).

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

3.3.4. Backrest assembly

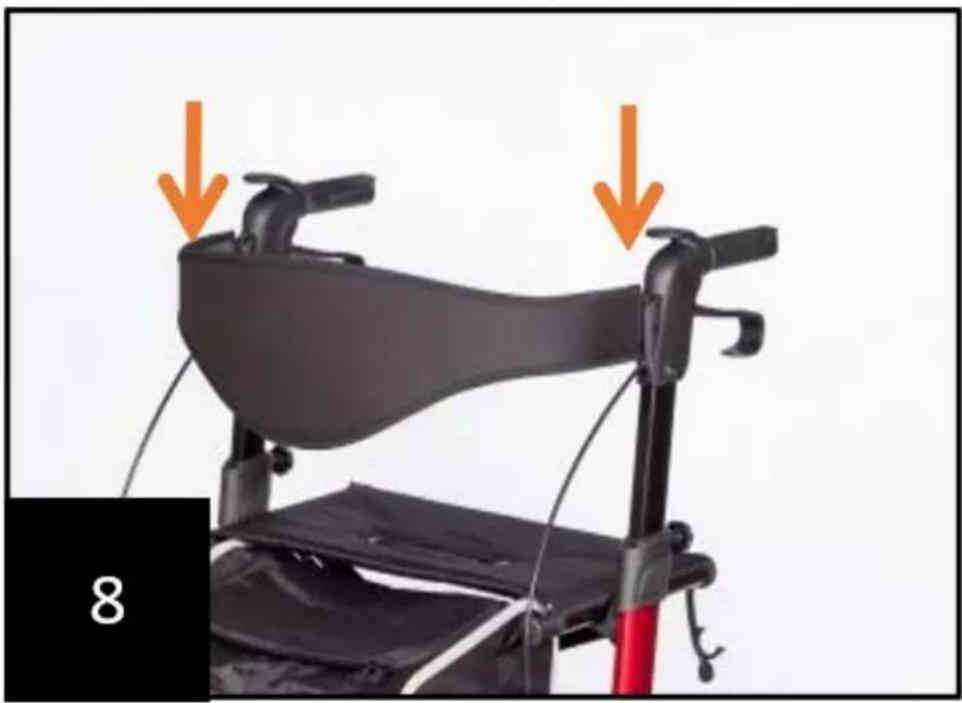

Slide the backrest into the slot on the front of the handle (Figure 8).

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

3.3.5. Removing/attaching the transport bag

Attach the bag to the hook of the seat frame. The shopping bag can be easily detached during use. (Figure 9)

9

3.3.6. Braking / locking

Pull both brake levers upwards to apply the brakes when the rollator is in motion (figure 10). Always brake slowly and evenly.

Press both brake levers down to apply the locks when the rollator is stationary (figure 11). Pull the brake levers upwards and release to release the locks.

Brake operation can be affected by wheel wear.

Check the brakes regularly.

Hand holding a black handheld device with a curved handle, against a white background (no text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

3.3.7. Brakes adjustment

To adjust the braking force, refer to Figure 12.

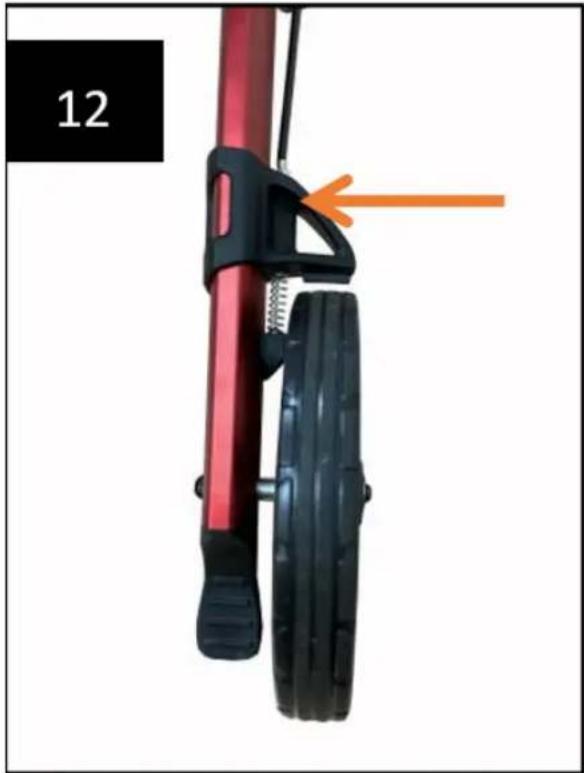

The brake adjustment nut is located at the bottom of the brake cable, above the rear wheel on both sides.

Use a 10mm spanner to loosen the lock nut counterclockwise.

Use an 8mm spanner to adjust the brake tension. To tighten the brakes, turn the adjusting nut counterclockwise.

Note: When the brake lever is released, there must be a small gap between the brake mechanism and the wheel.

Close-up of a red bicycle tire with black frame and spring mechanism, no visible text or symbols

3.3.8. Sitting

Position the rollator on a level and firm surface. Lock the brakes (parking position). The rollator must stand and must not slip. Sit up straight and do not lean back.

DO NOT MOVE THE ROLLATOR WHILE SEATED.

3.3.9. Folding / transport / storage

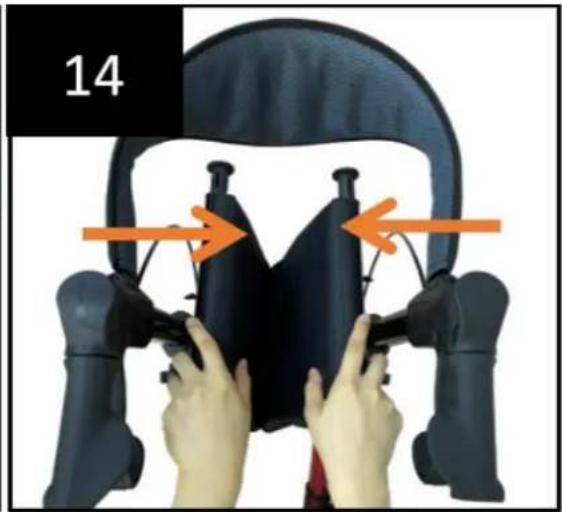

To fold the seat, pull upwards on the handle at the seat point, as shown in Figure 13. The rollator can now be fully folded and secured by sliding the handles off (Figure 14).

Hand placing a blue cushion with a red arrow and number 13, no text or symbols on the object itself

Person assembling a black athletic chair frame with orange arrows indicating motion (no text or symbols)

Z Fasten the seat buckle to hold the rollator in the side fold position (figure 15).

Close-up of black mechanical components with red light spots and orange arrow indicator (no text or symbols)

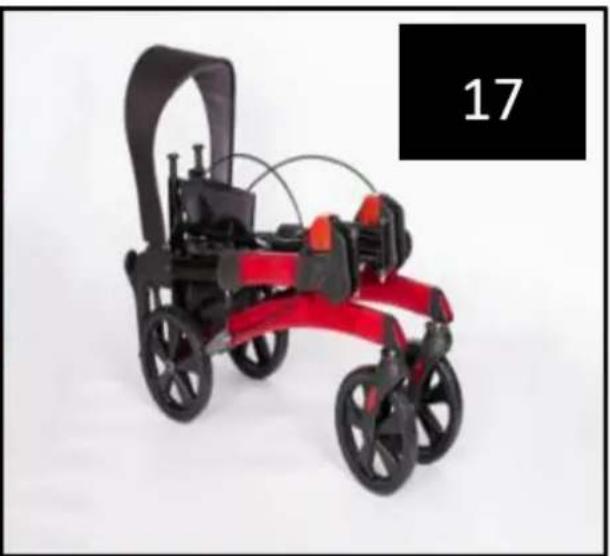

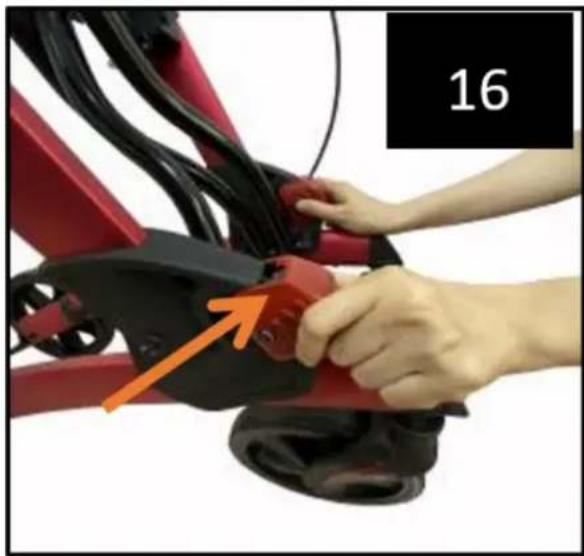

Place the rollator in the folded position by pulling both buttons at the same time. Then rotate the upper frame counterclockwise (Figure 16 & 17).

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a black canopy, displayed against a white background (no text or symbols visible)

3.4. Directions for use

• Use only as a walking aid!
• Only use on level and hard surfaces.
• Check the screws and fasteners of the rollator regularly and tighten them if necessary.
  • Use the bag only for transporting objects and do not overload it. Maximum load: 9 kg.
• Do not expose the product to temperatures above 40^ C for a prolonged period of time as this may cause parts of the rollator to overheat and burn the user.
• Ensure that the rollator is fully open, the seat is lowered and the folding bar under the seat is locked in the lowered position.
• Ensure that both knobs are fully tightened and are at equal heights. Check the stability of the rollator before fully loading the handles.
• Check the brake lever before starting the rollator. When the wheels are locked, the lock on the rear wheels should prevent the wheels from turning. When the locks are released, the wheels should turn freely.
• Always lock the brake lever before sitting down and do not use the seat when the machine is on an incline or uneven ground.
• Replace the tyres if they are severely worn or damaged.
• DO NOT MOVE THE ROLLATOR WHILE THE USER IS SITTING ON IT. It is a walking aid only and must not be used as a transport device.

3.5. Cleaning and maintenance

a) Use only non-corrosive cleaners to clean the surface. Mild detergents are recommended.
b) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
c) The device must be regularly inspected to check its technical efficiency and spot any damage.
d) Use a soft, damp cloth for cleaning.
e) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
f) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
g) After each cleaning, wipe the product with a dry cloth and protect metal joints from moisture with a suitable agent, e.g. WD40.

Close-up of a hand holding a black bicycle brake lever with a white handle, next to a black wheel (no text or symbols visible)

Close-up of a metallic cylindrical object with a small circular knob, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black mechanical tool with a brush, no visible text or symbols

Close-up of a black mechanical component with a coiled cable and bolted base (no visible text or symbols)

Close-up of a black broom with a white handle and roller, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white casing, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small attached pin (no visible text or symbols)

Close-up of a hand holding a black medical or surgical device with a clip, no visible text or symbols

Close-up of a hand holding a black plastic cup attached to a metal bracket (no text or symbols visible)

Close-up of hands holding a black children's seatbelt with orange arrows indicating compression or disassembly (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and lever, labeled '15' in the corner (no other text or symbols)

Close-up of a hand pressing down on a black ergonomic chair seat with an orange upward arrow (no text or symbols visible)

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with a hand adjusting the seat (no visible text or symbols)

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a black plastic bag with orange arrows indicating motion (no text or symbols)

Close-up of a bicycle tire assembly with black frame and red handle (no text or symbols visible)

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand holding a black vacuum cleaner with red seat cover, showing a downward arrow (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or force points (no text or symbols)

Close-up of a black handheld device with a hand adjusting its grip, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no other text or symbols visible)

Close-up of a red bicycle steering wheel with black adjustment bracket and orange arrow pointing to the handle (no text or symbols)

3.3.8. Siadanie

Hand placing a blue seatbelt with a red arrow and number 13, no text or symbols on the main subject

14

Close-up of black mechanical components with red light spots and orange arrow indicator (no text or symbols)

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a black canopy, displayed against a white background (no text or symbols visible)

Close-up of a hand holding a black bicycle steering wheel, with no visible text or symbols

Close-up of a metallic cylindrical object with a small circular feature, mounted on a black base (no text or symbols visible)

Close-up of a hand holding a black stationery brush with a handle, no visible text or symbols

Close-up of a black cylindrical mechanical component with a coiled cable and two bolts, labeled '4' in the corner (no text or symbols on the object itself)

Close-up of a black broom with a coiled cable and handle, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

3.2.3. Sestava trubky ramene

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no text or symbols visible)

Close-up of a hand adjusting a black bicycle seat component with a small mechanical clip (no text or symbols visible)

Close-up of a hand adjusting a black flexible object with a curved handle, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's backpack with orange arrows indicating fold changes (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and cable, labeled '15' in the corner (no other text or symbols)

Hand placing a black seat with an orange arrow, against a dark curved background (no text or symbols)

Close-up of hands holding a black fabric bag with orange arrows pointing to the side (no text or symbols visible)

Close-up of a red and black stroller with black buttons and wheels, being adjusted by hand (no text or symbols visible)

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a black plastic bag with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle seat with red lever and black railings, no visible text or symbols

3.3.2. Montáž rukojeti

Hand holding a brush applying material to a red cylindrical device, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a black cable with red and black bands, showing a downward arrow (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Close-up of a hand holding a black robotic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

Close-up of a red bicycle steering wheel with black frame and tire, showing no text or symbols

3.3.8. Zasedání

Hand placing a blue cushion with a red arrow pointing upward, next to a dark blue cart (no text or symbols visible)

Person assembling a black athletic chair frame with orange arrows indicating motion (no text or symbols)

Close-up of black mechanical components with red light spots and orange arrow indicator (no text or symbols)

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a black canopy, displayed against a white background (no text or symbols visible)

Close-up of a hand holding a black bicycle baluster with a red accent, no visible text or symbols

Close-up of a metallic cylindrical object with a small circular knob, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black cylindrical mechanical component with a metallic rod and mounting base (no visible text or symbols)

Close-up of a black broom with a roller being inserted, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white body, showing a finger insertion (no text or symbols visible)

3.2.3. Ensemble de tube de bras

Close-up of a hand holding a black cylindrical object with a small inset view, next to a black mechanical component (no text or symbols visible)

Close-up of a hand adjusting a black mechanical component with a small inset showing a plug (no text or symbols visible)

3.2.4. Retrait/fixation du sac de transport

Close-up of a hand holding a black flexible medical device with a cable, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's seatbelt with orange arrows indicating compression or disassembly (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and lever, labeled '15' in the corner (no other text or symbols)

3.2.9. Réglage des freins

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with a hand adjusting the seat (no visible text or symbols)

Close-up of a person using a red and black stroller, no visible text or symbols

Person adjusting a black headgear device with orange arrows indicating motion (no text or symbols)

Close-up of a mechanical device with black components and red rod, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand holding a black cable with red and black connectors, labeled '6' in the corner (no text or symbols on the device itself)

Close-up of a black mechanical device with a vertical rod and cable, showing a blue arrow pointing to a component (no text or symbols visible)

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Hand holding a black handheld device with a curved handle, against a white background (no text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

Close-up of a red bicycle tire with black frame and spring mechanism, no visible text or symbols

3.3.8. Séance

Hand placing a blue trolley with a handle, showing an orange upward arrow (no text or symbols)

Person assembling a dark mechanical device with orange arrows indicating motion (no text or symbols)

Close-up of black mechanical components with red circular highlights and orange arrow indicating direction (no text or symbols)

Close-up of hands operating a red and black robotic device with a cable, no visible text or symbols

Model of a red and black children's stroller with wheels, displayed against a plain white background (no text or symbols visible)

Close-up of a hand holding a black bicycle baluster with a red accent, no visible text or symbols

Close-up of a metallic cylindrical object with a small circular knob, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black cylindrical mechanical component with a metallic rod and mounting bolts (no visible text or symbols)

Close-up of a black broom with a roller being inserted, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white body, showing a finger insertion (no text or symbols visible)

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small clamp (no text or symbols visible)

Close-up of a hand holding a black flexible medical device with a white label '10' in the corner (no other text or symbols visible)

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's seatbelt with orange arrows indicating compression or disassembly (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and lever, labeled '15' in the corner (no other text or symbols)

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with a hand adjusting the seat (no visible text or symbols)

Close-up of a person using a red and black stroller, no visible text or symbols

Person adjusting a black headgear with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle seat with red lever and black railings, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Close-up of a hand holding a black robotic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

Close-up of a red bicycle steering wheel with black frame and spring, showing no text or symbols

3.3.8. Seduta

Hand placing a blue tray with a handle, marked with an orange upward arrow (no text or symbols on the tray itself)

Person assembling a dark mechanical device with orange arrows indicating motion (no text or symbols)

Close-up of black mechanical components with red light spots and orange arrow indicating a specific point (no text or symbols)

Close-up of hands operating a red robotic device with black cables and a red handle, no visible text or symbols

Red and black 3D-printed model of a small wheeled vehicle with wheels and camera (no text or symbols visible)

Close-up of a hand holding a black and silver station wagon with a red handle, no visible text or symbols

Close-up of a metallic cylindrical object with a small circular feature, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black cylindrical mechanical component with a metallic rod and mounting base (no visible text or symbols)

Close-up of a black and silver cleaning tool with a textured cable attachment (no visible text or symbols)

Close-up of a hand holding a cylindrical device with black and white components, no visible text or symbols

Close-up of a hand holding a cylindrical device with a black handle and white body, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small base (no visible text or symbols)

3.2.4. Quitar/colocar la bolsa de transporte

Close-up of a hand holding a black flexible medical device with a cable, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's seatbelt with orange arrows indicating compression or disassembly (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and cable, labeled '15' in the corner (no other text or symbols)

3.2.9. Ajuste del freno

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with black buttons and wheels, no visible text or symbols

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a black headgear device with orange arrows indicating motion (no text or symbols)

Close-up of a black mechanical component with red rod and black clamped parts, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

Close-up of a bicycle seat assembly with black frame, red vertical rod, and orange arrow indicating a component (no text or symbols)

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Close-up of a hand holding a black robotic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

3.3.7. Ajuste de frenos

Close-up of a red bicycle tire with black frame and spring mechanism, no visible text or symbols

3.3.8. Sesión

Hand placing a blue trolley with a handle, showing orange upward arrow (no text or symbols)

Person assembling a black athletic chair with orange arrows indicating motion (no text or symbols)

Close-up of black mechanical components with red light spots and orange arrow indicator (no text or symbols)

Close-up of a red and black robotic device with a hand adjusting cable, showing a blue handle and orange arrow (no text or symbols visible)

Model of a red and black children's tricycle with wheels, displayed against a plain white background (no text or symbols visible)

Close-up of a hand holding a black bicycle baluster with a red accent, no text or symbols visible

Close-up of a metallic cylindrical object with a small circular feature, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black cylindrical mechanical component with a metallic rod and mounting base (no visible text or symbols)

Close-up of a black broom with a roller being inserted, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white casing, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small base (no visible text or symbols)

Close-up of a hand adjusting a black flexible object with a curved handle, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's backpack with orange arrows indicating fold changes (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and cable, labeled '15' in the corner (no other text or symbols)

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with black buttons and wheels, no visible text or symbols

Close-up of a person adjusting a red and black stroller wheel, no visible text or symbols

Person assembling a black headgear device with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle seat with red lever and cable, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Close-up of a hand holding a black robotic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

Close-up of a red bicycle steering wheel with black adjustment rings and a highlighted orange arrow pointing to the wheel (no text or symbols)

3.3.8. Ülő

Hand placing a blue cushion with a red arrow and number 13, no text or symbols on the object itself

14

Close-up of black mechanical components with red light spots and orange arrow indicator (no text or symbols)

Close-up of hands operating a red robotic device with black cables and a red handle, no visible text or symbols

Model of a red and black children's stroller with wheels, displayed against a plain white background (no text or symbols visible)

Close-up of a hand holding a black bicycle steering wheel, with no visible text or symbols

Close-up of a metallic cylindrical object with a small circular feature, mounted on a black base (no text or symbols visible)

Close-up of a hand holding a black stationery brush with a handle, no visible text or symbols

Close-up of a black cylindrical mechanical component with a coiled cable and two bolts, labeled '4' in the corner (no text or symbols on the object itself)

Close-up of a black broom with a coiled cable and handle, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white casing, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small base (no visible text or symbols)

Close-up of a hand holding a black flexible object with a curved handle, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

3.2.6. Udfolding af rollatoren

Close-up of hands holding a black children's backpack with orange arrows indicating fold changes (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and cable, labeled '15' in the corner (no other text or symbols)

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with black buttons and wheels, being adjusted by hand (no text or symbols visible)

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a dark blue mechanical component with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle seat with red lever and black railings, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Close-up of a hand holding a black robotic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

Close-up of a red bicycle steering wheel with black adjustment rings and a highlighted orange arrow pointing to the wheel (no text or symbols)

DA UNI\_ROLL\_07 F

3.3.8. Siddende

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a black canopy, displayed against a white background (no text or symbols visible)

Close-up of a hand holding a black bicycle brake lever with a red accent, no text or symbols visible

Close-up of a camera lens component with a metallic screw and black grip, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black stationery brush with a handle, no visible text or symbols

Close-up of a black cylindrical mechanical component with a coiled cable and two bolts, labeled '4' in the corner (no text or symbols on the object itself)

Close-up of a black broom with a coiled cable and handle, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white casing, showing a perforated rod (no text or symbols visible)

3.2.3. Varren putken kokoonpano

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Hand inserting a small mechanical component into a black bicycle leg (no text or symbols visible)

Close-up of a hand holding a black flexible medical device with a white label '10' in the corner (no other text or symbols visible)

3.2.5. Kepin pidikkeen asennus

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's seatbelt with orange arrows indicating compression or disassembly (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and cable, labeled '15' in the corner (no other text or symbols)

Hand placing a black seat with an orange arrow, against a dark curved background (no text or symbols)

Close-up of hands holding a black fabric or cushion device with orange arrows pointing to the side (no text or symbols visible)

Close-up of a red and black stroller with black buttons and wheels, no visible text or symbols

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a black plastic bag with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle seat with red lever and black railings, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand holding a black cable with red and black bands, showing a downward arrow (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Hand holding a black handheld device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

Close-up of a red bicycle steering wheel with black frame and tire, showing no text or symbols

3.3.8. Istuminen

Hand placing a blue cushion with a red arrow and number 13, no text or symbols on the cushion itself

Person assembling a black athletic chair frame with orange arrows indicating motion (no text or symbols)

Close-up of black mechanical components with red light spots and orange arrow indicator (no text or symbols)

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a black canopy, displayed against a white background (no text or symbols visible)

3.4. Käyttöohjeet

Close-up of a hand holding a black bicycle baluster with a handle, showing the wheel and seat (no text or symbols visible)

Close-up of a metallic cylindrical object with a small circular feature, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black cylindrical mechanical component with a metallic rod and mounting base (no visible text or symbols)

Close-up of a black broom with a roller being inserted, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white casing, showing a perforated rod (no text or symbols visible)

3.2.3. Armbuis montage

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small base (no visible text or symbols)

Close-up of a hand holding a black flexible medical device with a white label '10' in the corner (no other text or symbols visible)

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's seatbelt device with orange arrows indicating compression or disassembly (no text or symbols)

3.2.7. Hoogteverstelling

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and lever, labeled '15' in the corner (no other text or symbols)

3.2.9. Rem afstelling

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with black buttons and wheels, no visible text or symbols

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a black helmet with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle support structure with red vertical rod and cable, no visible text or symbols

3.3.2. Handgreep montage

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a black cable with red and black bands, showing a downward arrow (no text or symbols)

3.3.3. Hoogteverstelling

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

3.3.4. Rugleuning montage

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Hand holding a black handheld device with a curved handle, no visible text or symbols

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

3.3.7. Remmen afstellen

Close-up of a red bicycle tire with black frame and spring mechanism, no visible text or symbols

3.3.8. Zittend

Hand placing a blue cushion with a red roller, showing a hand pressing down on the seat (no text or symbols visible)

Person assembling a dark blue car seat frame with orange arrows indicating motion (no text or symbols)

Close-up of black mechanical components with red circular highlights and an orange arrow pointing to a specific part (no text or symbols visible)

Close-up of a red and black robotic device with hands operating it, showing cable routing and a highlighted orange arrow (no text or symbols visible)

Model of a red and black children's stroller with wheels, displayed against a plain white background (no text or symbols visible)

Close-up of a hand holding a black bicycle steering wheel, with no visible text or symbols

Close-up of a metallic cylindrical object with a small circular feature, mounted on a tripod (no text or symbols visible)

Monter bakhjulet i kontakten på baksiden av rammen mens du trykker på låsepinnen. Låsepinnen vil sprette ut när hjulet er godt festet. Monter det andre bakhjulet på samme måte. (Figur 3-5):

Close-up of a hand holding a black stationery brush with a handle, no visible text or symbols

Close-up of a black cylindrical mechanical component with a coiled cable and two bolts, labeled '4' in the corner (no text or symbols on the object itself)

Close-up of a black broom with a coiled cable and handle, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white casing, showing a perforated rod (no text or symbols visible)

3.2.3. Armrørsammenstilling

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small base (no visible text or symbols)

Close-up of a hand holding a black flexible object with a curved handle, no visible text or symbols

Hand holding a black plastic mechanical component with a circular hole, attached to a metal frame (no text or symbols visible)

3.2.6. Folder ut rollatoren

Close-up of hands holding a black children's puffer bag with orange arrows indicating compression or disassembly (no text or symbols)

Hand placing a black seat frame with an orange upward arrow, against a dark curved background (no text or symbols)

Close-up of hands holding a black fabric bag with orange arrows pointing to the side (no text or symbols visible)

Close-up of a red and black stroller with black buttons and wheels, no visible text or symbols

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a dark blue satch with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle seat with red lever and cable, no visible text or symbols

3.3.2. Händtaksmontering

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

3.3.4. Ryggstøttemontering

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

3.3.5. Ta ut/feste på transportposen

Hand holding a black robotic device with a curved handle, no visible text or symbols

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

3.3.7. Justering av bremser

Close-up of a red bicycle steering wheel with black adjustment rings and a highlighted orange arrow pointing to the wheel (no text or symbols)

3.3.8. Sitter

Hand placing a blue cushion with a red arrow and number 13, no text or symbols on the cushion itself

14

Close-up of black mechanical components with red circular highlights and an orange arrow pointing to a specific part (no text or symbols visible)

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a curved canopy, displayed against a plain white background (no text or symbols visible)

Close-up of a hand holding a black bicycle baluster with a red accent, no text or symbols visible

Close-up of a metallic cylindrical object with a small circular feature, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black stationery brush with a handle, no visible text or symbols

Close-up of a black cylindrical mechanical component with a coiled cable and two bolts, labeled '4' in the corner (no text or symbols on the object itself)

Close-up of a black broom with a coiled cable and handle, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white body, showing a finger insertion (no text or symbols visible)

3.2.3. Armrörsmontering

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small inset showing a plug (no text or symbols visible)

Close-up of a hand adjusting a black flexible object with a handle, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's puffer bag with orange arrows indicating compression or disassembly (no text or symbols)

3.2.7. Höjdjustering

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and cable, labeled '15' in the corner (no other text or symbols)

3.2.9. Bromsjustering

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black fabric or cushion device with orange arrows pointing to the side (no text or symbols visible)

Close-up of a red and black stroller with a hand adjusting the seat (no visible text or symbols)

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a black plastic bag with orange arrows indicating motion (no text or symbols)

Close-up of a mechanical device with black components and red rod, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a black cable with red and black bands, showing a downward arrow (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Close-up of a hand holding a black robotic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

3.3.7. Bromsjustering

Close-up of a red bicycle steering wheel with black adjustment rings and a highlighted orange arrow pointing to the wheel (no text or symbols)

3.3.8. Sammanträde

Hand placing a blue cushion with a red arrow and number 13, no text or symbols on the cushion itself

Person assembling a black athletic chair with orange arrows indicating motion (no text or symbols)

Close-up of a black robotic device with red light bulbs and orange arrow pointing to a component (no text or symbols visible)

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a black canopy, displayed against a white background (no text or symbols visible)

Close-up of a hand holding a black bicycle baluster with a red accent, no visible text or symbols

Close-up of a metallic cylindrical object with a small circular knob, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black mechanical component with a metallic rod and mounting base (no visible text or symbols)

Close-up of a black broom with a roller being inserted, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, showing a perforated rod (no text or symbols visible)

Close-up of a hand holding a cylindrical device with black and white body, showing a finger insertion (no text or symbols visible)

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small attached pin (no text or symbols visible)

3.2.4. Removendo/colocando a bolsa de transporte

Close-up of a hand holding a black flexible medical device with a cable, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's seatbelt with orange arrows indicating compression or disassembly (no text or symbols)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and lever, labeled '15' in the corner (no other text or symbols)

Close-up of a hand pressing down on a black stroller seat with an orange upward arrow, no text or symbols visible

Close-up of hands holding a black children's seat with orange arrows indicating movement or change (no text or symbols)

Close-up of a red and black stroller with a hand adjusting the seat (no visible text or symbols)

Close-up of a person's stroller with red and black buttons, no visible text or symbols

Person assembling a dark blue mechanical device with orange arrows indicating motion (no text or symbols)

Close-up of a black bicycle seat with red lever and cable, no visible text or symbols

Hand holding a brush applying material to a red and black lever, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

3.3.5. Removendo/colocando a bolsa de transporte

Close-up of a hand holding a black robotic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

3.3.7. Ajuste dos freios

Close-up of a red bicycle steering wheel with black frame and spring, showing no text or symbols

3.3.8. Sentado

Hand placing a blue cushion with a red arrow and number 13, no text or symbols on the cushion itself

Person assembling a black athletic chair frame with orange arrows indicating motion (no text or symbols)

Close-up of a black robotic device with red light bulbs and orange arrow pointing to a component (no text or symbols visible)

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black model of a small wheeled vehicle with wheels and a curved roof, displayed against a plain white background (no text or symbols visible)

Close-up of a hand holding a black and silver station wagon with a red accent, no visible text or symbols

Close-up of a metallic cylindrical object with a small circular feature, mounted on a tripod (no text or symbols visible)

Close-up of a hand holding a black and white object with a brush, no visible text or symbols

Close-up of a black cylindrical mechanical component with a metallic rod and mounting base (no visible text or symbols)

Close-up of a black broom with a roller being inserted, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white components, no visible text or symbols

Close-up of a hand holding a cylindrical device with black and white body, showing a finger insertion (no text or symbols visible)

3.2.3. Zostava rúrky ramena

Close-up of a hand holding a black cylindrical object with a small protrusion, next to a black mechanical component (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a small inset showing a plug (no text or symbols visible)

Close-up of a hand holding a black flexible medical device with a cable, no visible text or symbols

Close-up of a hand holding a black plastic mechanical component, attached to a metal frame (no text or symbols visible)

Close-up of hands holding a black children's backpack with orange arrows pointing to the seat area (no text or symbols visible)

Close-up of a hand holding a black wrist strap device (no visible text or symbols)

Close-up of a black handheld device with a loop handle and lever, labeled '15' in the corner (no other text or symbols)

3.2.9. Nastavenie brzdy

Hand placing a black seat frame with an orange arrow, against a dark curved background (no text or symbols)

Close-up of hands holding a black fabric bag with orange arrows indicating folding or positioning (no text or symbols)

3.3. Zostavenie zariadenia / Použitie zariadenia UNI\_ROLL\_07 F

3.3.1. Rozloženie rolátora

Close-up of a red and black stroller with black buttons and wheels, being adjusted by hand (no text or symbols visible)

Close-up of a person using a red and black stroller, no visible text or symbols

Person assembling a black plastic headgear with orange arrows indicating movement (no text or symbols)

Close-up of a black bicycle seat with red lever and cable, no visible text or symbols

3.3.2. Montáž rukoväte

Vložte rukoväte do základne zostavy rukoväte a zasuňte do zásuvky na hlavnom ráme. Opakujte na druhej strane. (Obrázky 5 a 6)

Hand holding a brush applying material to a red cylindrical device, with an orange arrow indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black cable buckle with an orange arrow indicating motion (no text or symbols)

Close-up of a bicycle seat assembly with black frame and red vertical rod, no visible text or symbols

3.3.4. Zostava operadla

Close-up of a black bicycle seat with orange arrows indicating movement or adjustment points (no text or symbols)

Hand holding a black electronic device with a curved handle, labeled '10' in the corner (no other text or symbols visible)

Close-up of a black handheld device with a hand adjusting its lever, labeled '11' in the corner (no text or symbols on the device itself)

3.3.7. Nastavenie brzd

Close-up of a red bicycle tire with black frame and spring mechanism, no visible text or symbols

3.3.8. Sedenie

Umiestnite rolovač na rovný a pevný povrch. Zablokujte brzdy (parkovacia poloha). Rolovač musí stát a nesmie sa šmýkat. Posad'te sa vzpriamene a neopierajte sa.

NEPOHYBUJTE ROLLÁTOR, KEĐ SEDÍ.

3.3.9. Skladanie / preprava / skladovanie

Hand placing a blue cushion on a dark blue wheeled cart with red wheels, showing an orange upward arrow (no text or symbols)

Person assembling a black athletic chair frame with orange arrows indicating motion (no text or symbols)

Close-up of black mechanical components with red light spots and orange arrow indicator (no text or symbols)

Close-up of hands operating a red industrial machine with black cables and a red tool, no visible text or symbols

Red and black robotic vehicle with wheels and a black canopy, displayed against a white background (no text or symbols visible)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
