USER MANUAL Force Pro W MSI

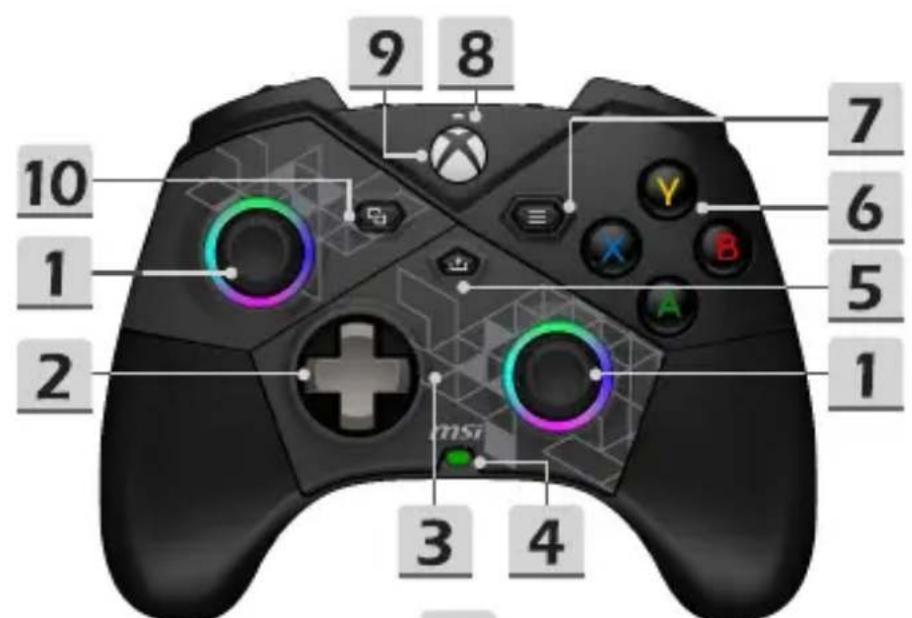

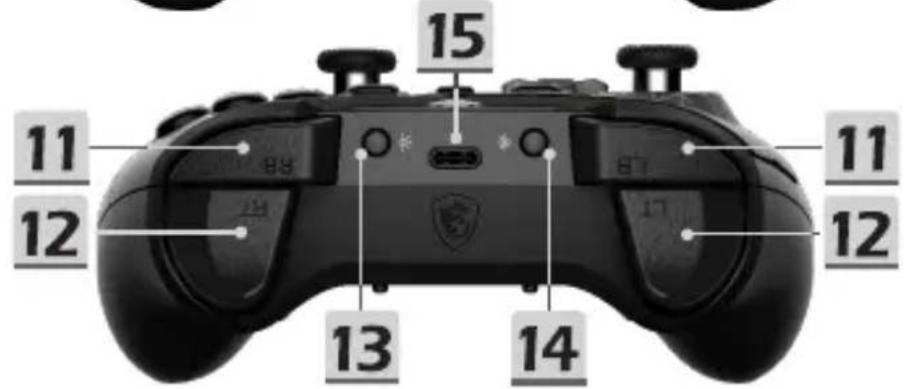

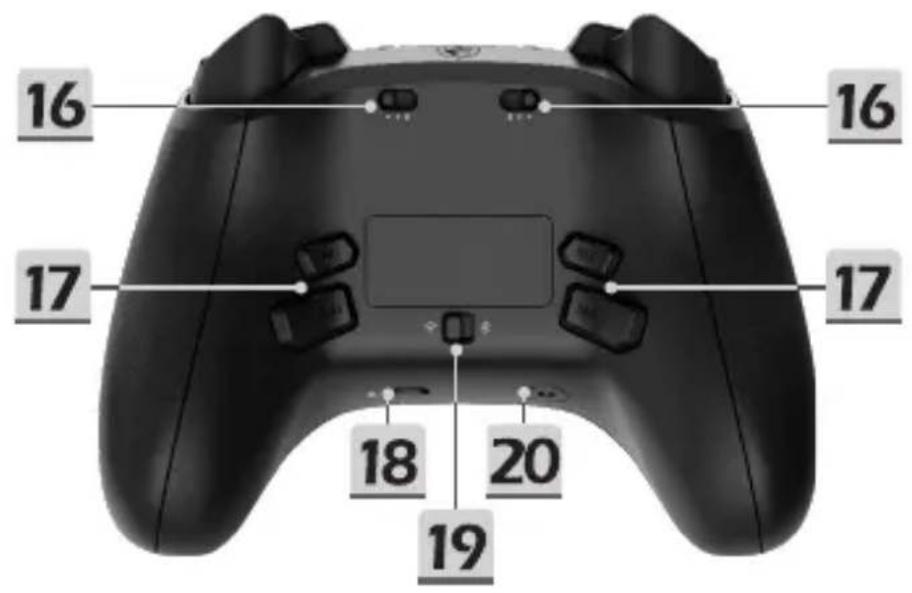

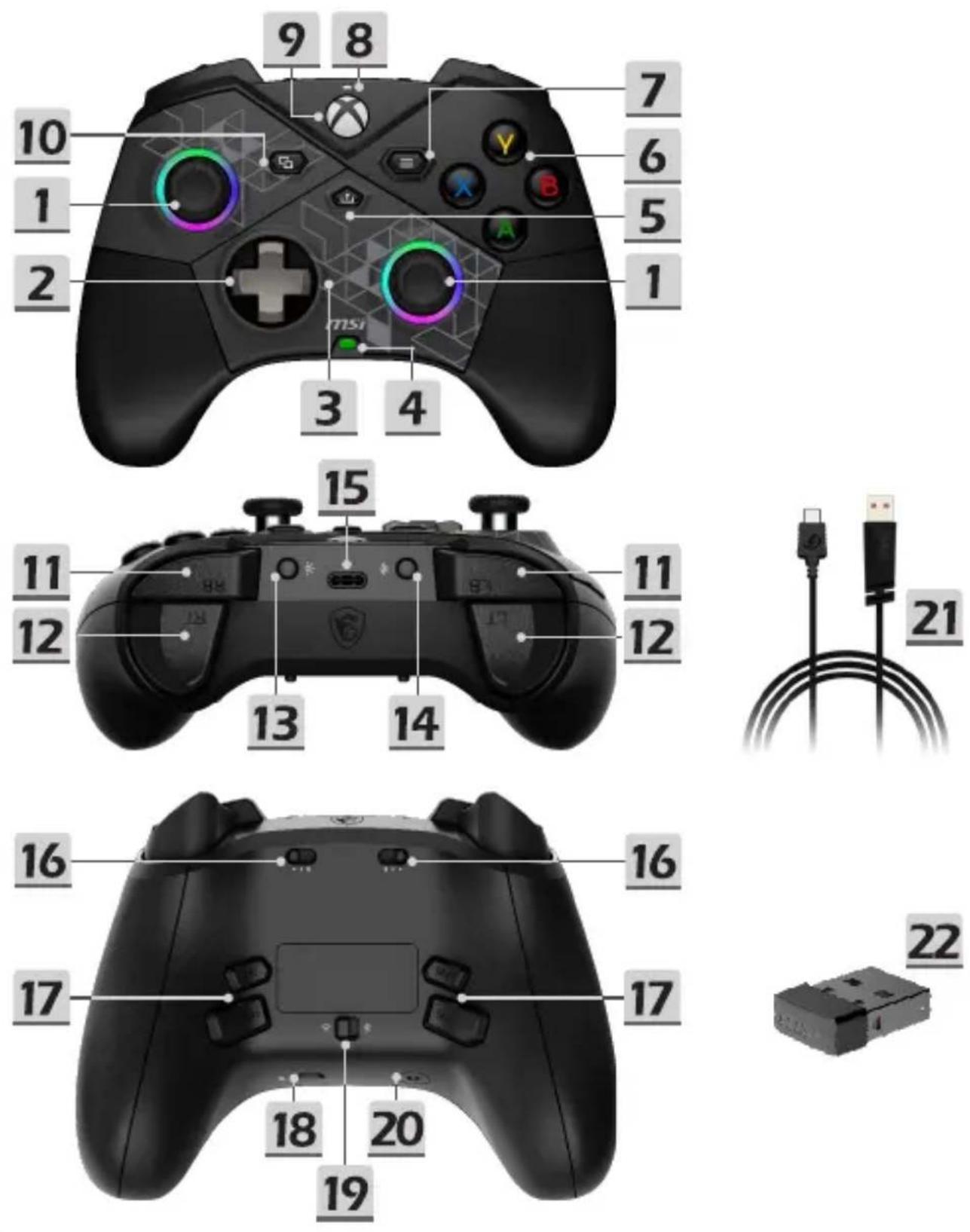

1	Left / Right Thumbsticks	13	Lighting Switch
2	Directional Pad (D-Pad)	14	Pairing Button
3	Top Cover	15	USB-C Port

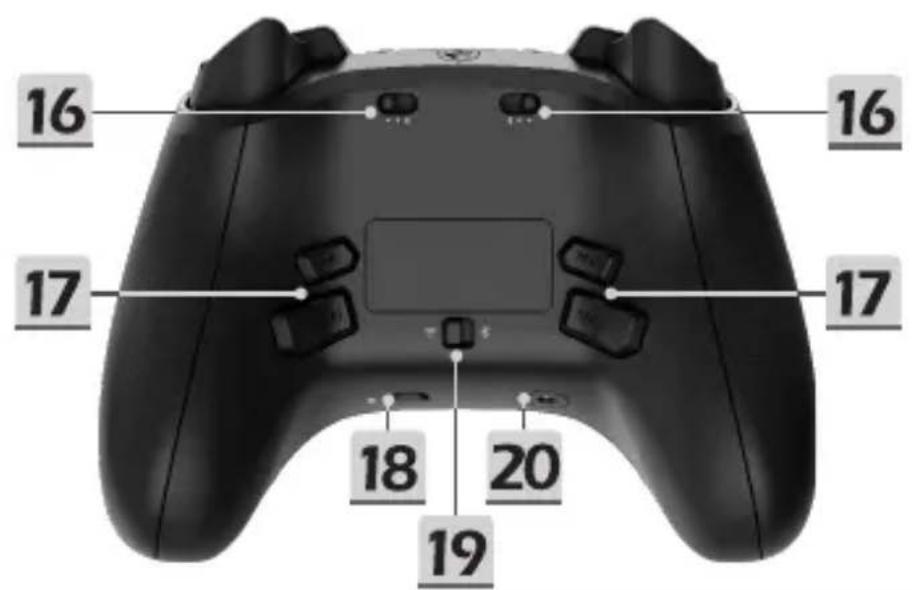

4	Power / Battery Indicator LED	16	3-level Trigger Locks
5	Share Button	17	Customizable Rear Buttons(M1/M2/M3/M4)
6	ABXY Buttons
7	Menu Button	18	Mute Button
8	Status LED	19	Wireless Mode Switch
9	Xbox Button	20	3.5mm Headset Jack
10	View Button	21	3m USB-C to A Cable
11	Bumpers (LB & RB)	22	Wireless USB Dongle
12	Triggers (LT & RT)

Connect to PC

Power on the Controller by pressing the Xbox Button.

• Wired Connection: Connect to PC with the USB-C cable until the Status LED turns solid WHITE.
• 2.4 GHz Wireless Connection: First, toggle the Wireless Mode Switch to . Next, plug the Wireless USB Dongle into an available USB port, until the Status LED turns from flashing GREEN to solid GREEN.
• Bluetooth Pairing: Toggle the Wireless Mode Switch to , and press and hold the Pairing Button. Then, locate the Bluetooth icon on your PC taskbar, and click 'Add a device' to select MSI FORCE PRO WIRELESS from the list of devices until the Status LED turns from flashing BLUE to solid BLUE.
• If Pairing Fails: The Status LED flashes RED 3 times. Re-pair the controller using one of the above connectivity methods.

Connect to Xbox Console (Wired Connection Only)

Power on the controller, then connect it to the console using the USB-C cable and wait until the Status LED turns solid WHITE.

Connect to Headset

Connect a 3.5mm wired headset and unmute the microphone (muted by default) by pressing the Mute Button.

The orange cycling effect will then appear on both thumbsticks.

Lighting Control

- Adjust Lighting Mode: Press the Lighting Switch once.

Recharge the Controller (via USB-C Cable)

• Indicator LED off: Power off.
• Indicator LED flashing RED: Battery is low within 1%-29%.
• Indicator LED flashing YELLOW: Battery is charging within 30%-69%.
• Indicator LED flashing GREEN: Battery is charging within 70%-99%.
• Indicator LED solid GREEN: Battery is fully charged.

Feature Compatibility

Platform^1	PC Xbox			2	Android
Feature USB-C	Bluetooth 2.4	GHz USB-C			Bluetooth^3
Impulse Trigger V	V V V
Vibration Feedback	V V V V V
Audio V V
MSI Mystic Light V	V V V V
MSI Center V

1 PC & Xbox profile settings must be set up in the MSI Center then saved in the onboard memory.
2 Xbox includes Xbox X|S, and all Xbox One consoles in wired mode.
3 Bluetooth is available on Windows 10/11 and Android 8 and Later.
4 The controller requires a driver to connect via Bluetooth or a 2.4 GHz dongle on a PC. If your PC does not automatically install both drivers through Windows Update, please download and extract the driver installation file from https://www.msi.com/Gaming-Gear/FORCE-PRO-WIRELESS/support

Customization & Firmware Updates

Download the latest version of MSI Center to customize controller settings such as reconfiguring buttons, vibration, thumbsticks, triggers, lighting and power saving or to receive firmware updates.

MSI Center can be downloaded from: https://www.msi.com/Landing/MSI-Center

Power off / Power Saving / Reset

• To power off the controller, press the Xbox Button for more than 3 seconds until the Status LED turns off.
• If there is no activity for 2 minutes, the Status LED will flash 3 times as a reminder and enter idle mode.
• If there is no activity for 10 minutes, or if any of the thumbsticks are removed, the controller will power off
• Press and hold the Xbox Button for 12 seconds to perform a hardware reset and reboot the controller.

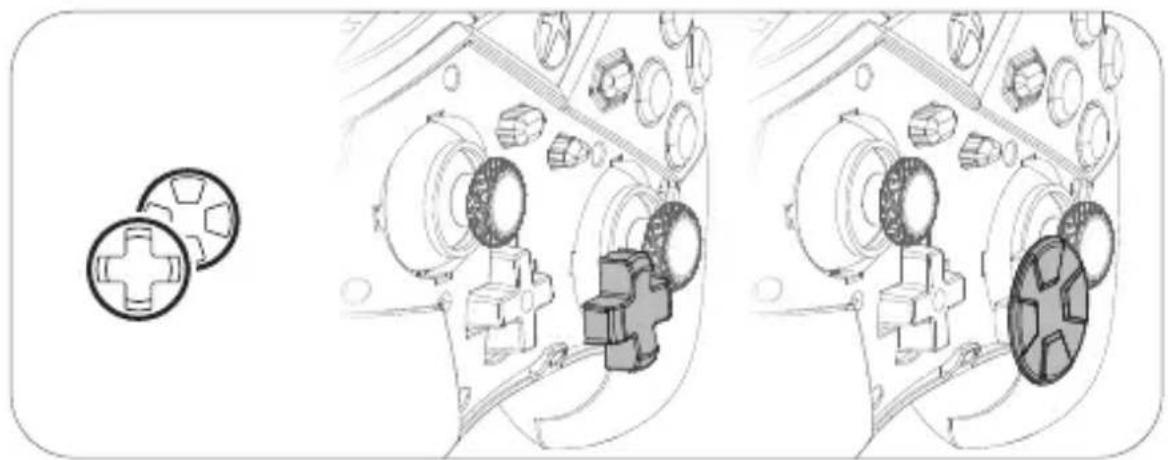

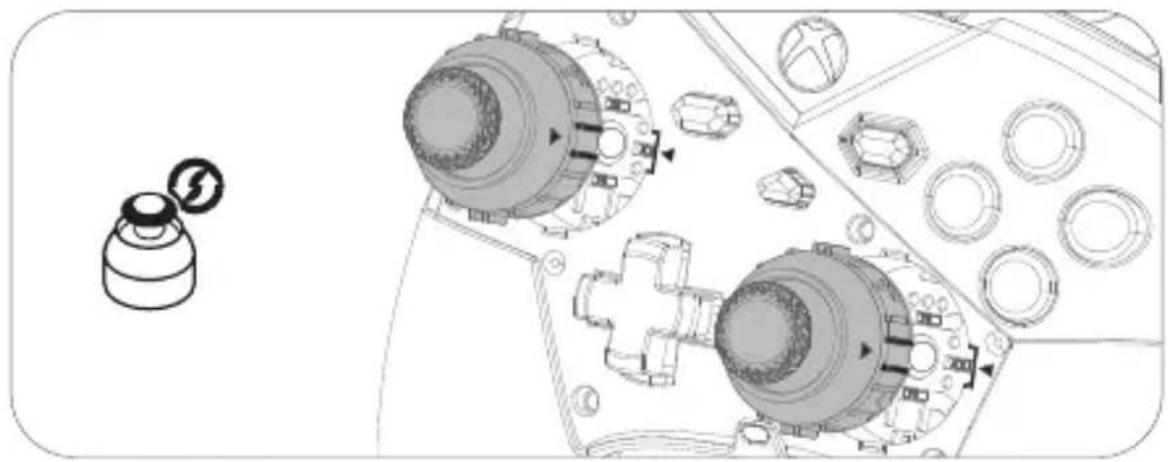

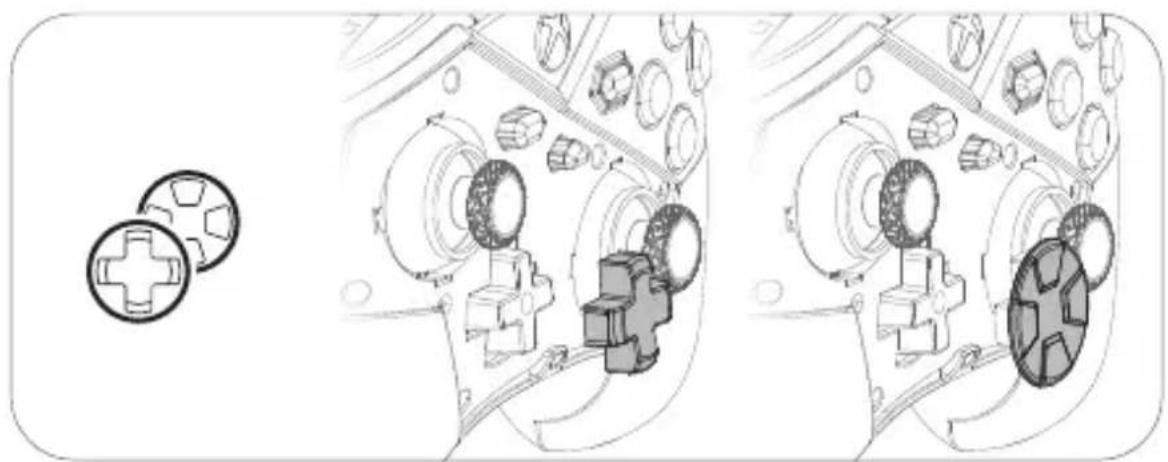

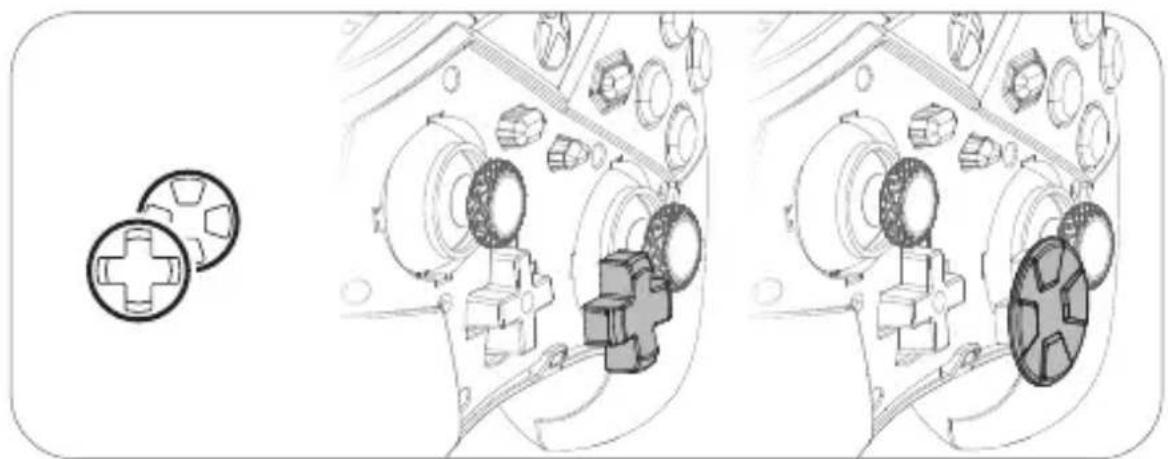

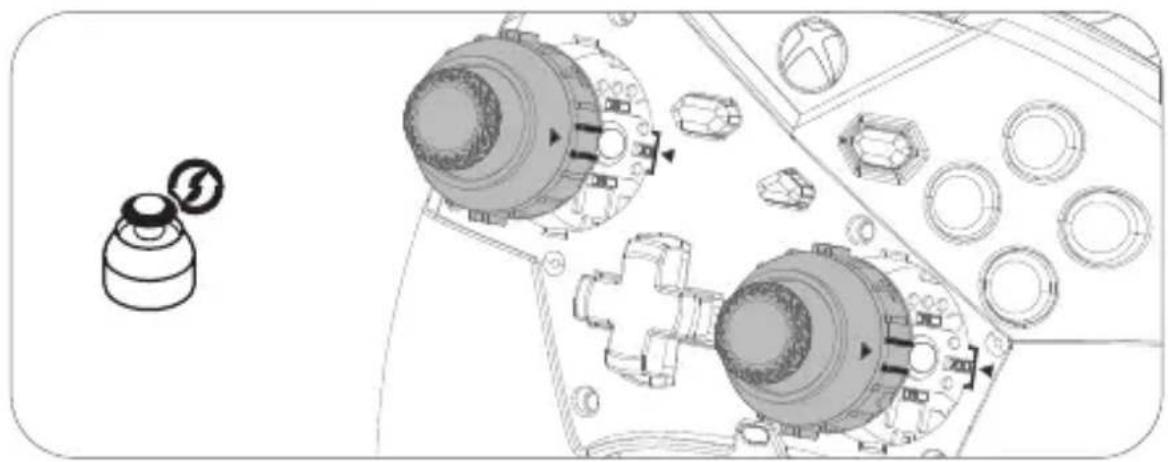

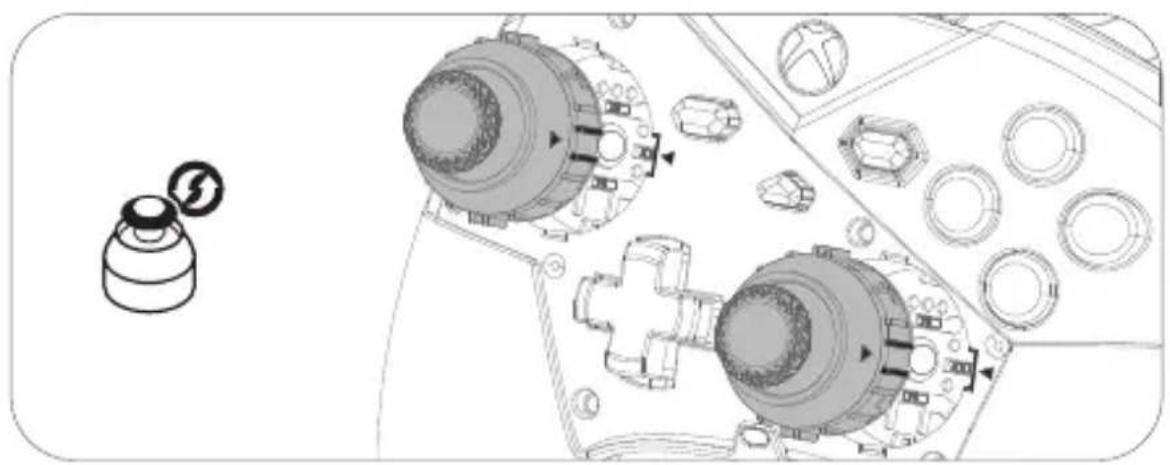

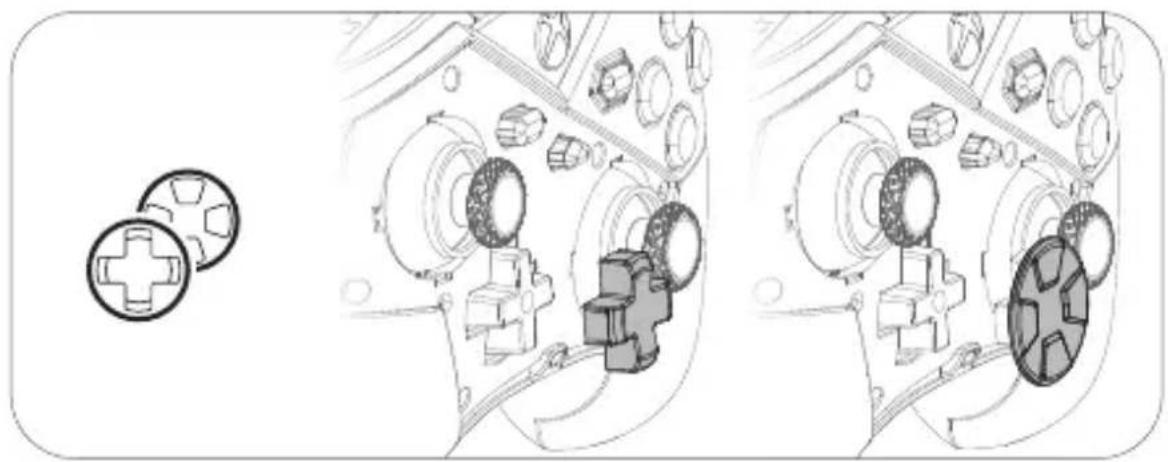

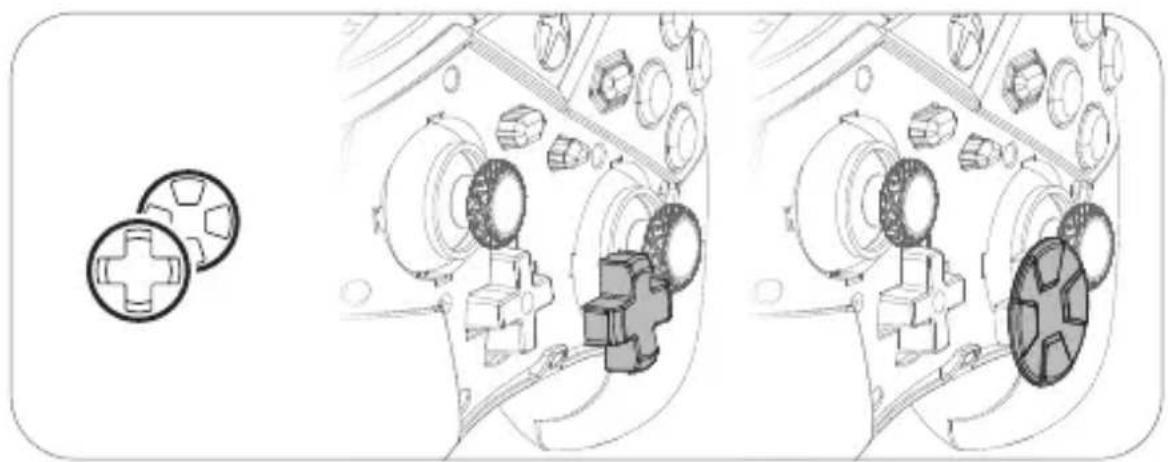

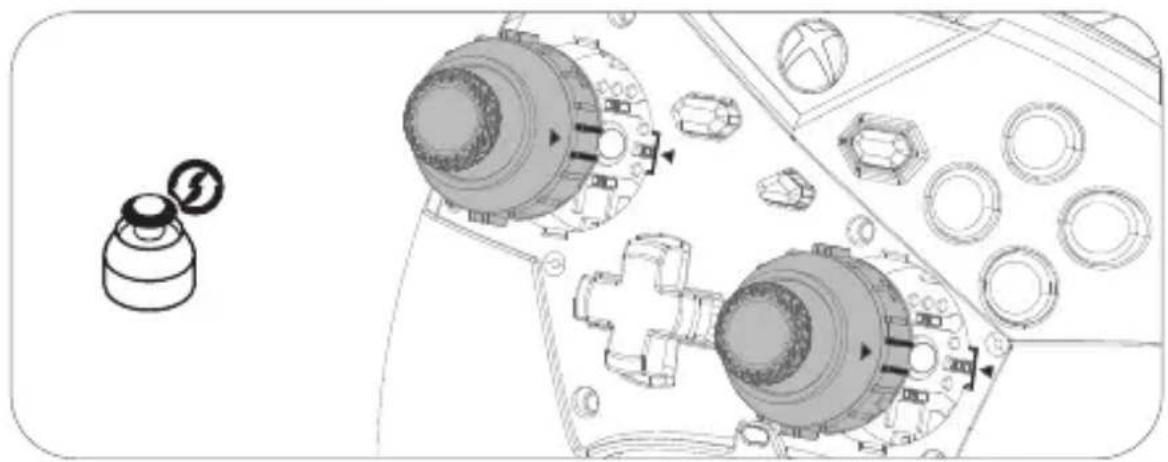

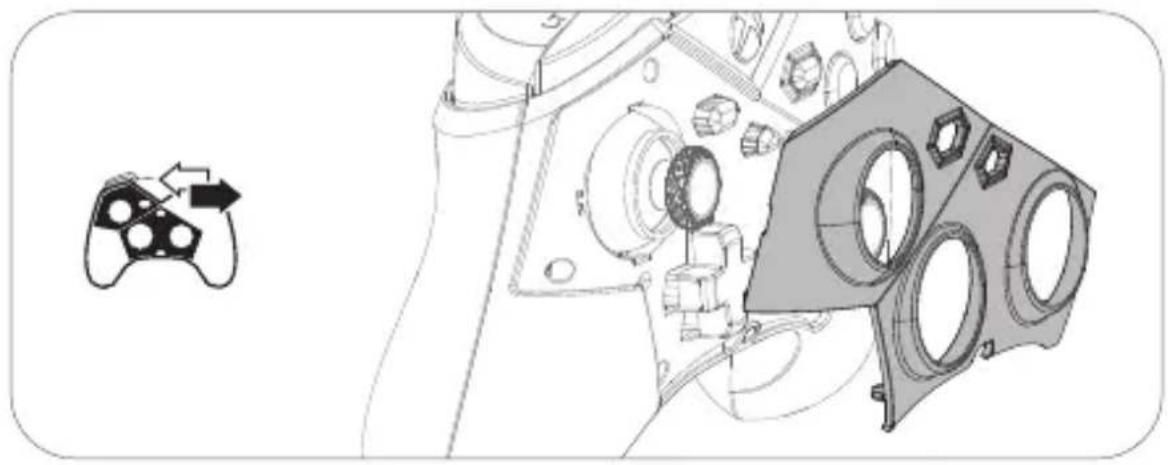

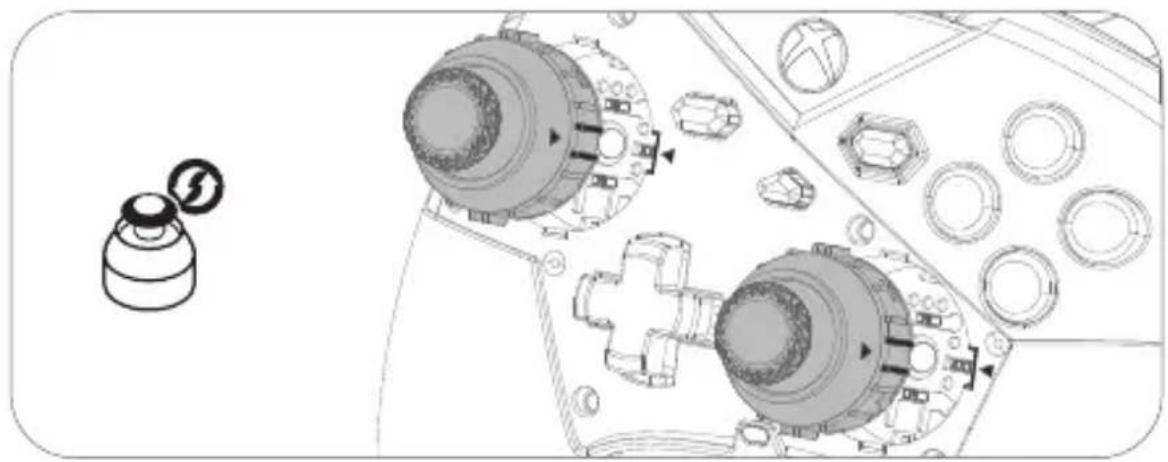

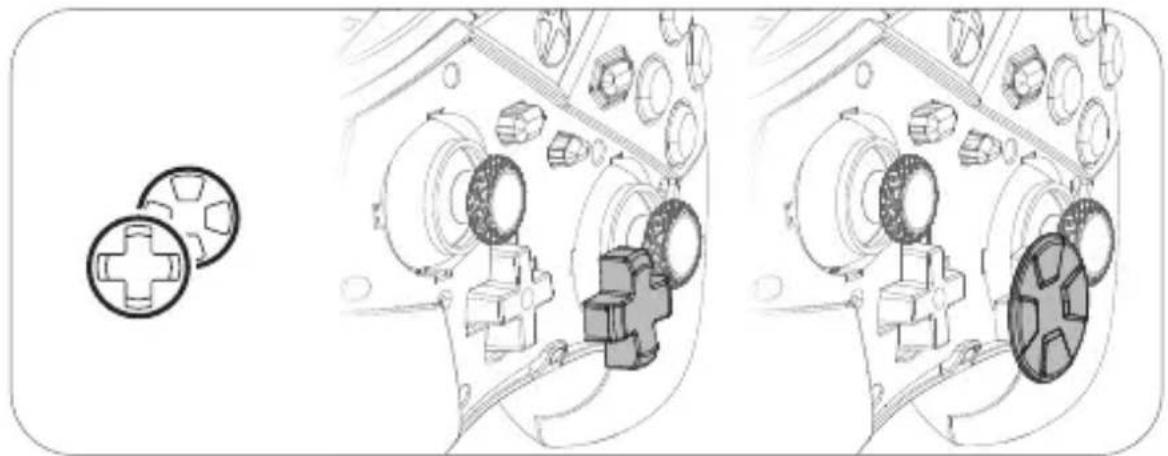

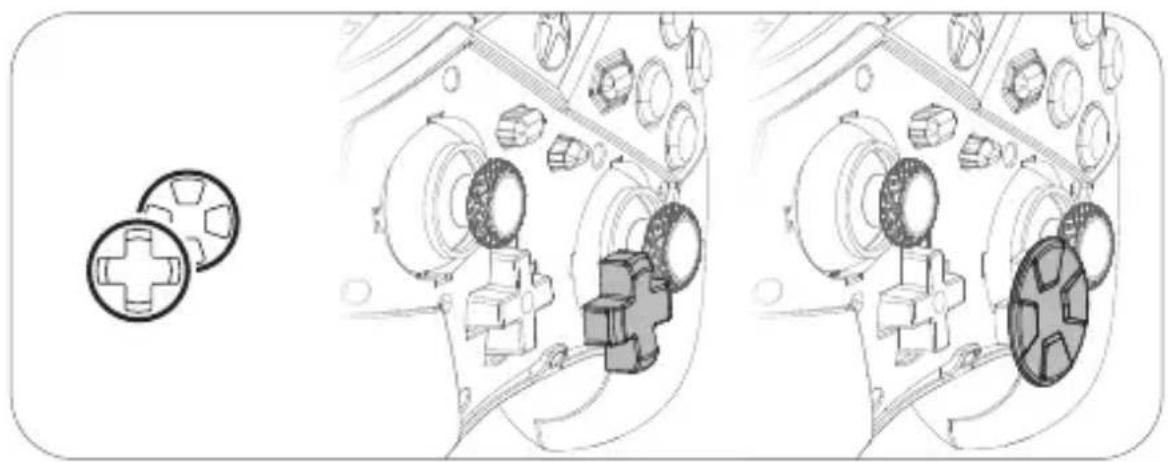

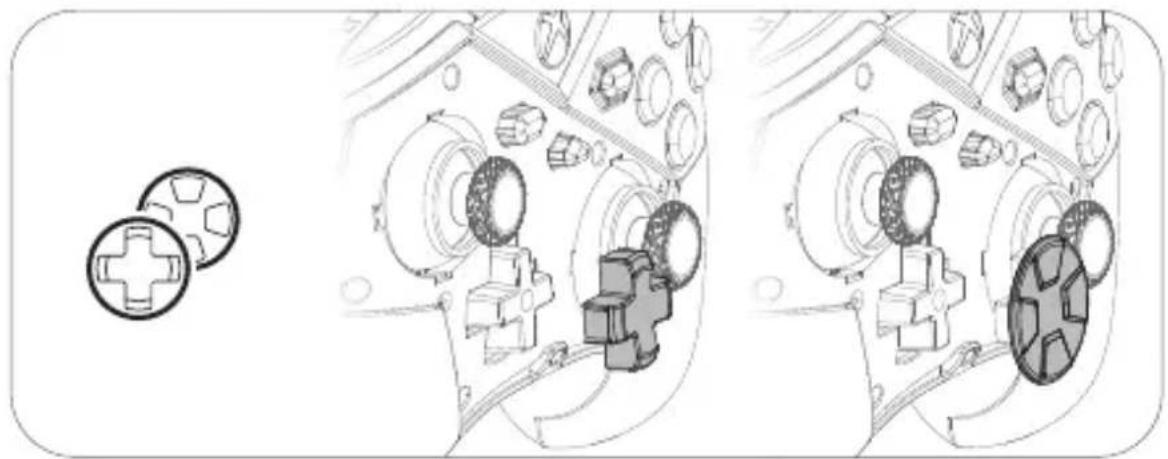

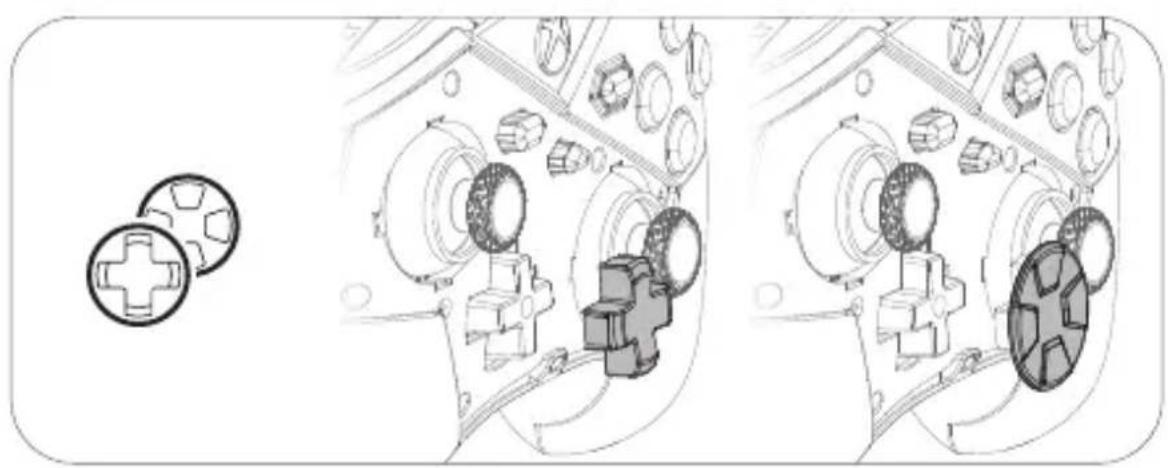

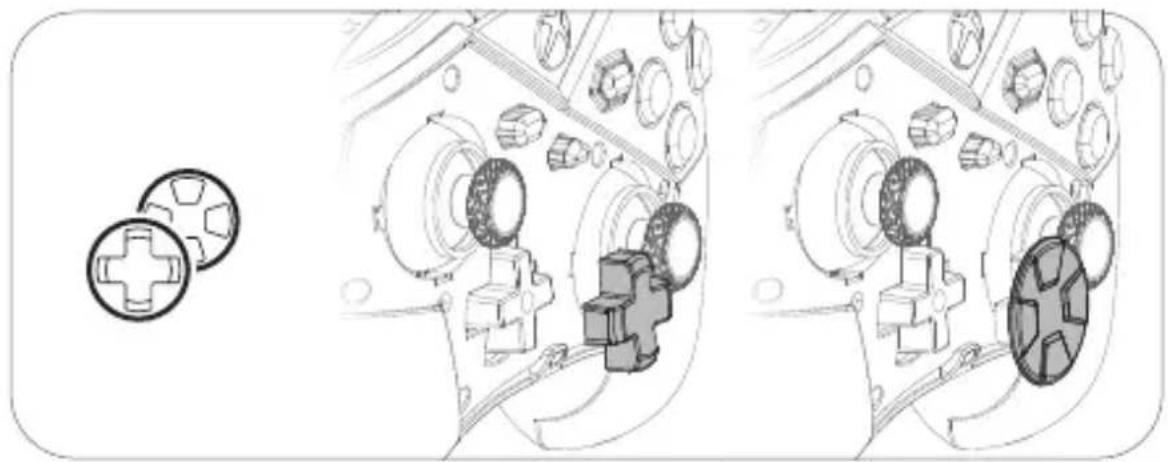

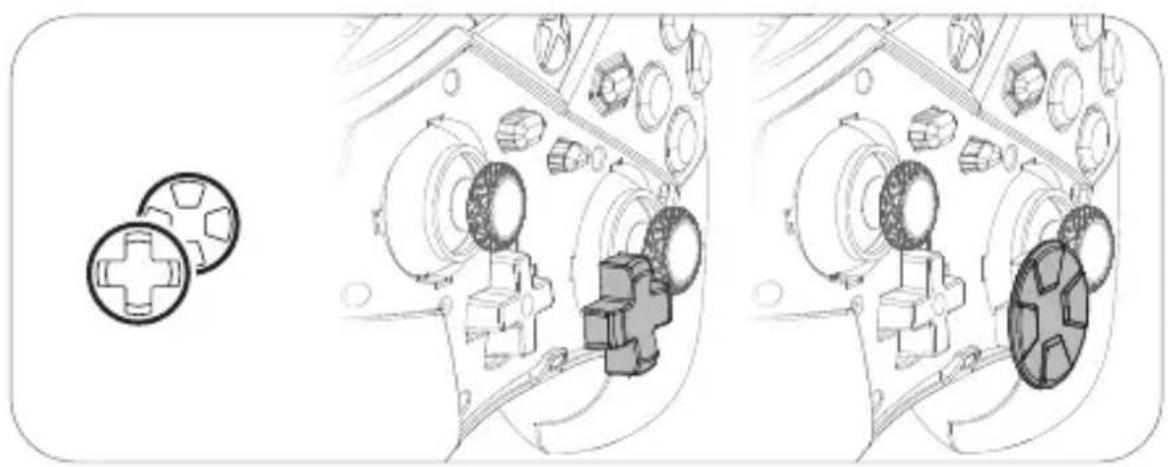

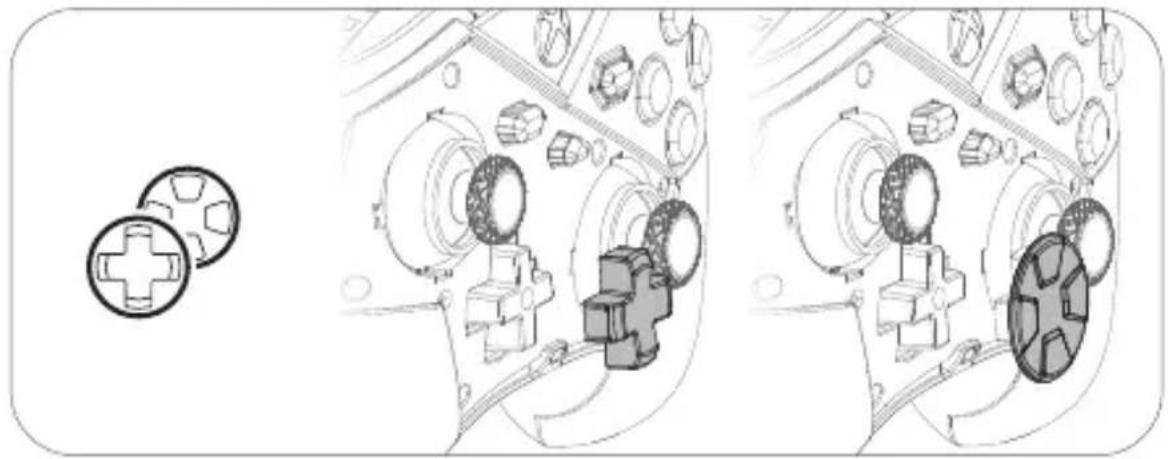

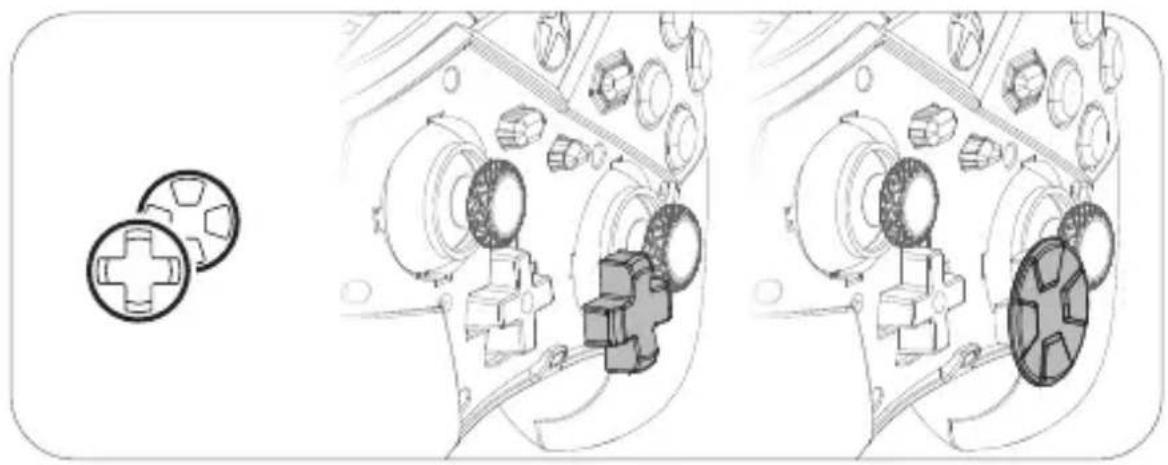

Swap Removable Parts

Technical line drawing of a mechanical assembly with a game controller and housing (no text or symbols)

Technical diagram of a mechanical assembly with gears and components, no visible text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and no visible text or symbols.

* Please note that the top cover must be removed before replacing the D-pad or thumbsticks.
* Please be cautious of the removable D-pad, top cover and thumbsticks to avoid potential loss or damage.

※ For more information, please visit MSI official website.

02 繁體中文

外觀檢視

Diagram of a game controller with action buttons and a game controller (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with action buttons and internal components (no text or symbols)

Technical diagram showing mechanical components and a control panel with no visible text or symbols

Technical illustration of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

https://www.msi.com/Landing/MSI-Center

電源オフ / 省電力 / リセット

Diagram of a game controller with a game controller and mechanical components, no text or symbols present

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with internal components and a game controller icon (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

06 Bahasa Indonesia

Mengenal Produk

9 8 7 10 6 1 5 2 A msi 3 4

15 11 12 89 13 14 17 11 12

Coiled black cable with two USB connectors, labeled '21' (no text or symbols on the cable itself)

16 16 17 17 18 20 19

Close-up of a black rectangular electronic component with a square label showing the number 22 (no readable text or symbols on the component itself)

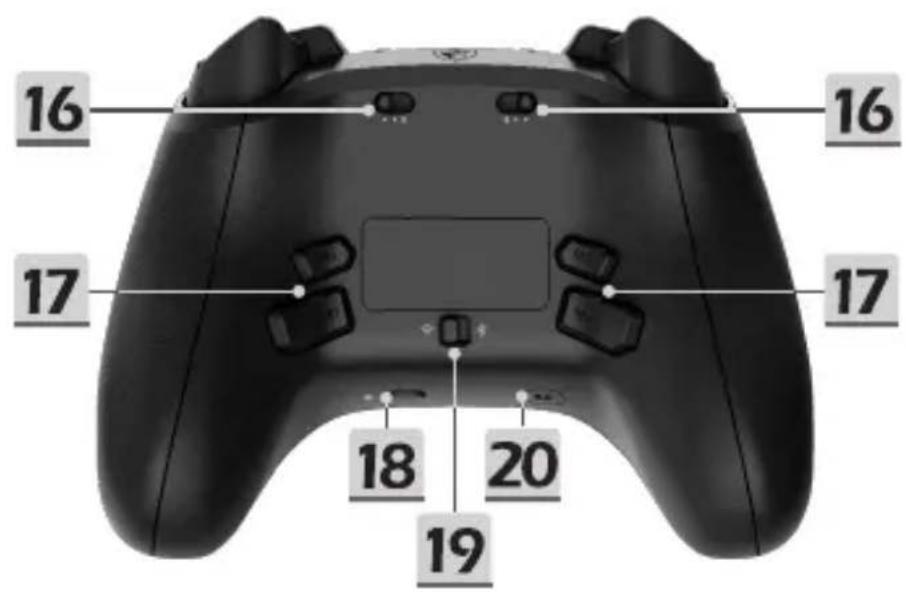

1	Tombol Kiri / Kanan	13	Sakelar Lampu
2	Directional Pad (D-Pad)	14	Tombol Perpasangan
3	Penutup Atas	15	Port USB-C
4	LED Indikator Daya / Baterai	16	Kunci Trigger 3-level
5	Tombol Bagikan	17	Tombol Belakang yang Bisa Dikustomisasi (M1/M2/M3/M4)
6	Tombol ABXY
7	Tombol Menu	18	Tombol Senyap
8	LED Status	19	Tombol Mode Nirkabel
9	Tombol Xbox	20	Steker Headset 3,5mm
10	Tombol Tampilan	21	Kabel USB-C ke A 3m
11	Bumper (LB & RB)	22	Dongle USB Nirkabel
12	Trigger (LT & RT)

Sambungkan ke PC

Nyalakan Kontroler dengan menekan Tombol Xbox.

MSI Center bisa diunduh dari: https://www.msi.com/Landing/MSI-Center

Daya mati. / Hemat Daya / Atur Ulang

Diagram of a game controller with a game controller and its internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows, no visible text or symbols

Technical illustration of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with a game controller and its internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components like gears and housing (no text or symbols)

Diagram of a game controller with a game controller and its internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical illustration of mechanical components with cross-sectional views (no text or symbols)

Technical line drawing of a game controller with internal components and a game controller icon (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical illustration of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Coiled black cable with two USB connectors, labeled '21' (no text or symbols on the cable itself)

16 16 17 17 18 20 19

Black rectangular electronic component with a small number '22' displayed on top (no readable text or symbols on the body)

Diagram of a game controller with internal components and a game controller icon (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with action buttons and internal components (no text or labels)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and no visible text or symbols.

Diagram of a game controller with action buttons and internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

O MSI Center pode ser transferido em: https://www.msi.com/Landing/MSI-Center

Diagram of a game controller with a game controller and its internal components (no text or symbols)

Technical diagram of a mechanical assembly with gears and housing (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with action buttons and internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with a game controller and its internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical illustration of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Coiled black cable with two USB connectors, labeled '21' (no text or symbols on the cable itself)

16 17 18 20 19 16 17 18

3D rendered black electronic component with no visible text or symbols

Diagram showing a game controller and its internal components, with no visible text or symbols.

Technical diagram of a mechanical assembly with gears and housing (no text or labels)

Technical illustration of a mechanical assembly with cross-shaped components and gear-like parts (no text or symbols)

Diagram of a game controller with a game controller and its internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical illustration of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Technical line drawing of a mechanical assembly with a game controller and housing (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Technical line drawing of a mechanical assembly with a game controller and housing (no text or symbols)

Technical diagram of a mechanical assembly with two gears and a rotary knob, no visible text or symbols

Technical line drawing of a mechanical assembly with cross-shaped components and internal components (no text or symbols)

Diagram of a game controller with internal components and a game controller icon (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with internal components and a game controller icon (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

MSI Center poate fi descărcat de la: https://www.msi.com/Landing/MSI-Center

Oprire / Economisire energie / Resetare

Diagram of a game controller with a game controller and its internal components (no text or symbols)

Technical diagram of a mechanical assembly with circular components and directional arrows, no visible text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), showing internal components and no visible text or symbols.

Coiled black cable with two USB connectors, labeled '21' (no text or symbols on the cable itself)

16 16 17 17 18 20 19

Black rectangular electronic component with no visible text or symbols on its body

Diagram of a game controller with action buttons and internal components (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with internal components and a game controller icon (no text or symbols)

Technical diagram of a mechanical assembly with gears and housing (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with a game controller icon and action buttons, showing internal components without any text or symbols.

Technical diagram of a mechanical assembly with gears and housing components (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

Diagram of a game controller with internal components and a game controller icon (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

https://www.msi.com/Landing/MSI-Center

Diagram of a game controller with action buttons and internal components (no text or symbols)

Technical diagram of a mechanical assembly with gears and housing (no text or labels)

Technical line drawing of a mechanical assembly with cross-shaped components and internal gears (no text or symbols)

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Services web address: www.msi.com

RF Exposure Statements

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

I4L-MS-8ZBZ

I4L-GM01WD

CE RED Compliance Statement

EU Simplified Declaration of Conformity

Hereby, msi Inc. declares that the radio equipment type MS-8ZBZ is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of conformity is available at the following internet address: https://www.msi.com

UKCA Compliance Statement UKCA Simplified Declaration of Conformity

Hereby, msi Inc. declares that the radio equipment type MS-8ZBZ is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The full text of the UK Declaration of Conformity may be found at the following internet address: https://www.msi.com

ISED Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference.(2) This device must accept any interference, including interference that may cause undesired operation of the device.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

This Class B digital apparatus complies with Canadian ICES-003.

1 Replacement of battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types);
2 Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
3 Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
4 A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
5 High or low extreme temperatures that a BATTERY can be subjected to during use, storage or transportation; and
6 Low air pressure at high altitude.

Mise en garde

1 Replacement of battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types);
2 Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
3 Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
4 A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
1 置換可能影響安全防護的錯誤形式的電池(例: 在某些鋰電池類型的情形下);
2 電池丟入火焰或烤箱中, 或將電池作可能導致爆炸的機械擠壓或切割;
3 電池至於可能導致爆炸或可燃性異體或氣體洩漏的高溫環境中；且
4 電池承受可能導致爆炸或可燃性異體或氣體洩漏的極度低氣壓。

日本 VCCI CLASS B 宣言

Abstract geometric logo design with stylized letter K (no text or symbols)

상호 : (주) 엠에스아이코리아

제품명:Controller

모델명:MS-8ZBZ

제조년월:2024년

제조자 및 제조국가:MSI/중국

R-R-MSI-MS-8ZBZ

상호:(주)엠에스아이코리아

제품명:리시버(Receiver)

모델명:GM01WD

제조년월:2024년

제조자 및 제조국가:MSI/중국

R-R-MSI-GM01WD

Specifications

Model: MS-8ZBZ (Controller) / GM01WD (Wireless USB Dongle)

Controller Input / 輸入: DC 5.0V / 1000mA

Wireless USB Dongle Input / 輸入 : DC 5.0V / 30mA

Frequency Range: 2.400 – 2.4835GHz

Controller Output < 0 dBm

Wireless USB Dongle Output < 0 dBm

	Temperature USB Wireless Dongle
Operating 0 ~ 40°C 10 ~ 95%
Storage -30 ~ 70°C 10 ~ 95%

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at msi REACH website at https://csr.msi.com/global/Product-Chemical-Management.

Safety Instructions

Read the safety instructions carefully and thoroughly.

• All cautions and warnings on the equipment or user's manual should be noted.
• Do not leave the device in an unconditioned environment with a storage temperature above 60^ (140°F) or below 0^ (32°F), which may damage the device.
• This device should be operated under maximum ambient temperature of 40^ (104°F).

限用物質含有情況標示聲明書

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:無線搖摆·型號(型式):MS-SZBZEquipment name Type designation (Type)
單元 Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^-3 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenyl ethers(PEDE)
印刷電路及電子組件	○	○	○	○	○	○
外殼	○	○	○	○	○	○
接收器及配件	○	○	○	○	○	○
線材	○	○	○	○	○	○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

产品中有毒有害物质或元素的名称及含量
