USER MANUAL SAW700 MSW

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Mini circular saw
Model	MSW-SAW700
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	705
No Load Speed [rpm]	3500
Blade Size [mm]	Φ 115
Max Cutting Depth [mm]	90°: 42.8 / 45°: 28
Dimensions [width x depth x height; mm]	500 x 220 x 140
Weight [kg]	2.7

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

Use ear protection. Exposure to loud noise may result in hearing loss.

Wear protective goggles.

Wear a dust mask (respiratory tract protection).

Wear protective gloves.

ATTENTION! Revolving elements.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Mini circular saw

2.1. Electrical safety

a) The plug has to fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and fridges. There is an increased risk of electric shock if the earthed device is exposed to rain, in direct contact with a wet surface or operating in a humid environment. Water ingression into the device increases the risk of damage to the device and of electric shock.
c) Use the cable only in accordance with its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
d) If working with the device outside, make sure to use an extension lead suitable for external use. Using an extension lead suitable for external use reduces the risk of electric shock.
e) If using the device in a humid environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Hold the device through insulated handles taking particular care in order not to cut the power cord or other live wires. Cutting the cord may cause an electric shock.

2.2. Safety in the workplace

a) Make sure the workplace is orderly and well lit. A messy or poorly lit workplace may lead to accidents. Try to anticipate what may happen, observe what is going on and use common sense when working with the device.
b) Do not use the device in an explosion hazard zone, for example in the presence of flammable liquids, gasses or dust. The device generates sparks which may ignite dust or fumes.
c) Upon discovering damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
f) If a fire starts, use solely powder or carbon dioxide (CO2) fire extinguishers suitable for use on live devices to put it out.
g) Children or unauthorised persons are forbidden from entering a work station. (A distraction may result in a loss of control over the device).
h) Use the device in a well-ventilated space.
i) During operation with the device it is produced dust and debris, it is necessary to protect unauthorized persons against their harmful effects

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) When working with the device, use common sense and stay alert. Temporary loss of concentration whilst using the device may lead to serious injuries.
c) Use personal protection equipment as required for working with the device, specified in section 1 (Legend). The use of correct, approved personal protection equipment reduces the risk of suffering an injury.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) Do not overestimate your abilities. When using the device keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
f) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
g) If suction is to be connected to the device, check all connections and make sure they are tight. Using a de-dusting system may reduce the risk associated with dust.
h) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.

2.4. Safe device use

a) Do not overload the device. Use appropriate tools for the given task. A correctly selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and have to be repaired.
c) Make sure the plug is disconnected from the socket before attempting any adjustments, tool replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
d) When not in use, store in a safe place, away from children and people not familiar with the device, who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Maintain the device in a good technical state. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Keep the device out of the reach of children.
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
h) To ensure the operational integrity of the device, do not remove factory fitted guards and do not loosen any screws.
i) When transporting and handling the device between the warehouse and the destination, take into account the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
j) Avoid situations where the device halts during use due to excessive loading. This may result in overheating of the drive elements and device damage.
k) Do not touch articulated parts or accessories, unless the device has been disconnected from a power source.
I) Do not use damaged, cracked or deformed saw blades.
m) Never use damaged or improper seals and screws that fasten the cutting disc. The seals and bolts installed are suitably designed for a given saw in order to increase productivity and safety of use.
n) Use discs of appropriate size and shape. Using a wrong disc may result in loss of control over the device.
o) Note: Keep hands away from the cutting surface and cutting blade. Hold the other hand on the additional saw handle. If both hands hold the saw, it is not possible to injure the hands with the blade.

p) Do not reach under the workpiece with your hand in the course of the saw operation. The blade shield does not protect the user from contact with the blade below the workpiece.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The power tool is intended for cutting wood lengthways and crossways in straight lines and at bevel angles of up to 45^ on a firm surface.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

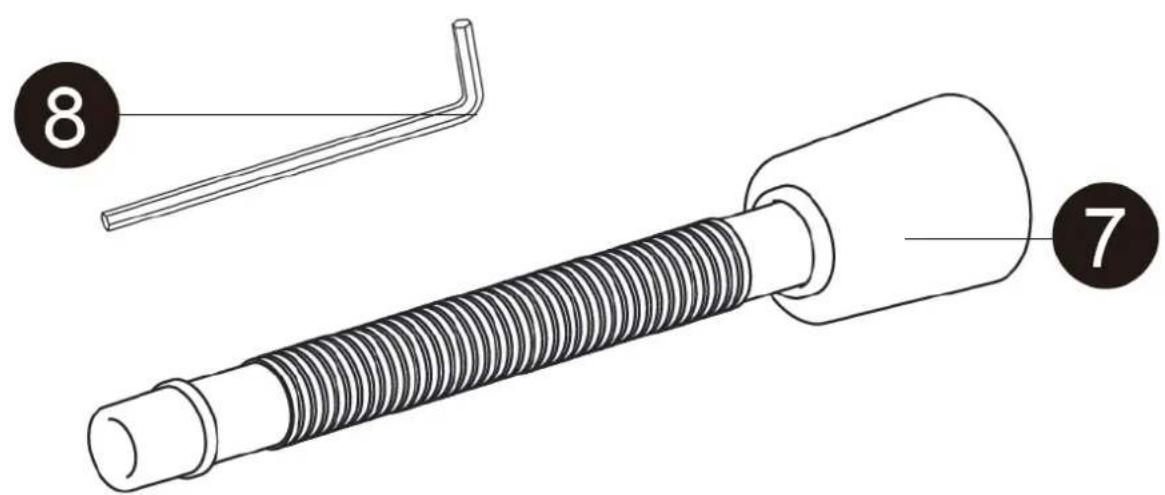

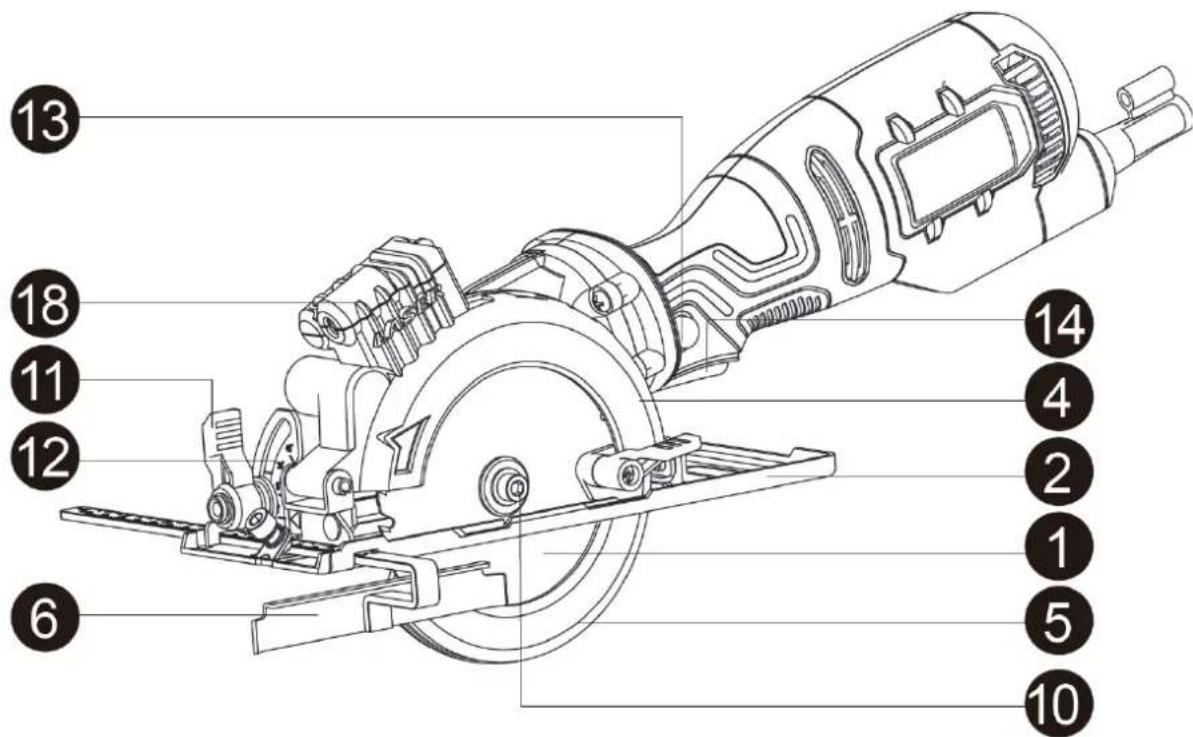

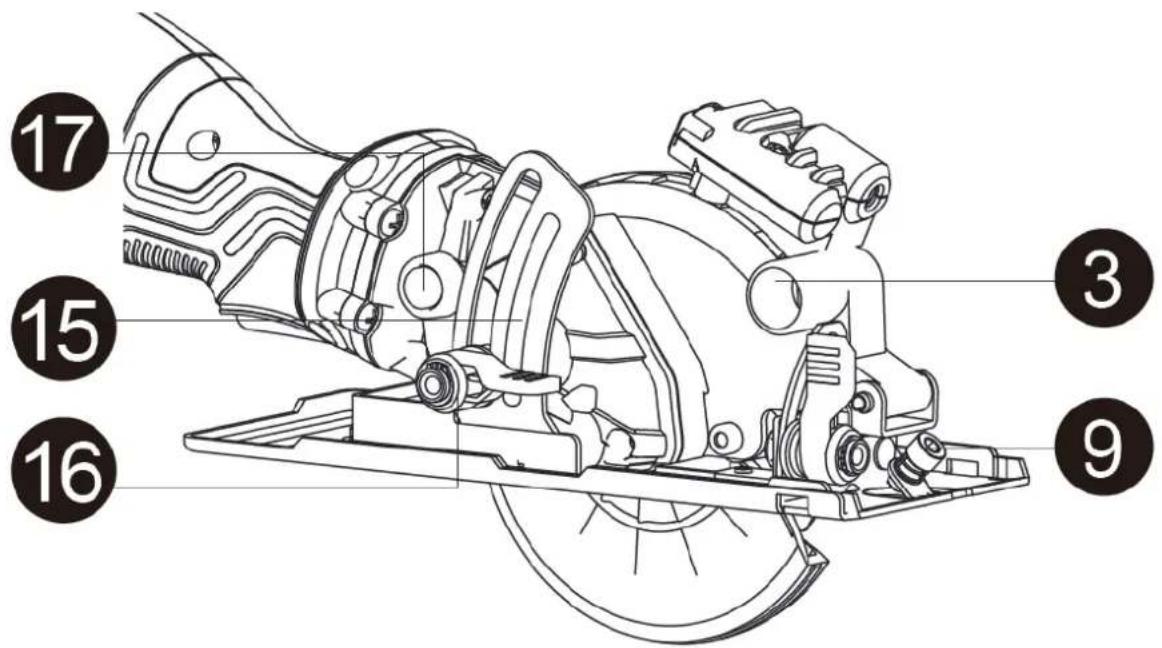

3.1. Device description

1. Saw Blade
2. Base Plate
3. Dust Extraction Port
4. Upper Blade Guard
5. Lower Blade Guard
6. Rip Guide
7. Suction Tube
8. Allen Wrench for Blade
9. Rip Guide Locking Screw
10. Blade Bolt & Washer
11. Bevel Scale Bracket
12. Bevel Clamp Lever
13. Lock-Off Button
14. On/Off Switch
15. Depth Guide Bracket
16. Depth Clamp Lever
17. Spindle Lock Button
18. Laser - not applicable to this model

3.2.Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ and the relative humidity should be less than 85% . Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Assembling the device

For illustrative purposes, some drawings show the vacuum adaptor installed on the saw. The vacuum adaptor does NOT have to be installed if a vacuum is not being used.

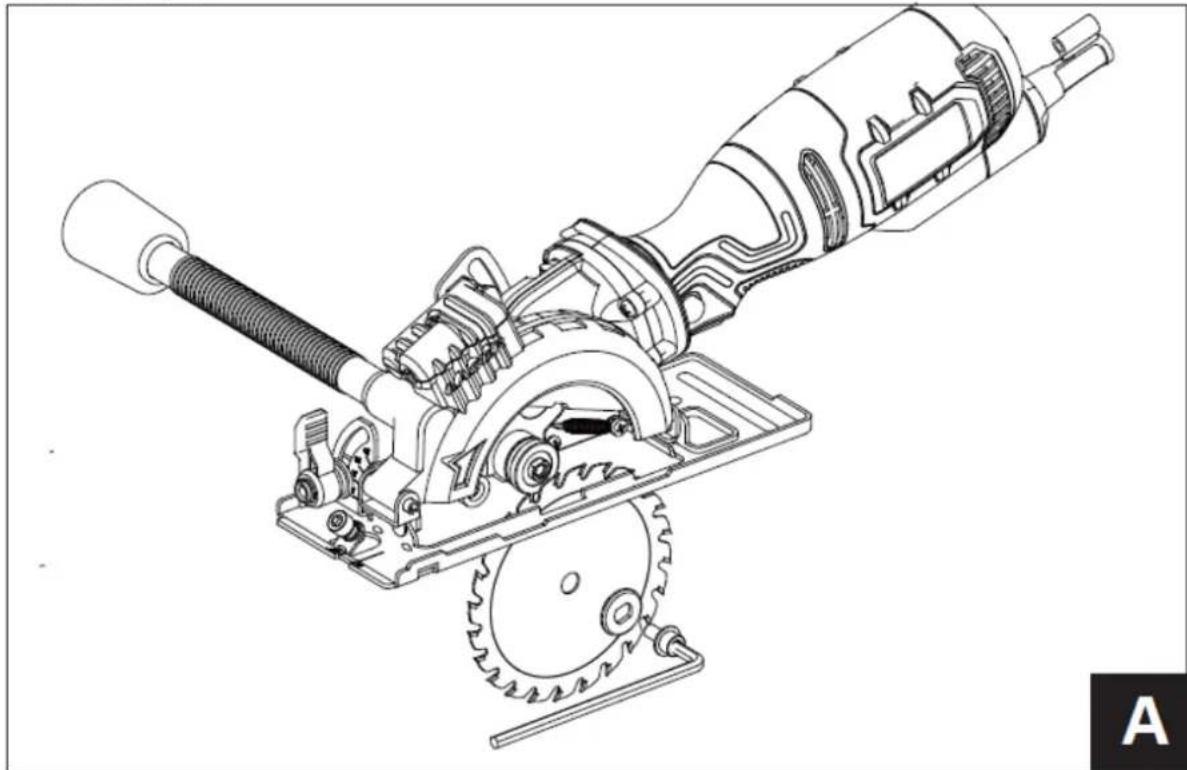

REMOVING AND INSTALLING A BLADE

Always remove the plug from the power source before removing the blade or adjusting the saw in any way.

Use caution when handling the blade. It is sharp and can easily cut your hand.

1. Press inward on the shaft locking button (Drawing A).
2. Insert the 5 mm hex key into the blade screw. While pressing inward on the shaft locking button, rotate the hex key clockwise until the shaft locking button engages with the blade shaft. Continue turning the hex key clockwise and remove the blade screw and the outer blade flange. The blade screw is a left hand thread.
3. Rotate the blade guard lever counter clockwise as far as it will go.
4. If there is already a blade installed on the saw, lift the blade off the spindle and slide it out through the slot in the sole plate.

To reinstall a blade, reverse the above procedure.

a) Make sure the blade teeth are pointing forward at the bottom of the blade.

b) When re-installing the outer flange nut make sure the flats of the flange nut fit over the flats on the spindle.
c) Turn the blade screw counter clockwise to thread it into the spindle. Make sure the screw is not cross threaded.
6. When the new blade, outer flange and blade screw are in place, press the spindle locking button and fully tighten the blade screw.
7. When the blade screw is fully tightened, carefully rotate the blade to ensure it does not wobble. If it wobbles, remove and reinstall the blade making sure it is installed correctly.

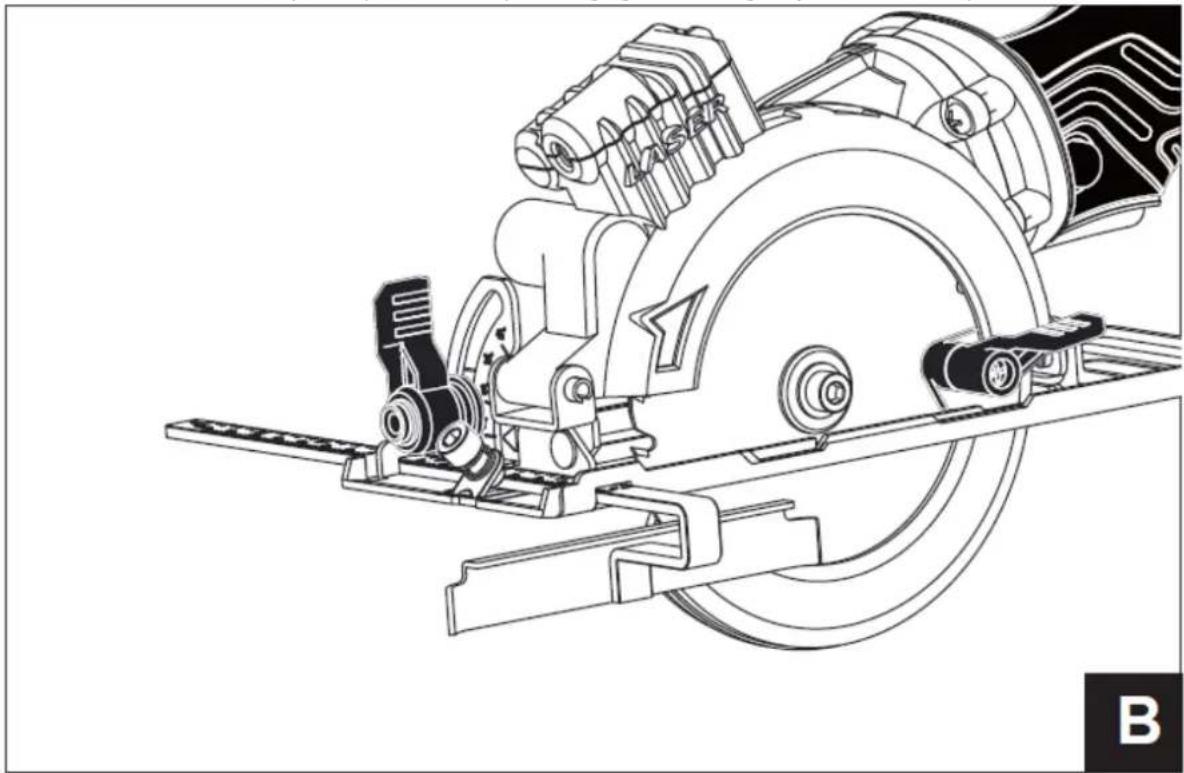

INSTALLING THE EDGE GUIDE

The edge guide can be used to facilitate accurate cutting when ripping pieces up to 5" wide.

1. Loosen the edge guide locking screw counter clockwise approximately 2 turns using the 5mm hex key (Drawing B).
2. Slide the edge guide mounting rod into the mounting slots in the sole plate.
3. Align the desired cutting width on the scale with the 0^ cutting mark in the sole plate.
4. Tighten the edge guide locking screw to lock the edge guide into position. Do not overtighten as you may strip the threads.
5. Make a test cut on a scrap workpiece to verify the edge guide setting. Adjust as necessary.

3.4. Device use

Switch On/Off

Before turning on / off the switch, check the saw blade for proper installation and smooth operation, bolt tightening condition.

To start the machine, press the Lock-off button and press the trigger.

To stop the machine, release the trigger, and then the machine stops.

Depth adjustment

Before cutting, move the depth guide lever on the

depth guide bracket to the desired position and fix it.

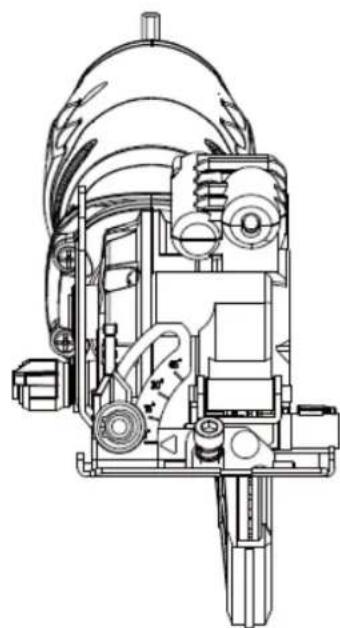

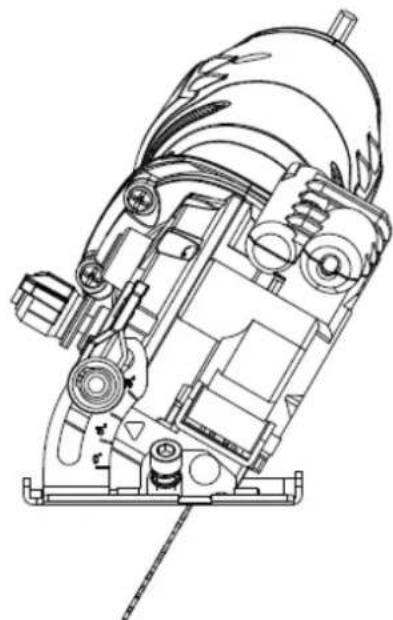

Angle adjustment

The sole plate can be set to perform bevel cuts up to 45^

1. Rotate the bevel angle locking lever counter clockwise (Drawing C).
2. Rotate the sole plate to the desired angle.

NOTES:

a. Align the desired angle on the bevel scale with the alignment mark on the soleplate housing.
b. Always make a test cut on a scrap workpiece and check to make sure the bevel cut is correct.

C

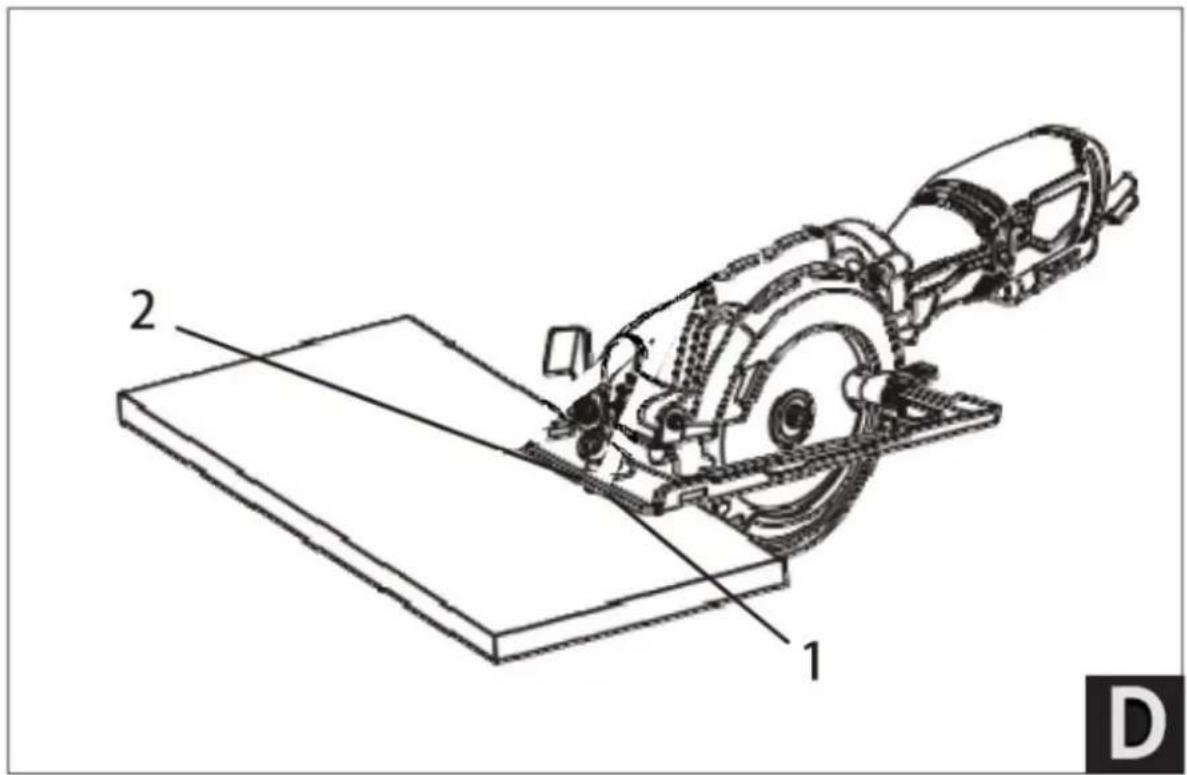

GENERAL CUTTING

1. Make any adjustments to the saw before plugging it into the power source. Adjustments include cutting depth, bevel cutting angle and edge guide (if installed).
2. Clearly mark the workpiece to locate the position of the cut.
3. Hold a smaller workpiece with a vise. Clamp a larger workpiece to a work bench or table. Any workpiece that is not adequately clamped in place or properly supported for cutting may come loose or jamb the blade, causing serious injury. Never hold the workpiece in your hand.
4. Make sure there are no nails, screws, clamps or foreign materials in the path of the saw blade.
5. Place the front edge of the sole plate on the workpiece.
6. While firmly gripping the saw, and with the blade NOT in contact with the surface to be cut, start the saw by depressing the lock-off button and then the trigger switch.
7. Once the saw has reached full speed, gradually bring the moving blade into contact with the workpiece at the appropriate location. To align the saw blade with the cutting mark, use the guide marks on the front of the sole plate (Drawing D). Use the 0^ cutting mark (1) for right angle cuts. Use the 45^ mark (2) for 45^ bevel cuts. The 45^ mark will allow for the extra material needed for the angle cut. Always make a test cut on a scrap workpiece before cutting the new material.
8. Do not force the circular saw. Use only enough force to keep the blade cutting at full speed. Excessive pressure on the blade will cause it to slow down and overheat, resulting in poor cut quality and damage to the motor.

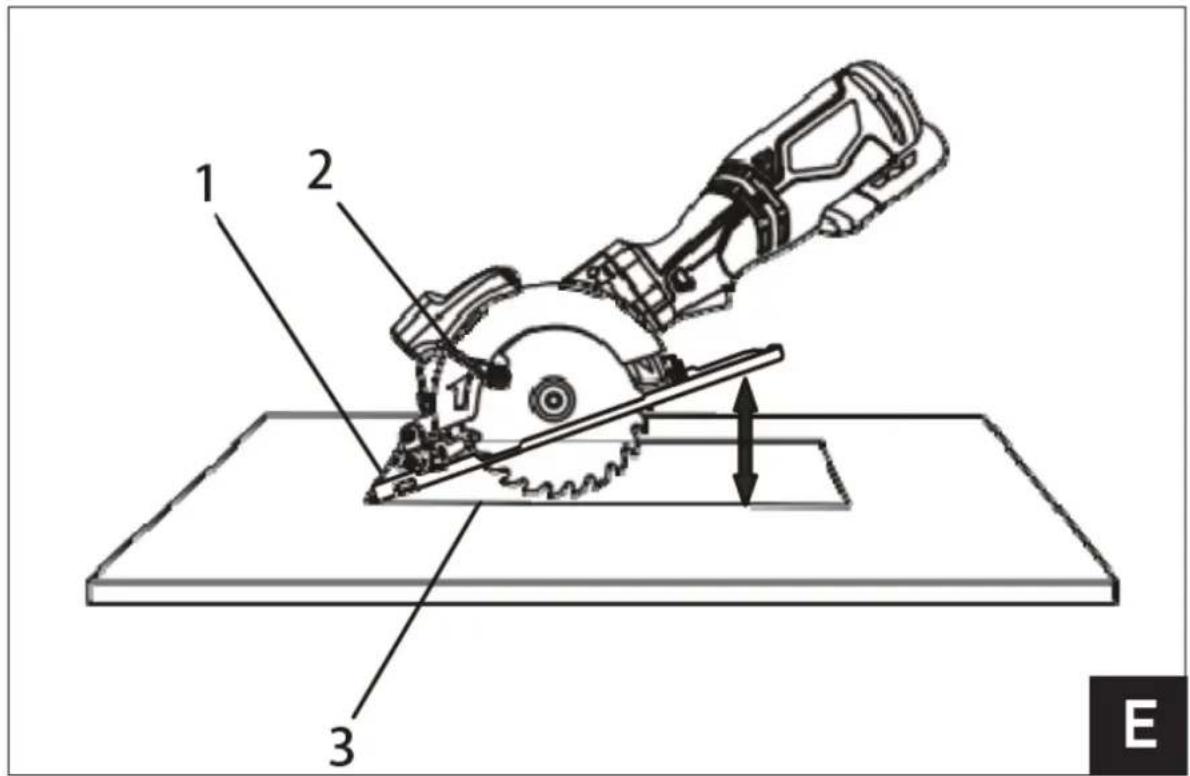

PLUNGE CUTTING

WARNING: To avoid loss of control, damage to the blade or damage to the workpiece, always use extreme caution when making plunge cuts. It is not recommended to plunge cut any material other than wood.

1. To plunge cut inside the edges of a workpiece, clearly mark the cutting line on the workpiece.
2. Set the depth and set the bevel angle at 0^
3. Set the saw on the workpiece so the front edge of the sole plate (1) is flat on the workpiece.
4. Open the blade guard by rotating the blade guard lever (2) forward.
5. Align the saw blade with the cutting line (3) using the 0^ cutting mark on the sole plate.
   NOTE: Make sure the saw blade is inside the area to be cut out.
6. Start the saw and slowly lower the blade onto the workpiece while holding the blade guard lever forward to allow the blade to cut into the workpiece.
7. Continue lowering the blade into the workpiece until the full cutting depth has been achieved. Continue sawing and complete the cut as required.

3.5. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
Wait for the rotating elements to stop.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
