USER MANUAL Quad Power Pak CADAC

HOT AND COOKING PORTABLE

QUAD POWER PAK

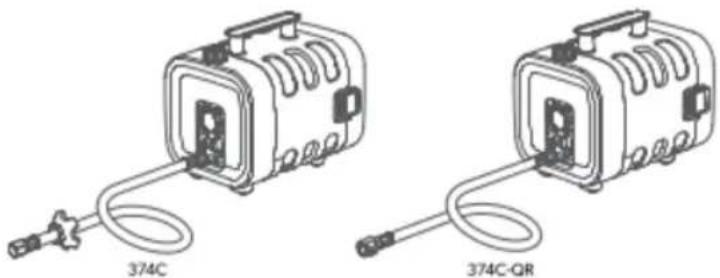

Two technical line drawings of a 374C and 374C-QR electrical contactor devices with wires (no text or symbols)

Quad Power Pak (374C)

Compact gas supply unit

Operating Manual 6

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

3

Technical line drawing of a mechanical device with two views showing internal components and adjustment arrows (no text or symbols)

4

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical diagram showing a mechanical component with an arrow indicating direction, labeled with number ②

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a gear or valve mechanism.

Technical diagram showing mechanical assembly with labeled components and directional arrow indicating rotation or movement

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical component with no visible text or symbols

EN

5

6 1

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

②

Technical diagram of a mechanical device with a close-up view showing internal components and a lock icon (no text or symbols)

③

Technical line drawing of a mechanical pump or motor assembly with directional arrows indicating flow or movement (no text or symbols present)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

7

SKU: 4463000284 374-SP006 SKU: 4463000285 374-SP007 SKU: 4463000289 374-SP011 SKU: 4463000282 374-SP004 SKU: 4463000292 374-SP014 SKU: 4463000290 374-SP012 SKU: 4463000289 374-SP013 SKU: 4463000279 370-SP004 SKU: 4463000280 374-SP002

English

1 Explanation of symbols....6
2 Intended use....6
3 Safety Instructions....6
4 Component List....7
5 Gas leaks....8
6 Assembly and gas cartridge fitment..... 8
7 Operating instructions....9
8 Removing the gas cartridges....9
9 Cleaning the appliance....9
10 Storage....9
11 Spares....9
12 Warranty....9

1 Explanation of symbols

A signal word will identify safety messages and property damage messages, and also will indicate the degree or level of hazard seriousness.

DANGER!

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE Supplementary information for operating the product.

2 Intended use

NOTE The CADAC | Dometic Quad Power Pak is a lightweight and compact gas supply unit that holds up to 4x 220 g or 227 g gas cartridges. It replaces the need for a gas cylinder and regulator, and may be used alongside CADAC | Dometic camping gas barbecue appliances.

3 Safety Instructions

Important: Read these instructions carefully before connecting the Power Pak to a camping gas barbecue appliance.
Retain these instructions for future reference.
The Power Pak complies with EN16129:2013.
The Power Pak uses CADAC Dometic 220 g or 227 g bayonet type cartridges (a maximum of 4), or any other locally approved 220 g or 227 g butane-propane mixture cartridges.
In normal conditions of use, and in order to ensure correct operation, it is recommended that the Power Pak is replaced within 2 years of the date of manufacture.
Do not immerse the Power Pak in water. Keep it protected against penetration of rain or other any water sources.
The downstream installation pressure loss shall not exceed the pressure ( P ) as indicated on the device.

General safety

Failure to obey these warnings can result in death or serious injury.

Fig. 1 on page 2

WARNING! Carbon monoxide hazard

Not for indoor use. The process of burning liquid gas produces carbon monoxide which accumulates inside closed areas.
Gas appliances require ventilation for efficient performance and to ensure the safety of users and others in close proximity.
This device and the connected gas appliance should only be used in a well-ventilated location in order to satisfy official ventilation standards for the supply of sufficient combustion air and to avoid the dangerous building up of unburned gases. Minimum ventilation requirement: 5m^3/h .

Do not operate this device in unventilated areas such as indoor premises, tents, awning tents, motor vehicles, motor homes, caravans or inside ships, yachts, boats and truck cabs.
Use outdoors only.

WARNING! Explosion hazard

Do not alter this device in any way. Use only as intended.
This device may only be repaired by qualified personnel. Inadequate repairs may cause serious risk.
Never place this device on, or in close proximity to, a stove or barbecue appliance. Minimum safe distance: 1 m
Do not use in environments where the ambient temperature exceeds 40^ C.
Always store, transport or use this device in a horizontal position.

WARNING! Fire hazard

Do not leave this device unattended when hot or in use.
Keep a fire extinguisher or other means suitable to extinguish a flame in the event of an emergency.
When this device is not in use, ensure to close off the gas by fully turning the control knob clockwise towards the "-" position.
Remove the gas cartridges from this device when it is not in use.

Safety during use

DANGER! Explosion hazard

Gas cartridges must be fitted or exchanged in a well-ventilated location, preferably outside and away from any sources of ignition, and away from other people.
Do not use this device or any gas barbecue appliance which is leaking, damaged or does not operate properly.
If you suspect a gas leak (detected by smell of gas), perform a gas leak test before using this device.
Extinguish any naked flames. Move the appliance to a well-ventilated flame-free location and perform a gas leak test.

This test should be performed outside in a well-ventilated area away from open flames or sources of ignition.

Never use a flame to check for gas leak. Instead, use soapy water applied to all connection points. Small bubbles will form in the presence of a gas leak.
Should a gas leak persist after all attempts to rectify a leak, contact your closest dealer for further assistance.

CAUTION! Burn hazard

Accessible parts may become very hot. Keep out of reach of young children.
Do not wear loose clothing or allow long hair to hang freely while lighting an appliance or using this product.
Keep hands, face and hair away from burners.
Carefully observe all activity around this product to avoid burns or other injuries.
Always operate this device on a horizontal, level surface. Ensure that the assembled product is stable and does not rock.
Do not move this device during use.
Keep children and pets safely away.
The use of alcohol or prescription or non-prescription drugs may impair your ability to properly assemble or safely operate this device.

CAUTION! Fire hazard

Do not place chemicals, flammable materials or spray aerosols near this appliance.

In case of fire, shut off the gas supply immediately.

Use this device with an approved hose connection only.

4 Component List

Fig. 2 on page 2

Component Description

1 Control knob

2 Handle

3 Back cover

4 Clip

Component Description

5 Safety lock
6 Gas outlet nozzle (quick release)
7 Quick Release Coupling
8 Gas hose

5 Gas leaks

Gas leaks from damaged hoses or improper connections can create hazardous conditions and must be addressed immediately. It is vital that all gas connections have been correctly fitted to prevent gas leaks.

How to carry out a gas leak test

A gas leak test must be performed with every use, and every time a cartridge is connected or exchanged.

NOTE A leaking gas cartridge can only be detected by the smell of gas. It is still necessary to perform a gas leak test at the hose connection points to confirm secure connection.

DANGER! Failure to identify and control a gas leak may result in potential injury or death.

To carry out a gas leak test, apply soapy water to all connection points.

Make sure that the control knob on the Power Pak is closed, then slowly turn the appliance control knob anti-clockwise to allow the gas to flow.
If bubbles form on any connection point, then there is a gas leak.
Immediately turn the gas off, move to a well ventilated location and disconnect the gas supply from the appliance.
Reconnect the gas supply to the appliance and re-perform the gas leak test.
Should the gas leak persist, return the product to your authorized repair agent for assistance.

6 Assembly and gas cartridge fitment

Important: Ensure that the control knob on the Power Pak and that all control knobs on the gas barbecue appliance are fully closed before use.

Connecting the device to a gas barbecue appliance

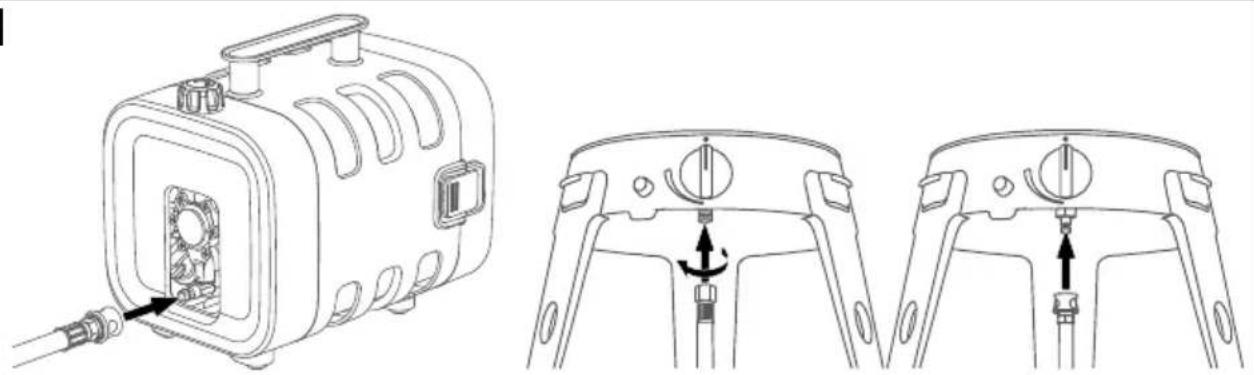

Fig. 3 on page 2

The Power Pak must be used with an approved hose assembly.

Ensure that the hose is securely attached to the gas outlet nozzle of the Power Pak. The inclusion of a quick release coupling facilitates the hose connection onto the Power Pak.
Connect the brass nut on the end of the hose to the inlet of the gas barbecue appliance you wish to operate, and use the hand-wheel to tighten the connection. Certain models may include a quick-release (QR) connector for easier connection.
Confirm all hose connections are secure before use.

Connecting the gas cartridges

The Power Pak uses CADAC Dometic 220 g or 227 g bayonet type cartridges (a maximum of 4), or any other locally approved 220 g or 227 g butane-propane mixture cartridges.

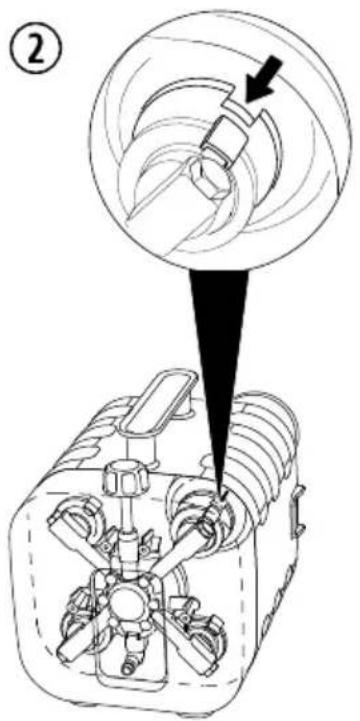

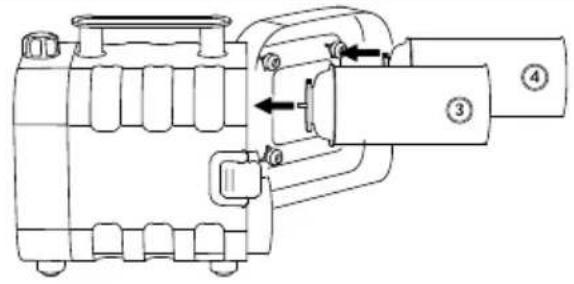

Inserting the gas cartridges

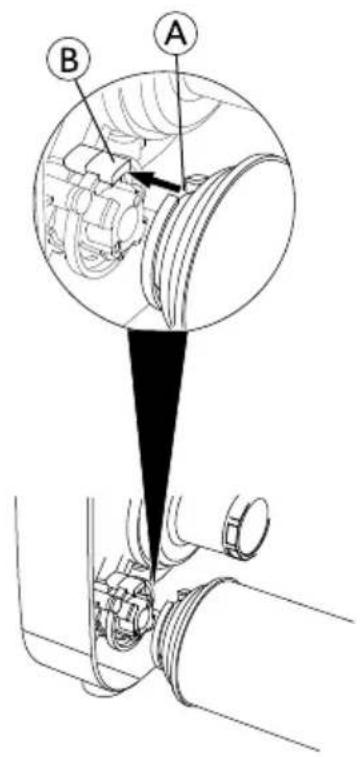

Fig. 4 on page 3

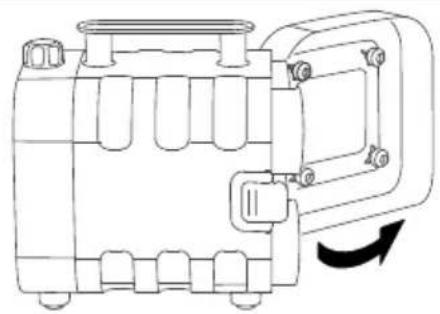

Open up the back cover of the Power Pak.

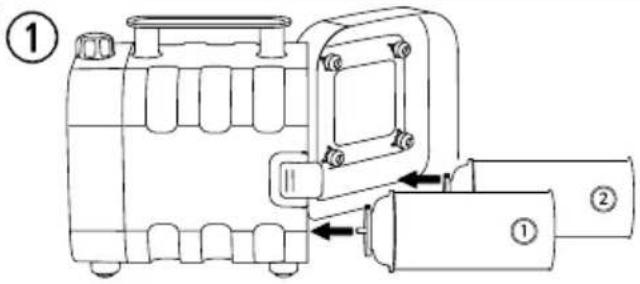

Insert the gas cartridges into the unit, starting with the 2 lower gas cartridges, and then the 2 upper gas cartridges. Keep the gas cartridge in a horizontal position with the notch (A) facing upwards and align this notch with the guide locator (B) on the inside of the Power Pak.

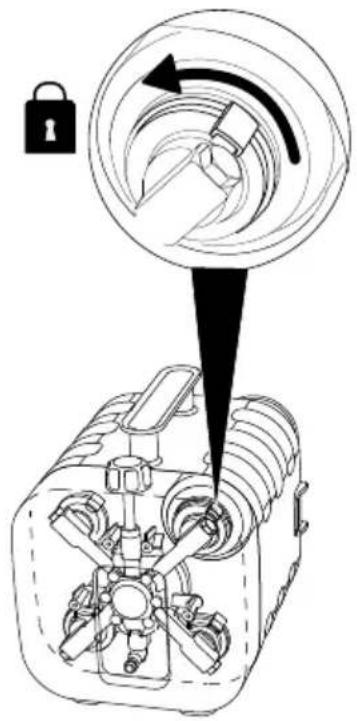

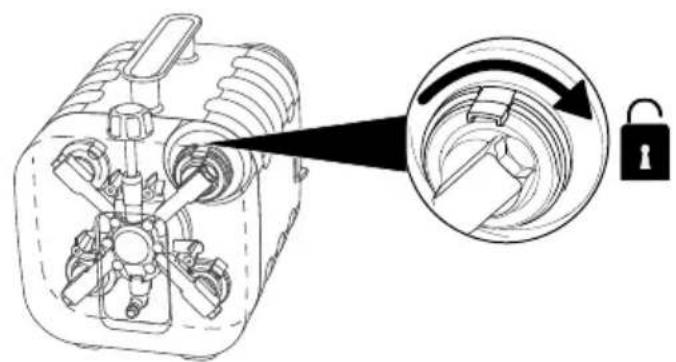

Once aligned, push the gas cartridge inwards and turn it clockwise to lock. Insert a maximum of 4 cartridges.

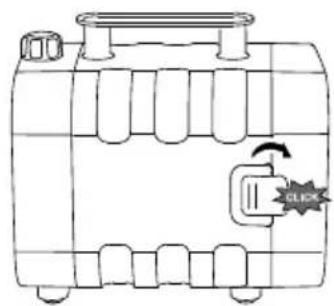

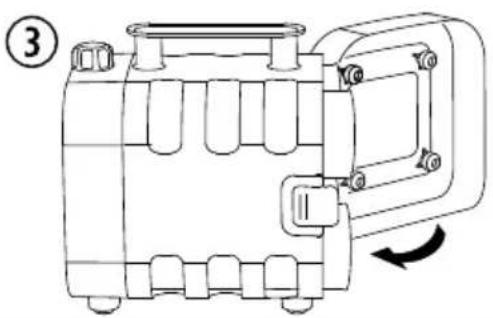

Once all cartridges are securely inserted, shut the back cover, make sure the clip is engaged. Position the safety lock so as to prevent accidental opening of the back cover.

7 Operating instructions

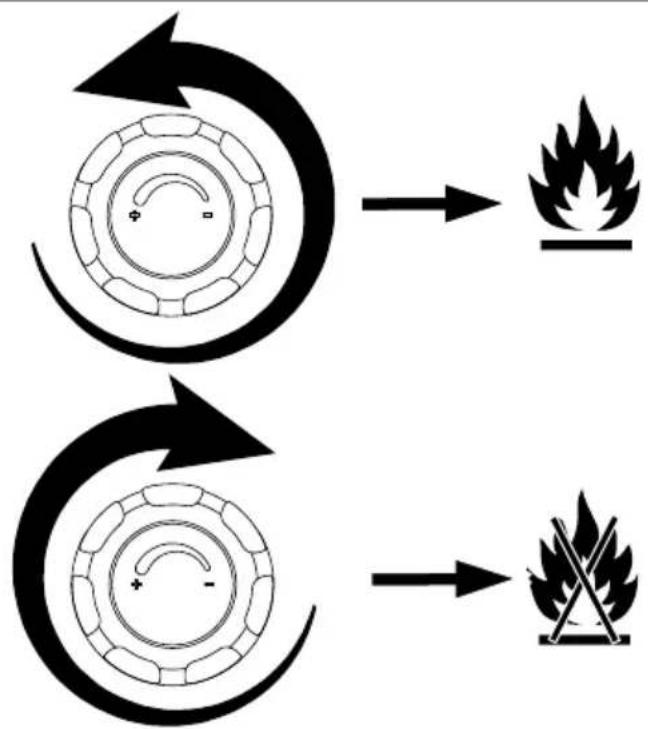

Fig. 5 on page 4

The Power Pak is fitted with a control knob that helps to regulate the flow of gas to the gas barbecue appliance. It is important that you familiarize yourself with its use and function.

Gas flow to the gas barbecue appliance can be adjusted by turning the control knob clockwise or towards "-" to decrease gas flow, or counterclockwise, or "+" to increase gas flow.
To shut off the gas flow, turn the control knob fully clockwise.
Ensure that the gas flow is shut off when the device is not in use, and each time a gas cartridge is removed or exchanged.

Operating the device

Slightly turn the control knob on the device in a counterclockwise direction towards "+" to allow for gas flow to the gas barbecue appliance.
Turn on the gas barbecue appliance you wish to operate and ignite the burner on the gas barbecue appliance.
Gas flow and flame height can now be adjusted using the control knob on the barbeque appliance and /or on the Power Pak.

DANGER! Explosion hazard Shut off the gas supply after use.

Turn the control knob on the Power Pak fully clockwise in the "-" direction to shut off the gas supply.

Disconnect the gas cartridges from the Power Pak after use.

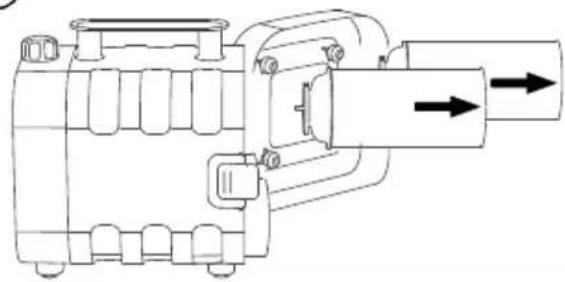

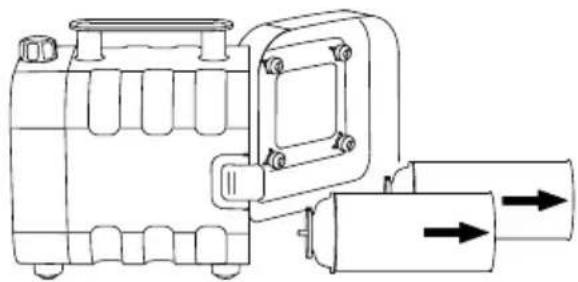

8 Removing the gas cartridges

Fig. 6 on page 4

Important: Ensure that the Power Pak control knob and all control knobs on the gas barbecue appliance are turned to the off position before removing the gas cartridges.
Open the back cover of the Power Pak.
Turn the gas cartridge counterclockwise to allow for removal from the device.
Disconnect the hose from the gas barbecue appliance.

Do not store the device with gas cartridges still in place, and do not keep the device connected to the gas barbecue appliance when it is not in use.
Gas cartridges should be stored in a cool, dry and well-ventilated area, away from potential sources of ignition.

9 Cleaning the appliance

To clean the Power Pak, wipe it down with a damp cloth and a little detergent as needed.

Do not immerse the Power Pak in water as this may cause it to malfunction.
Do not use abrasive cleaners as they may damage the surface.

10 Storage

Ensure that the device is turned off before disconnecting it from the appliance.
Store in a well-ventilated area away from combustibles. Preferably store gas cylinders and gas cartridges outdoors, never in a basement or garage.

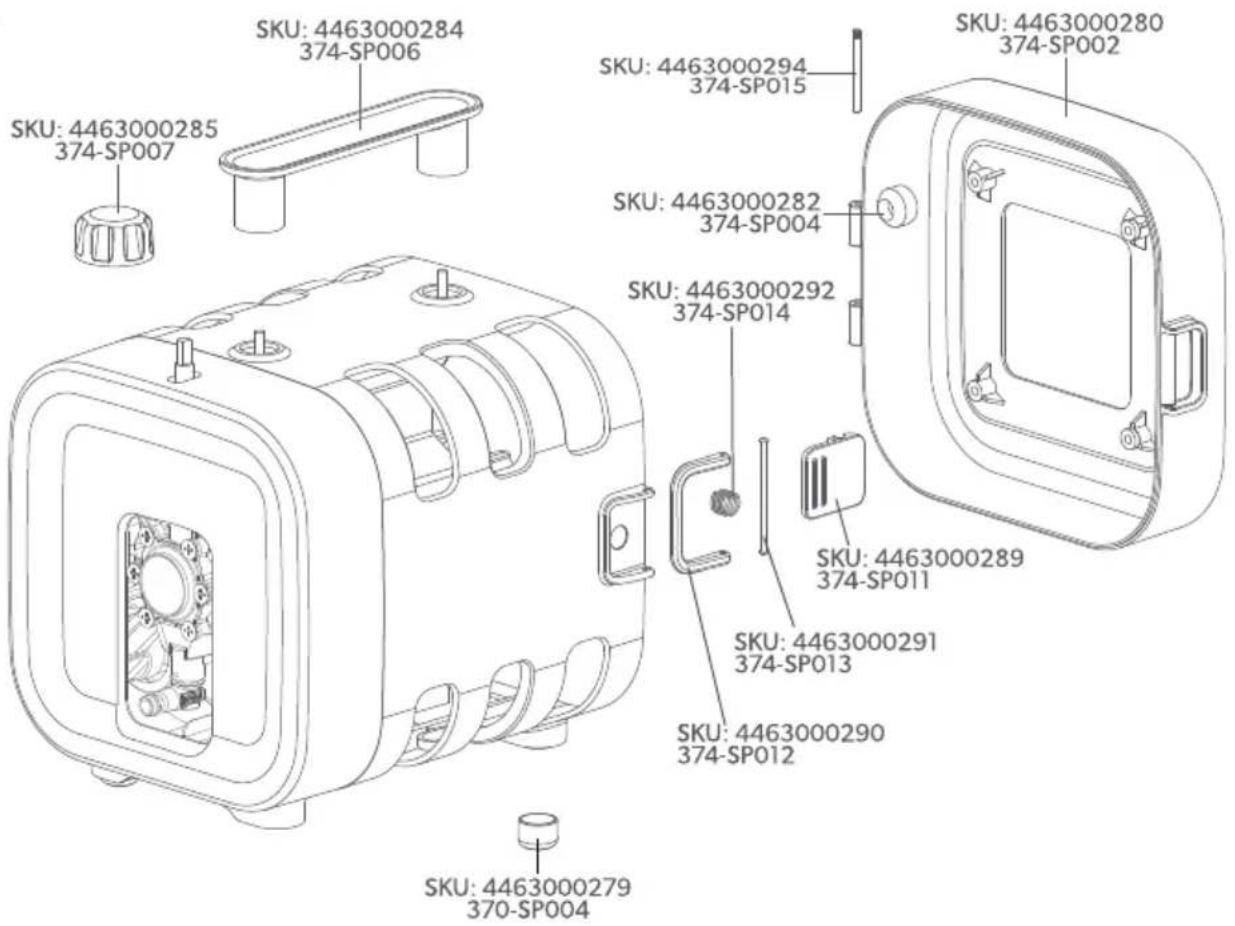

11 Spares

Fig. 7 on page 5

NOTE Always use genuine spares. Contact your local supplier for help.

12 Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country. (see www.cadacinternational.com/support)

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault

Note that self-repair or non-professional repair can have safety consequences and might void the warranty.
