USER MANUAL ROG Thor 850W Platinum II ASUS
Quick Start Guide (English)
快速使用指南（繁體中文）
快速使用指南（简体中文）
クイックスタートガイド(日本語)
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.
NOTE: Tips and additional information to help you complete a task.
Product Overview
The illustrations in this section are for reference only and may vary between models.

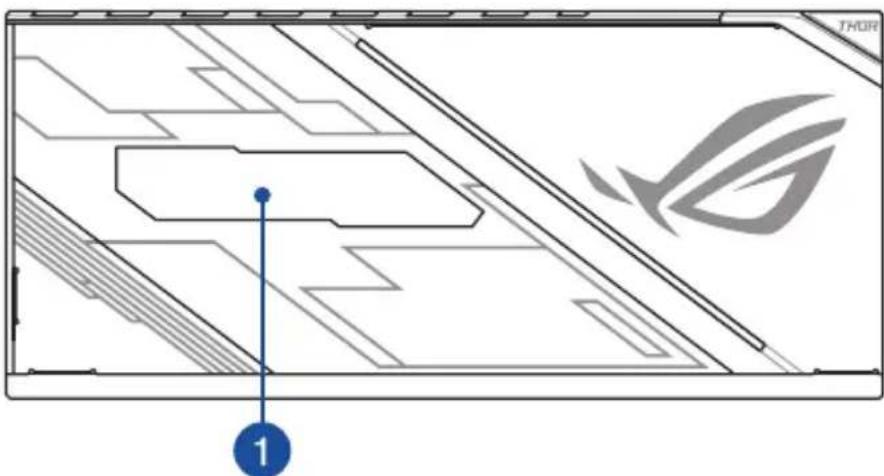

Front view


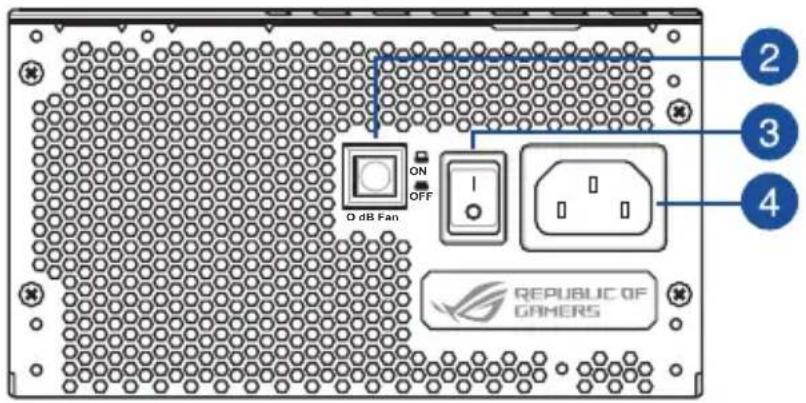

THOR 1Left view


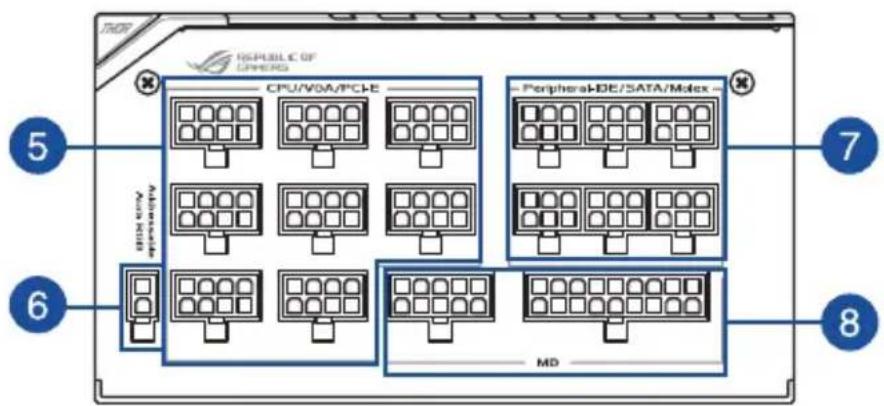

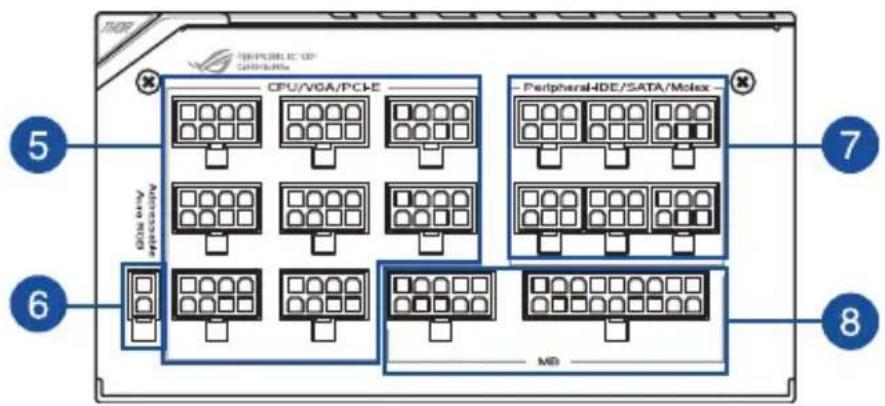

O dB Fan ON OFF 1 2 3 4 REPUBLIC OF GAMERSRight view
2 0 dB Fan button* Addressable AURA RGB connector
3 Power switch 6-pin Peripheral-IDE / SATA / Molex connectors
4 Power connector 10-pin and 18-pin MB connectors
Installing your ROG THOR Power Supply Unit
Before installing or removing cables, ensure that the system is turned off, and all power cables for the system and all attached devices are unplugged.
- Follow the directions of your chassis manual and secure your ROG THOR power supply unit into your chassis using the mounting screws.
- Connect the bundled cables to your ROG THOR power supply unit.
- Connect the power connectors to your motherboard and peripheral devices according to your preference. You may refer to the list below to check which devices each power connector can be connected to.
- The power connectors may vary between different models of ROG THOR Power Supply Units.
- Refer to your motherboard's user manual for more information on the location and connecting the power connectors mentioned below.
- Connect the 24-pin or 20-pin Main Power Connector to the motherboard's 24-pin or 20-pin power connector.
- Connect the 4+4 pin CPU +12V Power Connector to the CPU power socket on the motherboard.
- Connect the 4-pin Peripheral Power Connector to peripheral devices if needed.
- Connect the 6+2 pin PCI-E +12V Power Connector to the PCI-E graphics card.
- Connect the SATA Power Connector to devices with a Serial ATA interface.
- Connect your ROG THOR Power Supply Unit to a power source using the bundled power cord.

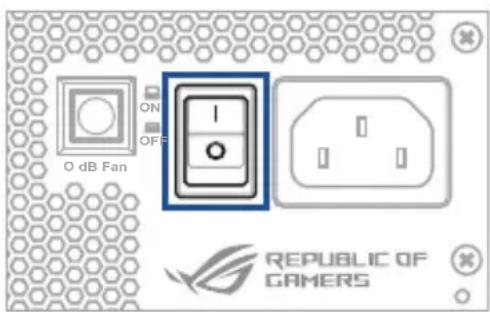

- Flip the Power Switch to the "I" position to turn on your power supply unit
- NEVER, under any circumstances, open the power supply unit. This is extremely dangerous due to the high voltage inside.
- DO NOT insert any objects into the fan grill or the ventilation area of the power supply unit.
- DO NOT place any objects in front of the fan or the ventilation area of the power supply unit that may obstruct or restrict the airflow.
- USE ONLY the modular cables bundled with the power supply unit.
- Avoid dust, humidity, and temperature extremes. Do not place the power supply unit in any area where it may become wet.
- The power supply unit is for integration into a computer, and not intended for external or outdoor usage.
- DO NOT use any third party cables or extension cables with this unit.
