USER MANUAL RM 448 TC STIHL

Exterior view of a StiHL lawn mower (no signage or text visible)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and close-up view of the front view

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with numbered components and an inset view showing a cable or connector assembly.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with arrows indicating direction.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed inset view of a component.

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

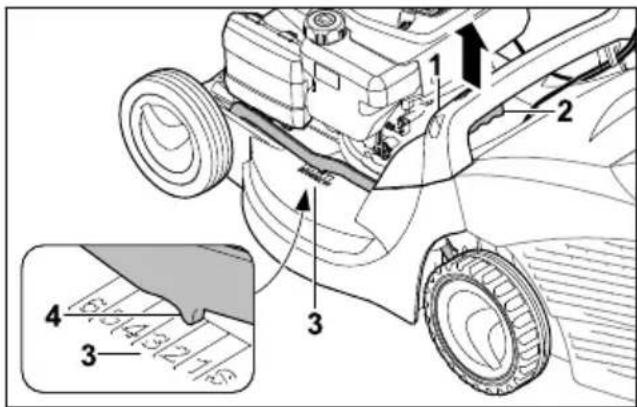

• 25 mm = Position 1
• 30 mm = Position 2
• 40 mm = Position 3
• 50 mm = Position 4
• 60 mm = Position 5
• 75 mm = Position 6

Technical diagram of a lawn mower with numbered parts and an inset showing part details for parts 3 and 4.

Technical diagram showing a person using a tool to adjust or install a device, labeled with parts 1 and 2.

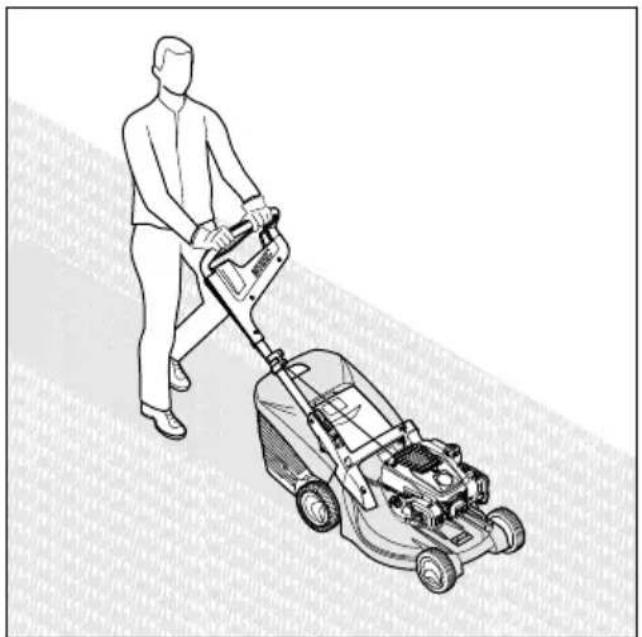

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with numbered parts, including a close-up view of the first component.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating motion or force.

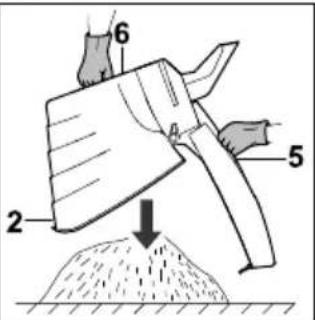

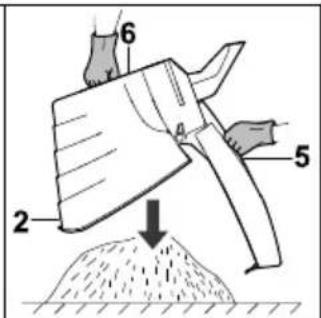

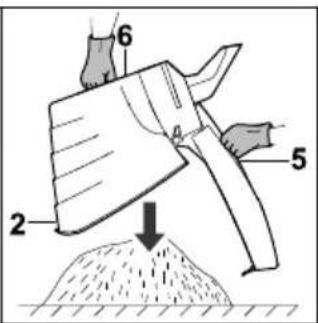

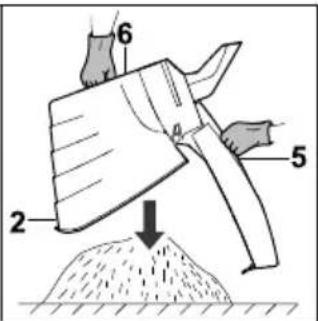

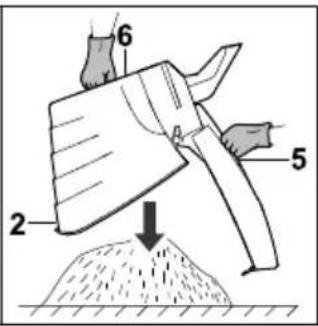

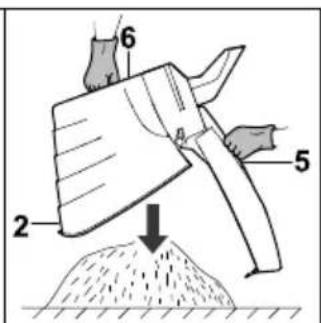

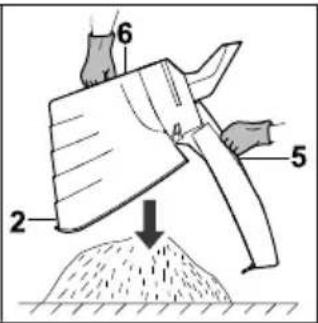

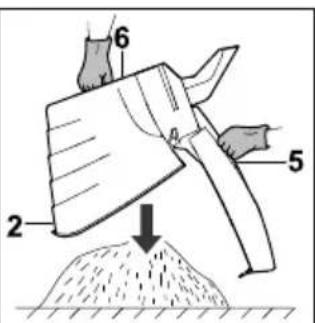

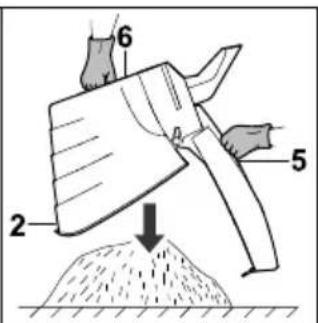

Diagram illustrating a manual tool with labeled parts 2, 5, and 6, showing a downward force on a pile of material.

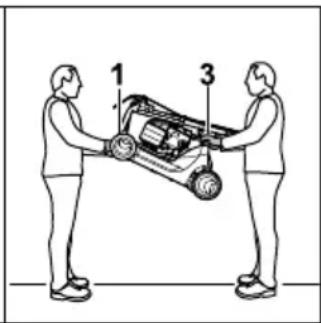

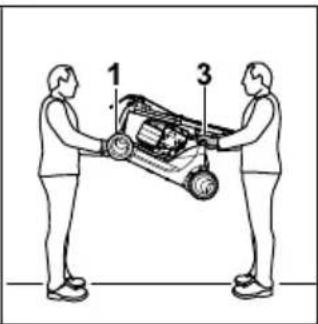

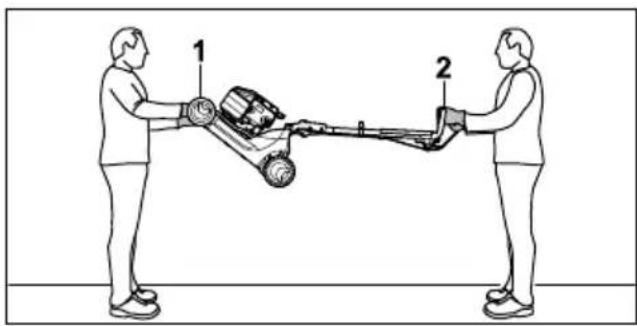

Diagram showing two figures pulling a vehicle with labeled parts, likely illustrating a mechanical or electrical system.

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with three people handling a cart.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered components labeled 1, 2, and 3

2 Guide to Using this Manual....21

3 Overview....21

4 Safety Precautions....22

5 Preparing the Lawn Mower for Operation. 27

6 Assembling the Lawn Mower.... 28

7 Refuelling the Lawn Mower....29

8 Adjusting the Lawn Mower for the User.... 29

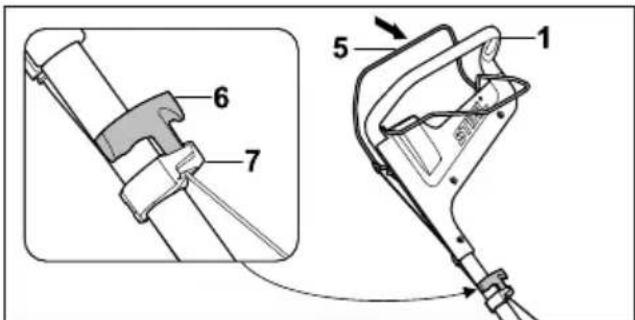

9 Starting and Stopping the Engine.... 30

10 Checking the Lawn Mower....30

11 Operating the Lawn Mower....31

12 After Finishing Work....32

13 Transporting....32

14 Storing....33

15 Cleaning....33

16 Maintenance.... 34

17 Repairing....34

18 Troubleshooting.... 35

19 Specifications....35

20 Spare Parts and Accessories....36

21 Disposal.... 36

22 EC Declaration of Conformity.... 36

23 UKCA Declaration of Conformity.... 37

1 Introduction

Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support.

STIHL expressly commit themselves to a sustainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

2 Guide to Using this Manual English

Dr. Nikolas Stihl

IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.

2 Guide to Using this Manual

2.1 Applicable Documents

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

Local safety regulations apply.

▶ In addition to this instruction manual, read, understand and keep the following documents:
– Instruction manual for the STIHL EVC 200.3 C engine
– Instruction manual for the STIHL EVC 300.0 engine

2.2 Warning Notices in Text

DANGER

■ This notice refers to risks which result in serious or fatal injury.

- Serious or fatal injuries can be avoided by taking the precautions mentioned.

WARNING

■ This notice refers to risks which can result in serious or fatal injury.

- Serious or fatal injuries can be avoided by taking the precautions mentioned.

NOTICE

■ This notice refers to risks which can result in damage to property.

▶ Damage to property can be avoided by taking the precautions mentioned.

2.3 Symbols in Text

This symbol refers to a chapter in this instruction manual.

3 Overview

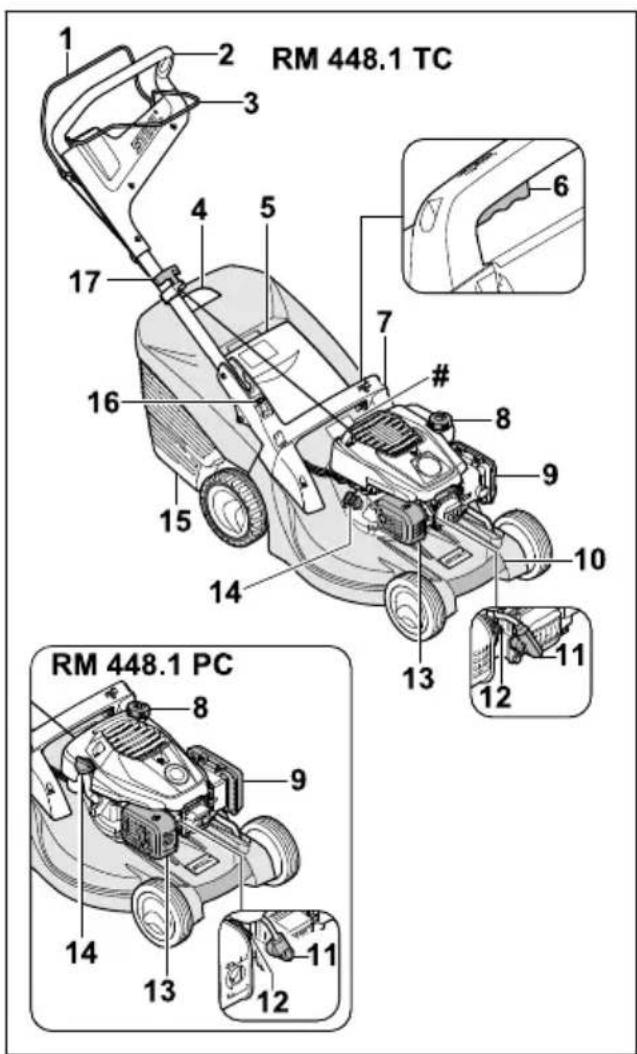

3.1 Lawn Mower

RM 448.1 TC RM 448.1 PC

1 Control bar for mowing

The control bar for mowing is used to start and stop the engine.

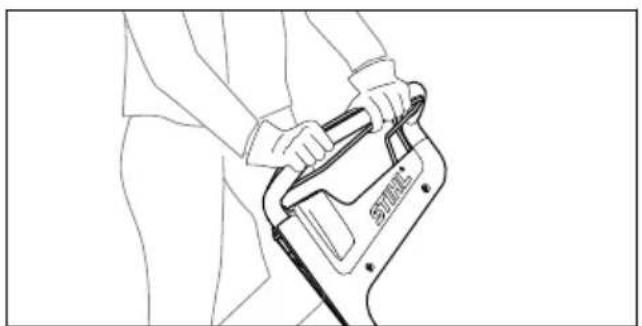

2 Handlebar

The handlebar is used to hold, guide and transport the lawn mower.

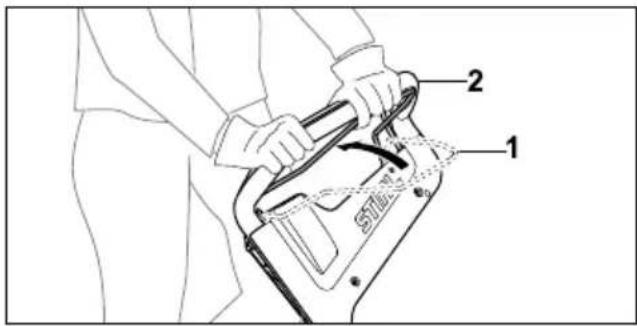

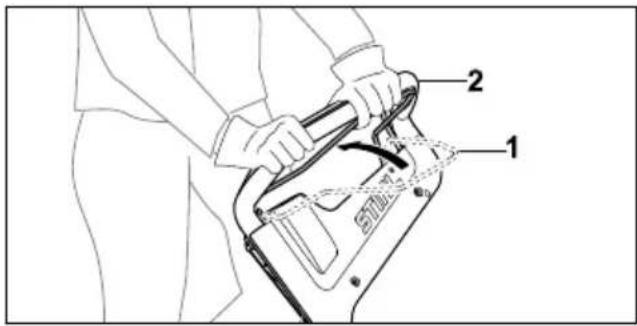

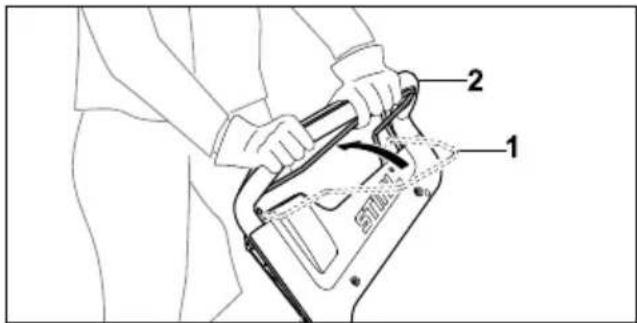

3 Control bar for self-propulsion

The control bar for self-propulsion engages and disengages self-propulsion.

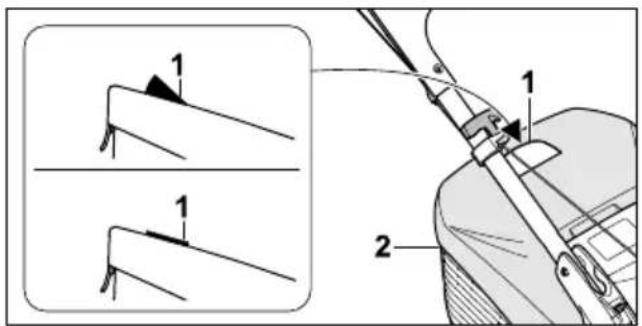

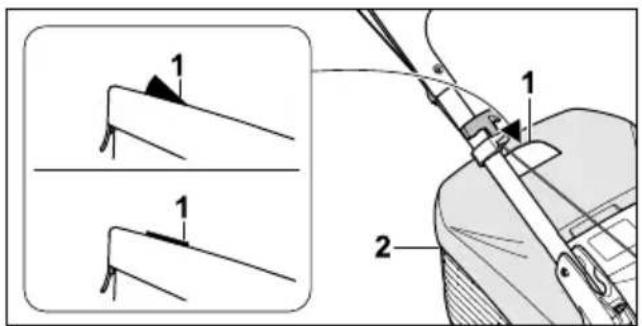

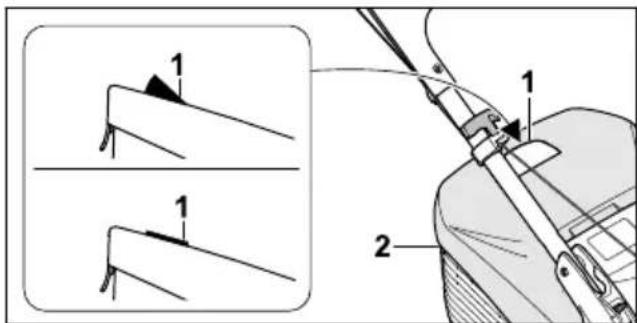

4 Level indicator

The level indicator shows how full the grass catcher box is.

5 Discharge flap

The discharge flap closes off the discharge chute.

6 Lever

The lever is used to set the cutting height.

English 4 Safety Precautions

7 Handle

The handle is used to hold the lawn mower when adjusting the cutting height and to transport the lawn mower.

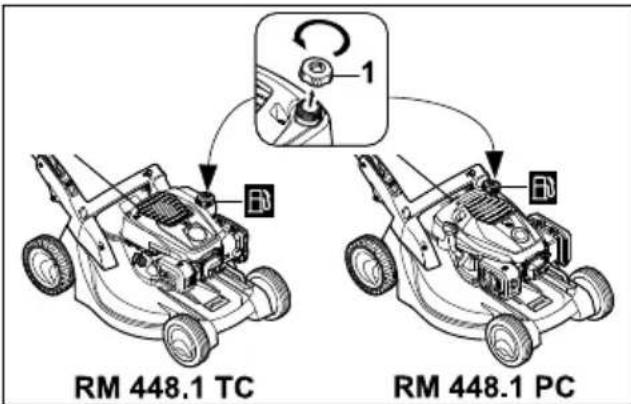

8 Fuel tank cap

The fuel tank cap seals the opening for adding petrol.

9 Filter cover

The filter cover provides protection for the air filter.

10 Transport handle

The transport handle is used to transport the lawn mower.

11 Spark plug socket

The spark plug socket connects the ignition lead to the spark plug.

12 Spark plug

The spark plug ignites the fuel/air mixture in the engine.

13 Muffler

The muffler reduces the lawn mower's noise level.

14 Engine oil cap

The engine oil cap seals the opening for adding engine oil.

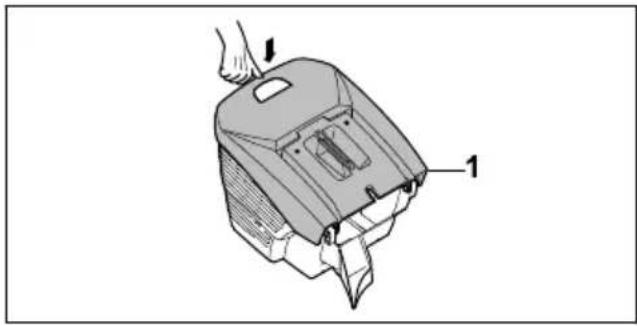

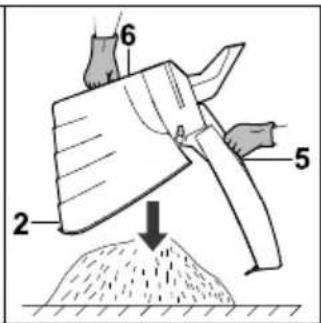

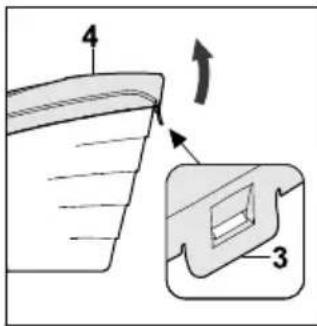

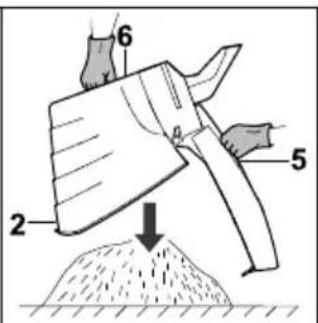

15 Grass catcher box

The grass catcher box collects the mown grass.

16 Lever

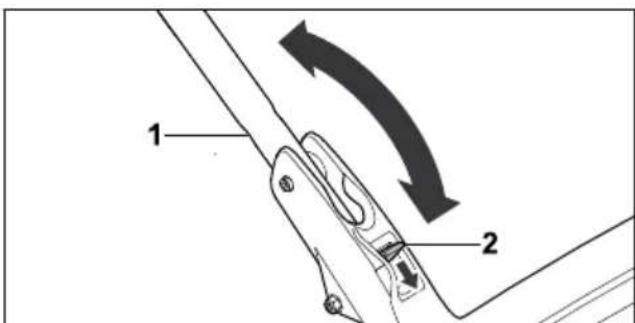

The lever is used to adjust and fold down the handlebar.

17 Starter handle

The starter handle is used to start the engine.

# Rating plate with machine number

3.2 Symbols

The symbols can be on the lawn mower and have the following meaning:

LWA

Guaranteed sound power level in accordance with Directive 2000/14/EC in dB(A) for the purpose of comparing the sound emissions of products.

This symbol identifies the fuel tank cap.

This symbol identifies the engine oil cap.

Start the engine.

Stop the engine.

Engage self-propulsion.

4 Safety Precautions

4.1 Warning Symbols

The warning symbols on the lawn mower have the following meaning:

Follow the safety instructions and their measures.

Read, understand and keep the instruction manual.

Observe the safety instructions on objects expelled at high speed by the lawn mower and their measures.

Do not touch a turning blade.

Detach the spark plug socket during transport, storage, maintenance or repair.

Maintain a safety distance.

4.2 Intended Use

The STIHL RM 448 TC and STIHL RM 448 PC lawn mowers are used to cut grass.

WARNING

■ Failure to use the lawn mower as intended may result in serious or fatal injury to people and damage to property.

▶ Use the lawn mower as described in this instruction manual and in the engine instruction manual.

4.3 Requirements for the User

WARNING

■ Uninstructed users cannot recognise or evaluate the dangers posed by the lawn mower. This may result in serious or fatal injury to the user or other people.

▶ Read, understand and keep the instruction manual.

▶ If passing on the lawn mower to another person: provide them with the lawn mower and engine instruction manuals also.
▶ Make sure that the user meets the following conditions:

• The user is rested.
• The user is physically, sensorily and mentally capable of operating the lawn mower and working with it. If the user is physically, sensorily or mentally impaired, the machine must only be used under supervision or following instruction by a responsible person.
• The user can recognise and evaluate the dangers posed by the lawn mower.
• The user is aware that they are responsible for accidents and damage.
• The user is of legal age or the user is being trained under supervision in a profession in accordance with national regulations.
• The user has received instruction from a STIHL specialist dealer or a competent person before using the lawn mower for the first time.
• The user is not impaired by alcohol, medicines or drugs.

▶ If anything is unclear: consult a STIHL specialist dealer.

4.4 Clothing and Equipment

WARNING

■ Objects may be thrown up at high velocity while working. This may result in injury to the user.

- Wear long trousers made from resistant material.

■ Noise is produced when working. Noise may damage the hearing.

▶ Wear hearing protection.

■ Dust may be stirred up while working. Breathing in dust may be harmful to health and cause allergic reactions.

▶ If dust is stirred up: wear a dust mask.

■ Unsuitable clothing may get caught in wood, briars and in the lawn mower. This may result in serious injury to the user.

▶ Wear close-fitting clothing.
▶ Remove scarves and jewellery.

■ The user may come into contact with the blade during cleaning, maintenance or transport. This may result in injury to the user.

• Wear work gloves made from resistant material.
  ▶ Wear sturdy, closed-toed footwear with high-grip soles.

■ Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.

■ Material particles may be expelled when sharpening the blade. This may result in injury to the user.

• Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commercially with the corresponding marking.
• Wear work gloves made from resistant material.

4.5 Work Area and Surroundings

WARNING

■ Bystanding people, children and animals cannot recognise or evaluate the dangers posed by the lawn mower and objects thrown up by the machine. This may result in serious injury to bystanding people, children and animals and damage to property.

- Keep bystanding people, children and animals out of the work area.

• Maintain a distance from objects.
  ▶ Do not leave the lawn mower unattended.
  ▶ Make sure that children cannot play with the lawn mower.

■ Hot exhaust gases are emitted from the muffler when the engine is running. Hot exhaust gases may ignite easily inflammable materials and cause fires.

- Keep the exhaust gas flow away from easily inflammable materials.

4.6 Safe Condition

4.6.1 Lawn Mower

The lawn mower is in safe condition when the following conditions are met:

– The lawn mower is free from damage.
– There is no petrol leaking from the lawn mower.
– The fuel tank cap is closed.
– There is no engine oil leaking from the lawn mower.
– The engine oil cap is closed.

English 4 Safety Precautions

• The lawn mower is clean.
• The controls are working and have not been modified.
• If mowing and the mown grass is to be collected in the grass catcher box: the grass catcher box is correctly attached.
• If mowing and the mown grass is to be ejected to the rear: the grass catcher box is detached and the discharge flap is closed.
  – The blade is correctly attached.
  – Genuine STIHL accessories for this lawn mower are attached.
• The accessories are correctly attached.
• Spring-loaded mechanisms are free from damage and working.
• The engine stops when the control bar for mowing is released.

WARNING

■ If not in safe condition, components may no longer operate correctly, safety devices may be disabled and fuel may leak. This may result in serous or fatal injury to people.

• Do not use a damaged lawn mower.
  ▶ If there is petrol leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.

▶ Close the fuel tank cap.

▶ If there is engine oil leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.

▶ Close the engine oil cap.

▶ If the lawn mower is dirty: clean the lawn mower.

- Do not tamper with the lawn mower and its safety systems.

▶ Tampering with the lawn mower which increases the power output or the engine speed is forbidden.

▶ If the controls are not working: do not use the lawn mower.

▶ Spring-loaded mechanisms may release stored energy.

▶ If mowing and the mown grass is to be collected in the grass catcher box: attach the grass catcher box as described in this instruction manual.

- Attach genuine STIHL accessories for this lawn mower.

- Attach the blade as described in this instruction manual.

▶ Attach accessories as described in this instruction manual or in the instruction manual for the accessories.

- Do not insert objects into the apertures in the lawn mower.

• Replace worn or damaged warning signs.
  ▶ If anything is unclear: consult a STIHL specialist dealer.

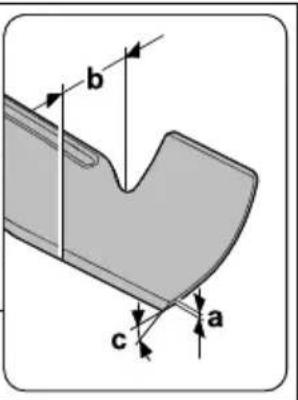

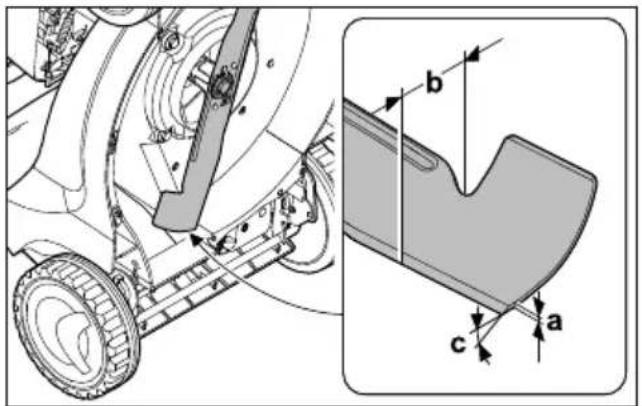

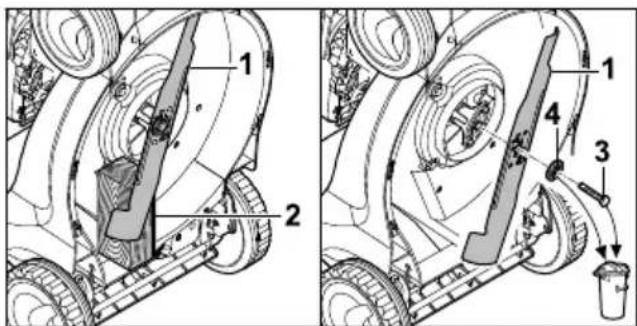

4.6.2 Blade

The blade is in safe condition when the following conditions are met:

– The blade and attachments are undamaged.

- The blade is not deformed.

– The blade is correctly attached.

– The blade is correctly sharpened.

– The blade is burr-free.

– The blade is correctly balanced.

- The minimum thickness and minimum width of the blade are not fallen below, 19.2.

- The sharpening angle is observed, 19.2.

WARNING

■ In unsafe condition, blade parts may come loose and be expelled. This may result in serious injury to people.

▶ Use an undamaged blade and attachments.

▶ Attach the blade correctly.

▶ Sharpen the blade correctly.

▶ If the minimum thickness or minimum width is fallen below: replace the blade.

▶ Have the blade balanced by a STIHL specialist dealer.

▶ If anything is unclear: consult a STIHL specialist dealer.

4.7 Fuel and Refuelling

WARNING

■ The fuel used for this lawn mower is petrol. Petrol is extremely inflammable. If petrol comes into contact with an open flame or hot objects, it may cause fires or explosions. This may result in serious or fatal injury to people and damage to property.

▶ Protect petrol from heat and fire.

▶ Do not spill petrol.

▶ If petrol is spilled: wipe up the petrol with a cloth and wait until all parts of the lawn mower are dry before attempting to start the engine.

▶ Do not smoke.

▶ Do not refuel in the vicinity of flames.

▶ Before refilling the tank, stop the engine and allow it to cool.

▶ If the tank needs to be emptied: do this out of doors.

▶ Start the engine at least 3 m away from the refuelling site.

▶ Never store the lawn mower with petrol in the tank inside a building.

4 Safety Precautions English

■ Breathing in petrol fumes may result in poisoning.
▶ Do not breathe in petrol fumes.
▶ Refuel in a well-ventilated place.

■ The lawn mower warms up while working. The petrol expands and overpressure may occur in the fuel tank. Petrol may gush out when the fuel tank cap is opened. The gushing petrol may ignite. This may result in serious injury to the user.

- Allow the lawn mower to cool down before opening the fuel tank cap.

■ Clothing that comes into contact with petrol is highly inflammable. This may result in serious or fatal injury to people and damage to property.

▶ If clothing comes into contact with petrol: change clothing.

■ Petrol poses a risk to the environment.

▶ Do not spill fuel.

- Dispose of petrol in accordance with regulations and in an environmentally acceptable way.

■ If petrol comes into contact with the skin or eyes, this may cause irritation.

- Avoid contact with petrol.

▶ In the event of contact with the skin: wash the affected areas with plenty of soap and water.

▶ In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.

■ The lawn mower's ignition system generates sparks. Sparks may escape and cause fires and explosions in highly inflammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

▶ Use the spark plugs described in the engine instruction manual.

- Screw in the spark plug and tighten.

▶ Press on the spark plug socket firmly.

■ The lawn mower may be damaged if it is refu-elled with petrol that is not suitable for the engine.

▶ Use fresh, good-quality unleaded petrol.

▶ Observe the specifications in the engine instruction manual.

4.8 Working

WARNING

■ The user may lose control of the lawn mower if they do not start the engine correctly. This may result in serious injury to the user.

- Start the engine as described in this instruction manual.

■ In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and becoming seriously injured.

▶ Work calmly and carefully.

▶ Only mow when visibility is good. Do not use the lawn mower if the light and visibility conditions are poor.

▶ Operate the lawn mower alone.

▶ Watch out for obstacles.

▶ Do not tilt the lawn mower.

▶ Work standing on the ground and maintain balance.

▶ If signs of fatigue occur: take a break.

▶ If mowing on a slope: mow across the slope.

▶ Do not work on slopes with an inclination greater than 25^ (46.6%).

▶ Use the lawn mower with particular care when working near slopes, terraces, ditches, rubbish piles and embankments.

- Plan your working times so that more severe physical strains over a longer period are avoided.

■ Exhaust fumes are produced when the engine is running. Breathing in exhaust fumes may result in poisoning.

▶ Do not breathe in exhaust fumes.

▶ Use the lawn mower in a well-ventilated place.

▶ If nausea, headaches, vision problems, hearing problems or dizziness occur: stop working and consult a doctor.

■ If the user is wearing hearing protection and the engine is running, their perception and assessment of noise may be limited.

▶ Work calmly and carefully.

■ The lawn mower is equipped with a motorstop device.

▶ Releasing the control bar for mowing causes the engine and blade to stop within 3 seconds.

■ The turning blade may cut the user. This may result in serious injury to the user.

▶ Detach the spark plug socket.

▶ Do not touch a turning blade.

▶ If the blade is blocked by an object: stop the engine. Only then remove the object.

■ If working without self-propulsion when mowing, self-propulsion may unintentionally be

engaged and the lawn mower may start moving. This may result in serious injury to people and damage to property.

▶ Only press the control bar for self-propulsion if self-propulsion is to be engaged.

■ If the lawn mower changes or starts to behave differently when working, it may not be in safe condition. This may result in serious injury to people and damage to property.

- Stop working and consult a STIHL specialist dealer.

■ The lawn mower may cause vibrations when working.

▶ Wear work gloves.

▶ Take breaks.

▶ If signs of a circulatory disturbance occur: consult a doctor.

- Inspect the mowing area and look out for obstacles. If the blade hits a foreign object when working, the foreign object or parts of it may be thrown up at high velocity. This may result in injury to people and damage to property.

▶ Remove foreign objects such as stones, sticks, wires, toys or other foreign objects from the working area. Mark hidden objects that cannot be removed.

■ When the control bar for mowing is released, the blade continues to turn for a short time. This may result in serious injury to people.

- Wait until the blade is no longer turning. - Do not detach the grass catcher box until the blade stops turning.

■ Sparks may be produced if the turning blade hits a hard object. Sparks may cause fires in highly flammable environments. This may result in serious or fatal injury to people and damage to property.

- Do not work in a highly flammable environment.

■ If the lawn mower is stopped on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.

▶ Only release the lawn mower if it is on a level surface and cannot roll away by itself.

■ If objects are attached to the handlebar, the additional weight may cause the lawn mower to tip over. This may result in injury to people and damage to property.

- Do not attach objects to the handlebar.

▲ DANGER

■ If working near live wires, the blade may come into contact with the live wires and damage them. This may result in serious or fatal injury to the user.

▶ Do not work near live wires.

■ The user may be struck by lighting if working during a thunderstorm. This may result in serious or fatal injury to the user.

▶ Do not work during thunderstorms.

■ Working in the rain may cause the user to slip. This may result in serious or fatal injury to the user.

▶ Do not work when it is raining.

4.9 Transporting

WARNING

■ The lawn mower may tip over or move during transport. This may result in injury to people and damage to property.

▶ Stop the engine.

- Wait until the blade is no longer turning.

▶ Detach the spark plug socket.

- Secure the lawn mower on a suitable load floor with lashing straps, belts or a net so it cannot tip over and move.

■ The muffler and engine may be hot after the engine has been running. This may result in the user burning themselves when transporting the machine.

▶ Push the lawn mower.

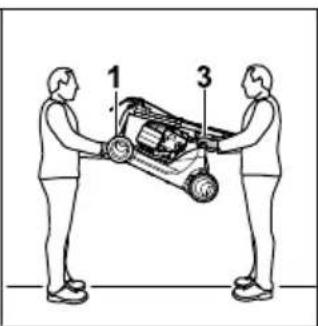

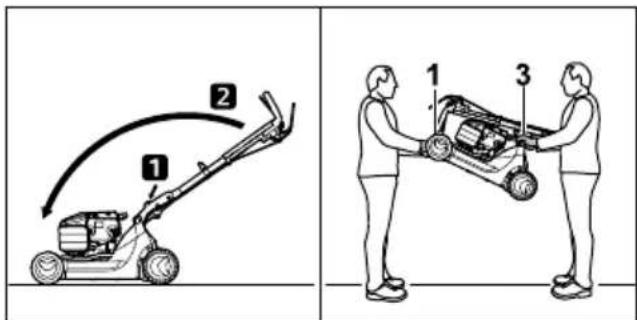

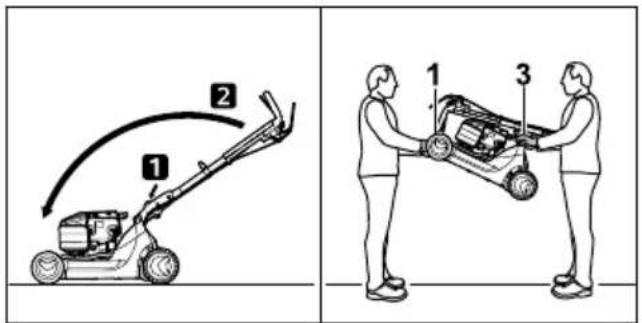

■ The lawn mower is heavy. Attempting to carry the lawn mower without assistance may result in injury to the user.

▶ Wear work gloves.

▶ The lawn mower must be carried by two people.

■ During transport, petrol may leak and cause contamination and damage.

▶ Push the lawn mower.

▶ Transport the machine without petrol in it.

4.10 Storing

WARNING

■ Children cannot recognise or evaluate the dangers posed by the lawn mower. There is a risk of serious injury to children.

▶ Stop the engine.

5 Preparing the Lawn Mower for Operation English

• Keep the lawn mower out of reach of children.
  ■ Moisture may cause corrosion of metal components. This may result in damage to the lawn mower.
• Keep the lawn mower clean and dry.
  ■ If the lawn mower is kept on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.
• The lawn mower should only be kept on level surfaces.

4.11 Cleaning, Maintenance and Repair

WARNING

■ Having the engine running during cleaning, maintenance or repair may result in serious injury to people and damage to property.

▶ Stop the engine.

▶ Wait until the blade is no longer turning.

▶ Detach the spark plug socket.

■ The self-propulsion may be unintentionally engaged if the engine is running during cleaning, maintenance or repair. This may result in serious injury to people and damage to property.

▶ Stop the engine.

▶ Detach the spark plug socket.

■ The muffler and engine may be hot after the engine has been running. This may result in people burning themselves.

- Wait until the muffler and engine have cooled down.

■ Abrasive cleaning agents or using a water jet or sharp objects for cleaning may result in damage to the lawn mower or blade. If the lawn mower or blade is not cleaned correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serious injury to people.

- Clean the lawn mower and blade as described in this instruction manual, 15.2.

■ If the lawn mower or blade is not maintained or repaired as described in this instruction manual, components may no longer operate

correctly and safety devices may be disabled. This may result in serious or fatal injury to people.

• Replace worn or damaged parts.
• Maintain or repair the lawn mower as described in this instruction manual.
• Maintain the blade as described in this instruction manual.

■ The user may cut themselves on sharp cutting edges during blade cleaning, maintenance or repair. This may result in injury to the user.

- Wear work gloves made from resistant material.

■ The blade may become hot during sharpening. This may result in the user burning themselves.

▶ Wait until the blade has cooled down.
▶ Wear work gloves made from resistant material.

5 Preparing the Lawn Mower for Operation

5.1 Preparing the Lawn Mower for Operation

The following steps must be performed before commencing work:

• Remove packaging material and transport locks.
  ▶ Make sure that the following components are in safe condition:

• Lawn mower, 14.6.1.

• Blade, 4.6.2.

▶ Clean the lawn mower, 15.
▶ Check the blade, 10.2.
▶ Attach the handlebar, 6.1.
▶ Add engine oil, 6.3.
▶ Fold up the handlebar, 8.1.
▶ Refuel the lawn mower, 07.
▶ If mowing and the mown grass is to be collected in the grass catcher box: attach the grass catcher box, ☐.2.2.
▶ If mowing and the mown grass is to be ejected to the rear: detach the grass catcher box, 6.2.3.
▶ Set the cutting height, 11.2.
▶ Check the controls, 10.1.
▶ If the steps cannot be performed: do not use the lawn mower and consult a STIHL specialist dealer.

6 Assembling the Lawn Mower

6.1 Attaching the Handlebar

▶ Stop the engine.
- Place the lawn mower on a level surface.

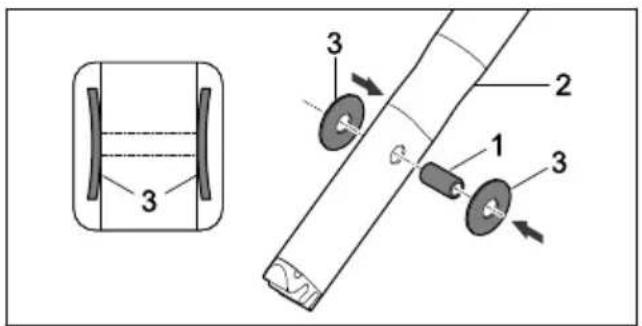

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

• Press sleeve (1) into the bores in handlebar (2).
  ▶ Fit spring washers (3) with the convex side facing inwards onto sleeve (1).

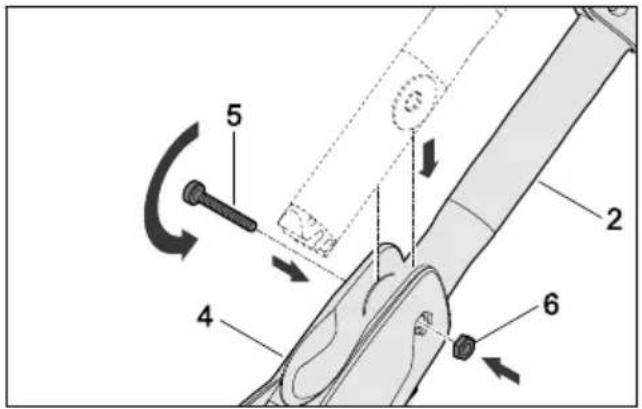

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

▶ Guide handlebar (2) into handlebar bracket (4).
▶ Push bolt (5) through the bores in handlebar bracket (4) and the sleeve in handlebar (2).
- Place nut (6) in the notch in handlebar bracket (4).
▶ Tighten bolt (5).

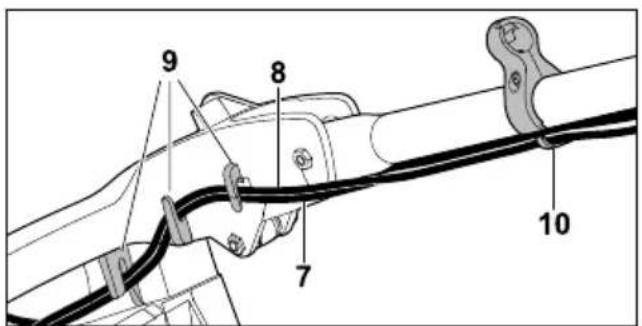

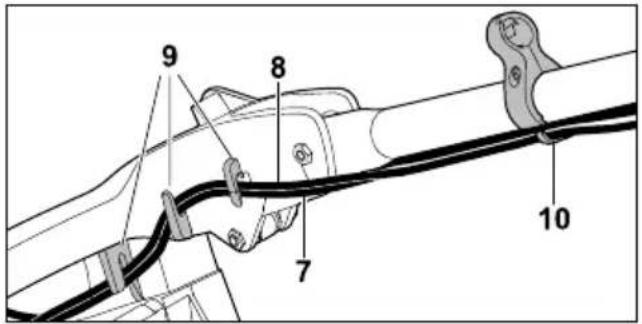

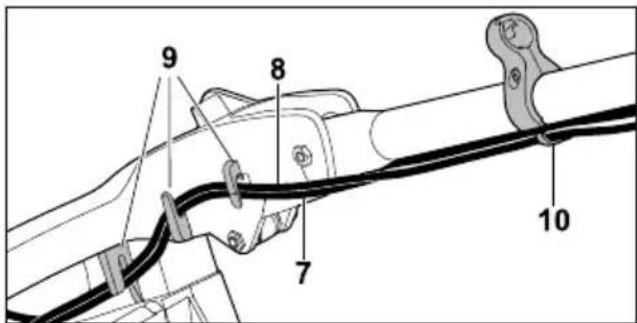

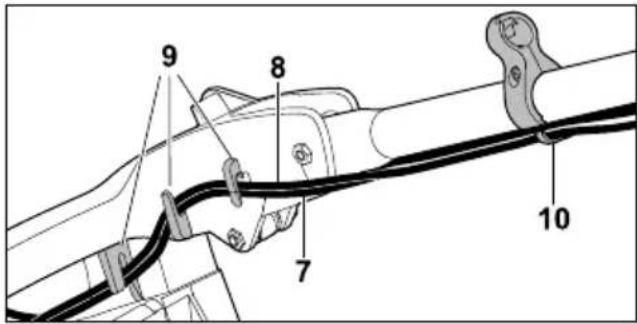

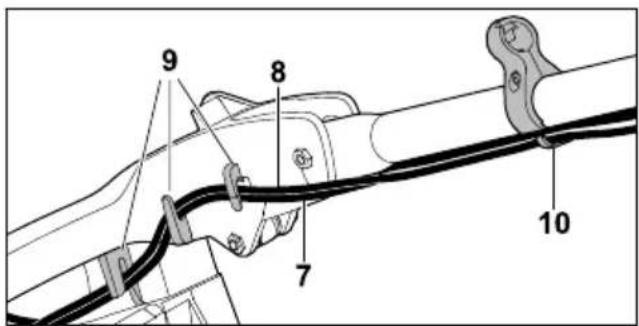

Technical diagram of a mechanical linkage or cable assembly with numbered components labeled 7, 8, and 9.

▶ Press cables (7 and 8) into holders (9).
- Attach cables (7 and 8) to starter rope guide (10).

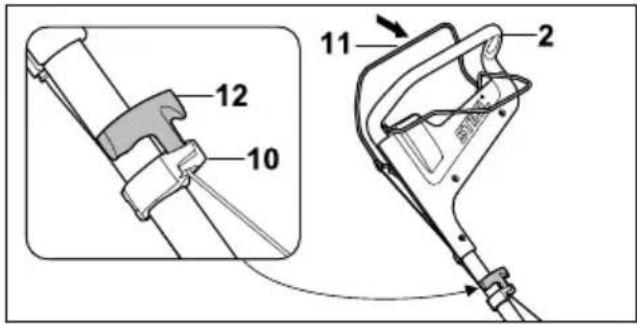

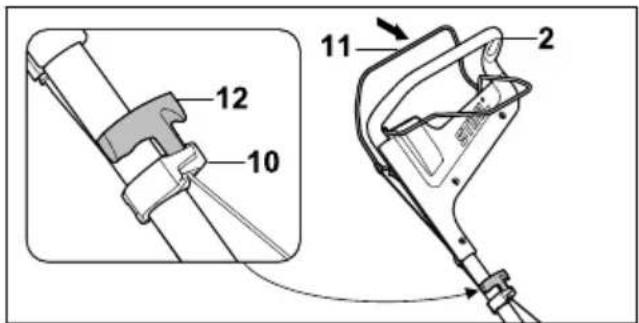

Technical diagram of a mechanical device with labeled parts and an inset view showing a component with numbered parts 10, 11, and 12.

▶ Detach the spark plug socket.
- Press control bar for mowing (11) to handle-bar (2) and hold.
▶ Slowly pull starter handle (12) in the direction of starter rope guide (10).
- Hook starter handle (12) into starter rope guide (10).
▶ Release control bar for mowing (11).
▶ Re-attach the spark plug socket.

The handlebar must not be dismantled again.

6.2 Assembling, Attaching and Detaching the Grass Catcher Box

6.2.1 Assembling the Grass Catcher Box

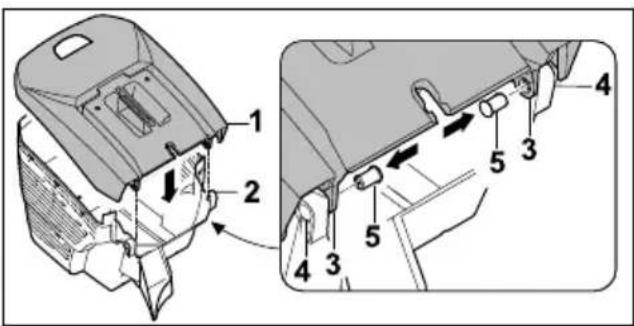

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

▶ Fit upper part of grass catcher box (1) onto lower part of grass catcher box (2). Openings (3 and 4) must align.
▶ Press pins (5) through openings (3 and 4) from the inside.

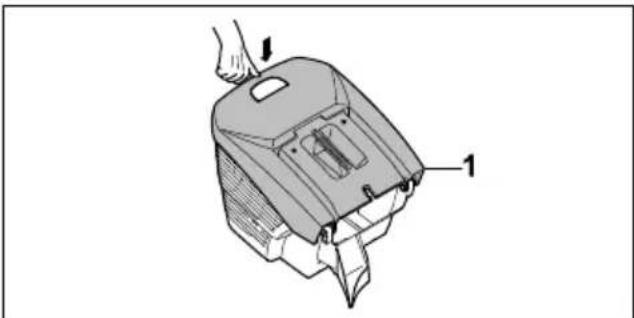

Diagram of a mechanical device with labeled parts (no text or symbols present)

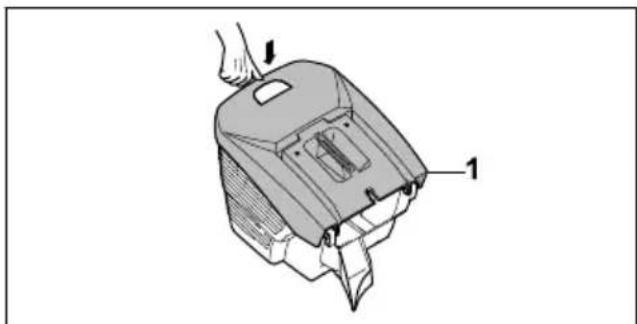

• Press upper part of grass catcher box (1) downwards.
  Upper part of grass catcher box (1) engages with a click.

7 Refuelling the Lawn Mower English

6.2.2 Attaching the Grass Catcher Box

▶ Stop the engine.
- Place the lawn mower on a level surface.

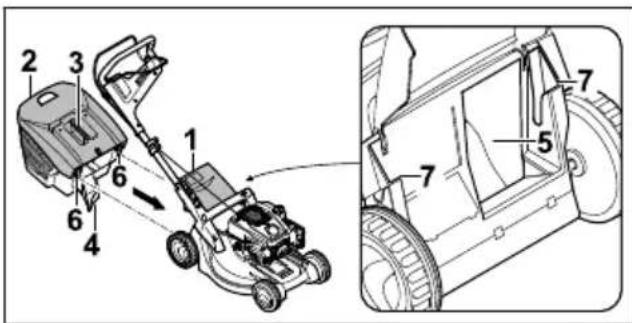

Technical diagram of a lawn mower with numbered components and an inset view of the vehicle's front compartment.

▶ Open discharge flap (1) and hold it open.
▶ Take hold of grass catcher box (2) by handle (3) and attach with lug (4) in discharge chute (5) and hooks (6) in mountings (7).
▶ Set down discharge flap (1) on grass catcher box (2).

6.2.3 Detaching the Grass Catcher Box

▶ Stop the engine.
- Place the lawn mower on a level surface.
▶ Open the discharge flap and hold it open.
- Remove the grass catcher box upwards by the handle.
▶ Close the discharge flap.

6.3 Adding Engine Oil

The engine oil lubricates and cools the engine.

The engine oil specification and capacity can be found in the engine instruction manual.

NOTICE

■ The lawn mower does not contain any engine oil on delivery. Starting the engine with no or too little engine oil may damage the lawn mower.

▶ Always check the engine oil level before starting and if necessary top up.

- Add the engine oil as described in the engine instruction manual.

7 Refuelling the Lawn Mower

7.1 Refuelling the Lawn Mower

NOTICE

■ The lawn mower may be damaged if the correct fuel is not used.
▶ See the engine instruction manual.
▶ Stop the engine.
- Place the lawn mower on a level surface.

- Clean the area around the fuel tank cap with a damp cloth.

RM 448.1 TC RM 448.1 PC

▶ Turn fuel tank cap (1) anti-clockwise until it can be removed.
▶ Remove the fuel tank cap.
- Add fuel, stopping at least 15 mm short of the fuel tank brim.
- Place the fuel tank cap on the fuel tank.
▶ Turn the fuel tank cap clockwise and tighten firmly by hand.

The fuel tank is sealed.

8 Adjusting the Lawn Mower for the User

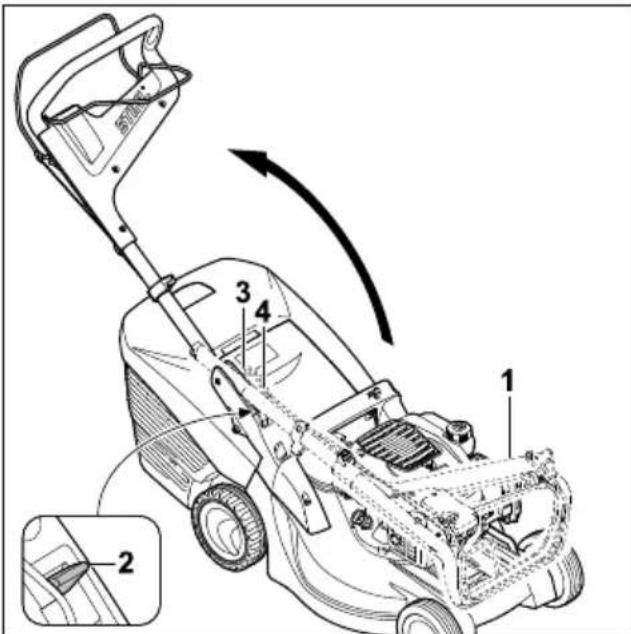

8.1 Folding Up the Handlebar

▶ Stop the engine.
▶ Detach the spark plug socket.
- Place the lawn mower on a level surface.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

▶ Lift handlebar (1).
▶ Press lever (2) downwards and hold.
▶ Fold up handlebar (1), ensuring that cables (3 and 4) are not trapped.

English 9 Starting and Stopping the Engine

▶ Release lever (2) and ensure that handlebar (1) fully engages. Handlebar (1) is firmly attached to the lawn mower.

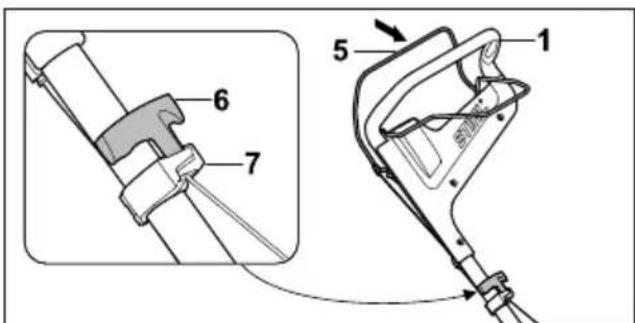

Technical diagram of a cable clamp device with labeled parts 1, 5, and 6, showing internal components and connection details.

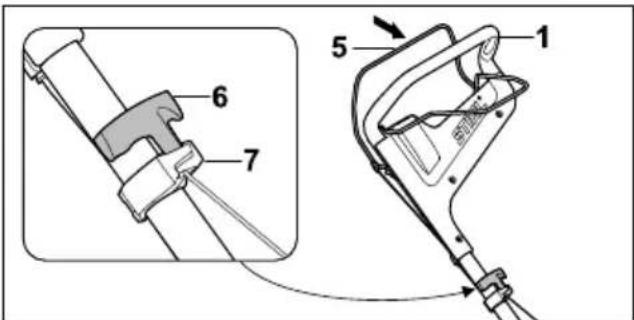

• Press control bar for mowing (5) to handle-bar (1) and hold.
• Slowly pull starter handle (6) in the direction of starter rope guide (7).
• Hook starter handle (6) into starter rope guide (7).
  ▶ Release control bar for mowing (5).
  ▶ Re-attach the spark plug socket.

8.2 Adjusting the Handlebar

▶ Stop the engine.
▶ Detach the spark plug socket.
- Place the lawn mower on a level surface.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

▶ Hold handlebar (1).
▶ Press lever (2) downwards and hold.
▶ Move handlebar (1) into the desired position.
▶ Release lever (2) and ensure that the handlebar fully engages again.

8.3 Folding the Handlebar

The handlebar can be folded for space-saving transport or storage.

▶ Stop the engine.
▶ Detach the spark plug socket.
- Place the lawn mower on a level surface.
- Press the control bar for mowing to the handlebar and hold.
- Detach the starter handle from the starter rope guide and slowly guide back towards the engine.
▶ Release the control bar for mowing.

• Hold the handlebar and keep the lever pressed.
  ▶ Fold down the handlebar forwards.

9 Starting and Stopping the Engine

9.1 Starting the Engine

- Place the lawn mower on a level surface.

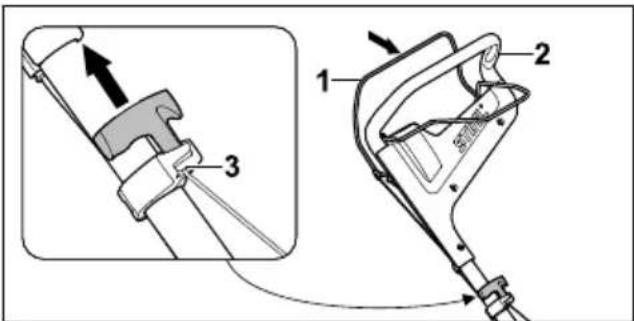

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with arrows indicating motion.

• Press control bar for mowing (1) to handle-bar (2) with the left hand and hold.
• Slowly pull out starter handle (3) to the point of noticeable resistance with the right hand.
• Keep quickly pulling out and returning starter handle (3) until the engine is running.
  ▶ If the engine does not start: see the engine instruction manual.

9.2 Stopping the Engine

• Place the lawn mower on a level surface.
  ▶ Release the control bar for mowing. The engine stops.
  ▶ Leave the user position.

10 Checking the Lawn Mower

10.1 Checking the Controls

Control bar for mowing and control bar for self-propulsion

▶ Stop the engine.
▶ Pull the control bar for mowing and the control bar for self-propulsion fully in the direction of the handlebar and release again.
▶ If the control bar for mowing or the control bar for self-propulsion is stiff or does not spring back into the initial position: do not use the lawn mower and consult a STIHL specialist dealer.
The control bar for mowing or the control bar for self-propulsion is defective.

10.2 Checking the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower, 15.1.

Technical diagram showing mechanical assembly with labeled parts a, b, c and an inset view of a component detail

▶ Measure the following:
- Thickness a
-Widthb
- Sharpening angle c
▶ If the minimum thickness or minimum width is fallen below: replace the blade, 9.2.
▶ If the sharpening angle is not correct: sharpen the blade, ☐19.2.
▶ If anything is unclear: consult a STIHL specialist dealer.

11 Operating the Lawn Mower

11.1 Holding and Guiding the Lawn Mower

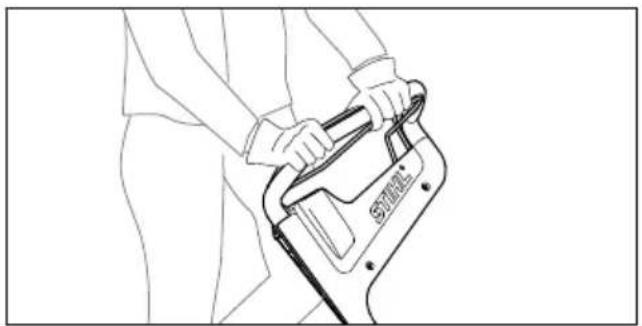

Line drawing of a person using a hand tool on a device (no text or symbols)

- Hold the handlebar with both hands so the thumbs enclose the handlebar.

11.2 Setting the Cutting Height

Six cutting heights can be set:

• 25 mm = position 1
• 30 mm = position 2
• 40 mm = position 3
• 50 mm = position 4
• 60 mm = position 5
• 75 mm = position 6

The positions are indicated on the lawn mower.

Setting the cutting height

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

▶ Hold the lawn mower at handle (1).
▶ Press and hold lever (2).
▶ Move the lawn mower to the desired position by raising and lowering the lever.

The current cutting height can be read off at cutting height indicator (3) by means of marking (4).

▶ Release lever (2).

The lawn mower engages.

11.3 Switching the Drive On and Off

11.3.1 Engaging Self-propulsion

• Place the lawn mower on a level surface.
  ▶ Start the engine.

Technical diagram showing a person using a power shaver with labeled parts 1 and 2

▶ Pull control bar for self-propulsion (1) fully in the direction of handlebar (2) and hold so the thumb encloses the handlebar. The lawn mower starts moving.

11.3.2 Disengaging Self-propulsion

▶ Release the control bar for self-propulsion.
- Wait until the lawn mower comes to a standstill.

11.4 Mowing

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

▶ If working with self-propulsion engaged: drive the lawn mower forwards in a controlled manner.
▶ If working with self-propulsion disengaged: push the lawn mower forwards slowly and in a controlled manner.

11.5 Emptying the Grass Catcher Box

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up inset of the first component.

The flow of air generated by the blade raises level indicator (1). The flow of air stops when the grass catcher box is full. If the flow of air is too low, level indicator (1) returns to its resting state. This is a prompt to empty grass catcher box (2).

The functionality of level indicator (1) is restricted if the flow of air is impaired. External influences such as wet, dense or high grass, low cutting height, dirt or the like can impair the flow of air and the functionality of level indicator (1).

▶ If level indicator (1) drops to its resting state: empty grass catcher box (2).
▶ Stop the engine.
▶ Detach grass catcher box (2).

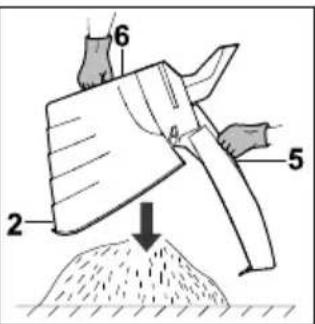

Diagram showing a mechanical or structural component with numbered parts and directional arrows indicating motion or movement.

6 2 5

▶ Open tab (3).
▶ Open and hold upper part of grass catcher box (4) by handle (5).
▶ Hold lower handle (6) with the second hand.
▶ Empty grass catcher box (2).
▶ Close grass catcher box (2).
▶ Attach grass catcher box (2).

12 After Finishing Work

12.1 After Finishing Work

▶ Stop the engine.
▶ If the lawn mower is wet: allow the lawn mower to dry.
▶ Clean the lawn mower.

13 Transporting

13.1 Transporting the Lawn Mower

▶ Stop the engine.
The blade must not be turning.
▶ Detach the spark plug socket.

Pushing the lawn mower

- Push the lawn mower forwards slowly and in a controlled manner.

Carrying the lawn mower

▶ Wear work gloves made from resistant material.
▶ Detach the grass catcher box.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic operation.

14 Storing English

▶ If the lawn mower is being carried with the handlebar unfolded:
▶ One person holds the lawn mower by transport handle (1) using both hands and another person holds handlebar (2) using both hands.
- The lawn mower must be lifted and carried by two people.

Diagram showing two scenarios of a lawn mower: one with motion arrows and one with hands holding a cart, labeled with numbers 1, 2, and 3.

▶ If the lawn mower is being carried with the handlebar folded:

▶ Fold down the handlebar.
▶ One person holds the lawn mower by transport handle (1) using both hands and another person holds handle (3) using both hands.
▶ The lawn mower must be lifted and carried by two people.

Transporting the lawn mower in a vehicle

- Secure the lawn mower upright so it does not tip over and cannot move.

14 Storing

14.1 Storing the Lawn Mower

• Stop the engine and allow it to cool down.
  ▶ Detach the spark plug socket.

• Store the lawn mower in accordance with the following conditions:

• The lawn mower is out of reach of children.

• The lawn mower is clean and dry.
• The lawn mower cannot tip over.
• The lawn mower cannot roll away.

If the lawn mower is to be stored for more than three months:

▶ Run the fuel tank empty.
▶ Have the fuel tank cleaned by a STIHL specialist dealer.
▶ Change the engine oil as described in the engine instruction manual.
▶ Unscrew the spark plug.

WARNING

■ Sparks may escape if the starter handle is pulled out while the spark plug socket is detached. Sparks may cause fires and explosions in highly flammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

- Keep the spark plug socket away from the spark plug opening.

▶ Pull out and return the starter handle a number of times.
▶ Screw in the spark plug and tighten firmly.

15 Cleaning

15.1 Upending the Lawn Mower

▶ Run the fuel tank empty.

The engine stops.

• Place the lawn mower on a level surface.
  ▶ Detach the grass catcher box.
  ▶ Set the cutting height to the highest setting, 11.2.
  ▶ Move the handlebar to the lowest position, 8.2.

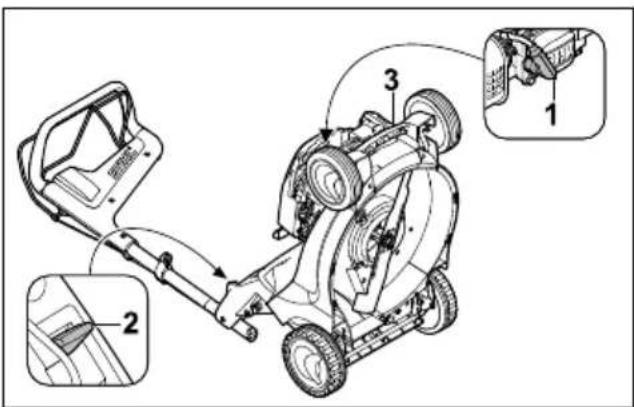

Technical diagram of a lawn mower with labeled parts and exploded views

▶ Detach spark plug socket (1).
- Press lever (2) downwards with the left hand and hold.
- Hold the lawn mower at transport handle (3) with the right hand and upend.

15.2 Cleaning the Lawn Mower

▶ Stop the engine.
- Allow the lawn mower to cool down.
▶ Detach the spark plug socket.
▶ Clean the lawn mower with a damp cloth.
▶ Clean the ventilation slots with a paintbrush.
▶ Upend the lawn mower.
▶ Clean the area around the blade and the blade with a stick, a soft brush or a damp cloth.

16 Maintenance

16.1 Maintenance Intervals

Maintenance intervals are dependent on the ambient conditions and the working conditions. STIHL recommends the following maintenance intervals:

Engine

- Maintain the engine as described in the engine instruction manual.

Lawn mower

▶ Have the lawn mower inspected annually by a STIHL specialist dealer.

16.2 Removing and Attaching the Blade

16.2.1 Removing the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.

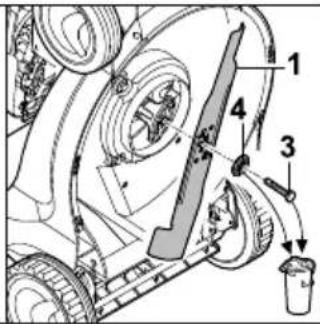

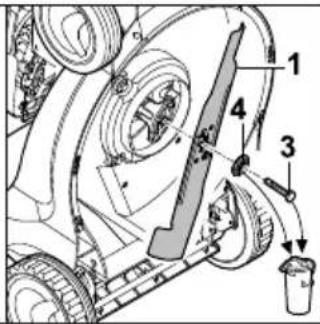

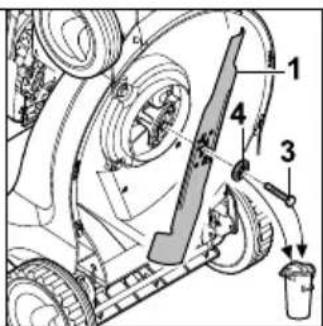

Technical diagram of a mechanical device with numbered components and labeled parts

▶ Block blade (1) using a piece of wood (2).
▶ Unscrew bolt (3) and remove together with washer (4).
▶ Remove blade (1).
▶ Discard bolt (3) and washer (4).
Use a new bolt and washer to attach blade (1).

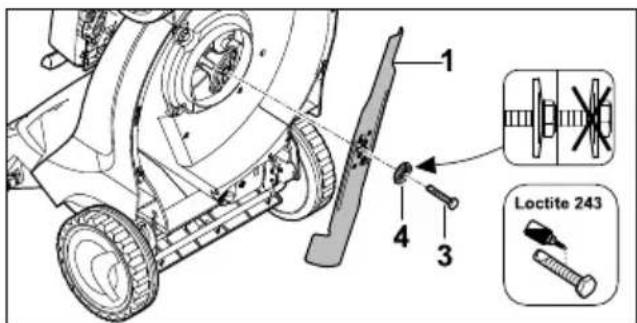

16.2.2 Attaching the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.

1 4 3 Loctite 243

• Place new washer (4) on new bolt (3).
• Apply Loctite 243 thread locker to the thread of bolt (3).

▶ Position blade (1) so the raised areas on the contact area engage in the notches in blade (1).
▶ Screw in bolt (3) together with washer (4).

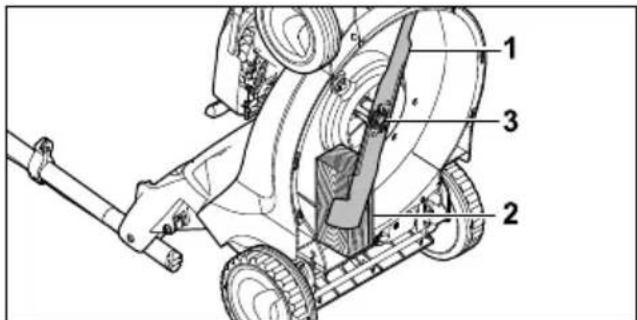

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

▶ Block blade (1) using a piece of wood (2).
▶ Tighten bolt (3) to 65 Nm.

16.3 Sharpening and Balancing the Blade

Sharpening and balancing the blade correctly requires a lot of practice.

STIHL recommends having the blade sharpened and balanced by a STIHL specialist dealer.

WARNING

■ The cutting edges of the blade are sharp. This may result in the user cutting themselves.
▶ Wear work gloves made from resistant material.

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.
▶ Remove the blade.
▶ Sharpen the blade. Observe the sharpening angle and cool the blade, 19.2.
Bluing of the blade during sharpening is not permitted.
▶ Attach the blade.
▶ If anything is unclear: consult a STIHL specialist dealer.

17 Repairing

17.1 Repairing the Lawn Mower

The user should not repair the lawn mower or blade themselves.

▶ If the lawn mower or blade is damaged: do not use the lawn mower or blade and consult a STIHL specialist dealer.
▶ If warning signs are illegible or damaged: have the warning signs replaced by a STIHL specialist dealer.

18 Troubleshooting

18.1 Remedying Lawn Mower Faults

Fault Cause Remedy
Engine cannot be started.	Control bar for mowing is not pressed.	► Start engine as described in this instruction manual.
Fuel tank is empty. ► Refuel lawn mower.
		Fuel line is blocked. ► Consult a STIHL specialist dealer.
		Inferior, dirty or old fuel in the tank.
		Air filter is dirty. ► Consult a STIHL specialist dealer.
		Spark plug socket is detached from spark plug or ignition lead is not properly fastened to socket.
		Spark plug is dirty, damaged or electrode gap is incorrect.
		Resistance at the blade is too great.
Engine difficult to start or engine power deteriorating.	Lawn mower housing is blocked.	Clean lawn mower.
	Cutting height is set too low or rate of feed is too high.	Adapt cutting height or mow more slowly.
	Water in fuel tank and carburettor or carburettor is blocked.	Empty fuel tank, clean fuel line and carburettor.
	Fuel tank is contaminated. Consult a STIHL specialist dealer.
	Air filter is dirty. Consult a STIHL specialist dealer.
	Spark plug is dirty. Clean or replace spark plug.
	Engine oil level is too low. Add or change engine oil as described in the engine instruction manual.
	Cooling ribs are dirty. Clean lawn mower.
Lawn mower vibrates excessively.	Blade is damaged. Replace blade.
	Blade is not correctly attached. Attach blade.
Grass is not being cut cleanly.	Blade is blunt or worn. Sharpen or replace blade.

19 Specifications

19.1 STIHL RM 448.1 TC, RM 448.1 PC Lawn Mower

Engine type:

- RM 448.1 TC: STIHL EVC 200 C

- RM 448.1 PC: STIHL EVC 300

Displacement:

- RM 448.1 TC: 139~cm^3

- RM 448.1 PC: 166~cm^3

Power:

- RM 448.1 TC: 2.1 kW (2.8 hp) at 2800 rpm

- RM 448.1 PC: 2.6 kW (3.5 hp) at 2800 rpm

Speed:

- RM 448.1 TC: 2800 rpm

- RM 448.1 PC: 2800 rpm

Maximum fuel tank capacity:

- RM 448.1 TC: 900~cm^3 (0.9 l)

- RM 448.1 PC: 900~cm^3 (0.9 l)

Weight:

- RM 448.1 TC: 28 kg

- RM 448.1 PC: 29 kg

Maximum grass catcher box capacity:

- RM 448.1 TC: 55 I

- RM 448.1 PC: 55 I

English 20 Spare Parts and Accessories

Cutting width:

- RM 448.1 TC: 46 cm

- RM 448.1 PC: 46 cm

19.2 Blade

– Minimum thickness a: 2.0 mm

– Minimum width b: 39 mm

– Sharpening angle c: 30^

19.3 Sound Values and Vibration Values

RM 448.1 TC

The K value for the sound pressure levels is 2 dB(A). The K value for the sound power levels is 1.0 dB(A). The K value for the vibration values is 1.90 m/s ^4 .

• Sound pressure level L_pA measured in accordance with EN ISO 5395-2: 82 dB(A)
• Guaranteed sound power level L_WAd measured in accordance with 2000/14/EC / S.I. 2001/1701: 95 dB(A)
• Vibration value a_hv measured in accordance with EN 12096, EN 20643, EN ISO 5395-2, handlebar: 3.80 m/s ^2

RM 448.1 PC

The K value for the sound pressure level is 2 dB(A). The K value for the sound power level is 1.1 dB(A). The K value for the vibration value is 2.20 m/s ^4 .

• Sound pressure level L_pA measured in accordance with EN ISO 5395-2: 83 dB(A)
• Guaranteed sound power level L_WAd measured in accordance with 2000/14/EC/S.I.2001/1701:96 dB(A)
• Vibration value a_hv measured in accordance with EN 12096, EN 20643, EN ISO 5395-2, handlebar: 4.40 m/s ^2

For information on compliance with Employers' Vibration Directive 2002/44/EC and S.I. 2005/1093, see www.stihl.com/vib.

19.4 REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

20 Spare Parts and Accessories

20.1 Spare parts and accessories

STIHL These symbols indicate original STIHL spare parts and original STIHL accessories.

STIHL recommends the use of original STIHL spare parts and accessories.

Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.

Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

20.2 Essential Spare Parts

• Blade: 6358 702 0100
• Blade fastening screw: 9008 319 9028
• Washer: 0000 702 6600

21 Disposal

21.1 Disposing of the Lawn Mower

Information on disposal is available from your local authority or from a STIHL dealer.

Improper disposal may be harmful to health and pollute the environment.

▶ Take STIHL products including packaging to a suitable collection point for recycling in accordance with local regulations.
- Do not dispose of the product with domestic waste.

22 EC Declaration of Conformity

22.1 STIHL RM 448.1 TC, RM 448.1 PC Lawn Mower

STIHL Tirol GmbH

Hans Peter Stihl-Strasse 5

6336 Langkampfen

Austria

declares under our sole responsibility that
- design: lawn mower
- manufacturer's brand: STIHL
- type: RM 448.1 TC, RM 448.1 PC
– cutting width: 46 cm
– serial number: 6358

complies with the relevant provisions of Directives 2000/14/EC, 2006/42/EC, 2014/30/EU and 2011/65/EU and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN ISO 5395-1, EN ISO 5395-2 and EN ISO 14982.

Notified body involved:

TÜV Rheinland LGA Products GmbH

Tillystrasse 2

90431 Nuremberg, Germany

The measured and guaranteed sound power levels were determined in accordance with Directive 2000/14/EC, Appendix VIII.

Measured sound power level:

- RM 448.1 TC: 94.4 dB(A)

- RM 448.1 PC: 95.3 dB(A)

Guaranteed sound power level:

- RM 448.1 TC: 95 dB(A)

- RM 448.1 PC: 96 dB(A)

The technical documents are stored at STIHL Tirol GmbH.

The year of manufacture and machine number are indicated on the lawn mower.

Langkampfen, 29.06.2021

STIHL Tirol GmbH

p.p. M. Thicla

Matthias Fleischer, Head of Research and Development Division

p.p. finnermann pm

Sven Zimmermann, Head of Quality Division

23 UKCA Declaration of Conformity

23.1 STIHL RM 448.1 TC Lawn Mower

STIHL Tirol GmbH

Hans Peter Stihl-Strasse 5

6336 Langkampfen

Austria

declares under our sole responsibility that

- design: lawn mower

- manufacturer's brand: STIHL

- type: RM 448.1 TC

– cutting width: 46 cm

- serial number: 6358

complies with the relevant provisions of the UK regulations Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Supply of Machinery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN ISO 5395-1, EN ISO 5395-2 and EN ISO 14982.

Approved body involved:

TUV Rheinland UK Ltd

1011 Stratford Road

Solihull, B90 4BN

The measured and guaranteed sound power levels were determined in accordance with the UK regulation Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Schedule 11.

– Measured sound power level: 94.4 dB(A)

– Guaranteed sound power level: 95 dB(A)

The technical documents are stored at STIHL Tirol GmbH.

The year of manufacture and machine number are indicated on the lawn mower.

Langkampfen, 02.11.2021

STIHL Tirol GmbH

p.p. M. Thicla

Matthias Fleischer, Head of Research and Development Division

p.p.

Sven Zimmermann, Head of Quality Division

Table des matières

1 Préface....38

2.1 Documents applicables

▶ Faire attention aux obstacles.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset view showing a component with numbered parts.

Technical diagram of a vehicle chassis with numbered components and directional arrows indicating assembly or movement.

Diagram of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered components and close-up view of the motor's side view.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset view showing a cable or connector assembly.

Technical diagram showing a mechanical clamp or bracket with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of the component's internal structure.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including a detailed inset view of a component.

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with numbered parts and a close-up view of the first component.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Diagram illustrating a manual tool with labeled parts 2, 5, and 6, showing a downward force or impact on a textured surface.

Diagram showing two figures interacting with a mechanical device, labeled with parts 1 and 2.

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with three people handling a cart.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled components 1, 2, 3, and numbered parts for identification.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (1 and 2), showing internal components and a hand holding part (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's front compartment.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts 1, 5, 6, and 7, showing a cable or connector assembly.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram showing a mechanical device with labeled parts and an inset view of the component being inserted.

Technical diagram showing mechanical assembly with labeled parts a, b, c and an inset view of a component detail

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

Technical diagram showing a person using a handheld device with labeled parts 1 and 2

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with numbered parts, including a close-up view of the first component.

Diagram illustrating a mechanical or structural component with labeled parts 3 and 4, showing directional arrows and layered structure.

Diagram showing a tool labeled 5 and 6 operating on a surface with a downward arrow indicating direction or force.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a physics or mechanics concept.

Diagram showing two different manual lawn equipment arrangements: one with a lawn mower and the other with a cart being handled.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with numbered components, likely illustrating a robotic or mechanical assembly.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Diagram illustrating a medical or laboratory procedure with labeled components and directional arrows indicating flow or movement.

• Utisnite čahuru (1) u provrte na upravljaču (2).
  ▶ Tanjuraste opruge (3) nataknite na čahuru (1) tako da je ispupčenje okrenuto prema unutra.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

▶ Umetnite upravljač (2) u upravljačku konzolu (4).
▶ Gurnite vijak (5) kroz provrte upravljačke konzole (4) i gurnite čahuru u upravljač (2).
▶ Umetnite maticu (6) u utor na upravljačkoj konzoli (4).
▶ Čvrsto stegnite vijak (5).

9 8 7 10

▶ Utisnite užad (7 i 8) u držače (9).
▶ Objesite užad (7 i 8) u vodilicu užeta (10).

10 12 11 2

• Izvucite utikač svjećice.
• Pritisnite dršku za pokretanje košnje (11) prema upravljaču (2) i držite je pritisnutom.
  ▶ Ručicu za pokretanje (12) lagano povucite u smjeru vodilice užeta (10).
• Ručicu za pokretanje (12) objesite u vodilicu užeta (10).
  ▶ Otpustite dršku za pokretanje košnje (11).
  ▶ Ponovno nataknite utikač svjećice.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

▶ Postavite gornji dio košare za travu (1) na donji dio košare za travu (2). Otvori (3 i 4) moraju se poklapati.
▶ Pritisnite svornjake (5) iznutra kroz otvore (3 i 4).

Diagram of a mechanical device with labeled parts (1), showing internal components and a hand holding part (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's rear door structure.

• Otvorite i držite zaklopku za izbacivanje (1).
  ▶ Uhvatite košaru za travu (2) za ručicu (3) i objesite je tako da jezičac (4) uđe u kanal za izbacivanje (5), a kuke (6) u prihvate (7).
  ▶ Postavite zaklopku za izbacivanje (1) na košaru za travu (2).

6.2.3 Skidanje košare za travu

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

▶ Podignite upravljač (1).
▶ Pritisnite polugu (2) prema dolje i držite je.
▶ Rasklopite upravljač (1) i pritom pazite da se užad (3 i 4) ne ukliješti.
▶ Pustite polugu (2) i pazite na to da se upravljač (1) ponovno potpuno uklopi.

Upravljač (1) je čvrsto spojen s kosilicom.

Technical diagram of a mechanical device with labeled parts and an inset view showing a cable or connector assembly.

• Pritisnite dršku za pokretanje košnje (5) prema upravljaču (1) i držite je pritisnutom.
  ▶ Ručicu za pokretanje (6) povucite lagano u smjeru vodilice užeta (7).
  ▶ Ručicu za pokretanje (6) objesite u vodilicu užeta (7).
  ▶ Otpustite dršku za pokretanje košnje (5).
  ▶ Ponovno priključite utikač svjećice.

8.2 Namještanje upravljača

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

• Čvrsto držite upravljač (1).
  ▶ Pritisnite polugu (2) prema dolje i držite je.
  ▶ Upravljač (1) postavite u željeni položaj.
  ▶ Pustite polugu (2) i pazite na to da se upravljač ponovno potpuno uklopi.

8.3 Sklapanje upravljača

Upravljač se može sklopiti radi uštede prostora prilikom transporta i skladištenja.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with arrows indicating direction.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including an inset view of a 3D mechanical part.

▶ lzmjerite sljedeće:
- debljinu a
- širinu b
- kut oštrjenja c
▶ Ako je debljina ili širina noža manja od minimalne debljine/širine: zamijenite nož, 19.2.
▶ Ako kut oštenja nije u skladu s propisanim: naoštrite nož, 19.2.
▶ U slučaju nejasnoća: obratite se ovlaštenom trgovcu tvrtke STIHL.

11 Rad kosilicom

Line drawing of a person using a walking push truck (no text or symbols)

- Čvrsto držite upravljač objema rukama tako da ga palčevi obuhvaćaju.

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

• Čvrsto držite kosilicu za ručicu (1).
  ▶ Pritisnite i držite polugu (2).
• Podizanjem i spuštanjem postavite kosilicu u željeni položaj.
  Trenutačno odabrana visina reza može se očitati na pokazivaču visine reza (3) s pomoću oznake (4).
  ▶ Otpustite polugu (2).
  Kosilica se uklapa.

11.3 Uključivanje i isključivanje voz- nog pogona

11.3.1 Uključivanje voznog pogona

▶ Postavite kosilicu na ravnu površinu.
▶ Pokrenite motor.

1 2

▶ Potpuno povucite dršku za pokretanje voznog pogona (1) u smjeru upravljača (2) i držite je tako da palac obuhvaća upravljač. Kosilica se počinje kretati.

11.3.2 Isključivanje voznog pogona

Line drawing of a person using a lawn mower on a slope (no text or symbols)

• Ako se radi uz uključen vozni pogon: kontrolirano vozite kosilicu prema naprijed.
  ▶ Ako se radi uz isključen vozni pogon: polako i kontrolirano gurajte kosilicu prema naprijed.

11.5 Pražnjenje košare za travu

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up view of the first component.

Zračna struja koju proizvodi nož podiže pokazivač razine napunjenosti (1). Kad je košara za

Technical diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating motion.

▶ Otvorite zaporni jezičac (3).
- Otklopite gornji dio košare za travu (4) na ručici (5) i držite ga.
▶ Drugom rukom čvrsto držite donju dršku (6).
▶ Ispraznite košaru za travu (2).
▶ Sklopite košaru za travu (2).
▶ Objesite košaru za travu (2).

12 Nakon rada

12.1 Nakon rada

▶ Isključite motor.
- Ako je kosilica mokra: pričekajte da se kosilica osuši.
▶ Očistite kosilicu.

13 Transport

13.1 Transport kosilice

Diagram showing two figures interacting with a vehicle, labeled parts 1 and 2, likely illustrating a mechanical or robotic system.

• Ako se kosilica nosi s otklopljenim upravljačem:
• Jedna osoba treba objema rukama pridržavati kosilicu za transportnu dršku (1), a druga osoba objema rukama za upravljač (2).
  ▶ Kosilicu treba udvoje podići i nositi.

Diagram showing two different manual lawn mowing methods: one with a tool and the other with a cart being handled.

Technical diagram of a lawn mower with labeled parts and exploded view

• Izvucite utikač svjećice (1).
• Lijevom rukom pritisnite polugu (2) prema dolje i držite.
• Desnom rukom čvrsto držite kosilicu za transportnu ručku (3) i nagnite je unatrag.

15.2 Čišćenje kosilice

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

▶ Blokirajte nož (1) komadom drva (2).
- Odvrnite vijak (3) i skinite ga zajedno s podloškom (4).
▶ Skinite nož (1).
▶ Vijak (3) i podlošku (4) odložite u otpad. Za montažu noža (1) upotrijebite novi vijak i podlošku.

16.2.2 Montaža noža

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

▶ Blokirajte nož (1) komadom drva (2).
▶ Vijak (3) zategnite s momentom pritezanja od 65 Nm.

16.3 Oštrenje i uravnotežavanje noža

Diagram illustrating a mechanical or biological assembly with labeled components 1, 2, 3, and numbered parts.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical linkage or cable assembly with numbered components labeled 7, 8, and 9.

Technical diagram of a vehicle door panel with numbered components and directional arrows indicating assembly or movement.

Illustration of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's rear door structure.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset showing a cable or connector assembly.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a component with arrows indicating motion or assembly.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed 3D view of a curved component.

Line drawing of a person using a handheld device (no text or symbols)

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical assembly steps with labeled components 1 and 2, including a close-up of the first step.

Technical diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating motion or movement.

Diagram showing two figures interacting with a vehicle, labeled parts 1 and 2, likely illustrating a mechanical or robotic system.

Diagram showing two different manual lawn mowing methods: one with a tool and the other with a cart being handled.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with labeled parts 1 and 2, showing components like rollers, gears, and a lever mechanism.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 11.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and close-up view of the front view

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with parts numbered 1, 5, and 6.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with arrows indicating motion.

Technical diagram showing mechanical assembly with labeled components and dimension annotations (a, b, c)

Line drawing of a person using a hand tool to lift a cart (no text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing part details with numbers 1, 2, 3, and 4.

Technical diagram showing a person using a handheld device with labeled parts 1 and 2

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with numbered parts, likely illustrating a turning or assembly process.

Technical diagram illustrating a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Diagram showing two figures pulling a cart with labeled parts, likely illustrating a mechanical or robotic system.

Diagram showing two different manual lawn mowing methods: one with a moving lawn, the other with a cart being loaded.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating components

Diagram of a mechanical device with labeled parts (1 and 2), showing internal components without any text or symbols.

Technical diagram of a lawn mower with numbered parts and close-up view of the frame

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered parts and an inset view showing a component labeled 6, 7, and 5.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up view of the component.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including a detailed inset view of a component.

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

Technical diagram showing a person using a device labeled with parts 1 and 2, likely for assembly or maintenance instructions.

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Technical diagram showing two mechanical components with numbered parts, including a close-up view of a tool and a close-up view of a device.

Diagram showing a mechanical or structural component with labeled parts 3 and 4, including an arrow indicating direction.

Diagram showing a tool labeled 5 and 6 operating on a pile of material, with arrows indicating direction or force.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic system.

Diagram illustrating a lawn mower with labeled parts and two human figures handling equipment, showing motion and assembly steps.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a lawn mower with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

• Tryk bøsningen (1) ind i boringerne på styrehåndtaget (2).
  ▶ Sæt tallerkenfjedrene (3) på bøsningen (1) med den buede side indad.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset view showing a component with numbered parts 10, 11, and 12.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts, showing a hand pressing a component (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's front compartment.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered components and an inset view showing a clamp or connector assembly.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a medical device with labeled parts and an inset showing a mechanical component with arrows indicating motion.

Technical diagram of a mechanical assembly with labeled parts and an inset showing dimensional annotations (a, b, c)

▶ Mål nedenstående:

Line drawing of a person using a hand tool to lift a device (no text or symbols)

- 25 mm = Position 1

- 30 mm = Position 2

- 40 mm = Position 3

- 50 mm = Position 4

- 60 mm = Position 5

- 75 mm = Position 6

Technical diagram of a lawn mower with labeled parts and an inset showing part details with dimensions.

Technical diagram showing a person using a device labeled with parts 1 and 2, likely for safety or industrial testing.

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating motion or force.

Diagram showing a hand operating a tool labeled with parts 2, 5, and 6, with part 2 being inserted into a pile of material.

Diagram showing two figures pulling a cart with labeled parts, likely illustrating a mechanical or robotic motion scenario.

Diagram showing two different manual lawn equipment arrangements: one with a cart rolling down, the other with a cart pulling a motor.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical device with numbered components, likely illustrating a robotic or mechanical assembly.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

▶ Før styret (2) inn i styrekonsollen (4).
- Skyv skruen (5) gjennom hullet i styrekonsollen (4) og skyv hylsen inn i styret (2).
- Sett mutteren (6) inn i utsparingen i styrekonsollen (4).
▶ Stram skruen (5) godt.

9 8 7 10

Technical diagram of a mechanical device with labeled parts and an inset view showing a component with numbered parts.

Technical diagram of a vehicle intake component with numbered parts and directional arrows indicating assembly or movement.

Diagram of a mechanical device with labeled parts (1), showing internal components and a hand holding part (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's front compartment.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with labeled parts and an inset view showing a cable or connector assembly.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a component with arrows indicating motion or assembly.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed inset view of a component.

Line drawing of a person using a hand tool to lift a device (no text or symbols visible)

Technical diagram of a vehicle's engine components with numbered parts and an inset showing part details.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

▶ Hvis det jobbes med aktivert fremdrift: Kjør gressklipperen kontrollert forover.
Hvis det jobbes med utkoblet fremdrift: Skyv gressklipperen sakte og kontrollert forover.

Technical diagram showing two mechanical components with numbered parts, likely illustrating a turning or assembly process.

Diagram showing a mechanical or structural component with labeled parts 3 and 4, including directional arrows indicating movement.

Diagram showing a hand operating a tool labeled with parts 2, 5, and 6, with a downward arrow indicating direction or force.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic operation.

Diagram showing two different manual lawn equipment arrangements: one with a cart rolling down, the other with a cart pulling a box labeled 1 and 3.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with numbered components and labeled parts

▶ Blokker kniven (1) med en trekloss (2).
- Skru ut skruen (3) og ta den av sammen med skiven (4).
▶ Ta av kniven (1).
Kast skruen (3) og skiven (4). Bruk en ny skrue og skive når du monterer kniven (1) igjen.

16.2.2 Montere kniven

Technical diagram of a lawn mower with numbered components labeled 1, 2, and 3

▶ Blokker kniven (1) med en trekloss (2).

Technical diagram showing a mechanical assembly with labeled parts 1, 2, 3 and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle intake component with numbered parts and directional arrows indicating assembly or movement.

Diagram of a mechanical device with labeled parts, showing a handle and base (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's rear door assembly.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset view showing a cable or connector assembly.

Technical diagram of a mechanical device with labeled parts and an inset showing a cable or cable assembly.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed cross-section view.

Line drawing of a person using a portable electronic device labeled 'STRAW' (no other text or symbols)

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details

Technical diagram showing a person using a device labeled with parts 1 and 2, likely for assembly or maintenance instructions.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with numbered parts and a close-up view of the first component.

Diagram illustrating a mechanical or structural process with labeled components and directional arrows indicating movement or force.

Diagram illustrating a manual tool with labeled parts and directional arrow indicating process flow

Diagram showing two figures interacting with a mechanical device labeled 1 and 2, likely illustrating a mechanical or robotic system.

Diagram of a lawn mower with labeled parts and motion arrows indicating movement

1 2 3

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts 1, 2, 3, and numbered components.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (1), showing a hand interacting with the component (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's rear door assembly.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset view showing a component with parts 1, 5, and 6.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a handheld device with labeled parts and an inset showing a cable or connector assembly.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including an inset view of a component detail.

Line drawing of a person using a portable device labeled 'SETTAR' (no other text or symbols)

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up inset of the first component.

Diagram illustrating a mechanical or structural component with labeled parts 3 and 4, showing directional arrows and a magnified inset.

Diagram of a manual tool with labeled parts and directional arrow indicating process flow

Diagram showing two figures interacting with a vehicle, labeled parts 1 and 2, likely illustrating a mechanical or automotive assembly.

Diagram of a lawn mower with labeled parts 1 and 2, showing motion direction arrows

1 2 3

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and a close-up view of a component.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle intake compartment with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts, showing a hand holding a tool and a base component (no text or symbols present)

Technical diagram of a lawn mower with numbered components and close-up view of the vehicle's side door.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset showing a cable assembly detail.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram showing a mechanical device with labeled parts and an inset view of the component being inserted.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including an inset view of a 3D model.

Line drawing of a person using a hand tool to lift a device (no text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing part details with numbers 1, 2, 3, and 4.

Technical diagram showing a person using a handheld device with labeled parts 1 and 2

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up inset of the first component.

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating motion or force.

Diagram showing a hand operating a tool labeled with parts 2, 5, and 6, with a downward arrow indicating direction or force.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic motion scenario.

Diagram illustrating a lawn mower with labeled parts and two human figures handling equipment, showing motion and assembly steps.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical assembly with numbered components, likely illustrating a robotic or mechanical system.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts 1, 2, 3, and numbered components.

• Puzdro (1) zatlačte do otvorov na vodiacom držadle (2).
• Tanierové pružiny (3) nasuňte na puzdro (1), pričom prehnutie musí smerovat' dovnútra.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

▶ Vodiace držadlo (2) zasuňte do konzoly vodia-ceho držadla (4).
▶ Skrutku (5) prestrčte cez otvory v konzole vodiaceho držadla (4) a cez puzdro vo vodia-com držadle (2).
▶ Vložte maticu (6) do výrezu v konzole vodia-ceho držadla (4).
▶ Dotiahnite skrutku (5).

9 8 7 10

▶ Lanká (7 a 8) zatlačte do držiakov (9).
▶ Lanká (7 a 8) zaveste do držiaka lanka (10).

Technical diagram of a medical device with labeled parts and an inset view showing mechanical components.

▶ Stiahnite koncovku zapaľovacej sviečky.
- Spínaciu konzolu pohonu kosačky (11) stlačte smerom k vodiacemu držadlu (2) a podržte ju stlačenú.
▶ Pomaly vyt'ahujte rukovät' štartéra (12) smerom k držiaku lanka (10).
▶ Rukovät' štartéra (12) zaveste do držiaka lanka (10).
▶ Pustite spínaciu konzolu pohonu kosačky (11).
▶ Nasad'te koncovku zapaľovacej sviečky spät'.
Vodiace držadlo sa nemusí znovu demontovat'.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's front compartment.

• Otvorte a podržte vyhadzovaciu klapku (1).
  Zberný kôš na trávu (2) uchopte za rukovát' (3), pomocou výstupku (4) ho zaveste do vyhadzovacieho kanála (5) a prostredníctvom háčikov (6) ho zaveste do držiakov (7).
• Vyhadzovaciu klapku (1) odložte na zberný kôš na trávu (2).

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

▶ Nadvihnite vodiace držadlo (1).
▶ Páku (2) zatlačte nadol a podržte ju.
- Vyklopte vodiace držadlo (1) a dbajte na to, aby sa pritom lanká (3 a 4) nezasekli.
▶ Uvoľnite páku (2) a dbajte na to, aby sa vodiace držadlo (1) úplne zaistilo. Vodiace držadlo (1) je pevne spojené s kosačkou na trávu.

Technical diagram of a mechanical device with numbered components and an inset view showing a cable or connector assembly.

• Spínaciu konzolu pohonu kosačky (5) stlačte smerom k vodiacemu držadlu (1) a podržte ju stlačenú.
• Pomaly vyt'ahujte rukovät' štartéra (6) smerom k držiaku lanka (7).
  ▶ Rukovät' štartéra (6) zaveste do držiaka lanka (7).
  ▶ Pustite spínaciu konzolu pohonu kosačky (5).
  ▶ Pripojte koncovku zapalovacej sviečky spät'.

8.2 Nastavenie vodiaceho držadla

▶ Zastavte motor.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

▶ Podržte vodiace držadlo (1).
▶ Páku (2) zatlačte nadol a podržte ju.
▶ Vodiace držadlo (1) nastavte do požadovanej polohy.
▶ Uvoľnite páku (2) a dbajte na to, aby vodiace držadlo opät' úplne zapadlo.

8.3 Sklopenie vodiaceho držadla

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of the component's internal structure.

• Spínaciu konzolu pohonu motora (1) stlačte ľavou rukou smerom k vodiacemu držadlu (2) a podržte ju stlačenú.
• Pravou rukou pomaly vyt'ahujte rukovät' štar-téra (3), kým nepocítite zretelný odpor.

Technical diagram showing mechanical assembly with labeled parts (a, b, c) and a magnified inset of a component detail.

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

▶ Vodiace držadlo podržte obidvomi rukami tak, aby palec obopínal vodiace držadlo.

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

• Pokiaš sa pracuje so zapnutým pohonom kolies: Kosačku na trávu kontrolovane posúvajte dopredu.
• Pokiaš sa pracuje s vypnutým pohonom kolies: Kosačku na trávu posúvajte dopredu pomaly a kontrolovane.

Technical diagram showing two mechanical components with numbered parts and a close-up view of the first component.

Diagram showing a mechanical or structural component with labeled parts 3 and 4, including directional arrows indicating movement.

Diagram illustrating a manual tool with labeled parts 2, 5, and 6, showing a downward force on a pile of material.

Diagram showing two figures pulling a vehicle with labeled parts, likely illustrating a mechanical or robotic system.

Diagram showing two different arrangements of a lawn mower, labeled with parts 1, 2, and 3, illustrating the use of motion.

Technical diagram of a lawn mower with labeled parts and exploded view

▶ Odpojte koncovku zapaľovacej sviečky (1).
- Ľavou rukou zatlačte páku (2) smerom nadol a podržte ju.
- Pravou rukou podržte kosačku na trávu na prepravnej rukoväti (3) a postavte ju dozadu.

15.2 Čistenie kosačky na trávu

▶ Zastavenie motora.
▶ Nechajte kosačku na trávu vychladnút.
▶ Stiahnite koncovku zapalovacej sviečky.
Kosačku na trávu vyčistite vlhkou utierkou.
▶ Vetracie otvory vyčistite pomocou štetca.
▶ Nainštalujte kosačku na trávu.
▶ Oblast' okolo rezného noža a rezný nôž vyčistite kúskom dreva, mäkkou kefkou alebo vlhkou utierkou.

16 Údržba

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered components labeled 1, 2, and 3

▶ Rezný nôž (1) zablokujte pomocou dreva (2).
▶ Skrutku (3) dotiahnite momentom 65 Nm.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

▶ Druk de huls (1) in de boringen van de duwstang (2).

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

▶ Leid de duwstang (2) in de duwstangconsole (4).

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating components

Diagram of a mechanical device with labeled parts (1 and 2), showing internal components without any text or symbols.

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's front compartment.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with labeled parts and an inset view showing a component with numbered parts 1, 5, and 6.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with arrows indicating direction.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed 3D view of a curved component.

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing part details with dimensions.

Technical diagram showing a person using a handheld device with labeled parts 1 and 2

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical assembly steps with labeled parts 1 and 2, including a close-up of the first step.

Technical diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating motion.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic system.

Diagram showing two scenarios of a lawn mower: one with motion arrows and the other with hands, labeled with parts 1, 2, and 3.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical device with labeled parts 1 and 2, showing components like gears and levers.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Emission in the Environment by Equipment for use Outdoors Regulations 2001, Schedule 11.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical linkage or cable assembly with numbered components labeled 7, 8, and 9.

Technical diagram of a mechanical device with labeled parts and an inset view showing a component with numbered parts 10, 11, and 2.

Technical diagram of a vehicle chassis with numbered components and directional arrows indicating assembly or movement.

Diagram of a mechanical device with labeled parts (1 and 2), showing internal components and a hand holding part (no text or symbols beyond labels)

Technical diagram of a lawn mower with numbered parts and exploded view

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered components and an inset view showing a clamp mechanism.

Technical diagram showing a mechanical device with labeled parts and an inset view of the component being inserted.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed 3D view of a curved component.

Line drawing of a person using a hand tool to lift a cart (no text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing part details with numbers 1, 2, 3, and 4.

Technical diagram showing a person using a handheld device with labeled parts 1 and 2

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Technical diagram showing two mechanical components with numbered parts, including a close-up view of the first component.

Diagram showing a mechanical or structural component with labeled parts 3 and 4, including directional arrows and a magnified inset.

Diagram illustrating a manual tool with labeled parts and directional arrow indicating process flow

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic operation.

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with three people pulling a cart.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical assembly with numbered components, likely illustrating a robotic or robotic mechanism.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (1), showing a hand interacting with the component (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's front compartment.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a medical device with labeled parts and an inset view showing a mechanical assembly.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a component with arrows indicating motion or assembly.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including an inset view of a component detail.

▶ lzmēriet:

Line drawing of a person using a handheld device labeled 'SYMBOL' (no other text or symbols)

Technical diagram of a vehicle's front wheel assembly with numbered parts and an inset showing part details.

Technical diagram showing a person using a tool to adjust or install a device, labeled with parts 1 and 2.

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up inset of the first component.

Diagram illustrating a mechanical or structural component with labeled parts 3 and 4, showing directional arrows and a magnified inset.

Diagram showing a hand operating a tool labeled with parts 2, 5, and 6, with a downward arrow indicating force or movement.

Diagram showing two figures pulling a cart with labeled parts, likely illustrating a mechanical or robotic system.

Diagram of a grass lawn mower with labeled parts 1 and 2, showing motion direction arrows.

1 2 3

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

▶ Blokējiet nazi (1) ar koka detaļu (2).
▶ Pievelciet skrūvi (3) ar 65 Nm griezes momentu.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle intake compartment with numbered parts and directional arrows indicating assembly or repair.

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a medical device with labeled parts and an inset showing a mechanical component with numbered parts 1, 5, and 6.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a medical device with labeled parts and an inset showing a mechanical assembly with arrows indicating direction.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including a detailed inset view of a component detail.

Line drawing of a person using a portable device labeled 'STICKEL' (no other text or symbols)

Technical diagram of a lawn mower with numbered parts and an inset showing part details for cleaning or repair.

Technical diagram showing a person using a tool to adjust or install a device, labeled with parts 1 and 2.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up inset of the first component.

Technical diagram illustrating a mechanical process with numbered steps and directional arrows indicating movement or assembly.

Diagram showing two figures interacting with a vehicle, labeled parts 1 and 2, likely illustrating a mechanical or robotic system.

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with three people pulling a cart.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical linkage or cable assembly with numbered components labeled 7, 8, and 9.

Technical diagram of a vehicle intake compartment with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (1), showing internal components and a hand holding part (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and close-up view of the front view

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a mechanical device with numbered components and an inset view showing a cable or connector assembly.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of the component's assembly.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including an inset view of a 3D model.

Line drawing of a person using a hand tool on a device (no text or symbols)

Technical diagram of a vehicle's engine components with numbered parts and an inset showing part details.

Technical diagram of a sewing machine with labeled parts 1 and 2

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Diagram showing a mechanical or structural component with labeled parts 3 and 4, including an arrow indicating direction.

Diagram of a spray gun with labeled parts 2, 5, and 6, showing a downward force on a pile of sand.

Diagram showing two people pulling a vehicle with labeled parts, likely illustrating a mechanical or robotic system.

Diagram showing two different arrangements of a lawn mower, labeled with parts 1, 2, and 3, illustrating mechanical motion.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a lawn mower with numbered components and labeled parts

Technical diagram showing a mechanical assembly with labeled parts and a close-up view of a component.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (1), showing internal components and a hand holding part (no text or symbols present)

Technical diagram of a lawn mower with numbered components and close-up view of the front view

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered parts and an inset view showing a component labeled 6, 7, and 5.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a handheld device with labeled parts and an inset showing a cable or connector assembly.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed inset view of a component detail.

Line drawing of a person using a power tool (no text or symbols)

Technical diagram of a vehicle's steering wheel assembly with numbered parts and an inset showing part details.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up view of the first component.

Diagram showing a mechanical or structural component with labeled parts 3 and 4, including directional arrows indicating movement.

2 5 6

Diagram showing two figures pulling a vehicle with labeled parts, likely illustrating a mechanical or robotic system.

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with three people handling a cart.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a car interior showing hand placement and labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered components and close-up view of the motor assembly

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a medical device with labeled parts and an inset showing a cable or connector assembly.

Technical diagram showing a mechanical clamp or bracket with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a medical device with labeled parts and an inset showing a mechanical component with arrows indicating direction.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including a detailed inset view of a component.

Line drawing of a person using a handheld device (no text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing part details with numbers 1, 2, 3, and 4.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical assembly steps with labeled parts 1 and 2, including a close-up of detail views.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Diagram showing a hand operating a bucket labeled with parts 2, 5, and 6, with part 2 being inserted into a pile of material.

Diagram showing two people pulling a vehicle with labeled parts, likely illustrating a mechanical or automotive assembly.

Diagram of a grass lawn mower with labeled parts 1 and 2, showing motion direction

1 2 3

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts 1, 2, 3 and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts and an inset view showing a cable or connector assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating components

Diagram of a mechanical device with labeled parts (1 and 2), showing internal components without any text or symbols.

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's front compartment.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered components and an inset view showing a cable or clamp assembly.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a handheld device with labeled parts and directional arrows indicating movement or assembly.

Mechanical assembly diagram showing a wheel, gear, and linkage mechanism (no text or labels)

b c a

Line drawing of a person using a handheld device (no text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing component details

Technical diagram showing a person using a device labeled with parts 1 and 2, likely for safety or diagnostic purposes.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up view of the first component.

Technical diagram illustrating a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Diagram showing two figures pulling a cart with labeled parts, likely illustrating a mechanical or robotic operation.

Diagram showing two different manual lawn equipment arrangements: one with a lawn mower and the other with a cart being handled.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical device with labeled parts 1 and 2, showing components like rollers, gears, and a lever mechanism.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

▶ Blokeerige tera (1) puitklotsiga (2).
▶ Keerake polt (3) 65 Nm jõumomendiga kinni.

16.3 Tera teritamine ja tasakaalustamine

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (1), showing internal components and a hand holding part (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's rear door structure.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered parts and an inset view showing a component labeled 6, 7, and 5.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or force.

Technical diagram showing a mechanical device with labeled parts and an inset view of the component being inserted.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including a detailed inset view of a component.

Line drawing of a person using a portable device labeled 'STRAWL' (no other text or symbols)

Technical diagram of a vehicle's engine components with numbered parts and an inset showing part details.

Line drawing of a person using a lawn mower on a grassy slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up view of the first component.

Technical diagram illustrating a garment construction process with numbered steps and directional arrows indicating movement.

Diagram showing two figures interacting with a vehicle, labeled parts 1 and 2, likely illustrating a mechanical or robotic system.

Diagram showing two different manual lawn equipment arrangements: one with a lawn mower and the other with a cart being handled.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

▶ Užblokuokite peilj (1) medžio gabalu (2).
- Priveržkite varžta (3) 65 Nm priveržimo momentu.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical device with labeled parts and an inset view showing a clamp mechanism.

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered components and close-up view of the front view

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with numbered components and an inset view showing a clamp mechanism.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a cable or connector assembly.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including a detailed inset view of a component detail.

Line drawing of a person using a lever device labeled 'STEEL' (no other text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing part details with dimensions.

Technical diagram showing a person using a device labeled with parts 1 and 2, likely for assembly or maintenance instructions.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical assembly steps with labeled parts 1 and 2, including a close-up of the first step.

Technical diagram illustrating a mechanical process with numbered steps and directional arrows indicating movement or assembly.

Diagram showing two figures interacting with a vehicle, labeled parts 1 and 2, likely illustrating a mechanical or robotic system.

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with three people handling a cart.

Technical diagram of a lawn mower with labeled parts and exploded views

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle intake compartment with numbered parts and directional arrows indicating movement or assembly.

Diagram of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and exploded view of the frame

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts, including a zoomed-in detail and numbered components.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of the component's structure.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including a detailed cross-section view.

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

Technical diagram of a vehicle's internal components with numbered parts and an inset showing part details.

Technical diagram of a mechanical device with labeled parts 1 and 2, showing hands operating the component.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Diagram showing a mechanical or structural component with labeled parts and directional arrows indicating motion or force.

Diagram illustrating a manual tool with labeled parts and directional arrow, likely for machining or handling a tool.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic operation.

Diagram showing two different arrangements of a lawn mower and a person handling a cart, with numbered instructions for each step.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a lawn mower with numbered components labeled 1, 2, and 3

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

• Čauru (1) ubacite u otvore na upravljaču (2).
• Tanjiraste opruge (3) postavite na čauru (1) tako da ispupčenje na njima bude okrenuto ka unutra.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

▶ Upravljač (2) umetnite u konzolu upravljača (4).
▶ Gurnite zavrtanj (5) kroz otvore na konzoli upravljača (4) i kroz čauru na upravljaču (2).
- Postavite navrtku (6) u udubljenje na konzoli upravljača (4).
▶ Pritegnite zavrtanj (5).

9 8 7 10

▶ Utisnite sajle (7 i 8) u držače (9).
▶ Postavite sajle (7 i 8) u vođicu za sajlu (10).

10 12 11 2

Technical diagram of a vehicle door handle assembly with numbered parts and directional arrows indicating movement or assembly.

▶ Postavite gornji deo korpe za travu (1) na donji deo korpe za travu (2).
Otvori (3 i 4) moraju da budu u istoj ravni.
▶ Gurnite klinove (5) iznutra kroz otvore (3 i 4).

Diagram of a mechanical device with labeled parts (no text or symbols present)

- Pritisnite gornji deo korpe za travu (1) nadole. Gornji deo korpe za travu (1) čujno naleže u odgovarajući položaj.

6.2.2 Postavljanje korpe za travu

Technical diagram of a lawn mower with numbered parts and an inset view of the vehicle's rear door assembly.

7 Punjenje kosačice Srpski

• Otvorite poklopac za pražnjenje (1) i pridržite ga.
  ▶ Uhvatite korpu za travu (2) za ručku (3), zakačite je ušicom (4) za kanal za izbacivanje trave (5) i kukom (6) za prihvate (7).
  ▶ Postavite poklopac za pražnjenje (1) na korpu za travu (2).

6.2.3 Skidanje korpe za travu

▶ Isključite motor.
▶ Postavite kosačicu na ravnu površinu.
- Otvorite poklopac za pražnjenje i pridržite ga.
- Korpu za travu skinite povlačeći je nagore i držeći je za ručku.
- Zatvorite poklopac za pražnjenje.

Technical diagram of a lawn mower with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical device with labeled parts, including a zoomed-in detail and numbered components.

• Pritisnite dršku za pokretanje košenja (5) ka upravljaču (1) i držite je tako.
• Polako povucite ručku startera (6) u smeru vođice za sajlu (7).
  Zakačite ručku startera (6) za vodicu za sajlu (7).
  ▶ Pustite dršku za pokretanje košenja (5).
  ▶ Ponovo priključite utikač za svećice.

8.2 Podešavanje upravljača

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or movement.

• Čvrsto držite upravljač (1).
• Pritisnite ručicu (2) naniže i zadržite je u tom položaju.
  ▶ Postavite upravljač (1) u željeni položaj.
• Otpustite ručicu (2) i pazite da upravljač ponovo u potpunosti uđe u odgovarajući položaj.

8.3 Sklapanje upravljača

Radi uštede prostora prilikom transporta i skladištenja, upravljač može da se sklopi. - Isključite motor. - Izvucite utikač za svećice. - Postavite kosačicu na ravnu površinu. - Dršku za pokretanje košenja pritisnite prema upravljaču i držite je tako.

• Izvucite ručku startera iz vođice za sajlu i polako je vratite nazad u smeru motora.
  ▶ Pustite dršku za pokretanje košenja.
• Čvrsto držite upravljač i držite polugu pritisnutom.
  ▶ Sklopite upravljač prema napred.

9 Startovanje i gašenje motora

9.1 Pokretanje motora

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of the component's internal structure.

• Levom rukom pritisnite dršku za pokretanje košenja (1) prema upravljaču (2) i držite je tako.
• Desnom rukom polako izvucite ručku startera (3) dok ne osetite otpor.
• Brzo izvlačite i vraćajte ručku startera (3) sve dok se ne pokrene motor.
• Ako se motor na pokreće: Konsultujte uputstvo za upotrebu motora.

Technical diagram showing mechanical assembly with labeled parts a, b, and c, including a detailed inset view of a component.

• Izmerite sledeće:
• debljinu a
• širinu b
• ugao oštrenja c

▶ Ako su minimalna debljina ili minimalna širina noža potkoračene: zamenite nož, 19.2.

- Ako nož nema propisan ugao oštrenja: naoštrite nož, 9.2.

- Ako ste u nedoumici: obratite se ovlašćenom STIHL distributeru.

11 Rad sa kosačicom

11.1 Držanje kosačice i upravljanje njome

Line drawing of a person using a metal tool (no text or symbols)

Technical diagram of a tractor's wheel assembly with numbered parts and an inset showing part details.

• Čvrsto držite kosačicu za ručku (1).
  ▶ Pritisnite polugu (2) i zadržite je tako.
• Podizanjem i spuštanjem postavite kosačicu u željeni položaj.
  Trenutnu visinu košenja možete da očitate na pokazivaču visine košenja (3) pomoću oznake (4).
  ▶ Pustite polugu (2). Kosačica ulazi u odgovarajući položaj.

11.3 Uključivanje i isključivanje voz- nog pogona

11.3.1 Uključivanje voznog pogona

▶ Postavite kosačicu na ravnu površinu.
▶ Pokrenite motor.

Technical diagram showing a person using a tool to adjust or install a device, labeled with parts 1 and 2.

- Dršku za pokretanje voznog pogona (1) povucite potpuno u smeru upravljača (2) i držite tako da palcem obuhvatate upravljač. Kosačica će se pokrenuti.

11.3.2 Isključivanje voznog pogona

Line drawing of a person using a lawn mower on a slope (no text or symbols)

• Ako radite sa uključenim voznim pogonom: Gurajte kosačicu napred držeći je pod kontrolom.
• Ako radite sa isključenim voznim pogonom: Polako gurajte kosačicu napred držeći je pod kontrolom.

11.5 Pražnjenje korpe za travu

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Technical diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating motion or movement.

▶ Otvorite zatvarač (3).
- Otvorite gornji deo korpe za travu (4) pomoću ručke (5) i pridržite ga.
▶ Drugom rukom čvrsto držite transportnu ručku (6).
▶ Ispraznite korpu za travu (2).
▶ Sklopite korpu za travu (2).
▶ Postavite korpu za travu (2).

12 Posle rada

12.1 Posle rada

Diagram showing two figures pulling a cart with labeled parts, likely illustrating a mechanical or robotic system.

14 Čuvanje Srpski

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with hands, labeled with parts 1, 2, and 3.

Technical diagram of a lawn mower with labeled parts and exploded views

• Izvucite utikač za svećice (1).
• Levom rukom gurnite polugu (2) nadole i držite je.
  ▶ Desnom rukom čvrsto uhvatite kosačicu za transportnu ručku (3) i položite je na leđa.

Technical diagram of a mechanical device with numbered components and labeled parts

▶ Nož (1) blokirajte komadom drveta (2).
- Odvrnite zavrtanj (3) i skinite ga zajedno sa podloškom (4).
▶ Skinite nož (1).
- Odložite zavrtanj (3) i podlošku (4). Za montažu noža (1) koristite novi zavrtanj i podlošku.

16.2.2 Montaža noža

Technical diagram of a lawn mower with numbered components labeled 1, 2, and 3

▶ Nož (1) blokirajte komadom drveta (2).
▶ Pritegnite zavrtanj (3) sa 65 Nm.

Technical diagram showing a mechanical assembly with labeled parts 1, 2, 3 and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a vehicle chassis with numbered components and directional arrows indicating assembly or movement.

Diagram of a mechanical device with labeled parts (no text or symbols present)

Technical diagram of a lawn mower with numbered parts and exploded view of the frame

Technical diagram of a lawn mower with numbered parts and directional arrow indicating motion

Technical diagram of a medical device with labeled parts and an inset showing a cable or connector assembly.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with arrows indicating direction.

Technical diagram showing mechanical assembly with labeled components a, b, and c, including an inset view of a 3D model.

Line drawing of a person using a hand tool to lift a vehicle (no text or symbols)

Technical diagram of a lawn mower with labeled parts and an inset showing part details for parts 3 and 4.

Technical diagram showing a person using a device labeled with parts 1 and 2, likely for assembly or maintenance instructions.

Line drawing of a person using a lawn mower on a slope (no text or symbols)

Technical diagram showing two mechanical components with labeled parts 1 and 2, including a close-up inset of the first component.

Technical diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating motion.

Diagram showing two people pulling a cart with labeled parts, likely illustrating a mechanical or robotic operation.

Diagram showing two different arrangements of a lawn mower: one with motion arrows and the other with three people handling a cart.

Technical diagram of a lawn mower with labeled parts and exploded view

Technical diagram of a mechanical device with labeled parts 1 and 2, showing components like gears, springs, and levers.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a lawn mower with numbered parts labeled 1, 2, and 3

Abstract black-and-white striped pattern with no text or symbols

0478-111-9952-B
